4-60 — REAR SUSPENSION (#74762) — 23 parça

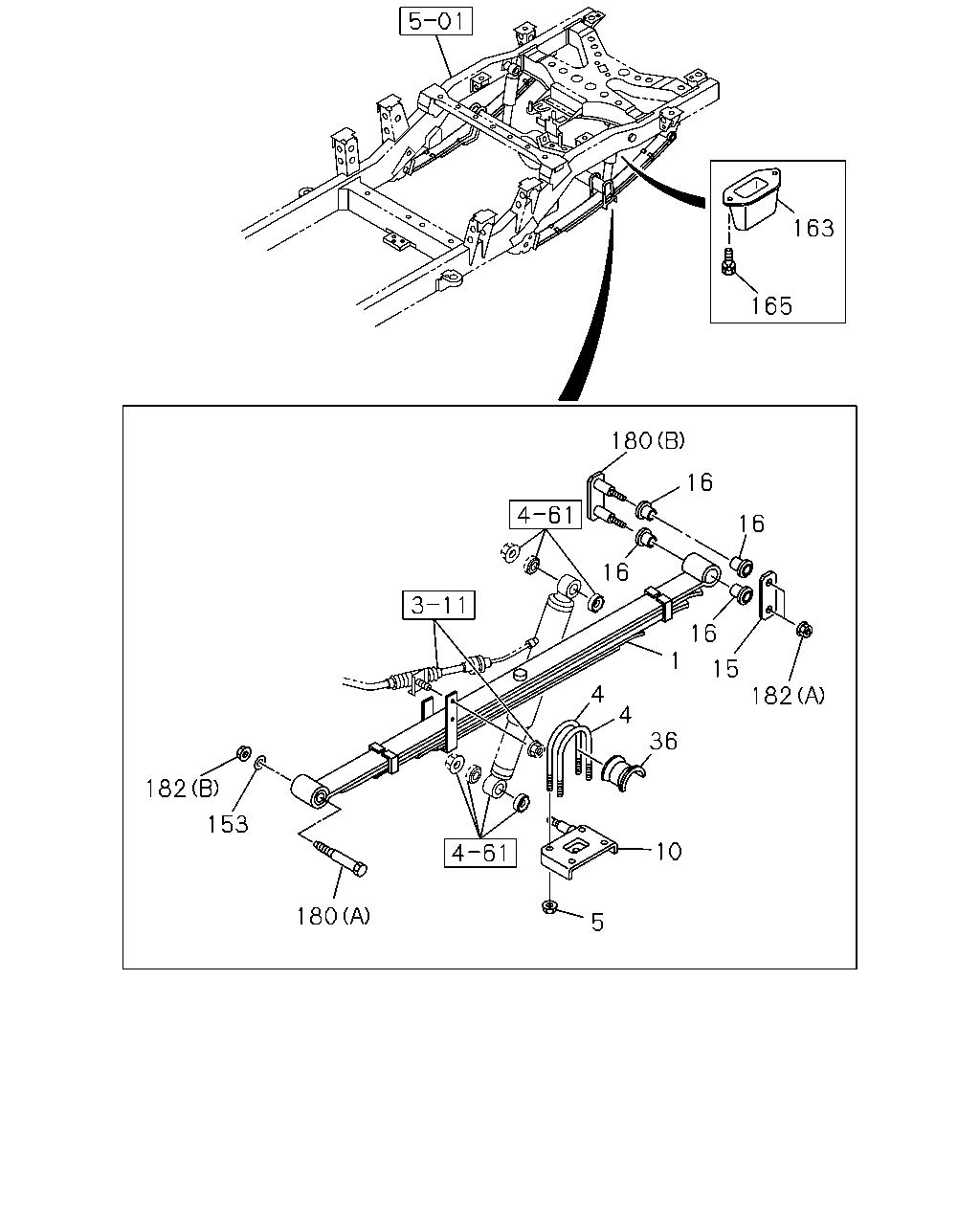

çizim 185777
163 165 180 16 16 16 16 1 15 4 182 4 36 182 153 10 180 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 		8-97946-816-0 02 1 0805- ● ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50) 		8-97946-816-0 02 1 0805- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-97946-818-0 02 1 0805- ● ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) 		8-97946-818-0 02 1 0805- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-810-0 02 1 0805- ● ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50), HIGH RIDE SUSPENSION(7YC) 		8-97946-809-0 02 1 0805- ● ● ● ● ●
4 07.516 U-BOLT; RR SPR
REAR SPRING HEAVY DUTY(G50) L=187 		8-97248-621-1 04 1 0805- ● ● ● ● ● ● ● ●
4 07.516 U-BOLT; RR SPR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97248-620-1 04 1 0805- ● ● ● ● ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
M14 FLANGE 		8-97245-635-0 08 1 0805- ● ● ● ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR 8-97365-393-0 01 1 0805- ● ● ● ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR 8-97365-391-0 01 1 0805- ● ● ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR 8-98005-815-0 02 1 0805- ● ● ● ● ● ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-97357-492-0 08 1 0805- ● ● ● ● ● ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR 8-98005-878-0 02 1 0805- ● ● ● ● ● ● ● ●
153 07.529 WASHER; PL,SPRING PIN
ID=14.5 OD=30 		8-98005-921-0 02 1 0805- ● ● ● ● ● ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-97235-925-1 02 1 0805- ● ● ● ● ●
163 07.529 RUBBER; HELPER,RR SPR 8-97235-925-1 02 1 0805- ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97235-926-0 02 1 0805- ● ● ● ● ●
165 07.529 BOLT; HELPER RUBBER
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0805- ● ● ● ● ● ● ● ●
180 07.529 PIN; RR SPR
(A) M14X106 		8-97245-647-0 02 1 0805- ● ● ● ● ● ● ● ●
180 07.529 PIN; RR SPR
(B) 		8-98005-814-0 02 1 0805- ● ● ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(A) M14 FLANGE 		0-91180-114-0 04 1 0805- ● ● ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(B) M14 FLANGE 		8-97245-651-0 02 1 0805- ● ● ● ● ● ● ● ●
