◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#74761) — 397 parça

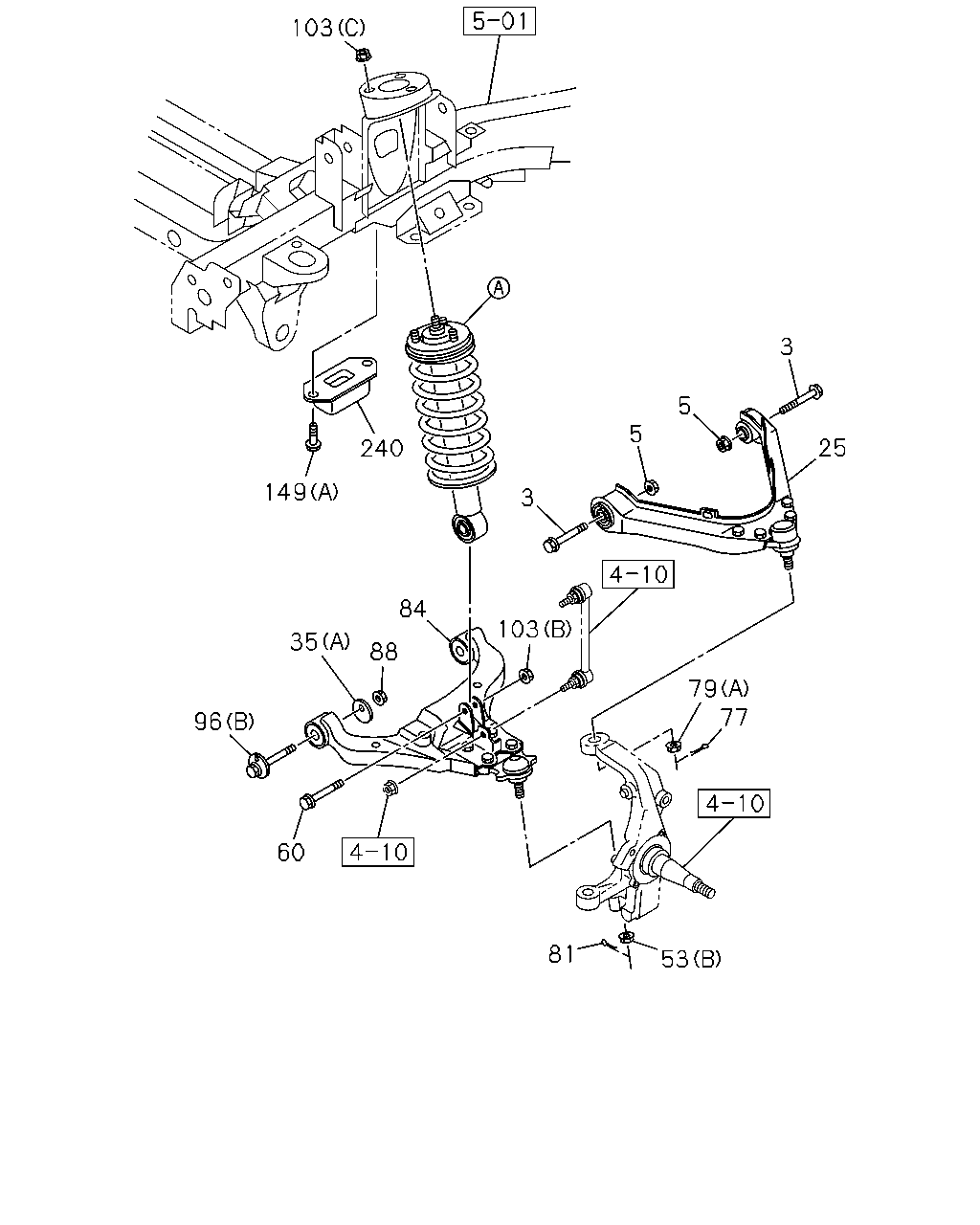

çizim 124147
103 3 5 5 25 240 149 3 84 103 35 88 79 77 96 60 81 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 06.164 BOLT; UPR LINK TO FRAME
HIGH RIDE SUSPENSION(7YC) 		8-97245-628-0 04 1 0805- ● ● ● ● ●
3 06.164 BOLT; UPR LINK TO FRAME 8-97245-628-0 04 1 0805- ● ● ●
3 06.164 BOLT; UPR LINK TO FRAME
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97214-816-0 04 1 0805- ● ● ● ● ●
5 06.164 NUT; UPR LINK TO FRAME
HIGH RIDE SUSPENSION(7YC) 		8-97245-629-0 02 1 0805- ● ● ● ● ●
5 06.164 NUT; UPR LINK TO FRAME 8-97245-629-0 02 1 0805- ● ● ●
5 06.164 NUT; UPR LINK TO FRAME
EXC. HIGH RIDE SUSPENSION(7YC) 07.529 M14 FLANGE 		8-97245-635-0 04 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-839-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT 8-98005-839-0 01 1 0805- ● ● ●
25 06.168 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-838-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT 8-98005-838-0 01 1 0805- ● ● ●
25 06.168 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-837-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-836-0 01 1 0805- ● ● ● ● ●
35 06.170 PLATE; BUSHING SUPPORT
HIGH RIDE SUSPENSION(7YC) 06.164 (B) 		8-97214-721-0 02 1 0805- ● ● ● ● ●
35 06.170 PLATE; BUSHING SUPPORT
06.164 (B) 		8-97214-721-0 02 1 0805- ● ● ●
35 06.170 PLATE; BUSHING SUPPORT
EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (A) 		8-97214-814-0 04 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) (C) M18 SLOTTED 		0-91116-518-0 02 1 0805-1308 ● ● ● ● ●
53 06.174 NUT; LWR LINK
(C) M18 SLOTTED 		0-91116-518-0 02 1 0805-1308 ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 07.529 (C) M18 		0-91110-518-0 02 1 1309- ● ● ● ● ●
53 06.174 NUT; LWR LINK
07.529 (C) M18 		0-91110-518-0 02 1 1309- ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 05.816 (D) M12 FLANGE 		0-91180-212-0 12 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
05.816 (D) M12 FLANGE 		0-91180-212-0 12 1 0805- ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) (E) M18 FLANGE 		8-97245-634-0 02 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
(E) M18 FLANGE 		8-97245-634-0 02 1 0805- ● ● ●
53 06.174 NUT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE 		0-91180-212-0 08 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) M18 SLOTTED 		8-97245-632-0 02 1 0805- ● ● ● ● ●
60 07.347 BOLT; S/ABS TO LWR LINK
HIGH RIDE SUSPENSION(7YC) M12X60 FLANGE 		0-29261-260-0 02 1 0805- ● ● ● ● ●
60 07.347 BOLT; S/ABS TO LWR LINK
M12X60 FLANGE 		0-29261-260-0 02 1 0805- ● ● ●
60 07.347 BOLT; S/ABS TO LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) M14X69 FLANGE 		8-97245-641-0 02 1 0805- ● ● ● ● ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		0-81123-028-0 02 1 0805- ● ● ● ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
HIGH RIDE SUSPENSION(7YC) 07.347 (C) M10 FLANGE 		8-97245-637-0 06 1 0805- ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.347 (C) M10 FLANGE 		8-97245-637-0 06 1 0805- ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE 		0-91180-208-0 08 1 0805- ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED 		8-97245-624-0 02 1 0805-1212 ● ● ● ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.833 (A) M14 		0-91110-514-0 02 1 1301- ● ● ● ● ● ● ● ●
81 06.174 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 		0-81123-028-0 02 1 0805- ● ● ● ● ● ● ● ●
84 06.168 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-835-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT 8-98005-835-0 01 1 0805- ● ● ●
84 06.168 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-834-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT 8-98005-834-0 01 1 0805- ● ● ●
84 06.168 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-833-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-832-0 01 1 0805- ● ● ● ● ●
88 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) M16 FLANGE 		8-97245-631-0 02 1 0805- ● ● ● ● ●
88 06.174 NUT; LWR LINK
M16 FLANGE 		8-97245-631-0 02 1 0805- ● ● ●
88 06.174 NUT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) M16 FLANGE 		8-97245-631-0 04 1 0805- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 06.164 (A) M16X95.4 		8-97214-719-0 02 1 0805- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
06.164 (A) M16X95.4 		8-97214-719-0 02 1 0805- ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (B) 		8-97214-813-0 04 1 0805-1007 ● ● ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-369-0 04 1 1008-1305 ● ● ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) M16X102 W/PLATE 		8-98186-404-0 04 1 1306- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
(C) M12X37 FLANGE 		8-97245-639-0 08 1 0805- ● ● ● ● ● ● ● ●
103 07.347 NUT; S/ABS TO LWR LINK
HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE 		0-91180-212-0 02 1 0805- ● ● ● ● ●
103 07.347 NUT; S/ABS TO LWR LINK
05.816 (A) M12 FLANGE 		0-91180-212-0 02 1 0805- ● ● ●
103 07.347 NUT; S/ABS TO LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 07.529 (B) M14 FLANGE 		8-97245-635-0 02 1 0805- ● ● ● ● ●
103 07.347 NUT; S/ABS TO LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (C) M10 FLANGE 		8-97245-637-0 06 1 0805- ● ● ● ● ●
149 06.172 BOLT; ARM TO LWR CONT ARM
HIGH RIDE SUSPENSION(7YC) 06.174 (B) 		8-97235-908-0 02 1 0805- ● ● ● ● ●
149 06.172 BOLT; ARM TO LWR CONT ARM
06.174 (B) 		8-97235-908-0 02 1 0805- ● ● ●
149 06.172 BOLT; ARM TO LWR CONT ARM
00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 0805- ● ● ● ● ● ● ● ●
240 07.395 BUMPER; LWR CONT ARM
HIGH RIDE SUSPENSION(7YC) 		8-97234-967-0 01 1 0805- ● ● ● ● ●
240 07.395 BUMPER; LWR CONT ARM 8-97234-967-0 01 1 0805- ● ● ●
240 07.395 BUMPER; LWR CONT ARM
HIGH RIDE SUSPENSION(7YC) 		8-97234-966-0 01 1 0805- ● ● ● ● ●
240 07.395 BUMPER; LWR CONT ARM 8-97234-966-0 01 1 0805- ● ● ●
240 07.395 BUMPER; LWR CONT ARM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97215-052-0 02 1 0805- ● ● ● ● ●

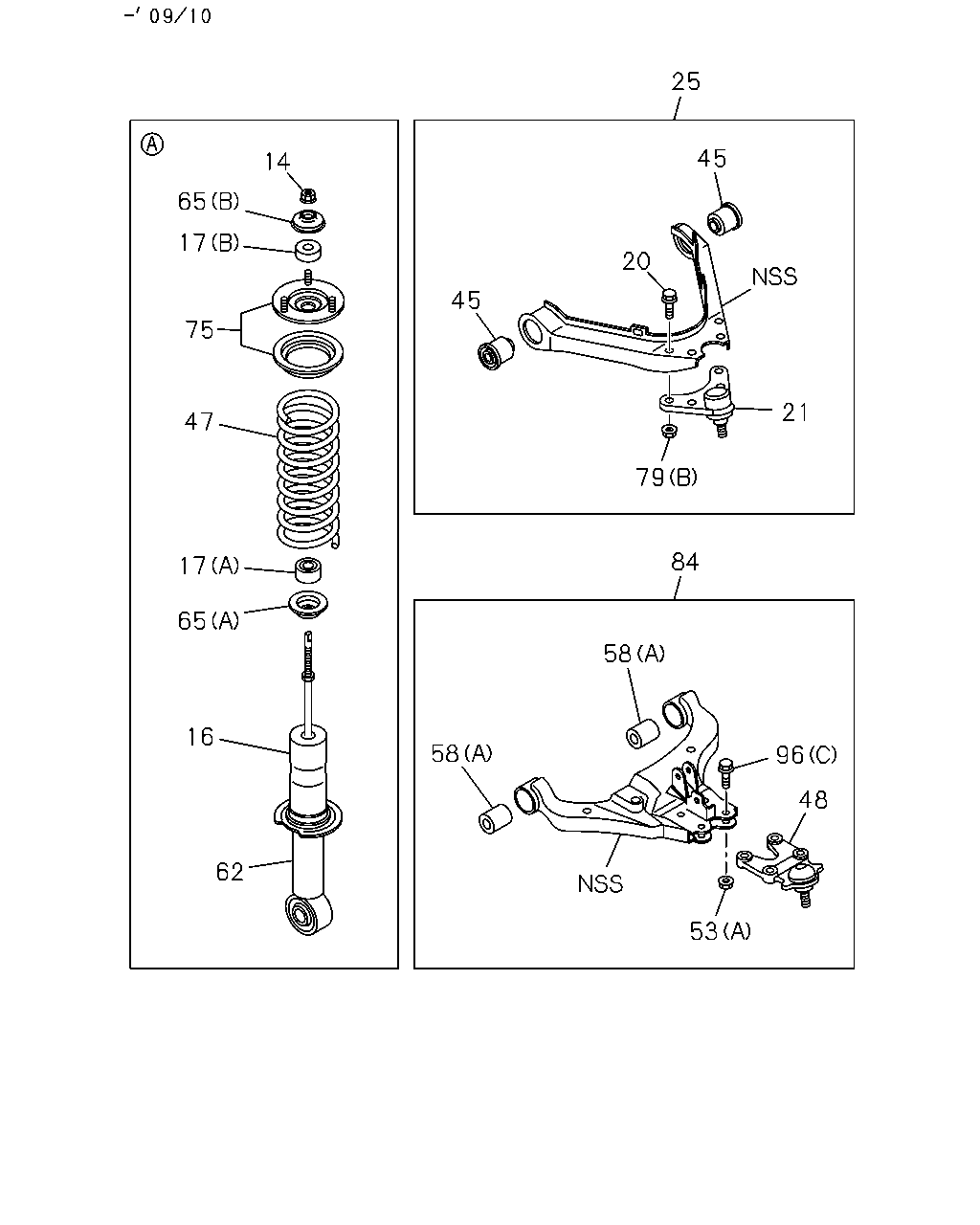

çizim 124287
25 45 14 65 17 20 45 75 21 47 79 84 17 65 58 16 58 96 48 62 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 07.389 NUT; S/ABS,UPR
HIGH RIDE SUSPENSION(7YC) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0805- ● ● ● ● ●
14 07.389 NUT; S/ABS,UPR
03.162 M10 FLANGE 		0-91180-110-0 02 1 0805- ● ● ●
14 07.389 NUT; S/ABS,UPR
EXC. HIGH RIDE SUSPENSION(7YC) M12 FLANGE 		8-97236-304-0 02 1 0805-1003 ● ● ● ● ●
14 07.389 NUT; S/ABS,UPR
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) M12 FLANGE 		8-97236-304-0 02 1 1004- ● ● ● ● ●
16 07.395 COVER; DUST,FRT S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-566-0 02 1 0805-1003 ● ● ● ● ●
16 07.395 COVER; DUST,FRT S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-566-0 02 1 1004- ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
HIGH RIDE SUSPENSION(7YC) (C) 		8-97120-138-0 04 1 0805- ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
(C) 		8-97120-138-0 04 1 0805- ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97236-303-0 02 1 0805-1003 ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97236-303-0 02 1 1004- ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97264-184-0 02 1 0805-1003 ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97264-184-0 02 1 1004- ● ● ● ● ●
20 06.174 BOLT; UPR LINK END TO UPR LINK
HIGH RIDE SUSPENSION(7YC) 		8-97245-636-0 06 1 0805- ● ● ● ● ●
20 06.174 BOLT; UPR LINK END TO UPR LINK 8-97245-636-0 06 1 0805- ● ● ●
20 06.174 BOLT; UPR LINK END TO UPR LINK
EXC. HIGH RIDE SUSPENSION(7YC) M8X25 FLANGE 		0-28060-825-0 08 1 0805- ● ● ● ● ●
21 06.168 JOINT ASM; BALL,UPR CONT ARM
HIGH RIDE SUSPENSION(7YC) 		8-98005-826-0 02 1 0805- ● ● ● ● ●
21 06.168 JOINT ASM; BALL,UPR CONT ARM 8-98005-826-0 02 1 0805- ● ● ●
21 06.168 JOINT ASM; BALL,UPR CONT ARM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-827-0 02 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-839-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT 8-98005-839-0 01 1 0805- ● ● ●
25 06.168 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-838-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT 8-98005-838-0 01 1 0805- ● ● ●
25 06.168 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-837-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-836-0 01 1 0805- ● ● ● ● ●
45 06.164 BUSHING; UPR LINK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97364-175-0 04 1 0805- ● ● ● ● ●
45 06.164 BUSHING; UPR LINK,FRT 8-97364-175-0 04 1 0805- ● ● ●
45 06.164 BUSHING; UPR LINK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97364-173-0 04 1 0805- ● ● ● ● ●
47 07.412 SPRING; COIL,FRT SUSP
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-800-0 02 1 0805-1003 ● ●
47 07.412 SPRING; COIL,FRT SUSP
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97245-069-0 02 1 0805- ● ● ● ● ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM
HIGH RIDE SUSPENSION(7YC) 		8-98005-875-0 02 1 0805- ● ● ● ● ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM 8-98005-875-0 02 1 0805- ● ● ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-874-0 02 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) (C) M18 SLOTTED 		0-91116-518-0 02 1 0805-1308 ● ● ● ● ●
53 06.174 NUT; LWR LINK
(C) M18 SLOTTED 		0-91116-518-0 02 1 0805-1308 ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 07.529 (C) M18 		0-91110-518-0 02 1 1309- ● ● ● ● ●
53 06.174 NUT; LWR LINK
07.529 (C) M18 		0-91110-518-0 02 1 1309- ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 05.816 (D) M12 FLANGE 		0-91180-212-0 12 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
05.816 (D) M12 FLANGE 		0-91180-212-0 12 1 0805- ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) (E) M18 FLANGE 		8-97245-634-0 02 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
(E) M18 FLANGE 		8-97245-634-0 02 1 0805- ● ● ●
53 06.174 NUT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE 		0-91180-212-0 08 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) M18 SLOTTED 		8-97245-632-0 02 1 0805- ● ● ● ● ●
58 06.170 BUSHING; LWR LINK
HIGH RIDE SUSPENSION(7YC) (B) 		8-97364-176-0 02 1 0805- ● ● ● ● ●
58 06.170 BUSHING; LWR LINK
(B) 		8-97364-176-0 02 1 0805- ● ● ●
58 06.170 BUSHING; LWR LINK
HIGH RIDE SUSPENSION(7YC) (C) 		8-97364-177-0 02 1 0805- ● ● ● ● ●
58 06.170 BUSHING; LWR LINK
(C) 		8-97364-177-0 02 1 0805- ● ● ●
58 06.170 BUSHING; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97364-174-0 04 1 0805- ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97946-661-0 02 1 0805-0910 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98152-215-0 02 1 0911- ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-678-0 02 1 0805-0910 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98152-164-0 02 1 0911-1003 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98152-164-0 02 1 1004- ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97946-663-0 02 1 0805-0910 ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98152-216-0 02 1 0911- ● ● ●
65 07.347 WASHER; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-892-0 02 1 0911-1003 ● ● ● ● ●
65 07.347 WASHER; S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-892-0 02 1 1004- ● ● ● ● ●
65 07.347 WASHER; S/ABS
HIGH RIDE SUSPENSION(7YC) (C) 		8-98005-973-0 04 1 0805- ● ● ● ● ●
65 07.347 WASHER; S/ABS
(C) 		8-98005-973-0 04 1 0805- ● ● ●
65 07.347 WASHER; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98005-971-0 02 1 0805-1003 ● ● ● ● ●
65 07.347 WASHER; S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98005-971-0 02 1 1004- ● ● ● ● ●
65 07.347 WASHER; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98005-972-0 02 1 0805-1003 ● ● ● ● ●
65 07.347 WASHER; S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98005-972-0 02 1 1004- ● ● ● ● ●
75 07.380 BRACKET; FRT S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-829-0 02 1 0805-1003 ● ● ● ● ●
75 07.380 BRACKET; FRT S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-829-0 02 1 1004- ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
HIGH RIDE SUSPENSION(7YC) 07.347 (C) M10 FLANGE 		8-97245-637-0 06 1 0805- ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.347 (C) M10 FLANGE 		8-97245-637-0 06 1 0805- ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE 		0-91180-208-0 08 1 0805- ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED 		8-97245-624-0 02 1 0805-1212 ● ● ● ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.833 (A) M14 		0-91110-514-0 02 1 1301- ● ● ● ● ● ● ● ●
84 06.168 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-835-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT 8-98005-835-0 01 1 0805- ● ● ●
84 06.168 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-834-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT 8-98005-834-0 01 1 0805- ● ● ●
84 06.168 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-833-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-832-0 01 1 0805- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 06.164 (A) M16X95.4 		8-97214-719-0 02 1 0805- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
06.164 (A) M16X95.4 		8-97214-719-0 02 1 0805- ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (B) 		8-97214-813-0 04 1 0805-1007 ● ● ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-369-0 04 1 1008-1305 ● ● ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) M16X102 W/PLATE 		8-98186-404-0 04 1 1306- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
(C) M12X37 FLANGE 		8-97245-639-0 08 1 0805- ● ● ● ● ● ● ● ●
çizim 124850
14 65 17 75 47 17 65 65 16 62 58 45 25 20 45 21 79 84 58 53 96 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 07.389 NUT; S/ABS,UPR
HIGH RIDE SUSPENSION(7YC) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0805- ● ● ● ● ●
14 07.389 NUT; S/ABS,UPR
03.162 M10 FLANGE 		0-91180-110-0 02 1 0805- ● ● ●
14 07.389 NUT; S/ABS,UPR
EXC. HIGH RIDE SUSPENSION(7YC) M12 FLANGE 		8-97236-304-0 02 1 0805-1003 ● ● ● ● ●
14 07.389 NUT; S/ABS,UPR
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) M12 FLANGE 		8-97236-304-0 02 1 1004- ● ● ● ● ●
16 07.395 COVER; DUST,FRT S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-566-0 02 1 0805-1003 ● ● ● ● ●
16 07.395 COVER; DUST,FRT S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-566-0 02 1 1004- ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
HIGH RIDE SUSPENSION(7YC) (C) 		8-97120-138-0 04 1 0805- ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
(C) 		8-97120-138-0 04 1 0805- ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97236-303-0 02 1 0805-1003 ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97236-303-0 02 1 1004- ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97264-184-0 02 1 0805-1003 ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97264-184-0 02 1 1004- ● ● ● ● ●
20 06.174 BOLT; UPR LINK END TO UPR LINK
HIGH RIDE SUSPENSION(7YC) 		8-97245-636-0 06 1 0805- ● ● ● ● ●
20 06.174 BOLT; UPR LINK END TO UPR LINK 8-97245-636-0 06 1 0805- ● ● ●
20 06.174 BOLT; UPR LINK END TO UPR LINK
EXC. HIGH RIDE SUSPENSION(7YC) M8X25 FLANGE 		0-28060-825-0 08 1 0805- ● ● ● ● ●
21 06.168 JOINT ASM; BALL,UPR CONT ARM
HIGH RIDE SUSPENSION(7YC) 		8-98005-826-0 02 1 0805- ● ● ● ● ●
21 06.168 JOINT ASM; BALL,UPR CONT ARM 8-98005-826-0 02 1 0805- ● ● ●
21 06.168 JOINT ASM; BALL,UPR CONT ARM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-827-0 02 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-839-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT 8-98005-839-0 01 1 0805- ● ● ●
25 06.168 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-838-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT 8-98005-838-0 01 1 0805- ● ● ●
25 06.168 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-837-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-836-0 01 1 0805- ● ● ● ● ●
45 06.164 BUSHING; UPR LINK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97364-175-0 04 1 0805- ● ● ● ● ●
45 06.164 BUSHING; UPR LINK,FRT 8-97364-175-0 04 1 0805- ● ● ●
45 06.164 BUSHING; UPR LINK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97364-173-0 04 1 0805- ● ● ● ● ●
47 07.412 SPRING; COIL,FRT SUSP
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-800-0 02 1 0805-1003 ● ●
47 07.412 SPRING; COIL,FRT SUSP
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97245-069-0 02 1 0805- ● ● ● ● ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM
HIGH RIDE SUSPENSION(7YC) 		8-98005-875-0 02 1 0805- ● ● ● ● ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM 8-98005-875-0 02 1 0805- ● ● ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-874-0 02 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) (C) M18 SLOTTED 		0-91116-518-0 02 1 0805-1308 ● ● ● ● ●
53 06.174 NUT; LWR LINK
(C) M18 SLOTTED 		0-91116-518-0 02 1 0805-1308 ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 07.529 (C) M18 		0-91110-518-0 02 1 1309- ● ● ● ● ●
53 06.174 NUT; LWR LINK
07.529 (C) M18 		0-91110-518-0 02 1 1309- ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 05.816 (D) M12 FLANGE 		0-91180-212-0 12 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
05.816 (D) M12 FLANGE 		0-91180-212-0 12 1 0805- ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) (E) M18 FLANGE 		8-97245-634-0 02 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
(E) M18 FLANGE 		8-97245-634-0 02 1 0805- ● ● ●
53 06.174 NUT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE 		0-91180-212-0 08 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) M18 SLOTTED 		8-97245-632-0 02 1 0805- ● ● ● ● ●
58 06.170 BUSHING; LWR LINK
HIGH RIDE SUSPENSION(7YC) (B) 		8-97364-176-0 02 1 0805- ● ● ● ● ●
58 06.170 BUSHING; LWR LINK
(B) 		8-97364-176-0 02 1 0805- ● ● ●
58 06.170 BUSHING; LWR LINK
HIGH RIDE SUSPENSION(7YC) (C) 		8-97364-177-0 02 1 0805- ● ● ● ● ●
58 06.170 BUSHING; LWR LINK
(C) 		8-97364-177-0 02 1 0805- ● ● ●
58 06.170 BUSHING; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97364-174-0 04 1 0805- ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97946-661-0 02 1 0805-0910 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98152-215-0 02 1 0911- ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-678-0 02 1 0805-0910 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98152-164-0 02 1 0911-1003 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98152-164-0 02 1 1004- ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97946-663-0 02 1 0805-0910 ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98152-216-0 02 1 0911- ● ● ●
65 07.347 WASHER; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-892-0 02 1 0911-1003 ● ● ● ● ●
65 07.347 WASHER; S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-892-0 02 1 1004- ● ● ● ● ●
65 07.347 WASHER; S/ABS
HIGH RIDE SUSPENSION(7YC) (C) 		8-98005-973-0 04 1 0805- ● ● ● ● ●
65 07.347 WASHER; S/ABS
(C) 		8-98005-973-0 04 1 0805- ● ● ●
65 07.347 WASHER; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98005-971-0 02 1 0805-1003 ● ● ● ● ●
65 07.347 WASHER; S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98005-971-0 02 1 1004- ● ● ● ● ●
65 07.347 WASHER; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98005-972-0 02 1 0805-1003 ● ● ● ● ●
65 07.347 WASHER; S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98005-972-0 02 1 1004- ● ● ● ● ●
75 07.380 BRACKET; FRT S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-829-0 02 1 0805-1003 ● ● ● ● ●
75 07.380 BRACKET; FRT S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-829-0 02 1 1004- ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
HIGH RIDE SUSPENSION(7YC) 07.347 (C) M10 FLANGE 		8-97245-637-0 06 1 0805- ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.347 (C) M10 FLANGE 		8-97245-637-0 06 1 0805- ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE 		0-91180-208-0 08 1 0805- ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED 		8-97245-624-0 02 1 0805-1212 ● ● ● ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.833 (A) M14 		0-91110-514-0 02 1 1301- ● ● ● ● ● ● ● ●
84 06.168 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-835-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT 8-98005-835-0 01 1 0805- ● ● ●
84 06.168 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-834-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT 8-98005-834-0 01 1 0805- ● ● ●
84 06.168 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-833-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-832-0 01 1 0805- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 06.164 (A) M16X95.4 		8-97214-719-0 02 1 0805- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
06.164 (A) M16X95.4 		8-97214-719-0 02 1 0805- ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (B) 		8-97214-813-0 04 1 0805-1007 ● ● ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-369-0 04 1 1008-1305 ● ● ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) M16X102 W/PLATE 		8-98186-404-0 04 1 1306- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
(C) M12X37 FLANGE 		8-97245-639-0 08 1 0805- ● ● ● ● ● ● ● ●

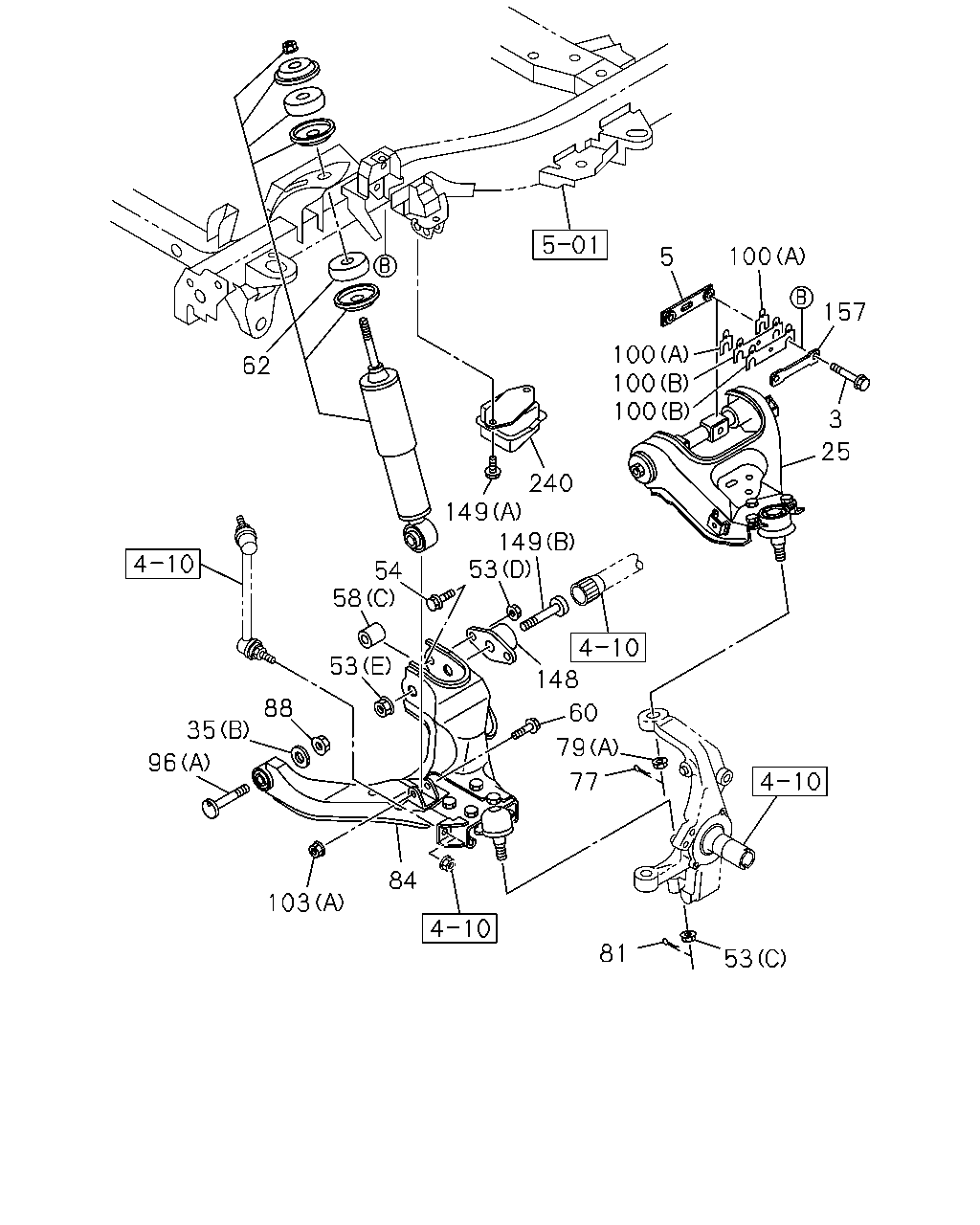

çizim 124975
62 5 157 3 100 25 100 240 100 149 149 53 54 58 88 35 96 53 148 60 79 77 84 103 81 53 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 06.164 BOLT; UPR LINK TO FRAME
HIGH RIDE SUSPENSION(7YC) 		8-97245-628-0 04 1 0805- ● ● ● ● ●
3 06.164 BOLT; UPR LINK TO FRAME 8-97245-628-0 04 1 0805- ● ● ●
3 06.164 BOLT; UPR LINK TO FRAME
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97214-816-0 04 1 0805- ● ● ● ● ●
5 06.164 NUT; UPR LINK TO FRAME
HIGH RIDE SUSPENSION(7YC) 		8-97245-629-0 02 1 0805- ● ● ● ● ●
5 06.164 NUT; UPR LINK TO FRAME 8-97245-629-0 02 1 0805- ● ● ●
5 06.164 NUT; UPR LINK TO FRAME
EXC. HIGH RIDE SUSPENSION(7YC) 07.529 M14 FLANGE 		8-97245-635-0 04 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-839-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT 8-98005-839-0 01 1 0805- ● ● ●
25 06.168 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-838-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT 8-98005-838-0 01 1 0805- ● ● ●
25 06.168 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-837-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-836-0 01 1 0805- ● ● ● ● ●
35 06.170 PLATE; BUSHING SUPPORT
HIGH RIDE SUSPENSION(7YC) 06.164 (B) 		8-97214-721-0 02 1 0805- ● ● ● ● ●
35 06.170 PLATE; BUSHING SUPPORT
06.164 (B) 		8-97214-721-0 02 1 0805- ● ● ●
35 06.170 PLATE; BUSHING SUPPORT
EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (A) 		8-97214-814-0 04 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) (C) M18 SLOTTED 		0-91116-518-0 02 1 0805-1308 ● ● ● ● ●
53 06.174 NUT; LWR LINK
(C) M18 SLOTTED 		0-91116-518-0 02 1 0805-1308 ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 07.529 (C) M18 		0-91110-518-0 02 1 1309- ● ● ● ● ●
53 06.174 NUT; LWR LINK
07.529 (C) M18 		0-91110-518-0 02 1 1309- ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 05.816 (D) M12 FLANGE 		0-91180-212-0 12 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
05.816 (D) M12 FLANGE 		0-91180-212-0 12 1 0805- ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) (E) M18 FLANGE 		8-97245-634-0 02 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
(E) M18 FLANGE 		8-97245-634-0 02 1 0805- ● ● ●
53 06.174 NUT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE 		0-91180-212-0 08 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) M18 SLOTTED 		8-97245-632-0 02 1 0805- ● ● ● ● ●
54 06.174 PIN; FULCRUM,LWR LINK
HIGH RIDE SUSPENSION(7YC) 		8-97245-660-0 04 1 0805- ● ● ● ● ●
54 06.174 PIN; FULCRUM,LWR LINK 8-97245-660-0 04 1 0805- ● ● ●
58 06.170 BUSHING; LWR LINK
HIGH RIDE SUSPENSION(7YC) (B) 		8-97364-176-0 02 1 0805- ● ● ● ● ●
58 06.170 BUSHING; LWR LINK
(B) 		8-97364-176-0 02 1 0805- ● ● ●
58 06.170 BUSHING; LWR LINK
HIGH RIDE SUSPENSION(7YC) (C) 		8-97364-177-0 02 1 0805- ● ● ● ● ●
58 06.170 BUSHING; LWR LINK
(C) 		8-97364-177-0 02 1 0805- ● ● ●
58 06.170 BUSHING; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97364-174-0 04 1 0805- ● ● ● ● ●
60 07.347 BOLT; S/ABS TO LWR LINK
HIGH RIDE SUSPENSION(7YC) M12X60 FLANGE 		0-29261-260-0 02 1 0805- ● ● ● ● ●
60 07.347 BOLT; S/ABS TO LWR LINK
M12X60 FLANGE 		0-29261-260-0 02 1 0805- ● ● ●
60 07.347 BOLT; S/ABS TO LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) M14X69 FLANGE 		8-97245-641-0 02 1 0805- ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97946-661-0 02 1 0805-0910 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98152-215-0 02 1 0911- ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-678-0 02 1 0805-0910 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98152-164-0 02 1 0911-1003 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98152-164-0 02 1 1004- ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97946-663-0 02 1 0805-0910 ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98152-216-0 02 1 0911- ● ● ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		0-81123-028-0 02 1 0805- ● ● ● ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
HIGH RIDE SUSPENSION(7YC) 07.347 (C) M10 FLANGE 		8-97245-637-0 06 1 0805- ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.347 (C) M10 FLANGE 		8-97245-637-0 06 1 0805- ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE 		0-91180-208-0 08 1 0805- ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED 		8-97245-624-0 02 1 0805-1212 ● ● ● ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.833 (A) M14 		0-91110-514-0 02 1 1301- ● ● ● ● ● ● ● ●
81 06.174 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 		0-81123-028-0 02 1 0805- ● ● ● ● ● ● ● ●
84 06.168 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-835-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT 8-98005-835-0 01 1 0805- ● ● ●
84 06.168 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-834-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT 8-98005-834-0 01 1 0805- ● ● ●
84 06.168 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-833-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-832-0 01 1 0805- ● ● ● ● ●
88 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) M16 FLANGE 		8-97245-631-0 02 1 0805- ● ● ● ● ●
88 06.174 NUT; LWR LINK
M16 FLANGE 		8-97245-631-0 02 1 0805- ● ● ●
88 06.174 NUT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) M16 FLANGE 		8-97245-631-0 04 1 0805- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 06.164 (A) M16X95.4 		8-97214-719-0 02 1 0805- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
06.164 (A) M16X95.4 		8-97214-719-0 02 1 0805- ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (B) 		8-97214-813-0 04 1 0805-1007 ● ● ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-369-0 04 1 1008-1305 ● ● ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) M16X102 W/PLATE 		8-98186-404-0 04 1 1306- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
(C) M12X37 FLANGE 		8-97245-639-0 08 1 0805- ● ● ● ● ● ● ● ●
100 06.164 SHIM; UPR LINK TO FRAME
HIGH RIDE SUSPENSION(7YC) (A) T=0.40 		8-98005-914-0 AR 1 0805- ● ● ● ● ●
100 06.164 SHIM; UPR LINK TO FRAME
(A) T=0.40 		8-98005-914-0 AR 1 0805- ● ● ●
100 06.164 SHIM; UPR LINK TO FRAME
HIGH RIDE SUSPENSION(7YC) (A) T=1.60 		8-98005-915-0 AR 1 0805- ● ● ● ● ●
100 06.164 SHIM; UPR LINK TO FRAME
(A) T=1.60 		8-98005-915-0 AR 1 0805- ● ● ●
100 06.164 SHIM; UPR LINK TO FRAME
HIGH RIDE SUSPENSION(7YC) (A) T=3.20 		8-98005-916-0 AR 1 0805- ● ● ● ● ●
100 06.164 SHIM; UPR LINK TO FRAME
(A) T=3.20 		8-98005-916-0 AR 1 0805- ● ● ●
100 06.164 SHIM; UPR LINK TO FRAME
HIGH RIDE SUSPENSION(7YC) (B) T=3.20 		8-98005-917-0 AR 1 0805- ● ● ● ● ●
100 06.164 SHIM; UPR LINK TO FRAME
(B) T=3.20 		8-98005-917-0 AR 1 0805- ● ● ●
100 06.164 SHIM; UPR LINK TO FRAME
HIGH RIDE SUSPENSION(7YC) (B) T=1.60 		8-98005-918-0 AR 1 0805- ● ● ● ● ●
100 06.164 SHIM; UPR LINK TO FRAME
(B) T=1.60 		8-98005-918-0 AR 1 0805- ● ● ●
103 07.347 NUT; S/ABS TO LWR LINK
HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE 		0-91180-212-0 02 1 0805- ● ● ● ● ●
103 07.347 NUT; S/ABS TO LWR LINK
05.816 (A) M12 FLANGE 		0-91180-212-0 02 1 0805- ● ● ●
103 07.347 NUT; S/ABS TO LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 07.529 (B) M14 FLANGE 		8-97245-635-0 02 1 0805- ● ● ● ● ●
103 07.347 NUT; S/ABS TO LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (C) M10 FLANGE 		8-97245-637-0 06 1 0805- ● ● ● ● ●
148 06.170 ARM; LWR LINK
HIGH RIDE SUSPENSION(7YC) 		8-97235-902-0 02 1 0805- ● ● ● ● ●
148 06.170 ARM; LWR LINK 8-97235-902-0 02 1 0805- ● ● ●
149 06.172 BOLT; ARM TO LWR CONT ARM
HIGH RIDE SUSPENSION(7YC) 06.174 (B) 		8-97235-908-0 02 1 0805- ● ● ● ● ●
149 06.172 BOLT; ARM TO LWR CONT ARM
06.174 (B) 		8-97235-908-0 02 1 0805- ● ● ●
149 06.172 BOLT; ARM TO LWR CONT ARM
00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 0805- ● ● ● ● ● ● ● ●
157 06.176 PLATE; UPR LINK TO FRAME
HIGH RIDE SUSPENSION(7YC) 		8-98005-876-0 02 1 0805- ● ● ● ● ●
157 06.176 PLATE; UPR LINK TO FRAME 8-98005-876-0 02 1 0805- ● ● ●
240 07.395 BUMPER; LWR CONT ARM
HIGH RIDE SUSPENSION(7YC) 		8-97234-967-0 01 1 0805- ● ● ● ● ●
240 07.395 BUMPER; LWR CONT ARM 8-97234-967-0 01 1 0805- ● ● ●
240 07.395 BUMPER; LWR CONT ARM
HIGH RIDE SUSPENSION(7YC) 		8-97234-966-0 01 1 0805- ● ● ● ● ●
240 07.395 BUMPER; LWR CONT ARM 8-97234-966-0 01 1 0805- ● ● ●
240 07.395 BUMPER; LWR CONT ARM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97215-052-0 02 1 0805- ● ● ● ● ●

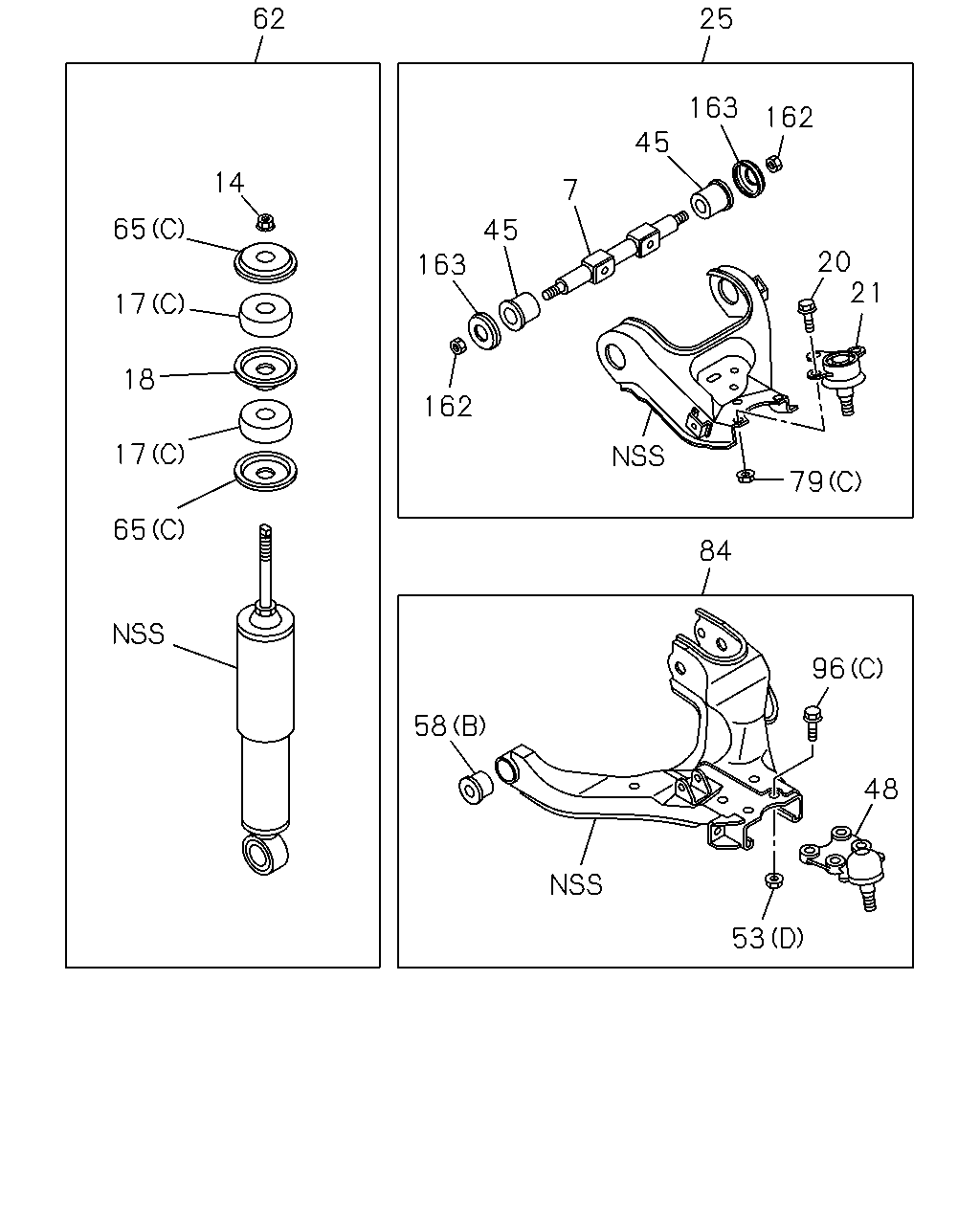

çizim 125069
62 25 163 162 45 14 7 65 45 20 21 163 17 18 162 17 79 65 84 96 58 48 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
7 06.174 PIN; FULCRUM,UPR LINK
HIGH RIDE SUSPENSION(7YC) 		8-98005-825-0 02 1 0805- ● ● ● ● ●
7 06.174 PIN; FULCRUM,UPR LINK 8-98005-825-0 02 1 0805- ● ● ●
14 07.389 NUT; S/ABS,UPR
HIGH RIDE SUSPENSION(7YC) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0805- ● ● ● ● ●
14 07.389 NUT; S/ABS,UPR
03.162 M10 FLANGE 		0-91180-110-0 02 1 0805- ● ● ●
14 07.389 NUT; S/ABS,UPR
EXC. HIGH RIDE SUSPENSION(7YC) M12 FLANGE 		8-97236-304-0 02 1 0805-1003 ● ● ● ● ●
14 07.389 NUT; S/ABS,UPR
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) M12 FLANGE 		8-97236-304-0 02 1 1004- ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
HIGH RIDE SUSPENSION(7YC) (C) 		8-97120-138-0 04 1 0805- ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
(C) 		8-97120-138-0 04 1 0805- ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97236-303-0 02 1 0805-1003 ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97236-303-0 02 1 1004- ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97264-184-0 02 1 0805-1003 ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97264-184-0 02 1 1004- ● ● ● ● ●
18 07.347 WASHER; CENTERING,S/ABS
HIGH RIDE SUSPENSION(7YC) 		8-98005-974-0 02 1 0805- ● ● ● ● ●
18 07.347 WASHER; CENTERING,S/ABS 8-98005-974-0 02 1 0805- ● ● ●
20 06.174 BOLT; UPR LINK END TO UPR LINK
HIGH RIDE SUSPENSION(7YC) 		8-97245-636-0 06 1 0805- ● ● ● ● ●
20 06.174 BOLT; UPR LINK END TO UPR LINK 8-97245-636-0 06 1 0805- ● ● ●
20 06.174 BOLT; UPR LINK END TO UPR LINK
EXC. HIGH RIDE SUSPENSION(7YC) M8X25 FLANGE 		0-28060-825-0 08 1 0805- ● ● ● ● ●
21 06.168 JOINT ASM; BALL,UPR CONT ARM
HIGH RIDE SUSPENSION(7YC) 		8-98005-826-0 02 1 0805- ● ● ● ● ●
21 06.168 JOINT ASM; BALL,UPR CONT ARM 8-98005-826-0 02 1 0805- ● ● ●
21 06.168 JOINT ASM; BALL,UPR CONT ARM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-827-0 02 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-839-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT 8-98005-839-0 01 1 0805- ● ● ●
25 06.168 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-838-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT 8-98005-838-0 01 1 0805- ● ● ●
25 06.168 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-837-0 01 1 0805- ● ● ● ● ●
25 06.168 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-836-0 01 1 0805- ● ● ● ● ●
45 06.164 BUSHING; UPR LINK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97364-175-0 04 1 0805- ● ● ● ● ●
45 06.164 BUSHING; UPR LINK,FRT 8-97364-175-0 04 1 0805- ● ● ●
45 06.164 BUSHING; UPR LINK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97364-173-0 04 1 0805- ● ● ● ● ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM
HIGH RIDE SUSPENSION(7YC) 		8-98005-875-0 02 1 0805- ● ● ● ● ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM 8-98005-875-0 02 1 0805- ● ● ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-874-0 02 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) (C) M18 SLOTTED 		0-91116-518-0 02 1 0805-1308 ● ● ● ● ●
53 06.174 NUT; LWR LINK
(C) M18 SLOTTED 		0-91116-518-0 02 1 0805-1308 ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 07.529 (C) M18 		0-91110-518-0 02 1 1309- ● ● ● ● ●
53 06.174 NUT; LWR LINK
07.529 (C) M18 		0-91110-518-0 02 1 1309- ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 05.816 (D) M12 FLANGE 		0-91180-212-0 12 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
05.816 (D) M12 FLANGE 		0-91180-212-0 12 1 0805- ● ● ●
53 06.174 NUT; LWR LINK
HIGH RIDE SUSPENSION(7YC) (E) M18 FLANGE 		8-97245-634-0 02 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
(E) M18 FLANGE 		8-97245-634-0 02 1 0805- ● ● ●
53 06.174 NUT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE 		0-91180-212-0 08 1 0805- ● ● ● ● ●
53 06.174 NUT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) M18 SLOTTED 		8-97245-632-0 02 1 0805- ● ● ● ● ●
58 06.170 BUSHING; LWR LINK
HIGH RIDE SUSPENSION(7YC) (B) 		8-97364-176-0 02 1 0805- ● ● ● ● ●
58 06.170 BUSHING; LWR LINK
(B) 		8-97364-176-0 02 1 0805- ● ● ●
58 06.170 BUSHING; LWR LINK
HIGH RIDE SUSPENSION(7YC) (C) 		8-97364-177-0 02 1 0805- ● ● ● ● ●
58 06.170 BUSHING; LWR LINK
(C) 		8-97364-177-0 02 1 0805- ● ● ●
58 06.170 BUSHING; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97364-174-0 04 1 0805- ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97946-661-0 02 1 0805-0910 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98152-215-0 02 1 0911- ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-678-0 02 1 0805-0910 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98152-164-0 02 1 0911-1003 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98152-164-0 02 1 1004- ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97946-663-0 02 1 0805-0910 ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98152-216-0 02 1 0911- ● ● ●
65 07.347 WASHER; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-892-0 02 1 0911-1003 ● ● ● ● ●
65 07.347 WASHER; S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-892-0 02 1 1004- ● ● ● ● ●
65 07.347 WASHER; S/ABS
HIGH RIDE SUSPENSION(7YC) (C) 		8-98005-973-0 04 1 0805- ● ● ● ● ●
65 07.347 WASHER; S/ABS
(C) 		8-98005-973-0 04 1 0805- ● ● ●
65 07.347 WASHER; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98005-971-0 02 1 0805-1003 ● ● ● ● ●
65 07.347 WASHER; S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98005-971-0 02 1 1004- ● ● ● ● ●
65 07.347 WASHER; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98005-972-0 02 1 0805-1003 ● ● ● ● ●
65 07.347 WASHER; S/ABS
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98005-972-0 02 1 1004- ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
HIGH RIDE SUSPENSION(7YC) 07.347 (C) M10 FLANGE 		8-97245-637-0 06 1 0805- ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.347 (C) M10 FLANGE 		8-97245-637-0 06 1 0805- ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE 		0-91180-208-0 08 1 0805- ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED 		8-97245-624-0 02 1 0805-1212 ● ● ● ● ● ● ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.833 (A) M14 		0-91110-514-0 02 1 1301- ● ● ● ● ● ● ● ●
84 06.168 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-835-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT 8-98005-835-0 01 1 0805- ● ● ●
84 06.168 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-834-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT 8-98005-834-0 01 1 0805- ● ● ●
84 06.168 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-833-0 01 1 0805- ● ● ● ● ●
84 06.168 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-832-0 01 1 0805- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
HIGH RIDE SUSPENSION(7YC) 06.164 (A) M16X95.4 		8-97214-719-0 02 1 0805- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
06.164 (A) M16X95.4 		8-97214-719-0 02 1 0805- ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (B) 		8-97214-813-0 04 1 0805-1007 ● ● ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-369-0 04 1 1008-1305 ● ● ● ● ●
96 06.174 BOLT; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) (B) M16X102 W/PLATE 		8-98186-404-0 04 1 1306- ● ● ● ● ●
96 06.174 BOLT; LWR LINK
(C) M12X37 FLANGE 		8-97245-639-0 08 1 0805- ● ● ● ● ● ● ● ●
162 04.686 NUT; FULCRUM PIN TO UPR ARM
HIGH RIDE SUSPENSION(7YC) 07.529 M14 FLANGE 		8-97245-635-0 04 1 0805- ● ● ● ● ●
162 04.686 NUT; FULCRUM PIN TO UPR ARM
07.529 M14 FLANGE 		8-97245-635-0 04 1 0805- ● ● ●
163 06.163 PLATE; FULCRUM PIN,UPR LINK
HIGH RIDE SUSPENSION(7YC) 		8-98005-932-0 04 1 0805- ● ● ● ● ●
163 06.163 PLATE; FULCRUM PIN,UPR LINK 8-98005-932-0 04 1 0805- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
