4-42 — POWER STEERING OIL PUMP (#74760) — 92 parça

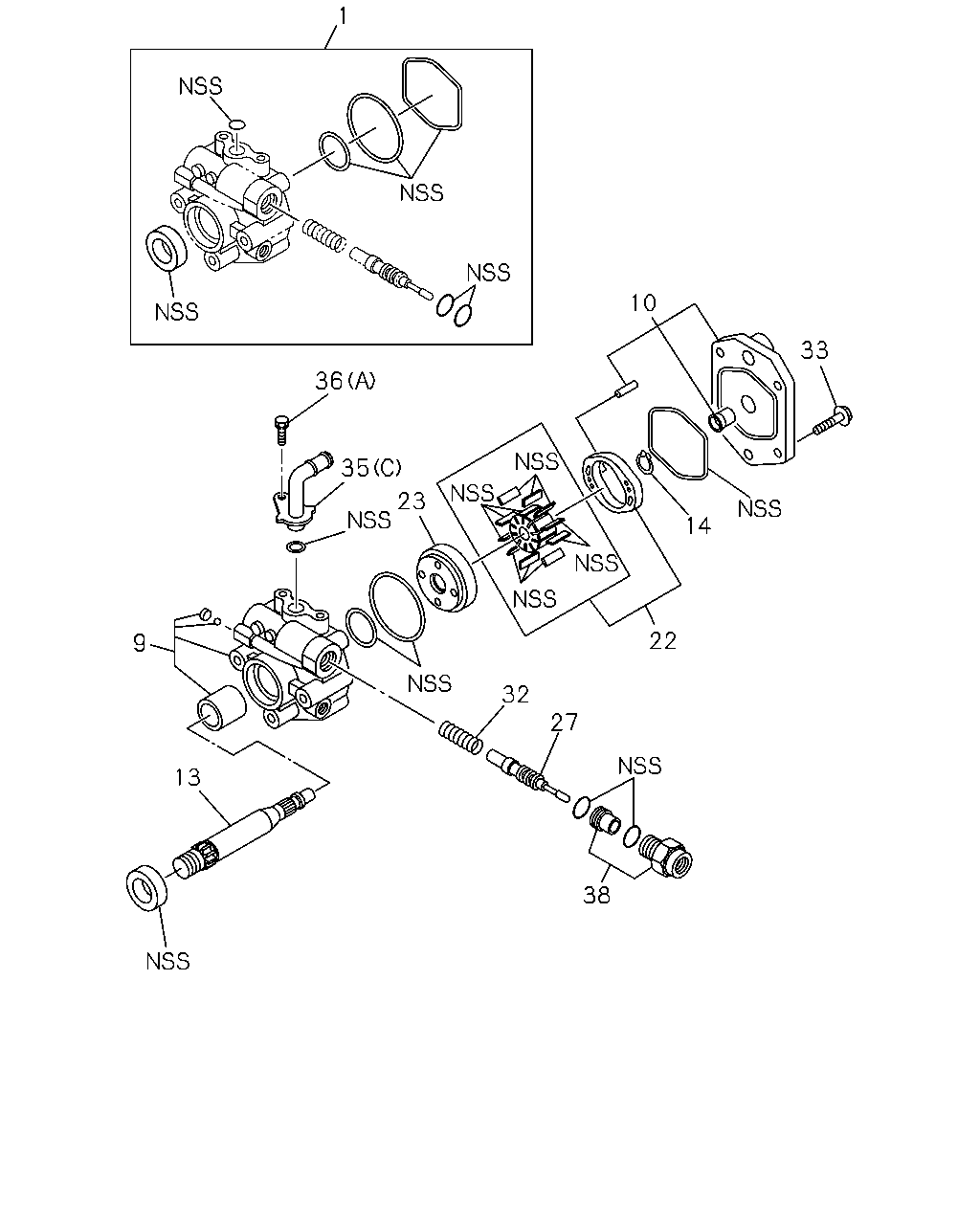

1 10 33 36 35 23 14 22 9 32 27 13 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-97205-626-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98002-698-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97946-695-0, 97946695	8-97946-691-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97946-605-0, 97946605	8-97946-804-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98002-697-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97946-695-0, 97946695	8-97946-688-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-97946-689-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97946-605-0, 97946605	8-97946-805-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-97946-695-0, 97946695	8-97184-723-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97946-605-0, 97946605	8-98028-785-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97946-695-0, 97946695	8-94411-358-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-97946-614-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-97946-615-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695, C = 8-97946-698-0, 97946698	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-97357-779-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98034-043-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695, C = 8-97946-698-0, 97946698	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER ASM PART: C = 8-97946-698-0, 97946698	8-98028-773-0	03	1	-
33	06.606 BOLT; COVER ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-98028-773-0	04	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-97946-698-0, 97946698	8-97946-174-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: A = 8-97946-605-0, 97946605	8-98028-779-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: B = 8-97946-695-0, 97946695	8-98033-922-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: C = 8-97946-698-0, 97946698	8-98033-924-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: A = 8-97946-605-0, 97946605	8-98028-783-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: B = 8-97946-695-0, 97946695, C = 8-97946-698-0, 97946698	8-98028-783-0	02	1	-
36	06.602 BOLT; CONN,PIPE (B) ASM PART: C = 8-97946-698-0, 97946698	8-98034-052-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-97943-866-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-98033-913-0	01	1	-

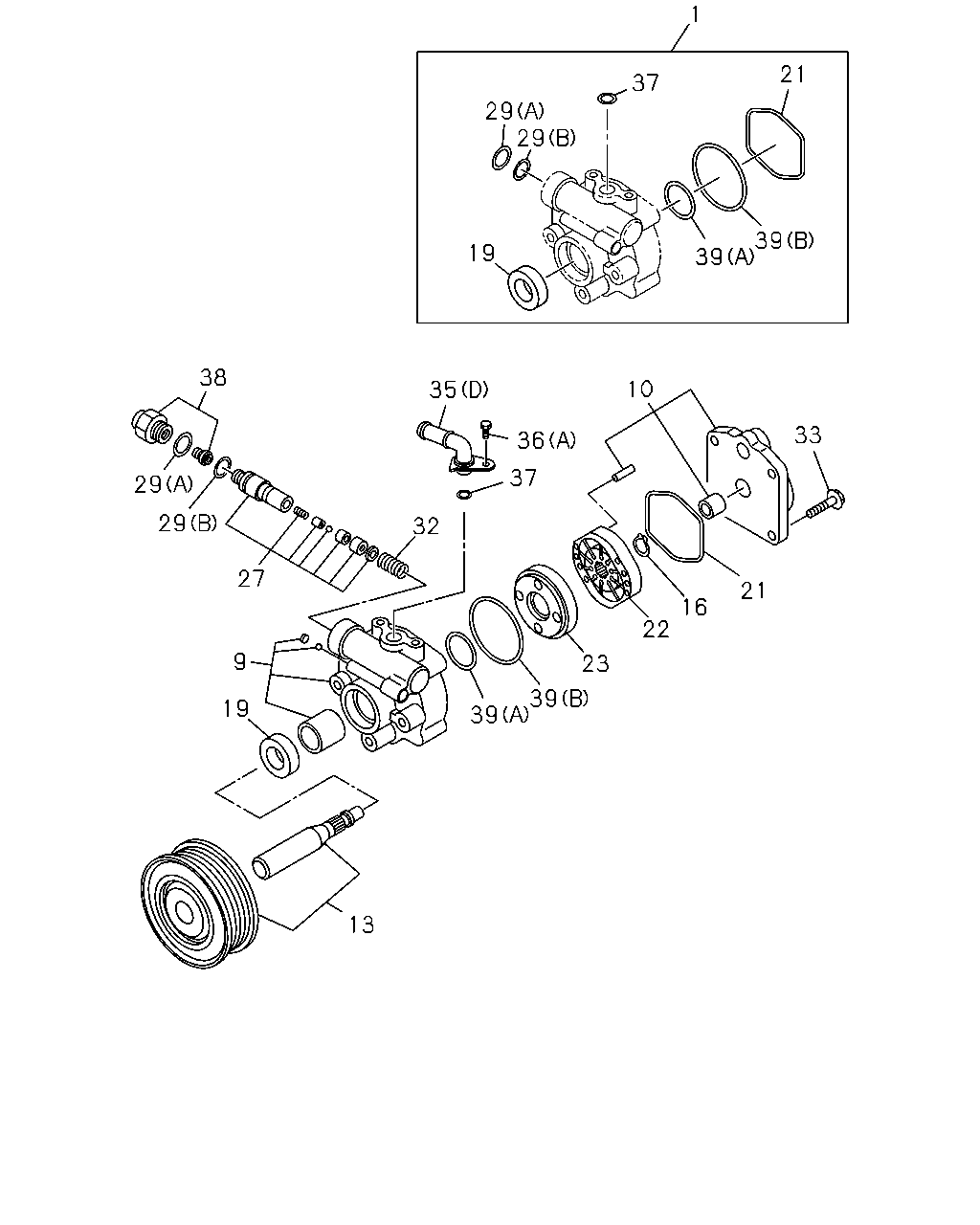

1 21 37 29 29 39 19 39 38 10 35 33 36 37 29 29 32 27 21 16 22 9 23 39 19 39 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-97205-626-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98002-698-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97946-695-0, 97946695	8-97946-691-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97946-605-0, 97946605	8-97946-804-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98002-697-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97946-695-0, 97946695	8-97946-688-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-97946-689-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97946-605-0, 97946605	8-97946-805-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-97946-695-0, 97946695	8-97184-723-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97946-605-0, 97946605	8-98028-785-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97946-605-0, 97946605	8-94411-358-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: A = 8-97946-605-0, 97946605	8-94380-745-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97946-605-0, 97946605	8-94380-746-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-97946-614-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-97946-615-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695, C = 8-97946-698-0, 97946698	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-97357-779-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98034-043-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97946-605-0, 97946605	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97946-605-0, 97946605	8-94379-659-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695, C = 8-97946-698-0, 97946698	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER ASM PART: C = 8-97946-698-0, 97946698	8-98028-773-0	03	1	-
33	06.606 BOLT; COVER ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-98028-773-0	04	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-97946-698-0, 97946698	8-97946-174-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: A = 8-97946-605-0, 97946605	8-98028-779-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: B = 8-97946-695-0, 97946695	8-98033-922-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: C = 8-97946-698-0, 97946698	8-98033-924-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: A = 8-97946-605-0, 97946605	8-98028-783-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: B = 8-97946-695-0, 97946695, C = 8-97946-698-0, 97946698	8-98028-783-0	02	1	-
36	06.602 BOLT; CONN,PIPE (B) ASM PART: C = 8-97946-698-0, 97946698	8-98034-052-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97946-605-0, 97946605	8-97357-781-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-97943-866-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-98033-913-0	01	1	-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-97946-605-0, 97946605	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-97946-605-0, 97946605	8-97147-441-0	01	1	-

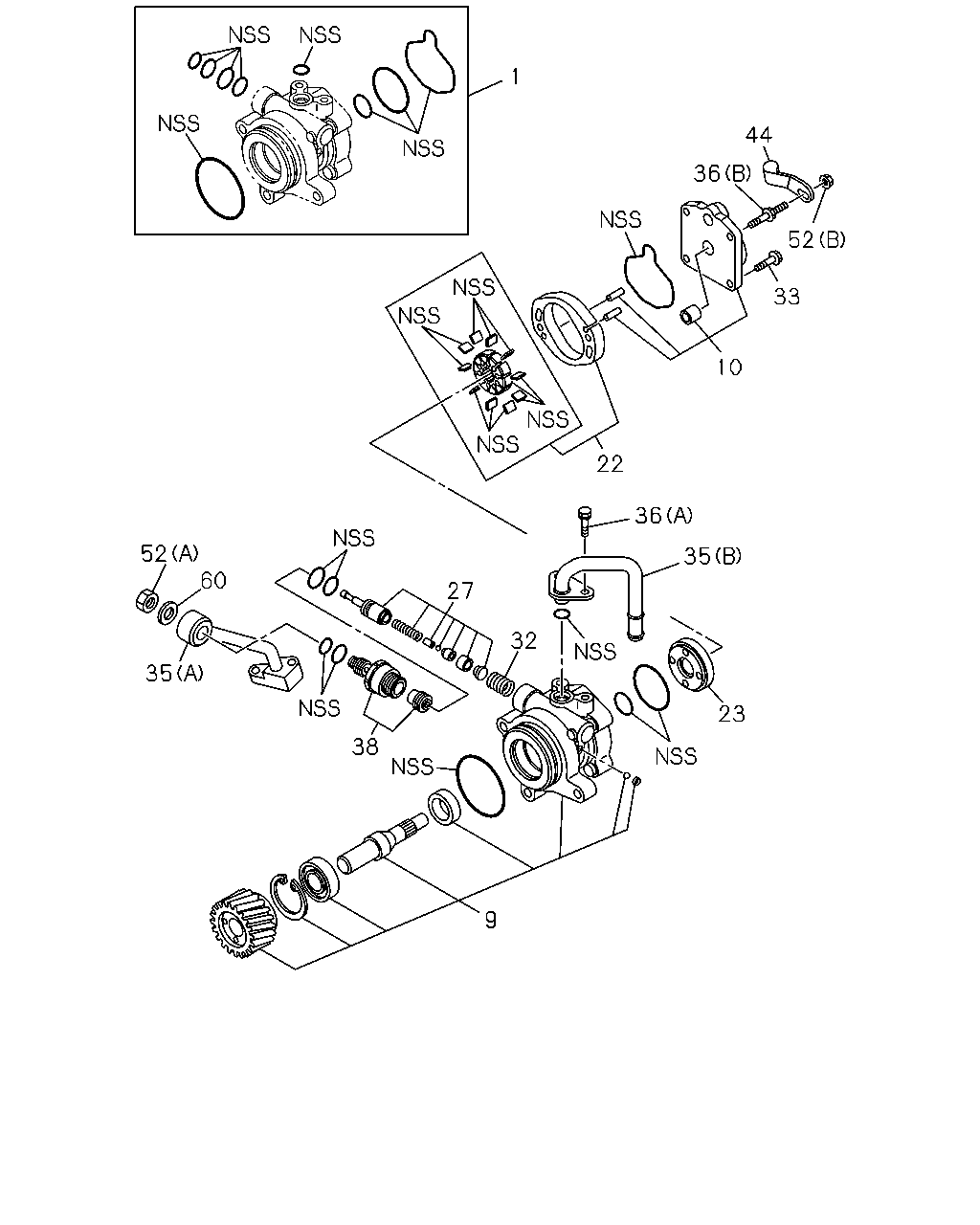

1 44 36 52 33 10 22 36 52 60 35 27 32 35 23 38 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-97205-626-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98002-698-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97946-695-0, 97946695	8-97946-691-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97946-605-0, 97946605	8-97946-804-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98002-697-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97946-695-0, 97946695	8-97946-688-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-97946-689-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97946-605-0, 97946605	8-97946-805-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-97946-614-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-97946-615-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695, C = 8-97946-698-0, 97946698	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-97357-779-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98034-043-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695, C = 8-97946-698-0, 97946698	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER ASM PART: C = 8-97946-698-0, 97946698	8-98028-773-0	03	1	-
33	06.606 BOLT; COVER ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-98028-773-0	04	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-97946-698-0, 97946698	8-97946-174-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: A = 8-97946-605-0, 97946605	8-98028-779-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: B = 8-97946-695-0, 97946695	8-98033-922-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: C = 8-97946-698-0, 97946698	8-98033-924-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: A = 8-97946-605-0, 97946605	8-98028-783-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: B = 8-97946-695-0, 97946695, C = 8-97946-698-0, 97946698	8-98028-783-0	02	1	-
36	06.602 BOLT; CONN,PIPE (B) ASM PART: C = 8-97946-698-0, 97946698	8-98034-052-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-97943-866-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97946-605-0, 97946605, B = 8-97946-695-0, 97946695	8-98033-913-0	01	1	-
44	06.606 BRACKET; OIL PUMP,P/S & EDS ASM PART: C = 8-97946-698-0, 97946698	8-98034-047-0	01	1	-
52	06.635 NUT; OIL PUMP (A) ASM PART: C = 8-97946-698-0, 97946698	8-98034-050-0	01	1	-
52	06.635 NUT; OIL PUMP (B) ASM PART: C = 8-97946-698-0, 97946698	8-98034-051-0	01	1	-
60	06.635 WASHER; LK,OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98034-048-0	01	1	-
