◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#7476) — 267 parça

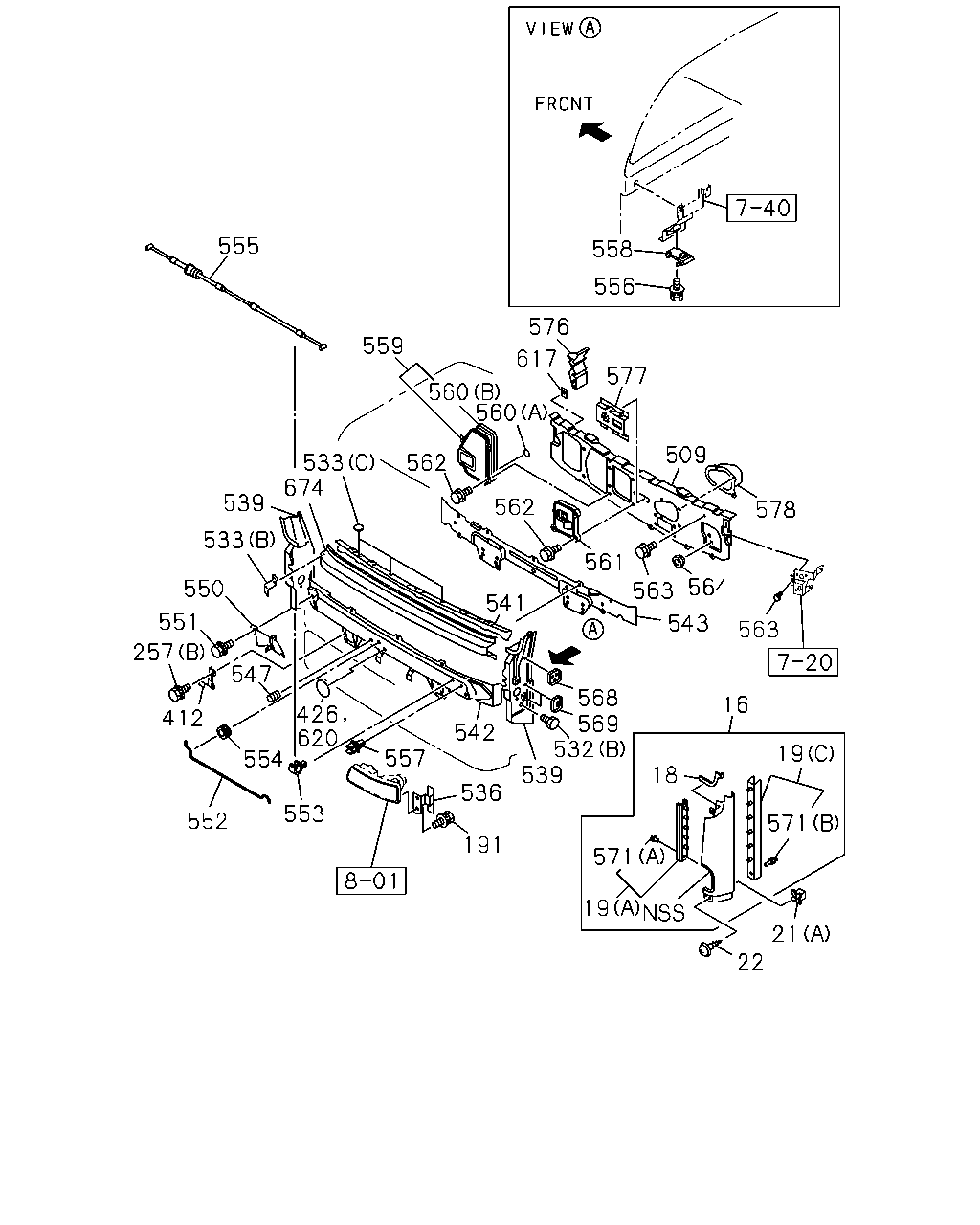

çizim 98719
558 555 556 576 559 617 577 560 560 509 533 674 562 539 562 578 533 561 564 550 563 541 551 543 563 257 547 568 569 532 539 16 426 620 412 542 557 19 554 18 536 553 552 571 191 571 19 21 22
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
WHITE 		1-65481-591-2 01 1 9811- ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-562-3 01 1 9811- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
TAI 		1-71998-899-2 01 1 9811- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
TAI 		1-71998-898-2 01 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(C) TAI 		1-71996-102-1 01 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(C) TAI 		1-71996-101-1 01 1 9811- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 TAI 		1-09983-160-3 12 1 9811- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 02 1 9811- ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING TAI 		8-94279-123-0 12 1 9811-0003 ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING TAI 		8-97893-344-0 12 1 0004- ● ●
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 04 1 9811-0708 ● ●
191 BOLT; HINGE
M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER TAI 		1-09980-492-0 02 1 9811- ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 04 1 9811- ● ●
412 BRACKET ASM; HD LAMP UPR
TAI 		1-86830-044-3 01 1 9811- ● ●
412 BRACKET ASM; HD LAMP UPR
TAI 		1-86830-043-3 01 1 9811- ● ●
426 GASKET
EXC. A/C MAN CONT(C60) OD=25 BLACK TAI 		1-76798-019-0 03 1 0611- ●
426 GASKET
OD=25 BLACK TAI 		1-76798-019-0 01 1 9811-9812 ● ●
509 PANEL; DASH 1-62280-198-4 01 1 9811- ●
509 PANEL; DASH 1-62280-214-4 01 1 9811- ●
532 BOLT; FRT PANEL
(A) M8X20 TAI 		1-79198-002-0 02 1 9811- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER TAI 		8-94279-209-0 08 1 9811- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 9811- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9811- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9811- ● ●
533 SEAL; FRT PANEL
(A) 25X25 TAI 		8-94272-533-0 02 1 9811- ● ●
536 HINGE
TAI 		1-86830-004-5 01 1 9811- ● ●
536 HINGE
TAI 		1-86830-003-5 01 1 9811- ● ●
539 CLOSING; PILLAR 1-61480-763-1 01 1 9811- ● ●
539 CLOSING; PILLAR 1-61480-762-1 01 1 9811- ● ●
541 PANEL; FRONT,INNER 1-61480-765-1 01 1 9811- ● ●
542 RAIL; FRT MOUNTING 1-61480-768-5 01 1 9811- ●
542 RAIL; FRT MOUNTING 1-61480-774-7 01 1 9811- ●
543 CLOSING; FRT MTG RAIL 1-61480-769-2 01 1 9811- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 9811- ● ●
550 LOCK ASM; FRT LID 1-79318-007-5 01 1 9811- ● ●
550 LOCK ASM; FRT LID 1-79318-006-3 01 1 9811- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER TAI 		8-94279-207-0 04 1 9811- ● ●
552 STAY; FRT LID 1-71996-046-2 01 1 9811-0205 ● ●
552 STAY; FRT LID 1-71996-311-0 01 1 0206-0706 ● ●
552 STAY; FRT LID 1-71996-353-0 01 1 0707- ● ●
553 CLIP; STAY
TAI 		8-97031-428-0 01 1 9811- ● ●
554 GROMMET; STAY
ID=8 OD=20 T=9 TAI 		9-09956-038-0 01 1 9811- ● ●
555 CABLE; FRT LID
L=2242 		1-79348-006-2 01 1 9811- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9811- ● ●
557 CLIP; CABLE
ID=4.8 TAI 		8-94128-483-0 02 1 9811- ● ●
558 LEVER; FRT LID 8-97865-110-0 01 1 9811- ● ●
559 COVER; EVAPOLATOR 1-71996-193-1 01 1 9811- ● ●
560 SEAL; COVER
EXC. A/C MAN CONT(C60) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0611- ●
560 SEAL; COVER
(B) TAI 		1-71998-827-1 01 1 9811- ● ●
560 SEAL; COVER
(A) OD=25 BLACK TAI 		1-76798-019-0 01 1 9811-0610 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0611- ●
561 COVER; HEATER CORE 1-71998-993-2 01 1 9811- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 08 1 9811- ● ●
563 BOLT; DASH PANEL
M8X20 TAI 		1-79198-002-0 14 1 9811-0202 ● ●
563 BOLT; DASH PANEL
M8X20 TAI 		1-79198-002-0 12 1 0203- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER TAI 		8-94279-209-0 02 1 0203- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9811- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 9811- ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9811- ● ●
569 PATCH; LWR GRIP 1-61480-772-0 01 1 9811- ● ●
571 CLIP; SEAL
(A) TAI 		1-09987-228-0 12 1 9811- ● ●
571 CLIP; SEAL
(B) NATURAL TAI 		1-09987-257-0 07 1 9907- ● ●
571 CLIP; SEAL
(B) NATURAL TAI 		1-09987-257-0 07 1 9907- ● ●
576 FRAME; INST SIDE 1-62280-201-2 01 1 9811- ● ●
576 FRAME; INST SIDE 1-62280-200-2 01 1 9811- ● ●
577 BRACKET; IDLER 1-62280-202-0 01 1 9811- ● ●
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 9811- ● ●
617 SEAL; DASH 1-61281-497-1 02 1 9811- ● ●
620 SEAL; FRT MTG
OD=25 BLACK TAI 		1-76798-019-0 01 1 9811- ● ●
674 PANEL; UPR 1-61480-677-4 01 1 9811- ●
674 PANEL; UPR 1-61480-785-1 01 1 9811- ●

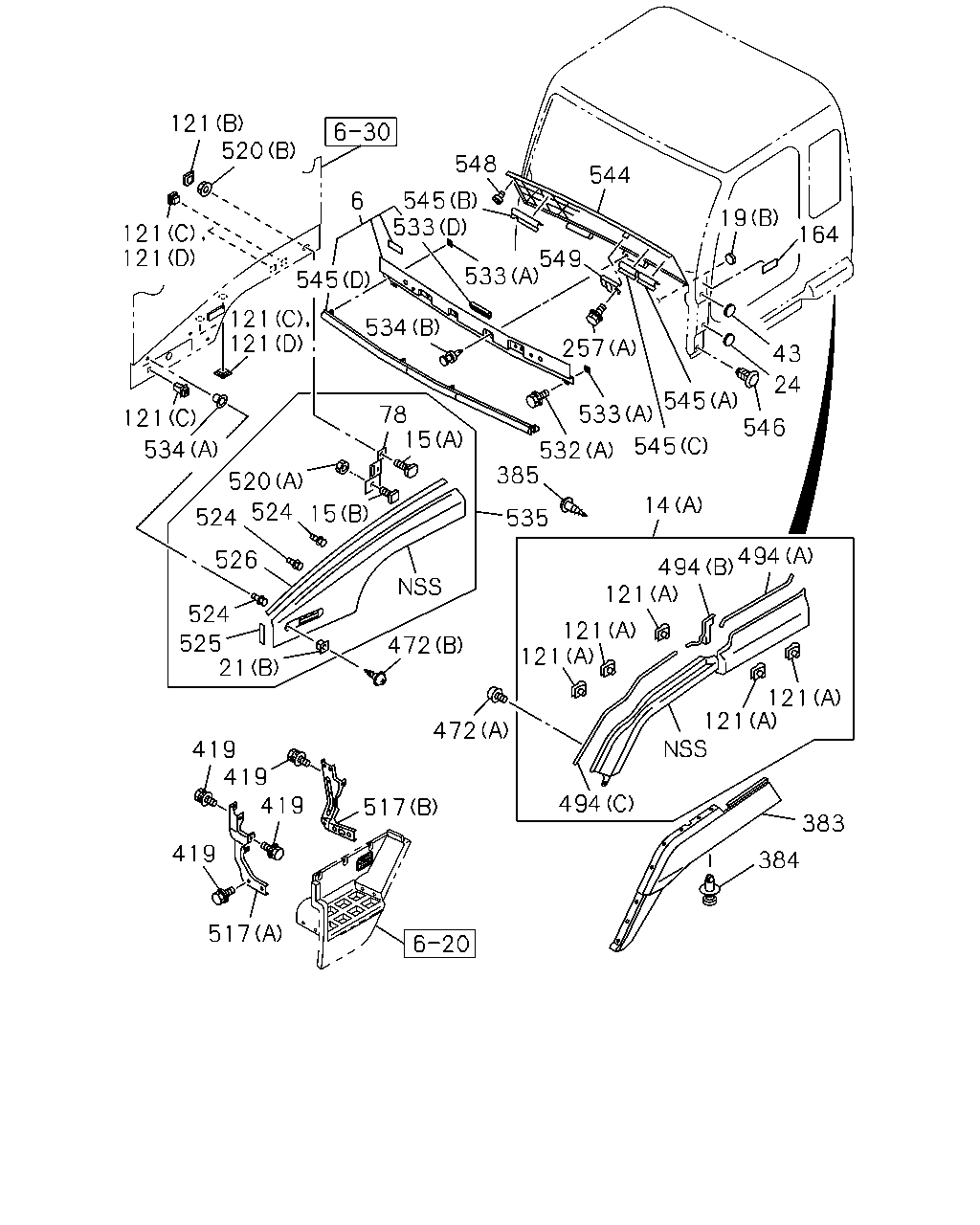

çizim 98722
121 520 548 544 545 533 6 121 121 545 19 164 549 533 121 121 534 257 43 24 545 546 533 78 15 121 545 534 532 385 520 14 524 15 524 535 494 494 121 526 524 121 121 525 21 472 121 121 472 419 419 419 494 517 383 419 384 517
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65481-744-2 01 1 9811- ● ●
14 FENDER; FRT
(A) WHITE TAI 		1-65481-447-1 01 1 9811-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-023-1 01 1 0210- ●
14 FENDER; FRT
(A) WHITE TAI 		1-65481-446-1 01 1 9811-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-022-1 01 1 0210- ●
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 9811-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0210- ●
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 9811- ●
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 9811-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0210- ●
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 9811- ●
15 BOLT; FENDER
(A) M6X7 TAI 		1-71268-294-0 02 1 9811- ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD TAI 		1-71268-300-1 02 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(C) TAI 		1-71996-102-1 01 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(C) TAI 		1-71996-101-1 01 1 9811- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 TAI 		1-09983-160-3 12 1 9811- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 02 1 9811- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK TAI 		1-76798-019-0 02 1 9811-9812 ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK TAI 		1-76798-019-0 01 1 9901-9901 ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK TAI 		1-76798-019-0 02 1 9902-9903 ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK TAI 		1-76798-019-0 04 1 9904- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9811- ● ●
78 BRACKET; FENDER
TAI 		1-71268-323-0 01 1 9811- ● ●
78 BRACKET; FENDER
TAI 		1-71268-322-0 01 1 9811- ● ●
121 GROMMET; FENDER
(B) TAI 		1-09983-162-0 02 1 9811-0610 ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL TAI 		8-94279-043-0 02 1 9811-0304 ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL TAI 		8-94279-043-0 12 1 0305- ● ●
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9811-0304 ● ●
121 GROMMET; FENDER
(A) TAI 		8-94279-723-0 16 1 9811- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9811- ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER TAI 		1-09980-492-0 02 1 9811- ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 04 1 9811- ● ●
383 GUARD; MUD,FENDER LWR 1-71996-062-3 01 1 9811- ●
383 GUARD; MUD,FENDER LWR 1-71996-061-3 01 1 9811- ●
384 CLIP; FENDER LWR
D8X13.5 TAI 		1-09987-248-1 06 1 9811- ●
385 SCREW; FENDER LWR
M6X30 TAI 		1-65481-387-0 01 1 9811- ●
385 SCREW; FENDER LWR
M6X30 TAI 		1-65481-387-0 04 1 9811- ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 18 1 9811-0009 ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 10 1 0010- ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204 ● ●
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER TAI 		8-94279-218-0 08 1 0205-0301 ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 TAI 		1-65481-386-0 17 1 9811- ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING TAI 		8-94279-123-0 02 1 9811- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 TAI 		1-65481-386-0 08 1 9811- ●
472 SCREW; FENDER TO CAB
(A) M6X30 TAI 		1-65481-387-0 26 1 9811- ●
472 SCREW; FENDER TO CAB
(C) M6X25 TAI 		1-65481-736-0 04 1 9811- ●
494 FINISHER; FENDER
(C) TAI 		1-71998-900-3 02 1 9811-0610 ● ●
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611- ● ●
494 FINISHER; FENDER
(A) TAI 		1-71998-999-0 02 1 9811- ● ●
494 FINISHER; FENDER
(B) TAI 		1-71907-181-4 01 1 9811- ● ●
494 FINISHER; FENDER
(B) TAI 		1-71907-180-4 01 1 9811- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71996-078-3 01 1 9811- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 9811- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 9811- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 9811- ● ●
520 NUT; FENDER
(B) M6 FLANGE W/RUBBER TAI 		1-09984-180-0 02 1 9811- ● ●
520 NUT; FENDER
(A) M6 TAI 		1-09984-189-0 02 1 9811- ● ●
524 CLIP; FENDER COVER
D5.4X8 TAI 		1-09983-154-0 08 1 9811- ● ●
525 SEAL; FENDER
10X145 TAI 		1-71268-281-1 02 1 9811-0409 ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410- ● ●
526 FINISHER; FENDER 1-71268-276-1 01 1 9811-0209 ● ●
526 FINISHER; FENDER
TAI 		1-71268-275-1 01 1 9811-0209 ● ●
526 FINISHER; FENDER
TAI 		1-71268-275-1 02 1 0210- ● ●
532 BOLT; FRT PANEL
(A) M8X20 TAI 		1-79198-002-0 02 1 9811- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER TAI 		8-94279-209-0 08 1 9811- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 9811- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9811- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9811- ● ●
533 SEAL; FRT PANEL
(A) 25X25 TAI 		8-94272-533-0 02 1 9811- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9811-0001 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 TAI 		1-09989-021-0 08 1 0002- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9811- ● ●
534 FASTENER
(C) 		1-71996-035-1 04 1 9811-9905 ●
534 FASTENER
(C) 		1-71996-035-1 06 1 9906- ●
534 FASTENER
(D) 		1-71996-035-1 20 1 9811- ● ●
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 9811-0209 ● ●
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210- ● ●
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 9811-0209 ● ●
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210- ● ●
544 LID; FRT
HITACHI KASEI 		1-71108-152-0 01 1 9811-9906 ● ●
544 LID; FRT 1-71108-235-0 01 1 9907- ● ●
545 SEAL; FRT LID
(B) 		1-71996-045-3 01 1 9811-9908 ● ●
545 SEAL; FRT LID
(B) 		1-71996-257-1 01 1 9909- ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-3 01 1 9811-9906 ● ●
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9811-9908 ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909- ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9811- ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 9907- ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9811- ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 9811- ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-060-1 01 1 9811-0301 ● ●
549 BRACKET; STOPPER,FRT LID 8-97589-019-0 01 1 0302- ● ●

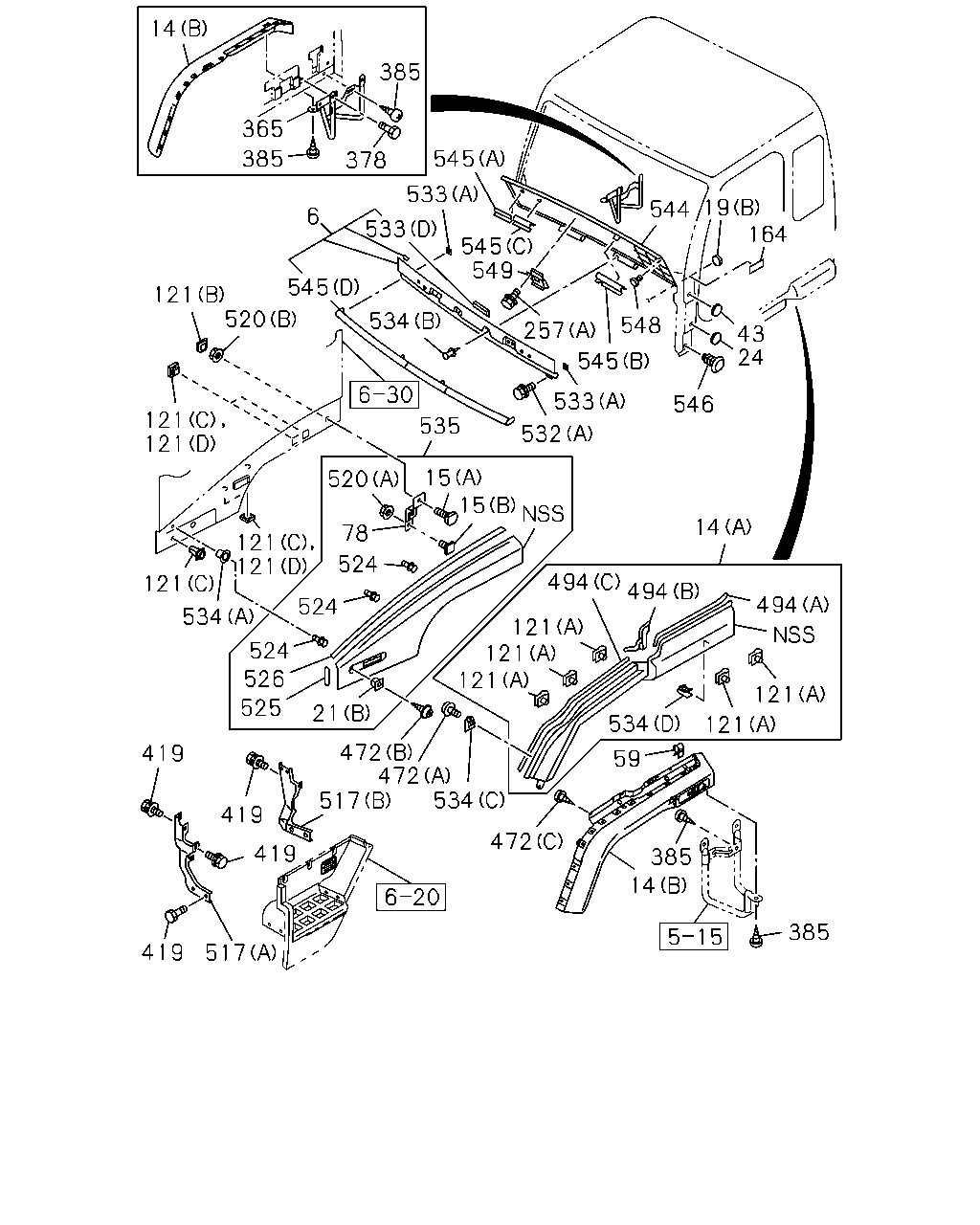

çizim 98782
14 385 365 385 545 378 533 19 164 544 6 533 545 549 545 121 520 534 548 257 43 24 545 121 121 533 546 535 532 15 15 520 14 78 121 121 524 494 494 121 494 524 534 121 121 121 524 526 121 525 21 534 121 472 472 517 534 419 59 419 419 472 385 14 385 419 517
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65481-744-2 01 1 9811- ● ●
14 FENDER; FRT
(A) WHITE TAI 		1-65481-447-1 01 1 9811-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-023-1 01 1 0210- ●
14 FENDER; FRT
(A) WHITE TAI 		1-65481-446-1 01 1 9811-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-022-1 01 1 0210- ●
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 9811-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0210- ●
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 9811- ●
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 9811-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0210- ●
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 9811- ●
15 BOLT; FENDER
(A) M6X7 TAI 		1-71268-294-0 02 1 9811- ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD TAI 		1-71268-300-1 02 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(C) TAI 		1-71996-102-1 01 1 9811- ● ●
19 SEAL; FRT SIDE PANEL
(C) TAI 		1-71996-101-1 01 1 9811- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 TAI 		1-09983-160-3 12 1 9811- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 02 1 9811- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK TAI 		1-76798-019-0 02 1 9811-9812 ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK TAI 		1-76798-019-0 01 1 9901-9901 ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK TAI 		1-76798-019-0 02 1 9902-9903 ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK TAI 		1-76798-019-0 04 1 9904- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9811- ● ●
59 GROMMET; SCREW
TAI 		8-94279-723-0 02 1 9811- ●
78 BRACKET; FENDER
TAI 		1-71268-323-0 01 1 9811- ● ●
78 BRACKET; FENDER
TAI 		1-71268-322-0 01 1 9811- ● ●
121 GROMMET; FENDER
(B) TAI 		1-09983-162-0 02 1 9811-0610 ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL TAI 		8-94279-043-0 02 1 9811-0304 ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL TAI 		8-94279-043-0 12 1 0305- ● ●
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9811-0304 ● ●
121 GROMMET; FENDER
(A) TAI 		8-94279-723-0 16 1 9811- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9811- ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER TAI 		1-09980-492-0 02 1 9811- ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 04 1 9811- ● ●
365 SUPPORT; FENDER 1-71996-147-1 01 1 9811- ●
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER TAI 		8-94279-203-0 01 1 9811- ●
385 SCREW; FENDER LWR
M6X30 TAI 		1-65481-387-0 01 1 9811- ●
385 SCREW; FENDER LWR
M6X30 TAI 		1-65481-387-0 04 1 9811- ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 18 1 9811-0009 ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 10 1 0010- ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204 ● ●
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER TAI 		8-94279-218-0 08 1 0205-0301 ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 TAI 		1-65481-386-0 17 1 9811- ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING TAI 		8-94279-123-0 02 1 9811- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 TAI 		1-65481-386-0 08 1 9811- ●
472 SCREW; FENDER TO CAB
(A) M6X30 TAI 		1-65481-387-0 26 1 9811- ●
472 SCREW; FENDER TO CAB
(C) M6X25 TAI 		1-65481-736-0 04 1 9811- ●
494 FINISHER; FENDER
(C) TAI 		1-71998-900-3 02 1 9811-0610 ● ●
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611- ● ●
494 FINISHER; FENDER
(A) TAI 		1-71998-999-0 02 1 9811- ● ●
494 FINISHER; FENDER
(B) TAI 		1-71907-181-4 01 1 9811- ● ●
494 FINISHER; FENDER
(B) TAI 		1-71907-180-4 01 1 9811- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71996-078-3 01 1 9811- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 9811- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 9811- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 9811- ● ●
520 NUT; FENDER
(B) M6 FLANGE W/RUBBER TAI 		1-09984-180-0 02 1 9811- ● ●
520 NUT; FENDER
(A) M6 TAI 		1-09984-189-0 02 1 9811- ● ●
524 CLIP; FENDER COVER
D5.4X8 TAI 		1-09983-154-0 08 1 9811- ● ●
525 SEAL; FENDER
10X145 TAI 		1-71268-281-1 02 1 9811-0409 ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410- ● ●
526 FINISHER; FENDER 1-71268-276-1 01 1 9811-0209 ● ●
526 FINISHER; FENDER
TAI 		1-71268-275-1 01 1 9811-0209 ● ●
526 FINISHER; FENDER
TAI 		1-71268-275-1 02 1 0210- ● ●
532 BOLT; FRT PANEL
(A) M8X20 TAI 		1-79198-002-0 02 1 9811- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER TAI 		8-94279-209-0 08 1 9811- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 9811- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9811- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9811- ● ●
533 SEAL; FRT PANEL
(A) 25X25 TAI 		8-94272-533-0 02 1 9811- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9811-0001 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 TAI 		1-09989-021-0 08 1 0002- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9811- ● ●
534 FASTENER
(C) 		1-71996-035-1 04 1 9811-9905 ●
534 FASTENER
(C) 		1-71996-035-1 06 1 9906- ●
534 FASTENER
(D) 		1-71996-035-1 20 1 9811- ● ●
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 9811-0209 ● ●
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210- ● ●
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 9811-0209 ● ●
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210- ● ●
544 LID; FRT
HITACHI KASEI 		1-71108-152-0 01 1 9811-9906 ● ●
544 LID; FRT 1-71108-235-0 01 1 9907- ● ●
545 SEAL; FRT LID
(B) 		1-71996-045-3 01 1 9811-9908 ● ●
545 SEAL; FRT LID
(B) 		1-71996-257-1 01 1 9909- ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-3 01 1 9811-9906 ● ●
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9811-9908 ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909- ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9811- ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 9907- ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9811- ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 9811- ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-060-1 01 1 9811-0301 ● ●
549 BRACKET; STOPPER,FRT LID 8-97589-019-0 01 1 0302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
