4-40 — STEERING UNIT (#74759) — 39 parça

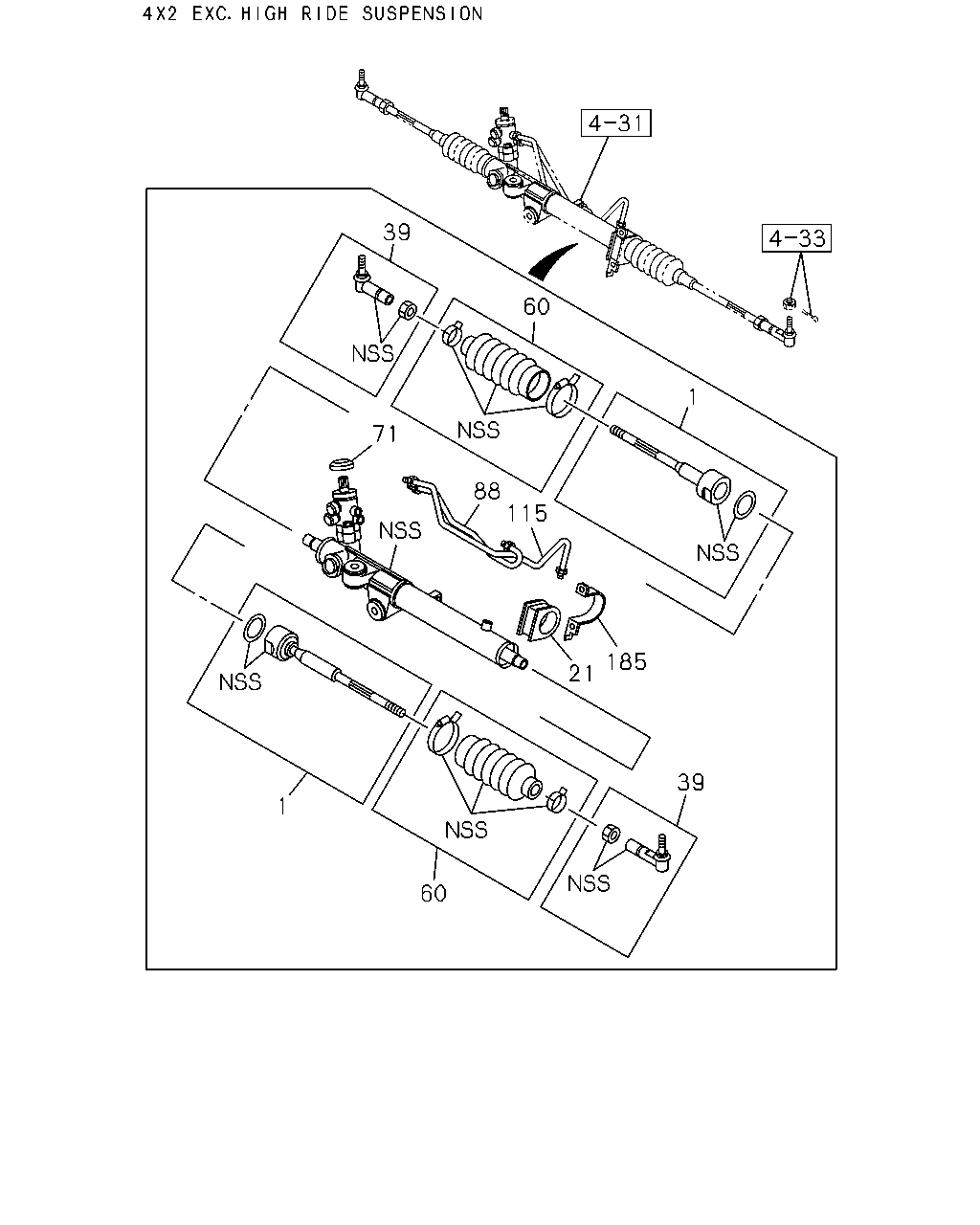

39 60 1 71 88 115 185 21 39 1 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-98055-744-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-98101-779-0, 98101779	8-98056-550-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: A = 8-97944-516-0, 97944516	8-97304-908-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: B = 8-97944-520-0, 97944520	8-97304-936-0	01	1	-
39	06.233 ROD END ASM; OUTER ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-98055-746-0	02	1	-
39	06.233 ROD END ASM; OUTER ASM PART: C = 8-98101-779-0, 98101779	8-98056-551-0	01	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: C = 8-98101-779-0, 98101779	8-97945-423-0	02	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-98055-745-0	02	1	-
71	06.242 COVER; DUST,STRG UNIT ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-97304-904-0	01	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: C = 8-98101-779-0, 98101779	8-97945-428-0	01	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: A = 8-97944-516-0, 97944516	8-98050-987-0	01	1	-
115	06.671 PIPE; HSG TO VLV ASM PART: C = 8-98101-779-0, 98101779	8-97945-427-0	01	1	-
115	06.671 PIPE; HSG TO VLV ASM PART: A = 8-97944-516-0, 97944516	8-98050-997-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: C = 8-98101-779-0, 98101779	8-97945-425-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-98051-007-0	01	1	-

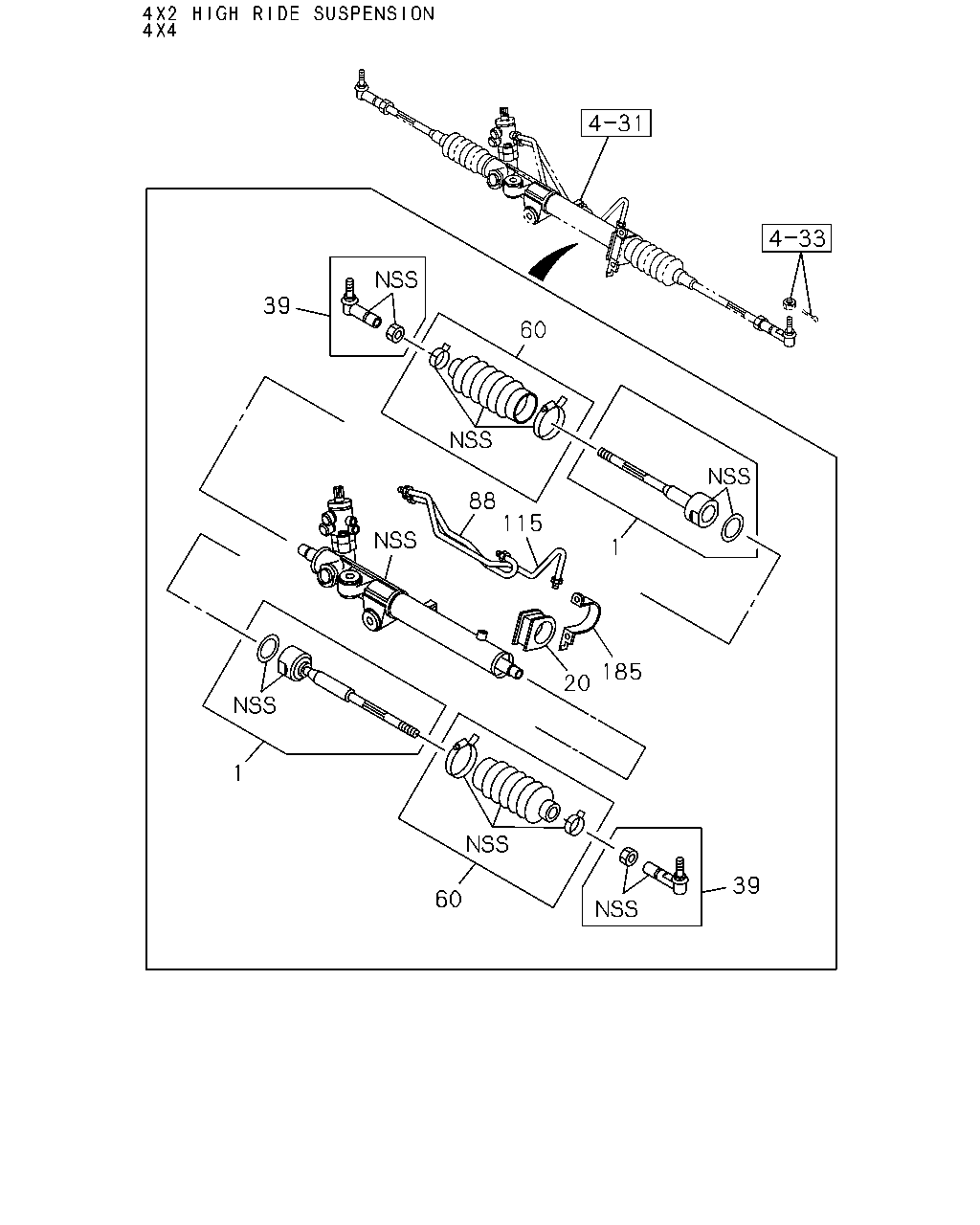

39 60 88 115 1 185 20 1 39 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-98055-744-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-98101-779-0, 98101779	8-98056-550-0	01	1	-
20	06.509 RUBBER; MTG ASM PART: C = 8-98101-779-0, 98101779	8-97945-426-0	01	1	-
39	06.233 ROD END ASM; OUTER ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-98055-746-0	02	1	-
39	06.233 ROD END ASM; OUTER ASM PART: C = 8-98101-779-0, 98101779	8-98056-551-0	01	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: C = 8-98101-779-0, 98101779	8-97945-423-0	02	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-98055-745-0	02	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: C = 8-98101-779-0, 98101779	8-97945-428-0	01	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: A = 8-97944-516-0, 97944516	8-98050-987-0	01	1	-
115	06.671 PIPE; HSG TO VLV ASM PART: C = 8-98101-779-0, 98101779	8-97945-427-0	01	1	-
115	06.671 PIPE; HSG TO VLV ASM PART: A = 8-97944-516-0, 97944516	8-98050-997-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: C = 8-98101-779-0, 98101779	8-97945-425-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-98051-007-0	01	1	-

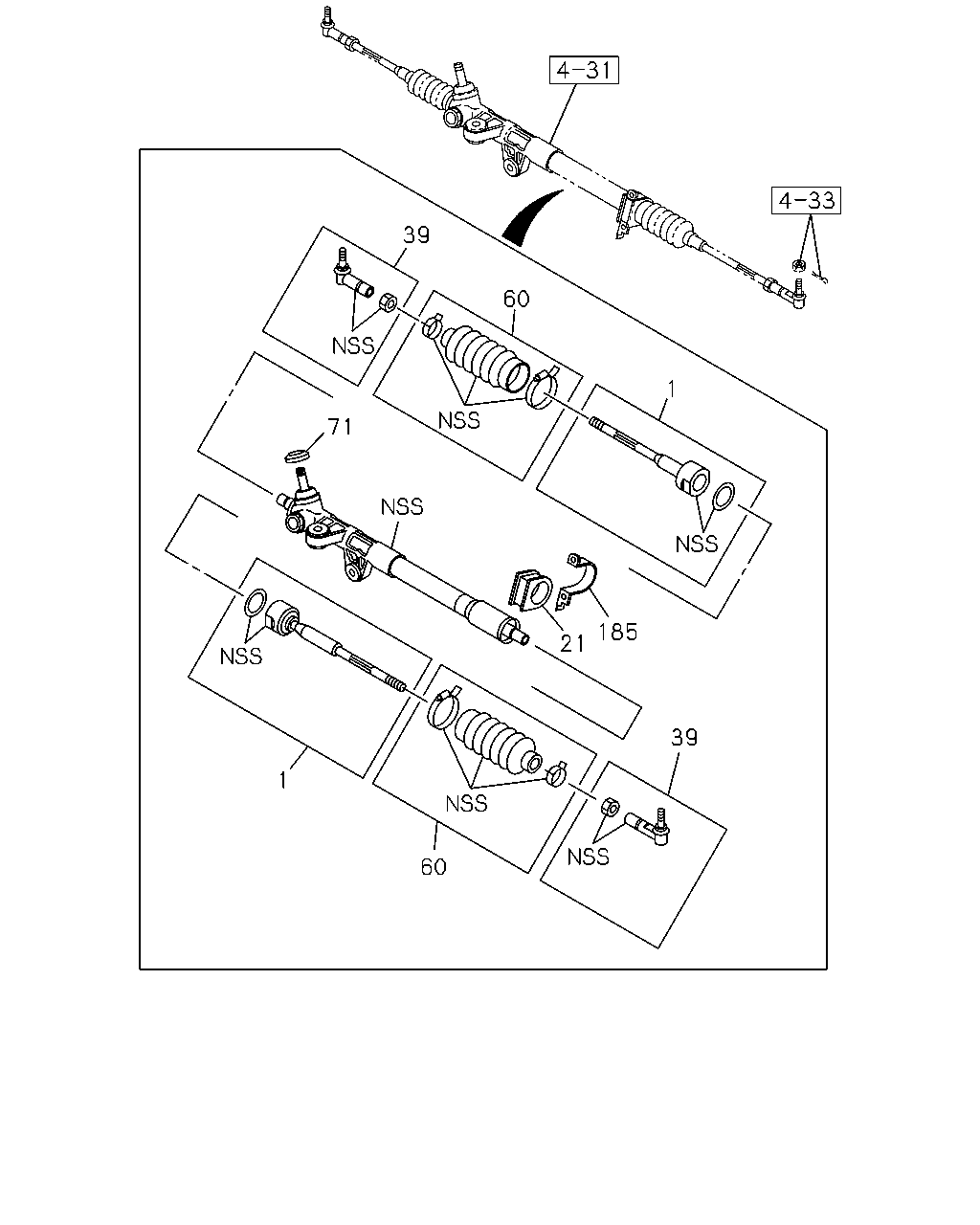

39 60 1 71 185 21 39 1 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-98055-744-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-98101-779-0, 98101779	8-98056-550-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: A = 8-97944-516-0, 97944516	8-97304-908-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: B = 8-97944-520-0, 97944520	8-97304-936-0	01	1	-
39	06.233 ROD END ASM; OUTER ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-98055-746-0	02	1	-
39	06.233 ROD END ASM; OUTER ASM PART: C = 8-98101-779-0, 98101779	8-98056-551-0	01	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: C = 8-98101-779-0, 98101779	8-97945-423-0	02	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-98055-745-0	02	1	-
71	06.242 COVER; DUST,STRG UNIT ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-97304-904-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: C = 8-98101-779-0, 98101779	8-97945-425-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520	8-98051-007-0	01	1	-
