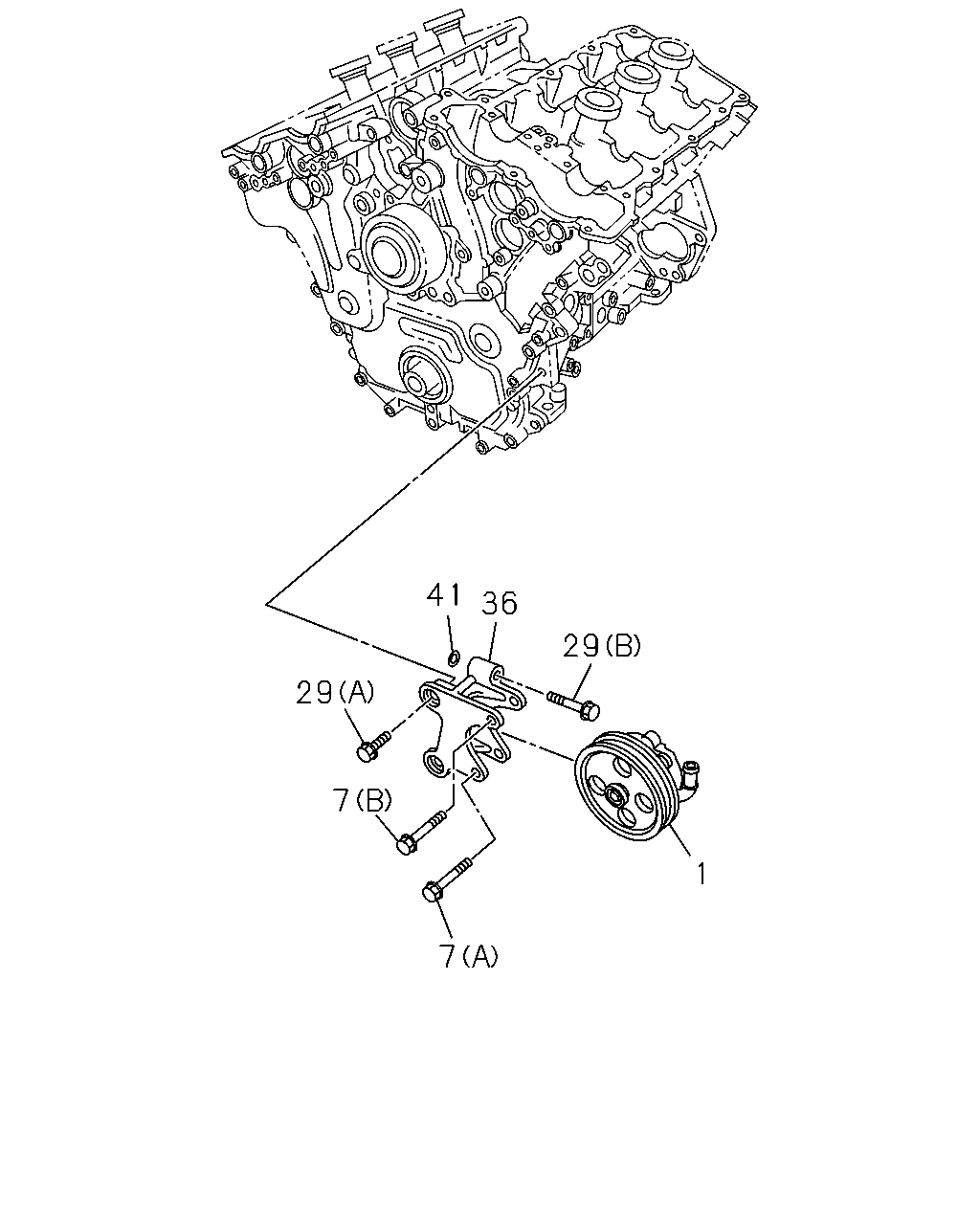

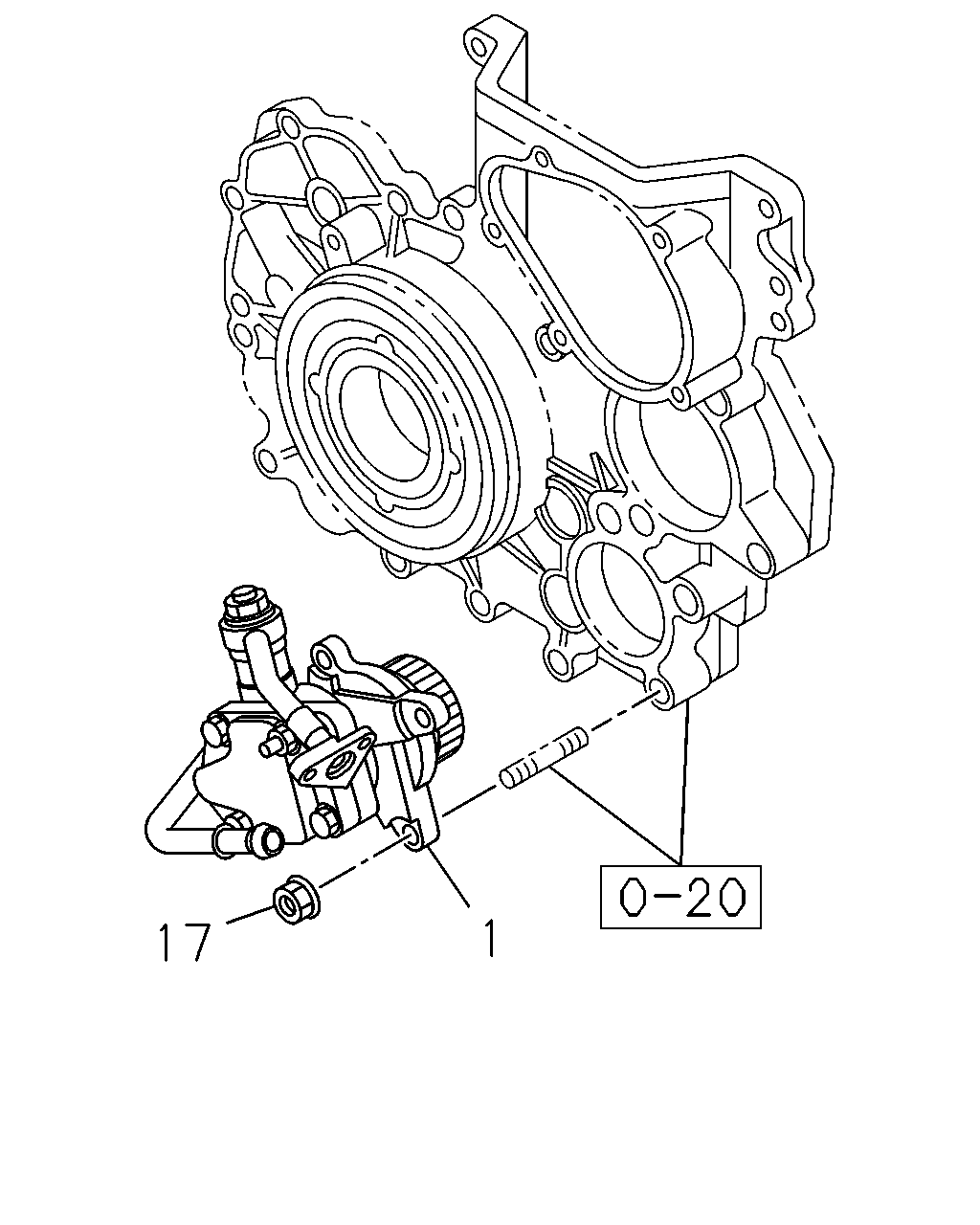

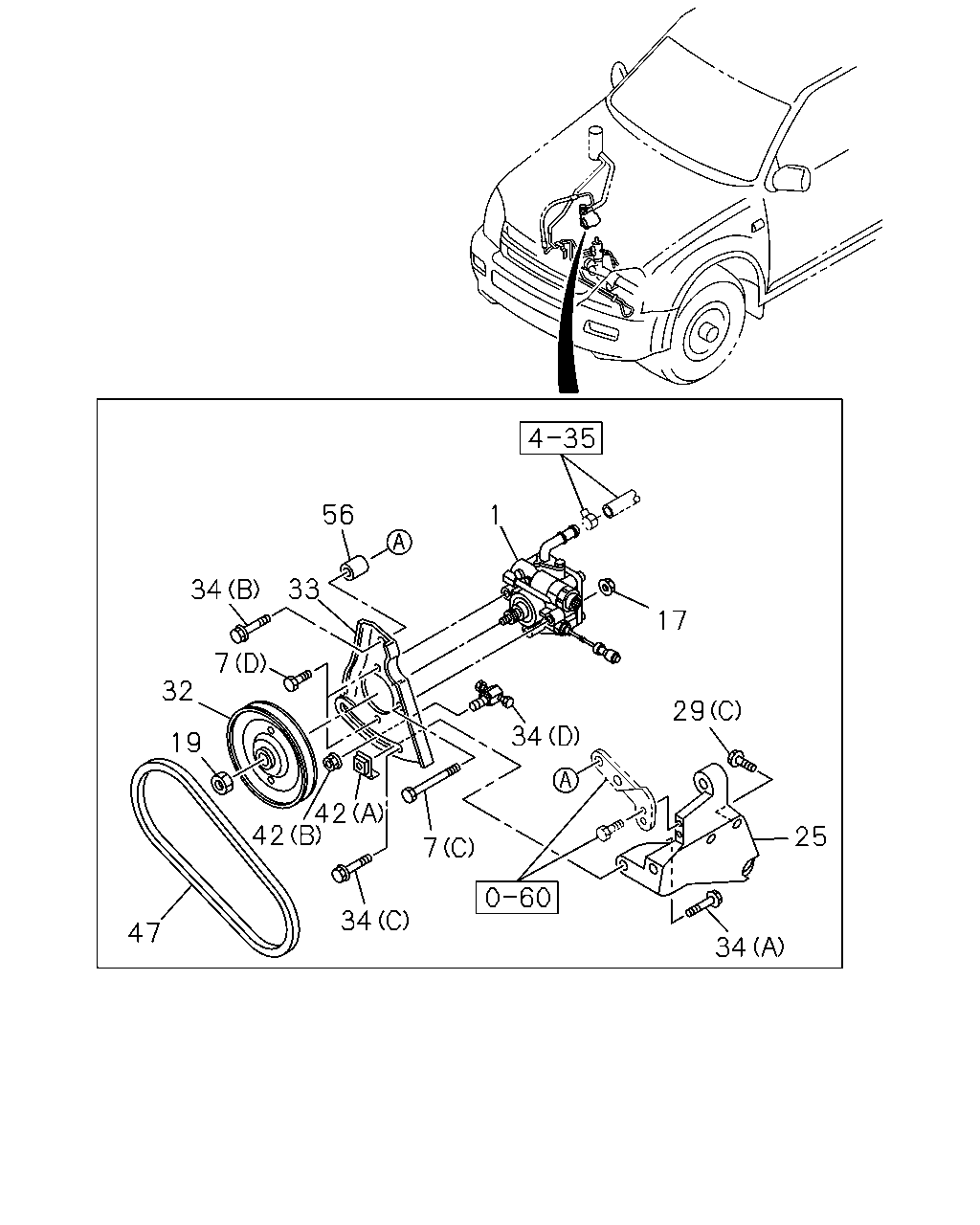

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#74758) — 68 parça

56 1 33 34 17 7 32 29 34 19 42 42 25 7 34 47 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-97946-698-0	01	1	0805-	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. HF V6 ENG(LCA)	8-97946-605-0	01	1	0805-1003	●	●	●			●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. HF V6 ENG(LCA) POWER STEERING<N40>	8-97946-605-0	01	1	0805-1003				●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. HF V6 ENG(LCA)	8-97946-605-0	01	1	1004-	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97946-695-0	01	1	0805-1003				●	●
7	09.181 BOLT; OIL PUMP,P/S HF V6 ENG(LCA) (A)	8-11588-734-0	01	1	0805-1003	●	●	●			●	●	●
7	09.181 BOLT; OIL PUMP,P/S HF V6 ENG(LCA) POWER STEERING<N40> (A)	8-11588-734-0	01	1	0805-1003				●	●
7	09.181 BOLT; OIL PUMP,P/S HF V6 ENG(LCA) (A)	8-11588-734-0	01	1	1004-	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S HF V6 ENG(LCA) (B)	8-11588-735-0	01	1	0805-1003	●	●	●			●	●	●
7	09.181 BOLT; OIL PUMP,P/S HF V6 ENG(LCA) POWER STEERING<N40> (B)	8-11588-735-0	01	1	0805-1003				●	●
7	09.181 BOLT; OIL PUMP,P/S HF V6 ENG(LCA) (B)	8-11588-735-0	01	1	1004-	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S C24SE ENG(LG1) POWER STEERING<N40> 02.277 (C) M10X90 FLANGE	0-28051-090-0	01	1	0805-1003				●	●
7	09.181 BOLT; OIL PUMP,P/S C24SE ENG(LG1) POWER STEERING<N40> 01.531 (D) M8X20 FLANGE	0-28650-820-0	02	1	0805-1003				●	●
17	06.606 NUT; POWER STRG PUMP 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 01.540 M8 FLANGE	0-91180-208-0	03	1	0805-	●	●	●	●	●	●	●	●
17	06.606 NUT; POWER STRG PUMP C24SE ENG(LG1) POWER STEERING<N40> 04.085 M10 FLANGE	0-91180-210-0	01	1	0805-1003				●	●
19	07.874 NUT; PULLEY,OIL PUMP C24SE ENG(LG1) POWER STEERING<N40> M12 FLANGE	8-97245-668-0	01	1	0805-1003				●	●
25	06.606 BRACKET; P/S PUMP C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ)	8-92063-351-0	01	1	0805-1003				●	●
29	09.171 BOLT; BRKT,POWER STRG HF V6 ENG(LCA) 02.100 (A)	8-11588-903-0	02	1	0805-1003	●	●	●			●	●	●
29	09.171 BOLT; BRKT,POWER STRG HF V6 ENG(LCA) POWER STEERING<N40> 02.100 (A)	8-11588-903-0	02	1	0805-1003				●	●
29	09.171 BOLT; BRKT,POWER STRG HF V6 ENG(LCA) 02.100 (A)	8-11588-903-0	02	1	1004-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG HF V6 ENG(LCA) 02.100 (B)	8-11589-340-0	01	1	0805-1003	●	●	●			●	●	●
29	09.171 BOLT; BRKT,POWER STRG HF V6 ENG(LCA) POWER STEERING<N40> 02.100 (B)	8-11589-340-0	01	1	0805-1003				●	●
29	09.171 BOLT; BRKT,POWER STRG HF V6 ENG(LCA) 02.100 (B)	8-11589-340-0	01	1	1004-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) (C)	8-11081-925-0	02	1	0805-1003				●	●
32	06.665 PULLEY; IDLER,P/S C24SE ENG(LG1) POWER STEERING<N40>	8-97214-996-0	01	1	0805-1003				●	●
33	06.655 PLATE; ADJ,P/S C24SE ENG(LG1) POWER STEERING<N40>	8-92066-087-1	01	1	0805-1003				●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> (B) M10X45 FLANGE	0-28151-045-0	01	1	0805-1003				●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> (C) M10X22 FLANGE	8-11083-820-0	01	1	0805-1003				●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> 06.672 (D)	8-92064-382-2	01	1	0805-1003				●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> 00.683 (A) M10X55 FLANGE	8-94399-863-1	01	1	0805-0809				●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> 00.683 (A) M10X55 FLANGE	8-97365-449-0	01	1	0810-1003				●	●
42	06.672 NUT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> (B) M10 FLANGE	0-91280-210-0	01	1	0805-1003				●	●
42	06.672 NUT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> (A) M10	8-92064-322-0	01	1	0805-1003				●	●
47	01.066 BELT; P/S PUMP C24SE ENG(LG1) POWER STEERING<N40> L=960.5	8-92063-695-0	01	1	0805-1003				●	●
56	06.672 PIECE; DIST,BRKT C24SE ENG(LG1) POWER STEERING<N40>	8-98070-969-0	01	1	0805-1003				●	●

41 36 29 29 7 1 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-97946-698-0	01	1	0805-	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. HF V6 ENG(LCA)	8-97946-605-0	01	1	0805-1003	●	●	●			●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. HF V6 ENG(LCA) POWER STEERING<N40>	8-97946-605-0	01	1	0805-1003				●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. HF V6 ENG(LCA)	8-97946-605-0	01	1	1004-	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97946-695-0	01	1	0805-1003				●	●
7	09.181 BOLT; OIL PUMP,P/S HF V6 ENG(LCA) (A)	8-11588-734-0	01	1	0805-1003	●	●	●			●	●	●
7	09.181 BOLT; OIL PUMP,P/S HF V6 ENG(LCA) POWER STEERING<N40> (A)	8-11588-734-0	01	1	0805-1003				●	●
7	09.181 BOLT; OIL PUMP,P/S HF V6 ENG(LCA) (A)	8-11588-734-0	01	1	1004-	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S HF V6 ENG(LCA) (B)	8-11588-735-0	01	1	0805-1003	●	●	●			●	●	●
7	09.181 BOLT; OIL PUMP,P/S HF V6 ENG(LCA) POWER STEERING<N40> (B)	8-11588-735-0	01	1	0805-1003				●	●
7	09.181 BOLT; OIL PUMP,P/S HF V6 ENG(LCA) (B)	8-11588-735-0	01	1	1004-	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S C24SE ENG(LG1) POWER STEERING<N40> 02.277 (C) M10X90 FLANGE	0-28051-090-0	01	1	0805-1003				●	●
7	09.181 BOLT; OIL PUMP,P/S C24SE ENG(LG1) POWER STEERING<N40> 01.531 (D) M8X20 FLANGE	0-28650-820-0	02	1	0805-1003				●	●
29	09.171 BOLT; BRKT,POWER STRG HF V6 ENG(LCA) 02.100 (A)	8-11588-903-0	02	1	0805-1003	●	●	●			●	●	●
29	09.171 BOLT; BRKT,POWER STRG HF V6 ENG(LCA) POWER STEERING<N40> 02.100 (A)	8-11588-903-0	02	1	0805-1003				●	●
29	09.171 BOLT; BRKT,POWER STRG HF V6 ENG(LCA) 02.100 (A)	8-11588-903-0	02	1	1004-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG HF V6 ENG(LCA) 02.100 (B)	8-11589-340-0	01	1	0805-1003	●	●	●			●	●	●
29	09.171 BOLT; BRKT,POWER STRG HF V6 ENG(LCA) POWER STEERING<N40> 02.100 (B)	8-11589-340-0	01	1	0805-1003				●	●
29	09.171 BOLT; BRKT,POWER STRG HF V6 ENG(LCA) 02.100 (B)	8-11589-340-0	01	1	1004-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) (C)	8-11081-925-0	02	1	0805-1003				●	●
36	06.606 BRACKET; PLATE,P/S PUMP HF V6 ENG(LCA)	8-98000-463-1	01	1	0805-1003	●	●	●			●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP HF V6 ENG(LCA) POWER STEERING<N40>	8-98000-463-1	01	1	0805-1003				●	●
36	06.606 BRACKET; PLATE,P/S PUMP HF V6 ENG(LCA)	8-98000-463-1	01	1	1004-	●	●	●	●	●	●	●	●
41	06.168 WASHER; PL,BRKT HF V6 ENG(LCA) ID=8.4 OD=18	0-91610-608-0	01	1	0805-1003	●	●	●			●	●	●
41	06.168 WASHER; PL,BRKT HF V6 ENG(LCA) POWER STEERING<N40> ID=8.4 OD=18	0-91610-608-0	01	1	0805-1003				●	●
41	06.168 WASHER; PL,BRKT HF V6 ENG(LCA) ID=8.4 OD=18	0-91610-608-0	01	1	1004-	●	●	●	●	●	●	●	●

1 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-97946-698-0	01	1	0805-	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. HF V6 ENG(LCA)	8-97946-605-0	01	1	0805-1003	●	●	●			●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. HF V6 ENG(LCA) POWER STEERING<N40>	8-97946-605-0	01	1	0805-1003				●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. HF V6 ENG(LCA)	8-97946-605-0	01	1	1004-	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97946-695-0	01	1	0805-1003				●	●
17	06.606 NUT; POWER STRG PUMP 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 01.540 M8 FLANGE	0-91180-208-0	03	1	0805-	●	●	●	●	●	●	●	●
17	06.606 NUT; POWER STRG PUMP C24SE ENG(LG1) POWER STEERING<N40> 04.085 M10 FLANGE	0-91180-210-0	01	1	0805-1003				●	●
