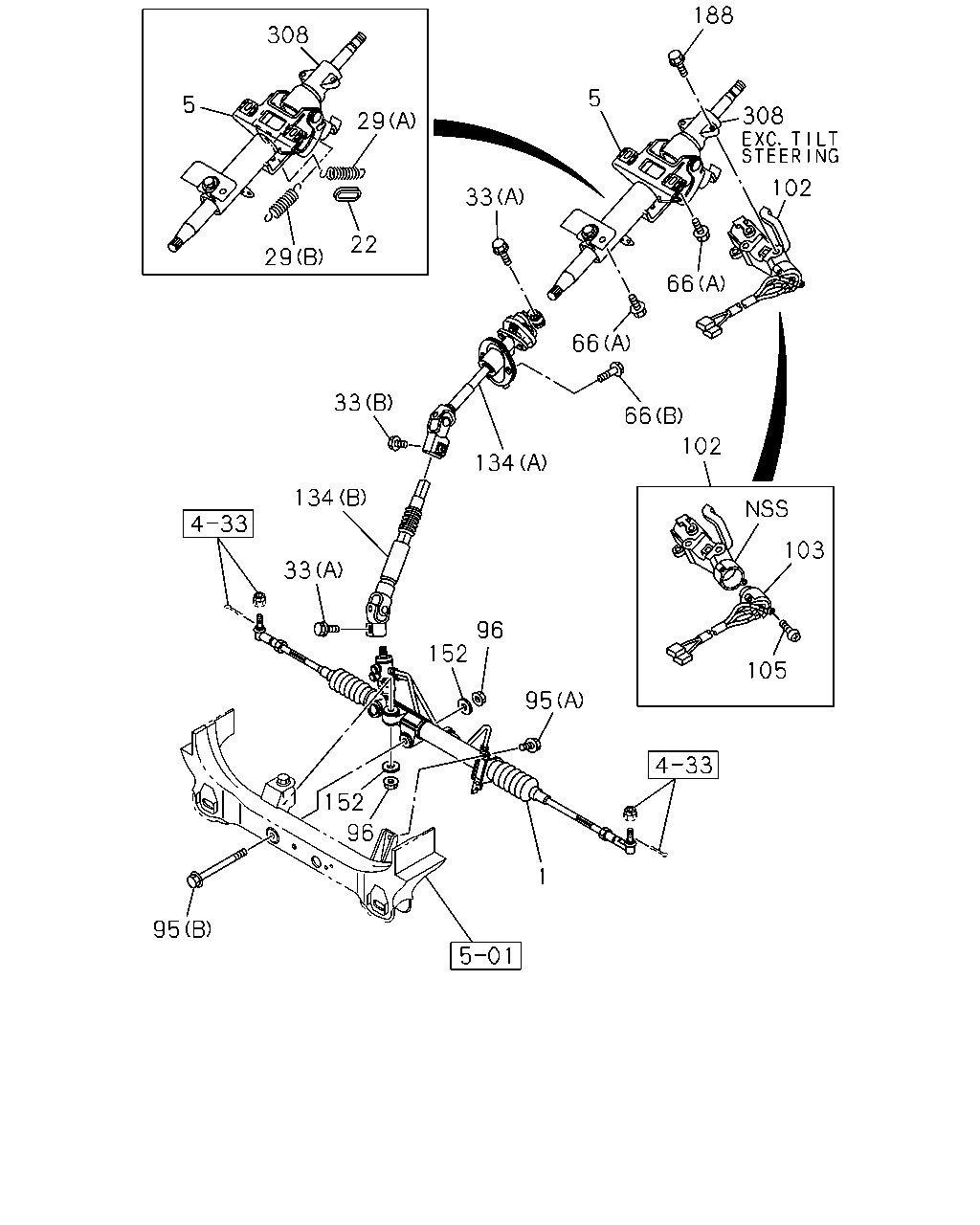

4-31 — STEERING COLUMN AND SHAFT (#74755) — 178 parça

188 308 5 5 308 29 102 33 22 29 66 66 33 66 102 134 134 103 33 96 152 105 95 152 96 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC)	8-98101-779-0	01	1	0805-1003	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-98101-779-0	01	1	0805-1003				●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98101-779-0	01	1	0805-1003						●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC)	8-98101-779-0	01	1	1004-	●	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98101-779-0	01	1	1004-						●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-516-0	01	1	0805-1003	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-516-0	01	1	0805-1003				●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-516-0	01	1	1004-	●	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC)	8-97944-520-0	01	1	0805-1003				●	●
5	06.518 COLUMN; STRG	8-97945-772-0	01	1	0805-0809	●	●	●			●		●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97945-772-0	01	1	0805-0809				●	●		●
5	06.518 COLUMN; STRG	8-97945-772-0	01	1	0810-0910	●	●	●					●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97945-772-0	01	1	0810-0910				●	●	●	●
5	06.518 COLUMN; STRG	8-97945-772-0	01	1	0911-1003	●	●	●			●		●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97945-772-0	01	1	0911-1003				●	●		●
5	06.518 COLUMN; STRG	8-97945-772-0	01	1	1004-	●	●	●		●	●		●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97945-772-0	01	1	1004-				●			●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97945-770-0	01	1	0805-0809				●	●		●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97945-770-0	01	1	0810-0910				●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97945-770-0	01	1	0911-1003				●	●		●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97945-770-0	01	1	1004-				●			●
22	06.525 BUSHING; STRG COLUMN	8-97349-938-0	01	1	0805-0809	●	●	●			●		●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	0805-0809				●	●		●
22	06.525 BUSHING; STRG COLUMN	8-97349-938-0	01	1	0810-0910	●	●	●					●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	0810-0910				●	●	●	●
22	06.525 BUSHING; STRG COLUMN	8-97349-938-0	01	1	0911-1003	●	●	●			●		●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	0911-1003				●	●		●
22	06.525 BUSHING; STRG COLUMN	8-97349-938-0	01	1	1004-	●	●	●		●	●		●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	1004-				●			●
29	06.514 SPRING; COLUMN (A)	8-97349-937-0	01	1	0805-0809	●	●	●			●		●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	0805-0809				●	●		●
29	06.514 SPRING; COLUMN (A)	8-97349-937-0	01	1	0810-0910	●	●	●					●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	0810-0910				●	●	●	●
29	06.514 SPRING; COLUMN (A)	8-97349-937-0	01	1	0911-1003	●	●	●			●		●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	0911-1003				●	●		●
29	06.514 SPRING; COLUMN (A)	8-97349-937-0	01	1	1004-	●	●	●		●	●		●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	1004-				●			●
29	06.514 SPRING; COLUMN (B)	8-97349-939-0	01	1	0805-0809	●	●	●			●		●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	0805-0809				●	●		●
29	06.514 SPRING; COLUMN (B)	8-97349-939-0	01	1	0810-0910	●	●	●					●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	0810-0910				●	●	●	●
29	06.514 SPRING; COLUMN (B)	8-97349-939-0	01	1	0911-1003	●	●	●			●		●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	0911-1003				●	●		●
29	06.514 SPRING; COLUMN (B)	8-97349-939-0	01	1	1004-	●	●	●		●	●		●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	1004-				●			●
33	06.525 BOLT; STRG SHAFT TO UNIT HIGH RIDE SUSPENSION(7YC) (A) M8X35 FLANGE	8-97249-320-0	01	1	0805-	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	01	1	0805-						●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-830-0	01	1	0805-1009	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98140-802-0	01	1	1010-	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	02	1	0805-	●	●	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0805-	●	●	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN (B)	8-97249-319-1	02	1	0805-	●	●	●	●	●	●	●	●
95	06.509 BOLT; STRG UNIT (A) M12X30 FLANGE	0-28661-230-0	02	1	0805-	●	●	●	●	●	●	●	●
95	06.509 BOLT; STRG UNIT (B) M16X195 W/PL WASHER	8-97245-661-0	01	1	0805-	●	●	●	●	●	●	●	●
96	06.509 NUT; STRG UNIT M16	0-91110-516-0	02	1	0805-	●	●	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ)	8-97349-942-0	01	1	0805-1003	●	●	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ)	8-97349-942-0	01	1	1004-	●	●	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD)	8-97945-768-0	01	1	0805-	●	●		●	●			●
103	02.188 SWITCH; IGNITION	8-97350-072-0	01	1	0805-	●	●	●	●	●	●	●	●
105	06.500 SCREW; IGN SW	8-97349-945-0	02	1	0805-	●	●	●	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97944-590-0	01	1	0805-0805	●	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97944-590-0	01	1	0805-0805				●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98108-807-0	01	1	0805-1003	●	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98108-807-0	01	1	0805-1003				●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98108-807-0	01	1	1004-	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (B)	8-97358-237-0	01	1	0805-	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND (B)	8-97358-237-0	01	1	0805-						●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-97944-592-0	01	1	0805-0805	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-592-0	01	1	0805-0805						●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-98108-809-0	01	1	0805-	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-98108-809-0	01	1	0805-						●	●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97256-547-0	01	1	0805-	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-97944-594-0	01	1	0805-0805				●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-98108-811-0	01	1	0805-1003				●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97944-809-0	02	1	0805-	●	●	●	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING	8-98133-262-0	02	1	0812-0910	●	●	●					●
188	06.500 BOLT; TORQUE,STEERING TILT STEERING<N33>	8-98133-262-0	02	1	0812-0910				●	●	●	●
188	06.500 BOLT; TORQUE,STEERING	8-98133-262-0	02	1	0911-1003	●	●	●			●		●
188	06.500 BOLT; TORQUE,STEERING TILT STEERING<N33>	8-98133-262-0	02	1	0911-1003				●	●		●
188	06.500 BOLT; TORQUE,STEERING	8-98133-262-0	02	1	1004-	●	●	●		●	●		●
188	06.500 BOLT; TORQUE,STEERING TILT STEERING<N33>	8-98133-262-0	02	1	1004-				●			●
188	06.500 BOLT; TORQUE,STEERING M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0805-0811	●	●	●	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING EXC. TILT STEERING<N33> M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0812-0910				●	●	●	●
188	06.500 BOLT; TORQUE,STEERING EXC. TILT STEERING<N33> M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0911-1003				●	●		●
188	06.500 BOLT; TORQUE,STEERING EXC. TILT STEERING<N33> M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1004-				●			●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33>	8-98047-095-0	01	1	0805-0809				●	●		●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33>	8-98047-095-0	01	1	0810-0910				●	●	●	●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33>	8-98047-095-0	01	1	0911-1003				●	●		●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33>	8-98047-095-0	01	1	1004-				●			●

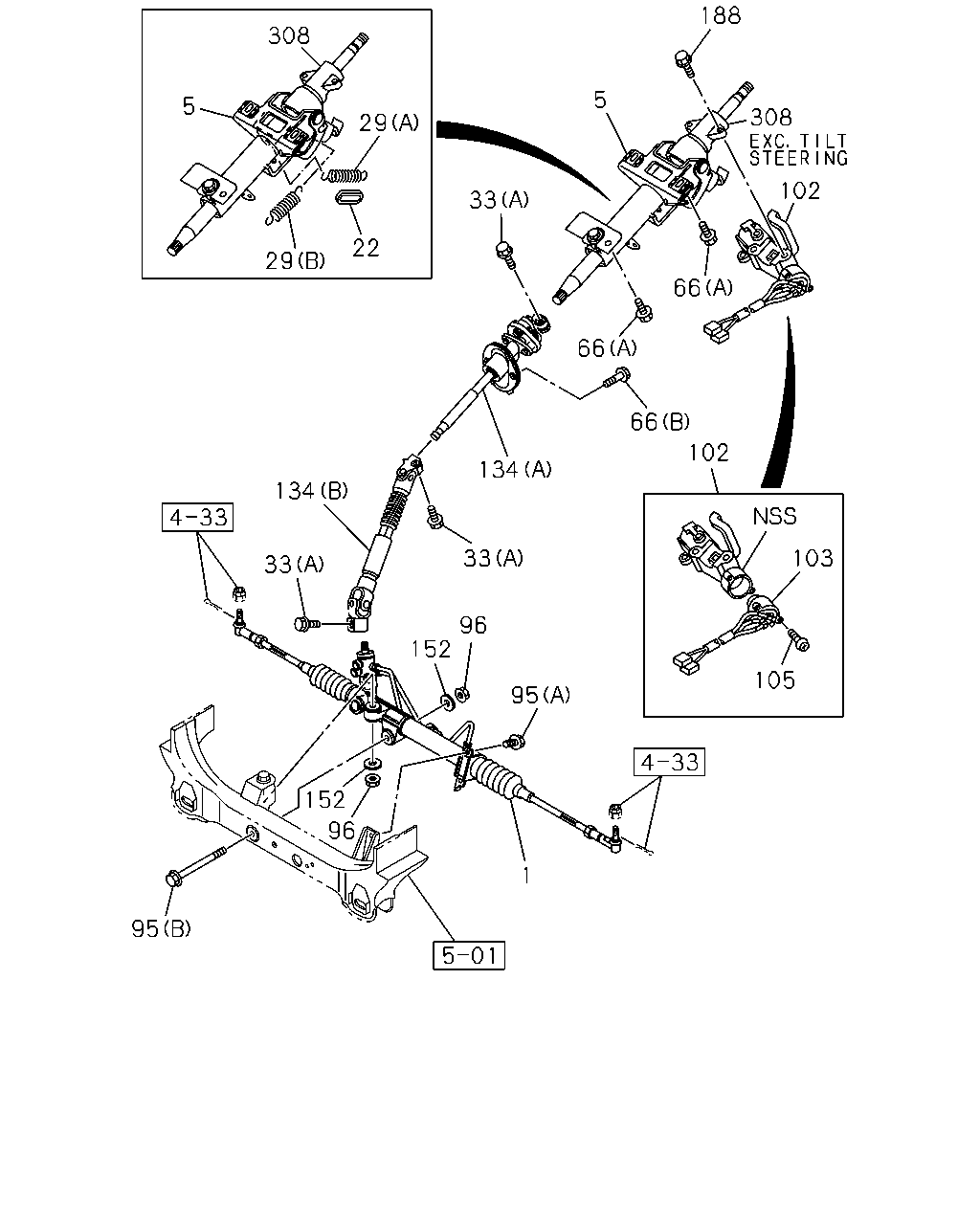

188 308 5 5 308 29 102 33 22 29 66 66 66 102 134 134 103 33 33 96 152 105 95 152 96 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC)	8-98101-779-0	01	1	0805-1003	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-98101-779-0	01	1	0805-1003				●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98101-779-0	01	1	0805-1003						●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC)	8-98101-779-0	01	1	1004-	●	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98101-779-0	01	1	1004-						●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-516-0	01	1	0805-1003	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-516-0	01	1	0805-1003				●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-516-0	01	1	1004-	●	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC)	8-97944-520-0	01	1	0805-1003				●	●
5	06.518 COLUMN; STRG	8-97945-772-0	01	1	0805-0809	●	●	●			●		●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97945-772-0	01	1	0805-0809				●	●		●
5	06.518 COLUMN; STRG	8-97945-772-0	01	1	0810-0910	●	●	●					●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97945-772-0	01	1	0810-0910				●	●	●	●
5	06.518 COLUMN; STRG	8-97945-772-0	01	1	0911-1003	●	●	●			●		●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97945-772-0	01	1	0911-1003				●	●		●
5	06.518 COLUMN; STRG	8-97945-772-0	01	1	1004-	●	●	●		●	●		●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97945-772-0	01	1	1004-				●			●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97945-770-0	01	1	0805-0809				●	●		●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97945-770-0	01	1	0810-0910				●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97945-770-0	01	1	0911-1003				●	●		●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97945-770-0	01	1	1004-				●			●
22	06.525 BUSHING; STRG COLUMN	8-97349-938-0	01	1	0805-0809	●	●	●			●		●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	0805-0809				●	●		●
22	06.525 BUSHING; STRG COLUMN	8-97349-938-0	01	1	0810-0910	●	●	●					●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	0810-0910				●	●	●	●
22	06.525 BUSHING; STRG COLUMN	8-97349-938-0	01	1	0911-1003	●	●	●			●		●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	0911-1003				●	●		●
22	06.525 BUSHING; STRG COLUMN	8-97349-938-0	01	1	1004-	●	●	●		●	●		●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	1004-				●			●
29	06.514 SPRING; COLUMN (A)	8-97349-937-0	01	1	0805-0809	●	●	●			●		●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	0805-0809				●	●		●
29	06.514 SPRING; COLUMN (A)	8-97349-937-0	01	1	0810-0910	●	●	●					●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	0810-0910				●	●	●	●
29	06.514 SPRING; COLUMN (A)	8-97349-937-0	01	1	0911-1003	●	●	●			●		●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	0911-1003				●	●		●
29	06.514 SPRING; COLUMN (A)	8-97349-937-0	01	1	1004-	●	●	●		●	●		●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	1004-				●			●
29	06.514 SPRING; COLUMN (B)	8-97349-939-0	01	1	0805-0809	●	●	●			●		●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	0805-0809				●	●		●
29	06.514 SPRING; COLUMN (B)	8-97349-939-0	01	1	0810-0910	●	●	●					●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	0810-0910				●	●	●	●
29	06.514 SPRING; COLUMN (B)	8-97349-939-0	01	1	0911-1003	●	●	●			●		●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	0911-1003				●	●		●
29	06.514 SPRING; COLUMN (B)	8-97349-939-0	01	1	1004-	●	●	●		●	●		●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	1004-				●			●
33	06.525 BOLT; STRG SHAFT TO UNIT HIGH RIDE SUSPENSION(7YC) (A) M8X35 FLANGE	8-97249-320-0	01	1	0805-	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	01	1	0805-						●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-830-0	01	1	0805-1009	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98140-802-0	01	1	1010-	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	02	1	0805-	●	●	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0805-	●	●	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN (B)	8-97249-319-1	02	1	0805-	●	●	●	●	●	●	●	●
95	06.509 BOLT; STRG UNIT (A) M12X30 FLANGE	0-28661-230-0	02	1	0805-	●	●	●	●	●	●	●	●
95	06.509 BOLT; STRG UNIT (B) M16X195 W/PL WASHER	8-97245-661-0	01	1	0805-	●	●	●	●	●	●	●	●
96	06.509 NUT; STRG UNIT M16	0-91110-516-0	02	1	0805-	●	●	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ)	8-97349-942-0	01	1	0805-1003	●	●	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ)	8-97349-942-0	01	1	1004-	●	●	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD)	8-97945-768-0	01	1	0805-	●	●		●	●			●
103	02.188 SWITCH; IGNITION	8-97350-072-0	01	1	0805-	●	●	●	●	●	●	●	●
105	06.500 SCREW; IGN SW	8-97349-945-0	02	1	0805-	●	●	●	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97944-590-0	01	1	0805-0805	●	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97944-590-0	01	1	0805-0805				●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98108-807-0	01	1	0805-1003	●	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98108-807-0	01	1	0805-1003				●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98108-807-0	01	1	1004-	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (B)	8-97358-237-0	01	1	0805-	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND (B)	8-97358-237-0	01	1	0805-						●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-97944-592-0	01	1	0805-0805	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-592-0	01	1	0805-0805						●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-98108-809-0	01	1	0805-	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-98108-809-0	01	1	0805-						●	●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97256-547-0	01	1	0805-	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-97944-594-0	01	1	0805-0805				●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-98108-811-0	01	1	0805-1003				●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97944-809-0	02	1	0805-	●	●	●	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING	8-98133-262-0	02	1	0812-0910	●	●	●					●
188	06.500 BOLT; TORQUE,STEERING TILT STEERING<N33>	8-98133-262-0	02	1	0812-0910				●	●	●	●
188	06.500 BOLT; TORQUE,STEERING	8-98133-262-0	02	1	0911-1003	●	●	●			●		●
188	06.500 BOLT; TORQUE,STEERING TILT STEERING<N33>	8-98133-262-0	02	1	0911-1003				●	●		●
188	06.500 BOLT; TORQUE,STEERING	8-98133-262-0	02	1	1004-	●	●	●		●	●		●
188	06.500 BOLT; TORQUE,STEERING TILT STEERING<N33>	8-98133-262-0	02	1	1004-				●			●
188	06.500 BOLT; TORQUE,STEERING M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0805-0811	●	●	●	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING EXC. TILT STEERING<N33> M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0812-0910				●	●	●	●
188	06.500 BOLT; TORQUE,STEERING EXC. TILT STEERING<N33> M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0911-1003				●	●		●
188	06.500 BOLT; TORQUE,STEERING EXC. TILT STEERING<N33> M8X18.5 TWISTED OFF	8-97945-749-0	02	1	1004-				●			●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33>	8-98047-095-0	01	1	0805-0809				●	●		●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33>	8-98047-095-0	01	1	0810-0910				●	●	●	●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33>	8-98047-095-0	01	1	0911-1003				●	●		●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33>	8-98047-095-0	01	1	1004-				●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
