Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#74753) — 259 parça

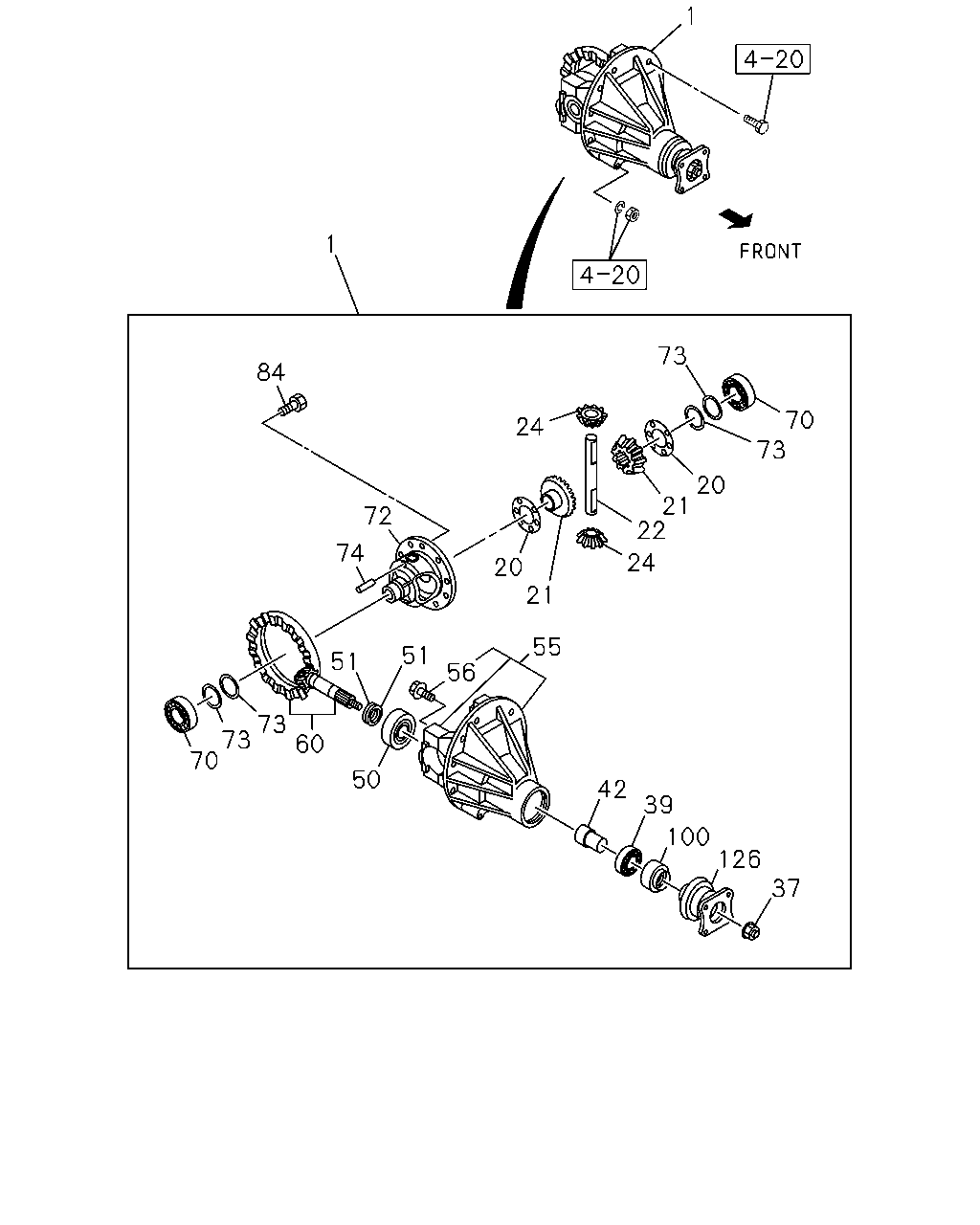

1 1 73 84 70 73 24 20 21 22 72 74 24 20 21 55 51 51 56 73 73 60 70 50 42 39 100 126 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/12(GU6) LIMITED SLIP DIFF<G80> 41/12	8-98010-699-0	01	1	0805-1009	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/12(GU6) LIMITED SLIP DIFF<G80> 41/12	8-98167-622-0	01	1	1010-	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/12(GU6) EXC. LIMITED SLIP DIFF<G80> 41/12	8-98010-695-0	01	1	0805-1106	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/12(GU6) EXC. LIMITED SLIP DIFF<G80> 41/12	8-98190-113-0	01	1	1107-	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) LIMITED SLIP DIFF<G80> 41/11	8-98080-824-0	01	1	0805-1009	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) LIMITED SLIP DIFF<G80> 41/11	8-98167-624-0	01	1	1010-	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) EXC. LIMITED SLIP DIFF<G80> 41/11	8-98010-698-0	01	1	0805-1106	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) EXC. LIMITED SLIP DIFF<G80> 41/11	8-98190-115-0	01	1	1107-	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(GY2) LIMITED SLIP DIFF<G80> 43/10	8-98047-786-0	01	1	0805-1009	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(GY2) LIMITED SLIP DIFF<G80> 43/10	8-98167-627-0	01	1	1010-	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(GY2) EXC. LIMITED SLIP DIFF<G80> 43/10	8-98047-783-0	01	1	0805-1106	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(GY2) EXC. LIMITED SLIP DIFF<G80> 43/10	8-98190-118-0	01	1	1107-	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) LIMITED SLIP DIFF<G80> 43/12	8-98080-823-0	01	1	0805-1009	●	●	●	●	●	●		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) LIMITED SLIP DIFF<G80> 43/12	8-98167-623-0	01	1	1010-	●	●	●	●	●	●		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) EXC. LIMITED SLIP DIFF<G80> 43/12	8-98010-697-0	01	1	0805-1106	●	●	●	●	●	●		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) EXC. LIMITED SLIP DIFF<G80> 43/12	8-98190-114-0	01	1	1107-	●	●	●	●	●	●		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> 41/10	8-98080-826-0	01	1	0805-1009	●	●	●	●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> 41/10	8-98167-626-0	01	1	1010-	●	●	●	●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> 41/10	8-98047-781-0	01	1	0805-1106	●	●	●	●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> 41/10	8-98190-117-0	01	1	1107-	●	●	●	●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(GT3) LIMITED SLIP DIFF<G80> 41/9	8-98047-788-0	01	1	0805-1009	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(GT3) LIMITED SLIP DIFF<G80> 41/9	8-98167-628-0	01	1	1010-	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(GT3) EXC. LIMITED SLIP DIFF<G80> 41/9	8-98047-787-0	01	1	0805-1106	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(GT3) EXC. LIMITED SLIP DIFF<G80> 41/9	8-98190-119-0	01	1	1107-	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(GT2) LIMITED SLIP DIFF<G80> 43/9	8-98047-790-0	01	1	0805-1009	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(GT2) LIMITED SLIP DIFF<G80> 43/9	8-98167-629-0	01	1	1010-	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(GT2) EXC. LIMITED SLIP DIFF<G80> 43/9	8-98047-789-0	01	1	0805-1106	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(GT2) EXC. LIMITED SLIP DIFF<G80> 43/9	8-98190-120-0	01	1	1107-	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(HC3) LIMITED SLIP DIFF<G80> 41/8	8-98047-795-0	01	1	0805-1003				●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(HC3) EXC. LIMITED SLIP DIFF<G80> 41/8	8-98047-792-0	01	1	0805-1003				●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) LIMITED SLIP DIFF<G80> 43/11	8-98080-825-0	01	1	0805-1009					●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) LIMITED SLIP DIFF<G80> 43/11	8-98167-625-0	01	1	1010-					●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) EXC. LIMITED SLIP DIFF<G80> 43/11	8-98047-779-0	01	1	0805-1106					●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) EXC. LIMITED SLIP DIFF<G80> 43/11	8-98190-116-0	01	1	1107-					●			●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.60	8-94365-187-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.70	8-94365-188-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.50	8-94453-935-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.80	8-97066-412-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.80	8-94435-343-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.90	8-94435-344-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.10	8-94435-345-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.20	8-94435-346-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.30	8-94435-347-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.00	9-41562-602-0	02	1	0805-	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<G80>	8-97200-286-0	02	1	0805-	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G80> Z=18	8-97226-763-0	02	1	0805-1106	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G80> Z=18	8-98186-828-1	02	1	1107-	●	●	●	●	●	●	●	●
22	05.520 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<G80>	8-94435-308-1	01	1	0805-	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF LIMITED SLIP DIFF<G80>	8-97200-285-1	04	1	0805-	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G80> Z=10	8-97226-762-0	02	1	0805-1106	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G80> Z=10	8-98186-829-0	02	1	1107-	●	●	●	●	●	●	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	0805-	●	●	●	●	●	●	●	●
39	05.484 BEARING; FINAL PINION NSK	9-00093-078-0	01	1	0805-	●	●	●	●	●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97035-399-0	01	1	0805-	●	●	●	●	●	●	●	●
50	05.447 BEARING; FINAL PINION JTEKT	8-94452-448-0	01	1	0810-	●	●	●	●	●	●	●	●
50	05.447 BEARING; FINAL PINION NSK	8-94435-342-0	01	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.94	8-94435-356-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.96	8-94435-357-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.98	8-94435-358-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.00	8-94435-359-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.02	8-94435-360-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.04	8-94435-361-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.06	8-94435-362-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.08	8-94435-363-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.10	8-94435-364-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.12	8-94435-365-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.14	8-94435-366-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.16	8-94435-367-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.18	8-94435-368-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.20	8-94435-369-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.22	8-94435-370-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.24	8-94435-371-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.26	8-94435-372-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.28	8-94435-373-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.30	8-94435-374-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.32	8-94435-375-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.34	8-94435-376-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.36	8-94435-377-0	AR	1	0805-	●	●	●	●	●	●	●	●
55	05.505 CARRIER; DIFF	8-97240-889-2	01	1	0805-	●	●	●	●	●	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M12X75	8-94435-341-0	04	1	0805-1012	●	●	●	●	●	●	●	●
56	05.506 BOLT; BRG CAP M12X75 FLANGE	8-98176-233-0	04	1	1101-	●	●	●	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/12(GU6) 41/12	8-97374-177-2	01	1	0805-	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/11(GT4) 41/11	8-98030-515-1	01	1	0805-	●	●	●	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(GY2) 43/10	8-98014-987-1	01	1	0805-	●	●	●	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/12(GM0) 43/12	8-97374-174-1	01	1	0805-	●	●	●	●	●	●		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98014-984-1	01	1	0805-	●	●	●	●	●			●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(GT3) 41/9	8-98014-990-1	01	1	0805-	●	●		●	●			●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(GT2) 43/9	8-98014-995-1	01	1	0805-	●	●		●	●			●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(HC3) 41/8	8-98014-998-0	01	1	0805-1003				●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/11(GW1) 43/11	8-98014-980-1	01	1	0805-					●			●
70	05.536 BEARING; DIFF CAGE NSK	8-94435-355-0	02	1	0805-	●	●	●	●	●	●	●	●
70	05.536 BEARING; DIFF CAGE JTEKT	8-94452-449-1	02	1	0805-	●	●	●	●	●	●	●	●
72	05.510 CAGE; DIFF EXC. LIMITED SLIP DIFF<G80>	8-94325-448-0	01	1	0805-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.12	8-94435-348-0	AR	1	0805-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.15	8-94435-349-0	AR	1	0805-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.18	8-94435-350-0	AR	1	0805-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.25	8-94435-351-0	AR	1	0805-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.30	8-94435-352-0	AR	1	0805-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.50	8-94435-353-0	AR	1	0805-	●	●	●	●	●	●	●	●
74	05.518 PIN; LK,CROSS PIN EXC. LIMITED SLIP DIFF<G80> OD=5 L=35	9-09878-096-0	01	1	0805-	●	●	●	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	0805-	●	●	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	0805-	●	●	●	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1006-1110					●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1006-1110						●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1006-1110								●
126	05.545 COUPLING; DRIVING PINION HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> FINAL GEAR RATIO 43/10(GY2) EXC. HIGH RIDE SUSPENSION(7YC)	8-98166-552-0	01	1	1111-1208	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1111-1208					●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1111-1208						●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1111-1208								●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1209-1305					●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1209-1305						●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1209-1305								●
126	05.545 COUPLING; DRIVING PINION	8-98166-552-1	01	1	1306-	●	●	●	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION	8-97217-146-0	01	1	0805-1005	●	●	●	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION	8-97217-146-0	01	1	1006-1007	●	●	●	●
126	05.545 COUPLING; DRIVING PINION HF V6 ENG(LCA)	8-97217-146-0	01	1	1006-1007					●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97217-146-0	01	1	1006-1007					●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9>	8-97217-146-0	01	1	1006-1007					●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-97217-146-0	01	1	1006-1007					●	●	●	●
126	05.545 COUPLING; DRIVING PINION HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97217-146-0	01	1	1008-1305	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION HF V6 ENG(LCA) FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97217-146-0	01	1	1008-1305	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> FINAL GEAR RATIO 43/10(GY2) HIGH RIDE SUSPENSION(7YC)	8-97217-146-0	01	1	1008-1305	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0)	8-97217-146-0	01	1	1008-1305	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION HF V6 ENG(LCA)	8-97217-146-0	01	1	1008-1305						●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97217-146-0	01	1	1008-1305						●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9>	8-97217-146-0	01	1	1008-1305						●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-97217-146-0	01	1	1008-1305						●	●	●

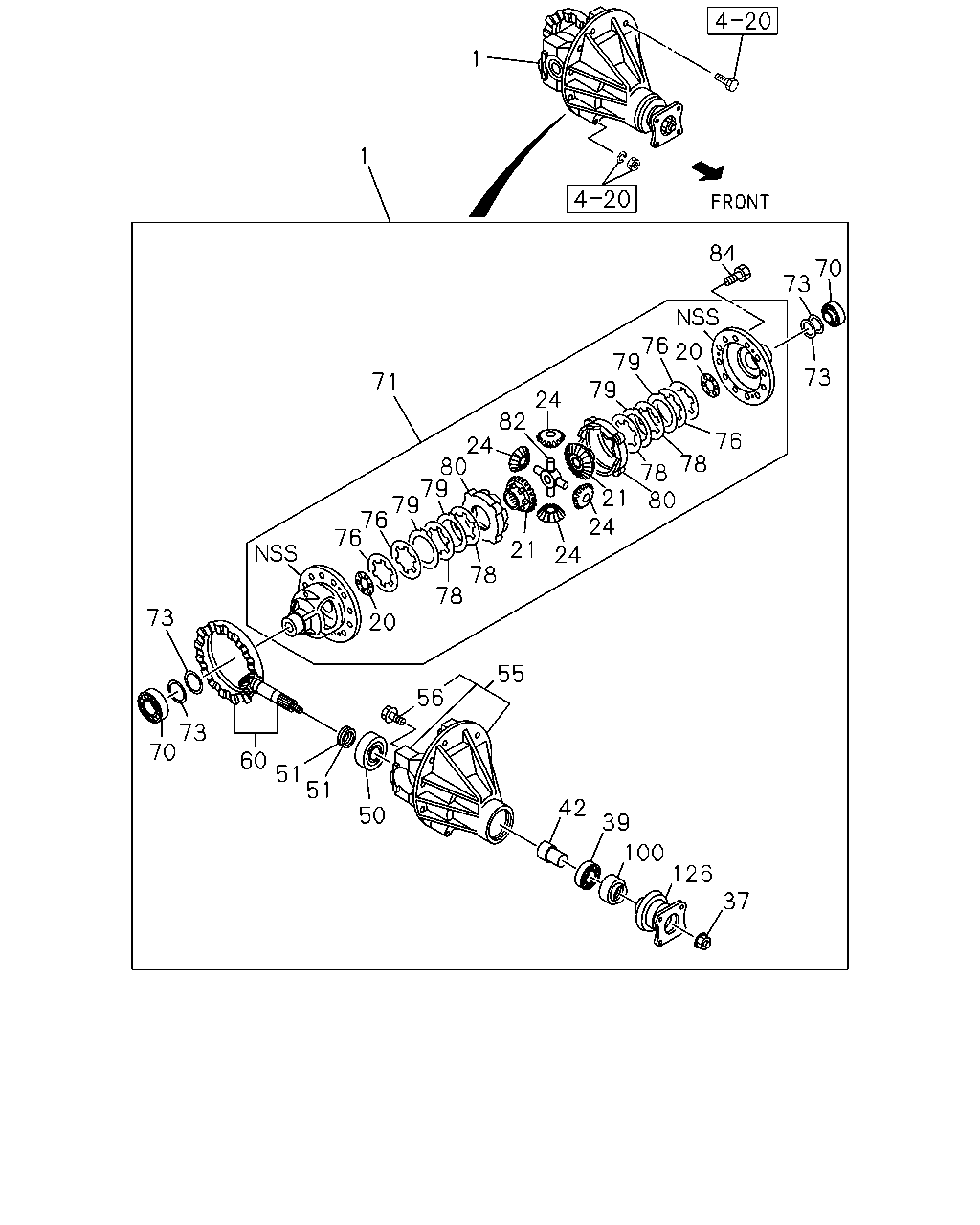

1 1 84 70 73 76 20 79 79 73 71 24 82 24 80 79 79 76 76 76 78 78 80 21 24 24 21 78 78 73 20 55 56 73 70 60 51 51 42 50 39 100 126 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/12(GU6) LIMITED SLIP DIFF<G80> 41/12	8-98010-699-0	01	1	0805-1009	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/12(GU6) LIMITED SLIP DIFF<G80> 41/12	8-98167-622-0	01	1	1010-	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/12(GU6) EXC. LIMITED SLIP DIFF<G80> 41/12	8-98010-695-0	01	1	0805-1106	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/12(GU6) EXC. LIMITED SLIP DIFF<G80> 41/12	8-98190-113-0	01	1	1107-	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) LIMITED SLIP DIFF<G80> 41/11	8-98080-824-0	01	1	0805-1009	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) LIMITED SLIP DIFF<G80> 41/11	8-98167-624-0	01	1	1010-	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) EXC. LIMITED SLIP DIFF<G80> 41/11	8-98010-698-0	01	1	0805-1106	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) EXC. LIMITED SLIP DIFF<G80> 41/11	8-98190-115-0	01	1	1107-	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(GY2) LIMITED SLIP DIFF<G80> 43/10	8-98047-786-0	01	1	0805-1009	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(GY2) LIMITED SLIP DIFF<G80> 43/10	8-98167-627-0	01	1	1010-	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(GY2) EXC. LIMITED SLIP DIFF<G80> 43/10	8-98047-783-0	01	1	0805-1106	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(GY2) EXC. LIMITED SLIP DIFF<G80> 43/10	8-98190-118-0	01	1	1107-	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) LIMITED SLIP DIFF<G80> 43/12	8-98080-823-0	01	1	0805-1009	●	●	●	●	●	●		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) LIMITED SLIP DIFF<G80> 43/12	8-98167-623-0	01	1	1010-	●	●	●	●	●	●		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) EXC. LIMITED SLIP DIFF<G80> 43/12	8-98010-697-0	01	1	0805-1106	●	●	●	●	●	●		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) EXC. LIMITED SLIP DIFF<G80> 43/12	8-98190-114-0	01	1	1107-	●	●	●	●	●	●		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> 41/10	8-98080-826-0	01	1	0805-1009	●	●	●	●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> 41/10	8-98167-626-0	01	1	1010-	●	●	●	●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> 41/10	8-98047-781-0	01	1	0805-1106	●	●	●	●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> 41/10	8-98190-117-0	01	1	1107-	●	●	●	●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(GT3) LIMITED SLIP DIFF<G80> 41/9	8-98047-788-0	01	1	0805-1009	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(GT3) LIMITED SLIP DIFF<G80> 41/9	8-98167-628-0	01	1	1010-	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(GT3) EXC. LIMITED SLIP DIFF<G80> 41/9	8-98047-787-0	01	1	0805-1106	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(GT3) EXC. LIMITED SLIP DIFF<G80> 41/9	8-98190-119-0	01	1	1107-	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(GT2) LIMITED SLIP DIFF<G80> 43/9	8-98047-790-0	01	1	0805-1009	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(GT2) LIMITED SLIP DIFF<G80> 43/9	8-98167-629-0	01	1	1010-	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(GT2) EXC. LIMITED SLIP DIFF<G80> 43/9	8-98047-789-0	01	1	0805-1106	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(GT2) EXC. LIMITED SLIP DIFF<G80> 43/9	8-98190-120-0	01	1	1107-	●	●		●	●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(HC3) LIMITED SLIP DIFF<G80> 41/8	8-98047-795-0	01	1	0805-1003				●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(HC3) EXC. LIMITED SLIP DIFF<G80> 41/8	8-98047-792-0	01	1	0805-1003				●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) LIMITED SLIP DIFF<G80> 43/11	8-98080-825-0	01	1	0805-1009					●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) LIMITED SLIP DIFF<G80> 43/11	8-98167-625-0	01	1	1010-					●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) EXC. LIMITED SLIP DIFF<G80> 43/11	8-98047-779-0	01	1	0805-1106					●			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) EXC. LIMITED SLIP DIFF<G80> 43/11	8-98190-116-0	01	1	1107-					●			●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.60	8-94365-187-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.70	8-94365-188-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.50	8-94453-935-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.80	8-97066-412-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.80	8-94435-343-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.90	8-94435-344-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.10	8-94435-345-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.20	8-94435-346-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.30	8-94435-347-0	02	1	0805-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.00	9-41562-602-0	02	1	0805-	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<G80>	8-97200-286-0	02	1	0805-	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G80> Z=18	8-97226-763-0	02	1	0805-1106	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G80> Z=18	8-98186-828-1	02	1	1107-	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF LIMITED SLIP DIFF<G80>	8-97200-285-1	04	1	0805-	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G80> Z=10	8-97226-762-0	02	1	0805-1106	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G80> Z=10	8-98186-829-0	02	1	1107-	●	●	●	●	●	●	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	0805-	●	●	●	●	●	●	●	●
39	05.484 BEARING; FINAL PINION NSK	9-00093-078-0	01	1	0805-	●	●	●	●	●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97035-399-0	01	1	0805-	●	●	●	●	●	●	●	●
50	05.447 BEARING; FINAL PINION JTEKT	8-94452-448-0	01	1	0810-	●	●	●	●	●	●	●	●
50	05.447 BEARING; FINAL PINION NSK	8-94435-342-0	01	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.94	8-94435-356-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.96	8-94435-357-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.98	8-94435-358-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.00	8-94435-359-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.02	8-94435-360-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.04	8-94435-361-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.06	8-94435-362-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.08	8-94435-363-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.10	8-94435-364-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.12	8-94435-365-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.14	8-94435-366-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.16	8-94435-367-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.18	8-94435-368-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.20	8-94435-369-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.22	8-94435-370-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.24	8-94435-371-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.26	8-94435-372-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.28	8-94435-373-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.30	8-94435-374-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.32	8-94435-375-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.34	8-94435-376-0	AR	1	0805-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.36	8-94435-377-0	AR	1	0805-	●	●	●	●	●	●	●	●
55	05.505 CARRIER; DIFF	8-97240-889-2	01	1	0805-	●	●	●	●	●	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M12X75	8-94435-341-0	04	1	0805-1012	●	●	●	●	●	●	●	●
56	05.506 BOLT; BRG CAP M12X75 FLANGE	8-98176-233-0	04	1	1101-	●	●	●	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/12(GU6) 41/12	8-97374-177-2	01	1	0805-	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/11(GT4) 41/11	8-98030-515-1	01	1	0805-	●	●	●	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(GY2) 43/10	8-98014-987-1	01	1	0805-	●	●	●	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/12(GM0) 43/12	8-97374-174-1	01	1	0805-	●	●	●	●	●	●		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98014-984-1	01	1	0805-	●	●	●	●	●			●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(GT3) 41/9	8-98014-990-1	01	1	0805-	●	●		●	●			●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(GT2) 43/9	8-98014-995-1	01	1	0805-	●	●		●	●			●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(HC3) 41/8	8-98014-998-0	01	1	0805-1003				●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/11(GW1) 43/11	8-98014-980-1	01	1	0805-					●			●
70	05.536 BEARING; DIFF CAGE NSK	8-94435-355-0	02	1	0805-	●	●	●	●	●	●	●	●
70	05.536 BEARING; DIFF CAGE JTEKT	8-94452-449-1	02	1	0805-	●	●	●	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<G80>	8-98080-352-0	01	1	0805-1009	●	●	●	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<G80>	8-98167-619-0	01	1	1010-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.12	8-94435-348-0	AR	1	0805-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.15	8-94435-349-0	AR	1	0805-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.18	8-94435-350-0	AR	1	0805-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.25	8-94435-351-0	AR	1	0805-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.30	8-94435-352-0	AR	1	0805-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.50	8-94435-353-0	AR	1	0805-	●	●	●	●	●	●	●	●
76	05.511 DISC; BEVEL LIMITED SLIP DIFF<G80>	8-97096-209-0	04	1	0805-	●	●	●	●	●	●	●	●
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<G80>	8-94453-937-0	04	1	0805-	●	●	●	●	●	●	●	●
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<G80> T=1.85	8-94365-189-0	04	1	0805-	●	●	●	●	●	●	●	●
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<G80> T=1.75	8-94453-936-0	04	1	0805-	●	●	●	●	●	●	●	●
80	05.511 RING; PRESSURE LIMITED SLIP DIFF<G80>	8-94453-931-0	02	1	0805-	●	●	●	●	●	●	●	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<G80>	8-94453-932-0	01	1	0805-	●	●	●	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	0805-	●	●	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	0805-	●	●	●	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1006-1110					●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1006-1110						●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1006-1110								●
126	05.545 COUPLING; DRIVING PINION HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> FINAL GEAR RATIO 43/10(GY2) EXC. HIGH RIDE SUSPENSION(7YC)	8-98166-552-0	01	1	1111-1208	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1111-1208					●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1111-1208						●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1111-1208								●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1209-1305					●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1209-1305						●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-98166-552-0	01	1	1209-1305								●
126	05.545 COUPLING; DRIVING PINION	8-98166-552-1	01	1	1306-	●	●	●	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION	8-97217-146-0	01	1	0805-1005	●	●	●	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION	8-97217-146-0	01	1	1006-1007	●	●	●	●
126	05.545 COUPLING; DRIVING PINION HF V6 ENG(LCA)	8-97217-146-0	01	1	1006-1007					●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97217-146-0	01	1	1006-1007					●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9>	8-97217-146-0	01	1	1006-1007					●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-97217-146-0	01	1	1006-1007					●	●	●	●
126	05.545 COUPLING; DRIVING PINION HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97217-146-0	01	1	1008-1305	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION HF V6 ENG(LCA) FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97217-146-0	01	1	1008-1305	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> FINAL GEAR RATIO 43/10(GY2) HIGH RIDE SUSPENSION(7YC)	8-97217-146-0	01	1	1008-1305	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0)	8-97217-146-0	01	1	1008-1305	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION HF V6 ENG(LCA)	8-97217-146-0	01	1	1008-1305						●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97217-146-0	01	1	1008-1305						●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9>	8-97217-146-0	01	1	1008-1305						●	●	●
126	05.545 COUPLING; DRIVING PINION 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>	8-97217-146-0	01	1	1008-1305						●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
