◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#74747) — 63 parça

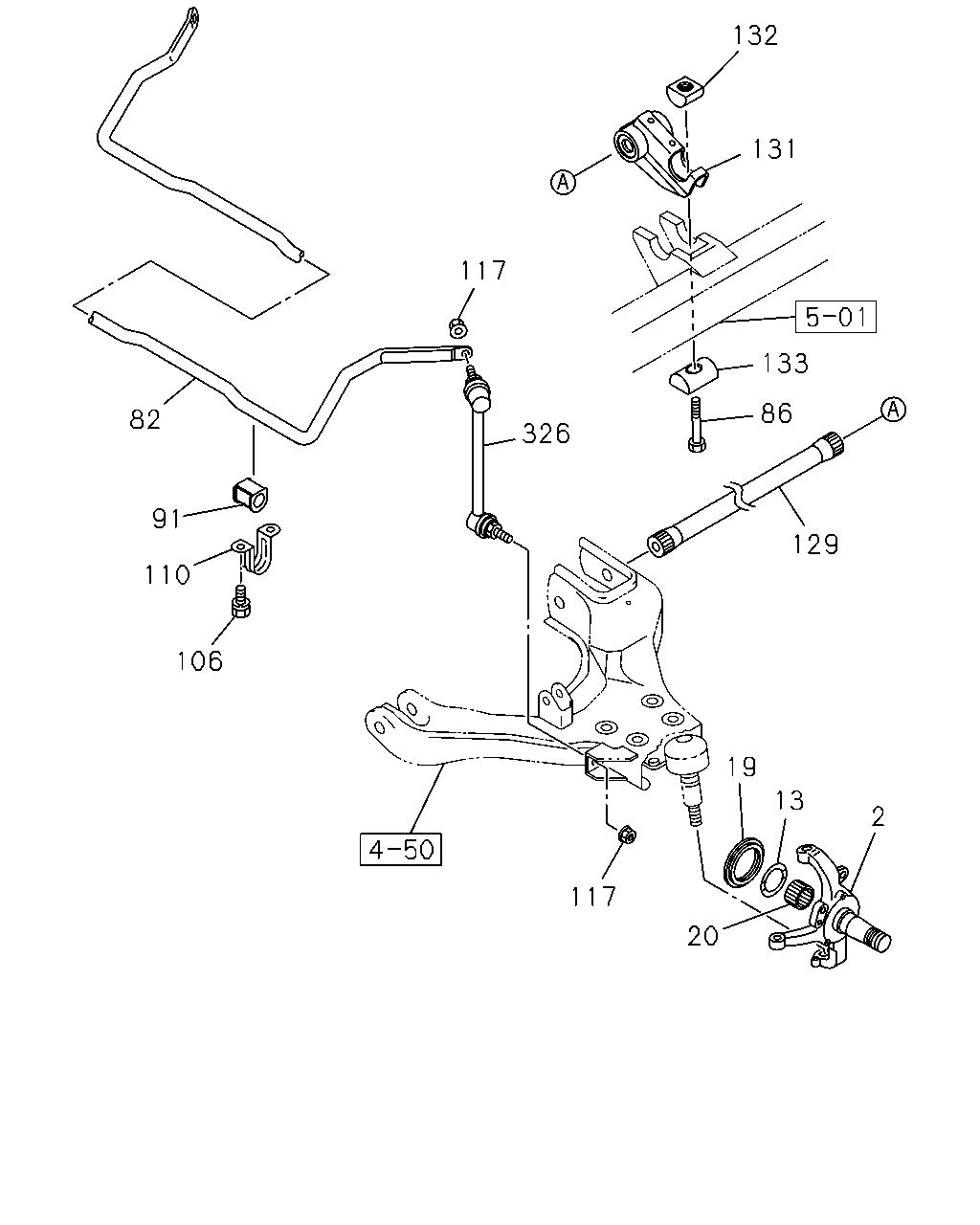

çizim 122465
132 131 117 133 86 82 326 91 129 110 106 19 13 2 117 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97943-627-1 01 1 0805- ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97943-626-1 01 1 0805- ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97943-625-1 01 1 0805-1102 ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-028-0 01 1 1103- ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97943-624-1 01 1 0805-1102 ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-027-0 01 1 1103- ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97943-629-1 01 1 0805- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97943-628-1 01 1 0805- ● ● ●
13 06.104 WASHER; THRUST,KNUCKLE
ID=34 W/OIL GROOVE 		8-94407-718-0 02 1 0805- ● ● ●
19 06.061 SEAL; OIL,KNUCKLE 8-98036-595-0 02 1 0805- ● ● ●
20 06.104 BEARING; KNUCKLE 8-94407-708-0 02 1 0805- ● ● ●
82 07.241 BAR; STAB,FRT SUSP
HIGH RIDE SUSPENSION(7YC) 		8-97235-783-1 01 1 0805- ● ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-97235-783-1 01 1 0805- ● ● ●
82 07.241 BAR; STAB,FRT SUSP
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97214-815-1 01 1 0805- ● ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
HIGH RIDE SUSPENSION(7YC) M18X160 		8-97354-887-0 02 1 0805- ● ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X160 		8-97354-887-0 02 1 0805- ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
HIGH RIDE SUSPENSION(7YC) 		8-97235-784-0 02 1 0805- ● ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-97235-784-0 02 1 0805- ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97247-083-0 02 1 0805- ● ● ● ● ●
106 06.216 BOLT; CAP FIX
M8X25 FLANGE 		0-28650-825-0 04 1 0805- ● ● ● ● ● ● ● ●
110 07.242 CLAMP; STAB TO ROD 8-98005-922-0 02 1 0805- ● ● ● ● ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
M10 FLANGE 		8-97245-646-0 02 1 0805- ● ● ● ● ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
M10 FLANGE 		8-97245-646-0 02 1 0805- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
HIGH RIDE SUSPENSION(7YC) 		8-97235-865-0 01 1 0805- ● ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-97235-865-0 01 1 0805- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
HIGH RIDE SUSPENSION(7YC) 		8-97235-864-0 01 1 0805- ● ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-97235-864-0 01 1 0805- ● ● ●
131 07.436 ARM; HEIGHT CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-920-0 01 1 0805- ● ● ● ● ●
131 07.436 ARM; HEIGHT CONT 8-98005-920-0 01 1 0805- ● ● ●
131 07.436 ARM; HEIGHT CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-919-0 01 1 0805- ● ● ● ● ●
131 07.436 ARM; HEIGHT CONT 8-98005-919-0 01 1 0805- ● ● ●
132 07.436 COLLAR; TORSION BAR
HIGH RIDE SUSPENSION(7YC) 		8-98005-877-0 02 1 0805- ● ● ● ● ●
132 07.436 COLLAR; TORSION BAR 8-98005-877-0 02 1 0805- ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
HIGH RIDE SUSPENSION(7YC) 		8-98005-824-0 02 1 0805- ● ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT 8-98005-824-0 02 1 0805- ● ● ●
326 07.240 LINK ASM; STABILIZER
HIGH RIDE SUSPENSION(7YC) 		8-97944-569-0 01 1 0805- ● ● ● ● ●
326 07.240 LINK ASM; STABILIZER 8-97944-569-0 01 1 0805- ● ● ●
326 07.240 LINK ASM; STABILIZER
HIGH RIDE SUSPENSION(7YC) 		8-97944-568-0 01 1 0805- ● ● ● ● ●
326 07.240 LINK ASM; STABILIZER 8-97944-568-0 01 1 0805- ● ● ●
326 07.240 LINK ASM; STABILIZER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-575-0 02 1 0805- ● ● ● ● ●
çizim 185766
82 326 91 117 110 106 2 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97943-627-1 01 1 0805- ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97943-626-1 01 1 0805- ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97943-625-1 01 1 0805-1102 ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-028-0 01 1 1103- ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97943-624-1 01 1 0805-1102 ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-027-0 01 1 1103- ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97943-629-1 01 1 0805- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97943-628-1 01 1 0805- ● ● ●
82 07.241 BAR; STAB,FRT SUSP
HIGH RIDE SUSPENSION(7YC) 		8-97235-783-1 01 1 0805- ● ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-97235-783-1 01 1 0805- ● ● ●
82 07.241 BAR; STAB,FRT SUSP
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97214-815-1 01 1 0805- ● ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
HIGH RIDE SUSPENSION(7YC) 		8-97235-784-0 02 1 0805- ● ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-97235-784-0 02 1 0805- ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97247-083-0 02 1 0805- ● ● ● ● ●
106 06.216 BOLT; CAP FIX
M8X25 FLANGE 		0-28650-825-0 04 1 0805- ● ● ● ● ● ● ● ●
110 07.242 CLAMP; STAB TO ROD 8-98005-922-0 02 1 0805- ● ● ● ● ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
M10 FLANGE 		8-97245-646-0 02 1 0805- ● ● ● ● ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
M10 FLANGE 		8-97245-646-0 02 1 0805- ● ● ●
326 07.240 LINK ASM; STABILIZER
HIGH RIDE SUSPENSION(7YC) 		8-97944-569-0 01 1 0805- ● ● ● ● ●
326 07.240 LINK ASM; STABILIZER 8-97944-569-0 01 1 0805- ● ● ●
326 07.240 LINK ASM; STABILIZER
HIGH RIDE SUSPENSION(7YC) 		8-97944-568-0 01 1 0805- ● ● ● ● ●
326 07.240 LINK ASM; STABILIZER 8-97944-568-0 01 1 0805- ● ● ●
326 07.240 LINK ASM; STABILIZER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-575-0 02 1 0805- ● ● ● ● ●
