Isuzu WW
▶
PICKUP
▶
TFR
▶
51171 - TFR/TFS CHEV HOLDEN
▶
3 - Brakes, Brake System
▶
3-60 - BRAKE PIPING; VACUUM
▶
3-60 — BRAKE PIPING; VACUUM
(#74745) — 35 parça
Tümü
A - TFB5CF
B - TFB5CK
C - TFB5SF
D - TFB5SK
E - TFB5WF
F - TFS5C
G - TFS5SK
H - TFS5W
◀

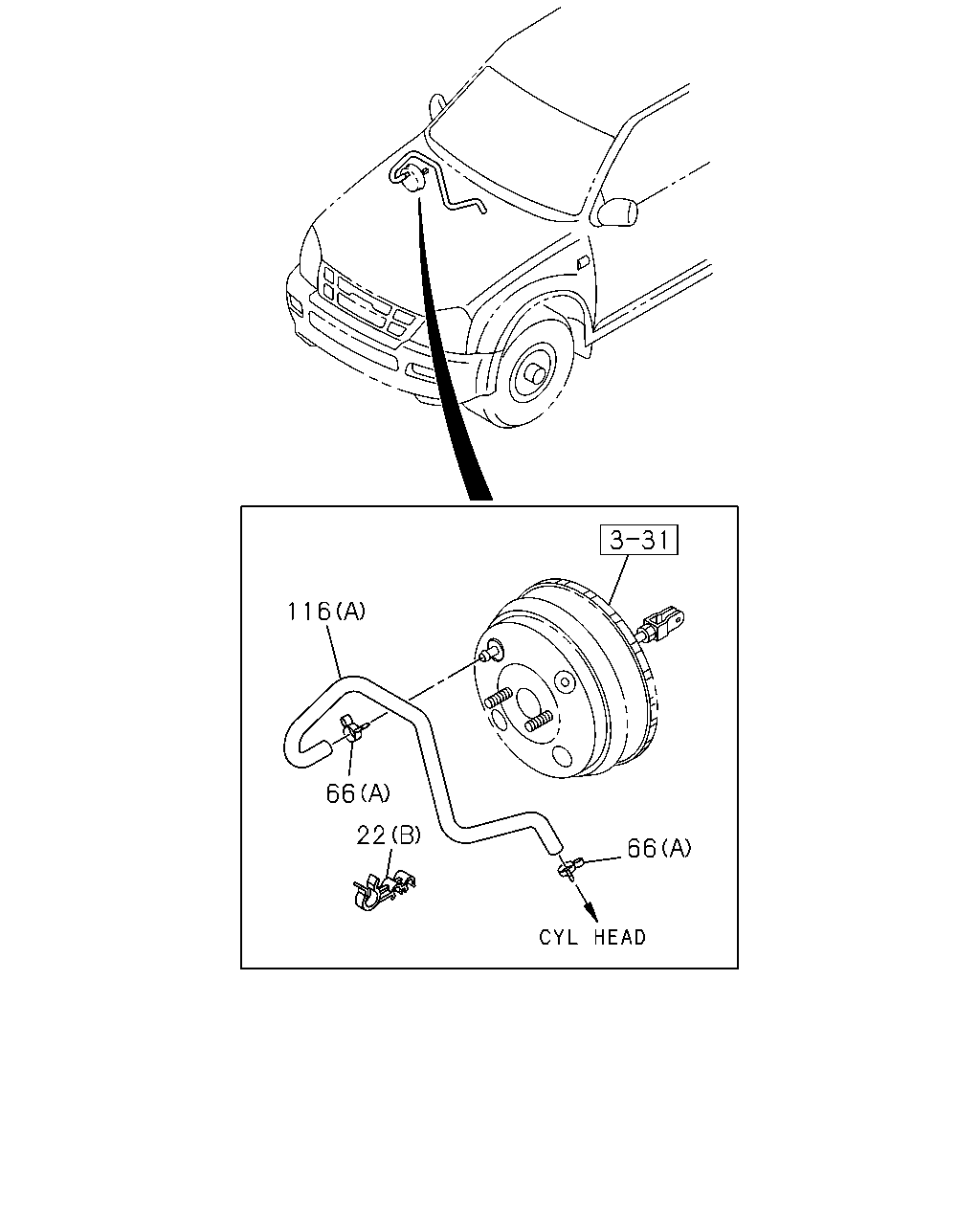

[360A] C24SE (12 parça)

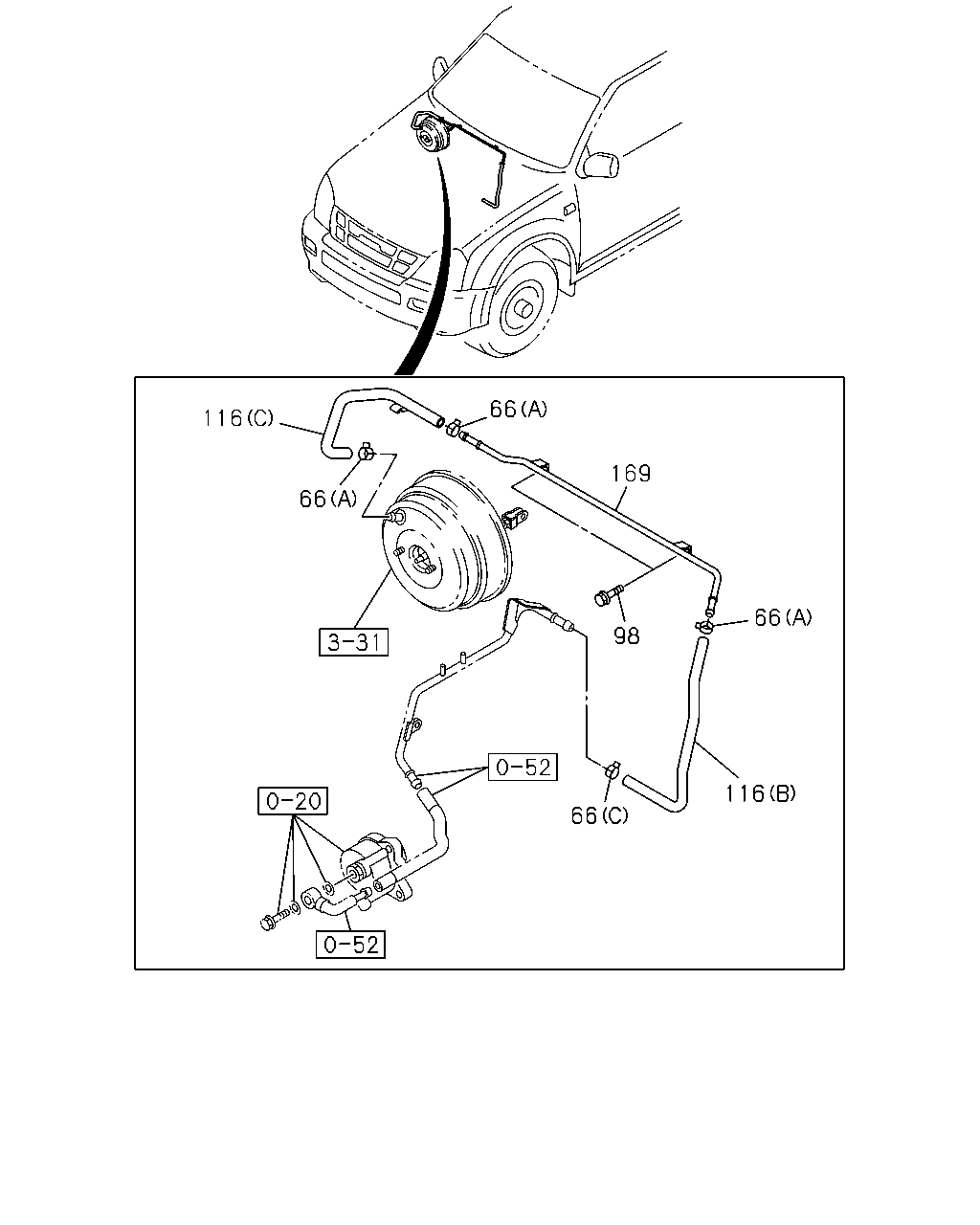

[360A] 4JJ1 (11 parça)

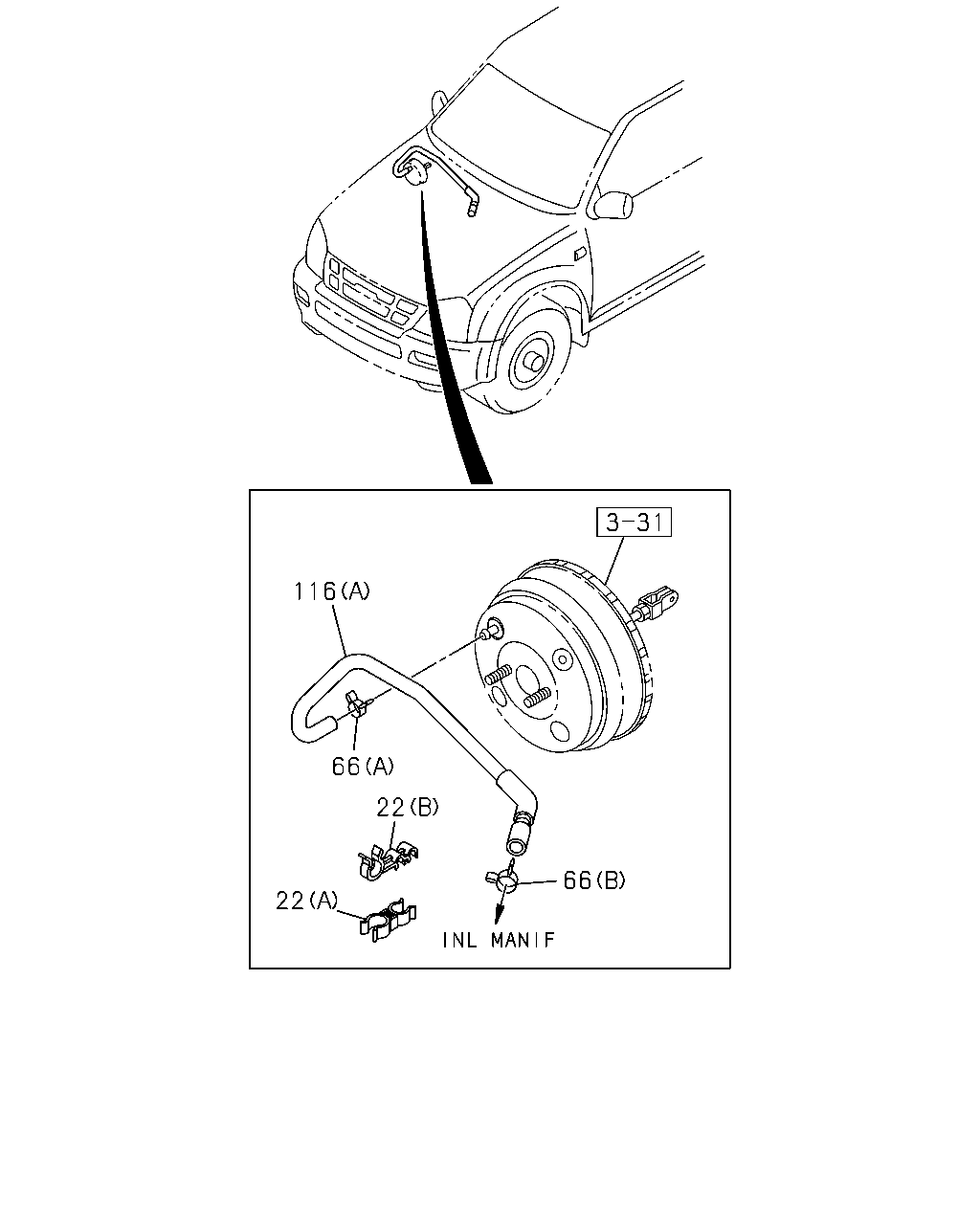

[360A] HF V6 (12 parça)
▶
116
66
22
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
22
04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.104 (A) ID=11.8 & ID=18.6
8-97333-094-0
01
1
0805-
●
●
●
●
●
●
●
●
22
04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA),C24SE ENG(LG1) (B)
8-97249-910-0
01
1
0805-1003
●
●
●
●
●
●
●
●
22
04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA) (B)
8-97249-910-0
01
1
1004-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) 01.540 (B) ID=18.9
8-94478-875-0
01
1
0805-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) (A) ID=15.5
8-98035-872-0
01
1
0805-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCX ENG(LS0) (A) ID=15.5
8-98035-872-0
03
1
0805-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCX ENG(LS0) (C) ID=16
8-98036-539-0
01
1
0805-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5
8-98035-872-0
02
1
0805-1003
●
●
116
04.931 HOSE; VAC,M/VAC
HF V6 ENG(LCA) (A)
8-97944-843-1
01
1
0805-
●
●
●
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
4JJ1-TCX ENG(LS0) (C)
8-97944-840-1
01
1
0805-
●
●
●
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
4JJ1-TCX ENG(LS0) (B)
8-97944-841-0
01
1
0805-
●
●
●
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A)
8-97944-833-0
01
1
0805-1003
●
●
66
116
169
66
66
98
116
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
66
04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) 01.540 (B) ID=18.9
8-94478-875-0
01
1
0805-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) (A) ID=15.5
8-98035-872-0
01
1
0805-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCX ENG(LS0) (A) ID=15.5
8-98035-872-0
03
1
0805-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCX ENG(LS0) (C) ID=16
8-98036-539-0
01
1
0805-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5
8-98035-872-0
02
1
0805-1003
●
●
98
04.931 BOLT; VAC PIPE FIX
4JJ1-TCX ENG(LS0) 02.343 M6X16 FLANGE
0-28650-616-0
02
1
0805-
●
●
●
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
HF V6 ENG(LCA) (A)
8-97944-843-1
01
1
0805-
●
●
●
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
4JJ1-TCX ENG(LS0) (C)
8-97944-840-1
01
1
0805-
●
●
●
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
4JJ1-TCX ENG(LS0) (B)
8-97944-841-0
01
1
0805-
●
●
●
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A)
8-97944-833-0
01
1
0805-1003
●
●
169
04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCX ENG(LS0)
8-97944-847-1
01
1
0805-
●
●
●
●
●
●
●
●
116
66
22
66
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
22
04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.104 (A) ID=11.8 & ID=18.6
8-97333-094-0
01
1
0805-
●
●
●
●
●
●
●
●
22
04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA),C24SE ENG(LG1) (B)
8-97249-910-0
01
1
0805-1003
●
●
●
●
●
●
●
●
22
04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA) (B)
8-97249-910-0
01
1
1004-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) 01.540 (B) ID=18.9
8-94478-875-0
01
1
0805-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) (A) ID=15.5
8-98035-872-0
01
1
0805-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCX ENG(LS0) (A) ID=15.5
8-98035-872-0
03
1
0805-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCX ENG(LS0) (C) ID=16
8-98036-539-0
01
1
0805-
●
●
●
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5
8-98035-872-0
02
1
0805-1003
●
●
116
04.931 HOSE; VAC,M/VAC
HF V6 ENG(LCA) (A)
8-97944-843-1
01
1
0805-
●
●
●
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
4JJ1-TCX ENG(LS0) (C)
8-97944-840-1
01
1
0805-
●
●
●
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
4JJ1-TCX ENG(LS0) (B)
8-97944-841-0
01
1
0805-
●
●
●
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A)
8-97944-833-0
01
1
0805-1003
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
