◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#74744) — 519 parça

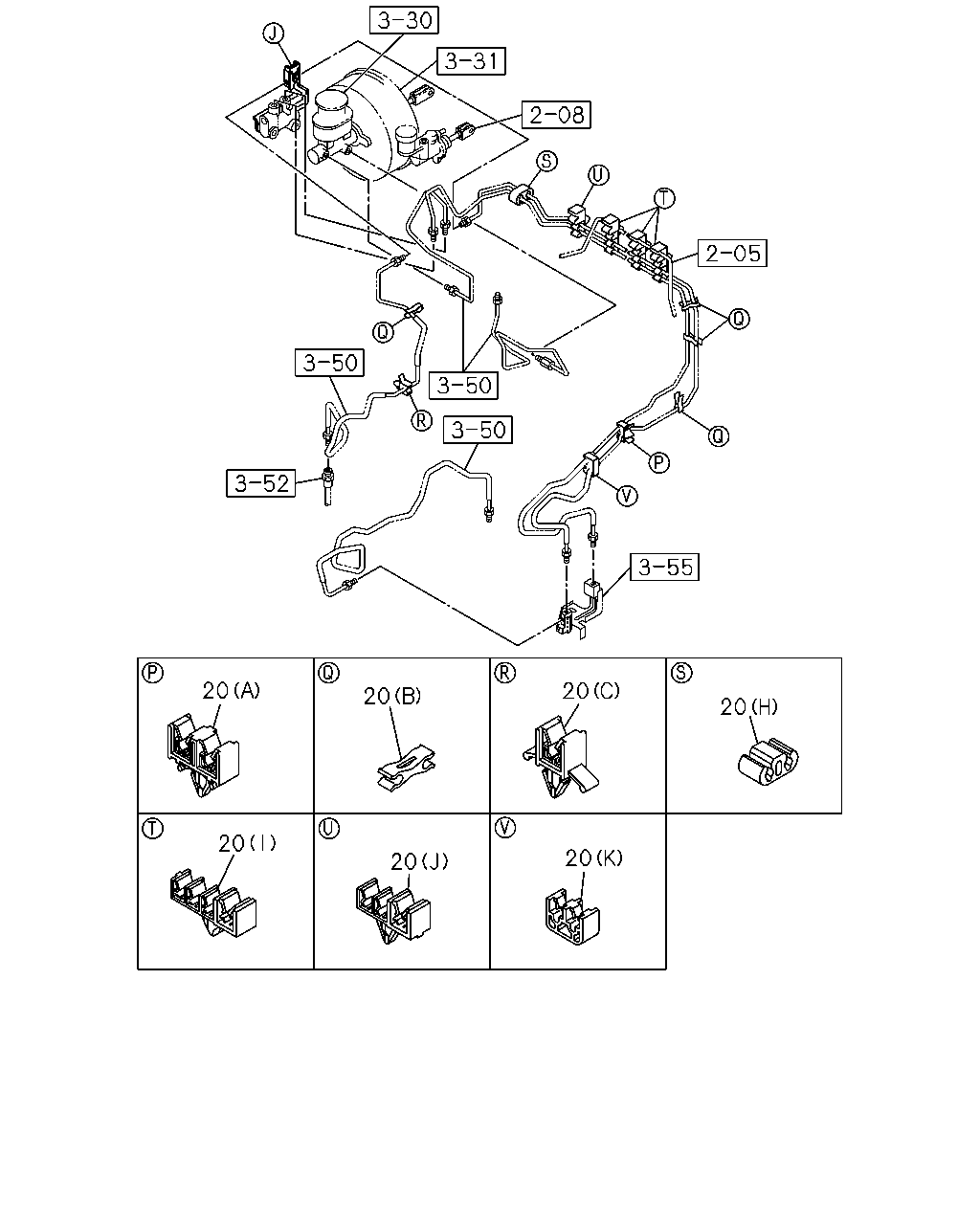

çizim 121228
20 20 20 20 20 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) (M) ID=6.8X2 		8-97251-124-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (H) ID=4.8X2 		8-94389-060-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (H) ID=4.8X2 		8-94389-060-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (J) 		8-97264-768-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97264-768-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 16.085 (G) 		8-97310-401-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) 16.085 (G) 		8-97310-401-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 03 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.8X3 		8-94487-369-0 02 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=10 & 4.76X3 		8-97249-904-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4X4 EXTEND CAB EXTRA LONG(TFS*CK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) (O) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0805- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (O) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0805- ● ●

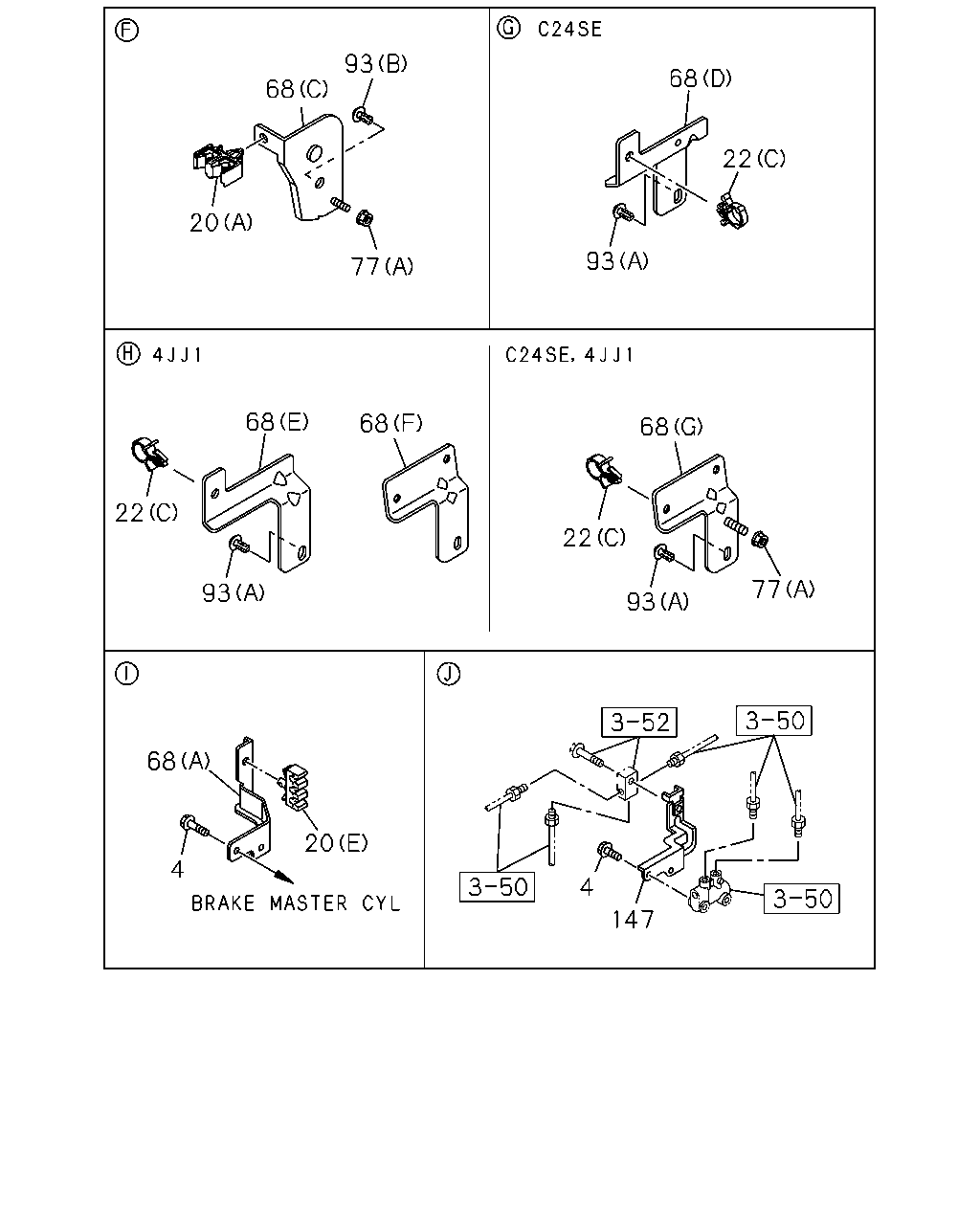

çizim 121262
93 68 68 22 20 93 77 68 68 68 22 22 77 93 93 68 20 4 4 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 04.686 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0805- ● ● ● ● ● ● ● ●
4 04.686 BOLT; BRKT
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) (M) ID=6.8X2 		8-97251-124-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (H) ID=4.8X2 		8-94389-060-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (H) ID=4.8X2 		8-94389-060-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (J) 		8-97264-768-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97264-768-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 16.085 (G) 		8-97310-401-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) 16.085 (G) 		8-97310-401-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 03 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.8X3 		8-94487-369-0 02 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=10 & 4.76X3 		8-97249-904-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4X4 EXTEND CAB EXTRA LONG(TFS*CK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) (O) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0805- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (O) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0805- ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 0805- ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 0805- ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 01 1 1004- ● ● ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 02 1 0805- ● ● ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97255-709-0 01 1 0805- ● ● ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-661-0 01 1 0805- ● ● ● ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (F) 		8-98034-935-0 01 1 0805- ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97944-655-0 01 1 0805- ● ● ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-656-1 01 1 0805- ● ● ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98006-970-0 01 1 0805- ● ● ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) (G) 		8-98036-122-0 01 1 0805-1003 ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (G) 		8-98036-122-0 01 1 0805-1003 ●
68 04.686 BRACKET; CLIP
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (G) 		8-98036-122-0 01 1 1004- ●
68 04.686 BRACKET; CLIP
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-663-0 01 1 0805-1003 ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1004- ● ● ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1004- ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1004- ●
77 04.686 NUT; BRKT,OIL PIPE
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M6 FLANGE 		0-91180-206-0 01 1 0805-1003 ● ●
93 04.686 CLIP; BRKT
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 0805-1003 ● ● ● ● ●
93 04.686 CLIP; BRKT
C24SE ENG(LG1) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 0805-1003 ● ●
93 04.686 CLIP; BRKT
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 16.800 (A) OD=18 		8-94269-290-0 01 1 0805-1003 ●
93 04.686 CLIP; BRKT
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 1004- ● ● ● ● ●
93 04.686 CLIP; BRKT
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 16.800 (A) OD=18 		8-94269-290-0 01 1 1004- ●
93 04.686 CLIP; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 (B) OD=25 		8-94279-810-0 01 1 0805- ● ● ● ● ● ● ● ●
147 04.686 BRACKET; CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-97944-702-0 01 1 0805- ● ● ● ● ● ● ● ●
147 04.686 BRACKET; CONNECTOR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98050-704-0 01 1 0805- ● ● ● ● ● ● ● ●

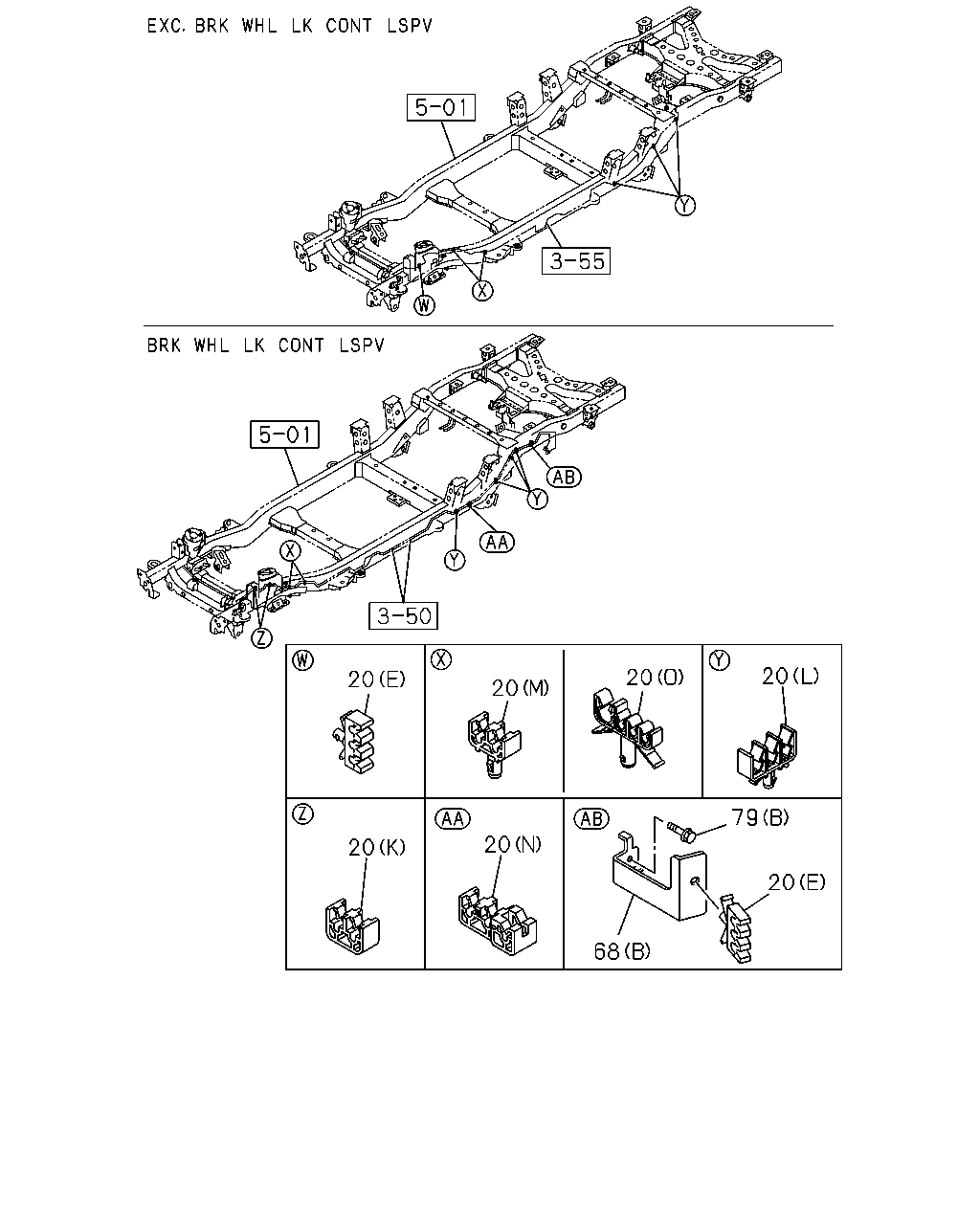

çizim 121335
20 20 20 20 79 20 20 20 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) (M) ID=6.8X2 		8-97251-124-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (H) ID=4.8X2 		8-94389-060-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (H) ID=4.8X2 		8-94389-060-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (J) 		8-97264-768-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97264-768-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 16.085 (G) 		8-97310-401-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) 16.085 (G) 		8-97310-401-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 03 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.8X3 		8-94487-369-0 02 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=10 & 4.76X3 		8-97249-904-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4X4 EXTEND CAB EXTRA LONG(TFS*CK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) (O) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0805- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (O) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0805- ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-661-0 01 1 0805- ● ● ● ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (F) 		8-98034-935-0 01 1 0805- ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97944-655-0 01 1 0805- ● ● ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-656-1 01 1 0805- ● ● ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98006-970-0 01 1 0805- ● ● ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) (G) 		8-98036-122-0 01 1 0805-1003 ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (G) 		8-98036-122-0 01 1 0805-1003 ●
68 04.686 BRACKET; CLIP
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (G) 		8-98036-122-0 01 1 1004- ●
68 04.686 BRACKET; CLIP
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-663-0 01 1 0805-1003 ● ●
79 04.686 BOLT; CLIP,OIL PIPE
BRK WHL LK CONT LSPV<JR9> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805-1003 ● ●
79 04.686 BOLT; CLIP,OIL PIPE
BRK WHL LK CONT LSPV<JR9> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1004- ● ● ● ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
HF V6 ENG(LCA) 07.874 (A) M6X22 W/PL WASHER 		8-97012-072-0 03 1 0805-0906 ● ● ● ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
HF V6 ENG(LCA) 03.162 (A) M6X22 W/PL WASHER 		8-98136-167-0 03 1 0907- ● ● ● ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
C24SE ENG(LG1) 07.874 (A) M6X22 W/PL WASHER 		8-97012-072-0 02 1 0805-0906 ● ●
79 04.686 BOLT; CLIP,OIL PIPE
C24SE ENG(LG1) 03.162 (A) M6X22 W/PL WASHER 		8-98136-167-0 02 1 0907-1003 ● ●

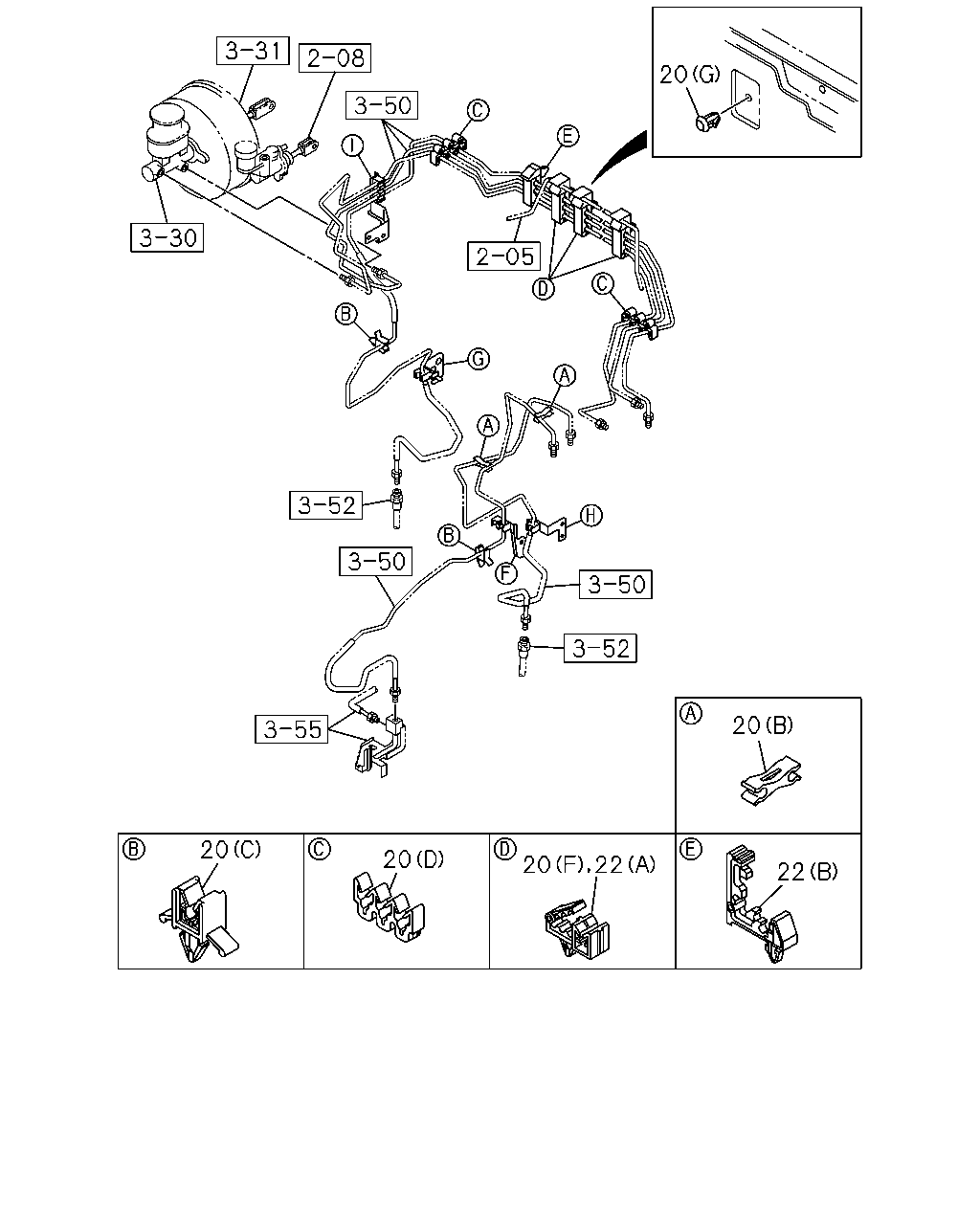

çizim 121434
20 20 20 20 22 20 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) (M) ID=6.8X2 		8-97251-124-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (H) ID=4.8X2 		8-94389-060-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (H) ID=4.8X2 		8-94389-060-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (J) 		8-97264-768-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97264-768-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 16.085 (G) 		8-97310-401-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) 16.085 (G) 		8-97310-401-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 03 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.8X3 		8-94487-369-0 02 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=10 & 4.76X3 		8-97249-904-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4X4 EXTEND CAB EXTRA LONG(TFS*CK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) (O) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0805- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (O) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0805- ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 0805- ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 0805- ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 01 1 1004- ● ● ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 02 1 0805- ● ● ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97255-709-0 01 1 0805- ● ● ● ● ● ● ● ●

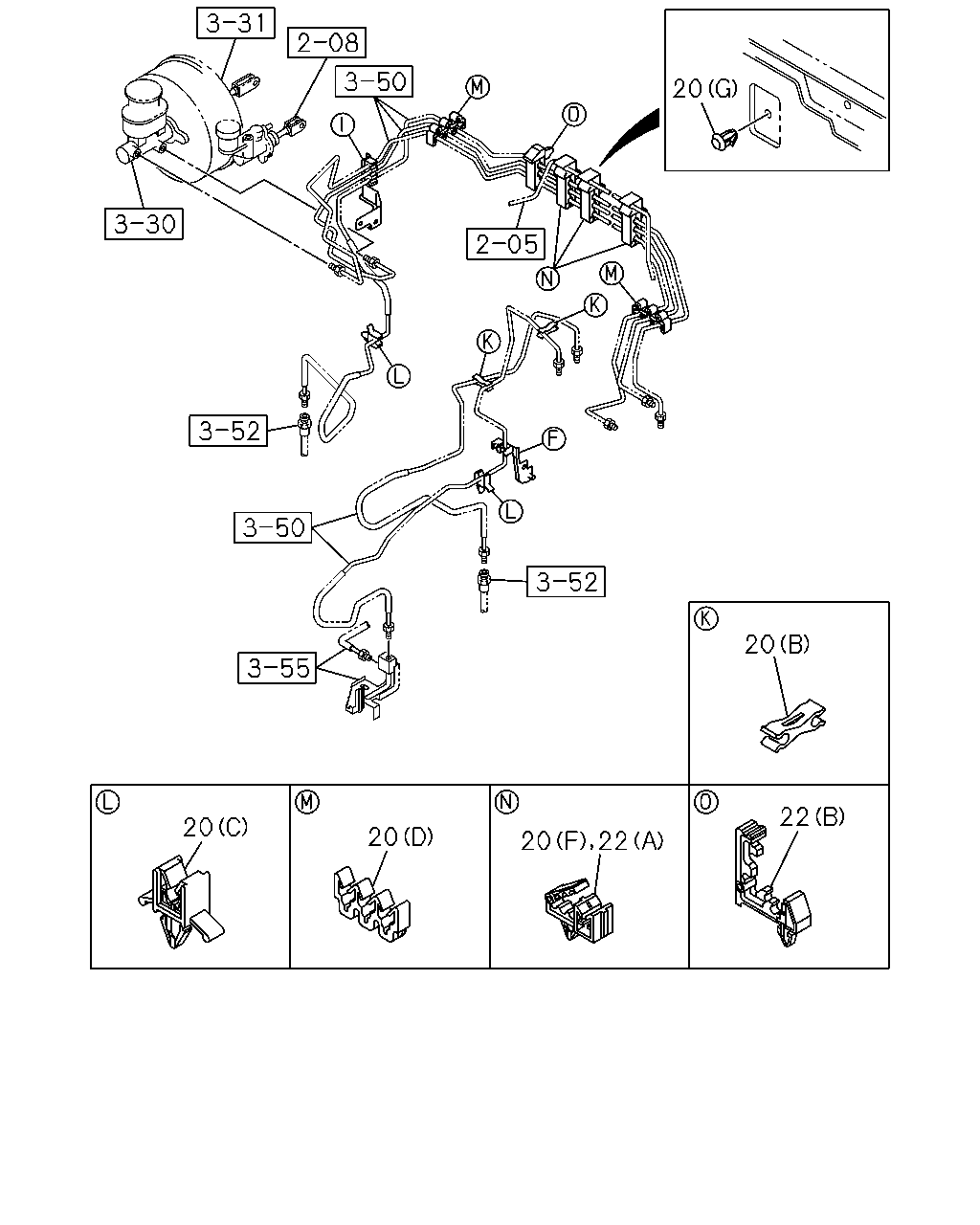

çizim 121469
20 20 22 20 20 20 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) (M) ID=6.8X2 		8-97251-124-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) (M) ID=6.8X2 		8-97251-124-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (H) ID=4.8X2 		8-94389-060-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (H) ID=4.8X2 		8-94389-060-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0805- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (J) 		8-97264-768-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97264-768-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 16.085 (G) 		8-97310-401-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) 16.085 (G) 		8-97310-401-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2 		8-97251-122-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2 		8-97251-122-0 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 03 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.8X3 		8-94487-369-0 02 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (E) ID=4.76X3 		8-97216-721-1 01 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=10 & 4.76X3 		8-97249-904-0 01 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0805- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (I) ID=10 & 4.76X3 		8-97201-752-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ● ● ●
20 04.686 CLIP; BRK PIPE
4X4 EXTEND CAB EXTRA LONG(TFS*CK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA),C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 0805-1003 ●
20 04.686 CLIP; BRK PIPE
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (K) ID=6.8X2 		8-97251-122-0 02 1 1004- ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) (O) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0805- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (O) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0805- ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 0805- ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 0805- ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 01 1 1004- ● ● ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 02 1 0805- ● ● ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97255-709-0 01 1 0805- ● ● ● ● ● ● ● ●
çizim 185765
77 120 79 120 120 79 79 79 79
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1004- ● ● ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1004- ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1004- ●
77 04.686 NUT; BRKT,OIL PIPE
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M6 FLANGE 		0-91180-206-0 01 1 0805-1003 ● ●
79 04.686 BOLT; CLIP,OIL PIPE
BRK WHL LK CONT LSPV<JR9> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805-1003 ● ●
79 04.686 BOLT; CLIP,OIL PIPE
BRK WHL LK CONT LSPV<JR9> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1004- ● ● ● ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
HF V6 ENG(LCA) 07.874 (A) M6X22 W/PL WASHER 		8-97012-072-0 03 1 0805-0906 ● ● ● ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
HF V6 ENG(LCA) 03.162 (A) M6X22 W/PL WASHER 		8-98136-167-0 03 1 0907- ● ● ● ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
C24SE ENG(LG1) 07.874 (A) M6X22 W/PL WASHER 		8-97012-072-0 02 1 0805-0906 ● ●
79 04.686 BOLT; CLIP,OIL PIPE
C24SE ENG(LG1) 03.162 (A) M6X22 W/PL WASHER 		8-98136-167-0 02 1 0907-1003 ● ●
120 04.686 PROTECTOR; HEAT
HF V6 ENG(LCA) (C) 		8-98006-509-0 01 1 0805- ● ● ● ● ● ● ● ●
120 04.686 PROTECTOR; HEAT
C24SE ENG(LG1) (A) 		8-97249-914-0 01 1 0805-1003 ● ●
120 04.686 PROTECTOR; HEAT
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97263-520-0 01 1 0805-1003 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
