◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#74743) — 73 parça

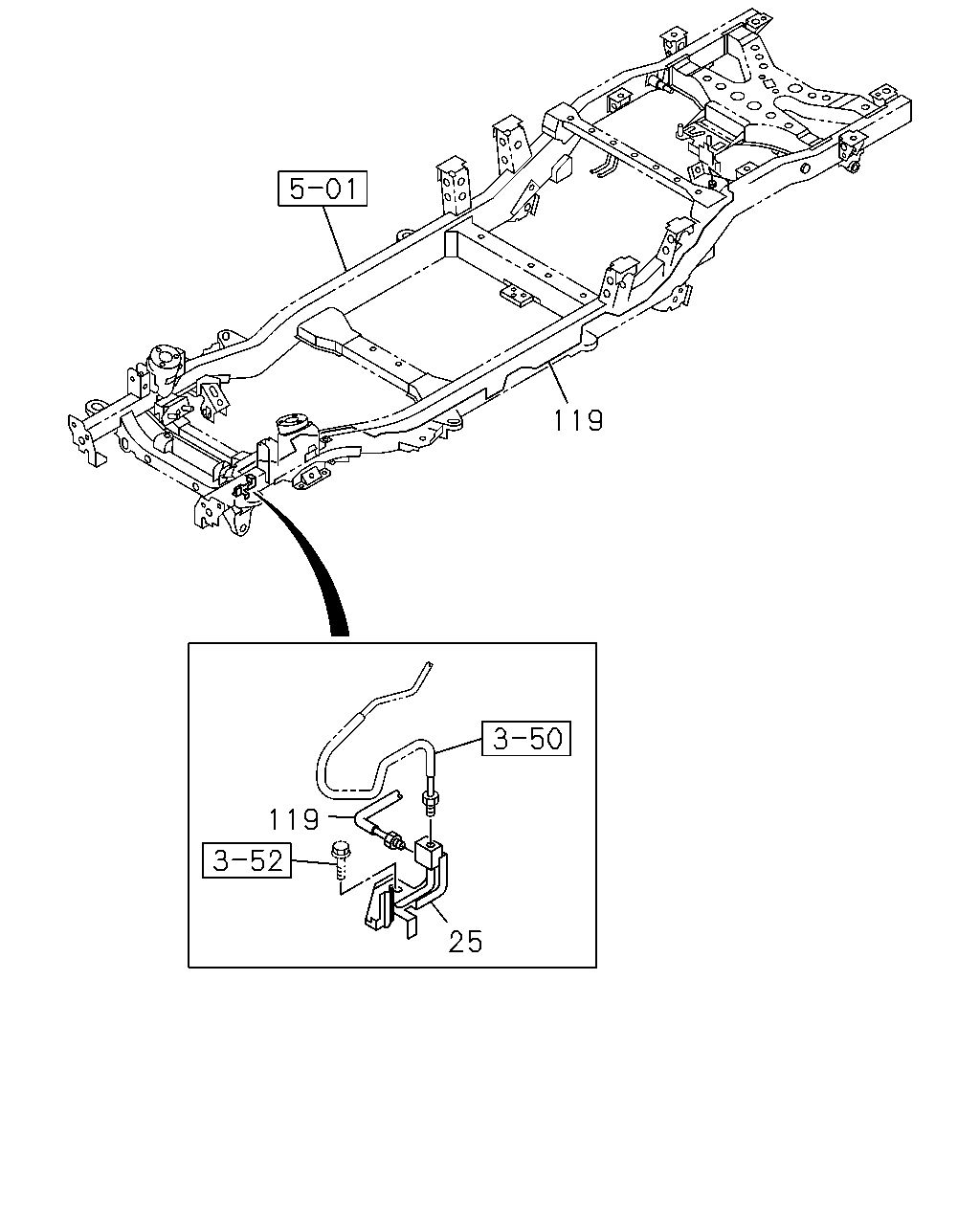

çizim 119684
119 119 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-98046-621-0 01 1 0805- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 1004- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 1004- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98045-667-0 01 1 0805- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98045-667-0 01 1 0805- ● ● ● ● ● ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-645-1 01 1 0805- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-645-1 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-645-1 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 0805- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0805- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98028-028-1 01 1 0805- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98028-028-1 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98028-028-1 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-98043-600-0 01 1 0805- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97944-639-0 01 1 0805-1003 ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97944-637-0 01 1 0805-1003 ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0805-1003 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB EXTRA LONG(TFS*CK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0805- ●

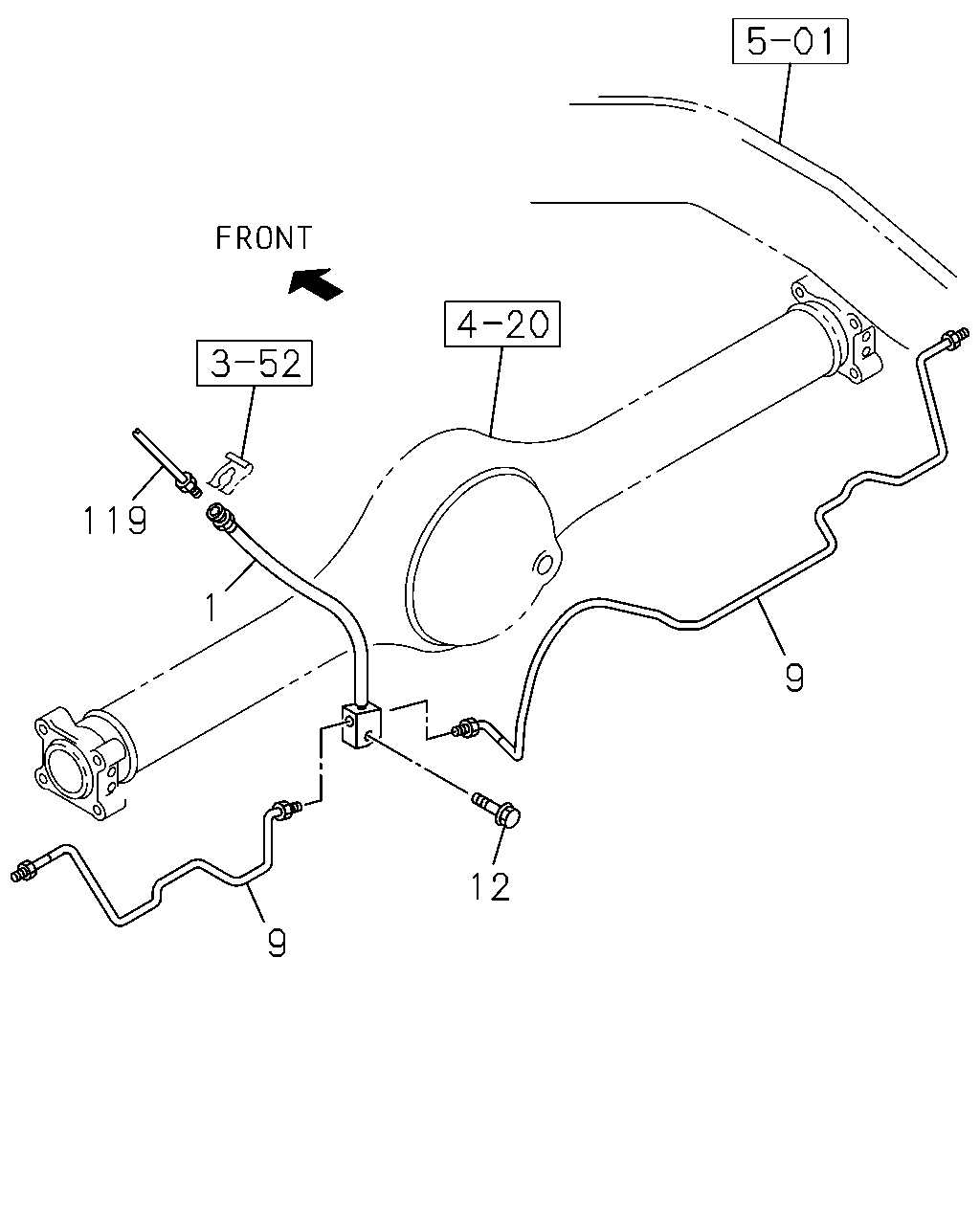

çizim 121099
119 1 9 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,RR BRK 8-98006-785-0 01 1 0805-0808 ● ● ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98122-044-0 01 1 0809- ● ● ● ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 0805-1003 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 1004- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 0805-1003 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 1004- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-704-0 01 1 0805- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-704-0 01 1 0805- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-706-0 01 1 0805- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-706-0 01 1 0805- ● ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0805- ● ● ● ● ● ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-645-1 01 1 0805- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-645-1 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-645-1 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 0805- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0805- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98028-028-1 01 1 0805- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98028-028-1 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98028-028-1 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-98043-600-0 01 1 0805- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97944-639-0 01 1 0805-1003 ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97944-637-0 01 1 0805-1003 ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0805-1003 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB EXTRA LONG(TFS*CK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0805- ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0805- ●

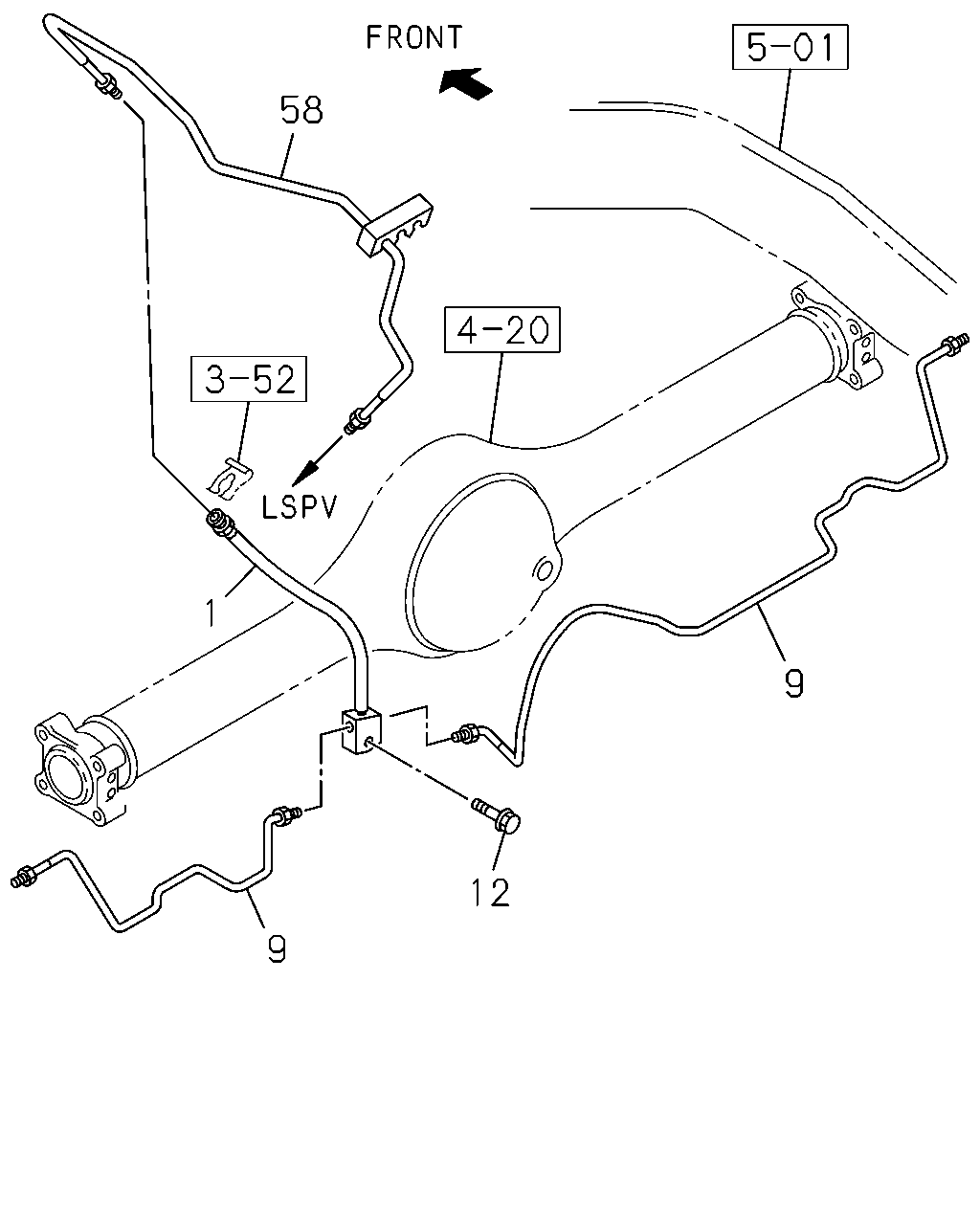

çizim 121152
58 1 9 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,RR BRK 8-98006-785-0 01 1 0805-0808 ● ● ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98122-044-0 01 1 0809- ● ● ● ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 0805-1003 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 1004- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 0805-1003 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 1004- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-704-0 01 1 0805- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-704-0 01 1 0805- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-706-0 01 1 0805- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-706-0 01 1 0805- ● ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0805- ● ● ● ● ● ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 		8-97944-749-0 01 1 0805- ● ● ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> 		8-97944-749-0 01 1 0805- ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-748-0 01 1 0805- ● ● ● ● ●

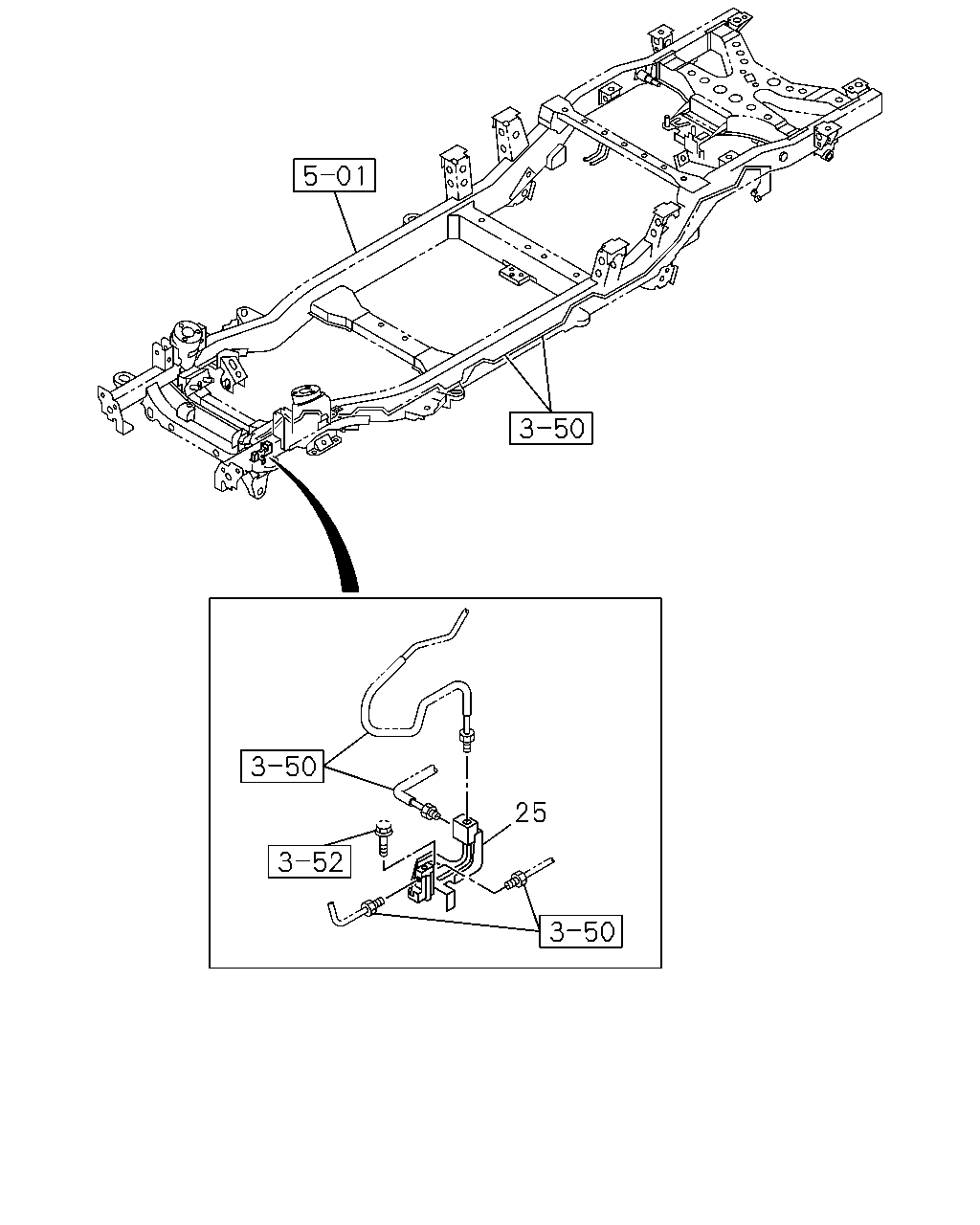

çizim 185761
25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-98046-621-0 01 1 0805- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 1004- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 1004- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98045-667-0 01 1 0805- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98045-667-0 01 1 0805- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
