Sayfa 3-52 - Isuzu EPC

3-52 — BRAKE PIPING; OIL,FRONT (#74742) — 28 parça

9 9 6 6 1 1 5 8 5 8 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

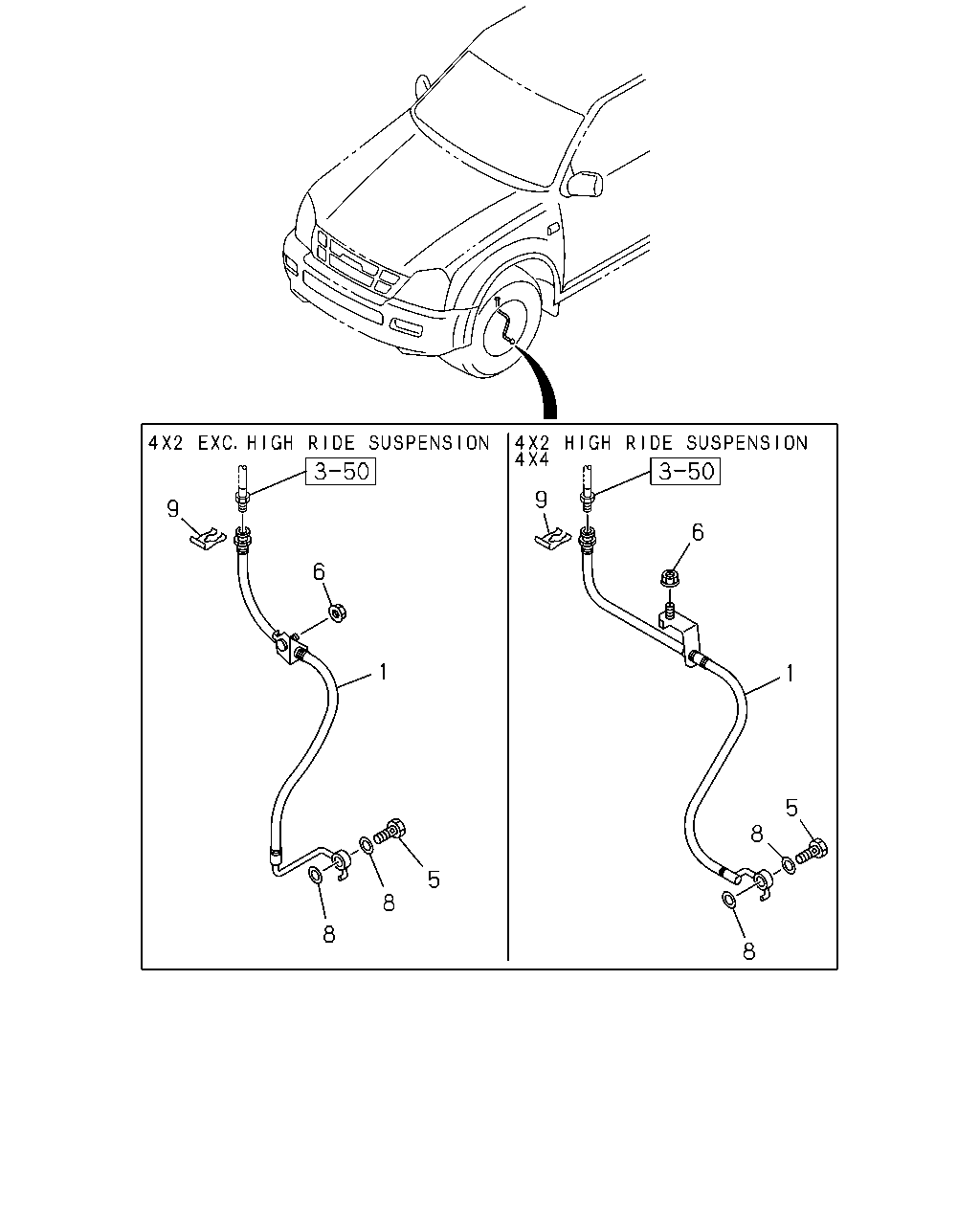

1	04.680 HOSE; FLEX,FRT BRK FRT&RR 195R14C(CNU)	8-98006-705-0	01	1	0805-0808	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK FRT&RR 195R14C(CNU)	8-98122-039-0	01	1	0809-0809	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK FRT&RR 195R14C(CNU)	8-98006-704-0	01	1	0805-0808	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK FRT&RR 195R14C(CNU)	8-98122-038-0	01	1	0809-0809	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-257-0	01	1	0805-0808	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98122-041-0	01	1	0809-0809	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC)	8-98122-041-0	01	1	0810-	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-256-0	01	1	0805-0808	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98122-040-0	01	1	0809-0809	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC)	8-98122-040-0	01	1	0810-	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK HIGH RIDE SUSPENSION(7YC)	8-98006-707-0	01	1	0805-0808	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK	8-98006-707-0	01	1	0805-0808						●	●	●
1	04.680 HOSE; FLEX,FRT BRK HIGH RIDE SUSPENSION(7YC)	8-98122-043-0	01	1	0809-	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK	8-98122-043-0	01	1	0809-						●	●	●
1	04.680 HOSE; FLEX,FRT BRK HIGH RIDE SUSPENSION(7YC)	8-98006-706-0	01	1	0805-0808	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK	8-98006-706-0	01	1	0805-0808						●	●	●
1	04.680 HOSE; FLEX,FRT BRK HIGH RIDE SUSPENSION(7YC)	8-98122-042-0	01	1	0809-	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK	8-98122-042-0	01	1	0809-						●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-97359-818-0	02	1	0805-	●	●	●	●	●	●	●	●
6	04.686 NUT; FLEX HOSE,FRT BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-	●	●	●	●	●	●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0805-	●	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	03	1	0805-	●	●	●	●	●	●	●	●

86 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

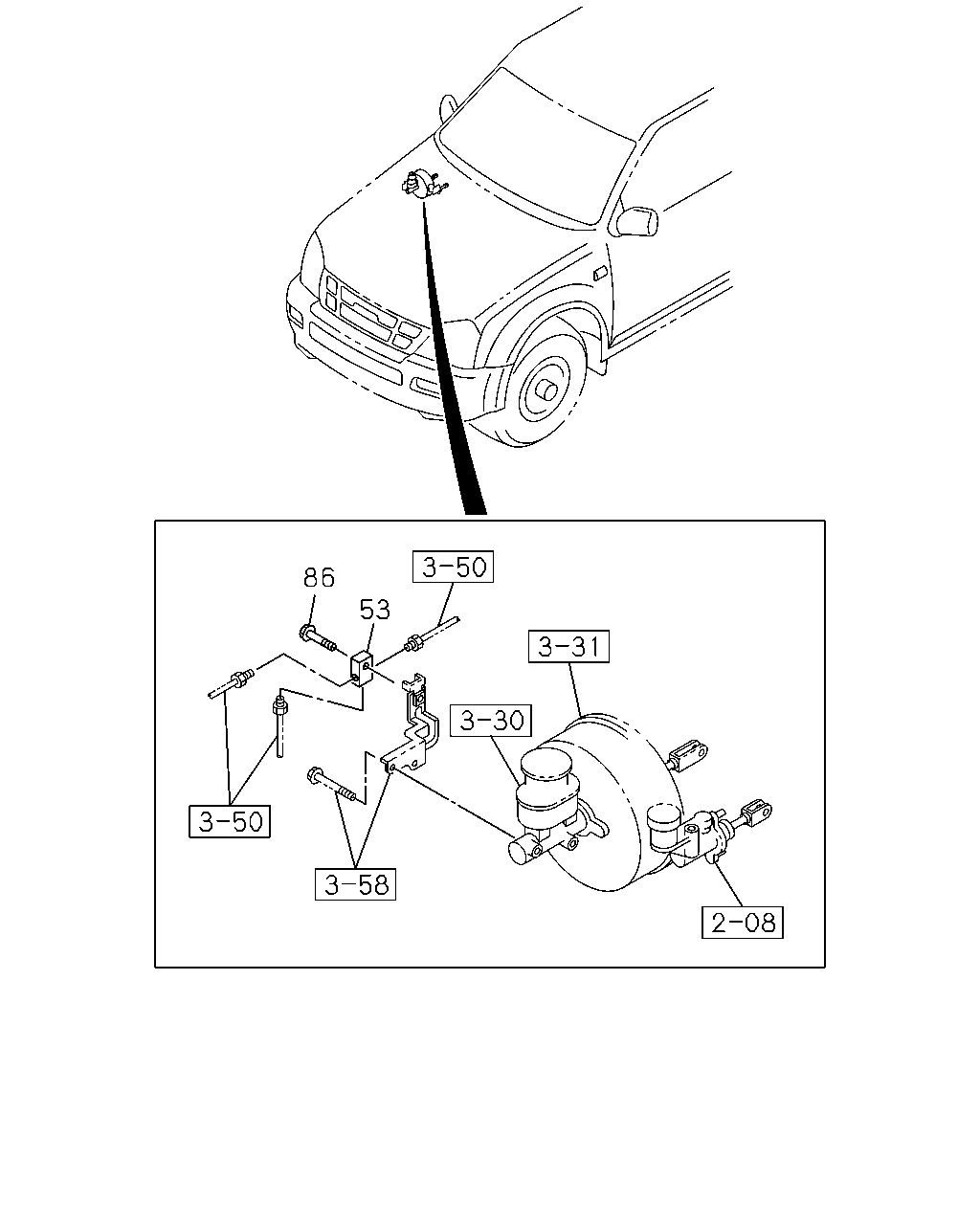

53	04.686 CONNECTOR; OIL PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98008-113-0	01	1	0805-	●	●	●	●	●	●	●	●

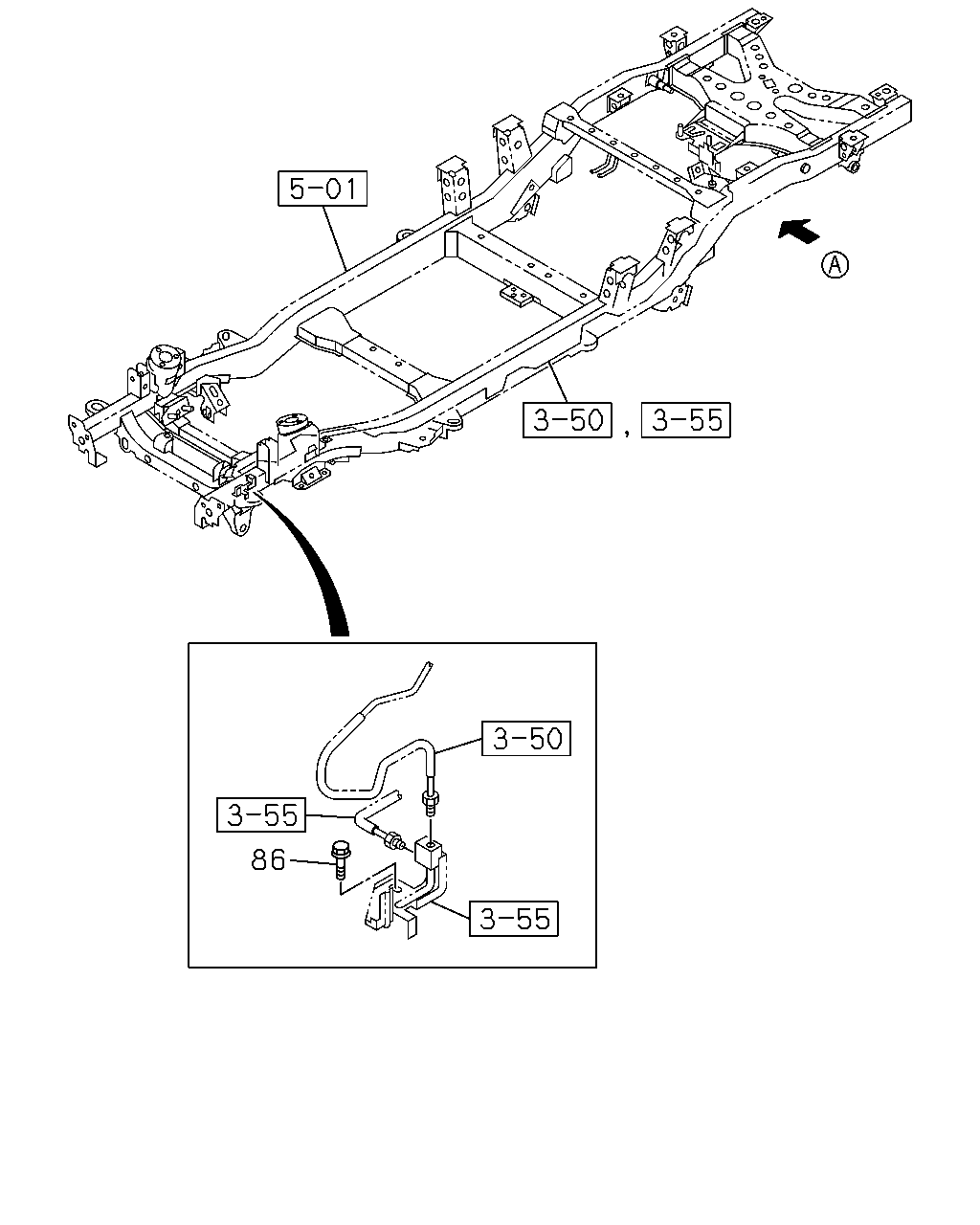

86	04.686 BOLT; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-	●	●	●	●	●	●	●	●
86	04.686 BOLT; BRK PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-	●	●	●	●	●	●	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

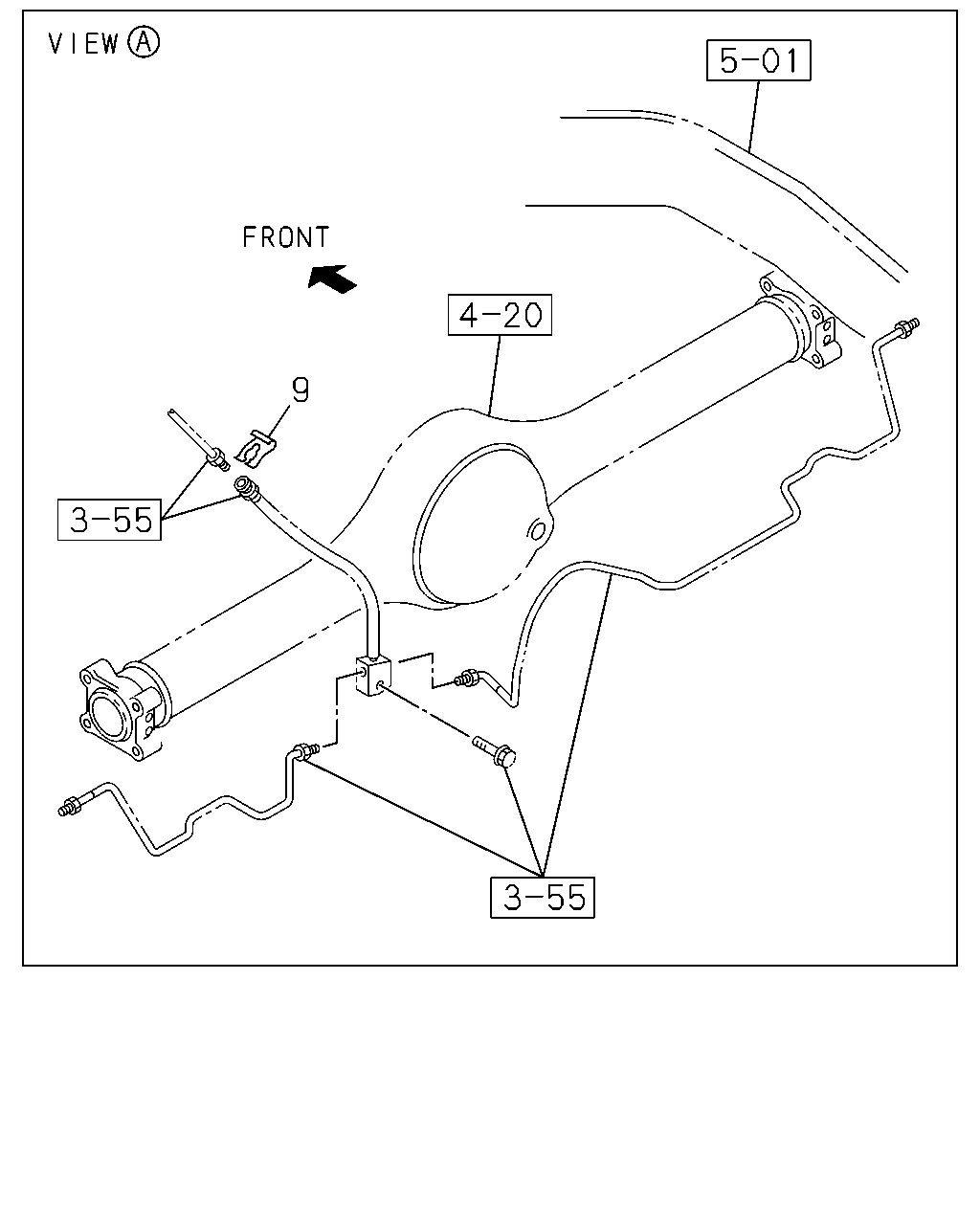

	9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	03	1	0805-	●	●	●	●	●	●	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	86	04.686 BOLT; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-	●	●	●	●	●	●	●	●
	86	04.686 BOLT; BRK PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-	●	●	●	●	●	●	●	●
