◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#74741) — 512 parça

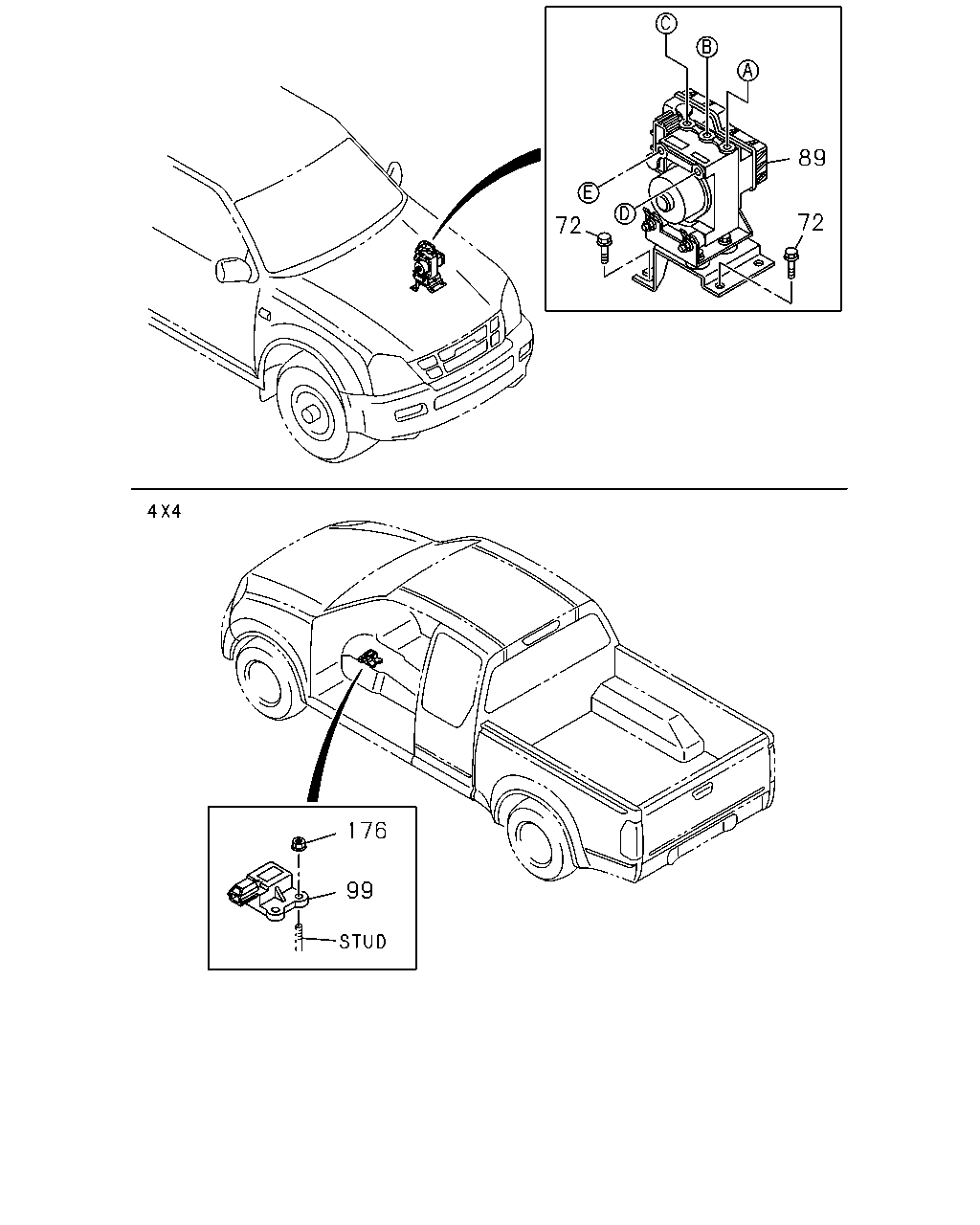

çizim 118470
89 72 72 176 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0805- ● ● ● ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
HF V6 ENG(LCA),C24SE ENG(LG1) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEA R TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98089-804-0 01 1 0805-0809 ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
HF V6 ENG(LCA),C24SE ENG(LG1) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEA R TIRE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98089-804-0 01 1 0810-1003 ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEA R TIRE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98089-804-0 01 1 1004-1007 ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEA R TIRE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98089-804-0 01 1 1008- ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 0805-0809 ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 0805-0809 ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 0805-0809 ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 0810-1007 ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 0810-1007 ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 1008- ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 1008- ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-784-0 01 1 0805-1007 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-784-0 01 1 1008- ● ● ●
99 04.710 SENSOR; DECELERATION
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98013-796-0 01 1 0805- ● ● ●
176 04.730 NUT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.540 M6 FLANGE 		0-91180-206-0 02 1 0805- ● ● ●

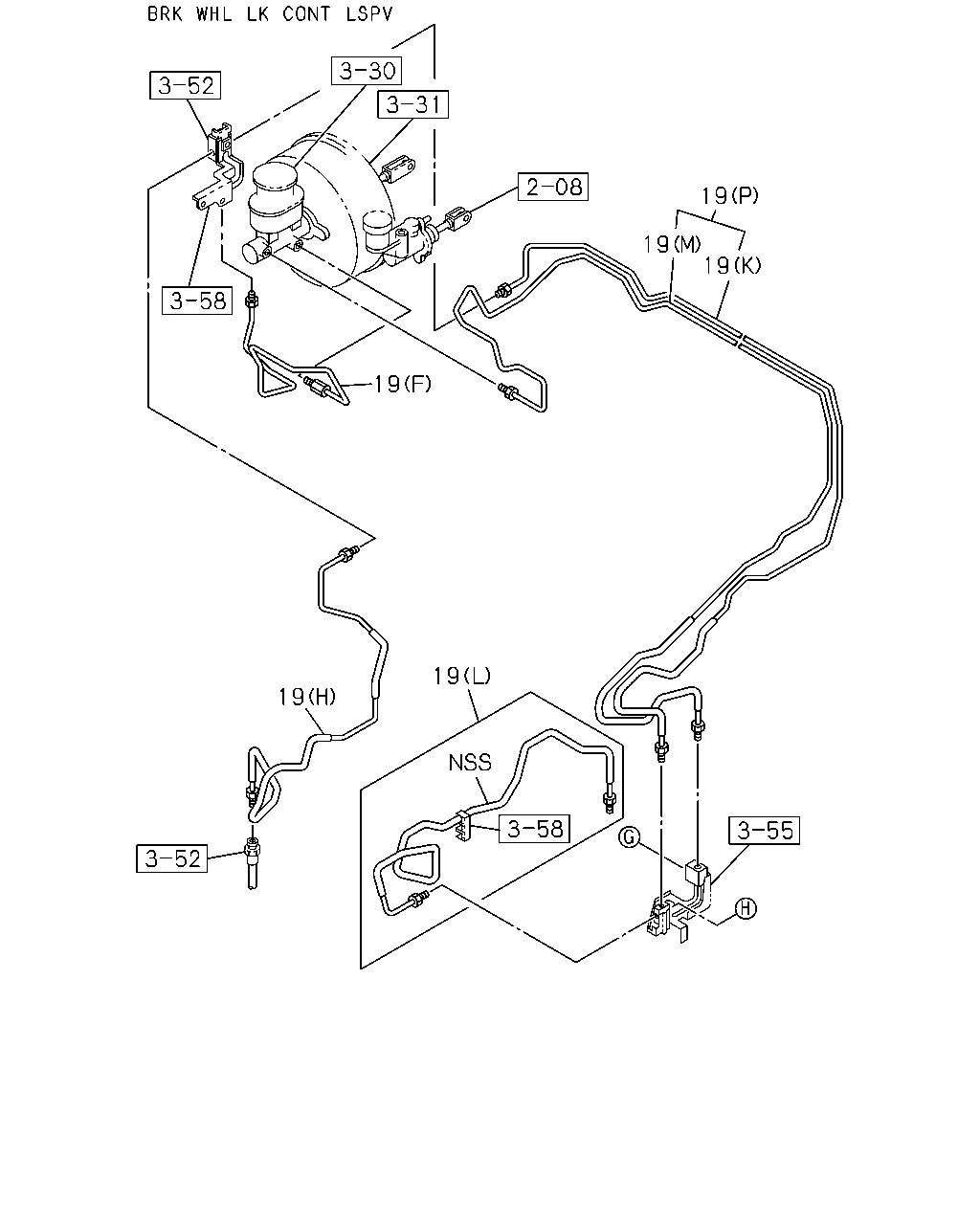

çizim 119705
19 19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H

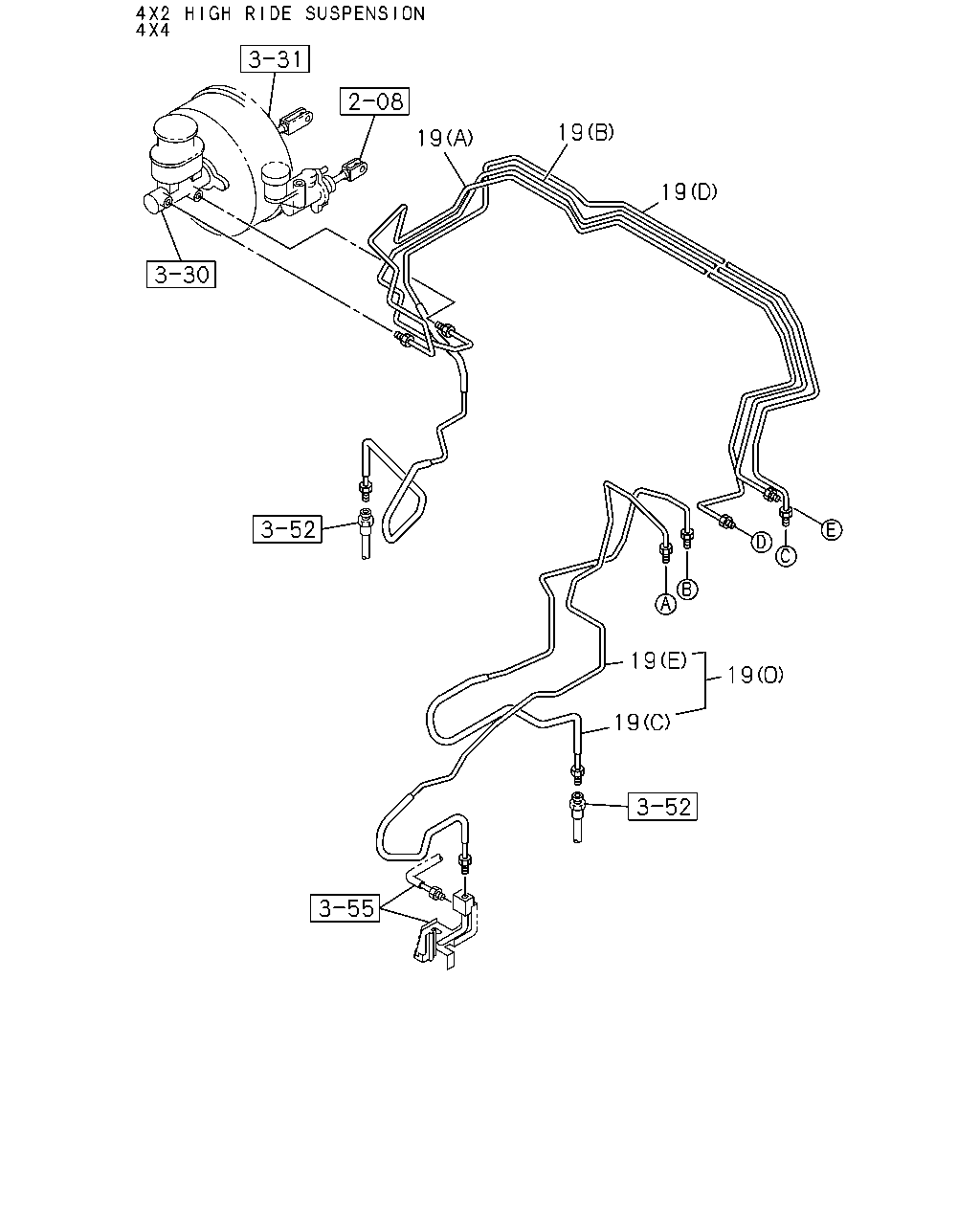

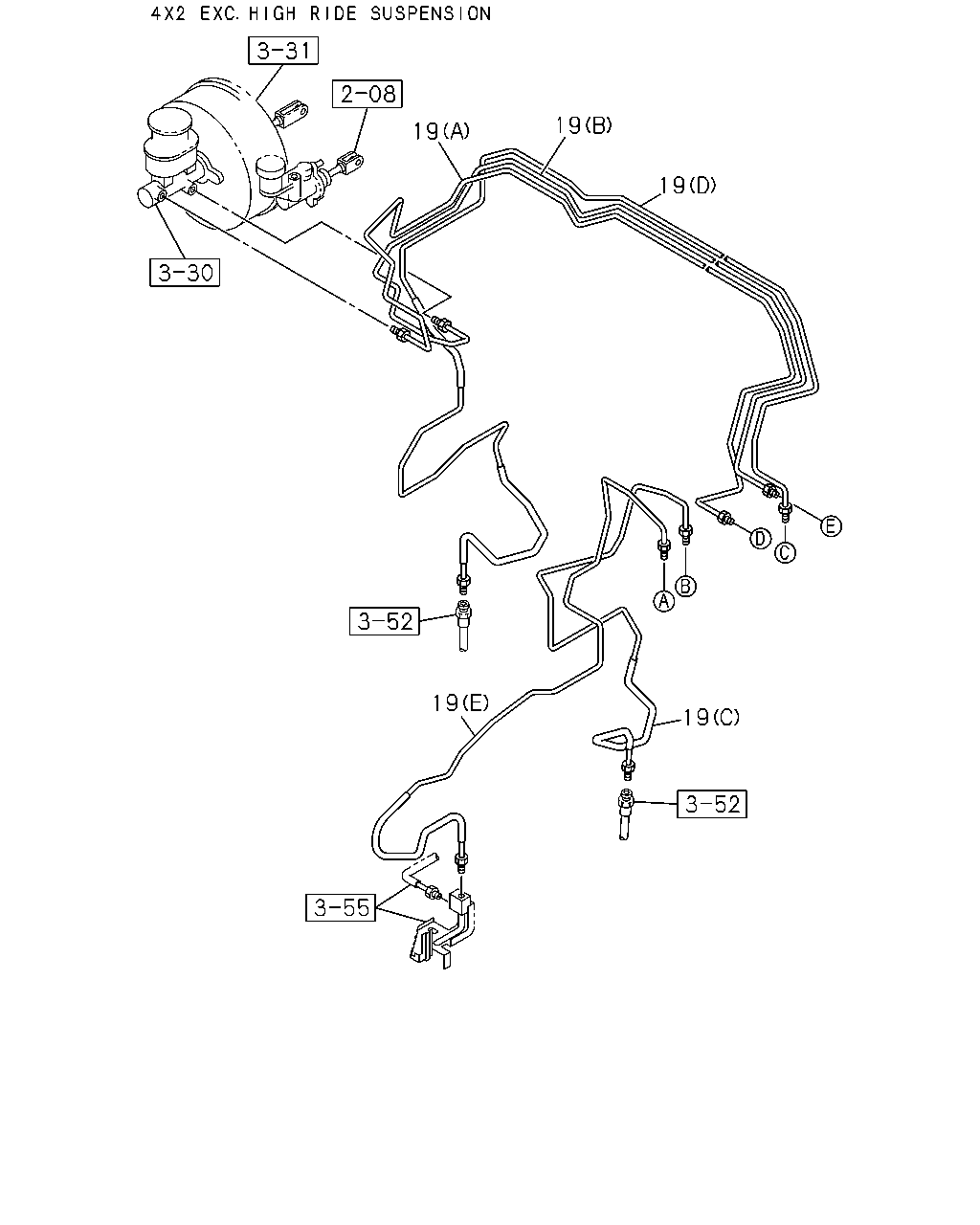

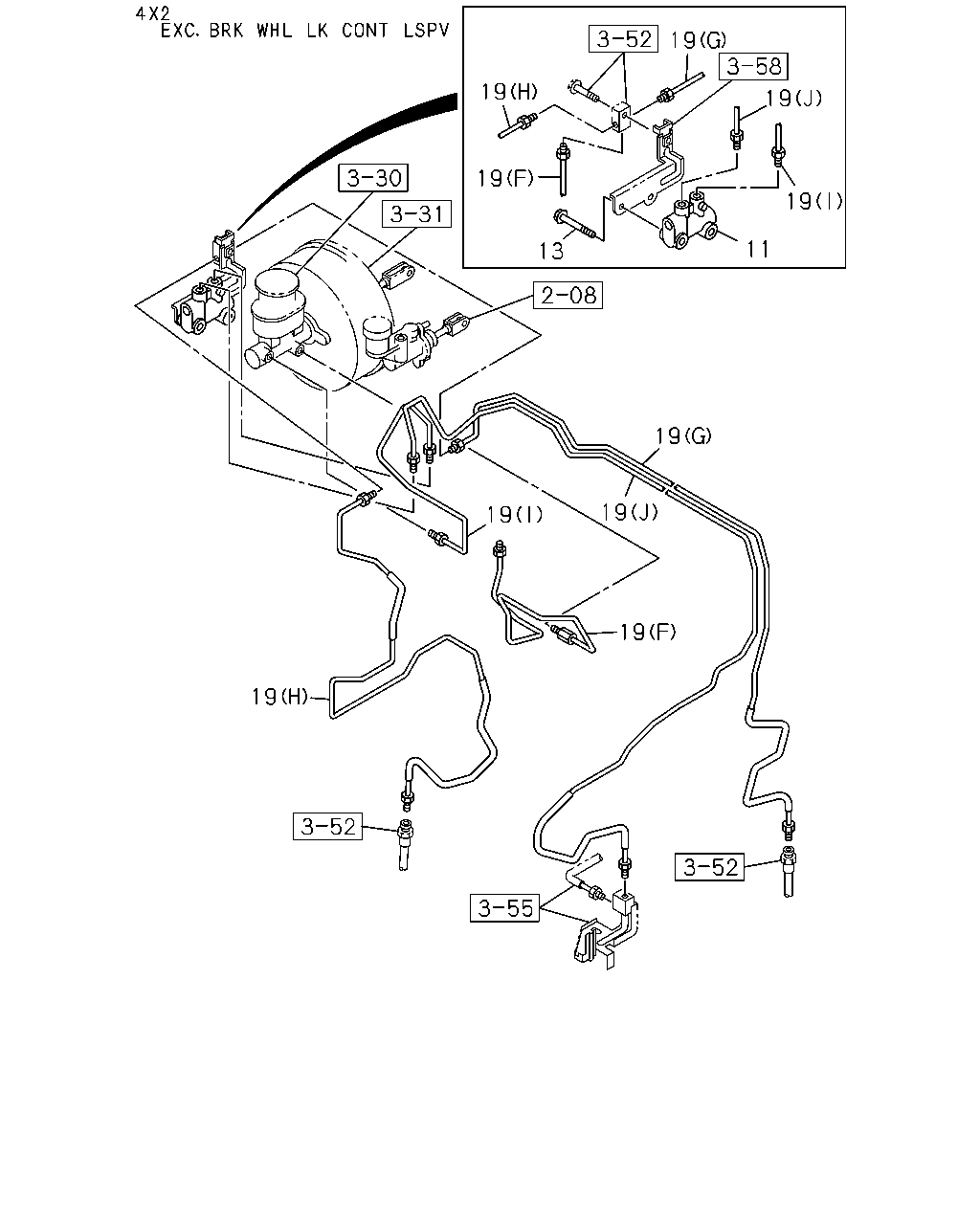

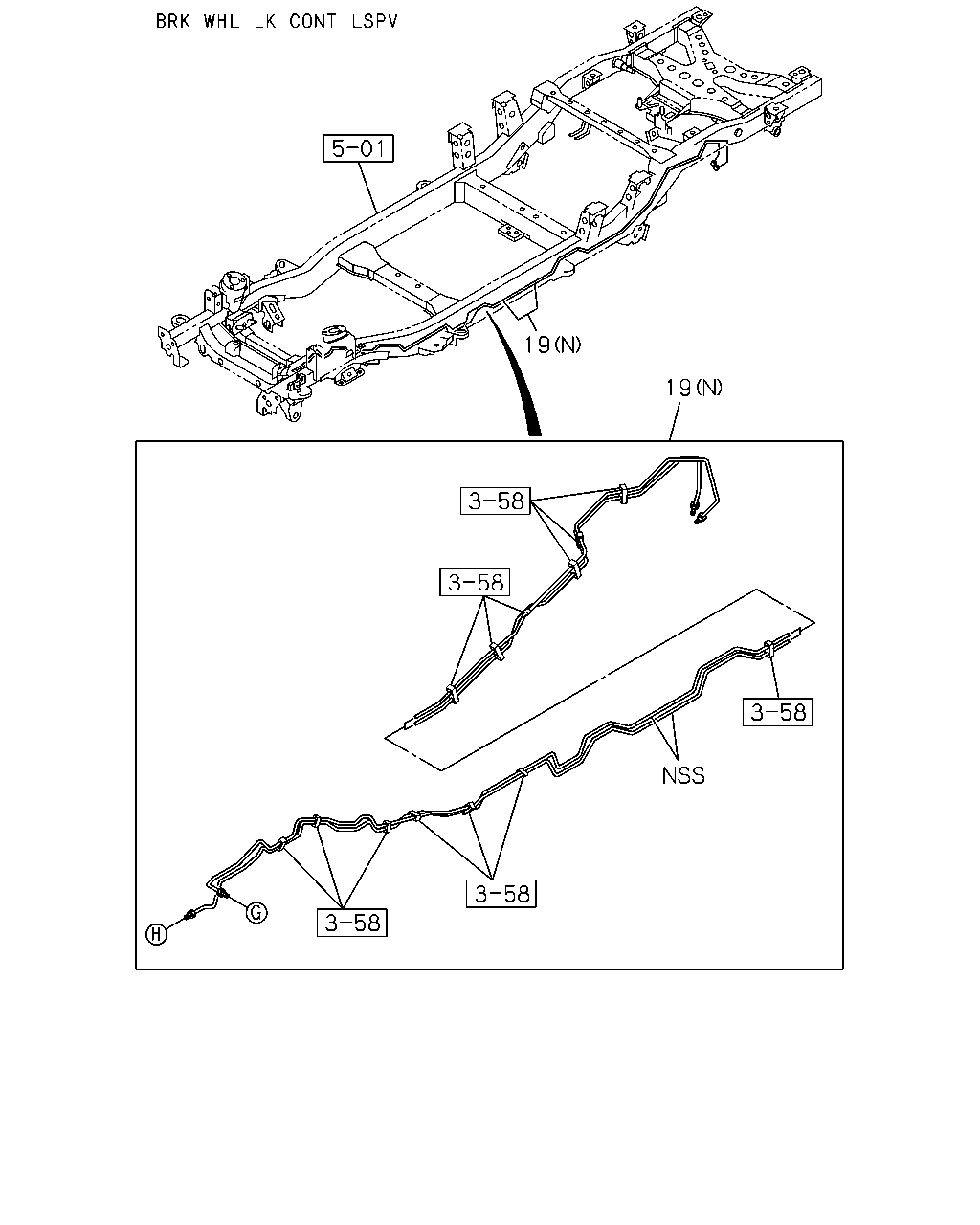

19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-672-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) (L) 		8-97946-631-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) (L) 		8-97946-631-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98031-515-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98031-515-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (N) 		8-98031-720-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (N) 		8-98031-720-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-98031-721-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-98031-721-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-98031-123-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98031-123-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (O) 		8-98073-143-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (O) 		8-98073-143-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-791-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-763-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-97944-635-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-97944-636-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-700-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 1004- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 1004- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (P) 		8-98073-161-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-787-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-788-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97944-664-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) 		8-97944-789-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-744-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-744-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-744-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-606-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-604-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-745-1 01 1 0805- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-745-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-745-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-605-0 01 1 0805- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-723-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (H) 		8-98059-600-0 01 1 0805-1003 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-732-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-720-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 EXTEND CAB EXTRA LONG(TFS*CK) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●

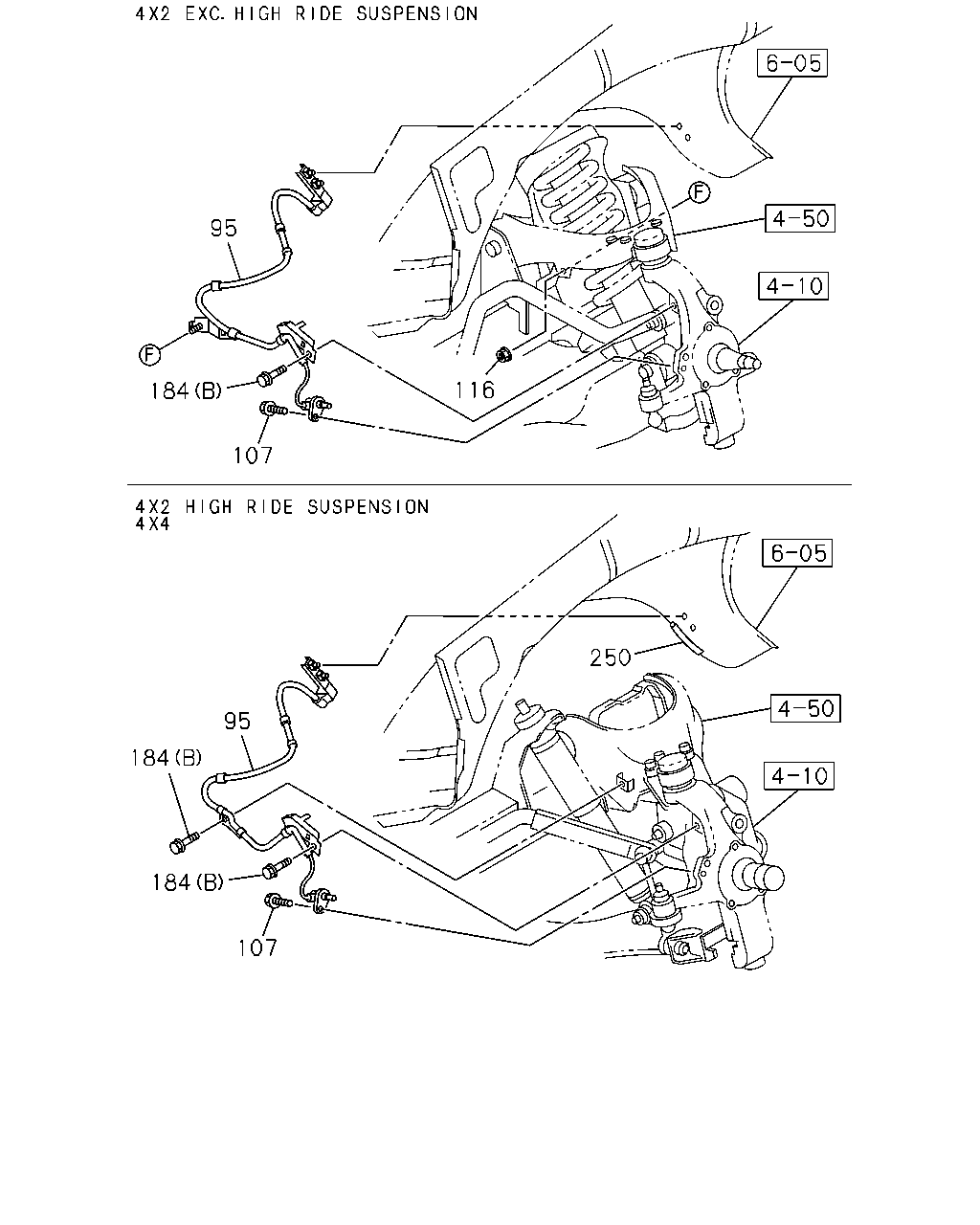

çizim 119748
95 116 184 107 250 95 184 184 107
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
95 04.710 SENSOR; SPD,FRT WHEEL
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97387-990-1 01 1 0805-1003 ● ● ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-990-1 01 1 0805-1003 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97387-990-1 01 1 1004- ● ● ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-990-1 01 1 1004- ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98057-076-0 01 1 0805- ● ● ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98057-076-0 01 1 0805- ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97387-989-1 01 1 0805- ● ● ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-989-1 01 1 0805- ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97387-988-1 01 1 0805- ● ● ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97387-987-1 01 1 0805- ● ● ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
C24SE ENG(LG1) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98052-404-0 01 1 0805-1003 ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 0805- ● ● ● ● ● ● ● ●
116 04.686 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 01.540 M8 FLANGE 		0-91180-208-0 02 1 0805- ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0805- ● ● ● ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0805- ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0805- ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 0805- ● ● ● ● ● ● ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 02.559 L=80 		5-71997-133-0 01 1 0805-1003 ● ● ● ● ●
250 04.685 FINISHER; HARNESS
C24SE ENG(LG1) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 02.559 L=80 		5-71997-133-0 01 1 0805-1003 ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80 		5-71997-133-0 01 1 0805-1003 ● ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 02.559 L=80 		5-71997-133-0 01 1 1004- ● ● ● ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80 		5-71997-133-0 01 1 1004- ● ● ●
çizim 119803
19 19 19 19 19 11 13 19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 04.686 VALVE; BRK CONT
FRT&RR 195R14C(CNU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 		8-97235-339-2 01 1 0805-0809 ● ● ● ● ●
11 04.686 VALVE; BRK CONT
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 		8-97333-079-0 01 1 0805-0809 ● ● ● ● ●
11 04.686 VALVE; BRK CONT
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0805-0809 ● ● ● ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0805-0809 ● ● ●
11 04.686 VALVE; BRK CONT
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 		8-97333-079-0 01 1 0810- ● ● ● ● ●
11 04.686 VALVE; BRK CONT
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0810- ● ● ● ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0810- ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> M8X45 FLANGE 		0-29260-845-0 02 1 0805- ● ● ● ● ● ● ● ●

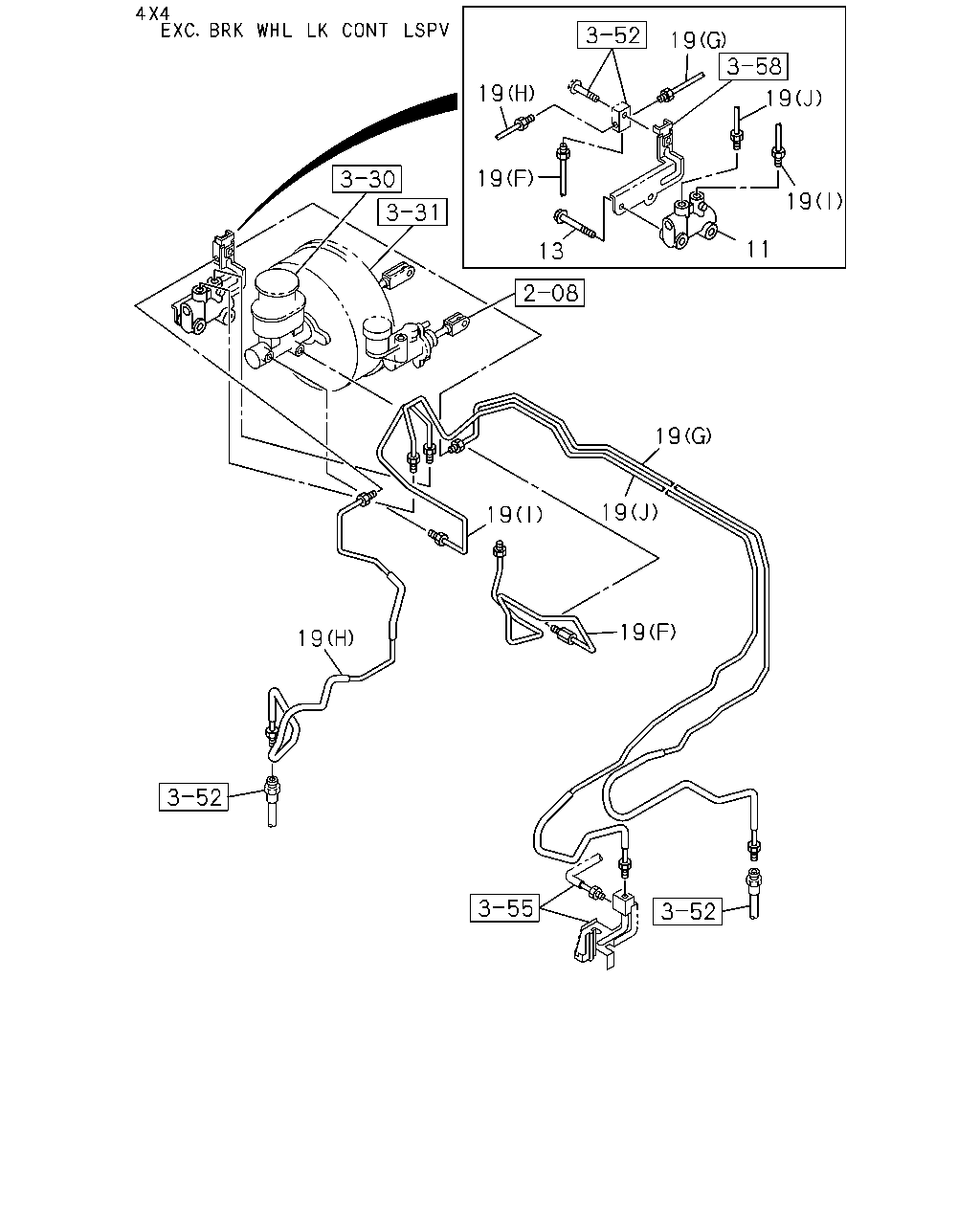

19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-672-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) (L) 		8-97946-631-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) (L) 		8-97946-631-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98031-515-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98031-515-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (N) 		8-98031-720-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (N) 		8-98031-720-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-98031-721-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-98031-721-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-98031-123-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98031-123-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (O) 		8-98073-143-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (O) 		8-98073-143-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-791-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-763-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-97944-635-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-97944-636-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-700-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 1004- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 1004- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (P) 		8-98073-161-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-787-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-788-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97944-664-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) 		8-97944-789-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-744-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-744-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-744-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-606-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-604-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-745-1 01 1 0805- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-745-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-745-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-605-0 01 1 0805- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-723-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (H) 		8-98059-600-0 01 1 0805-1003 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-732-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-720-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 EXTEND CAB EXTRA LONG(TFS*CK) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
çizim 119891
19 19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-672-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) (L) 		8-97946-631-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) (L) 		8-97946-631-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98031-515-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98031-515-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (N) 		8-98031-720-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (N) 		8-98031-720-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-98031-721-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-98031-721-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-98031-123-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98031-123-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (O) 		8-98073-143-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (O) 		8-98073-143-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-791-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-763-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-97944-635-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-97944-636-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-700-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 1004- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 1004- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (P) 		8-98073-161-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-787-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-788-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97944-664-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) 		8-97944-789-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-744-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-744-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-744-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-606-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-604-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-745-1 01 1 0805- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-745-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-745-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-605-0 01 1 0805- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-723-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (H) 		8-98059-600-0 01 1 0805-1003 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-732-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-720-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 EXTEND CAB EXTRA LONG(TFS*CK) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●

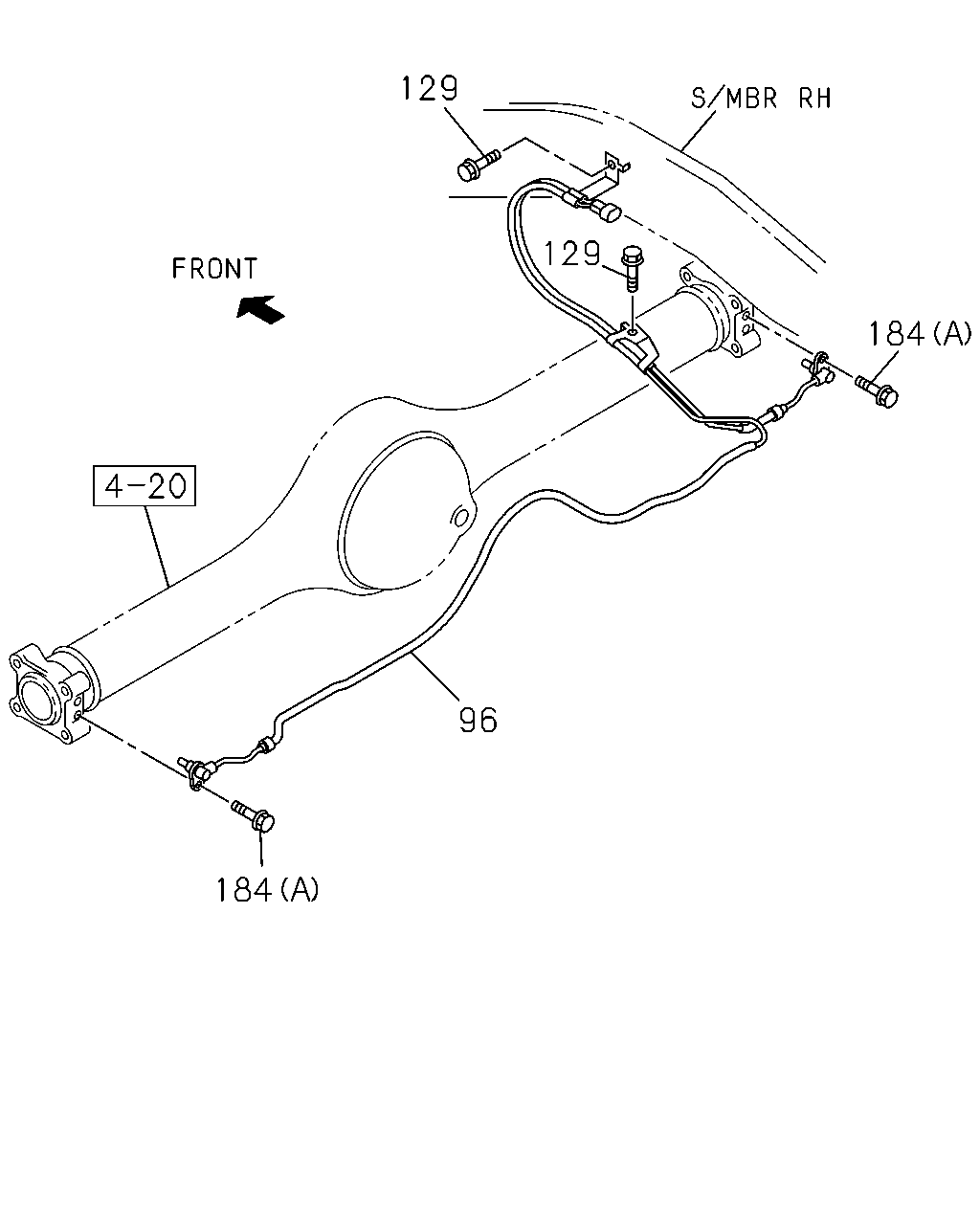

çizim 119899
129 129 184 96 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97387-992-1 01 1 0805- ● ● ● ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-992-1 01 1 0805- ● ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97387-991-1 01 1 0805- ● ● ● ● ●
129 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0805- ● ● ● ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0805- ● ● ● ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0805- ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0805- ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 0805- ● ● ● ● ● ● ● ●
çizim 119901
19 19 19 19 19 11 13 19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 04.686 VALVE; BRK CONT
FRT&RR 195R14C(CNU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 		8-97235-339-2 01 1 0805-0809 ● ● ● ● ●
11 04.686 VALVE; BRK CONT
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 		8-97333-079-0 01 1 0805-0809 ● ● ● ● ●
11 04.686 VALVE; BRK CONT
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0805-0809 ● ● ● ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0805-0809 ● ● ●
11 04.686 VALVE; BRK CONT
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 		8-97333-079-0 01 1 0810- ● ● ● ● ●
11 04.686 VALVE; BRK CONT
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0810- ● ● ● ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0810- ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> M8X45 FLANGE 		0-29260-845-0 02 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-672-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) (L) 		8-97946-631-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) (L) 		8-97946-631-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98031-515-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98031-515-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (N) 		8-98031-720-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (N) 		8-98031-720-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-98031-721-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-98031-721-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-98031-123-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98031-123-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (O) 		8-98073-143-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (O) 		8-98073-143-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-791-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-763-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-97944-635-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-97944-636-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-700-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 1004- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 1004- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (P) 		8-98073-161-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-787-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-788-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97944-664-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) 		8-97944-789-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-744-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-744-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-744-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-606-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-604-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-745-1 01 1 0805- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-745-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-745-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-605-0 01 1 0805- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-723-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (H) 		8-98059-600-0 01 1 0805-1003 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-732-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-720-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 EXTEND CAB EXTRA LONG(TFS*CK) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
çizim 185759
19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-672-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) (L) 		8-97946-631-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) (L) 		8-97946-631-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98031-515-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98031-515-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (N) 		8-98031-720-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (N) 		8-98031-720-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-98031-721-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-98031-721-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-98031-123-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98031-123-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (O) 		8-98073-143-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (O) 		8-98073-143-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-791-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-763-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-97944-635-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-97944-636-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-700-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 1004- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 1004- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (P) 		8-98073-161-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-787-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-788-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97944-664-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) 		8-97944-789-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-744-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-744-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-744-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-606-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-604-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-745-1 01 1 0805- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-745-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-745-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-605-0 01 1 0805- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-723-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (H) 		8-98059-600-0 01 1 0805-1003 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-732-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-720-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 EXTEND CAB EXTRA LONG(TFS*CK) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
çizim 185763
19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-672-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-97944-667-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) (L) 		8-97946-631-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) (L) 		8-97946-631-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98031-515-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98031-515-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (N) 		8-98031-720-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (N) 		8-98031-720-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-98031-721-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (G) 		8-98031-721-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-98031-123-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98031-123-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (O) 		8-98073-143-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (O) 		8-98073-143-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-791-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 0805-1003 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 0805-1003 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-97944-751-1 01 1 1004- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 1004- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-763-1 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-97944-635-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-97944-636-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-700-0 01 1 0805- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 1004- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 1004- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (P) 		8-98073-161-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-787-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-788-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97944-664-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> (I) 		8-97944-789-0 01 1 0805- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-744-1 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-744-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-744-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-606-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-604-0 01 1 0805- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-745-1 01 1 0805- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-745-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) BRK WHL LK CONT LSPV<JR9> (N) 		8-97944-745-1 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-605-0 01 1 0805- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-723-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (H) 		8-98059-600-0 01 1 0805-1003 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-732-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
C24SE ENG(LG1) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-97944-720-0 01 1 0805-1003 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4X4 EXTEND CAB EXTRA LONG(TFS*CK) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-607-0 01 1 0805- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
