Isuzu WW
▶
TRUCKS
▶
FRR
▶
10775 - FRR/FVR(TAIWAN)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#7474) — 96 parça
Tümü
A - FRR6MF
B - FVR6MF
◀

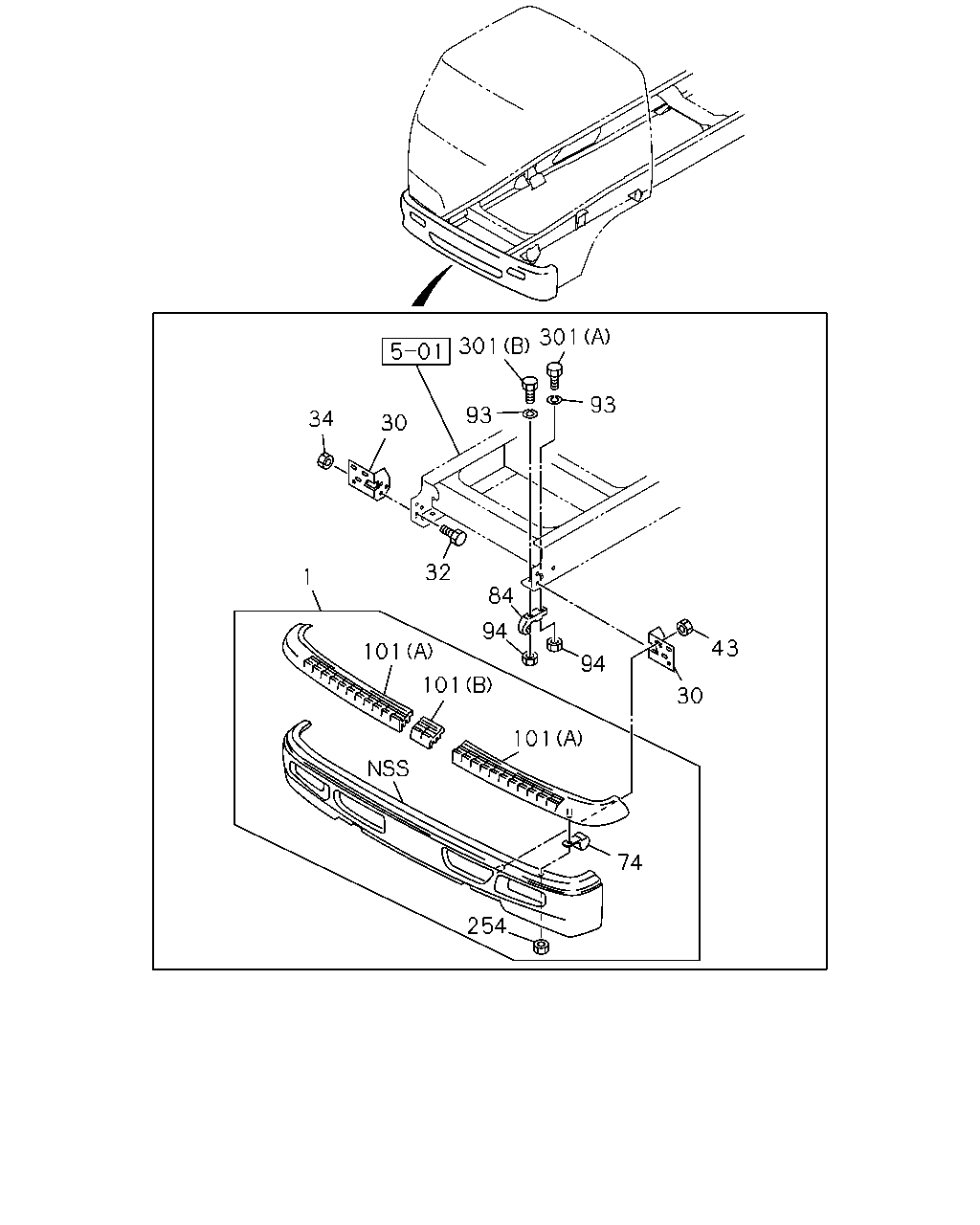

[601A] FRR (45 parça)

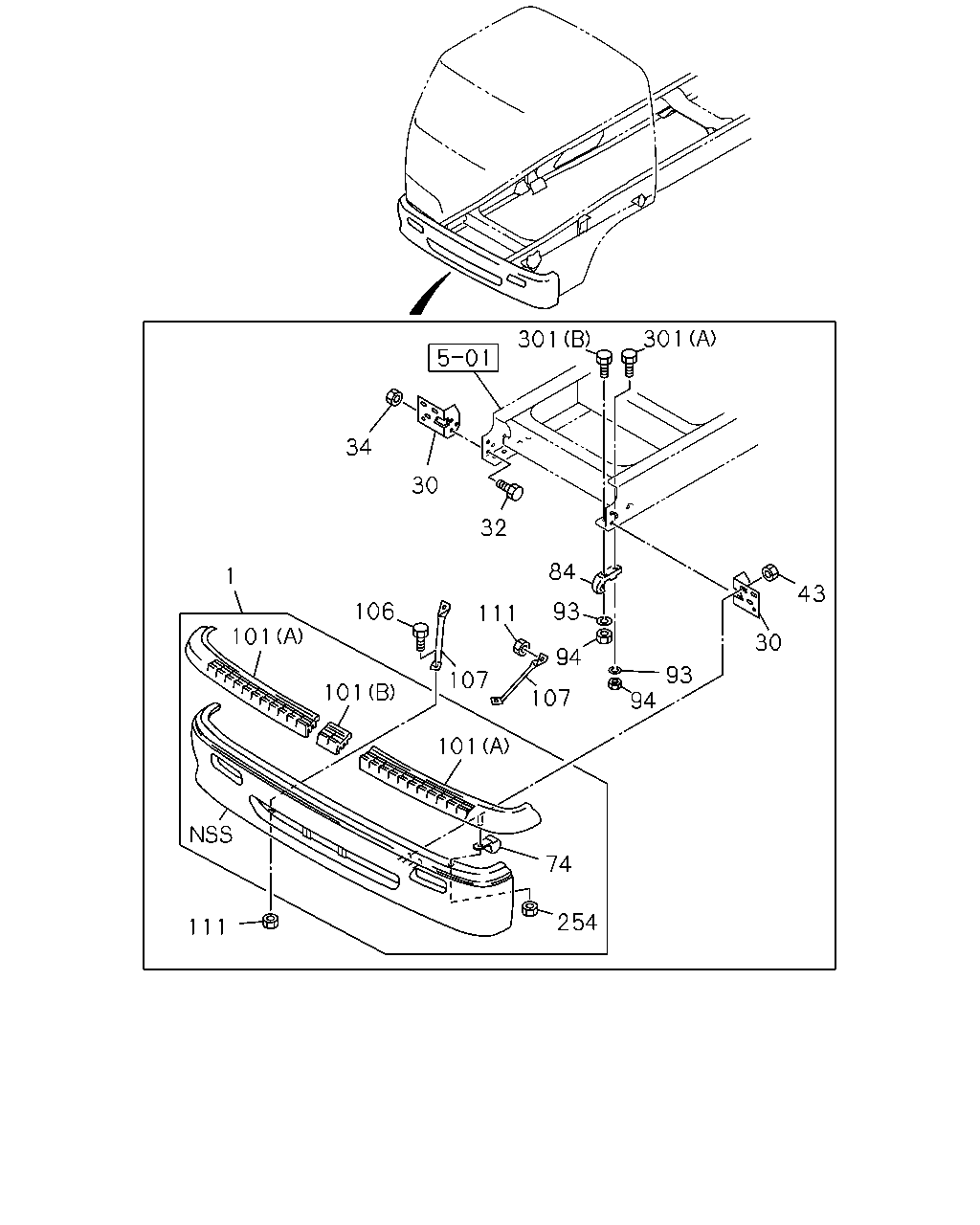

[601A] FVR (51 parça)
▶
301
301
93
93
34
30
32
1
84
94
43
101
94
101
30
101
74
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER ASM; FRT
WHITE
1-71210-583-3
01
1
9811-9906
●
1
BUMPER ASM; FRT
1-71210-941-1
01
1
9907-
●
1
BUMPER ASM; FRT
WHITE
1-71210-661-2
01
1
9811-
●
30
BRACKET; FRT BUMPER
1-71230-481-0
01
1
9907-
●
30
BRACKET; FRT BUMPER
1-71230-482-0
01
1
9907-
●
30
BRACKET; FRT BUMPER
TAI
8-97530-363-0
01
1
9811-9906
●
●
30
BRACKET; FRT BUMPER
TAI
8-97530-363-0
01
1
9907-0610
●
30
BRACKET; FRT BUMPER
1-71230-208-3
01
1
0611-
●
30
BRACKET; FRT BUMPER
TAI
8-97530-364-0
01
1
9811-9906
●
●
30
BRACKET; FRT BUMPER
TAI
8-97530-364-0
01
1
9907-0610
●
30
BRACKET; FRT BUMPER
1-71230-568-1
01
1
0611-
●
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28681-030-0
06
1
9811-0512
●
●
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28651-030-0
06
1
0601-
●
●
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91150-210-0
06
1
9811-0602
●
●
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
06
1
0603-
●
●
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-210-0
04
1
9811-0602
●
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91180-210-0
04
1
0603-
●
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-210-0
06
1
9811-0602
●
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91180-210-0
06
1
0603-
●
74
CLIP; FOG LAMP HARNESS
1-09701-203-0
05
1
9811-
●
●
84
HOOK
TAI
8-97530-378-0
01
1
9811-0610
●
84
HOOK
TAI
1-57181-017-2
01
1
0611-
●
84
HOOK
TAI
8-97530-380-0
01
1
9811-0610
●
84
HOOK
TAI
1-57181-027-1
01
1
0611-
●
93
WASHER; LK,HOOK
ID=14.2
9-09150-514-0
02
1
9811-0603
●
93
WASHER; LK,HOOK
ID=14.2
0-91510-514-0
02
1
0604-
●
93
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
9811-0603
●
93
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
0604-
●
94
NUT; HOOK
M14
9-99110-414-0
02
1
9811-0512
●
94
NUT; HOOK
M14
0-91110-514-0
02
1
0601-
●
94
NUT; HOOK
M16
9-99110-416-0
02
1
9811-0512
●
94
NUT; HOOK
M16
0-91110-516-0
02
1
0601-
●
101
STEP; BUMPER
(B)
1-71260-082-1
01
1
9811-
●
●
101
STEP; BUMPER
(A)
1-71260-081-1
01
1
9811-
●
●
101
STEP; BUMPER
(A)
1-71260-080-1
01
1
9811-
●
●
254
NUT; STEP
M8 FLANGE
0-91150-108-0
11
1
9811-0602
●
●
254
NUT; STEP
M8 FLANGE
0-91180-108-0
11
1
0603-
●
●
301
BOLT; HOOK TO FRAME
(A) M14X60
0-10811-460-0
01
1
9811-0512
●
301
BOLT; HOOK TO FRAME
(A) M14X60
0-10861-460-0
01
1
0601-
●
301
BOLT; HOOK TO FRAME
(B) M14X70
0-10811-470-0
01
1
9811-0512
●
301
BOLT; HOOK TO FRAME
(B) M14X70
0-10861-470-0
01
1
0601-
●
301
BOLT; HOOK TO FRAME
(A) M16X60
0-10811-660-0
01
1
9811-0512
●
301
BOLT; HOOK TO FRAME
(A) M16X60
0-10861-660-0
01
1
0601-
●
301
BOLT; HOOK TO FRAME
(B) M16X70
0-10811-670-0
01
1
9811-0512
●
301
BOLT; HOOK TO FRAME
(B) M16X70
0-10861-670-0
01
1
0601-
●
301
301
34
30
32
84
43
106
93
111
101
30
94
93
107
101
107
94
101
74
254
111
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER ASM; FRT
WHITE
1-71210-583-3
01
1
9811-9906
●
1
BUMPER ASM; FRT
1-71210-941-1
01
1
9907-
●
1
BUMPER ASM; FRT
WHITE
1-71210-661-2
01
1
9811-
●
30
BRACKET; FRT BUMPER
1-71230-481-0
01
1
9907-
●
30
BRACKET; FRT BUMPER
1-71230-482-0
01
1
9907-
●
30
BRACKET; FRT BUMPER
TAI
8-97530-363-0
01
1
9811-9906
●
●
30
BRACKET; FRT BUMPER
TAI
8-97530-363-0
01
1
9907-0610
●
30
BRACKET; FRT BUMPER
1-71230-208-3
01
1
0611-
●
30
BRACKET; FRT BUMPER
TAI
8-97530-364-0
01
1
9811-9906
●
●
30
BRACKET; FRT BUMPER
TAI
8-97530-364-0
01
1
9907-0610
●
30
BRACKET; FRT BUMPER
1-71230-568-1
01
1
0611-
●
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28681-030-0
06
1
9811-0512
●
●
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28651-030-0
06
1
0601-
●
●
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91150-210-0
06
1
9811-0602
●
●
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
06
1
0603-
●
●
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-210-0
04
1
9811-0602
●
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91180-210-0
04
1
0603-
●
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-210-0
06
1
9811-0602
●
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91180-210-0
06
1
0603-
●
74
CLIP; FOG LAMP HARNESS
1-09701-203-0
05
1
9811-
●
●
84
HOOK
TAI
8-97530-378-0
01
1
9811-0610
●
84
HOOK
TAI
1-57181-017-2
01
1
0611-
●
84
HOOK
TAI
8-97530-380-0
01
1
9811-0610
●
84
HOOK
TAI
1-57181-027-1
01
1
0611-
●
93
WASHER; LK,HOOK
ID=14.2
9-09150-514-0
02
1
9811-0603
●
93
WASHER; LK,HOOK
ID=14.2
0-91510-514-0
02
1
0604-
●
93
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
9811-0603
●
93
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
0604-
●
94
NUT; HOOK
M14
9-99110-414-0
02
1
9811-0512
●
94
NUT; HOOK
M14
0-91110-514-0
02
1
0601-
●
94
NUT; HOOK
M16
9-99110-416-0
02
1
9811-0512
●
94
NUT; HOOK
M16
0-91110-516-0
02
1
0601-
●
101
STEP; BUMPER
(B)
1-71260-082-1
01
1
9811-
●
●
101
STEP; BUMPER
(A)
1-71260-081-1
01
1
9811-
●
●
101
STEP; BUMPER
(A)
1-71260-080-1
01
1
9811-
●
●
106
BOLT; AIR DAM
M10X25 FLANGE
0-28681-025-0
02
1
9811-0512
●
106
BOLT; AIR DAM
M10X25 FLANGE
0-28651-025-0
02
1
0601-
●
107
STAY; AIR DAM
1-71260-132-1
01
1
9811-
●
107
STAY; AIR DAM
1-71260-131-1
01
1
9811-
●
111
NUT; STAY
M10 FLANGE
0-91150-210-0
04
1
9811-0602
●
111
NUT; STAY
M10 FLANGE
0-91180-210-0
04
1
0603-
●
254
NUT; STEP
M8 FLANGE
0-91150-108-0
11
1
9811-0602
●
●
254
NUT; STEP
M8 FLANGE
0-91180-108-0
11
1
0603-
●
●
301
BOLT; HOOK TO FRAME
(A) M14X60
0-10811-460-0
01
1
9811-0512
●
301
BOLT; HOOK TO FRAME
(A) M14X60
0-10861-460-0
01
1
0601-
●
301
BOLT; HOOK TO FRAME
(B) M14X70
0-10811-470-0
01
1
9811-0512
●
301
BOLT; HOOK TO FRAME
(B) M14X70
0-10861-470-0
01
1
0601-
●
301
BOLT; HOOK TO FRAME
(A) M16X60
0-10811-660-0
01
1
9811-0512
●
301
BOLT; HOOK TO FRAME
(A) M16X60
0-10861-660-0
01
1
0601-
●
301
BOLT; HOOK TO FRAME
(B) M16X70
0-10811-670-0
01
1
9811-0512
●
301
BOLT; HOOK TO FRAME
(B) M16X70
0-10861-670-0
01
1
0601-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
