◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#74736) — 29 parça

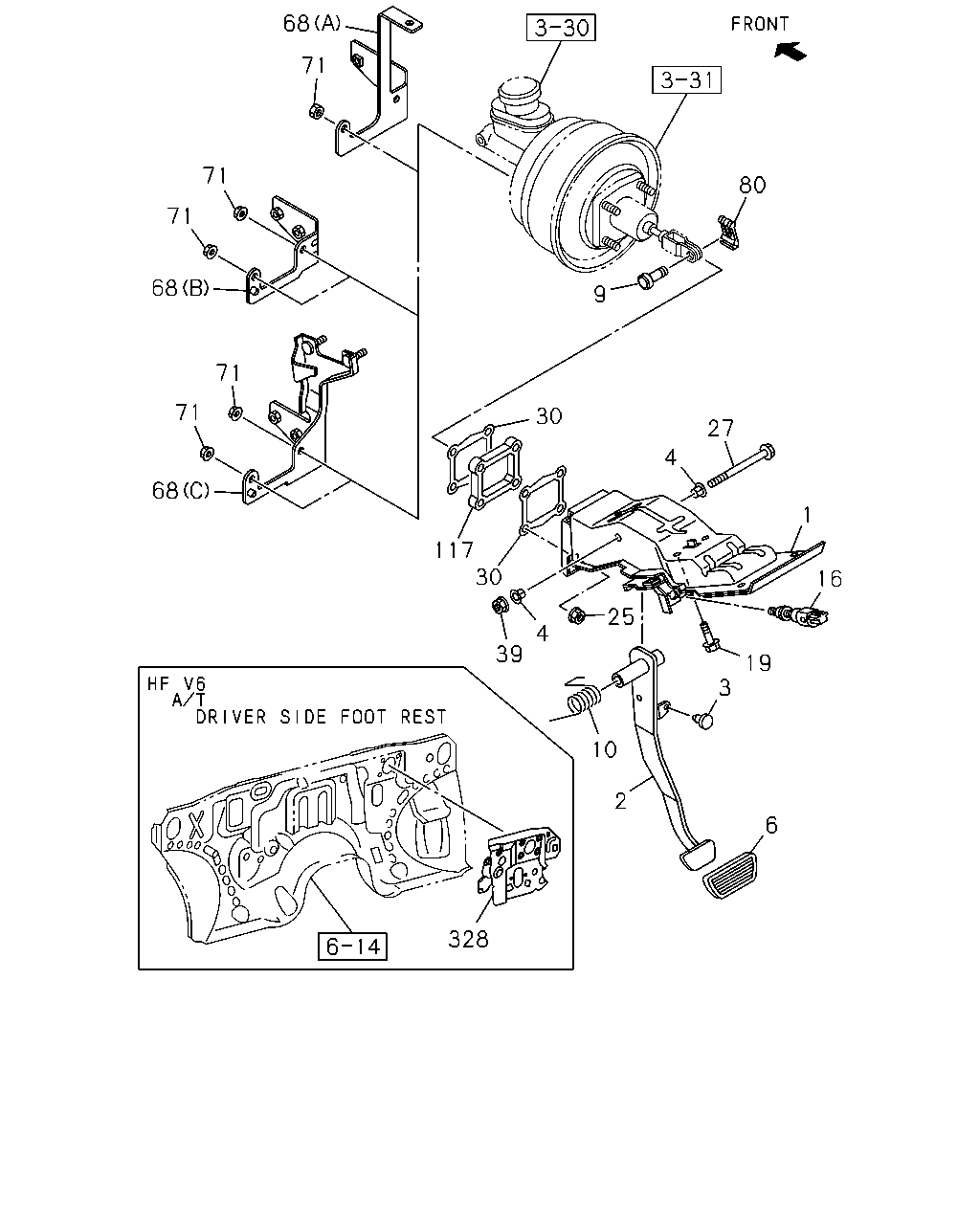

çizim 115137
68 71 71 80 71 68 9 71 71 30 27 4 68 1 117 30 16 25 4 39 19 3 10 2 6 328
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.634 BRACKET ASM; PEDAL 8-98013-694-0 01 1 0805- ● ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) 		8-97327-158-1 01 1 0805-1003 ● ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) 		8-97327-158-1 01 1 1004- ● ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) 		8-97327-159-1 01 1 0805- ● ● ● ● ●
3 04.634 STOPPER; BRK PEDAL 8-97302-035-0 01 1 0805- ● ● ● ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL 8-97301-688-0 02 1 0805-1007 ● ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) 		8-97318-799-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) 		8-97318-799-0 01 1 1004- ● ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) 		8-97263-035-0 01 1 0805- ● ● ● ● ●
9 04.634 PIN; JAW JOINT 8-97311-602-0 01 1 0805- ● ● ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97387-812-0 01 1 0805- ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T AISIN(RMD) 		8-97327-156-0 01 1 0805- ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-97327-156-0 01 1 0805- ● ● ●
16 02.447 SWITCH; STOP LAMP
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) EXC. AUTO CRUISE CONT<K30> 		8-97301-684-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-97301-684-0 01 1 1004- ● ● ● ● ● ● ● ●
19 04.634 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0805- ● ● ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 0805- ● ● ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-97304-171-0 01 1 0805- ● ● ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97943-457-0 02 1 0805- ● ● ● ● ● ● ● ●
39 04.634 NUT; STOPPER LK
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0805- ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (C) 		8-98048-076-0 01 1 0805- ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JJ1-TCX ENG(LS0) (B) 		8-98007-772-0 01 1 0805- ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) (B) 		8-98007-772-0 01 1 0805- ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
C24SE ENG(LG1) (A) 		8-98007-771-0 01 1 0805-1003 ● ●
71 04.650 NUT; BRK M/CYL 8-98031-675-0 02 1 0805- ● ● ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
00.833 		8-98007-161-0 01 1 0805- ● ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY 8-98008-278-0 01 1 0805- ● ● ● ● ● ● ● ●
328 04.630 REINFORCEMENT; BRK PEDAL
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> 		8-98061-151-0 01 1 0805- ● ● ● ●
328 04.630 REINFORCEMENT; BRK PEDAL
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-98061-151-0 01 1 0805- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
