Sayfa 3-02 - Isuzu EPC

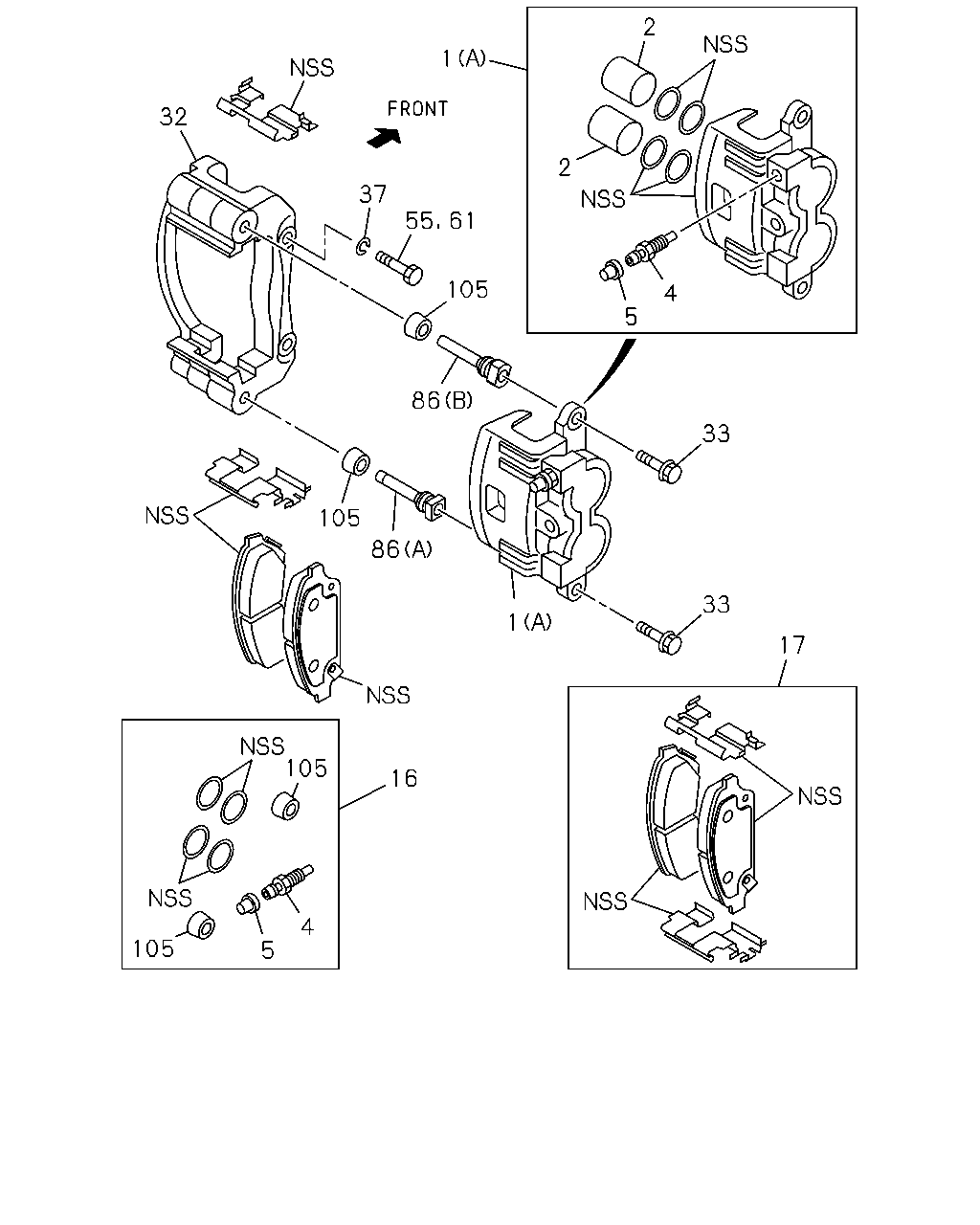

3-02 — FRONT DISC BRAKE CALIPER (#74734) — 122 parça

2 1 32 2 37 55 4 5 105 86 33 105 124 33 1 17 105 16 4 105 5 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	04.665 CALIPER; FRT DISC BRK FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98006-534-1	01	1	0805-0809	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98006-533-1	01	1	0805-0809	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION(7YC) (B)	8-98077-997-0	01	1	0805-0809	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98077-997-0	01	1	0805-0809	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-997-0	01	1	0805-0809						●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-997-0	01	1	0810-	●	●	●	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION(7YC) (B)	8-98077-996-0	01	1	0805-0809	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98077-996-0	01	1	0805-0809	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-996-0	01	1	0805-0809						●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-996-0	01	1	0810-	●	●	●	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98040-810-0	04	1	0805-0809	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98078-000-0	04	1	0805-0809	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98078-000-0	04	1	0805-0809	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98078-000-0	04	1	0805-0809						●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98078-000-0	04	1	0810-	●	●	●	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-254-0	02	1	0805-0809	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98050-476-0	02	1	0805-0809	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98050-476-0	02	1	0805-0809	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	0805-0809						●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	0810-	●	●	●	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-97301-726-0	02	1	0805-0809	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98050-479-0	02	1	0805-0809	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98050-479-0	02	1	0805-0809	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	0805-0809						●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	0810-	●	●	●	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98018-761-1	01	1	0805-0809	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98079-105-0	01	1	0805-0809	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98079-105-0	01	1	0805-0809	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98079-105-0	01	1	0805-0809						●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98079-105-0	01	1	0810-	●	●	●	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98051-116-0	01	1	0805-0809	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98079-104-0	01	1	0805-0809	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98079-104-0	01	1	0805-0809	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98079-104-0	01	1	0805-0809						●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98079-104-0	01	1	0810-	●	●	●	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98049-957-0	02	1	0805-0809	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK HIGH RIDE SUSPENSION(7YC)	8-98078-168-0	02	1	0805-0809	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98078-168-0	02	1	0805-0809	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK	8-98078-168-0	02	1	0805-0809						●	●	●
32	04.665 SUPPORT; FRT DISC BRK	8-98078-168-0	02	1	0810-	●	●	●	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-255-0	04	1	0805-0809	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK HIGH RIDE SUSPENSION(7YC)	8-98078-192-0	04	1	0805-0809	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98078-192-0	04	1	0805-0809	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-98078-192-0	04	1	0805-0809						●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-98078-192-0	04	1	0810-	●	●	●	●	●	●	●	●
37	04.665 WASHER; LK 06.174 ID=14.2	0-91510-814-0	04	1	0805-	●	●	●	●	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-98037-731-0	02	1	0805-	●	●	●	●	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681	8-98037-731-0	02	1	0805-	●	●	●	●	●	●	●	●
86	04.665 PIN; GUIDE FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC) (A) LEADING	8-98006-256-0	02	1	0805-0809	●	●	●	●	●
86	04.665 PIN; GUIDE FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC) (B) TRAILING	8-98006-257-0	02	1	0805-0809	●	●	●	●	●
86	04.665 PIN; GUIDE HIGH RIDE SUSPENSION(7YC) (C)	8-98078-175-0	02	1	0805-0809	●	●	●	●	●
86	04.665 PIN; GUIDE FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98078-175-0	02	1	0805-0809	●	●	●	●	●
86	04.665 PIN; GUIDE (C)	8-98078-175-0	02	1	0805-0809						●	●	●
86	04.665 PIN; GUIDE (C)	8-98078-175-0	02	1	0810-	●	●	●	●	●	●	●	●
105	04.665 BOOT; CALIPER FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-97328-229-0	04	1	0805-0809	●	●	●	●	●
105	04.665 BOOT; CALIPER HIGH RIDE SUSPENSION(7YC)	8-98078-193-0	04	1	0805-0809	●	●	●	●	●
105	04.665 BOOT; CALIPER FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98078-193-0	04	1	0805-0809	●	●	●	●	●
105	04.665 BOOT; CALIPER	8-98078-193-0	04	1	0805-0809						●	●	●
105	04.665 BOOT; CALIPER	8-98078-193-0	04	1	0810-	●	●	●	●	●	●	●	●
124	04.665 PIN ASM; W/BUSH HIGH RIDE SUSPENSION(7YC)	8-98078-176-0	02	1	0805-0809	●	●	●	●	●
124	04.665 PIN ASM; W/BUSH FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98078-176-0	02	1	0805-0809	●	●	●	●	●
124	04.665 PIN ASM; W/BUSH	8-98078-176-0	02	1	0805-0809						●	●	●
124	04.665 PIN ASM; W/BUSH	8-98078-176-0	02	1	0810-	●	●	●	●	●	●	●	●

2 1 32 2 37 55 105 4 5 86 33 105 86 33 1 17 105 16 4 105 5 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	04.665 CALIPER; FRT DISC BRK FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98006-534-1	01	1	0805-0809	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98006-533-1	01	1	0805-0809	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION(7YC) (B)	8-98077-997-0	01	1	0805-0809	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98077-997-0	01	1	0805-0809	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-997-0	01	1	0805-0809						●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-997-0	01	1	0810-	●	●	●	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION(7YC) (B)	8-98077-996-0	01	1	0805-0809	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98077-996-0	01	1	0805-0809	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-996-0	01	1	0805-0809						●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-996-0	01	1	0810-	●	●	●	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98040-810-0	04	1	0805-0809	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98078-000-0	04	1	0805-0809	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98078-000-0	04	1	0805-0809	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98078-000-0	04	1	0805-0809						●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98078-000-0	04	1	0810-	●	●	●	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-254-0	02	1	0805-0809	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98050-476-0	02	1	0805-0809	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98050-476-0	02	1	0805-0809	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	0805-0809						●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	0810-	●	●	●	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-97301-726-0	02	1	0805-0809	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98050-479-0	02	1	0805-0809	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98050-479-0	02	1	0805-0809	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	0805-0809						●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	0810-	●	●	●	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98018-761-1	01	1	0805-0809	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98079-105-0	01	1	0805-0809	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98079-105-0	01	1	0805-0809	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98079-105-0	01	1	0805-0809						●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98079-105-0	01	1	0810-	●	●	●	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98051-116-0	01	1	0805-0809	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98079-104-0	01	1	0805-0809	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98079-104-0	01	1	0805-0809	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98079-104-0	01	1	0805-0809						●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98079-104-0	01	1	0810-	●	●	●	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98049-957-0	02	1	0805-0809	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK HIGH RIDE SUSPENSION(7YC)	8-98078-168-0	02	1	0805-0809	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98078-168-0	02	1	0805-0809	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK	8-98078-168-0	02	1	0805-0809						●	●	●
32	04.665 SUPPORT; FRT DISC BRK	8-98078-168-0	02	1	0810-	●	●	●	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-255-0	04	1	0805-0809	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK HIGH RIDE SUSPENSION(7YC)	8-98078-192-0	04	1	0805-0809	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98078-192-0	04	1	0805-0809	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-98078-192-0	04	1	0805-0809						●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-98078-192-0	04	1	0810-	●	●	●	●	●	●	●	●
37	04.665 WASHER; LK 06.174 ID=14.2	0-91510-814-0	04	1	0805-	●	●	●	●	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-98037-731-0	02	1	0805-	●	●	●	●	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681	8-98037-731-0	02	1	0805-	●	●	●	●	●	●	●	●
86	04.665 PIN; GUIDE FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC) (A) LEADING	8-98006-256-0	02	1	0805-0809	●	●	●	●	●
86	04.665 PIN; GUIDE FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC) (B) TRAILING	8-98006-257-0	02	1	0805-0809	●	●	●	●	●
86	04.665 PIN; GUIDE HIGH RIDE SUSPENSION(7YC) (C)	8-98078-175-0	02	1	0805-0809	●	●	●	●	●
86	04.665 PIN; GUIDE FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98078-175-0	02	1	0805-0809	●	●	●	●	●
86	04.665 PIN; GUIDE (C)	8-98078-175-0	02	1	0805-0809						●	●	●
86	04.665 PIN; GUIDE (C)	8-98078-175-0	02	1	0810-	●	●	●	●	●	●	●	●
105	04.665 BOOT; CALIPER FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-97328-229-0	04	1	0805-0809	●	●	●	●	●
105	04.665 BOOT; CALIPER HIGH RIDE SUSPENSION(7YC)	8-98078-193-0	04	1	0805-0809	●	●	●	●	●
105	04.665 BOOT; CALIPER FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. HIGH RIDE SUSPENSION(7YC)	8-98078-193-0	04	1	0805-0809	●	●	●	●	●
105	04.665 BOOT; CALIPER	8-98078-193-0	04	1	0805-0809						●	●	●
105	04.665 BOOT; CALIPER	8-98078-193-0	04	1	0810-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
