Isuzu WW
▶
TRUCKS
▶
FRR
▶
10775 - FRR/FVR(TAIWAN)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

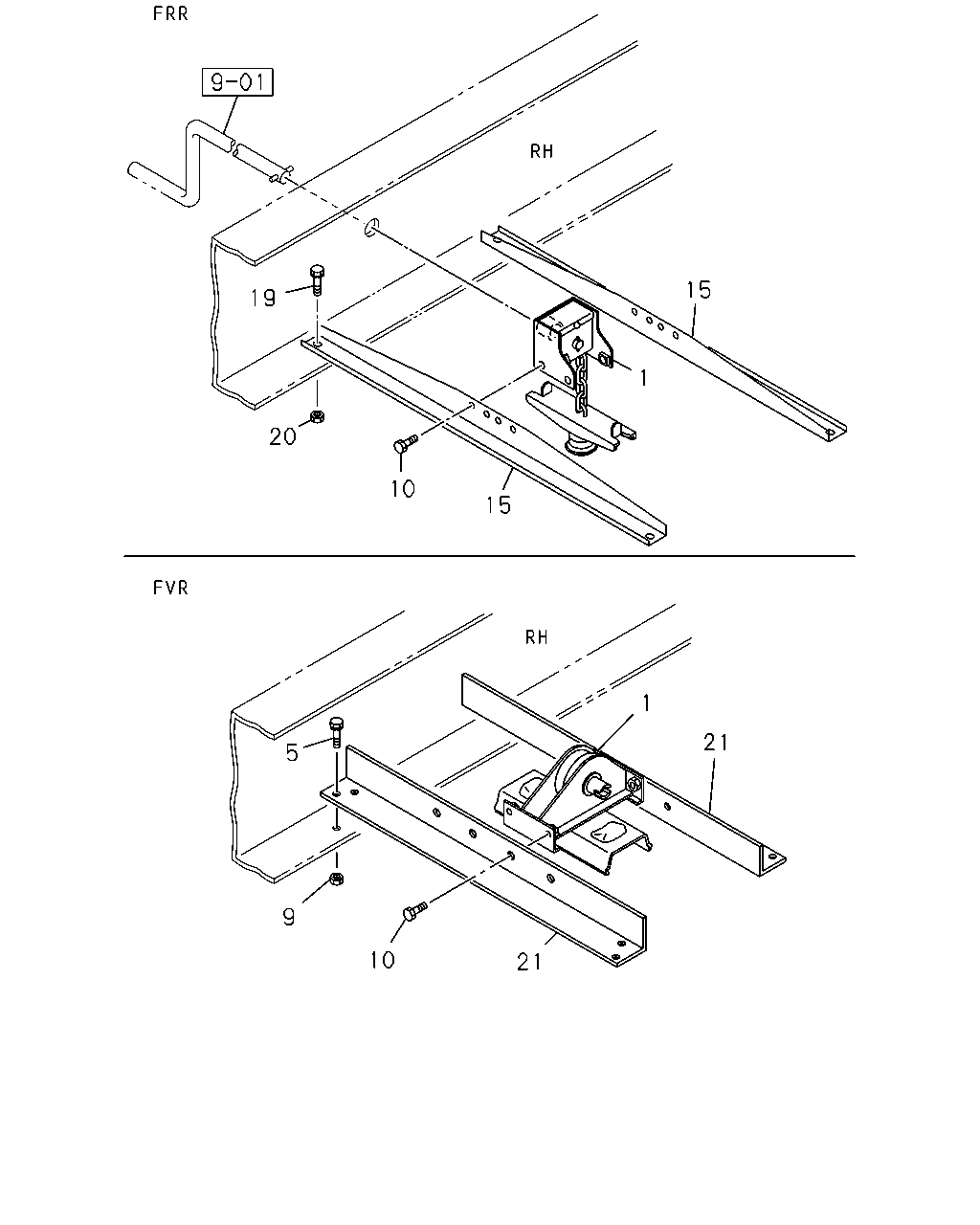

5-30 — SPARE TIRE CARRIER AND COVER
(#7473) — 18 parça
Tümü
A - FRR6MF
B - FVR6MF
15
19
1
20
10
15
1
21
5
9
10
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HANGER ASM; TIRE FT
1-53630-188-3
01
1
9811-
●
1
HANGER ASM; TIRE FT
1-53630-208-2
01
1
9811-
●
5
BOLT; BRKT TO FRAME
M10X25 FLANGE
0-28081-025-0
08
1
9811-0512
●
5
BOLT; BRKT TO FRAME
M10X25 FLANGE
0-28051-025-0
08
1
0601-
●
9
NUT; BRKT TO FRAME
M10 FLANGE
0-91150-210-0
08
1
9811-0602
●
9
NUT; BRKT TO FRAME
M10 FLANGE
0-91180-210-0
08
1
0603-
●
10
BOLT; TIRE HANGER
M10X20 FLANGE
0-28681-020-0
04
1
9811-0512
●
10
BOLT; TIRE HANGER
M10X20 FLANGE
0-28651-020-0
04
1
0601-
●
10
BOLT; TIRE HANGER
M12X30 FLANGE
0-28681-230-0
04
1
9811-0512
●
10
BOLT; TIRE HANGER
M12X30 FLANGE
0-28651-230-0
04
1
0601-
●
15
MEMBER; CROSS,SPARE TIRE
TAI
8-97530-369-0
02
1
9811-0610
●
15
MEMBER; CROSS,SPARE TIRE
TAI
1-53631-343-2
02
1
0611-
●
19
BOLT; C/MBR
M10X25 FLANGE
0-28081-025-0
04
1
9811-0512
●
19
BOLT; C/MBR
M10X25 FLANGE
0-28051-025-0
04
1
0601-
●
20
NUT; C/MBR
M10 FLANGE
0-91150-210-0
04
1
9811-0602
●
20
NUT; C/MBR
M10 FLANGE
0-91180-210-0
04
1
0603-
●
21
BRACKET; SPARE TIRE HANGER
TAI
8-97530-382-0
02
1
9811-0610
●
21
BRACKET; SPARE TIRE HANGER
TAI
1-53631-373-0
02
1
0611-
●
