Sayfa 2-60 - Isuzu EPC

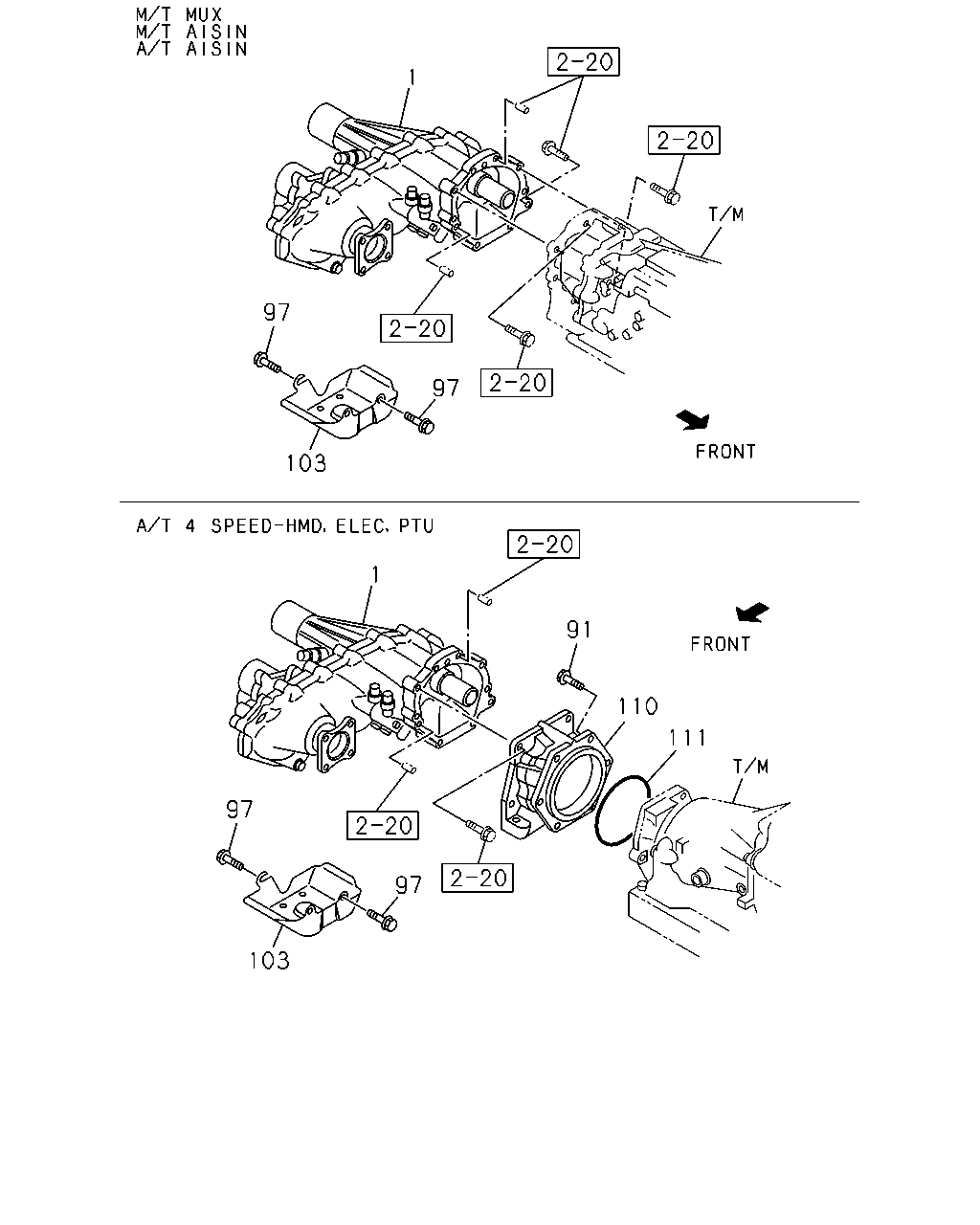

2-60 — TRANSFER (#74729) — 9 parça

1 97 103 97 1 91 110 111 97 103 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.505 TRANSFER ASM HF V6 ENG(LCA)	8-98028-767-0	01	1	0805-	●	●	●
1	04.505 TRANSFER ASM 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-98028-765-0	01	1	0805-1007	●	●	●
1	04.505 TRANSFER ASM 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-98028-765-0	01	1	1008-	●	●	●
1	04.505 TRANSFER ASM 4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) A/T AISIN(RMD)	8-98028-766-0	01	1	0805-			●
91	04.512 BOLT 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 09.181	8-11515-767-0	06	1	0805-			●
97	04.512 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0805-	●	●	●
103	04.510 GUARD; TRANSFER	8-97234-751-0	01	1	0805-	●	●	●
110	04.510 ADAPTER; TRANSFER 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2)	8-24231-140-0	01	1	0805-			●
111	04.515 SEAL; TRANSFER CASE 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2)	8-98000-993-0	01	1	0805-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
