◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-56B - AUTO TRANS CONTROL LINK ▶
2-56B — AUTO TRANS CONTROL LINK (#74728) — 19 parça

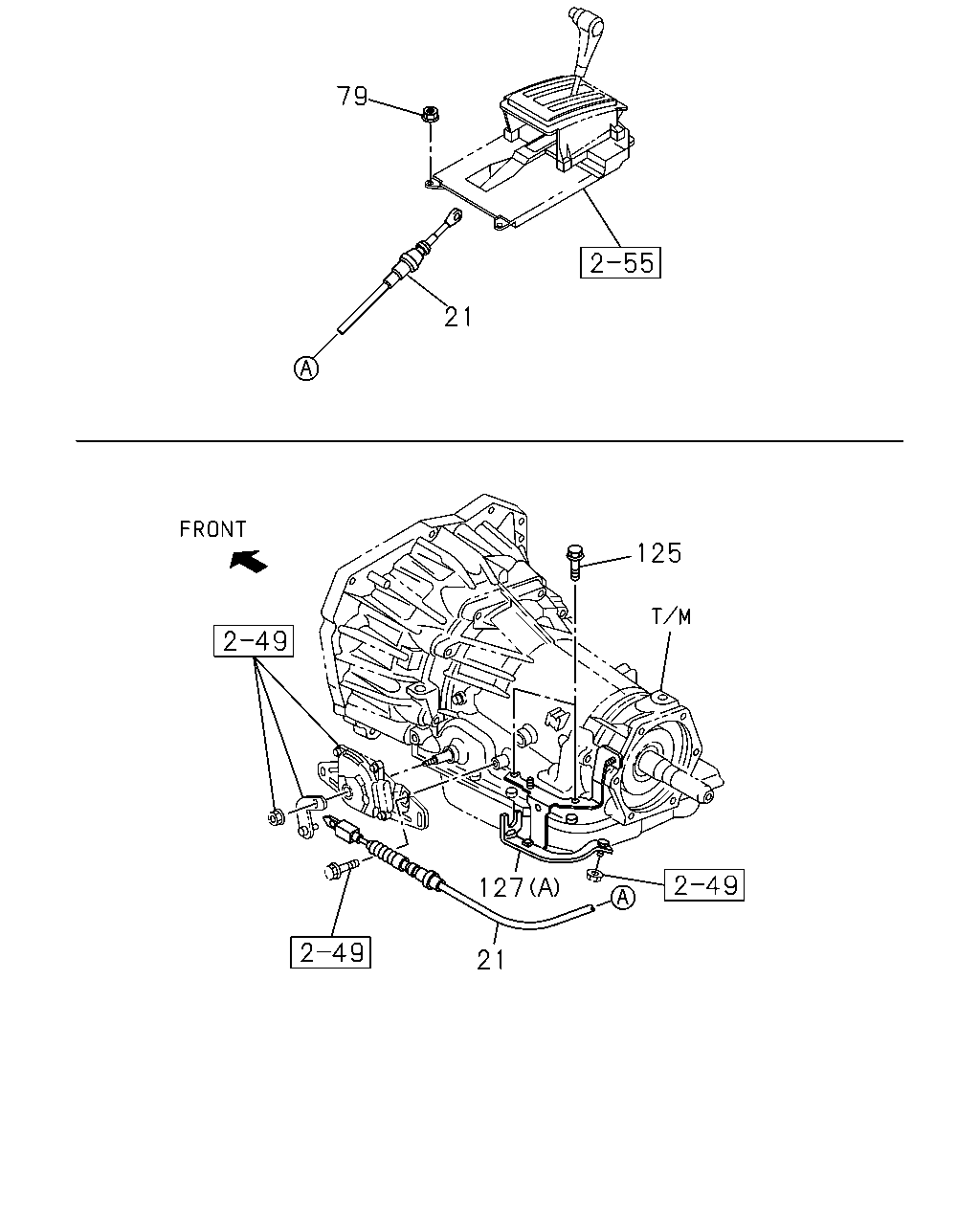

çizim 114709
79 21 125 127 21
BalonParca AdiParca NoAdetTipApplied Date A B C
21 04.047 CABLE; A/T 8-98056-401-0 01 1 0805- ● ●
21 04.047 CABLE; A/T
4JJ1-TCX ENG(LS0) 		8-97388-319-0 01 1 0805- ●
79 04.047 NUT; CONT CABLE
08.915 M6 FLANGE 		8-98055-704-0 04 1 0805- ● ● ●
125 04.047 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0805- ● ●
125 04.047 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0805- ●
127 04.047 BRACKET; A/T CONT CABLE
(A) 		8-98033-846-0 01 1 0805- ● ●
127 04.047 BRACKET; A/T CONT CABLE
4JJ1-TCX ENG(LS0) (B) 		8-97388-320-1 01 1 0805- ●
127 04.047 BRACKET; A/T CONT CABLE
4JJ1-TCX ENG(LS0) (C) 		8-97388-321-1 01 1 0805- ●

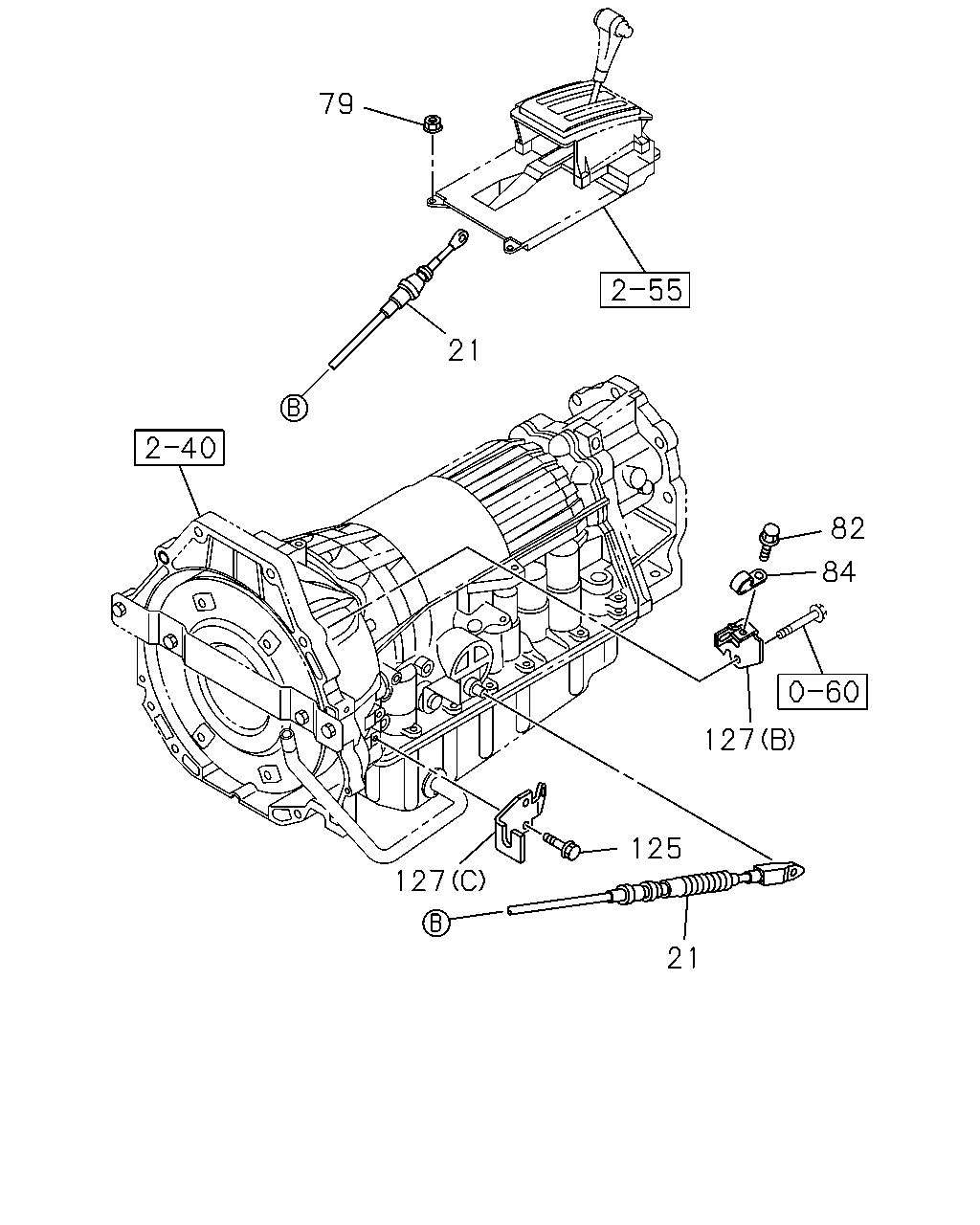

çizim 114711
21 127 125 127 84 82 21 79
BalonParca AdiParca NoAdetTipApplied Date A B C
21 04.047 CABLE; A/T 8-98056-401-0 01 1 0805- ● ●
21 04.047 CABLE; A/T
4JJ1-TCX ENG(LS0) 		8-97388-319-0 01 1 0805- ●
79 04.047 NUT; CONT CABLE
08.915 M6 FLANGE 		8-98055-704-0 04 1 0805- ● ● ●
82 04.047 BOLT; A/T CONT CABLE
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0805- ●
84 04.047 CLIP; A/T CONT CABLE
ID=11 L=28 		0-95235-052-0 01 1 0805- ●
125 04.047 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0805- ● ●
125 04.047 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0805- ●
127 04.047 BRACKET; A/T CONT CABLE
(A) 		8-98033-846-0 01 1 0805- ● ●
127 04.047 BRACKET; A/T CONT CABLE
4JJ1-TCX ENG(LS0) (B) 		8-97388-320-1 01 1 0805- ●
127 04.047 BRACKET; A/T CONT CABLE
4JJ1-TCX ENG(LS0) (C) 		8-97388-321-1 01 1 0805- ●

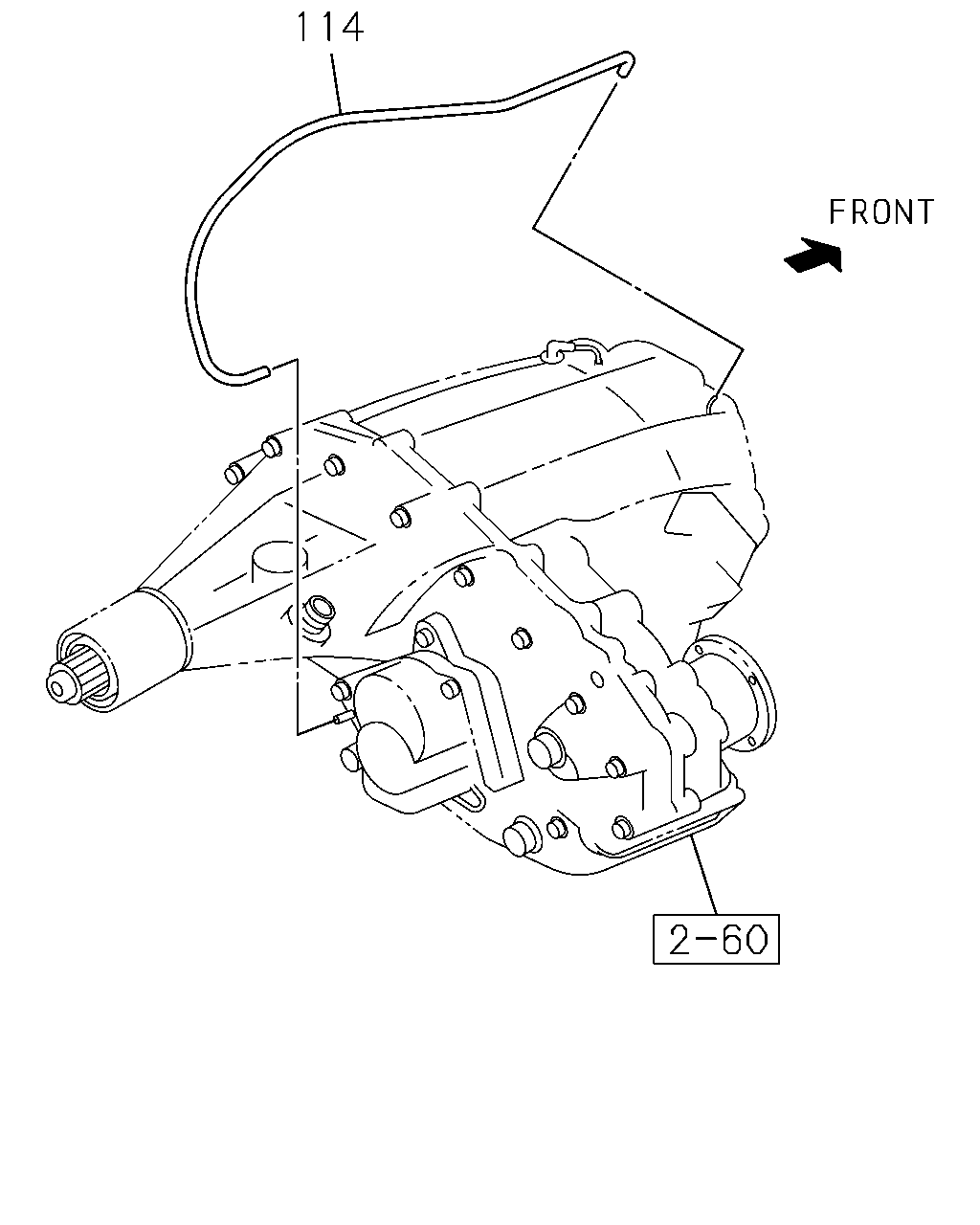

çizim 114744
114
BalonParca AdiParca NoAdetTipApplied Date A B C
114 08.962 HOSE; BREATHER
4X4(TFS***) 04.510 		8-97326-218-0 01 1 0805- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
