2-53B — TRANSMISSION OIL COOLER SYSTEM
(#74726) — 13 parça
Tümü

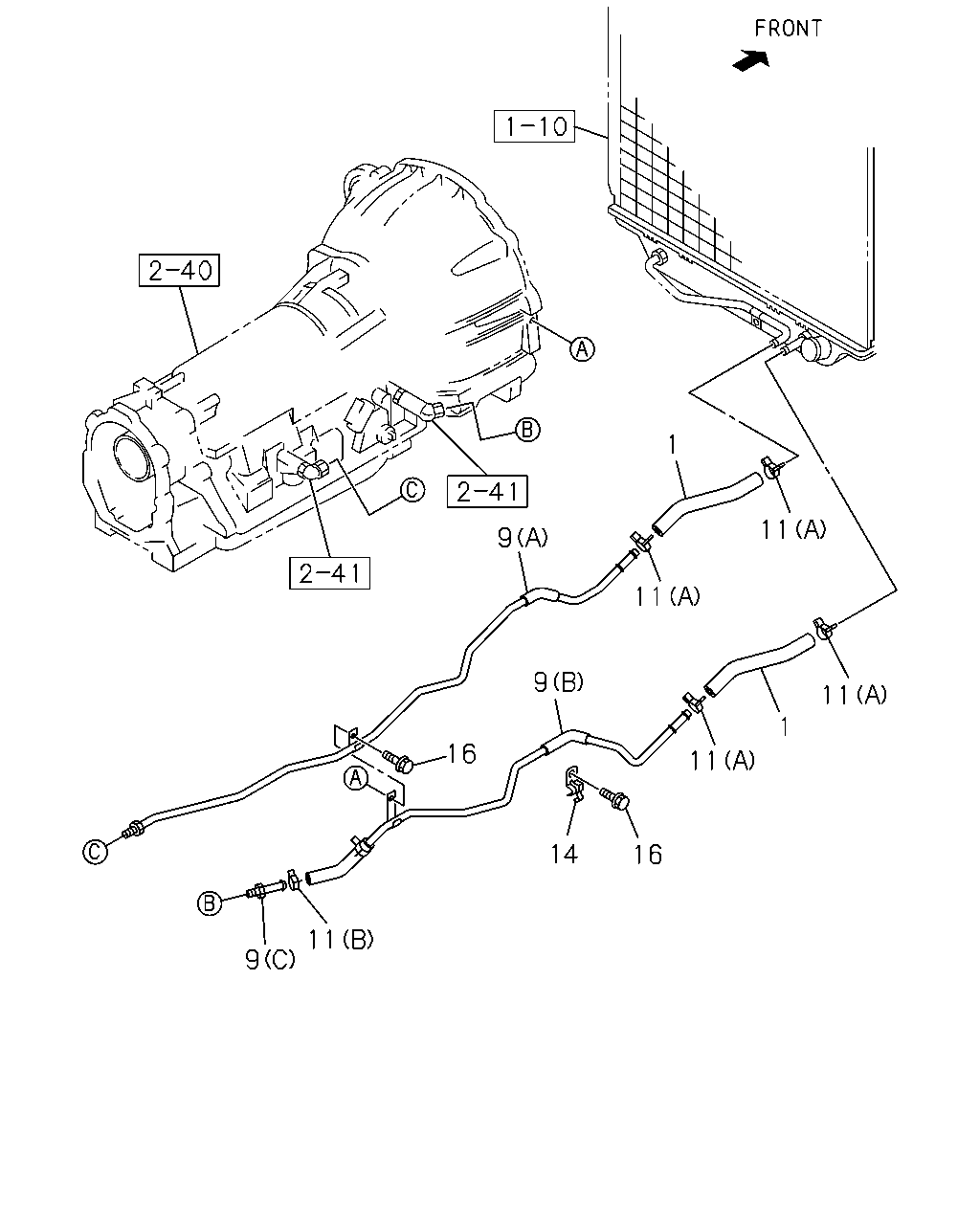

A - A/T AISIN

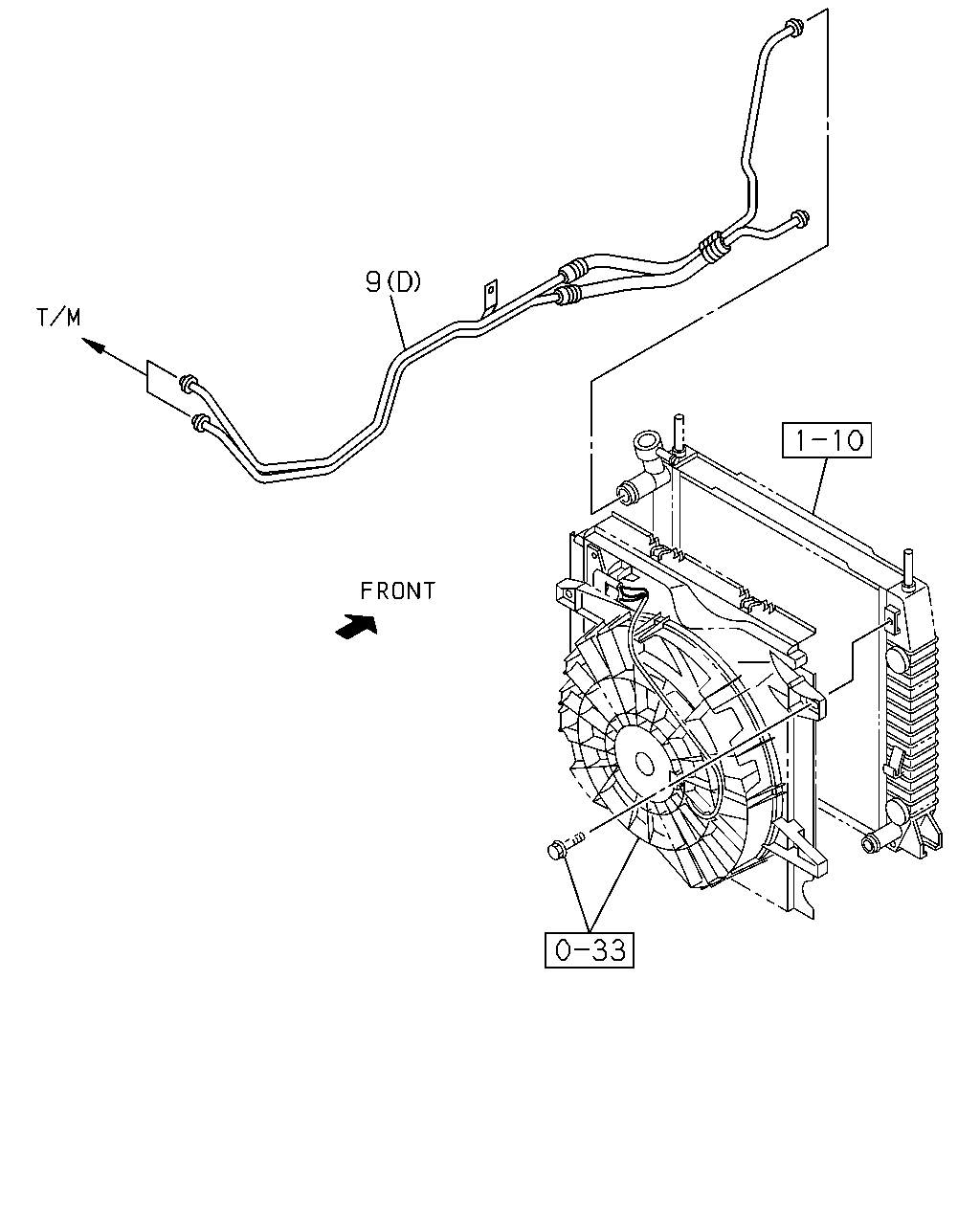

B - A/T 4 SPEED-HMD,ELEC
C - A/T 4 SPEED-HMD,ELEC,PTU
◀
[253B] A/T AISIN (9 parça)
[253B] A/T 4 SPEED-HMD (4 parça)
▶
1
11
9
11
9
11
1
16
11
14
16
11
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.128 HOSE; ATF
4JJ1-TCX ENG(LS0) L=250 SERVICED BY L=3000
0-02259-300-0
02
1
0805-
●
9
04.128 PIPE; ATF,INL,A/T
HF V6 ENG(LCA) (D)
8-92174-696-0
01
1
0805-
●
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCX ENG(LS0) (C)
8-98036-273-0
01
1
0805-
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCX ENG(LS0) (B)
8-98061-107-0
01
1
0805-
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCX ENG(LS0) (A)
8-98085-689-0
01
1
0805-
●
11
04.128 CLIP; PIPE
4JJ1-TCX ENG(LS0) (A)
8-98008-165-0
04
1
0805-
●
11
04.128 CLIP; PIPE
4JJ1-TCX ENG(LS0) 01.762 (B) ID=16
8-98030-682-0
01
1
0805-
●
14
04.128 CLIP; PIPE TO ENG SIDE
4JJ1-TCX ENG(LS0)
8-98008-163-0
01
1
0805-
●
16
04.128 BOLT; CLIP,ENG SIDE
4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE
0-28050-816-0
02
1
0805-
●
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
9
04.128 PIPE; ATF,INL,A/T
HF V6 ENG(LCA) (D)
8-92174-696-0
01
1
0805-
●
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCX ENG(LS0) (C)
8-98036-273-0
01
1
0805-
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCX ENG(LS0) (B)
8-98061-107-0
01
1
0805-
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCX ENG(LS0) (A)
8-98085-689-0
01
1
0805-
●
