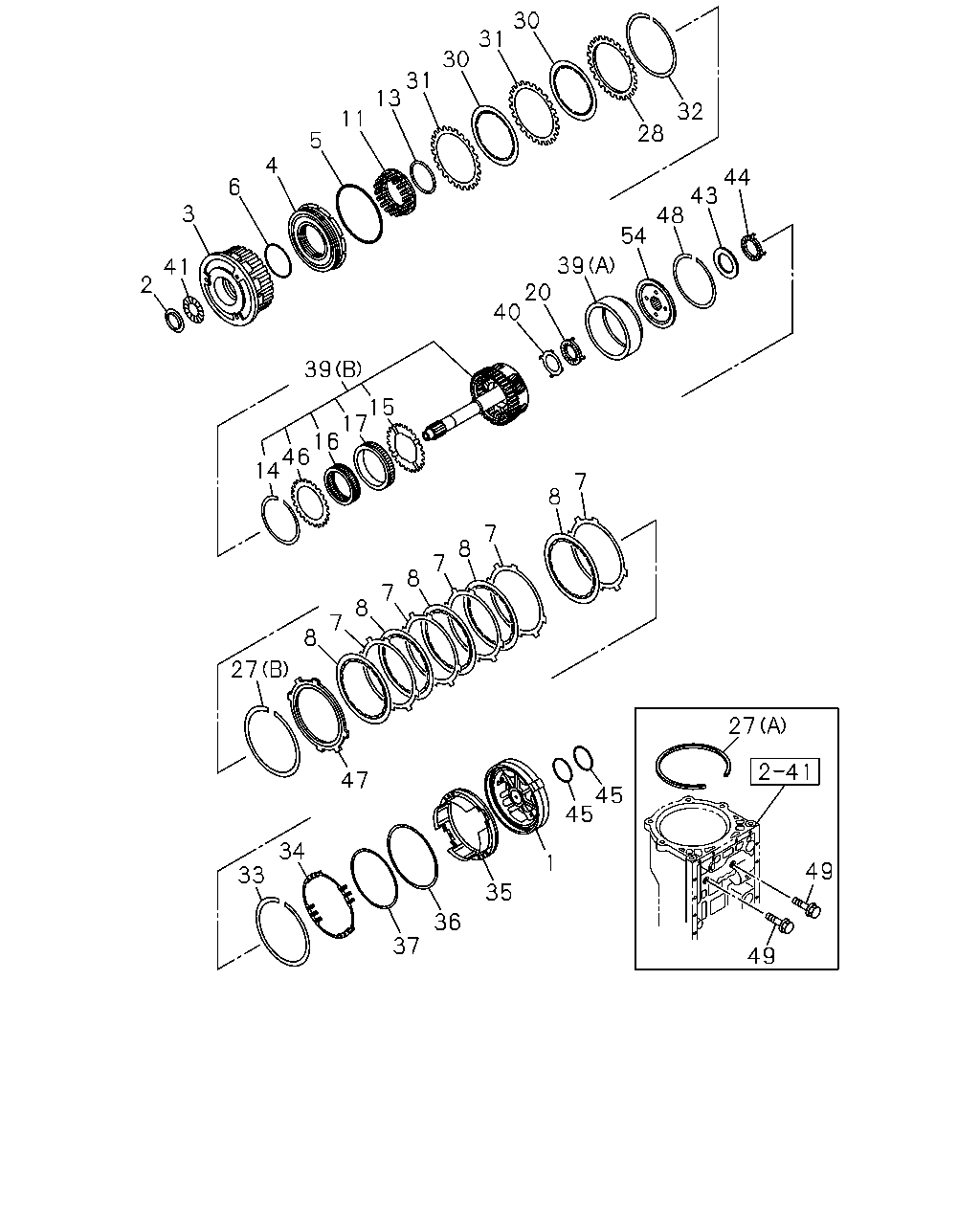

2-52B — AUTO TRANS OVERDRIVE GEAR (#74725) — 51 parça

30 31 30 31 13 32 11 28 5 4 44 43 48 54 6 3 39 20 40 41 2 39 15 17 16 46 14 7 8 7 8 7 8 7 8 7 8 27 27 47 45 45 34 1 49 33 35 36 37 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.455 CASE ASM; OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-97184-516-0	01	1	0805-
2	04.472 RACE; THRUST BRG,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-97249-736-0	01	1	0805-
3	04.468 DRUM; CLU,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-98112-180-0	01	1	0805-
4	04.468 PISTON ASM; CLU,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-94479-889-0	01	1	0805-
5	04.460 GASKET; CLU PISTON,OUTER,OVERDRI 4JJ1-TCX ENG(LS0)	8-97184-528-0	01	1	0805-
6	04.460 GASKET; CLU PISTON,INNER,OVERDRI 4JJ1-TCX ENG(LS0)	8-97184-321-0	01	1	0805-
7	04.468 PLATE; CLU CUSHION 4JJ1-TCX ENG(LS0)	8-97143-124-0	05	1	0805-
8	04.455 DISC; CLU,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-97143-126-0	05	1	0805-
11	04.468 SPRING; CLU RETURN,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-94479-890-0	01	1	0805-
13	04.472 RING; SNAP,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0) 04.166	8-94479-783-0	01	1	0805-
14	04.472 RING; RET,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-94479-882-0	01	1	0805-
15	04.468 WASHER; THRUST,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-94479-883-0	01	1	0805-
16	04.455 CLUTCH ASM; ONEWAY,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-97019-545-0	01	1	0805-
17	04.468 RACE; ONEWAY CLU,A/T 4JJ1-TCX ENG(LS0)	8-94479-885-0	01	1	0805-
20	04.472 BEARING; THRUST 4JJ1-TCX ENG(LS0)	8-97379-208-0	01	1	0805-
27	04.472 RING; RET,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0) (A)	8-94479-859-0	01	1	0805-
27	04.472 RING; RET,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0) (B)	8-94479-874-0	01	1	0805-
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0) T=3.6	8-97288-924-0	01	1	0805-
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0) T=3.5	8-97288-925-0	01	1	0805-
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0) T=3.4	8-97288-926-0	01	1	0805-
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0) T=3.1	8-97311-564-0	01	1	0805-
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0) T=3.2	8-97311-565-0	01	1	0805-
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0) T=3.3	8-97311-566-0	01	1	0805-
30	04.455 DISC; CLU,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-97143-121-0	03	1	1008-
30	04.455 DISC; CLU,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-97143-121-0	02	1	0805-1007
31	04.468 PLATE; CUSHION,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0) 04.455	8-94479-891-0	03	1	1008-
31	04.468 PLATE; CUSHION,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0) 04.455	8-94479-891-0	02	1	0805-1007
32	04.472 RING; RET,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0) 04.164	8-94250-342-0	01	1	0805-
33	04.485 RETAINER; BRK RETURN SPR,OVERDRI 4JJ1-TCX ENG(LS0) ID=160	8-97184-521-0	01	1	0805-
34	04.467 SPRING; BRK RETURN,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-97184-526-0	01	1	0805-
35	04.468 PISTON; BRK,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-98050-552-0	01	1	0805-
36	04.460 GASKET; PISTON,OUTER,A/T 4JJ1-TCX ENG(LS0)	8-97184-519-0	01	1	0805-
37	04.460 GASKET; PISTON,INNER,A/T 4JJ1-TCX ENG(LS0)	8-97184-520-0	01	1	0805-
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T 4JJ1-TCX ENG(LS0) (A)	8-94479-876-0	01	1	0805-
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T 4JJ1-TCX ENG(LS0) (B)	8-98112-206-0	01	1	0805-
40	04.470 RACE; THRUST BRG,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-97379-207-0	01	1	0805-
41	04.472 BEARING; THRUST,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-97249-734-0	01	1	0805-
43	04.472 RACE; THRUST BRG,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-97019-548-0	01	1	0805-
44	04.472 BEARING; THRUST,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0)	8-97019-547-0	01	1	0805-
45	04.472 RING; SEAL,OVERDRIVE,A/T 4JJ1-TCX ENG(LS0) 04.226	8-94479-747-0	02	1	0805-
46	04.468 PLATE; RET,OVERDRIVE CLU 4JJ1-TCX ENG(LS0)	8-94479-886-0	01	1	0805-
47	04.467 FLANGE; OVERDRIVE BRK,A/T 4JJ1-TCX ENG(LS0) T=3.6	8-97288-916-0	01	1	0805-
47	04.467 FLANGE; OVERDRIVE BRK,A/T 4JJ1-TCX ENG(LS0) T=3.7	8-97288-917-0	01	1	0805-
47	04.467 FLANGE; OVERDRIVE BRK,A/T 4JJ1-TCX ENG(LS0) T=3.5	8-97289-106-0	01	1	0805-
47	04.467 FLANGE; OVERDRIVE BRK,A/T 4JJ1-TCX ENG(LS0) T=3.8	8-97311-560-0	01	1	0805-
47	04.467 FLANGE; OVERDRIVE BRK,A/T 4JJ1-TCX ENG(LS0) T=3.9	8-97311-561-0	01	1	0805-
47	04.467 FLANGE; OVERDRIVE BRK,A/T 4JJ1-TCX ENG(LS0) T=4.0	8-97311-562-0	01	1	0805-
47	04.467 FLANGE; OVERDRIVE BRK,A/T 4JJ1-TCX ENG(LS0) T=3.3	8-97311-563-0	01	1	0805-
48	04.472 RING; SNAP,PLANETARY RING GEAR,O 4JJ1-TCX ENG(LS0) 04.166	8-94479-853-0	01	1	0805-
49	04.472 BOLT; OVERDRIVE SUPPORT,A/T 4JJ1-TCX ENG(LS0)	8-97143-090-0	02	1	0805-
54	04.175 FLANGE; PLANETARY RING GEAR,OVER 4JJ1-TCX ENG(LS0)	8-97379-206-0	01	1	0805-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
