2-49B — AUTO TRANS INHIBITOR SWITCH (#74724) — 98 parça

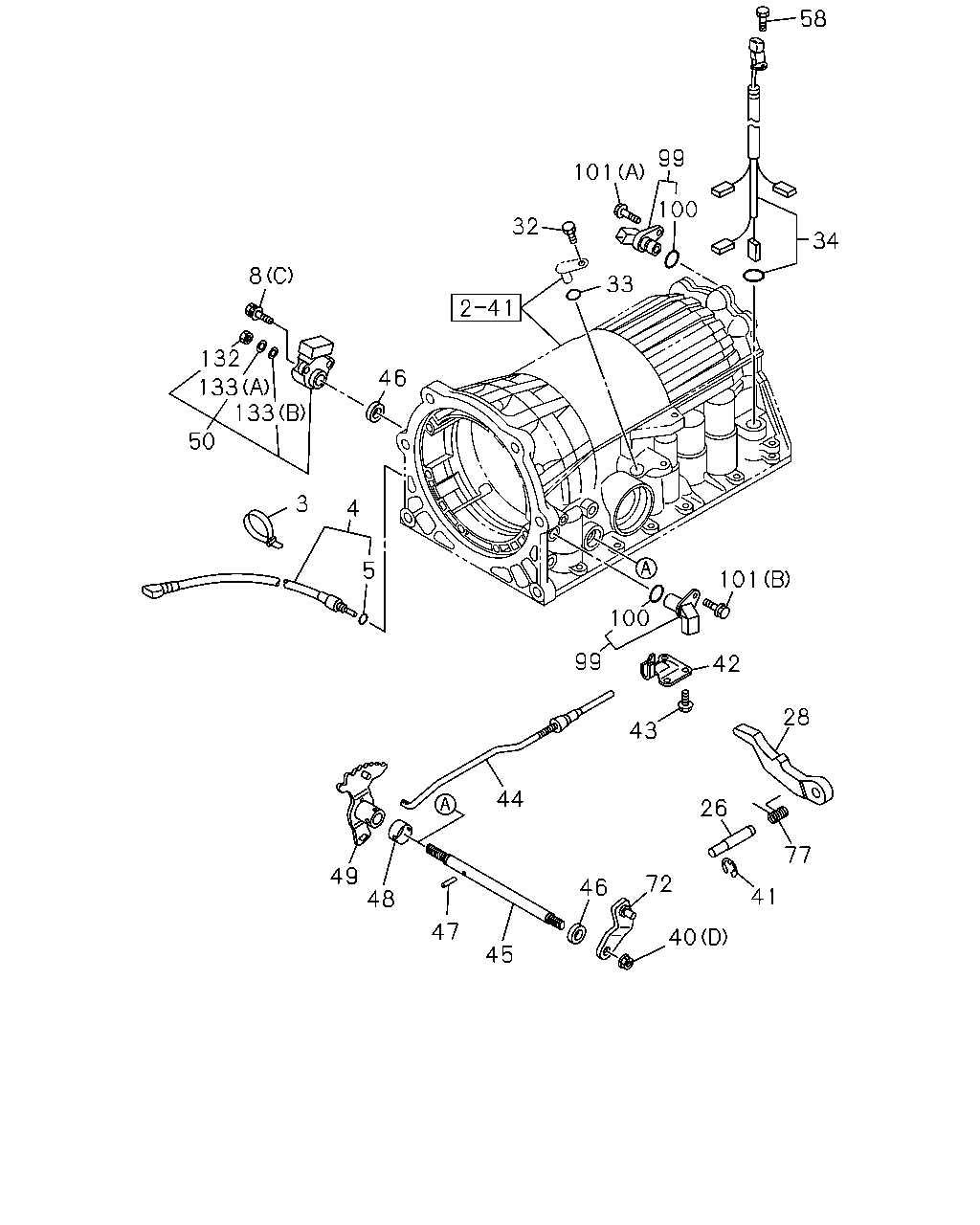

58 99 101 100 32 34 8 33 132 46 133 133 50 3 4 5 101 100 99 42 28 43 44 26 77 49 48 72 46 41 47 40 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	04.054 CLIP; INHIBITOR SW,A/T 4JJ1-TCX ENG(LS0)	8-94473-565-0	01	1	0805-	●
4	04.054 SENSOR; THERMO,A/T OIL 4JJ1-TCX ENG(LS0) 04.050	8-97331-531-0	01	1	0805-	●
5	04.054 GASKET; OIL THERMO SENSOR,A/T 4JJ1-TCX ENG(LS0)	8-94479-726-0	01	1	0805-	●
8	04.054 BOLT; NEUTRAL START SW,A/T HF V6 ENG(LCA) 00.685 (B)	8-92138-321-0	02	1	0805-		●	●
8	04.054 BOLT; NEUTRAL START SW,A/T HF V6 ENG(LCA) (A)	8-92138-813-0	02	1	0805-		●	●
8	04.054 BOLT; NEUTRAL START SW,A/T 4JJ1-TCX ENG(LS0) (C) M8X30	8-97130-929-0	01	1	0805-	●
26	04.294 SHAFT; PARKING PAWL,A/T 4JJ1-TCX ENG(LS0)	8-94479-975-0	01	1	0805-	●
28	04.294 PAWL; PARKING,A/T 4X2(TFB***) HF V6 ENG(LCA) 04.290	8-08667-574-0	01	1	0805-		●
28	04.294 PAWL; PARKING,A/T 4X4(TFS***) HF V6 ENG(LCA) 04.290	8-08667-574-0	01	1	0805-			●
28	04.294 PAWL; PARKING,A/T 4JJ1-TCX ENG(LS0)	8-97143-087-0	01	1	0805-	●
32	04.050 BOLT; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) M6X16	8-94479-712-0	01	1	0805-1007	●
32	04.050 BOLT; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) M6X16	8-94479-712-0	01	1	0805-1007	●
33	04.050 GASKET; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-94364-922-0	01	1	0805-1007	●
33	04.050 GASKET; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-94364-922-0	01	1	0805-1007	●
34	04.265 SOLENOID ASM; A/T 4JJ1-TCX ENG(LS0)	8-98050-495-0	01	1	0805-	●
40	04.037 NUT; LEVER TO SHAFT 4X2(TFB***) HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0805-0809		●
40	04.037 NUT; LEVER TO SHAFT 4X4(TFS***) HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0805-0809			●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0810-		●	●
40	04.037 NUT; LEVER TO SHAFT 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	0805-		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (B) M10	0-91210-510-0	01	1	0805-		●	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0805-	●
41	04.290 RETAINER; SPR,SHAFT 4JJ1-TCX ENG(LS0)	5-34488-002-0	01	1	0805-	●
42	04.290 BRACKET; PARKING LOCK 4X2(TFB***) HF V6 ENG(LCA)	8-08667-574-0	01	1	0805-		●
42	04.290 BRACKET; PARKING LOCK 4X4(TFS***) HF V6 ENG(LCA)	8-08667-574-0	01	1	0805-			●
42	04.290 BRACKET; PARKING LOCK 4JJ1-TCX ENG(LS0)	8-97126-815-0	01	1	0805-	●
43	04.290 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0805-		●	●
43	04.290 BOLT; BRKT 4JJ1-TCX ENG(LS0) M6X14	8-94479-978-0	03	1	0805-	●
44	04.290 ROD ASM; PARKING PAWL 4JJ1-TCX ENG(LS0)	8-98050-534-0	01	1	0805-	●
45	04.275 SHAFT; VALVE LEVER 4JJ1-TCX ENG(LS0)	8-97025-848-0	01	1	0805-	●
46	04.282 SEAL; OIL 4X2(TFB***) HF V6 ENG(LCA) 04.265	8-08657-163-0	01	1	0805-		●
46	04.282 SEAL; OIL 4X4(TFS***) HF V6 ENG(LCA) 04.265	8-08657-163-0	01	1	0805-			●
46	04.282 SEAL; OIL 4JJ1-TCX ENG(LS0) 04.027 OD=22	8-94479-740-0	02	1	0805-	●
47	04.275 PIN; ROLL SHAFT 4JJ1-TCX ENG(LS0) 04.052 D=4	8-94257-081-0	01	1	0805-	●
48	04.008 COVER; SLEEVE 4JJ1-TCX ENG(LS0)	8-97362-483-0	01	1	0805-	●
49	04.279 LEVER ASM; CAM 4JJ1-TCX ENG(LS0)	8-97331-535-0	01	1	0805-	●
50	04.054 SWITCH; NEUTRAL,A/T 4JJ1-TCX ENG(LS0)	8-97207-138-0	01	1	0805-	●
58	04.260 BOLT; SOLENOID TO A/T 4JJ1-TCX ENG(LS0) 04.050 M6X16	8-94479-712-0	01	1	0805-	●
72	04.035 LEVER; SELECT CONT HF V6 ENG(LCA)	8-98052-186-0	01	1	0805-		●	●
72	04.035 LEVER; SELECT CONT 4JJ1-TCX ENG(LS0)	8-98005-235-0	01	1	0805-	●
77	04.295 SPRING; TORSION,PARKING BRK LK,A 4JJ1-TCX ENG(LS0)	8-94479-976-0	01	1	0805-	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-97027-383-0	02	1	0805-1007	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97027-383-0	02	1	0805-1007	●
99	04.329 SENSOR; SPD 4JJ1-TCX ENG(LS0)	8-97027-383-0	02	1	1008-	●
99	04.329 SENSOR; SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97027-383-0	01	1	0805-1007	●
100	04.239 GASKET; SPD SENSOR 4JJ1-TCX ENG(LS0)	8-97027-197-0	02	1	0805-	●
101	04.329 BOLT; SPD SENSOR 4JJ1-TCX ENG(LS0) 04.050 (A) M6X16	8-94479-712-0	01	1	0805-	●
101	04.329 BOLT; SPD SENSOR 4JJ1-TCX ENG(LS0) 04.290 (B) M6X14	8-94479-978-0	01	1	0805-	●
132	04.248 NUT; SWITCH 4JJ1-TCX ENG(LS0) M16	8-97354-883-0	01	1	0805-	●
133	04.248 WASHER; SWITCH 4JJ1-TCX ENG(LS0) (B)	8-97354-888-0	01	1	0805-	●
133	04.248 WASHER; SWITCH 4JJ1-TCX ENG(LS0) (A) ID=16	8-97354-889-0	01	1	0805-	●

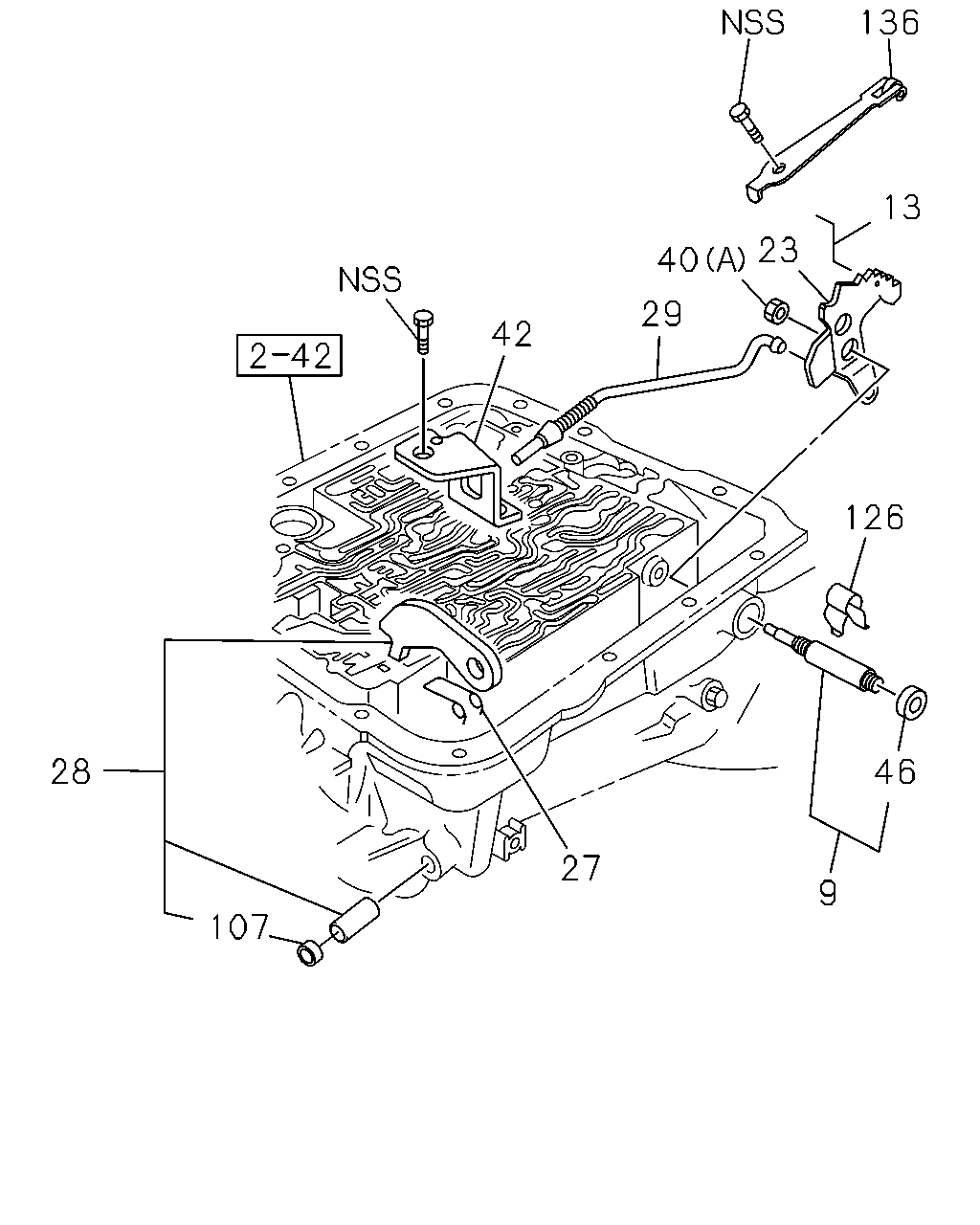

136 13 23 40 29 42 126 28 46 27 9 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	04.275 SHAFT; MANUAL,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24210-711-0	01	1	0805-		●
9	04.275 SHAFT; MANUAL,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24210-711-0	01	1	0805-			●
13	04.294 LEVER; SELECT,MANUAL SHAFT,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-08680-731-0	01	1	0805-		●
13	04.294 LEVER; SELECT,MANUAL SHAFT,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-08680-731-0	01	1	0805-			●
23	04.290 LEVER; PARKING ROD,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24222-404-0	01	1	0805-		●
23	04.290 LEVER; PARKING ROD,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24222-404-0	01	1	0805-			●
27	04.295 SPRING; PAWL RETURN,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-08642-193-0	01	1	0805-		●
27	04.295 SPRING; PAWL RETURN,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-08642-193-0	01	1	0805-			●
28	04.294 PAWL; PARKING,A/T 4X2(TFB***) HF V6 ENG(LCA) 04.290	8-08667-574-0	01	1	0805-		●
28	04.294 PAWL; PARKING,A/T 4X4(TFS***) HF V6 ENG(LCA) 04.290	8-08667-574-0	01	1	0805-			●
28	04.294 PAWL; PARKING,A/T 4JJ1-TCX ENG(LS0)	8-97143-087-0	01	1	0805-	●
29	04.290 ROD ASM; CONT,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24227-480-0	01	1	0805-		●
29	04.290 ROD ASM; CONT,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24227-480-0	01	1	0805-			●
40	04.037 NUT; LEVER TO SHAFT 4X2(TFB***) HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0805-0809		●
40	04.037 NUT; LEVER TO SHAFT 4X4(TFS***) HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0805-0809			●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0810-		●	●
40	04.037 NUT; LEVER TO SHAFT 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	0805-		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (B) M10	0-91210-510-0	01	1	0805-		●	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0805-	●
42	04.290 BRACKET; PARKING LOCK 4X2(TFB***) HF V6 ENG(LCA)	8-08667-574-0	01	1	0805-		●
42	04.290 BRACKET; PARKING LOCK 4X4(TFS***) HF V6 ENG(LCA)	8-08667-574-0	01	1	0805-			●
42	04.290 BRACKET; PARKING LOCK 4JJ1-TCX ENG(LS0)	8-97126-815-0	01	1	0805-	●
46	04.282 SEAL; OIL 4X2(TFB***) HF V6 ENG(LCA) 04.265	8-08657-163-0	01	1	0805-		●
46	04.282 SEAL; OIL 4X4(TFS***) HF V6 ENG(LCA) 04.265	8-08657-163-0	01	1	0805-			●
46	04.282 SEAL; OIL 4JJ1-TCX ENG(LS0) 04.027 OD=22	8-94479-740-0	02	1	0805-	●
107	04.294 PLUG; HOLE 4X2(TFB***) HF V6 ENG(LCA)	8-08620-318-0	01	1	0805-		●
107	04.294 PLUG; HOLE 4X4(TFS***) HF V6 ENG(LCA)	8-08620-318-0	01	1	0805-			●
126	04.172 RETAINER; SHIFT SHAFT 4X2(TFB***) HF V6 ENG(LCA)	8-08642-246-0	01	1	0805-		●
126	04.172 RETAINER; SHIFT SHAFT 4X4(TFS***) HF V6 ENG(LCA)	8-08642-246-0	01	1	0805-			●
136	04.060 DETENT; MANUAL SHIFT 4X2(TFB***) HF V6 ENG(LCA)	8-08642-247-0	01	1	0805-		●
136	04.060 DETENT; MANUAL SHIFT 4X4(TFS***) HF V6 ENG(LCA)	8-08642-247-0	01	1	0805-			●

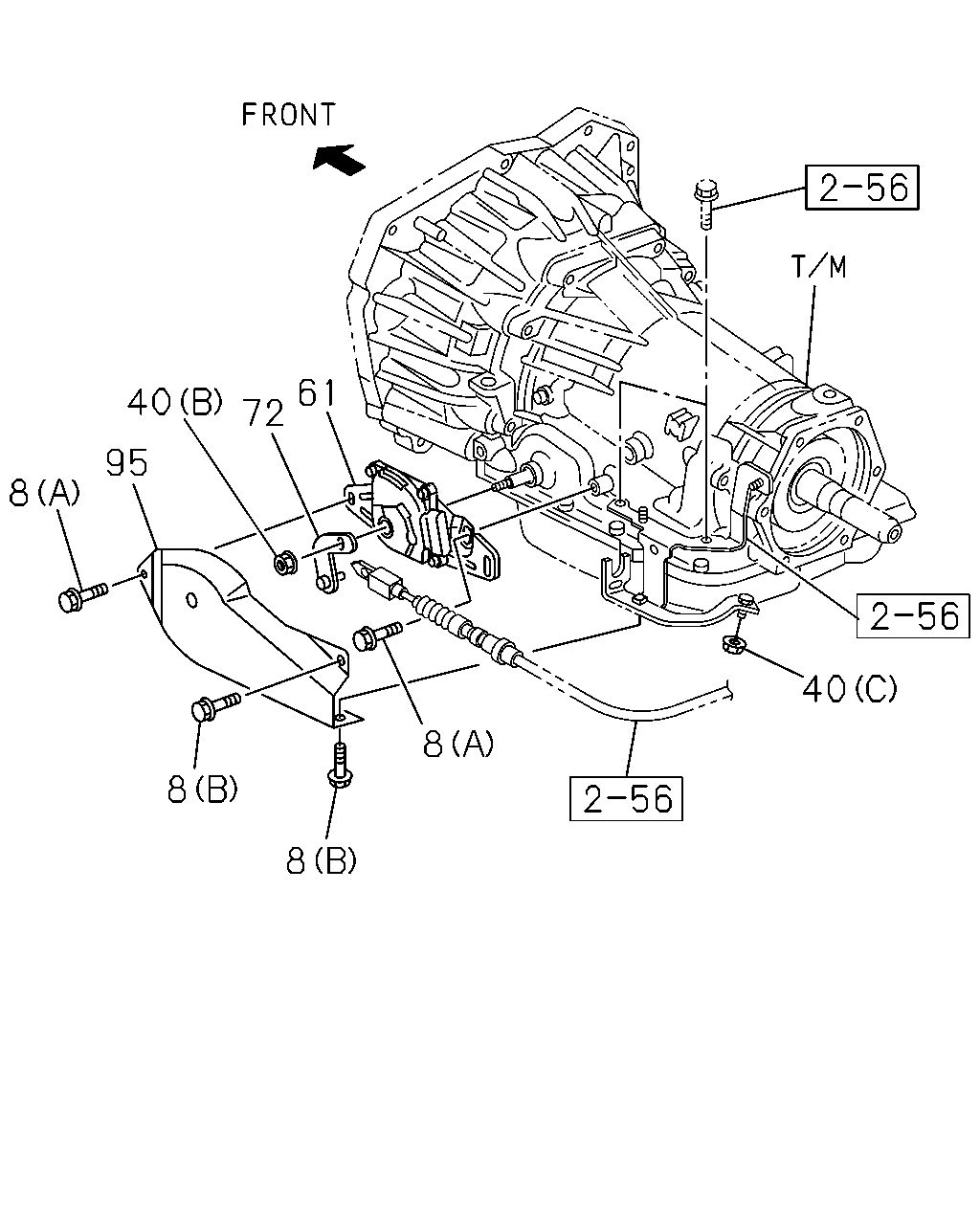

61 72 40 95 8 40 8 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	04.054 BOLT; NEUTRAL START SW,A/T HF V6 ENG(LCA) 00.685 (B)	8-92138-321-0	02	1	0805-		●	●
8	04.054 BOLT; NEUTRAL START SW,A/T HF V6 ENG(LCA) (A)	8-92138-813-0	02	1	0805-		●	●
8	04.054 BOLT; NEUTRAL START SW,A/T 4JJ1-TCX ENG(LS0) (C) M8X30	8-97130-929-0	01	1	0805-	●
40	04.037 NUT; LEVER TO SHAFT 4X2(TFB***) HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0805-0809		●
40	04.037 NUT; LEVER TO SHAFT 4X4(TFS***) HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0805-0809			●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0810-		●	●
40	04.037 NUT; LEVER TO SHAFT 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	0805-		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (B) M10	0-91210-510-0	01	1	0805-		●	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0805-	●
61	04.265 SWITCH ASM; MODE HF V6 ENG(LCA)	8-24221-125-0	01	1	0805-		●	●
72	04.035 LEVER; SELECT CONT HF V6 ENG(LCA)	8-98052-186-0	01	1	0805-		●	●
72	04.035 LEVER; SELECT CONT 4JJ1-TCX ENG(LS0)	8-98005-235-0	01	1	0805-	●
95	04.265 SHIELD; MODE SWITCH HF V6 ENG(LCA)	8-92067-937-0	01	1	0805-		●	●

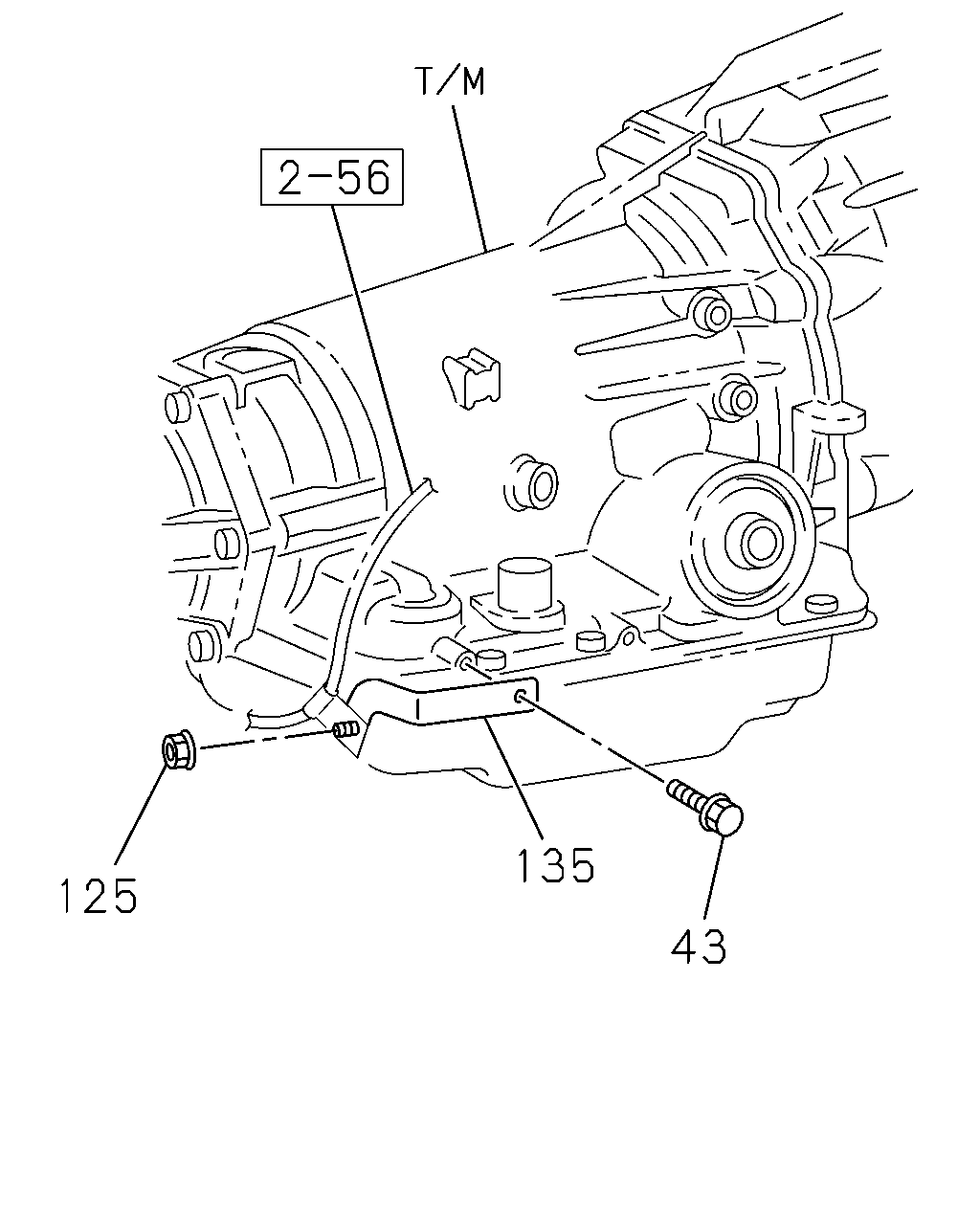

135 125 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	04.290 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0805-		●	●
43	04.290 BOLT; BRKT 4JJ1-TCX ENG(LS0) M6X14	8-94479-978-0	03	1	0805-	●
125	04.057 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0805-		●	●
135	04.060 BRACKET; CABLE,TRANS	8-98055-969-0	01	1	0805-		●	●
