2-47B — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#74722) — 46 parça

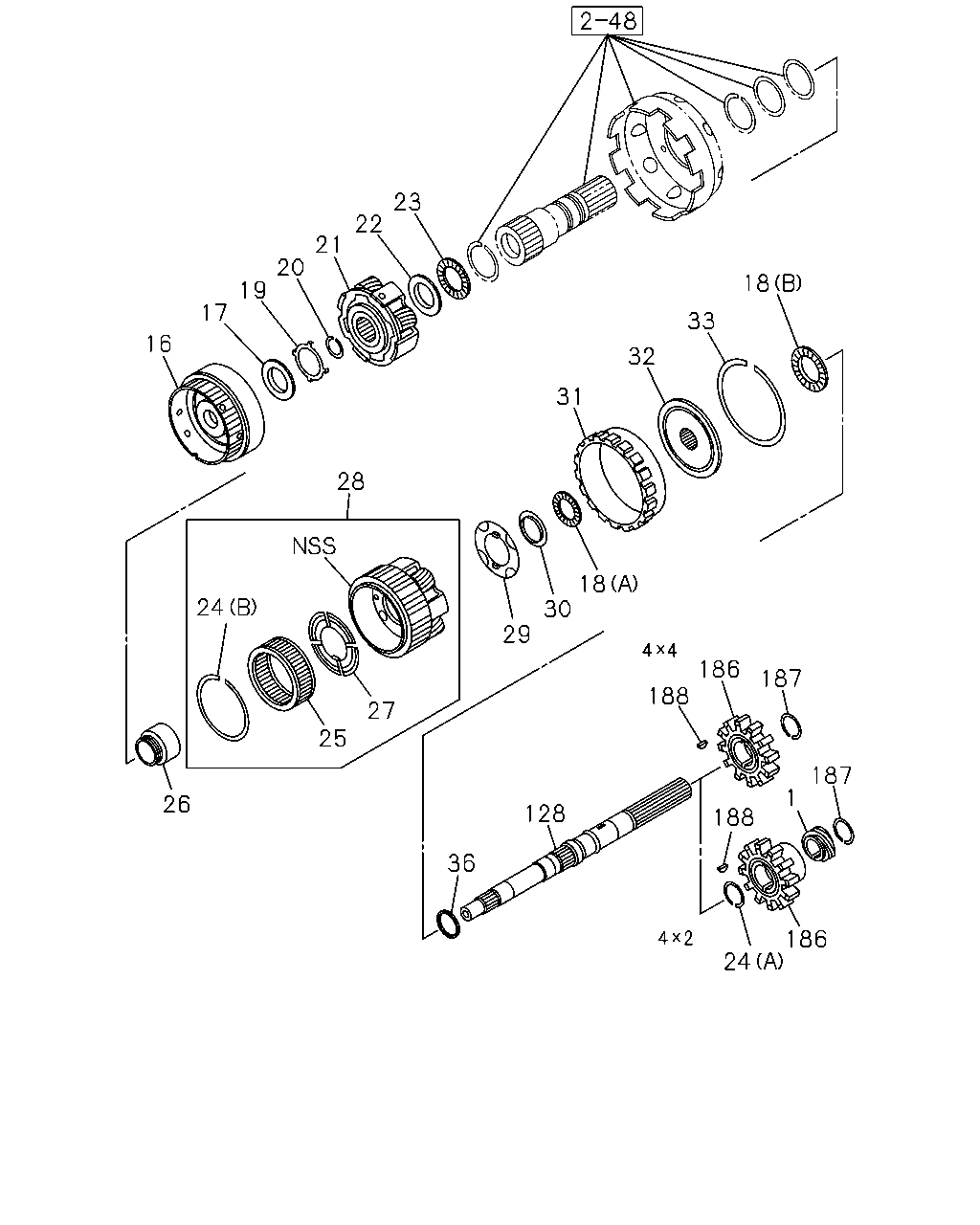

çizim 114473
23 22 21 20 18 19 17 33 16 32 31 28 18 30 24 29 186 187 188 27 25 187 1 26 128 188 36 186 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) 		8-98056-393-0 01 1 0805- ●
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) 		8-98056-393-0 01 1 0805- ●
16 04.256 GEAR ASM; FRT PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-98112-185-0 01 1 0805- ●
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT
4JJ1-TCX ENG(LS0) 		8-98050-545-0 01 1 0805- ●
18 04.187 BEARING; THRUST,RR PLANETARY GEA
4JJ1-TCX ENG(LS0) (B) 		8-97249-735-0 01 1 0805- ●
18 04.187 BEARING; THRUST,RR PLANETARY GEA
4JJ1-TCX ENG(LS0) (A) 		8-97331-548-0 01 1 0805- ●
19 04.167 RACE; THRUST BRG,PLANETARY SHAFT
4JJ1-TCX ENG(LS0) 		8-98050-546-0 01 1 0805- ●
20 04.164 RING; RET,PLANETARY GEAR,A/T
4JJ1-TCX ENG(LS0) 		8-94479-842-0 01 1 0805- ●
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T
4JJ1-TCX ENG(LS0) 		8-98050-547-0 01 1 0805- ●
22 04.167 RACE; THRUST BRG,FRT PLANETARY S
4JJ1-TCX ENG(LS0) 		8-98050-548-0 01 1 0805- ●
23 04.164 BEARING; THRUST,PLANETARY SHAFT,
4JJ1-TCX ENG(LS0) 		8-98050-549-0 01 1 0805- ●
24 04.164 RING; RET,FRT PLANETARY,A/T
4JJ1-TCX ENG(LS0) (B) 		8-97143-129-0 01 1 0805- ●
24 04.164 RING; RET,FRT PLANETARY,A/T
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) 04.338 (A) 		8-97069-457-0 01 1 0805- ●
24 04.164 RING; RET,FRT PLANETARY,A/T
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) 04.338 (A) 		8-97069-457-0 01 1 0805- ●
25 04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY
4JJ1-TCX ENG(LS0) 		8-94364-924-0 01 1 0805- ●
26 04.168 RACE; ONEWAY CLU,A/T
4JJ1-TCX ENG(LS0) 		8-97019-542-0 01 1 0805- ●
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-98050-550-0 01 1 0805- ●
28 04.187 GEAR ASM; RR PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-98065-077-0 01 1 1008- ●
28 04.187 GEAR ASM; RR PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-97232-050-0 01 1 0805-1007 ●
29 04.158 WASHER; THRUST,FRT PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-98050-551-0 01 1 0805- ●
30 04.180 RACE; THRUST BRG,RR PLANETARY FL
4JJ1-TCX ENG(LS0) 		8-97331-549-0 01 1 0805- ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-94479-854-0 01 1 0805- ●
32 04.164 FLANGE; RING GEAR,RR PLANETARY,A
4JJ1-TCX ENG(LS0) 		8-94479-852-0 01 1 0805- ●
33 04.166 RING; RET,PLANETARY GEAR,A/T
4JJ1-TCX ENG(LS0) 		8-94479-853-0 01 1 0805- ●
36 04.164 RING; SEALING,FRT PLANETARY SHAF
4JJ1-TCX ENG(LS0) 		8-94479-902-0 01 1 0805- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) 		8-98065-079-0 01 1 1008- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) 		8-98065-079-0 01 1 1008- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) HF V6 ENG(LCA) 		8-08686-817-0 01 1 0805- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) HF V6 ENG(LCA) 		8-08683-818-0 01 1 0805- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) 		8-97184-427-0 01 1 0805-1007 ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) 		8-97184-427-0 01 1 0805-1007 ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 4JJ1-TCX ENG(LS0) 		8-98050-557-0 01 1 0805- ●
186 04.329 ROTOR; SPEED SENSOR
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) 		8-97331-552-0 01 1 0805- ●
186 04.329 ROTOR; SPEED SENSOR
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) 		8-97331-552-0 01 1 0805- ●
186 04.329 ROTOR; SPEED SENSOR
4X4(TFS***) 4JJ1-TCX ENG(LS0) 		8-97331-553-0 01 1 0805- ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) 		8-97069-451-0 01 1 0805- ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) 		8-97069-451-0 01 1 0805- ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X4(TFS***) 4JJ1-TCX ENG(LS0) 04.337 		8-94479-905-0 01 1 0805- ●
188 04.330 KEY; SPEED SENSOR ROTOR
4JJ1-TCX ENG(LS0) 04.337 		8-94479-904-0 01 1 0805- ●

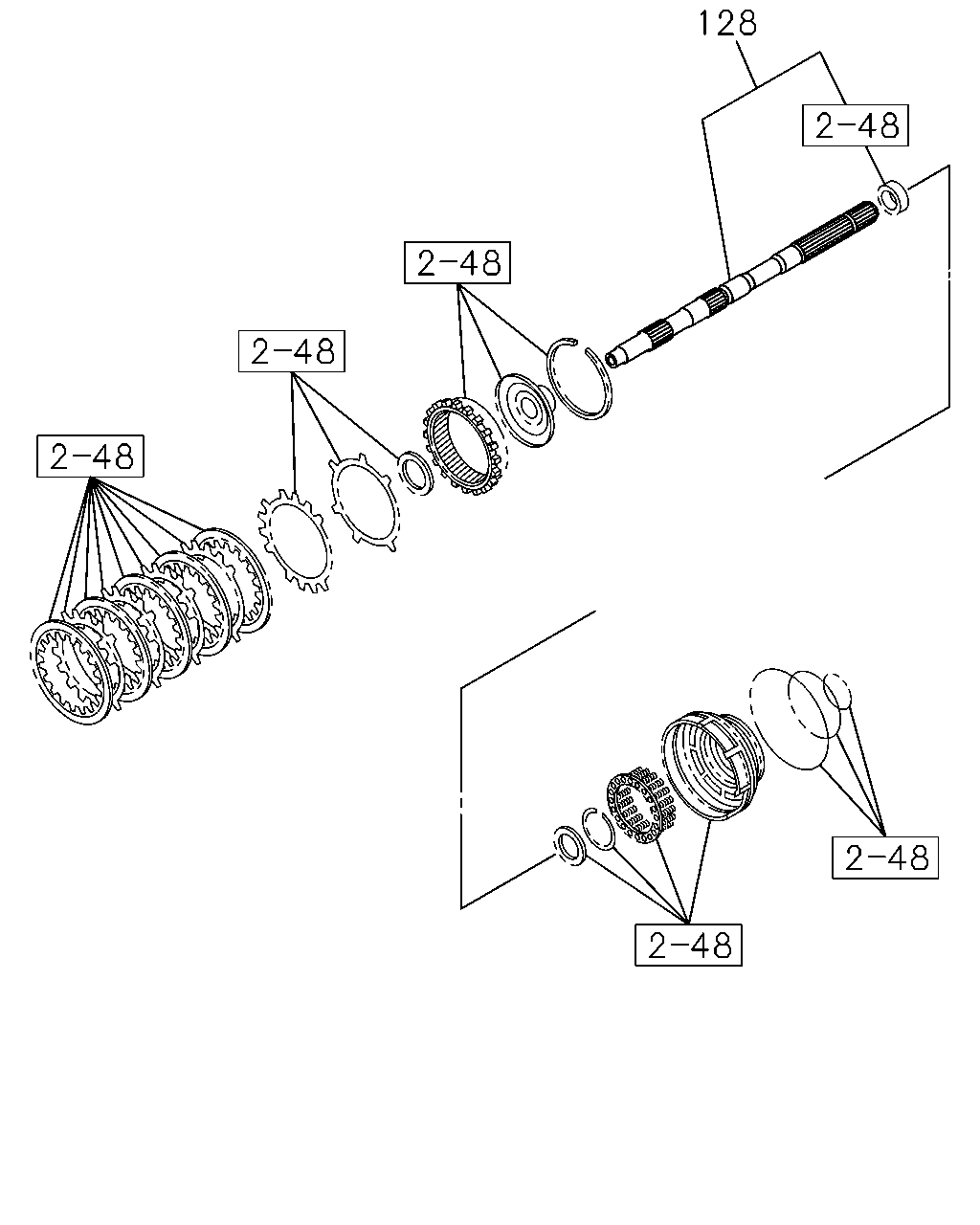

çizim 185745
128
BalonParca AdiParca NoAdetTipApplied Date A B C
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) 		8-98065-079-0 01 1 1008- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) 		8-98065-079-0 01 1 1008- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) HF V6 ENG(LCA) 		8-08686-817-0 01 1 0805- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) HF V6 ENG(LCA) 		8-08683-818-0 01 1 0805- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) 		8-97184-427-0 01 1 0805-1007 ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) 		8-97184-427-0 01 1 0805-1007 ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 4JJ1-TCX ENG(LS0) 		8-98050-557-0 01 1 0805- ●
