Sayfa 2-44B - Isuzu EPC

2-44B — AUTO TRANS CONTROL VALVE; LOWER BODY (#74720) — 177 parça

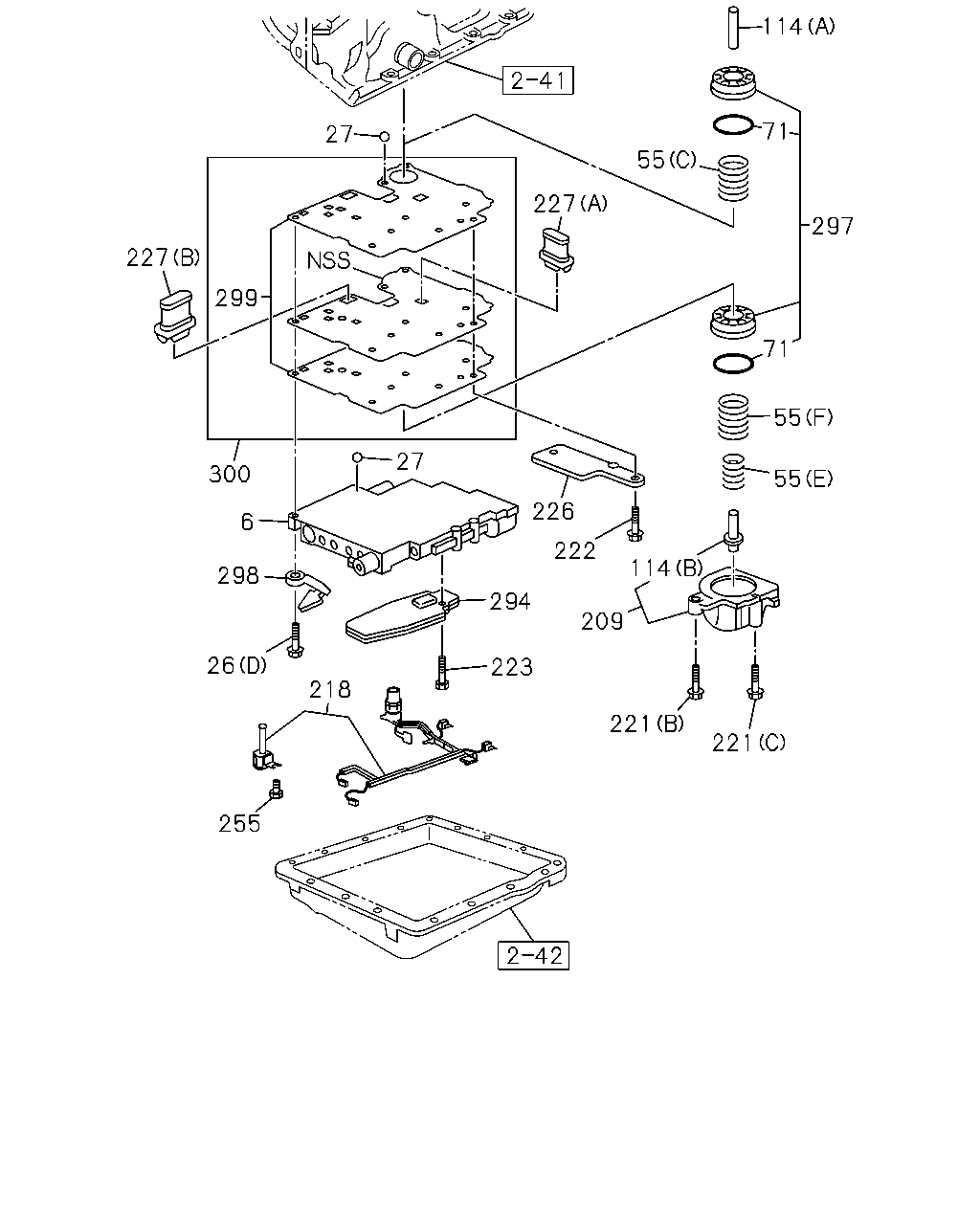

114 71 27 55 227 297 227 299 71 55 27 300 55 226 6 222 114 298 294 209 26 223 218 221 221 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	04.265 BODY ASM; VLV LWR,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24225-003-0	01	1	0805-	●
6	04.265 BODY ASM; VLV LWR,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24225-003-0	01	1	0805-		●
6	04.265 BODY ASM; VLV LWR,A/T 4JJ1-TCX ENG(LS0)	8-98112-200-0	01	1	0805-			●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X2(TFB***) HF V6 ENG(LCA) (D) M6X54.4	8-08680-741-0	03	1	0805-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4(TFS***) HF V6 ENG(LCA) (D) M6X54.4	8-08680-741-0	03	1	0805-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X2(TFB***) HF V6 ENG(LCA) (D) M6X47.4	8-08680-742-0	09	1	0805-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4(TFS***) HF V6 ENG(LCA) (D) M6X47.4	8-08680-742-0	09	1	0805-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X2(TFB***) HF V6 ENG(LCA) (D) M6X35	8-11505-032-0	02	1	0805-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4(TFS***) HF V6 ENG(LCA) (D) M6X35	8-11505-032-0	02	1	0805-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X2(TFB***) HF V6 ENG(LCA) (D) M6X65	8-11506-078-0	03	1	0805-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4(TFS***) HF V6 ENG(LCA) (D) M6X65	8-11506-078-0	03	1	0805-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG(LS0) (A) M6X28	8-94473-611-0	10	1	0805-			●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG(LS0) (B) M6X36	8-94473-630-0	06	1	0805-			●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG(LS0) (C) M6X23	8-94479-925-0	04	1	0805-			●
27	04.265 BALL; STEEL,VLV,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-00104-918-0	08	1	0805-	●
27	04.265 BALL; STEEL,VLV,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-00104-918-0	08	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA) (C)	8-08639-074-0	01	1	0805-	●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA) (C)	8-08639-074-0	01	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA) (D)	8-24208-990-0	01	1	0805-	●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA) (D)	8-24208-990-0	01	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA) (E)	8-24220-146-0	01	1	0805-	●
55	04.246 SPRING; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA) (F)	8-24220-148-0	01	1	0805-	●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA) (F)	8-24219-942-0	01	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA) (E)	8-24220-145-0	01	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4JJ1-TCX ENG(LS0) (A)	8-97027-208-0	01	1	0805-			●
55	04.246 SPRING; ACCUMLATOR PISTON 4JJ1-TCX ENG(LS0) 04.164 (B)	8-97027-209-0	01	1	0805-			●
71	04.241 GASKET; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA)	8-24206-509-0	02	1	0805-	●
71	04.241 GASKET; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA)	8-24206-509-0	02	1	0805-		●
71	04.241 GASKET; ACCUMLATOR PISTON 4JJ1-TCX ENG(LS0)	8-97184-884-0	01	1	0805-			●
114	04.164 PIN; ACCUMLATOR PISTON (B-2) 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08628-273-0	01	1	0805-	●
114	04.164 PIN; ACCUMLATOR PISTON (B-2) 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08628-273-0	01	1	0805-		●
114	04.164 PIN; ACCUMLATOR PISTON (B-2) 4X2(TFB***) HF V6 ENG(LCA) (B)	8-08684-426-0	01	1	0805-	●
114	04.164 PIN; ACCUMLATOR PISTON (B-2) 4X4(TFS***) HF V6 ENG(LCA) (B)	8-08684-426-0	01	1	0805-		●
209	04.105 COVER; ACCUMURATOR 4X2(TFB***) HF V6 ENG(LCA)	8-24219-935-0	01	1	0805-	●
209	04.105 COVER; ACCUMURATOR 4X4(TFS***) HF V6 ENG(LCA)	8-24214-039-0	01	1	0805-		●
218	04.115 HARNESS; SOLENOID WIRE 4X2(TFB***) HF V6 ENG(LCA)	8-24229-669-0	01	1	0805-	●
218	04.115 HARNESS; SOLENOID WIRE 4X4(TFS***) HF V6 ENG(LCA)	8-24229-669-0	01	1	0805-		●
221	04.265 BOLT; COVER,ACCUM PISTON 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08680-764-0	03	1	0805-	●
221	04.265 BOLT; COVER,ACCUM PISTON 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08680-764-0	03	1	0805-		●
221	04.265 BOLT; COVER,ACCUM PISTON 4X2(TFB***) HF V6 ENG(LCA) (B) M6X35	8-11505-032-0	02	1	0805-	●
221	04.265 BOLT; COVER,ACCUM PISTON 4X2(TFB***) HF V6 ENG(LCA) (C) M6X65	8-11506-078-0	01	1	0805-	●
221	04.265 BOLT; COVER,ACCUM PISTON 4X4(TFS***) HF V6 ENG(LCA) (C) M6X65	8-11506-078-0	01	1	0805-		●
221	04.265 BOLT; COVER,ACCUM PISTON 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24213-775-0	02	1	0805-		●
222	04.265 BOLT; COVER,OIL PASSENGER 4X2(TFB***) HF V6 ENG(LCA)	8-08680-764-0	03	1	0805-	●
222	04.265 BOLT; COVER,OIL PASSENGER 4X4(TFS***) HF V6 ENG(LCA)	8-08680-764-0	03	1	0805-		●
223	04.265 BOLT; POSITION SWITCH 4X2(TFB***) HF V6 ENG(LCA)	8-08680-764-0	02	1	0805-	●
223	04.265 BOLT; POSITION SWITCH 4X4(TFS***) HF V6 ENG(LCA)	8-08680-764-0	02	1	0805-		●
226	04.248 COVER; OIL PASSENGERE 4X2(TFB***) HF V6 ENG(LCA)	8-08682-792-0	01	1	0805-	●
226	04.248 COVER; OIL PASSENGERE 4X4(TFS***) HF V6 ENG(LCA)	8-24211-508-0	01	1	0805-		●
227	04.198 FILTER; SOLENOID VALVE 4X2(TFB***) HF V6 ENG(LCA) (A)	8-24209-144-0	01	1	0805-	●
227	04.198 FILTER; SOLENOID VALVE 4X4(TFS***) HF V6 ENG(LCA) (A)	8-24209-144-0	01	1	0805-		●
227	04.198 FILTER; SOLENOID VALVE 4X2(TFB***) HF V6 ENG(LCA) (B)	8-24209-145-0	01	1	0805-	●
227	04.198 FILTER; SOLENOID VALVE 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24209-145-0	01	1	0805-		●
255	04.265 BOLT; SOCKET,HARNESS 4X2(TFB***) HF V6 ENG(LCA)	8-11504-800-0	02	1	0805-	●
255	04.265 BOLT; SOCKET,HARNESS 4X4(TFS***) HF V6 ENG(LCA)	8-11504-800-0	02	1	0805-		●
294	04.265 SWITCH; OIL PRESSURE 4X2(TFB***) HF V6 ENG(LCA)	8-24219-581-0	01	1	0805-	●
294	04.265 SWITCH; OIL PRESSURE 4X4(TFS***) HF V6 ENG(LCA)	8-24219-581-0	01	1	0805-		●
297	04.241 PISTON & SEAL KIT; ACCUMULATOR 4X2(TFB***) HF V6 ENG(LCA)	8-24221-919-0	01	1	0805-	●
297	04.241 PISTON & SEAL KIT; ACCUMULATOR 4X4(TFS***) HF V6 ENG(LCA)	8-24221-919-0	01	1	0805-		●
298	04.167 STOP; INDICATOR 4X2(TFB***) HF V6 ENG(LCA)	8-24209-927-0	01	1	0805-	●
298	04.167 STOP; INDICATOR 4X4(TFS***) HF V6 ENG(LCA)	8-24209-927-0	01	1	0805-		●
299	04.265 GASKET KIT; VLV BODY 4X2(TFB***) HF V6 ENG(LCA)	8-24221-350-0	01	1	0805-	●
299	04.265 GASKET KIT; VLV BODY 4X4(TFS***) HF V6 ENG(LCA)	8-24221-350-0	01	1	0805-		●
300	04.265 PLATE & GASKET KIT; VLV BODY 4X2(TFB***) HF V6 ENG(LCA)	8-24221-137-0	01	1	0805-	●
300	04.265 PLATE & GASKET KIT; VLV BODY 4X4(TFS***) HF V6 ENG(LCA)	8-24221-137-0	01	1	0805-		●

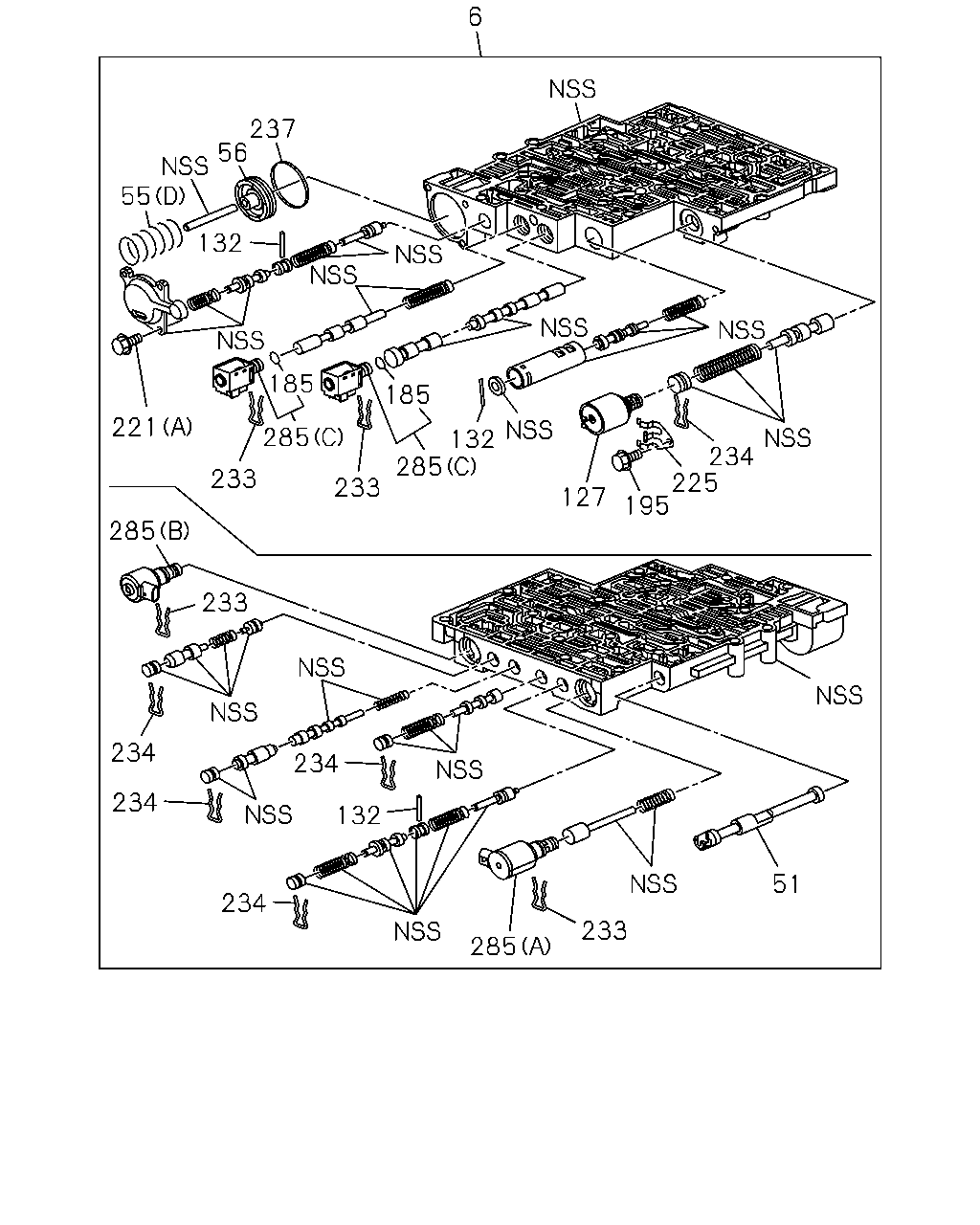

6 237 56 55 132 185 185 221 285 234 225 195 132 285 233 233 127 285 233 234 234 234 132 51 234 233 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	04.265 BODY ASM; VLV LWR,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24225-003-0	01	1	0805-	●
6	04.265 BODY ASM; VLV LWR,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24225-003-0	01	1	0805-		●
6	04.265 BODY ASM; VLV LWR,A/T 4JJ1-TCX ENG(LS0)	8-98112-200-0	01	1	0805-			●
51	04.265 VALVE; MANUAL,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24203-484-0	01	1	0805-	●
51	04.265 VALVE; MANUAL,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24203-484-0	01	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA) (C)	8-08639-074-0	01	1	0805-	●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA) (C)	8-08639-074-0	01	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA) (D)	8-24208-990-0	01	1	0805-	●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA) (D)	8-24208-990-0	01	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA) (E)	8-24220-146-0	01	1	0805-	●
55	04.246 SPRING; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA) (F)	8-24220-148-0	01	1	0805-	●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA) (F)	8-24219-942-0	01	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA) (E)	8-24220-145-0	01	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4JJ1-TCX ENG(LS0) (A)	8-97027-208-0	01	1	0805-			●
55	04.246 SPRING; ACCUMLATOR PISTON 4JJ1-TCX ENG(LS0) 04.164 (B)	8-97027-209-0	01	1	0805-			●
56	04.241 PISTON; ACCUMLATOR 4X2(TFB***) HF V6 ENG(LCA)	8-24200-126-0	01	1	0805-	●
56	04.241 PISTON; ACCUMLATOR 4X4(TFS***) HF V6 ENG(LCA)	8-24200-126-0	01	1	0805-		●
56	04.241 PISTON; ACCUMLATOR 4JJ1-TCX ENG(LS0)	8-97027-207-0	01	1	0805-			●
127	04.197 VALVE; RELEASE CONT 4X2(TFB***) HF V6 ENG(LCA)	8-24230-632-0	01	1	0805-	●
127	04.197 VALVE; RELEASE CONT 4X4(TFS***) HF V6 ENG(LCA)	8-24230-632-0	01	1	0805-		●
132	04.216 PIN; PLUG,ACCUMLATOR CONT VALVE 4X2(TFB***) HF V6 ENG(LCA)	8-08680-765-0	03	1	0805-	●
132	04.216 PIN; PLUG,ACCUMLATOR CONT VALVE 4X4(TFS***) HF V6 ENG(LCA)	8-08680-765-0	03	1	0805-		●
185	04.265 O-RING; SOLENOID,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-10471-813-0	02	1	0805-	●
185	04.265 O-RING; SOLENOID,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-10471-813-0	02	1	0805-		●
195	04.265 BOLT; CLAMP 4X2(TFB***) HF V6 ENG(LCA)	8-08680-764-0	01	1	0805-	●
195	04.265 BOLT; CLAMP 4X4(TFS***) HF V6 ENG(LCA)	8-08680-764-0	01	1	0805-		●
221	04.265 BOLT; COVER,ACCUM PISTON 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08680-764-0	03	1	0805-	●
221	04.265 BOLT; COVER,ACCUM PISTON 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08680-764-0	03	1	0805-		●
221	04.265 BOLT; COVER,ACCUM PISTON 4X2(TFB***) HF V6 ENG(LCA) (B) M6X35	8-11505-032-0	02	1	0805-	●
221	04.265 BOLT; COVER,ACCUM PISTON 4X2(TFB***) HF V6 ENG(LCA) (C) M6X65	8-11506-078-0	01	1	0805-	●
221	04.265 BOLT; COVER,ACCUM PISTON 4X4(TFS***) HF V6 ENG(LCA) (C) M6X65	8-11506-078-0	01	1	0805-		●
221	04.265 BOLT; COVER,ACCUM PISTON 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24213-775-0	02	1	0805-		●
225	04.265 CLAMP; SOLENOID VALVE 4X2(TFB***) HF V6 ENG(LCA)	8-08682-007-0	01	1	0805-	●
225	04.265 CLAMP; SOLENOID VALVE 4X4(TFS***) HF V6 ENG(LCA)	8-08682-007-0	01	1	0805-		●
233	04.265 RETAINER; VALVE,SOLENOID 4X2(TFB***) HF V6 ENG(LCA)	8-08680-781-0	04	1	0805-	●
233	04.265 RETAINER; VALVE,SOLENOID 4X4(TFS***) HF V6 ENG(LCA)	8-08680-781-0	04	1	0805-		●
234	04.265 RETAINER; CONT VLV PLUG 4X2(TFB***) HF V6 ENG(LCA)	8-08680-781-0	05	1	0805-	●
234	04.265 RETAINER; CONT VLV PLUG 4X4(TFS***) HF V6 ENG(LCA)	8-08680-781-0	05	1	0805-		●
237	04.265 RING; SEAL,ACUUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA)	8-24206-508-0	01	1	0805-	●
237	04.265 RING; SEAL,ACUUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA)	8-24206-508-0	01	1	0805-		●
285	04.265 SOLENOID; LWR VLV BODY 4X2(TFB***) HF V6 ENG(LCA) (A)	8-24212-327-0	01	1	0805-	●
285	04.265 SOLENOID; LWR VLV BODY 4X4(TFS***) HF V6 ENG(LCA) (A)	8-24212-327-0	01	1	0805-		●
285	04.265 SOLENOID; LWR VLV BODY 4X2(TFB***) HF V6 ENG(LCA) (B)	8-24227-792-0	01	1	0805-	●
285	04.265 SOLENOID; LWR VLV BODY 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24227-792-0	01	1	0805-		●
285	04.265 SOLENOID; LWR VLV BODY 4X2(TFB***) HF V6 ENG(LCA) (C)	8-24230-298-0	02	1	0805-	●
285	04.265 SOLENOID; LWR VLV BODY 4X4(TFS***) HF V6 ENG(LCA) (C)	8-24230-298-0	02	1	0805-		●

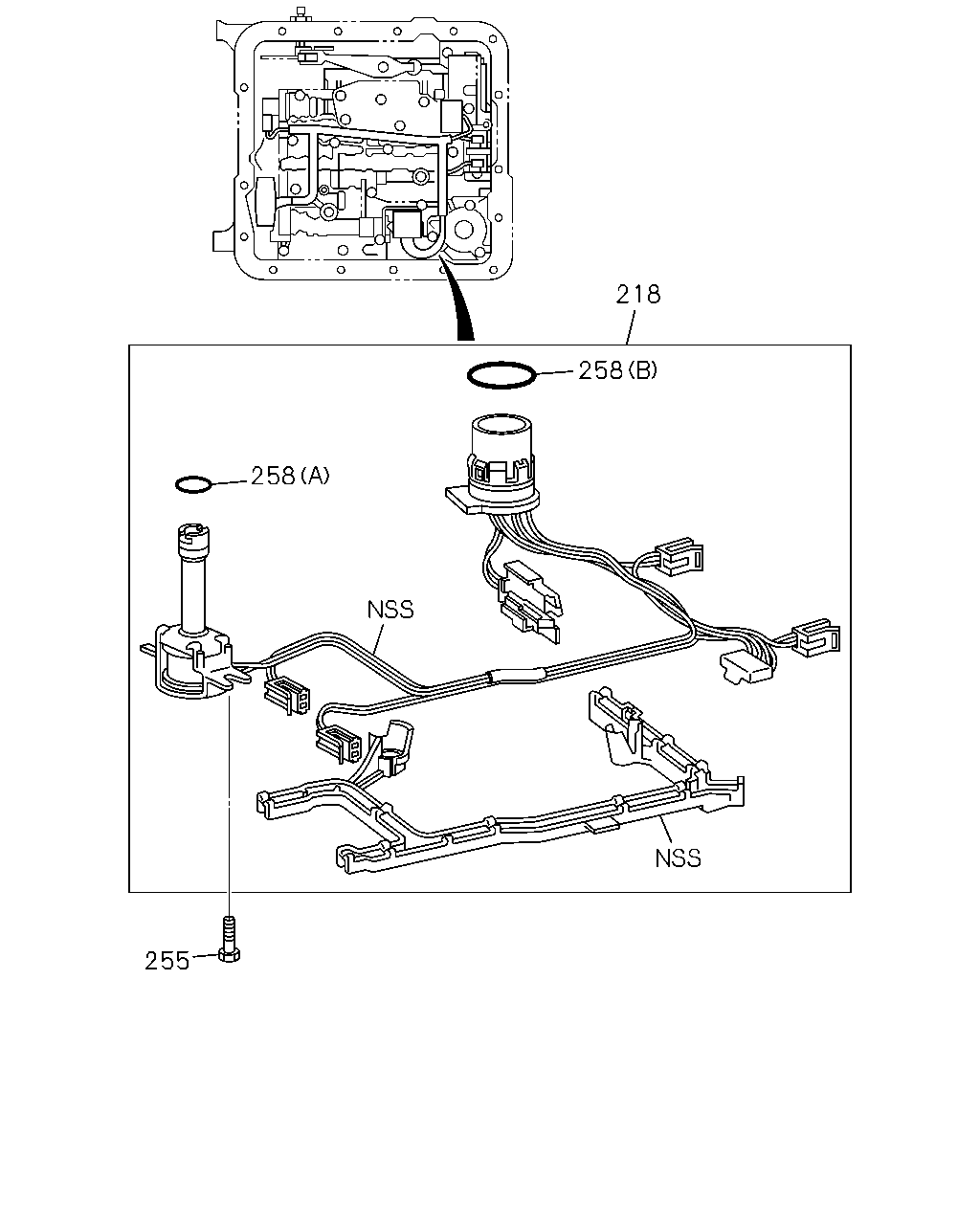

218 258 258 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
218	04.115 HARNESS; SOLENOID WIRE 4X2(TFB***) HF V6 ENG(LCA)	8-24229-669-0	01	1	0805-	●
218	04.115 HARNESS; SOLENOID WIRE 4X4(TFS***) HF V6 ENG(LCA)	8-24229-669-0	01	1	0805-		●
255	04.265 BOLT; SOCKET,HARNESS 4X2(TFB***) HF V6 ENG(LCA)	8-11504-800-0	02	1	0805-	●
255	04.265 BOLT; SOCKET,HARNESS 4X4(TFS***) HF V6 ENG(LCA)	8-11504-800-0	02	1	0805-		●
258	04.265 GASKET; SCOKET,HARNESS 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08634-188-0	01	1	0805-	●
258	04.265 GASKET; SCOKET,HARNESS 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08634-188-0	01	1	0805-		●
258	04.265 GASKET; SCOKET,HARNESS 4X2(TFB***) HF V6 ENG(LCA) (B)	8-24213-704-0	01	1	0805-	●
258	04.265 GASKET; SCOKET,HARNESS 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24213-704-0	01	1	0805-		●

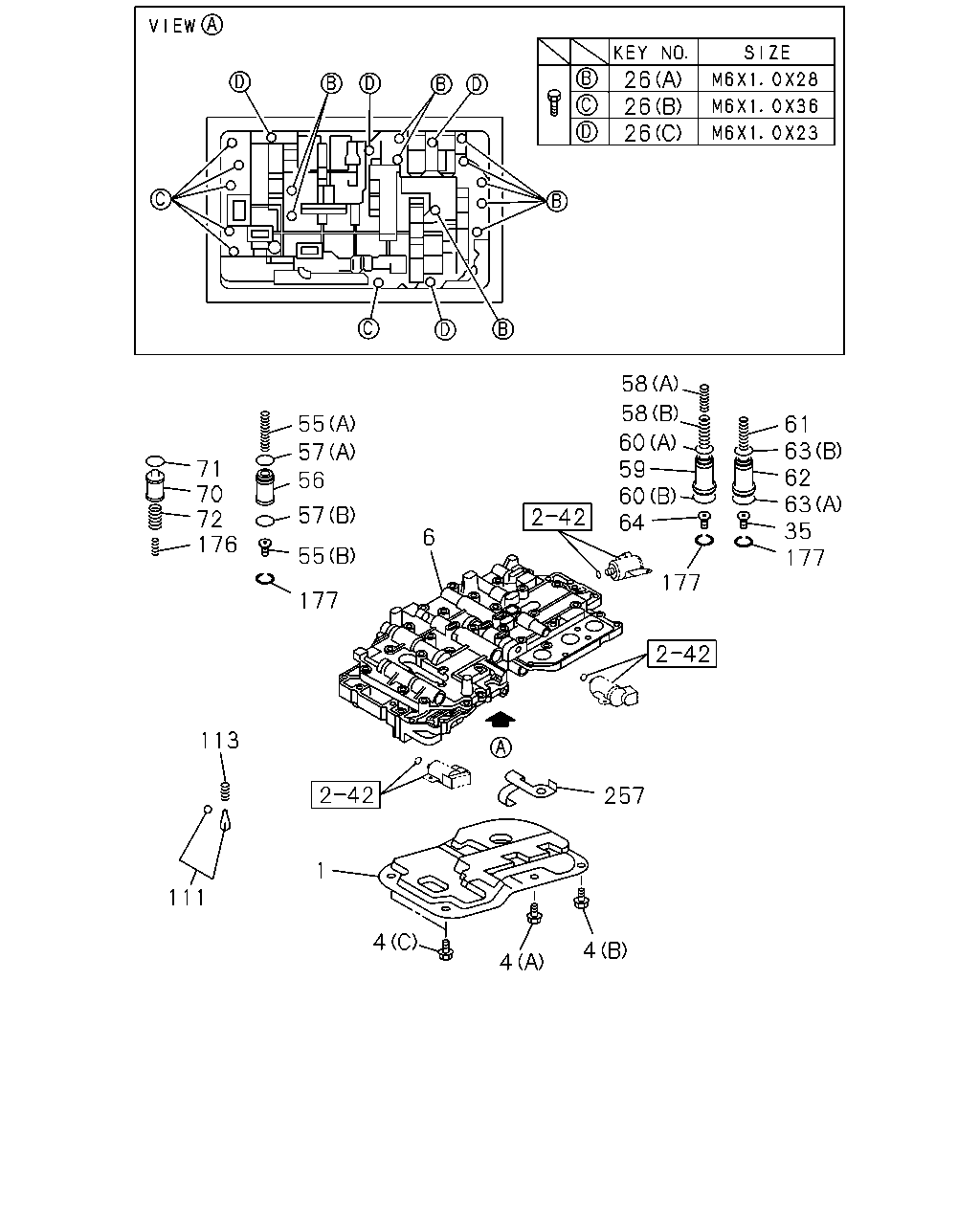

26 26 26 58 58 55 61 63 62 63 35 177 60 59 60 64 57 71 70 72 176 56 57 6 55 177 177 113 257 1 111 4 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.197 STRAINER ASM; OIL,A/T 4JJ1-TCX ENG(LS0)	8-97207-143-0	01	1	0805-			●
4	04.197 BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG(LS0) 04.265 (A) M6X20	8-94479-922-0	01	1	0805-			●
4	04.197 BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG(LS0) 04.265 (B) M6X23	8-94479-925-0	01	1	0805-			●
4	04.197 BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG(LS0) (C)	8-97207-142-0	02	1	0805-			●
6	04.265 BODY ASM; VLV LWR,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24225-003-0	01	1	0805-	●
6	04.265 BODY ASM; VLV LWR,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24225-003-0	01	1	0805-		●
6	04.265 BODY ASM; VLV LWR,A/T 4JJ1-TCX ENG(LS0)	8-98112-200-0	01	1	0805-			●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X2(TFB***) HF V6 ENG(LCA) (D) M6X54.4	8-08680-741-0	03	1	0805-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4(TFS***) HF V6 ENG(LCA) (D) M6X54.4	8-08680-741-0	03	1	0805-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X2(TFB***) HF V6 ENG(LCA) (D) M6X47.4	8-08680-742-0	09	1	0805-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4(TFS***) HF V6 ENG(LCA) (D) M6X47.4	8-08680-742-0	09	1	0805-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X2(TFB***) HF V6 ENG(LCA) (D) M6X35	8-11505-032-0	02	1	0805-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4(TFS***) HF V6 ENG(LCA) (D) M6X35	8-11505-032-0	02	1	0805-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X2(TFB***) HF V6 ENG(LCA) (D) M6X65	8-11506-078-0	03	1	0805-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4(TFS***) HF V6 ENG(LCA) (D) M6X65	8-11506-078-0	03	1	0805-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG(LS0) (A) M6X28	8-94473-611-0	10	1	0805-			●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG(LS0) (B) M6X36	8-94473-630-0	06	1	0805-			●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG(LS0) (C) M6X23	8-94479-925-0	04	1	0805-			●
35	04.265 SPRING; LWR VLV BODY 4JJ1-TCX ENG(LS0)	8-97025-856-0	01	1	0805-			●
55	04.246 SPRING; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA) (C)	8-08639-074-0	01	1	0805-	●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA) (C)	8-08639-074-0	01	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA) (D)	8-24208-990-0	01	1	0805-	●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA) (D)	8-24208-990-0	01	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA) (E)	8-24220-146-0	01	1	0805-	●
55	04.246 SPRING; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA) (F)	8-24220-148-0	01	1	0805-	●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA) (F)	8-24219-942-0	01	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA) (E)	8-24220-145-0	01	1	0805-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4JJ1-TCX ENG(LS0) (A)	8-97027-208-0	01	1	0805-			●
55	04.246 SPRING; ACCUMLATOR PISTON 4JJ1-TCX ENG(LS0) 04.164 (B)	8-97027-209-0	01	1	0805-			●
56	04.241 PISTON; ACCUMLATOR 4X2(TFB***) HF V6 ENG(LCA)	8-24200-126-0	01	1	0805-	●
56	04.241 PISTON; ACCUMLATOR 4X4(TFS***) HF V6 ENG(LCA)	8-24200-126-0	01	1	0805-		●
56	04.241 PISTON; ACCUMLATOR 4JJ1-TCX ENG(LS0)	8-97027-207-0	01	1	0805-			●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4JJ1-TCX ENG(LS0) (A) ID=20	8-97184-885-0	01	1	0805-			●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4JJ1-TCX ENG(LS0) (B) ID=27	8-97184-886-0	01	1	0805-			●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A 4JJ1-TCX ENG(LS0) (A)	8-97027-204-0	01	1	0805-			●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A 4JJ1-TCX ENG(LS0) (B)	8-98050-497-0	01	1	0805-			●
59	04.166 PISTON; DIRECT CLU,A/T 4JJ1-TCX ENG(LS0)	8-97025-819-0	01	1	0805-			●
60	04.169 GASKET; DIRECT CLU PISTON,A/T 4JJ1-TCX ENG(LS0) (A)	8-97184-887-0	01	1	0805-			●
60	04.169 GASKET; DIRECT CLU PISTON,A/T 4JJ1-TCX ENG(LS0) 04.167 (B)	8-97184-888-0	01	1	0805-			●
61	04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T 4JJ1-TCX ENG(LS0)	8-97232-088-0	01	1	0805-			●
62	04.166 PISTON; FWD CLU,A/T 4JJ1-TCX ENG(LS0)	8-97025-817-0	01	1	0805-			●
63	04.167 GASKET; FWD CLU,A/T 4JJ1-TCX ENG(LS0) (A)	8-97184-888-0	01	1	0805-			●
63	04.167 GASKET; FWD CLU,A/T 4JJ1-TCX ENG(LS0) (B) ID=24	8-97184-889-0	01	1	0805-			●
64	04.164 SPRING; DIRECT CLU 4JJ1-TCX ENG(LS0)	8-97025-820-0	01	1	0805-0809			●
64	04.164 SPRING; DIRECT CLU 4JJ1-TCX ENG(LS0)	8-97025-820-0	01	1	0810-			●
70	04.241 PISTON; ACCUMLATOR 4JJ1-TCX ENG(LS0)	8-97027-205-0	01	1	0805-			●
71	04.241 GASKET; ACCUMLATOR PISTON 4X2(TFB***) HF V6 ENG(LCA)	8-24206-509-0	02	1	0805-	●
71	04.241 GASKET; ACCUMLATOR PISTON 4X4(TFS***) HF V6 ENG(LCA)	8-24206-509-0	02	1	0805-		●
71	04.241 GASKET; ACCUMLATOR PISTON 4JJ1-TCX ENG(LS0)	8-97184-884-0	01	1	0805-			●
72	04.233 SPRING; ACCUMLATOR PISTON 4JJ1-TCX ENG(LS0)	8-97027-206-0	01	1	0805-			●
111	04.169 BODY; CHECK BALL 4JJ1-TCX ENG(LS0)	8-94479-931-0	01	1	0805-			●
113	04.164 SPRING; CHECK BALL 4JJ1-TCX ENG(LS0)	8-94479-930-0	01	1	0805-			●
176	04.265 SPRING; ACCUM INNER 4JJ1-TCX ENG(LS0)	8-97025-825-0	01	1	0805-			●
177	04.265 RING; SNAP 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) ID=19	8-97025-821-0	01	1	0805-1007			●
177	04.265 RING; SNAP 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) ID=19	8-97025-821-0	01	1	0805-1007			●
177	04.265 RING; SNAP 4X4(TFS***) 4JJ1-TCX ENG(LS0) ID=19	8-97025-821-0	03	1	0805-1007			●
177	04.265 RING; SNAP 4JJ1-TCX ENG(LS0) ID=19	8-97025-821-0	03	1	1008-			●
257	04.265 CLAMP; HARNESS 4JJ1-TCX ENG(LS0)	8-97232-037-0	01	1	0805-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
