2-42B — AUTO TRANS OIL PAN AND OIL CONTROL (#74719) — 88 parça

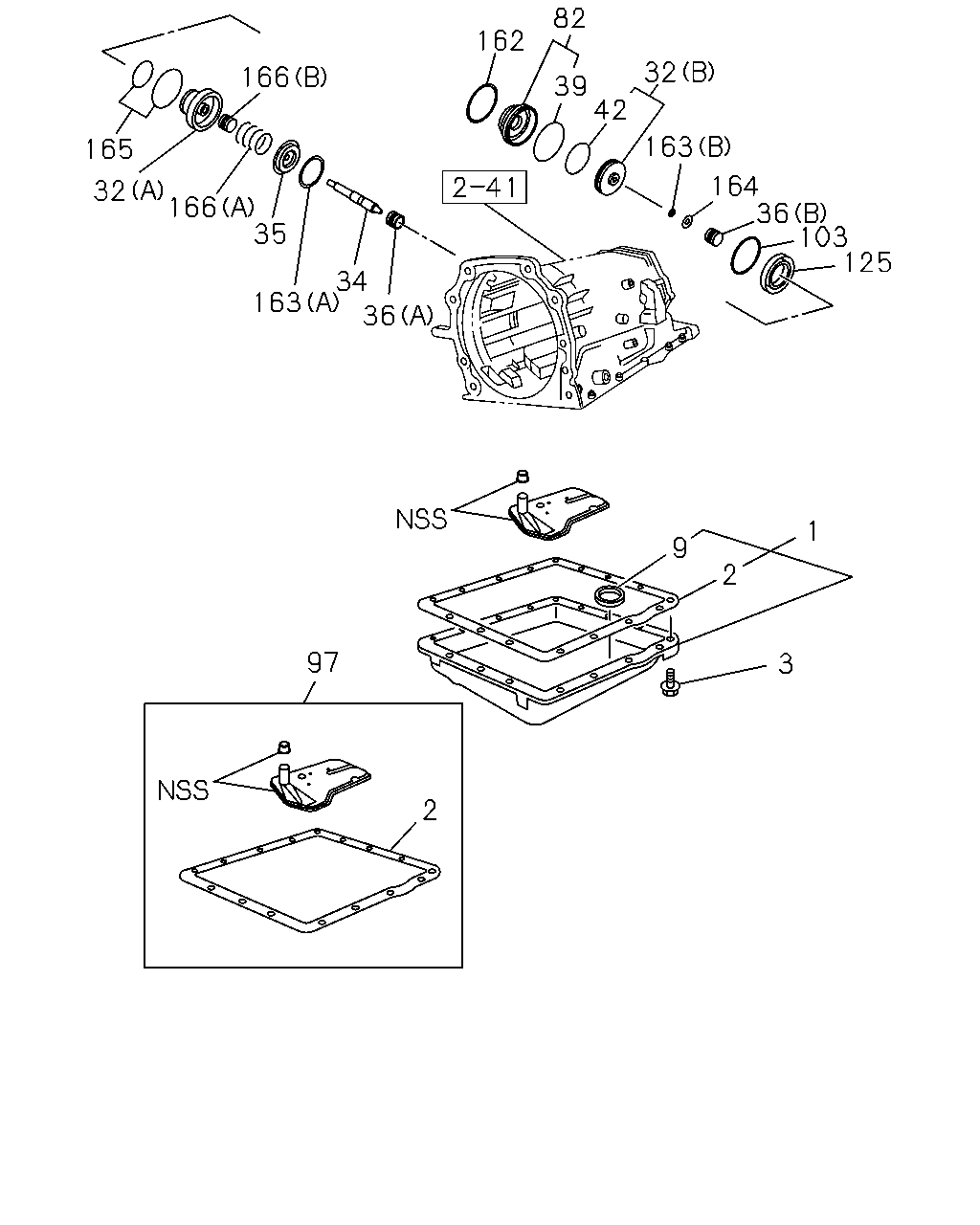

82 162 32 166 39 42 163 165 164 36 103 125 32 166 35 34 36 163 1 9 2 97 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.195 PAN ASM; OIL,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24210-915-0	01	1	0805-	●
1	04.195 PAN ASM; OIL,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24211-638-0	01	1	0805-		●
1	04.195 PAN ASM; OIL,A/T 4JJ1-TCX ENG(LS0)	8-98050-558-0	01	1	0805-			●
2	04.196 GASKET; OIL PAN,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-08654-799-0	01	1	0805-	●
2	04.196 GASKET; OIL PAN,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-08654-799-0	01	1	0805-		●
3	04.196 BOLT; OIL PAN TO CASE 4X2(TFB***) HF V6 ENG(LCA)	8-24226-008-0	16	1	0805-	●
3	04.196 BOLT; OIL PAN TO CASE 4X4(TFS***) HF V6 ENG(LCA)	8-24231-519-0	16	1	0805-		●
3	04.196 BOLT; OIL PAN TO CASE 4JJ1-TCX ENG(LS0)	8-97130-928-0	19	1	0805-			●
9	04.195 MAGNET; OIL PAN 4X2(TFB***) HF V6 ENG(LCA)	8-29535-617-0	01	1	0805-	●
9	04.195 MAGNET; OIL PAN 4X4(TFS***) HF V6 ENG(LCA)	8-29535-617-0	01	1	0805-		●
9	04.195 MAGNET; OIL PAN 4JJ1-TCX ENG(LS0)	5-34138-004-0	04	1	0805-			●
32	04.228 PISTON ASM; SERVO,A/T 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08642-079-0	01	1	0805-	●
32	04.228 PISTON ASM; SERVO,A/T 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08642-079-0	01	1	0805-		●
32	04.228 PISTON ASM; SERVO,A/T 4X2(TFB***) HF V6 ENG(LCA) (B)	8-08642-478-0	01	1	0805-	●
32	04.228 PISTON ASM; SERVO,A/T 4X4(TFS***) HF V6 ENG(LCA) (B)	8-08642-478-0	01	1	0805-		●
34	04.241 PIN; BAND 4X2(TFB***) HF V6 ENG(LCA) L=65.82-66.12 1-GROOVE	8-08680-499-0	01	1	0805-	●
34	04.241 PIN; BAND 4X4(TFS***) HF V6 ENG(LCA) L=65.82-66.12 1-GROOVE	8-08680-499-0	01	1	0805-		●
34	04.241 PIN; BAND 4X2(TFB***) HF V6 ENG(LCA) L=67.23-67.53 2-GROOVE	8-08680-500-0	01	1	0805-	●
34	04.241 PIN; BAND 4X4(TFS***) HF V6 ENG(LCA) L=67.23-67.53 2-GROOVE	8-08680-500-0	01	1	0805-		●
34	04.241 PIN; BAND 4X2(TFB***) HF V6 ENG(LCA) L=68.64-68.94 NON-GROOVE	8-08680-501-0	01	1	0805-	●
34	04.241 PIN; BAND 4X4(TFS***) HF V6 ENG(LCA) L=68.64-68.94 NON-GROOVE	8-08680-501-0	01	1	0805-		●
35	04.212 RETAINER; SERVO SPR 4X2(TFB***) HF V6 ENG(LCA)	8-08642-416-0	01	1	0805-	●
35	04.212 RETAINER; SERVO SPR 4X4(TFS***) HF V6 ENG(LCA)	8-08642-416-0	01	1	0805-		●
36	04.233 SPRING; RETURN,SERVO PISTON,A/T 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08642-273-0	01	1	0805-	●
36	04.233 SPRING; RETURN,SERVO PISTON,A/T 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08642-273-0	01	1	0805-		●
36	04.233 SPRING; RETURN,SERVO PISTON,A/T 4X2(TFB***) HF V6 ENG(LCA) (B)	8-24207-758-0	01	1	0805-	●
36	04.233 SPRING; RETURN,SERVO PISTON,A/T 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24207-758-0	01	1	0805-		●
39	04.212 GASKET; SERVO COVER 4X2(TFB***) HF V6 ENG(LCA)	8-24208-662-0	01	1	0805-	●
39	04.212 GASKET; SERVO COVER 4X4(TFS***) HF V6 ENG(LCA)	8-08647-351-0	01	1	0805-		●
42	04.229 GASKET; RET,SERVO PISTON,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-08642-480-0	01	1	0805-	●
42	04.229 GASKET; RET,SERVO PISTON,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-08642-480-0	01	1	0805-		●
82	04.233 COVER; SERVO PISTON 4X2(TFB***) HF V6 ENG(LCA)	8-08642-979-0	01	1	0805-	●
82	04.233 COVER; SERVO PISTON 4X4(TFS***) HF V6 ENG(LCA)	8-08642-979-0	01	1	0805-		●
97	04.197 FILTER; OIL 4X2(TFB***) HF V6 ENG(LCA)	8-24208-576-0	01	1	0805-	●
97	04.197 FILTER; OIL 4X4(TFS***) HF V6 ENG(LCA)	8-24225-323-0	01	1	0805-		●
103	04.195 GASKET; COVER 4X2(TFB***) HF V6 ENG(LCA)	8-08642-112-0	01	1	0805-	●
103	04.195 GASKET; COVER 4X4(TFS***) HF V6 ENG(LCA)	8-24208-661-0	01	1	0805-		●
125	04.109 COVER; VALVE HOSING 4X2(TFB***) HF V6 ENG(LCA)	8-08673-041-0	01	1	0805-	●
125	04.109 COVER; VALVE HOSING 4X4(TFS***) HF V6 ENG(LCA)	8-08673-041-0	01	1	0805-		●
162	04.212 RING; SERVO COVER 4X2(TFB***) HF V6 ENG(LCA)	8-24232-065-0	01	1	0805-	●
162	04.212 RING; SERVO COVER 4X4(TFS***) HF V6 ENG(LCA)	8-24232-065-0	01	1	0805-		●
163	04.212 RING; RETAINER 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08642-105-0	01	1	0805-	●
163	04.212 RING; RETAINER 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08642-105-0	01	1	0805-		●
163	04.212 RING; RETAINER 4X2(TFB***) HF V6 ENG(LCA) (B)	8-09415-640-0	01	1	0805-	●
163	04.212 RING; RETAINER 4X4(TFS***) HF V6 ENG(LCA) (B)	8-09415-640-0	01	1	0805-		●
164	04.212 WASHER; SERVO PISTON 4X2(TFB***) HF V6 ENG(LCA)	8-08642-107-0	01	1	0805-	●
164	04.212 WASHER; SERVO PISTON 4X4(TFS***) HF V6 ENG(LCA)	8-08642-107-0	01	1	0805-		●
165	04.212 SEAL KIT; SERVO PISTON 4X2(TFB***) HF V6 ENG(LCA)	8-08642-925-0	01	1	0805-	●
165	04.212 SEAL KIT; SERVO PISTON 4X4(TFS***) HF V6 ENG(LCA)	8-08642-925-0	01	1	0805-		●
166	04.212 SPRING; SERVO PISTON 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08642-539-0	01	1	0805-	●
166	04.212 SPRING; SERVO PISTON 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08642-539-0	01	1	0805-		●
166	04.212 SPRING; SERVO PISTON 4X2(TFB***) HF V6 ENG(LCA) (B)	8-08681-195-0	01	1	0805-	●
166	04.212 SPRING; SERVO PISTON 4X4(TFS***) HF V6 ENG(LCA) (B)	8-08681-195-0	01	1	0805-		●

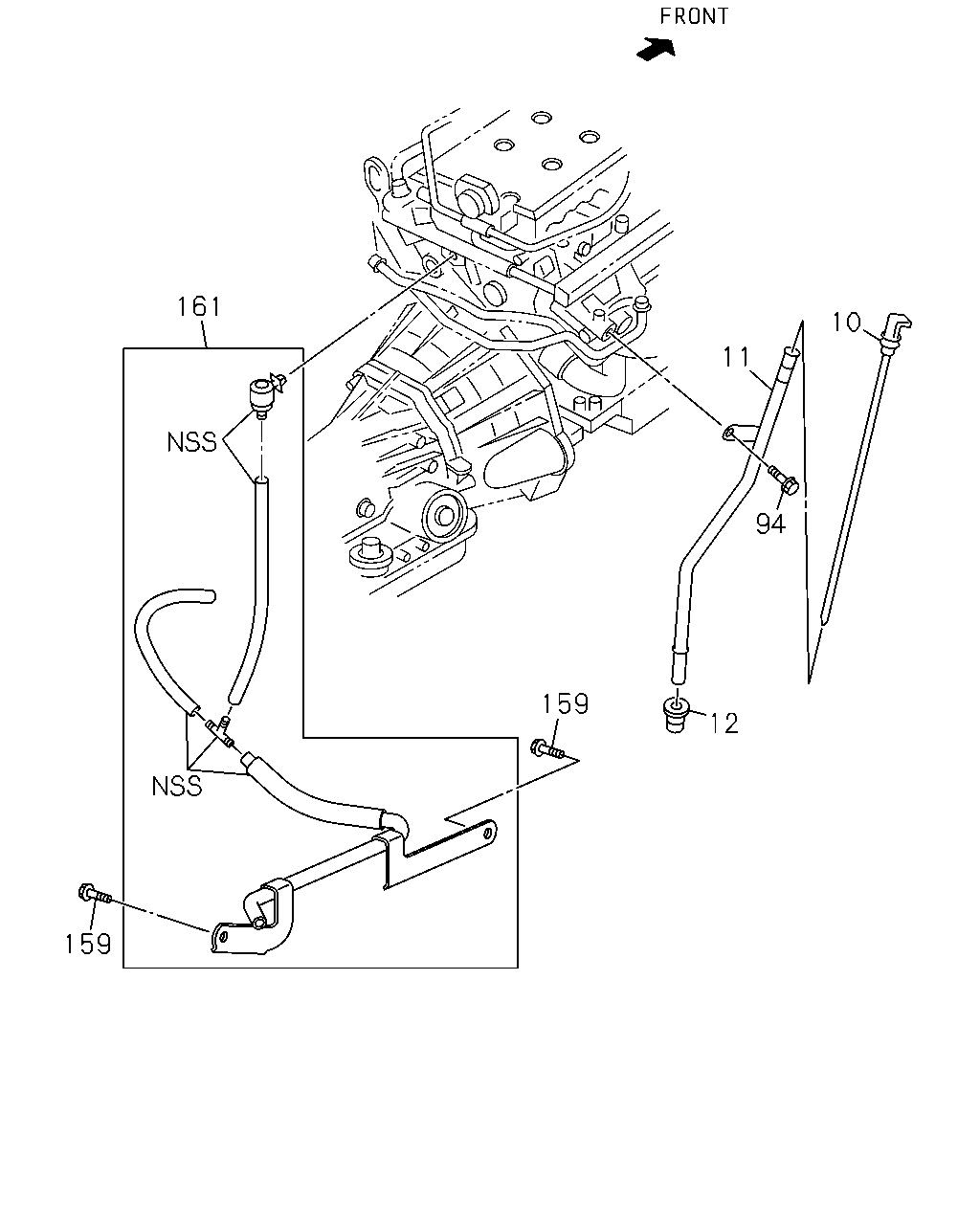

161 10 11 94 159 12 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	04.197 GAUGE; OIL LEVEL HF V6 ENG(LCA)	8-92174-692-0	01	1	0805-	●	●
10	04.197 GAUGE; OIL LEVEL 4JJ1-TCX ENG(LS0)	8-98043-896-0	01	1	0805-			●
11	04.197 TUBE; OIL FILLER HF V6 ENG(LCA)	8-92174-691-0	01	1	0805-	●	●
11	04.197 TUBE; OIL FILLER 4JJ1-TCX ENG(LS0)	8-98005-234-2	01	1	0805-			●
12	04.197 GASKET; OIL FILLER TUBE TO A/T HF V6 ENG(LCA)	8-01259-475-0	01	1	0805-	●	●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 4JJ1-TCX ENG(LS0) 04.133 ID=9.8	9-09561-110-0	01	1	0805-			●
94	04.197 BOLT; OIL FILLER TUBE HF V6 ENG(LCA) M6X20 FLANGE	8-11588-712-0	01	1	0805-	●	●
94	04.197 BOLT; OIL FILLER TUBE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0805-			●
159	04.197 BOLT HF V6 ENG(LCA) M6X25 W/PL WASHER	0-36210-625-0	02	1	0805-	●	●
161	04.128 HOSE HF V6 ENG(LCA)	8-92174-695-0	01	1	0805-	●	●

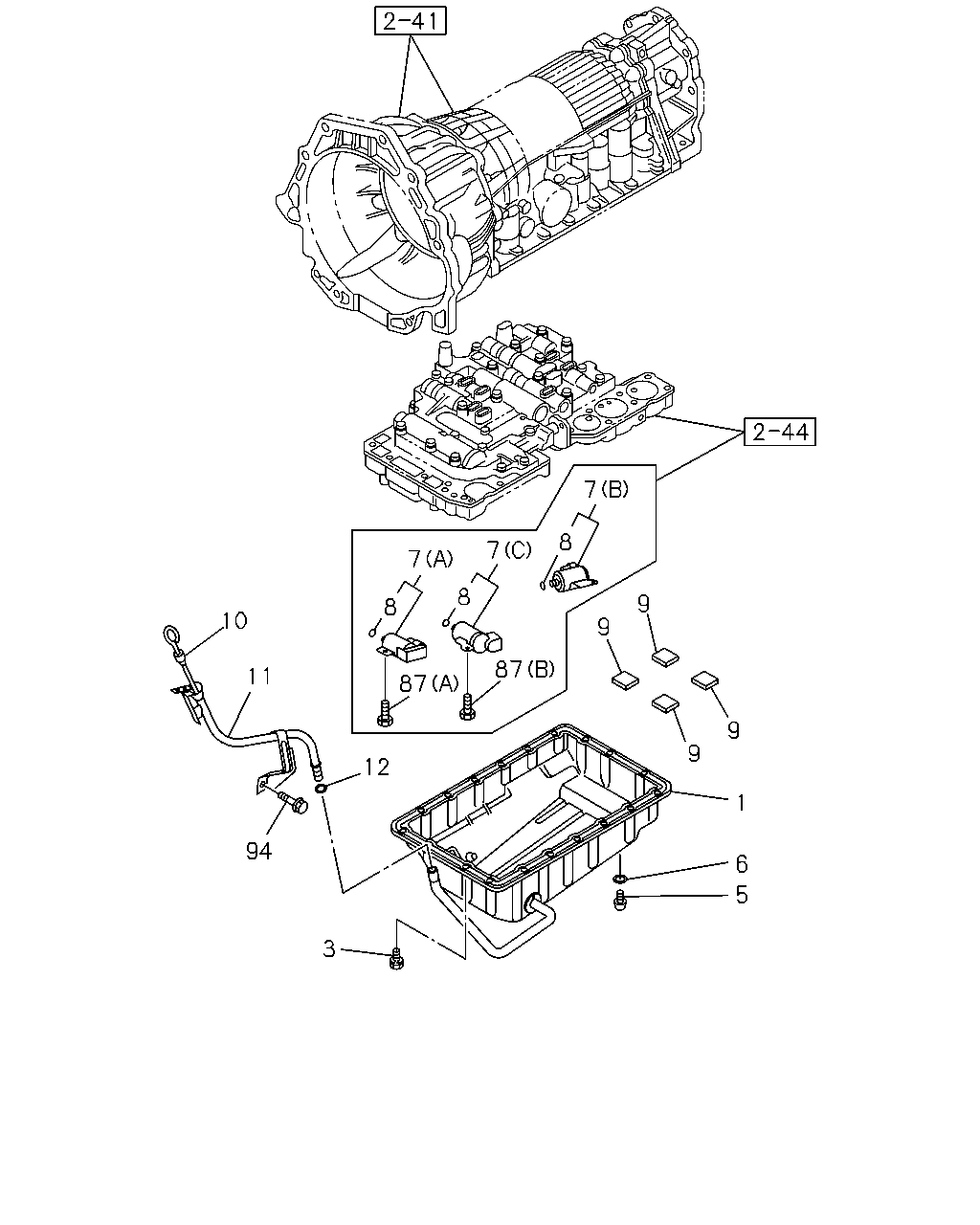

7 8 7 7 8 9 8 10 9 87 11 87 9 9 12 1 94 6 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.195 PAN ASM; OIL,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24210-915-0	01	1	0805-	●
1	04.195 PAN ASM; OIL,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24211-638-0	01	1	0805-		●
1	04.195 PAN ASM; OIL,A/T 4JJ1-TCX ENG(LS0)	8-98050-558-0	01	1	0805-			●
3	04.196 BOLT; OIL PAN TO CASE 4X2(TFB***) HF V6 ENG(LCA)	8-24226-008-0	16	1	0805-	●
3	04.196 BOLT; OIL PAN TO CASE 4X4(TFS***) HF V6 ENG(LCA)	8-24231-519-0	16	1	0805-		●
3	04.196 BOLT; OIL PAN TO CASE 4JJ1-TCX ENG(LS0)	8-97130-928-0	19	1	0805-			●
5	04.195 PLUG; OIL PAN 4JJ1-TCX ENG(LS0) M10X9	8-97367-573-0	01	1	0805-			●
6	04.195 GASKET; OIL PAN TO PLUG 4JJ1-TCX ENG(LS0) ID=12	5-34132-002-0	01	1	0805-			●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JJ1-TCX ENG(LS0) (A)	8-97214-539-0	01	1	0805-			●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JJ1-TCX ENG(LS0) (B)	8-97218-986-0	01	1	0805-			●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JJ1-TCX ENG(LS0) (C)	8-97218-987-0	01	1	0805-			●
8	04.265 GASKET; DOWN SHIFT SOLENOID,A/T 4JJ1-TCX ENG(LS0) ID=6.1	8-94480-101-0	03	1	0805-			●
9	04.195 MAGNET; OIL PAN 4X2(TFB***) HF V6 ENG(LCA)	8-29535-617-0	01	1	0805-	●
9	04.195 MAGNET; OIL PAN 4X4(TFS***) HF V6 ENG(LCA)	8-29535-617-0	01	1	0805-		●
9	04.195 MAGNET; OIL PAN 4JJ1-TCX ENG(LS0)	5-34138-004-0	04	1	0805-			●
10	04.197 GAUGE; OIL LEVEL HF V6 ENG(LCA)	8-92174-692-0	01	1	0805-	●	●
10	04.197 GAUGE; OIL LEVEL 4JJ1-TCX ENG(LS0)	8-98043-896-0	01	1	0805-			●
11	04.197 TUBE; OIL FILLER HF V6 ENG(LCA)	8-92174-691-0	01	1	0805-	●	●
11	04.197 TUBE; OIL FILLER 4JJ1-TCX ENG(LS0)	8-98005-234-2	01	1	0805-			●
12	04.197 GASKET; OIL FILLER TUBE TO A/T HF V6 ENG(LCA)	8-01259-475-0	01	1	0805-	●	●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 4JJ1-TCX ENG(LS0) 04.133 ID=9.8	9-09561-110-0	01	1	0805-			●
87	04.265 BOLT; SOLENOID 4JJ1-TCX ENG(LS0) 04.197 (B) M5X12	8-94405-335-0	01	1	0805-			●
87	04.265 BOLT; SOLENOID 4JJ1-TCX ENG(LS0) (A) M6X12	8-94479-927-0	01	1	0805-			●
94	04.197 BOLT; OIL FILLER TUBE HF V6 ENG(LCA) M6X20 FLANGE	8-11588-712-0	01	1	0805-	●	●
94	04.197 BOLT; OIL FILLER TUBE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0805-			●
