Sayfa 2-41B - Isuzu EPC

2-41B — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#74718) — 274 parça

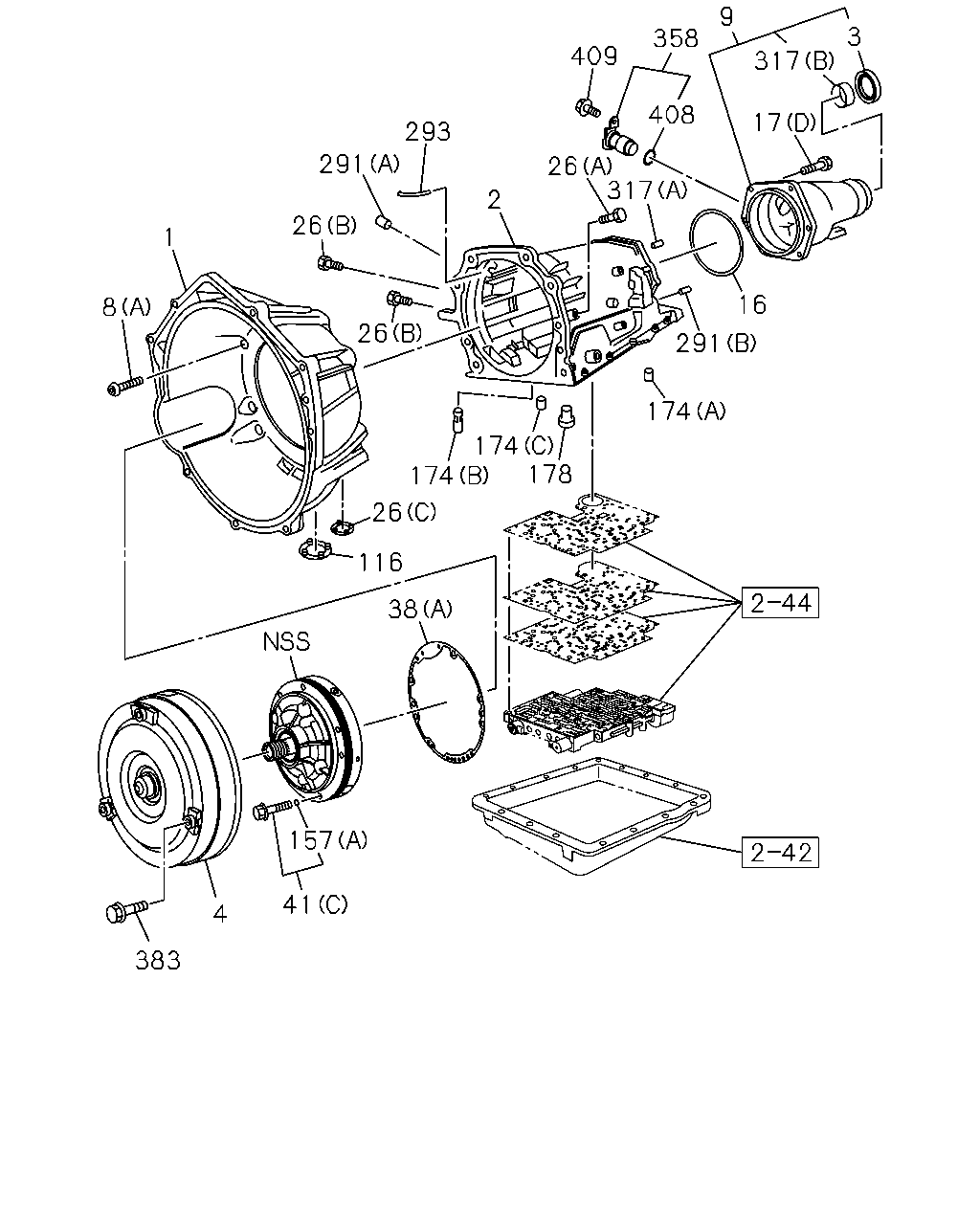

9 3 358 409 317 408 17 293 291 26 317 2 26 1 16 8 26 291 174 174 174 178 26 116 38 157 41 4 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.103 HOUSING; CONV,A/T 4JJ1-TCX ENG(LS0)	8-97179-520-0	01	1	1008-	●
1	04.103 HOUSING; CONV,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-21220-406-0	01	1	0805-		●
1	04.103 HOUSING; CONV,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-21220-406-0	01	1	0805-			●
1	04.103 HOUSING; CONV,A/T 4JJ1-TCX ENG(LS0)	8-98056-390-0	01	1	0805-1007	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-98112-178-0	01	1	1008-	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98112-178-0	01	1	1008-	●
2	04.103 CASE ASM; A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24206-953-0	01	1	0805-		●
2	04.103 CASE ASM; A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24231-452-0	01	1	0805-			●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0805-1007	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0805-1007	●
2	04.103 CASE ASM; A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98112-176-0	01	1	0805-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24204-540-0	01	1	0805-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24204-540-0	01	1	0805-			●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-97184-430-0	01	1	0805-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97184-430-0	01	1	0805-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97069-465-0	01	1	0805-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24230-960-0	01	1	0805-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24230-960-0	01	1	0805-			●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JJ1-TCX ENG(LS0)	8-98056-389-0	01	1	0805-	●
8	04.217 BOLT; HSG TO CASE 4X2(TFB***) HF V6 ENG(LCA) (A)	8-24203-265-0	08	1	0805-		●
8	04.217 BOLT; HSG TO CASE 4X4(TFS***) HF V6 ENG(LCA) (A)	8-24203-265-0	08	1	0805-			●
8	04.217 BOLT; HSG TO CASE 4JJ1-TCX ENG(LS0) (B) M10X35	8-90257-082-0	04	1	0805-	●
8	04.217 BOLT; HSG TO CASE 4JJ1-TCX ENG(LS0) (C) M12X68	8-97025-830-0	02	1	0805-	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24229-218-0	01	1	0805-		●
9	04.317 COVER ASM; RR,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24229-218-0	01	1	0805-			●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-98056-398-0	01	1	0805-	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98056-398-0	01	1	0805-	●
16	04.318 GASKET; EXT HSG 4X2(TFB***) HF V6 ENG(LCA)	8-24208-660-0	01	1	0805-		●
16	04.318 GASKET; EXT HSG 4X4(TFS***) HF V6 ENG(LCA)	8-24208-660-0	01	1	0805-			●
16	04.318 GASKET; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-97032-928-0	01	1	0805-	●
16	04.318 GASKET; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97032-928-0	01	1	0805-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) HF V6 ENG(LCA) (D)	8-08680-874-0	06	1	0805-		●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) HF V6 ENG(LCA) (D)	8-08680-874-0	06	1	0805-			●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) (A) M10X45	8-94473-632-0	04	1	0805-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) (A) M10X45	8-94473-632-0	04	1	0805-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) (B) M10X35	8-94479-951-0	02	1	0805-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) (B) M10X35	8-94479-951-0	02	1	0805-	●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C)	8-94479-936-0	07	1	0805-	●
26	04.195 PLUG; TRANS CASE 4X2(TFB***) HF V6 ENG(LCA) 01.837 (A) PT1/8-27	8-00444-613-0	01	1	0805-		●
26	04.195 PLUG; TRANS CASE 4X4(TFS***) HF V6 ENG(LCA) 01.837 (A) PT1/8-27	8-00444-613-0	01	1	0805-			●
26	04.195 PLUG; TRANS CASE 4X2(TFB***) HF V6 ENG(LCA) 04.052 (B)	8-24205-102-0	02	1	0805-		●
26	04.195 PLUG; TRANS CASE 4X4(TFS***) HF V6 ENG(LCA) 04.052 (B)	8-24205-102-0	02	1	0805-			●
26	04.195 PLUG; TRANS CASE 4X2(TFB***) HF V6 ENG(LCA) 04.105 (C)	8-24205-899-0	01	1	0805-		●
26	04.195 PLUG; TRANS CASE 4X4(TFS***) HF V6 ENG(LCA) 04.105 (C)	8-24205-899-0	01	1	0805-			●
26	04.195 PLUG; TRANS CASE 4JJ1-TCX ENG(LS0) 04.103 (D)	5-34119-002-0	02	1	0805-	●
38	04.226 GASKET; OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA) (A)	8-12337-931-0	01	1	0805-		●
38	04.226 GASKET; OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA) (A)	8-12337-931-0	01	1	0805-			●
38	04.226 GASKET; OIL PUMP,A/T 4JJ1-TCX ENG(LS0) (B)	8-94479-748-0	01	1	0805-	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4X2(TFB***) HF V6 ENG(LCA) (C)	8-24233-361-0	07	1	0805-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4X4(TFS***) HF V6 ENG(LCA) (C)	8-24233-361-0	07	1	0805-			●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCX ENG(LS0) (A) M8X35	8-94479-749-0	07	1	0805-	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCX ENG(LS0) (B) M6X15.5	8-97019-532-0	13	1	0805-	●
116	04.105 COVER; TRANS CASE 4X2(TFB***) HF V6 ENG(LCA)	8-24205-900-0	01	1	0805-		●
116	04.105 COVER; TRANS CASE 4X4(TFS***) HF V6 ENG(LCA)	8-24205-900-0	01	1	0805-			●
157	04.166 SEAL; GASKET,OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA) (A)	8-24208-664-0	07	1	0805-		●
157	04.166 SEAL; GASKET,OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA) (A)	8-24208-664-0	07	1	0805-			●
157	04.166 SEAL; GASKET,OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA) (B)	8-24226-315-0	01	1	0805-		●
157	04.166 SEAL; GASKET,OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24226-315-0	01	1	0805-			●
174	04.205 VALVE; CHECK 4X2(TFB***) HF V6 ENG(LCA) 04.105 (A)	8-08628-864-0	01	1	0805-		●
174	04.205 VALVE; CHECK 4X4(TFS***) HF V6 ENG(LCA) 04.105 (A)	8-08628-864-0	01	1	0805-			●
174	04.205 VALVE; CHECK 4X2(TFB***) HF V6 ENG(LCA) (B)	8-08634-400-0	01	1	0805-		●
174	04.205 VALVE; CHECK 4X4(TFS***) HF V6 ENG(LCA) (B)	8-08634-400-0	01	1	0805-			●
174	04.205 VALVE; CHECK 4X2(TFB***) HF V6 ENG(LCA) (C)	8-08663-890-0	03	1	0805-		●
174	04.205 VALVE; CHECK 4X4(TFS***) HF V6 ENG(LCA) (C)	8-08663-890-0	03	1	0805-			●
178	04.052 PIN; LOCKOUT 4X2(TFB***) HF V6 ENG(LCA)	8-08654-581-0	01	1	0805-		●
178	04.052 PIN; LOCKOUT 4X4(TFS***) HF V6 ENG(LCA)	8-08654-581-0	01	1	0805-			●
291	04.109 ORIFICE; CASE,A/T 4X2(TFB***) HF V6 ENG(LCA) 04.105 (A)	8-08628-864-0	01	1	0805-		●
291	04.109 ORIFICE; CASE,A/T 4X4(TFS***) HF V6 ENG(LCA) 04.105 (A)	8-08628-864-0	01	1	0805-			●
291	04.109 ORIFICE; CASE,A/T 4X2(TFB***) HF V6 ENG(LCA) (B)	8-08663-707-0	01	1	0805-		●
291	04.109 ORIFICE; CASE,A/T 4X4(TFS***) HF V6 ENG(LCA) (B)	8-08663-707-0	01	1	0805-			●
293	04.205 PIPE; VENT 4X2(TFB***) HF V6 ENG(LCA)	8-24202-440-0	01	1	0805-		●
293	04.205 PIPE; VENT 4X4(TFS***) HF V6 ENG(LCA)	8-24202-440-0	01	1	0805-			●
317	04.104 BUSHING; OUTPUT SHAFT 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08680-027-0	01	1	0805-		●
317	04.104 BUSHING; OUTPUT SHAFT 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08680-027-0	01	1	0805-			●
317	04.104 BUSHING; OUTPUT SHAFT 4X2(TFB***) HF V6 ENG(LCA) (B)	8-24229-217-0	01	1	0805-		●
317	04.104 BUSHING; OUTPUT SHAFT 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24229-217-0	01	1	0805-			●
358	04.343 SENSOR; SPEEDO 4X2(TFB***) HF V6 ENG(LCA)	8-24225-896-0	01	1	0805-		●
358	04.343 SENSOR; SPEEDO 4X4(TFS***) HF V6 ENG(LCA)	8-24225-896-0	01	1	0805-			●
383	04.302 BOLT; TORQUE CONVERTER 4X2(TFB***) HF V6 ENG(LCA) 04.008	8-11588-468-0	03	1	0805-		●
383	04.302 BOLT; TORQUE CONVERTER 4X4(TFS***) HF V6 ENG(LCA) 04.008	8-11588-468-0	03	1	0805-			●
408	04.329 GASKET; SPEED SENSOR 4X2(TFB***) HF V6 ENG(LCA)	8-10475-299-0	01	1	0805-		●
408	04.329 GASKET; SPEED SENSOR 4X4(TFS***) HF V6 ENG(LCA)	8-10475-299-0	01	1	0805-			●
409	04.329 BOLT; SPEED SENSOR 4X2(TFB***) HF V6 ENG(LCA)	8-24200-093-0	01	1	0805-		●
409	04.329 BOLT; SPEED SENSOR 4X4(TFS***) HF V6 ENG(LCA)	8-24200-093-0	01	1	0805-			●

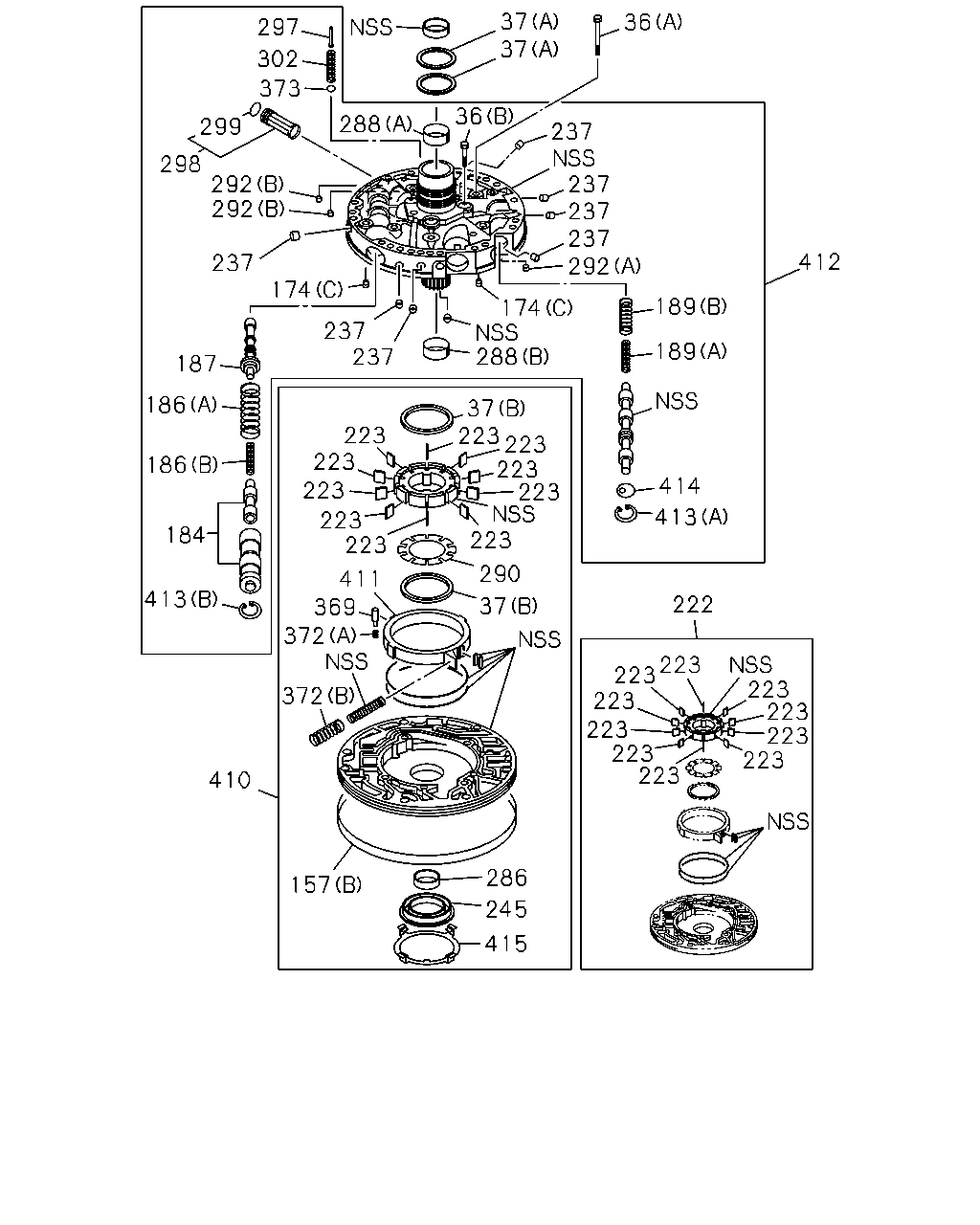

37 37 36 297 302 373 36 237 237 237 237 292 288 299 298 292 292 412 237 174 189 174 288 237 237 189 187 186 37 223 223 223 223 223 223 223 186 414 223 413 223 223 184 290 411 413 222 37 369 372 223 223 223 223 223 223 223 372 223 223 223 410 286 157 245 415

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
36	04.226 BOLT; OIL PUMP COVER,A/T 4X2(TFB***) HF V6 ENG(LCA) (A) M8X40	8-11500-718-0	05	1	0805-		●
36	04.226 BOLT; OIL PUMP COVER,A/T 4X2(TFB***) HF V6 ENG(LCA) (B)	8-20616-587-0	03	1	0805-		●
36	04.226 BOLT; OIL PUMP COVER,A/T 4X4(TFS***) HF V6 ENG(LCA) (B)	8-20616-587-0	03	1	0805-			●
36	04.226 BOLT; OIL PUMP COVER,A/T 4X4(TFS***) HF V6 ENG(LCA) 04.128 (A)	8-11500-921-0	05	1	0805-			●
37	04.226 RING; SEAL,OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08681-292-0	02	1	0805-		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08681-292-0	02	1	0805-			●
37	04.226 RING; SEAL,OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA) (B)	8-24201-144-0	02	1	0805-		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24201-144-0	02	1	0805-			●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) (C)	8-94479-747-0	02	1	0805-	●
157	04.166 SEAL; GASKET,OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA) (A)	8-24208-664-0	07	1	0805-		●
157	04.166 SEAL; GASKET,OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA) (A)	8-24208-664-0	07	1	0805-			●
157	04.166 SEAL; GASKET,OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA) (B)	8-24226-315-0	01	1	0805-		●
157	04.166 SEAL; GASKET,OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24226-315-0	01	1	0805-			●
174	04.205 VALVE; CHECK 4X2(TFB***) HF V6 ENG(LCA) 04.105 (A)	8-08628-864-0	01	1	0805-		●
174	04.205 VALVE; CHECK 4X4(TFS***) HF V6 ENG(LCA) 04.105 (A)	8-08628-864-0	01	1	0805-			●
174	04.205 VALVE; CHECK 4X2(TFB***) HF V6 ENG(LCA) (B)	8-08634-400-0	01	1	0805-		●
174	04.205 VALVE; CHECK 4X4(TFS***) HF V6 ENG(LCA) (B)	8-08634-400-0	01	1	0805-			●
174	04.205 VALVE; CHECK 4X2(TFB***) HF V6 ENG(LCA) (C)	8-08663-890-0	03	1	0805-		●
174	04.205 VALVE; CHECK 4X4(TFS***) HF V6 ENG(LCA) (C)	8-08663-890-0	03	1	0805-			●
184	04.205 VALVE; BOOST 4X2(TFB***) HF V6 ENG(LCA)	8-24224-510-0	01	1	0805-		●
184	04.205 VALVE; BOOST 4X4(TFS***) HF V6 ENG(LCA)	8-24224-510-0	01	1	0805-			●
186	04.205 SPRING; REG VALVE 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08680-682-0	01	1	0805-		●
186	04.205 SPRING; REG VALVE 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08680-682-0	01	1	0805-			●
186	04.205 SPRING; REG VALVE 4X2(TFB***) HF V6 ENG(LCA) (B)	8-08680-684-0	01	1	0805-		●
186	04.205 SPRING; REG VALVE 4X4(TFS***) HF V6 ENG(LCA) (B)	8-08680-684-0	01	1	0805-			●
187	04.205 VALVE; PRESSURE REG 4X2(TFB***) HF V6 ENG(LCA)	8-08684-049-0	01	1	0805-		●
187	04.205 VALVE; PRESSURE REG 4X4(TFS***) HF V6 ENG(LCA)	8-08684-049-0	01	1	0805-			●
189	04.205 SPRING; CONV CLU CONT VALVE 4X2(TFB***) HF V6 ENG(LCA) (A)	8-24201-610-0	01	1	0805-		●
189	04.205 SPRING; CONV CLU CONT VALVE 4X4(TFS***) HF V6 ENG(LCA) (A)	8-24201-610-0	01	1	0805-			●
189	04.205 SPRING; CONV CLU CONT VALVE 4X2(TFB***) HF V6 ENG(LCA) (B)	8-24201-611-0	01	1	0805-		●
189	04.205 SPRING; CONV CLU CONT VALVE 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24201-611-0	01	1	0805-			●
222	04.224 ROTOR; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA) T=17.948	8-24219-538-0	01	1	0805-		●
222	04.224 ROTOR; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA) T=17.948	8-24219-538-0	01	1	0805-			●
222	04.224 ROTOR; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA) T=17.961	8-24219-539-0	01	1	0805-		●
222	04.224 ROTOR; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA) T=17.961	8-24219-539-0	01	1	0805-			●
222	04.224 ROTOR; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA) T=17.974	8-24219-540-0	01	1	0805-		●
222	04.224 ROTOR; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA) T=17.974	8-24219-540-0	01	1	0805-			●
222	04.224 ROTOR; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA) T=17.987	8-24219-541-0	01	1	0805-		●
222	04.224 ROTOR; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA) T=17.987	8-24219-541-0	01	1	0805-			●
222	04.224 ROTOR; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA) T=18.000	8-24219-542-0	01	1	0805-		●
222	04.224 ROTOR; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA) T=18.000	8-24219-542-0	01	1	0805-			●
223	04.224 VANE; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA)	8-08631-280-0	13	1	0805-		●
223	04.224 VANE; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA)	8-08631-280-0	13	1	0805-			●
237	04.216 PLUG; COVER 4X2(TFB***) HF V6 ENG(LCA)	8-08623-886-0	07	1	0805-		●
237	04.216 PLUG; COVER 4X4(TFS***) HF V6 ENG(LCA)	8-08623-886-0	07	1	0805-			●
245	04.103 SEAL; OIL 4X2(TFB***) HF V6 ENG(LCA)	8-24202-535-0	01	1	0805-		●
245	04.103 SEAL; OIL 4X4(TFS***) HF V6 ENG(LCA)	8-24202-535-0	01	1	0805-			●
286	04.104 BUSHING; CONVERTER 4X2(TFB***) HF V6 ENG(LCA)	8-24206-030-0	01	1	0805-		●
286	04.104 BUSHING; CONVERTER 4X4(TFS***) HF V6 ENG(LCA)	8-24206-030-0	01	1	0805-			●
288	04.104 BUSHING; REAR COVER 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08642-904-0	01	1	0805-		●
288	04.104 BUSHING; REAR COVER 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08642-904-0	01	1	0805-			●
288	04.104 BUSHING; REAR COVER 4X2(TFB***) HF V6 ENG(LCA) (B)	8-08647-954-0	01	1	0805-		●
288	04.104 BUSHING; REAR COVER 4X4(TFS***) HF V6 ENG(LCA) (B)	8-08647-954-0	01	1	0805-			●
290	04.210 GUIDE; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA)	8-24205-410-0	01	1	0805-		●
290	04.210 GUIDE; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA)	8-24205-410-0	01	1	0805-			●
292	04.210 ORIFICE; HOUSING,OIL PUMP 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08634-284-0	01	1	0805-		●
292	04.210 ORIFICE; HOUSING,OIL PUMP 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08634-284-0	01	1	0805-			●
292	04.210 ORIFICE; HOUSING,OIL PUMP 4X2(TFB***) HF V6 ENG(LCA) (B)	8-24203-787-0	02	1	0805-		●
292	04.210 ORIFICE; HOUSING,OIL PUMP 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24203-787-0	02	1	0805-			●
297	04.205 RIVET; VALVE 4X2(TFB***) HF V6 ENG(LCA)	8-08642-619-0	01	1	0805-		●
297	04.205 RIVET; VALVE 4X4(TFS***) HF V6 ENG(LCA)	8-08642-619-0	01	1	0805-			●
298	04.210 SCREEN; OIL PUMP COVER 4X2(TFB***) HF V6 ENG(LCA)	8-08642-912-0	01	1	0805-		●
298	04.210 SCREEN; OIL PUMP COVER 4X4(TFS***) HF V6 ENG(LCA)	8-08642-912-0	01	1	0805-			●
299	04.210 SEAL; SCREEN 4X2(TFB***) HF V6 ENG(LCA)	8-08642-581-0	01	1	0805-		●
299	04.210 SEAL; SCREEN 4X4(TFS***) HF V6 ENG(LCA)	8-08642-581-0	01	1	0805-			●
302	04.205 SPRING; VALVE,PRESSURE RELIEF 4X2(TFB***) HF V6 ENG(LCA)	8-08634-106-0	01	1	0805-		●
302	04.205 SPRING; VALVE,PRESSURE RELIEF 4X4(TFS***) HF V6 ENG(LCA)	8-08634-106-0	01	1	0805-			●
369	04.210 PIN; OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-08634-097-0	01	1	0805-		●
369	04.210 PIN; OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-08634-097-0	01	1	0805-			●
372	04.205 SPRING; OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08634-098-0	01	1	0805-		●
372	04.205 SPRING; OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08634-098-0	01	1	0805-			●
372	04.205 SPRING; OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA) (B)	8-24231-039-0	01	1	0805-		●
372	04.205 SPRING; OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24231-039-0	01	1	0805-			●
373	04.103 BALL; OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA) 04.265	8-00147-500-0	01	1	0805-		●
373	04.103 BALL; OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA) 04.265	8-00147-500-0	01	1	0805-			●
410	04.210 BODY ASM; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA)	8-24226-644-0	01	1	0805-		●
410	04.210 BODY ASM; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA)	8-24230-111-0	01	1	0805-			●
411	04.210 SLIDE; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA) T=17.948	8-24212-478-0	01	1	0805-		●
411	04.210 SLIDE; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA) T=17.948	8-24212-478-0	01	1	0805-			●
411	04.210 SLIDE; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA) T=17.961	8-24212-479-0	01	1	0805-		●
411	04.210 SLIDE; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA) T=17.961	8-24212-479-0	01	1	0805-			●
411	04.210 SLIDE; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA) T=17.974	8-24212-480-0	01	1	0805-		●
411	04.210 SLIDE; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA) T=17.974	8-24212-480-0	01	1	0805-			●
411	04.210 SLIDE; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA) T=17.987	8-24212-481-0	01	1	0805-		●
411	04.210 SLIDE; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA) T=17.987	8-24212-481-0	01	1	0805-			●
411	04.210 SLIDE; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA) T=18.000	8-24212-482-0	01	1	0805-		●
411	04.210 SLIDE; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA) T=18.000	8-24212-482-0	01	1	0805-			●
412	04.210 COVER ASM; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA)	8-24224-505-0	01	1	0805-		●
412	04.210 COVER ASM; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA)	8-24235-910-0	01	1	0805-			●
413	04.224 RING; RETAINER 4X2(TFB***) HF V6 ENG(LCA) 04.205 (A)	8-00274-267-0	01	1	0805-		●
413	04.224 RING; RETAINER 4X4(TFS***) HF V6 ENG(LCA) 04.205 (A)	8-00274-267-0	01	1	0805-			●
413	04.224 RING; RETAINER 4X2(TFB***) HF V6 ENG(LCA) (B)	8-11503-348-0	01	1	0805-		●
413	04.224 RING; RETAINER 4X4(TFS***) HF V6 ENG(LCA) (B)	8-11503-348-0	01	1	0805-			●
414	04.135 STOP; CONV CLU VLVE 4X2(TFB***) HF V6 ENG(LCA)	8-08634-705-0	01	1	0805-		●
414	04.135 STOP; CONV CLU VLVE 4X4(TFS***) HF V6 ENG(LCA)	8-08634-705-0	01	1	0805-			●
415	04.210 RETAINER; OIL PUMP 4X2(TFB***) HF V6 ENG(LCA)	8-08654-491-0	01	1	0805-		●
415	04.210 RETAINER; OIL PUMP 4X4(TFS***) HF V6 ENG(LCA)	8-08654-491-0	01	1	0805-			●

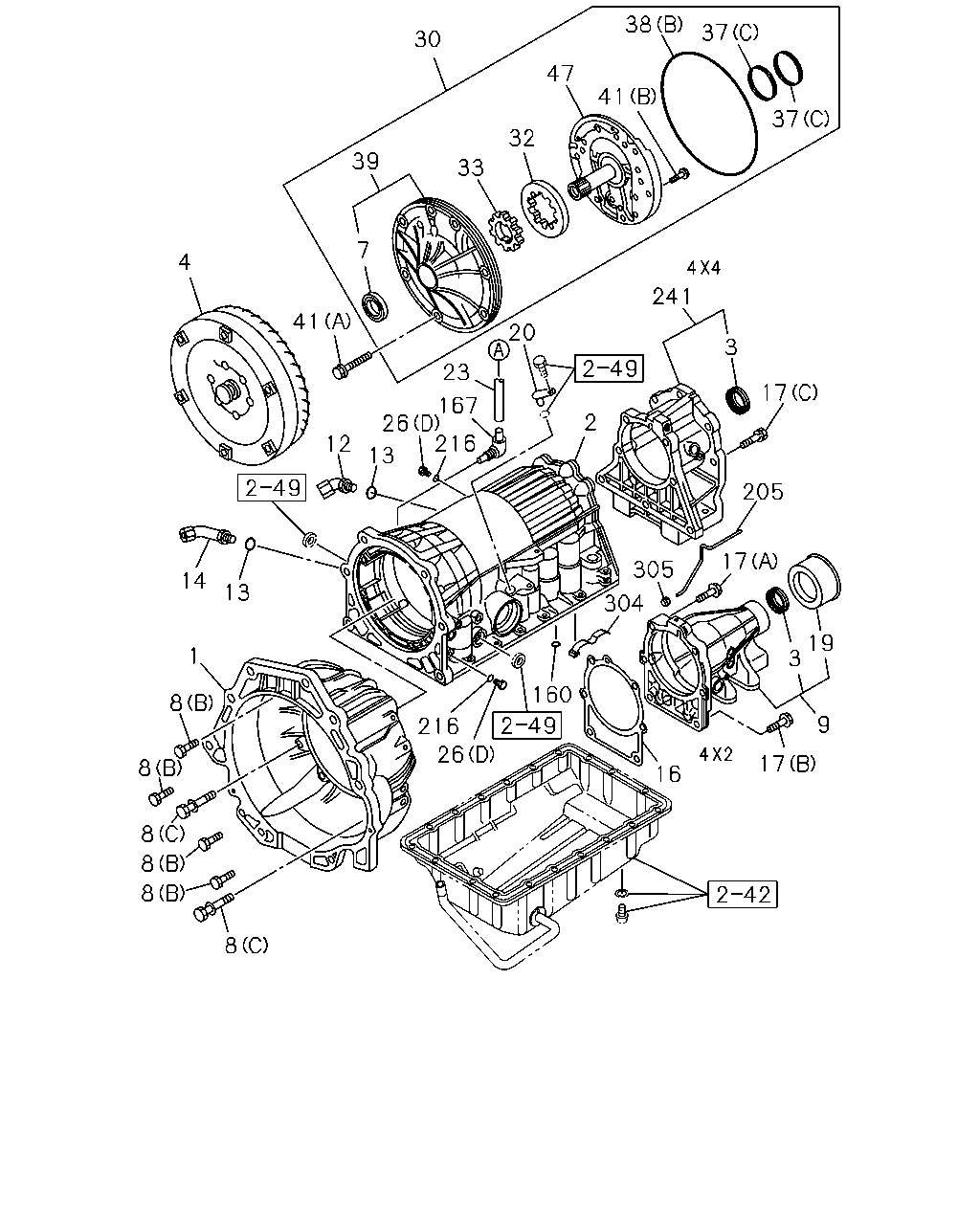

41 4 39 30 7 33 32 47 38 37 37 41 241 17 205 17 3 19 9 17 16 304 305 160 216 26 13 12 26 167 23 20 2 14 13 1 8 8 8 8 8 8 216 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.103 HOUSING; CONV,A/T 4JJ1-TCX ENG(LS0)	8-97179-520-0	01	1	1008-	●
1	04.103 HOUSING; CONV,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-21220-406-0	01	1	0805-		●
1	04.103 HOUSING; CONV,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-21220-406-0	01	1	0805-			●
1	04.103 HOUSING; CONV,A/T 4JJ1-TCX ENG(LS0)	8-98056-390-0	01	1	0805-1007	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-98112-178-0	01	1	1008-	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98112-178-0	01	1	1008-	●
2	04.103 CASE ASM; A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24206-953-0	01	1	0805-		●
2	04.103 CASE ASM; A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24231-452-0	01	1	0805-			●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0805-1007	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0805-1007	●
2	04.103 CASE ASM; A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98112-176-0	01	1	0805-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24204-540-0	01	1	0805-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24204-540-0	01	1	0805-			●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-97184-430-0	01	1	0805-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97184-430-0	01	1	0805-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97069-465-0	01	1	0805-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24230-960-0	01	1	0805-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24230-960-0	01	1	0805-			●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JJ1-TCX ENG(LS0)	8-98056-389-0	01	1	0805-	●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCX ENG(LS0)	8-94479-742-1	01	1	0805-	●
8	04.217 BOLT; HSG TO CASE 4X2(TFB***) HF V6 ENG(LCA) (A)	8-24203-265-0	08	1	0805-		●
8	04.217 BOLT; HSG TO CASE 4X4(TFS***) HF V6 ENG(LCA) (A)	8-24203-265-0	08	1	0805-			●
8	04.217 BOLT; HSG TO CASE 4JJ1-TCX ENG(LS0) (B) M10X35	8-90257-082-0	04	1	0805-	●
8	04.217 BOLT; HSG TO CASE 4JJ1-TCX ENG(LS0) (C) M12X68	8-97025-830-0	02	1	0805-	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) HF V6 ENG(LCA)	8-24229-218-0	01	1	0805-		●
9	04.317 COVER ASM; RR,A/T 4X4(TFS***) HF V6 ENG(LCA)	8-24229-218-0	01	1	0805-			●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-98056-398-0	01	1	0805-	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98056-398-0	01	1	0805-	●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP 4JJ1-TCX ENG(LS0) 04.265	8-94450-761-0	01	1	0805-	●
13	04.205 GASKET; OIL COOLER PIPE 4JJ1-TCX ENG(LS0) 04.265 ID=11.7	8-94479-724-0	02	1	0805-	●
14	04.205 UNION; OIL COOLER RETURN PIPE 4JJ1-TCX ENG(LS0) 04.265	8-94450-762-0	01	1	0805-	●
16	04.318 GASKET; EXT HSG 4X2(TFB***) HF V6 ENG(LCA)	8-24208-660-0	01	1	0805-		●
16	04.318 GASKET; EXT HSG 4X4(TFS***) HF V6 ENG(LCA)	8-24208-660-0	01	1	0805-			●
16	04.318 GASKET; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-97032-928-0	01	1	0805-	●
16	04.318 GASKET; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97032-928-0	01	1	0805-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) HF V6 ENG(LCA) (D)	8-08680-874-0	06	1	0805-		●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) HF V6 ENG(LCA) (D)	8-08680-874-0	06	1	0805-			●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) (A) M10X45	8-94473-632-0	04	1	0805-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) (A) M10X45	8-94473-632-0	04	1	0805-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) (B) M10X35	8-94479-951-0	02	1	0805-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) (B) M10X35	8-94479-951-0	02	1	0805-	●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C)	8-94479-936-0	07	1	0805-	●
19	04.241 COVER; DUST,REAR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-97184-432-0	01	1	0805-	●
19	04.241 COVER; DUST,REAR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97184-432-0	01	1	0805-	●
20	04.105 PLUG; TAPER,A/T CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-97232-067-0	01	1	0805-1007	●
20	04.105 PLUG; TAPER,A/T CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97232-067-0	01	1	0805-1007	●
23	04.101 HOSE; BREATHER,A/T 4JJ1-TCX ENG(LS0) 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	0805-	●
26	04.195 PLUG; TRANS CASE 4X2(TFB***) HF V6 ENG(LCA) 01.837 (A) PT1/8-27	8-00444-613-0	01	1	0805-		●
26	04.195 PLUG; TRANS CASE 4X4(TFS***) HF V6 ENG(LCA) 01.837 (A) PT1/8-27	8-00444-613-0	01	1	0805-			●
26	04.195 PLUG; TRANS CASE 4X2(TFB***) HF V6 ENG(LCA) 04.052 (B)	8-24205-102-0	02	1	0805-		●
26	04.195 PLUG; TRANS CASE 4X4(TFS***) HF V6 ENG(LCA) 04.052 (B)	8-24205-102-0	02	1	0805-			●
26	04.195 PLUG; TRANS CASE 4X2(TFB***) HF V6 ENG(LCA) 04.105 (C)	8-24205-899-0	01	1	0805-		●
26	04.195 PLUG; TRANS CASE 4X4(TFS***) HF V6 ENG(LCA) 04.105 (C)	8-24205-899-0	01	1	0805-			●
26	04.195 PLUG; TRANS CASE 4JJ1-TCX ENG(LS0) 04.103 (D)	5-34119-002-0	02	1	0805-	●
30	04.224 PUMP ASM; OIL,A/T 4JJ1-TCX ENG(LS0)	8-97370-809-0	01	1	0805-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 -0.016/-0.025 MARK M	8-97370-816-0	01	1	0805-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 -0.006/-0.015 MARK N	8-97370-817-0	01	1	0805-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 +0.005/-0.005 MARK P	8-97370-818-0	01	1	0805-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 +0.015/+0.006 MARK R	8-97370-819-0	01	1	0805-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 +0.025/+0.016 MARK S	8-97370-820-0	01	1	0805-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 -0.016/-0.025 MARK M	8-97370-811-0	01	1	0805-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 -0.006/-0.015 MARK N	8-97370-812-0	01	1	0805-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 +0.005/-0.005 MARK P	8-97370-813-0	01	1	0805-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 +0.015/+0.006 MARK R	8-97370-814-0	01	1	0805-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 +0.025/+0.016 MARK S	8-97370-815-0	01	1	0805-	●
37	04.226 RING; SEAL,OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA) (A)	8-08681-292-0	02	1	0805-		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA) (A)	8-08681-292-0	02	1	0805-			●
37	04.226 RING; SEAL,OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA) (B)	8-24201-144-0	02	1	0805-		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA) (B)	8-24201-144-0	02	1	0805-			●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) (C)	8-94479-747-0	02	1	0805-	●
38	04.226 GASKET; OIL PUMP,A/T 4X2(TFB***) HF V6 ENG(LCA) (A)	8-12337-931-0	01	1	0805-		●
38	04.226 GASKET; OIL PUMP,A/T 4X4(TFS***) HF V6 ENG(LCA) (A)	8-12337-931-0	01	1	0805-			●
38	04.226 GASKET; OIL PUMP,A/T 4JJ1-TCX ENG(LS0) (B)	8-94479-748-0	01	1	0805-	●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T 4JJ1-TCX ENG(LS0)	8-98112-183-0	01	1	0805-	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4X2(TFB***) HF V6 ENG(LCA) (C)	8-24233-361-0	07	1	0805-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4X4(TFS***) HF V6 ENG(LCA) (C)	8-24233-361-0	07	1	0805-			●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCX ENG(LS0) (A) M8X35	8-94479-749-0	07	1	0805-	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCX ENG(LS0) (B) M6X15.5	8-97019-532-0	13	1	0805-	●
47	04.226 SHAFT; OIL PUMP,A/T 4JJ1-TCX ENG(LS0)	8-98112-188-0	01	1	0805-	●
160	04.265 GASKET; BRK DRUM,A/T 4JJ1-TCX ENG(LS0)	8-94313-576-0	01	1	0805-	●
167	04.052 CONNECTOR; CASE,A/T 4JJ1-TCX ENG(LS0) 04.104	8-94479-727-0	01	1	1008-	●
167	04.052 CONNECTOR; CASE,A/T 4JJ1-TCX ENG(LS0) 04.104	8-97126-812-0	01	1	0805-1007	●
205	04.103 TUBE; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-97331-557-0	01	1	0805-	●
205	04.103 TUBE; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97331-557-0	01	1	0805-	●
216	04.265 GASKET; SOLENOID OUTER 4JJ1-TCX ENG(LS0) 04.103 ID=6	5-34119-001-0	02	1	0805-	●
241	04.317 ADAPTER; A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98050-559-0	01	1	0805-	●
304	04.205 SPRING; LEAF,A/T 4JJ1-TCX ENG(LS0)	8-97184-331-0	01	1	0805-	●
305	04.103 GASKET; TUBE,EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC)	8-97027-228-0	01	1	0805-	●
305	04.103 GASKET; TUBE,EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97027-228-0	01	1	0805-	●

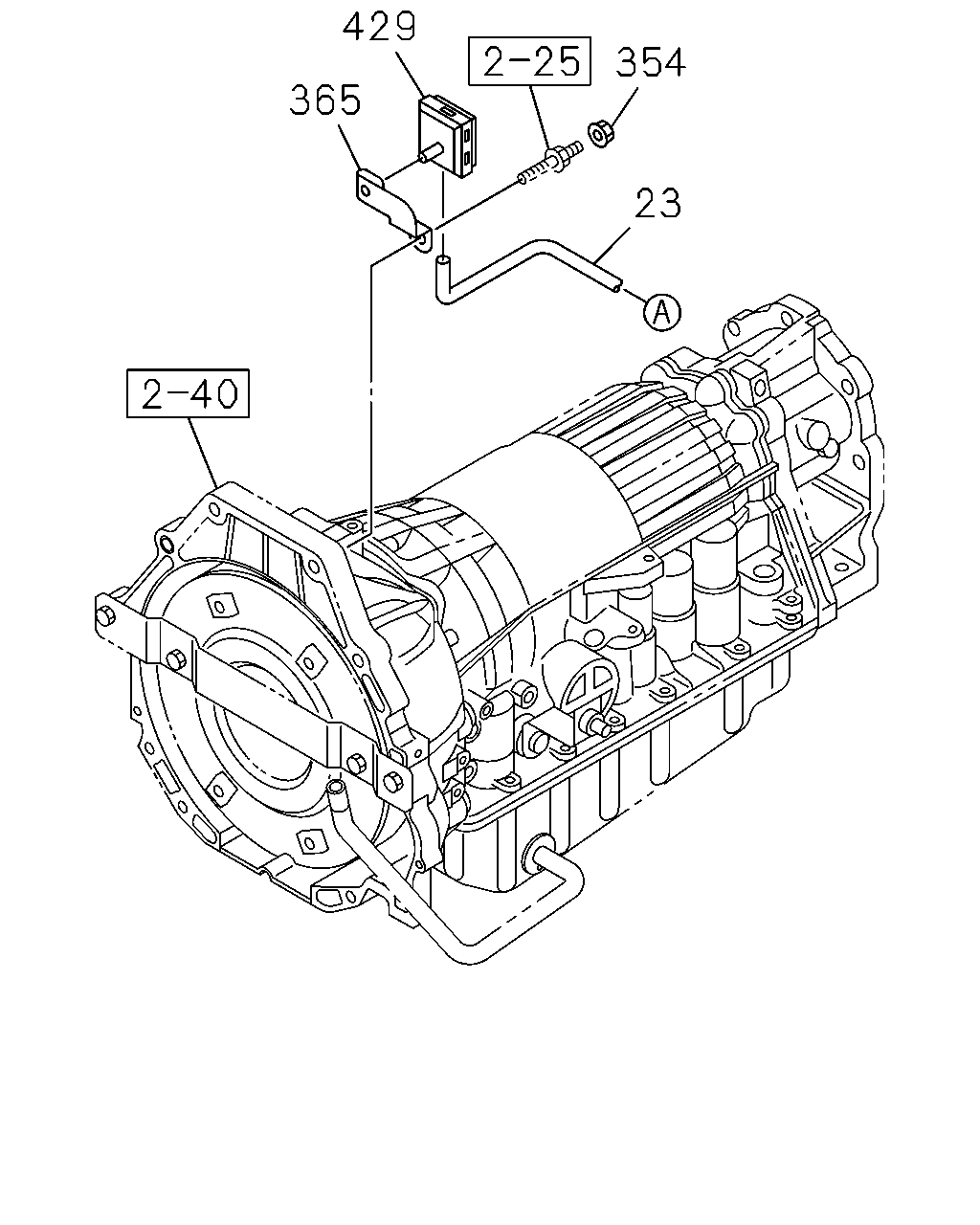

429 354 23 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
23	04.101 HOSE; BREATHER,A/T 4JJ1-TCX ENG(LS0) 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	0805-	●
354	04.166 NUT; BRKT 4JJ1-TCX ENG(LS0) 03.162 M10 FLANGE	0-91180-110-0	01	1	0805-	●
365	04.104 BRACKET; BREATHER HOSE,A/T 4JJ1-TCX ENG(LS0) 04.047	8-98005-233-0	01	1	0805-	●
429	04.104 CLIP; BREATHER HOSE 4JJ1-TCX ENG(LS0)	8-97301-433-1	01	1	0805-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
