Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#74715) — 185 parça

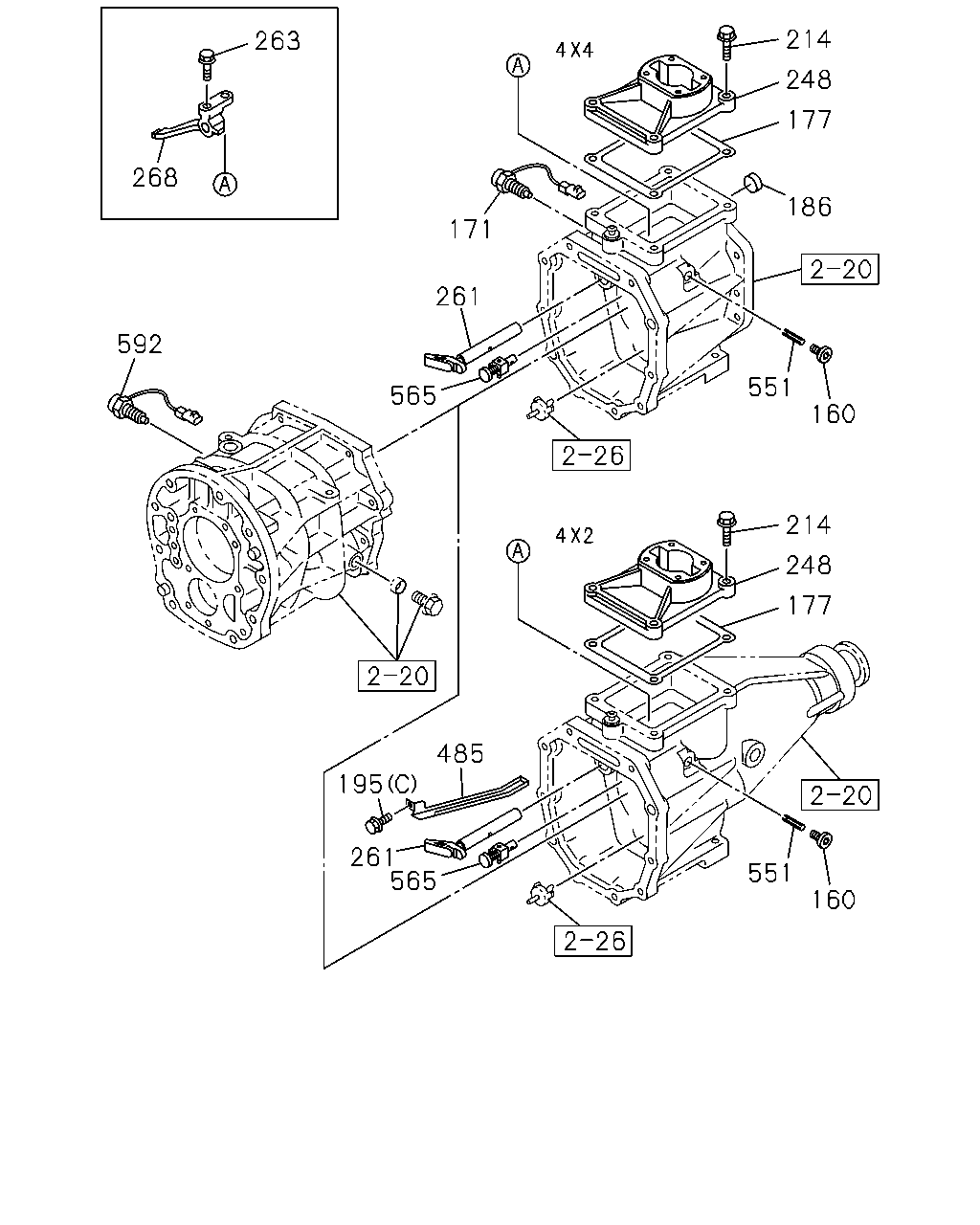

214 263 248 177 268 186 171 261 592 551 565 160 214 248 177 485 195 261 565 551 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
160	04.105 PLUG; BLIND HF V6 ENG(LCA)	8-97164-954-0	01	1	0805-	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) HF V6 ENG(LCA)	8-97165-083-0	01	1	0805-	●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0) 04.075	8-97358-606-0	01	1	0805-1405		●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0)	8-98180-974-0	01	1	1406-		●
177	04.105 GASKET; CONT BOX HF V6 ENG(LCA)	8-89048-270-0	01	1	0805-	●
186	04.105 PLUG; SHIFTER ROD 4X4(TFS***) HF V6 ENG(LCA)	8-89048-308-0	01	1	0805-	●
195	04.105 BOLT HF V6 ENG(LCA) (A)	8-97164-897-0	02	1	0805-	●
195	04.105 BOLT HF V6 ENG(LCA) (B)	8-97164-962-0	02	1	0805-	●
195	04.105 BOLT 4X2(TFB***) HF V6 ENG(LCA) (C)	8-89048-313-0	01	1	0805-	●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (D) M8X8.5 TAPER	8-97250-975-0	01	1	0805-		●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (E) M8X30 FLANGE	8-98034-764-0	04	1	0805-		●
214	04.510 BOLT; CONT BOX,SUB TRANS HF V6 ENG(LCA)	8-97164-927-0	04	1	0805-	●
248	04.105 RETAINER; CONT BOX HF V6 ENG(LCA)	8-98025-328-0	01	1	0805-	●
248	04.105 RETAINER; CONT BOX C24SE ENG(LG1) 04.307	8-97181-325-0	02	1	0805-1003			●
261	04.309 ROD; GEAR CONT HF V6 ENG(LCA)	8-89048-251-0	01	1	0805-	●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	0805-		●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0805-1003			●
263	02.559 BOLT; LEVER HF V6 ENG(LCA)	8-89048-271-0	01	1	0805-	●
268	04.302 LEVER; CONT,INTERNAL HF V6 ENG(LCA)	8-98025-391-0	01	1	0805-	●
268	04.302 LEVER; CONT,INTERNAL C24SE ENG(LG1)	8-97184-895-0	01	1	0805-1003			●
485	04.105 TROUGH; OIL 4X2(TFB***) HF V6 ENG(LCA)	8-89048-309-0	01	1	0805-	●
551	04.303 PIN; SPRING HF V6 ENG(LCA)	8-97164-925-0	01	1	0805-	●
551	04.303 PIN; SPRING 4JJ1-TCX ENG(LS0) D=4.2 L=25	8-94171-541-0	02	1	0805-		●
565	04.302 PIN ASM; REVERSE RESTRICT HF V6 ENG(LCA)	8-97164-905-0	01	1	0805-	●
592	02.698 SWITCH; POSITION HF V6 ENG(LCA)	8-89048-415-0	01	1	0805-	●

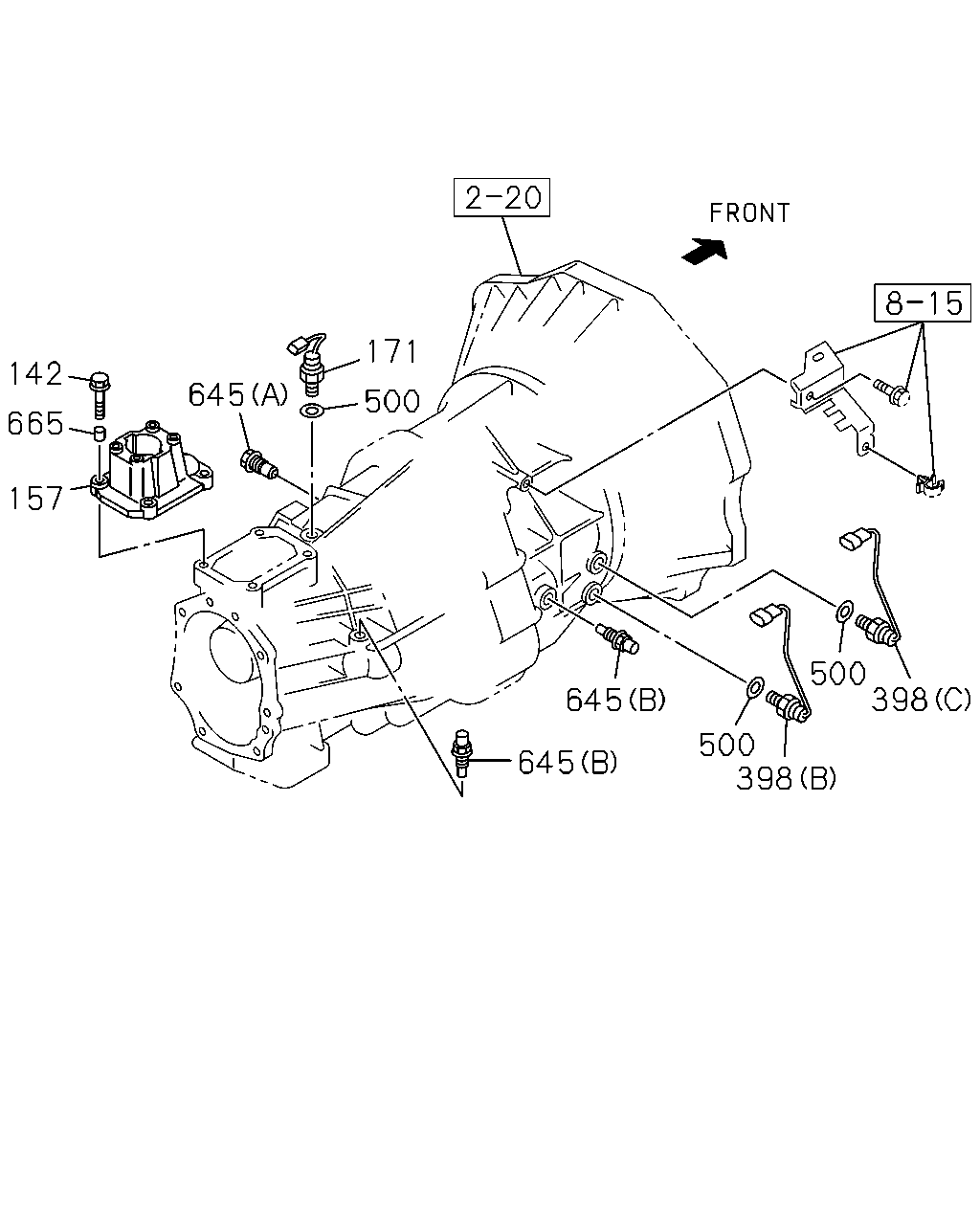

171 142 645 500 665 157 500 398 645 500 398 645

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
142	04.012 BOLT; QUAD BOX 4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0805-		●
142	04.012 BOLT; QUAD BOX C24SE ENG(LG1) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0805-1003			●
157	04.105 BOX; QUAD,TRANS 4JJ1-TCX ENG(LS0)	8-97362-383-0	01	1	0805-		●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) HF V6 ENG(LCA)	8-97165-083-0	01	1	0805-	●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0) 04.075	8-97358-606-0	01	1	0805-1405		●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0)	8-98180-974-0	01	1	1406-		●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (B)	8-98037-159-0	01	1	0805-1405		●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (B)	8-98181-801-0	01	1	1406-		●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (C)	8-98037-160-0	01	1	0805-1405		●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (C)	8-98180-973-0	01	1	1406-		●
398	02.698 SWITCH; REV LAMP C24SE ENG(LG1) (A)	8-98035-681-0	01	1	0805-1003			●
500	04.075 GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) 08.955 ID=14.2 OD=20.0	9-09571-414-0	03	1	0805-		●
645	04.311 DETENT ASM 4JJ1-TCX ENG(LS0) (A)	8-97362-469-2	01	1	0805-		●
645	04.311 DETENT ASM 4JJ1-TCX ENG(LS0) 04.307 (B)	8-98019-536-0	02	1	0805-		●
665	00.206 DOWEL 4JJ1-TCX ENG(LS0) OD=11 L=8	9-11229-058-1	02	1	0805-		●

262 288 459 271 172 391 271 289 22 261 174 22 132 248 268 248 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.307 CAP; RETURN SPR,SHIFT BLOCK C24SE ENG(LG1)	8-97181-326-0	02	1	0805-1003			●
132	04.027 SPRING; SELECT STOP C24SE ENG(LG1)	8-97181-395-0	01	1	0805-1003			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0805-1003			●
174	04.307 SPRING; REV C24SE ENG(LG1)	8-97181-394-0	01	1	0805-1003			●
248	04.105 RETAINER; CONT BOX HF V6 ENG(LCA)	8-98025-328-0	01	1	0805-	●
248	04.105 RETAINER; CONT BOX C24SE ENG(LG1) 04.307	8-97181-325-0	02	1	0805-1003			●
261	04.309 ROD; GEAR CONT HF V6 ENG(LCA)	8-89048-251-0	01	1	0805-	●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	0805-		●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0805-1003			●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0805-1003			●
268	04.302 LEVER; CONT,INTERNAL HF V6 ENG(LCA)	8-98025-391-0	01	1	0805-	●
268	04.302 LEVER; CONT,INTERNAL C24SE ENG(LG1)	8-97184-895-0	01	1	0805-1003			●
271	04.105 BUSHING; QUAD BOX C24SE ENG(LG1) ID=14 L=12	8-98017-908-0	02	1	0805-1003			●
274	04.105 COVER; SHAFT,QUAD BOX C24SE ENG(LG1)	8-97181-324-1	01	1	0805-1003			●
288	04.307 PLUG; AIR BREATHER C24SE ENG(LG1)	9-00097-517-0	01	1	0805-1003			●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX C24SE ENG(LG1)	8-98017-744-0	01	1	0805-1003			●
391	04.104 PLUG; SW HOLE C24SE ENG(LG1) M14X11	8-98035-674-0	01	1	0805-1003			●
459	04.302 PIN; SPR,ROD TO ARM C24SE ENG(LG1) OD=5	8-97184-905-0	01	1	0805-1003			●

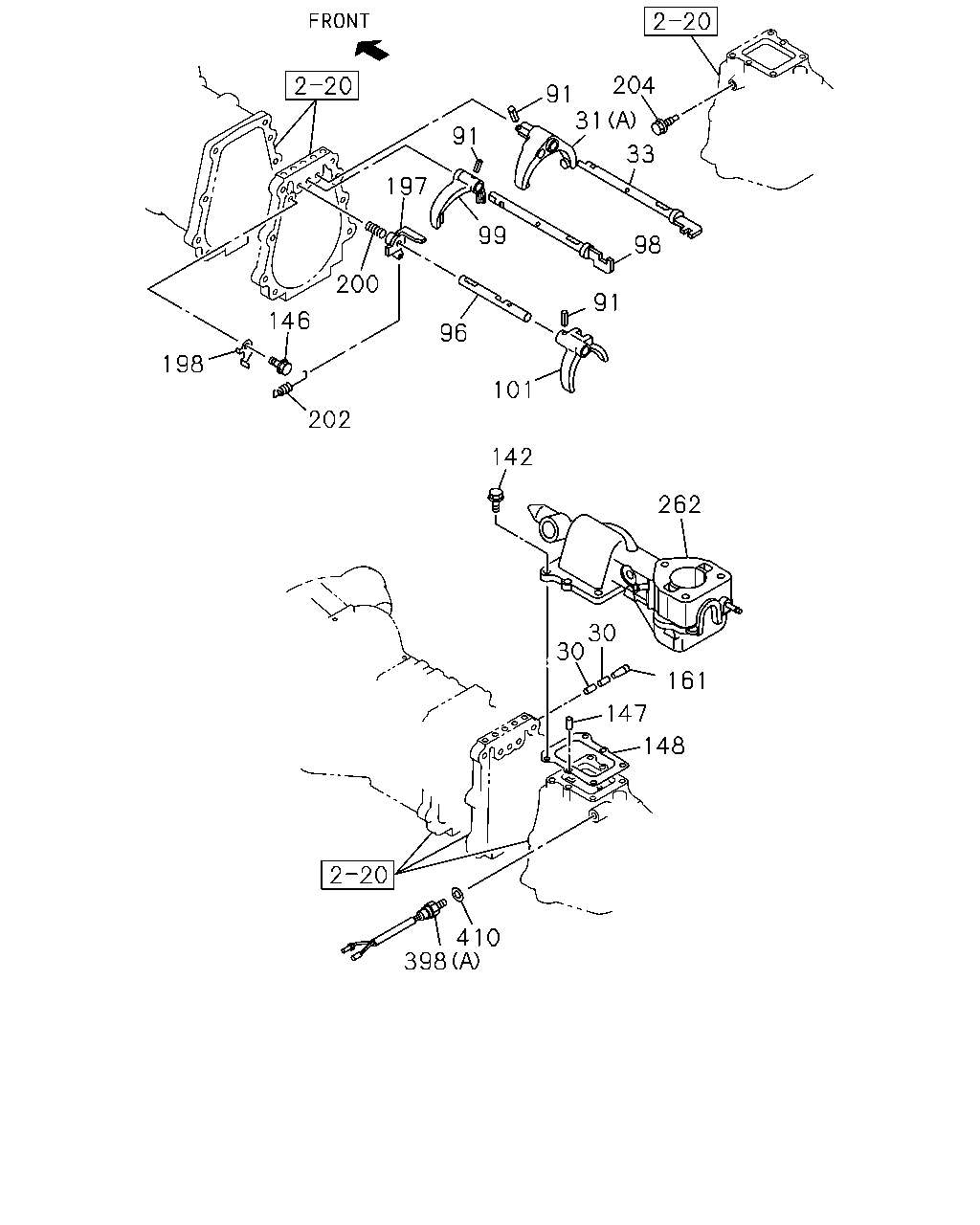

204 91 31 91 33 197 99 98 200 91 146 96 198 101 202 142 262 30 30 161 147 148 410 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.307 PIN; INTER LK HF V6 ENG(LCA)	8-97165-086-0	03	1	0805-	●
30	04.307 PIN; INTER LK C24SE ENG(LG1) OD=5.5 L=10	5-33534-002-1	02	1	0805-1003			●
31	04.302 ARM; SHIFT,LOW & 2ND HF V6 ENG(LCA) (C)	8-89048-278-0	01	1	0805-	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (B)	8-97362-435-0	01	1	0805-		●
31	04.302 ARM; SHIFT,LOW & 2ND C24SE ENG(LG1) (A)	8-94421-912-2	01	1	0805-1003			●
33	04.309 ROD; SHIFT,LOW & 2ND HF V6 ENG(LCA)	8-89048-283-0	01	1	0805-	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	0805-		●
33	04.309 ROD; SHIFT,LOW & 2ND C24SE ENG(LG1)	8-97019-061-2	01	1	0805-1003			●
91	04.302 PIN; SPR,SHIFT ARM HF V6 ENG(LCA)	8-97164-994-0	01	1	0805-	●
91	04.302 PIN; SPR,SHIFT ARM C24SE ENG(LG1) 04.303 D=4.2 L=25	8-94171-541-0	03	1	0805-1003			●
96	04.309 ROD; SHIFT,5TH HF V6 ENG(LCA)	8-97164-960-0	01	1	0805-	●
96	04.309 ROD; SHIFT,5TH C24SE ENG(LG1)	8-94440-079-1	01	1	0805-1003			●
98	04.309 ROD; SHIFT,TOP & 3RD C24SE ENG(LG1)	8-97019-060-3	01	1	0805-1003			●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG(LS0) 04.303	8-97362-439-2	01	1	0805-		●
99	04.302 ARM; SHIFT,4TH & 3RD HF V6 ENG(LCA)	8-89048-279-0	01	1	0805-	●
99	04.302 ARM; SHIFT,4TH & 3RD C24SE ENG(LG1)	8-94421-911-2	01	1	0805-1003			●
101	04.302 ARM; SHIFT,REV & 5TH HF V6 ENG(LCA)	8-97164-993-0	01	1	0805-	●
101	04.302 ARM; SHIFT,REV & 5TH C24SE ENG(LG1)	8-94448-755-2	01	1	0805-1003			●
142	04.012 BOLT; QUAD BOX 4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0805-		●
142	04.012 BOLT; QUAD BOX C24SE ENG(LG1) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0805-1003			●
146	04.032 BOLT; REV INHIBITOR C24SE ENG(LG1) 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0805-1003			●
147	04.020 PIN; KNOCK C24SE ENG(LG1) 04.510 OD=6 L=12	9-08150-612-0	02	1	0805-1003			●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1)	8-97083-599-0	01	1	0805-1003			●
161	04.307 PLUG; INTER LK HOLE C24SE ENG(LG1)	8-94239-543-1	01	1	0805-1003			●
197	04.309 INHIBITOR; REV SHIFT C24SE ENG(LG1)	8-94448-753-0	01	1	0805-1003			●
198	04.309 BRACKET; REV INHIBITOR C24SE ENG(LG1)	8-94448-199-0	01	1	0805-1003			●
200	04.309 SPRING; REV INHIBITOR,COMP C24SE ENG(LG1)	8-94448-807-0	01	1	0805-1003			●
202	04.309 SPRING; REV INHIBITOR,EXT C24SE ENG(LG1)	8-97017-500-0	01	1	0805-1003			●
204	04.309 STOPPER; REV INHIBITOR C24SE ENG(LG1)	8-98035-673-0	01	1	0805-1003			●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0805-1003			●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (B)	8-98037-159-0	01	1	0805-1405		●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (B)	8-98181-801-0	01	1	1406-		●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (C)	8-98037-160-0	01	1	0805-1405		●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (C)	8-98180-973-0	01	1	1406-		●
398	02.698 SWITCH; REV LAMP C24SE ENG(LG1) (A)	8-98035-681-0	01	1	0805-1003			●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0805-1003			●

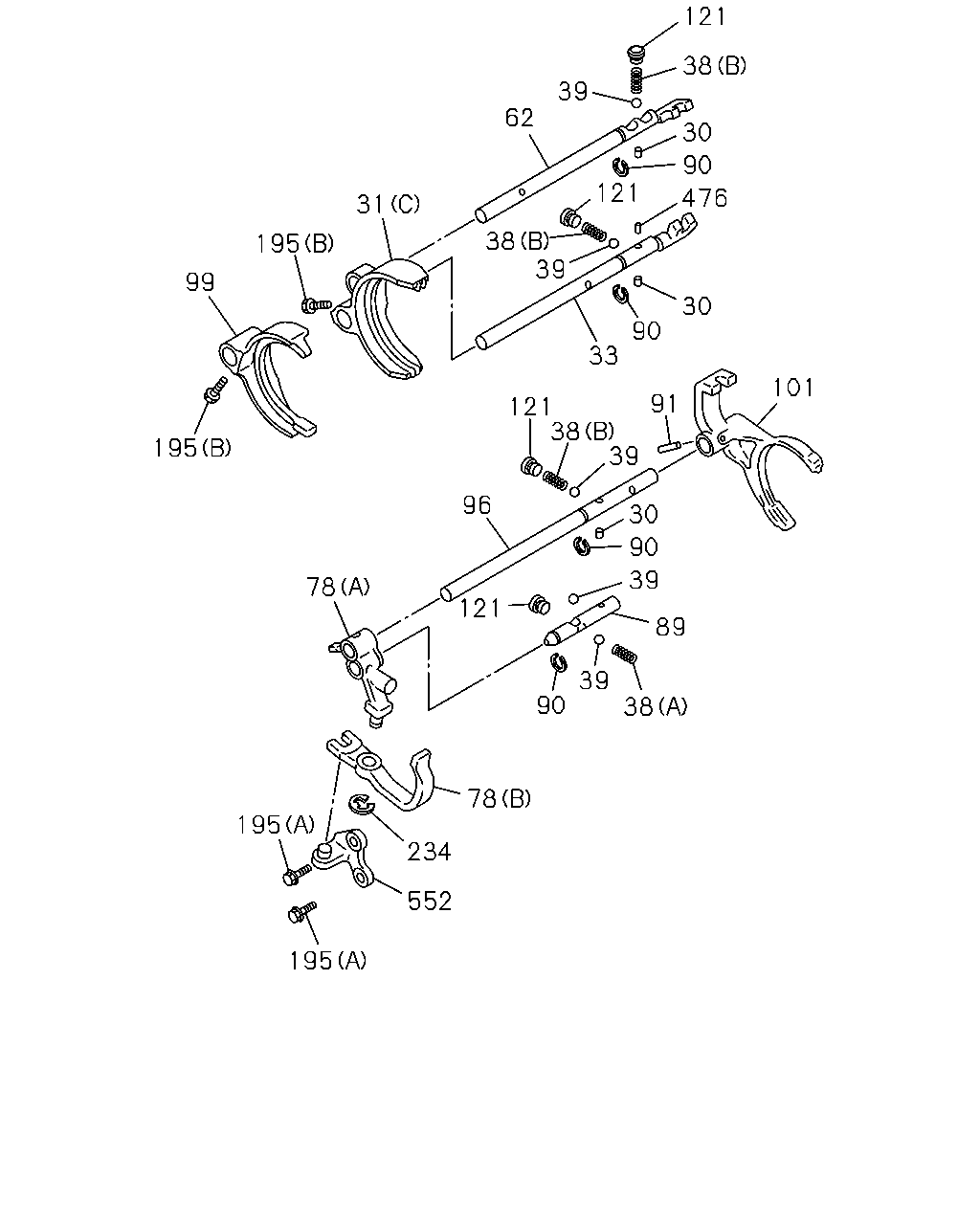

121 38 39 62 30 90 121 476 31 38 39 195 99 30 90 33 101 91 121 38 39 195 30 96 90 39 78 121 89 39 90 38 78 195 234 552 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.307 PIN; INTER LK HF V6 ENG(LCA)	8-97165-086-0	03	1	0805-	●
30	04.307 PIN; INTER LK C24SE ENG(LG1) OD=5.5 L=10	5-33534-002-1	02	1	0805-1003			●
31	04.302 ARM; SHIFT,LOW & 2ND HF V6 ENG(LCA) (C)	8-89048-278-0	01	1	0805-	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (B)	8-97362-435-0	01	1	0805-		●
31	04.302 ARM; SHIFT,LOW & 2ND C24SE ENG(LG1) (A)	8-94421-912-2	01	1	0805-1003			●
33	04.309 ROD; SHIFT,LOW & 2ND HF V6 ENG(LCA)	8-89048-283-0	01	1	0805-	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	0805-		●
33	04.309 ROD; SHIFT,LOW & 2ND C24SE ENG(LG1)	8-97019-061-2	01	1	0805-1003			●
38	04.311 SPRING; DETENT HF V6 ENG(LCA) (B)	8-89048-295-0	03	1	0805-	●
38	04.311 SPRING; DETENT HF V6 ENG(LCA) (A)	8-97165-087-0	01	1	0805-	●
39	04.307 BALL; DETENT HF V6 ENG(LCA)	8-97165-089-0	05	1	0805-	●
62	04.309 ROD; SHIFT,3RD & 4TH HF V6 ENG(LCA)	8-89048-284-0	01	1	0805-	●
78	04.302 ARM; SHIFT,REV HF V6 ENG(LCA) (A)	8-97164-956-0	01	1	0805-	●
78	04.302 ARM; SHIFT,REV HF V6 ENG(LCA) (B)	8-97164-991-0	01	1	0805-	●
78	04.302 ARM; SHIFT,REV 4JJ1-TCX ENG(LS0) (C)	8-97362-434-1	01	1	0805-		●
89	04.309 ROD; SHIFT,REV HF V6 ENG(LCA)	8-89048-286-0	01	1	0805-	●
89	04.309 ROD; SHIFT,REV 4JJ1-TCX ENG(LS0)	8-97362-440-1	01	1	0805-		●
90	04.307 RING; SNAP,SHIFT ROD HF V6 ENG(LCA)	8-97165-074-0	04	1	0805-	●
90	04.307 RING; SNAP,SHIFT ROD 4JJ1-TCX ENG(LS0) ID=12	8-94460-357-0	03	1	0805-		●
91	04.302 PIN; SPR,SHIFT ARM HF V6 ENG(LCA)	8-97164-994-0	01	1	0805-	●
91	04.302 PIN; SPR,SHIFT ARM C24SE ENG(LG1) 04.303 D=4.2 L=25	8-94171-541-0	03	1	0805-1003			●
96	04.309 ROD; SHIFT,5TH HF V6 ENG(LCA)	8-97164-960-0	01	1	0805-	●
96	04.309 ROD; SHIFT,5TH C24SE ENG(LG1)	8-94440-079-1	01	1	0805-1003			●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG(LS0) 04.303	8-97362-439-2	01	1	0805-		●
99	04.302 ARM; SHIFT,4TH & 3RD HF V6 ENG(LCA)	8-89048-279-0	01	1	0805-	●
99	04.302 ARM; SHIFT,4TH & 3RD C24SE ENG(LG1)	8-94421-911-2	01	1	0805-1003			●
101	04.302 ARM; SHIFT,REV & 5TH HF V6 ENG(LCA)	8-97164-993-0	01	1	0805-	●
101	04.302 ARM; SHIFT,REV & 5TH C24SE ENG(LG1)	8-94448-755-2	01	1	0805-1003			●
121	04.307 PLUG; DETENT SPR HF V6 ENG(LCA) 04.105	8-97164-954-0	04	1	0805-	●
195	04.105 BOLT HF V6 ENG(LCA) (A)	8-97164-897-0	02	1	0805-	●
195	04.105 BOLT HF V6 ENG(LCA) (B)	8-97164-962-0	02	1	0805-	●
195	04.105 BOLT 4X2(TFB***) HF V6 ENG(LCA) (C)	8-89048-313-0	01	1	0805-	●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (D) M8X8.5 TAPER	8-97250-975-0	01	1	0805-		●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (E) M8X30 FLANGE	8-98034-764-0	04	1	0805-		●
234	04.311 RING; SNAP HF V6 ENG(LCA)	8-97165-075-0	01	1	0805-	●
234	04.311 RING; SNAP 4JJ1-TCX ENG(LS0) 04.307 ID=12	8-94460-357-0	04	1	0805-		●
476	04.311 PIN; SHIFT ROD HF V6 ENG(LCA)	8-97164-966-0	01	1	0805-	●
476	04.311 PIN; SHIFT ROD 4JJ1-TCX ENG(LS0) 04.303 D=4.2 L=25	8-94171-541-0	04	1	0805-		●
552	04.105 BRACKET HF V6 ENG(LCA)	8-97164-992-0	01	1	0805-	●
552	04.105 BRACKET 4JJ1-TCX ENG(LS0)	8-97362-465-1	01	1	0805-		●

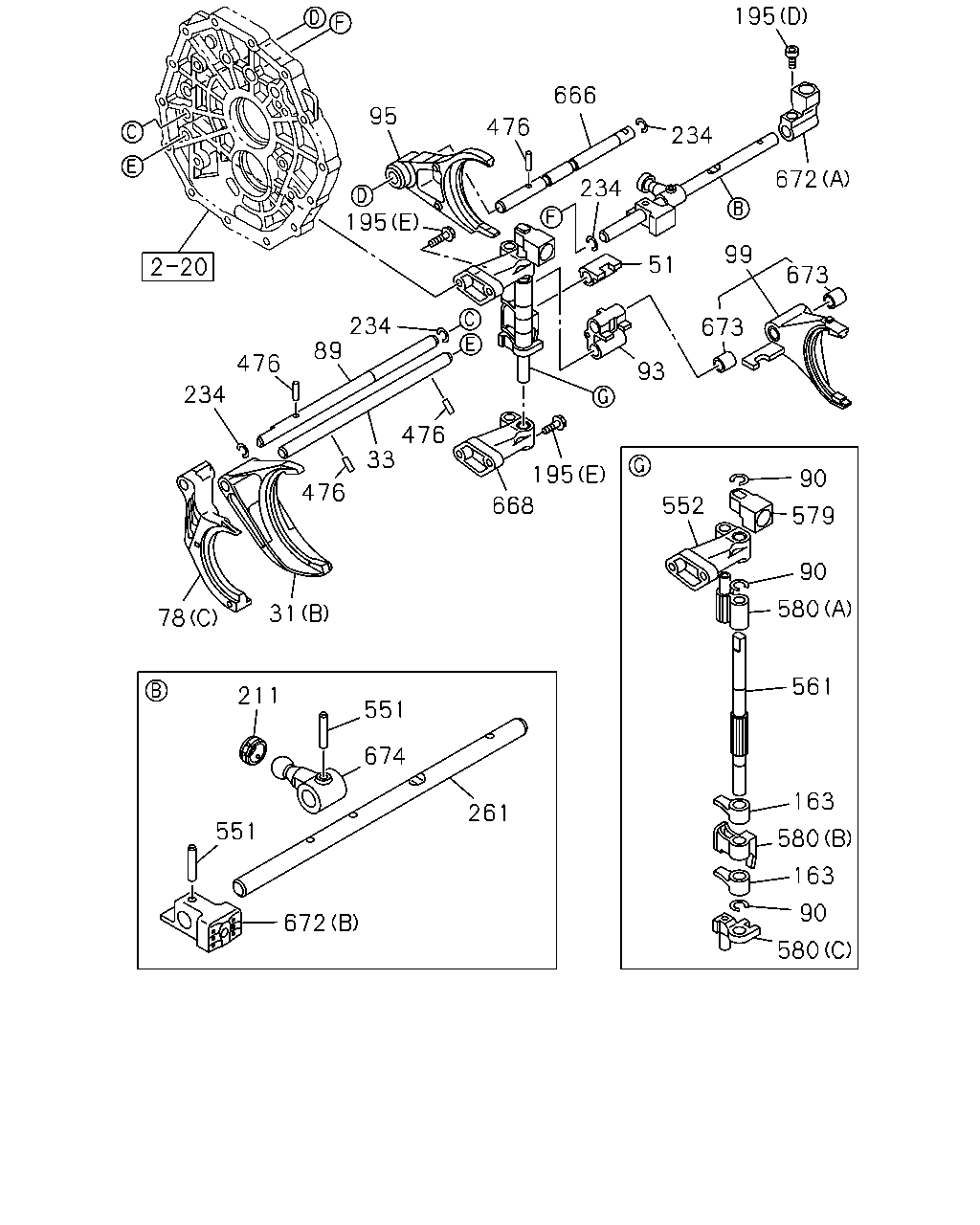

195 666 95 476 234 672 234 195 99 51 673 234 89 673 476 93 234 476 33 195 90 476 552 668 579 90 580 78 31 561 211 551 674 163 261 551 580 163 90 672 580

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	04.302 ARM; SHIFT,LOW & 2ND HF V6 ENG(LCA) (C)	8-89048-278-0	01	1	0805-	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (B)	8-97362-435-0	01	1	0805-		●
31	04.302 ARM; SHIFT,LOW & 2ND C24SE ENG(LG1) (A)	8-94421-912-2	01	1	0805-1003			●
33	04.309 ROD; SHIFT,LOW & 2ND HF V6 ENG(LCA)	8-89048-283-0	01	1	0805-	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	0805-		●
33	04.309 ROD; SHIFT,LOW & 2ND C24SE ENG(LG1)	8-97019-061-2	01	1	0805-1003			●
51	04.303 BLOCK; SHIFT,1ST & 2ND 4JJ1-TCX ENG(LS0) 04.302	8-97362-445-2	01	1	1008-1102		●
51	04.303 BLOCK; SHIFT,1ST & 2ND 4JJ1-TCX ENG(LS0) 04.302	8-98186-703-0	01	1	1103-		●
78	04.302 ARM; SHIFT,REV HF V6 ENG(LCA) (A)	8-97164-956-0	01	1	0805-	●
78	04.302 ARM; SHIFT,REV HF V6 ENG(LCA) (B)	8-97164-991-0	01	1	0805-	●
78	04.302 ARM; SHIFT,REV 4JJ1-TCX ENG(LS0) (C)	8-97362-434-1	01	1	0805-		●
89	04.309 ROD; SHIFT,REV HF V6 ENG(LCA)	8-89048-286-0	01	1	0805-	●
89	04.309 ROD; SHIFT,REV 4JJ1-TCX ENG(LS0)	8-97362-440-1	01	1	0805-		●
90	04.307 RING; SNAP,SHIFT ROD HF V6 ENG(LCA)	8-97165-074-0	04	1	0805-	●
90	04.307 RING; SNAP,SHIFT ROD 4JJ1-TCX ENG(LS0) ID=12	8-94460-357-0	03	1	0805-		●
93	04.303 BLOCK; SHIFT,REV & 5TH 4JJ1-TCX ENG(LS0) 04.302	8-98004-541-1	01	1	0805-		●
95	04.302 ARM; SHIFT,5TH 4JJ1-TCX ENG(LS0)	8-97362-436-1	01	1	0805-		●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG(LS0) 04.303	8-97362-439-2	01	1	0805-		●
99	04.302 ARM; SHIFT,4TH & 3RD HF V6 ENG(LCA)	8-89048-279-0	01	1	0805-	●
99	04.302 ARM; SHIFT,4TH & 3RD C24SE ENG(LG1)	8-94421-911-2	01	1	0805-1003			●
163	04.302 LEVER; SELECT,INTERNAL 4JJ1-TCX ENG(LS0)	8-98052-461-0	02	1	0805-		●
195	04.105 BOLT HF V6 ENG(LCA) (A)	8-97164-897-0	02	1	0805-	●
195	04.105 BOLT HF V6 ENG(LCA) (B)	8-97164-962-0	02	1	0805-	●
195	04.105 BOLT 4X2(TFB***) HF V6 ENG(LCA) (C)	8-89048-313-0	01	1	0805-	●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (D) M8X8.5 TAPER	8-97250-975-0	01	1	0805-		●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (E) M8X30 FLANGE	8-98034-764-0	04	1	0805-		●
211	04.307 SEAT; BALL 4JJ1-TCX ENG(LS0)	8-98073-812-0	01	1	0805-		●
234	04.311 RING; SNAP HF V6 ENG(LCA)	8-97165-075-0	01	1	0805-	●
234	04.311 RING; SNAP 4JJ1-TCX ENG(LS0) 04.307 ID=12	8-94460-357-0	04	1	0805-		●
261	04.309 ROD; GEAR CONT HF V6 ENG(LCA)	8-89048-251-0	01	1	0805-	●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	0805-		●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0805-1003			●
476	04.311 PIN; SHIFT ROD HF V6 ENG(LCA)	8-97164-966-0	01	1	0805-	●
476	04.311 PIN; SHIFT ROD 4JJ1-TCX ENG(LS0) 04.303 D=4.2 L=25	8-94171-541-0	04	1	0805-		●
551	04.303 PIN; SPRING HF V6 ENG(LCA)	8-97164-925-0	01	1	0805-	●
551	04.303 PIN; SPRING 4JJ1-TCX ENG(LS0) D=4.2 L=25	8-94171-541-0	02	1	0805-		●
552	04.105 BRACKET HF V6 ENG(LCA)	8-97164-992-0	01	1	0805-	●
552	04.105 BRACKET 4JJ1-TCX ENG(LS0)	8-97362-465-1	01	1	0805-		●
561	04.309 ROD; SHIFT 4JJ1-TCX ENG(LS0)	8-98052-463-0	01	1	0805-		●
579	04.303 BLOCK; SHIFT,ROD GUIDE 4JJ1-TCX ENG(LS0)	8-97362-447-2	01	1	0805-		●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (A)	8-97362-461-1	01	1	0805-		●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (C)	8-97362-463-1	01	1	0805-1102		●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (C)	8-98186-700-0	01	1	1103-		●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (B)	8-98052-462-0	01	1	0805-		●
666	04.309 ROD; GEAR SHIFT,3RD,4TH & 4TH 4JJ1-TCX ENG(LS0)	8-97362-442-2	01	1	0805-		●
668	04.309 BRACKET; SHIFT ROD 4JJ1-TCX ENG(LS0) 04.105	8-97362-465-1	01	1	0805-		●
672	04.303 BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG(LS0) (A)	8-97362-467-0	01	1	0805-		●
672	04.303 BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG(LS0) (B)	8-98083-873-0	01	1	0805-		●
673	04.309 BEARING; SHIFT ARM 4JJ1-TCX ENG(LS0) 00.683	8-97362-853-0	02	1	0805-1007		●
673	04.309 BEARING; SHIFT ARM 4JJ1-TCX ENG(LS0) 00.683	8-97362-853-0	02	1	1008-		●
674	04.302 LEVER; CONT 4JJ1-TCX ENG(LS0)	8-97362-466-0	01	1	0805-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
