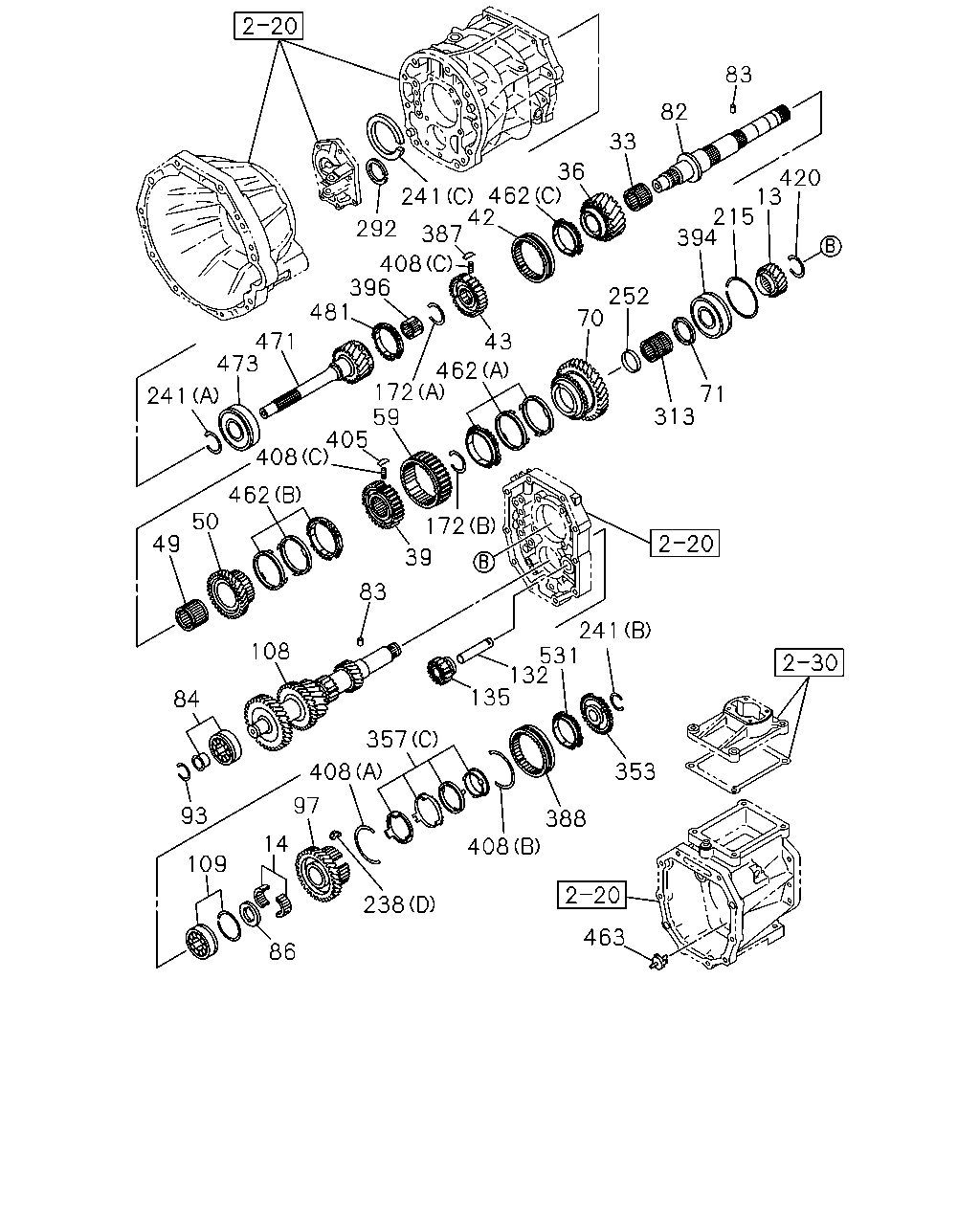

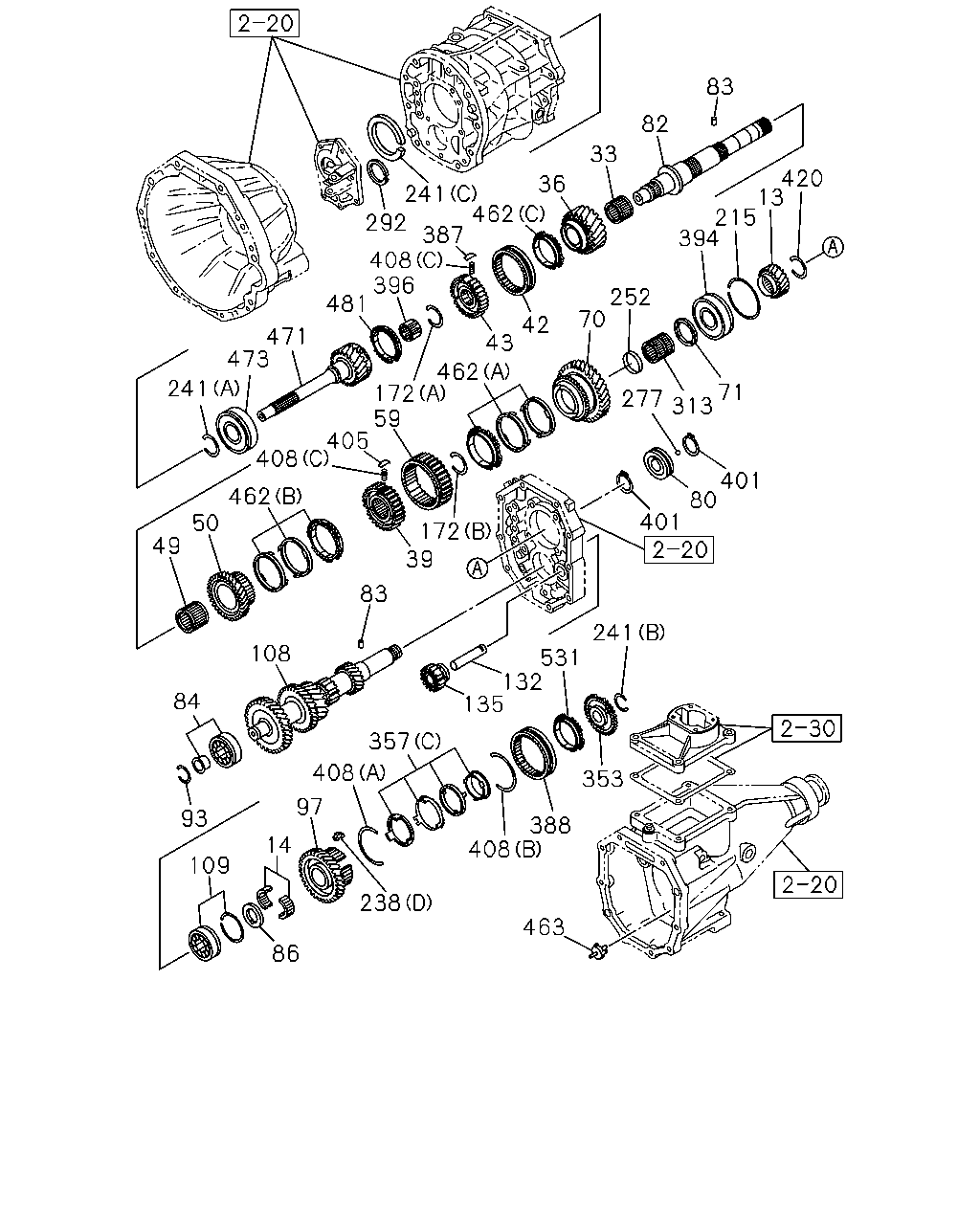

2-26A — MANUAL TRANSMISSION GEAR (#74713) — 579 parça

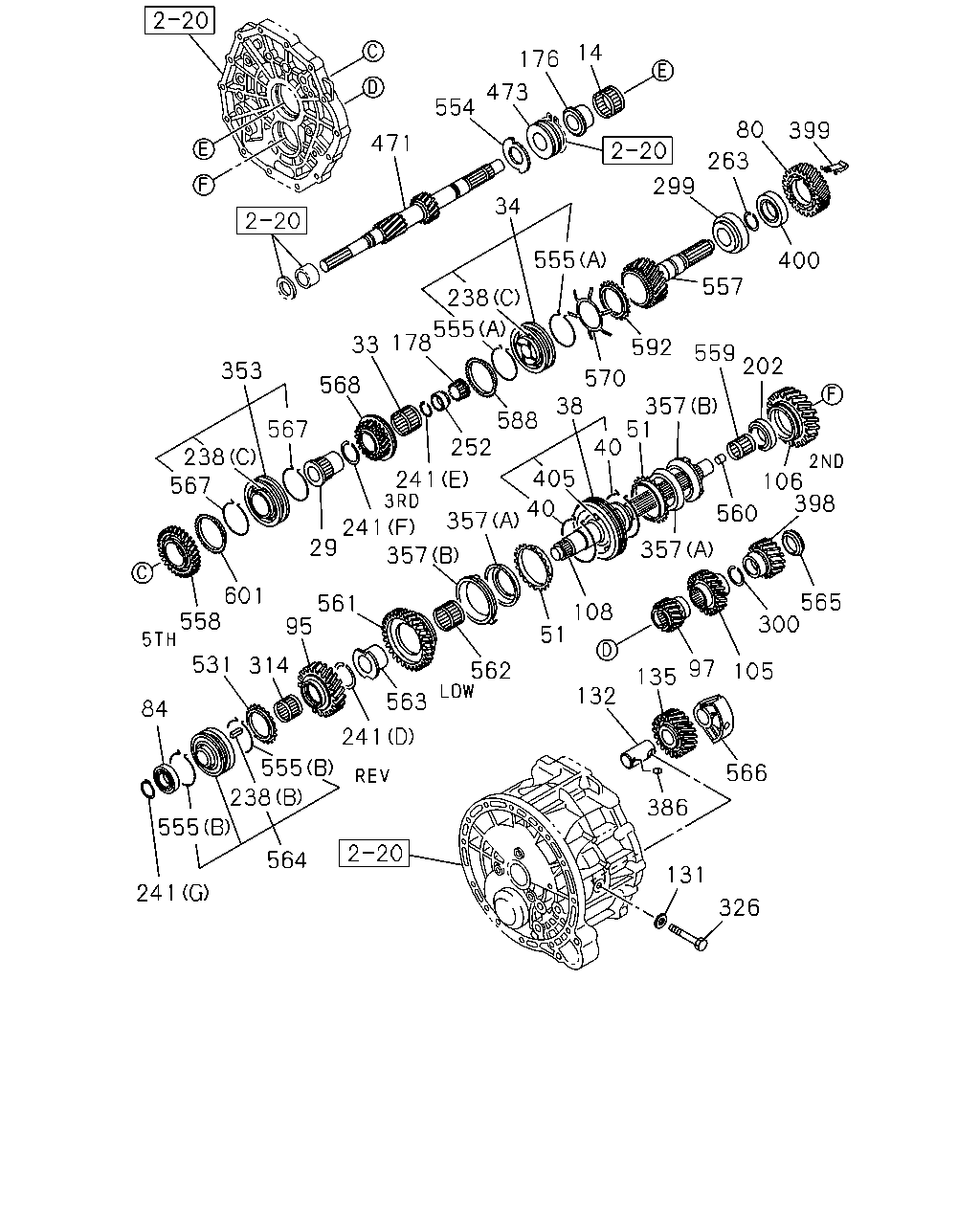

326 131 386 566 564 106 560 398 565 300 105 97 135 132 357 108 51 562 563 241 555 238 555 241 202 357 51 40 405 40 357 357 561 95 314 531 84 400 559 592 557 570 38 588 252 241 241 29 601 558 399 80 263 299 555 238 555 178 33 568 567 353 238 567 34 14 176 473 554 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	04.419 BEARING; NEEDLE,5TH HF V6 ENG(LCA)	8-97165-013-0	01	1	0805-	●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	0805-		●
14	04.419 BEARING; NEEDLE,5TH C24SE ENG(LG1) NSK	8-97029-341-0	01	1	0805-1003			●
29	04.416 COLLAR; 3RD GEAR 4JJ1-TCX ENG(LS0)	8-97362-568-1	01	1	0805-		●
33	04.352 BEARING; NEEDLE,3RD GEAR HF V6 ENG(LCA)	8-97165-014-0	01	1	0805-	●
33	04.352 BEARING; NEEDLE,3RD GEAR C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	0805-1003		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	1004-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD 4JJ1-TCX ENG(LS0)	8-97362-474-3	01	1	0805-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD C24SE ENG(LG1)	8-97104-027-0	01	1	0805-1003			●
38	04.384 SYNCHRONIZER; LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-503-1	01	1	0805-		●
38	04.384 SYNCHRONIZER; LOW & 2ND C24SE ENG(LG1)	8-94363-059-1	01	1	0805-1003			●
40	04.384 SPRING; INSERT,LOW & 2ND C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94448-045-0	02	1	0805-1003		●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94448-045-0	02	1	1004-		●
51	04.383 RING; BLOCK,LOW & 2ND C24SE ENG(LG1),4JJ1-TCX ENG(LS0) Z=48	8-94363-054-1	02	1	0805-1003		●	●
51	04.383 RING; BLOCK,LOW & 2ND 4JJ1-TCX ENG(LS0) Z=48	8-94363-054-1	02	1	1004-1104		●
51	04.383 RING; BLOCK,LOW & 2ND 4JJ1-TCX ENG(LS0) Z=36	8-98115-804-0	02	1	1105-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) HF V6 ENG(LCA)	8-89048-422-0	01	1	0805-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=7	8-98004-532-0	01	1	0805-		●
80	04.343 GEAR; SPD DRIVE C24SE ENG(LG1) Z=5	8-94472-606-1	01	1	0805-1003			●
84	04.422 BEARING; COUNTER SHAFT,FRT HF V6 ENG(LCA)	8-97165-017-0	01	1	0805-	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JJ1-TCX ENG(LS0)	8-97362-724-0	01	1	0805-		●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-97362-499-0	01	1	0805-1204		●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-98210-237-0	01	1	1205-		●
95	04.417 GEAR; REV,COUNTER C24SE ENG(LG1) Z=19	8-94377-433-0	01	1	0805-1003			●
97	04.415 GEAR; 5TH,COUNTER HF V6 ENG(LCA)	8-89059-406-0	01	1	0805-	●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	0805-		●
97	04.415 GEAR; 5TH,COUNTER C24SE ENG(LG1) Z=50	8-94377-434-0	01	1	0805-1003			●
105	04.415 GEAR; 3RD,COUNTER 4JJ1-TCX ENG(LS0) Z=31	8-98023-109-0	01	1	0805-1302		●
105	04.415 GEAR; 3RD,COUNTER 4JJ1-TCX ENG(LS0) Z=31	8-98233-612-0	01	1	1303-		●
106	04.395 GEAR; 2ND,COUNTER 4JJ1-TCX ENG(LS0) Z=38	8-97362-505-0	01	1	0805-1204		●
106	04.395 GEAR; 2ND,COUNTER 4JJ1-TCX ENG(LS0) Z=38	8-98210-236-0	01	1	1205-		●
108	04.428 SHAFT; COUNTER HF V6 ENG(LCA)	8-98025-407-0	01	1	0805-	●
108	04.428 SHAFT; COUNTER 4JJ1-TCX ENG(LS0) Z=26-34-26-26	8-98023-108-1	01	1	0805-		●
131	04.435 GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) 08.955 ID=12.2	9-09571-412-0	01	1	0805-		●
132	04.433 SHAFT; REV HF V6 ENG(LCA)	8-97165-006-0	01	1	0805-	●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	0805-		●
132	04.433 SHAFT; REV C24SE ENG(LG1)	8-97019-155-1	01	1	0805-1003			●
135	04.430 GEAR; REV IDLER HF V6 ENG(LCA)	8-89048-411-0	01	1	0805-	●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-97362-513-1	01	1	0805-1302		●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-98233-615-0	01	1	1303-		●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98082-803-0	01	1	0805-0809			●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98080-125-0	01	1	0810-1003			●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98146-726-0	01	1	1004-1004			●
176	04.415 COLLAR; 5TH GEAR 4JJ1-TCX ENG(LS0)	8-97362-567-0	01	1	0805-		●
178	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCX ENG(LS0)	8-97362-869-0	01	1	0805-		●
202	04.422 BEARING; COUNTER GEAR 4JJ1-TCX ENG(LS0)	8-97362-725-0	01	1	0805-		●
238	04.384 INSERT HF V6 ENG(LCA) (D)	8-89059-399-0	02	1	0805-	●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (B)	8-94249-576-2	03	1	0805-		●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (C)	8-98004-522-0	06	1	0805-		●
238	04.384 INSERT C24SE ENG(LG1) (A)	8-94448-202-2	03	1	0805-1003			●
241	04.416 RING; SNAP HF V6 ENG(LCA) (A)	8-89048-120-0	01	1	0805-	●
241	04.416 RING; SNAP HF V6 ENG(LCA) (B)	8-89048-574-0	01	1	0805-	●
241	04.416 RING; SNAP HF V6 ENG(LCA) (C)	8-97165-073-0	01	1	0805-	●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) 04.422 (D) ID=34.4 T=1.9	8-97254-735-0	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=1.9	8-97362-871-0	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=2.1	8-97362-872-0	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=2.3	8-97362-873-0	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (F) ID=37 T=1.95	8-98004-523-1	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (F) ID=37 T=2.1	8-98004-524-1	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (G) ID=27.9	9-09180-030-0	01	1	0805-		●
252	04.412 SPACER HF V6 ENG(LCA)	8-97164-973-0	01	1	0805-	●
252	04.412 SPACER 4JJ1-TCX ENG(LS0)	8-98024-456-0	01	1	0805-		●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.1	8-98004-525-0	01	1	0805-		●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.2	8-98004-526-0	01	1	0805-		●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.3	8-98004-527-0	01	1	0805-		●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.4	8-98004-528-0	01	1	0805-		●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.5	8-98004-529-0	01	1	0805-		●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.6	8-98004-530-0	01	1	0805-		●
299	04.422 BEARING; OUTPUT SHAFT FRT 4JJ1-TCX ENG(LS0)	8-97362-722-0	01	1	0805-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCX ENG(LS0) ID=29 T=2.3	8-98024-222-1	01	1	0805-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCX ENG(LS0) ID=29 T=2.5	8-98024-223-1	01	1	0805-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCX ENG(LS0) ID=29 T=2.7	8-98024-224-1	01	1	0805-		●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCX ENG(LS0) NSK	8-97362-719-0	01	1	0805-		●
314	04.419 BEARING; NEEDLE,REV GEAR C24SE ENG(LG1) NSK	8-94422-064-0	01	1	0805-1003			●
314	04.419 BEARING; NEEDLE,REV GEAR C24SE ENG(LG1) JTEKT	8-94422-065-1	01	1	0805-1003			●
326	04.412 BOLT; REV SHAFT 4JJ1-TCX ENG(LS0) 04.439 M12X70	9-92621-270-0	01	1	0805-		●
353	04.380 SYNCHRONIZER; 5TH HF V6 ENG(LCA)	8-89059-403-0	01	1	0805-	●
353	04.380 SYNCHRONIZER; 5TH 4JJ1-TCX ENG(LS0)	8-98004-511-1	01	1	0805-		●
357	04.383 RING HF V6 ENG(LCA) (C)	8-89059-402-0	01	1	0805-	●
357	04.383 RING 4JJ1-TCX ENG(LS0) (A) OD=90.0	8-94363-055-1	02	1	0805-1104		●
357	04.383 RING 4JJ1-TCX ENG(LS0) (A) OD=90.0	8-98115-793-0	02	1	1105-		●
357	04.383 RING 4JJ1-TCX ENG(LS0) (B) OD=95.8	8-94363-056-0	02	1	0805-		●
386	04.435 PIN; REV SHAFT 4JJ1-TCX ENG(LS0) 00.662 OD=4 L=8	9-08160-408-0	01	1	0805-		●
386	04.435 PIN; REV SHAFT C24SE ENG(LG1) OD=6 L=40	9-08150-640-0	01	1	0805-1003			●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98079-114-0	01	1	0805-1204		●
398	04.421 GEAR; COUNTER 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=26	8-98079-114-0	01	1	1205-1205		●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98079-114-0	01	1	1206-		●
398	04.421 GEAR; COUNTER C24SE ENG(LG1) Z=46-38-25-19	8-97104-161-1	01	1	0805-1003			●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***) C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94310-229-0	01	1	0805-1003		●	●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-94310-229-0	01	1	1004-		●
400	04.408 BEARING; OUTPUT SHAFT RR 4JJ1-TCX ENG(LS0)	8-97362-723-0	01	1	0805-		●
405	04.384 INSERT; SYN,LOW & 2ND HF V6 ENG(LCA)	8-97165-000-0	03	1	0805-	●
405	04.384 INSERT; SYN,LOW & 2ND C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	0805-1003		●	●
405	04.384 INSERT; SYN,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	1004-		●
471	04.530 SHAFT; INPUT HF V6 ENG(LCA)	8-98025-406-0	01	1	0805-	●
471	04.530 SHAFT; INPUT 4JJ1-TCX ENG(LS0)	8-98049-345-1	01	1	0805-		●
473	04.352 BEARING; INPUT SHAFT HF V6 ENG(LCA) 04.403	8-97164-976-0	01	1	0805-	●
473	04.352 BEARING; INPUT SHAFT 4JJ1-TCX ENG(LS0)	8-97362-721-1	01	1	0805-		●
531	04.383 RING; BLOCK,REV HF V6 ENG(LCA)	8-89059-398-0	01	1	0805-	●
531	04.383 RING; BLOCK,REV 4JJ1-TCX ENG(LS0) OD=74	8-98037-846-0	01	1	0805-		●
554	04.422 IMPELLER; OIL 4JJ1-TCX ENG(LS0)	8-97362-730-0	01	1	0805-		●
555	04.384 SPRING; INSERT 4JJ1-TCX ENG(LS0) (A)	5-33264-012-0	02	1	0805-		●
555	04.384 SPRING; INSERT 4JJ1-TCX ENG(LS0) (B)	8-97109-690-0	02	1	0805-		●
557	04.535 GEAR; OUTPUT 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=35-27	8-98210-259-0	01	1	1206-		●
557	04.535 GEAR; OUTPUT 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=35-27	8-98079-113-0	01	1	0805-1205		●
557	04.535 GEAR; OUTPUT 4X4(TFS***) 4JJ1-TCX ENG(LS0) Z=35-27	8-98079-111-0	01	1	0805-1205		●
557	04.535 GEAR; OUTPUT 4X4(TFS***) 4JJ1-TCX ENG(LS0) Z=35-27	8-98210-258-0	01	1	1206-		●
558	04.415 GEAR; 5TH,INPUT SHAFT 4JJ1-TCX ENG(LS0) Z=46	8-98040-112-0	01	1	0805-1205		●
558	04.415 GEAR; 5TH,INPUT SHAFT 4JJ1-TCX ENG(LS0) Z=46	8-98210-234-0	01	1	1206-1302		●
558	04.415 GEAR; 5TH,INPUT SHAFT 4JJ1-TCX ENG(LS0) Z=46	8-98233-610-0	01	1	1303-		●
559	04.352 BEARING; NEEDLE,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-727-0	01	1	0805-		●
560	04.416 RING; DUM 4JJ1-TCX ENG(LS0)	8-97078-729-1	01	1	0805-		●
561	04.395 GEAR; LOW,COUNTER 4JJ1-TCX ENG(LS0) Z=45	8-97362-501-0	01	1	0805-1204		●
561	04.395 GEAR; LOW,COUNTER 4JJ1-TCX ENG(LS0) Z=45	8-98210-235-0	01	1	1205-		●
562	04.422 BEARING; NEEDLE,LOW & 2ND 4JJ1-TCX ENG(LS0) 04.352	8-97362-727-0	01	1	0805-		●
563	04.419 COLLAR; 1ST GEAR 4JJ1-TCX ENG(LS0)	8-97362-569-1	01	1	0805-		●
564	04.380 SYNCHRONIZER; REV 4JJ1-TCX ENG(LS0)	8-97362-496-1	01	1	0805-		●
565	04.338 SEAL; RUBBER 4JJ1-TCX ENG(LS0)	8-98024-457-0	01	1	0805-0910		●
566	04.342 BRACKET; REV IDLER 4JJ1-TCX ENG(LS0)	8-97362-516-0	01	1	0805-		●
567	04.384 SPRING; INSERT,5TH 4JJ1-TCX ENG(LS0)	5-33264-012-0	02	1	0805-		●
568	04.415 GEAR; 3RD,INPUT SHAFT 4JJ1-TCX ENG(LS0) Z=28	8-97362-480-0	01	1	0805-1205		●
568	04.415 GEAR; 3RD,INPUT SHAFT 4JJ1-TCX ENG(LS0) Z=28	8-98210-233-0	01	1	1206-1302		●
568	04.415 GEAR; 3RD,INPUT SHAFT 4JJ1-TCX ENG(LS0) Z=28	8-98233-608-0	01	1	1303-		●
570	04.422 SPRING; PLATE 4JJ1-TCX ENG(LS0)	8-98072-467-2	01	1	0805-		●
588	04.383 RING; BLOCK,3RD 4JJ1-TCX ENG(LS0) Z=36	8-98052-559-0	01	1	0805-		●
592	04.383 RING; BLOCK,4TH 4JJ1-TCX ENG(LS0)	8-98197-460-0	01	1	0805-		●
601	04.383 RING; BLOCK,5TH 4JJ1-TCX ENG(LS0)	8-98283-241-0	01	1	0805-		●

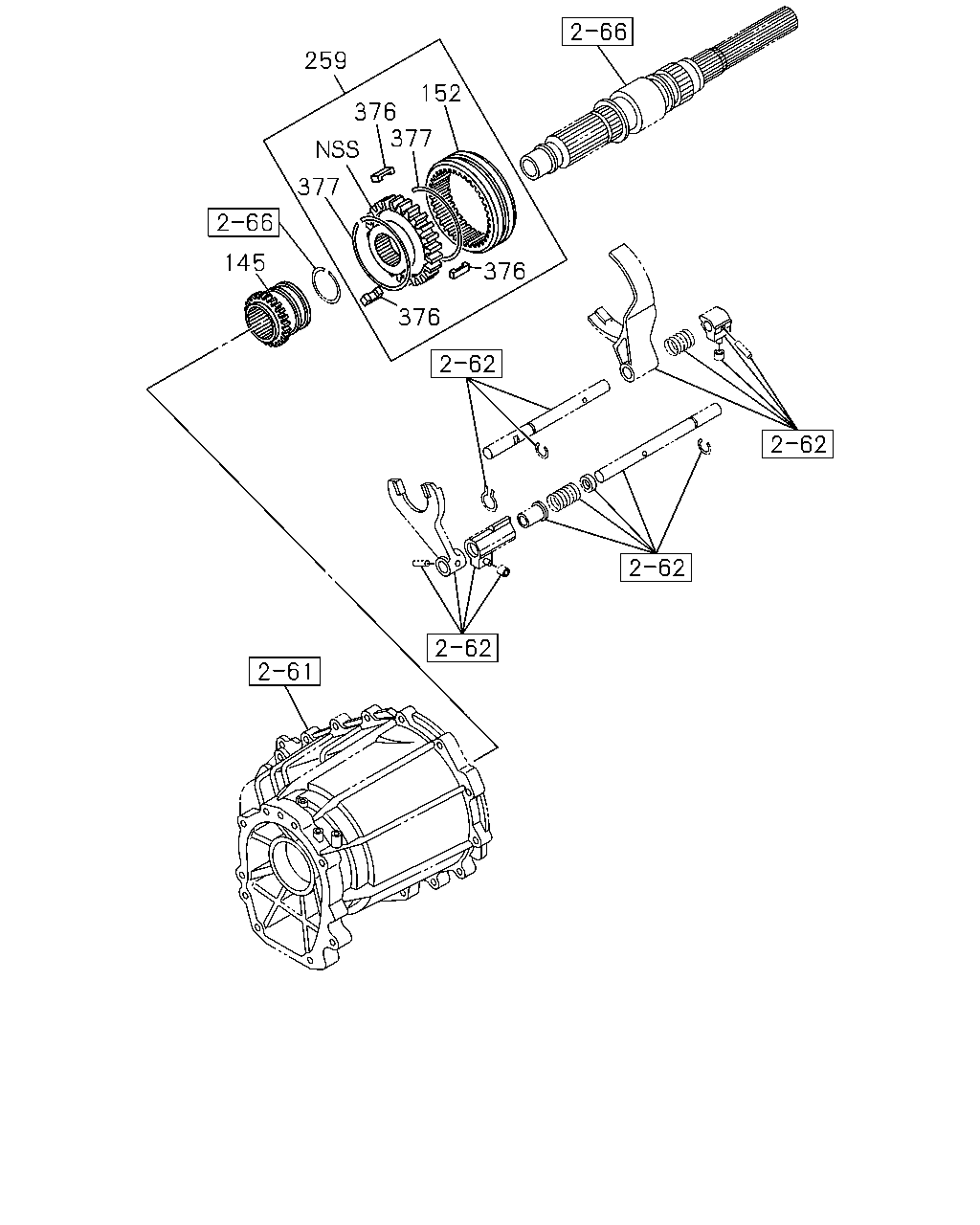

259 152 376 377 377 145 376 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0)	8-97358-245-0	01	1	0805-1109	●	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0)	8-98063-369-1	01	1	1110-	●	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0)	8-94363-060-0	01	1	0805-	●	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0)	8-97234-225-0	01	1	0805-	●	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0)	8-97238-590-0	03	1	0805-	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0)	8-94448-045-0	02	1	0805-	●	●

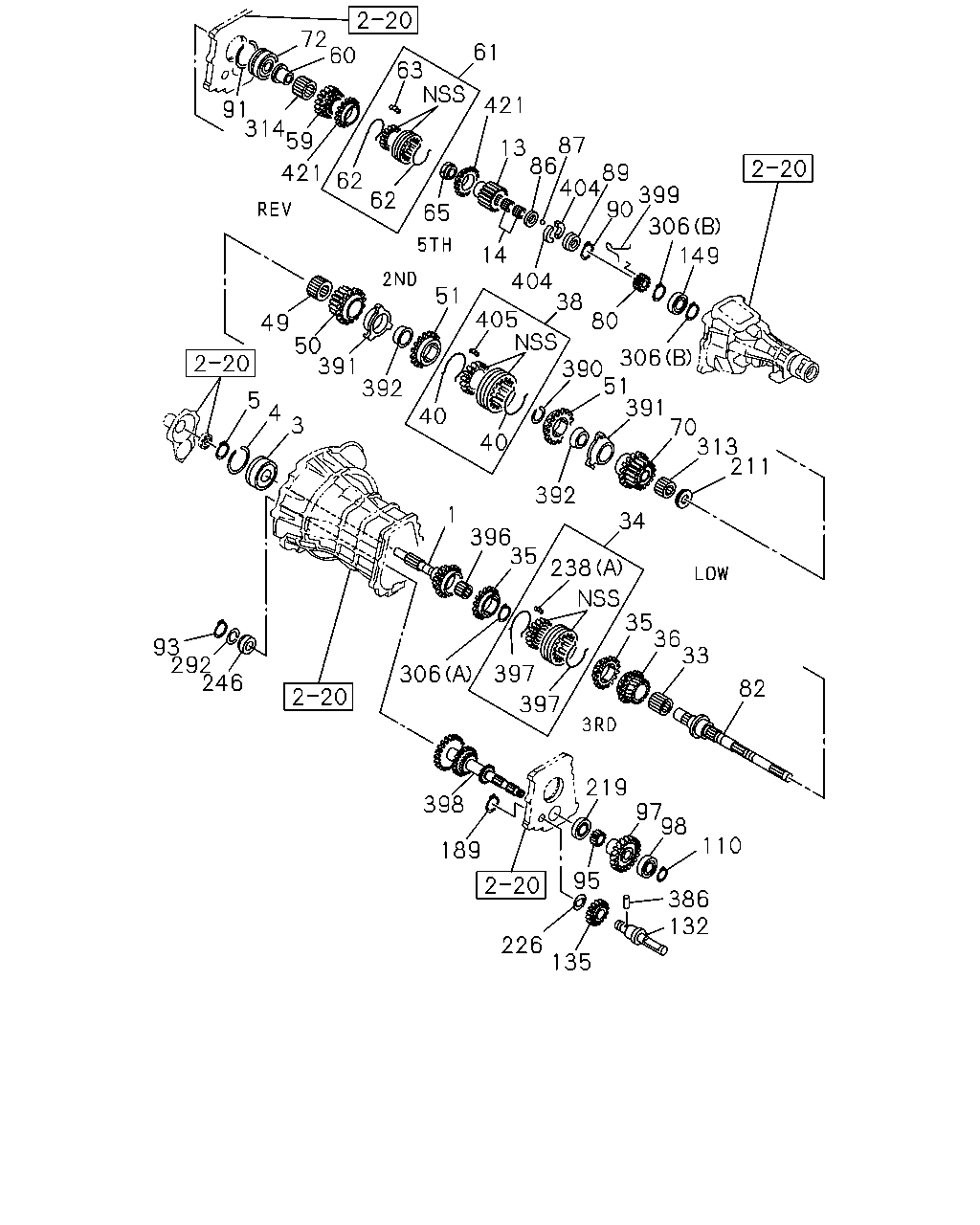

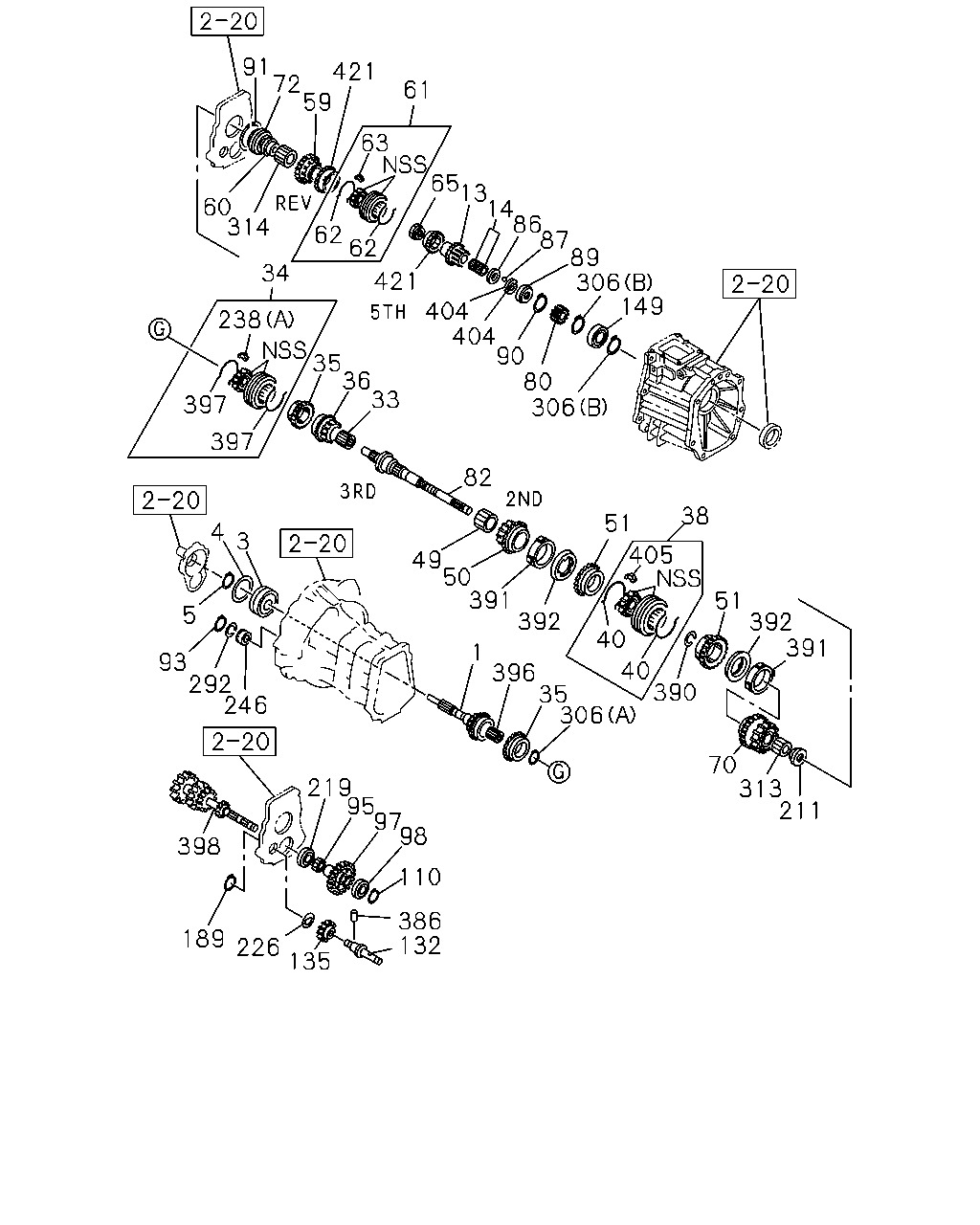

91 72 59 421 61 63 65 13 4 86 87 89 306 149 60 314 62 62 34 421 404 404 90 80 306 238 35 36 33 397 397 82 38 51 4 3 405 49 50 391 392 51 5 392 391 40 1 93 292 246 40 390 396 35 306 70 313 211 219 95 97 98 398 110 386 132 135 189 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS C24SE ENG(LG1) Z=25	8-97182-214-1	01	1	0805-1003			●
3	04.403 BEARING; TOP GEAR SHAFT C24SE ENG(LG1) NSK	8-94380-015-1	01	1	0805-1003			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT C24SE ENG(LG1) NSK	8-94422-083-0	01	1	0805-1003			●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT C24SE ENG(LG1) 04.525 ID=37.4	8-97254-316-0	01	1	0805-1003			●
13	04.415 GEAR; 5TH,MAINSHAFT HF V6 ENG(LCA)	8-89048-410-0	01	1	0805-	●
13	04.415 GEAR; 5TH,MAINSHAFT C24SE ENG(LG1) Z=22	8-97104-023-2	01	1	0805-1003			●
33	04.352 BEARING; NEEDLE,3RD GEAR HF V6 ENG(LCA)	8-97165-014-0	01	1	0805-	●
33	04.352 BEARING; NEEDLE,3RD GEAR C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	0805-1003		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	1004-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD 4JJ1-TCX ENG(LS0)	8-97362-474-3	01	1	0805-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD C24SE ENG(LG1)	8-97104-027-0	01	1	0805-1003			●
35	04.383 RING; BLOCK,4TH & 3RD C24SE ENG(LG1) Z=45	8-94151-510-3	02	1	0805-1003			●
36	04.415 GEAR; 3RD,MAINSHAFT HF V6 ENG(LCA)	8-98025-405-0	01	1	0805-	●
36	04.415 GEAR; 3RD,MAINSHAFT C24SE ENG(LG1) Z=31	8-97104-021-2	01	1	0805-1003			●
38	04.384 SYNCHRONIZER; LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-503-1	01	1	0805-		●
38	04.384 SYNCHRONIZER; LOW & 2ND C24SE ENG(LG1)	8-94363-059-1	01	1	0805-1003			●
40	04.384 SPRING; INSERT,LOW & 2ND C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94448-045-0	02	1	0805-1003		●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94448-045-0	02	1	1004-		●
49	04.352 BEARING; NEEDLE,2ND GEAR HF V6 ENG(LCA)	8-97165-016-0	01	1	0805-	●
49	04.352 BEARING; NEEDLE,2ND GEAR C24SE ENG(LG1) JTEKT	9-00096-625-0	01	1	0805-1003			●
50	04.395 GEAR; 2ND,MAINSHAFT HF V6 ENG(LCA)	8-89048-406-0	01	1	0805-	●
50	04.395 GEAR; 2ND,MAINSHAFT C24SE ENG(LG1) Z=34	8-97300-953-1	01	1	0805-1003			●
51	04.383 RING; BLOCK,LOW & 2ND C24SE ENG(LG1),4JJ1-TCX ENG(LS0) Z=48	8-94363-054-1	02	1	0805-1003		●	●
51	04.383 RING; BLOCK,LOW & 2ND 4JJ1-TCX ENG(LS0) Z=48	8-94363-054-1	02	1	1004-1104		●
51	04.383 RING; BLOCK,LOW & 2ND 4JJ1-TCX ENG(LS0) Z=36	8-98115-804-0	02	1	1105-		●
59	04.417 GEAR; REV MAINSHAFT HF V6 ENG(LCA)	8-89048-409-0	01	1	0805-	●
59	04.417 GEAR; REV MAINSHAFT C24SE ENG(LG1) Z=41	8-97104-025-2	01	1	0805-1003			●
60	04.419 COLLAR; REV MAIN C24SE ENG(LG1)	8-97031-079-0	01	1	0805-1003			●
61	04.380 SYNCHRONIZER; REV & 5TH C24SE ENG(LG1)	8-97030-106-1	01	1	0805-1003			●
62	04.384 SPRING; INSERT,REV & 5TH C24SE ENG(LG1)	5-33264-012-0	02	1	0805-1003			●
63	04.384 INSERT; SYN,REV & 5TH C24SE ENG(LG1)	5-33263-001-0	03	1	0805-1003			●
65	04.356 NUT; MAINSHAFT C24SE ENG(LG1) M34	8-94422-071-1	01	1	0805-1003			●
70	04.417 GEAR; 1ST,MAINSHAFT HF V6 ENG(LCA)	8-89048-405-0	01	1	0805-	●
70	04.417 GEAR; 1ST,MAINSHAFT C24SE ENG(LG1) Z=45	8-97300-952-1	01	1	0805-1003			●
72	04.352 BEARING; BALL,MAINSHAFT C24SE ENG(LG1) NSK	8-94380-017-1	01	1	0805-1003			●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) HF V6 ENG(LCA)	8-89048-422-0	01	1	0805-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=7	8-98004-532-0	01	1	0805-		●
80	04.343 GEAR; SPD DRIVE C24SE ENG(LG1) Z=5	8-94472-606-1	01	1	0805-1003			●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) HF V6 ENG(LCA)	8-89048-331-0	01	1	0805-	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) HF V6 ENG(LCA)	8-89048-332-0	01	1	0805-	●
82	04.403 SHAFT; MAIN,TRANS C24SE ENG(LG1) Z=28-34-26-27	8-97300-981-0	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH HF V6 ENG(LCA)	8-89048-333-0	01	1	0805-	●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=7.90 WHITE	8-94422-110-2	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=8.00 YELLOW	8-94422-111-2	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=8.10 GREEN	8-94422-112-2	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=8.20 BLUE	8-94422-113-2	01	1	0805-1003			●
87	04.416 BALL; THRUST WASHER C24SE ENG(LG1)	8-94201-356-0	01	1	0805-1003			●
89	04.416 RING; RET,THRUST RING C24SE ENG(LG1) ID=31.8	8-94422-395-0	01	1	0805-1003			●
90	04.416 RING; SNAP,THRUST RING C24SE ENG(LG1) 04.422 ID=29.6	9-09180-032-0	01	1	0805-1003			●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT C24SE ENG(LG1) ID=76.2	8-94322-411-0	01	1	0805-1003			●
93	04.422 RING; SNAP,COUNTER FRT BRG HF V6 ENG(LCA)	8-89048-575-0	01	1	0805-	●
93	04.422 RING; SNAP,COUNTER FRT BRG C24SE ENG(LG1) 08.934 ID=23.2	9-09180-025-0	01	1	0805-1003			●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-97362-499-0	01	1	0805-1204		●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-98210-237-0	01	1	1205-		●
95	04.417 GEAR; REV,COUNTER C24SE ENG(LG1) Z=19	8-94377-433-0	01	1	0805-1003			●
97	04.415 GEAR; 5TH,COUNTER HF V6 ENG(LCA)	8-89059-406-0	01	1	0805-	●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	0805-		●
97	04.415 GEAR; 5TH,COUNTER C24SE ENG(LG1) Z=50	8-94377-434-0	01	1	0805-1003			●
98	04.422 BEARING; BALL,COUNTER END C24SE ENG(LG1) NSK	8-97018-535-1	01	1	0805-1003			●
110	04.422 RING; SNAP,COUNTER BRG C24SE ENG(LG1) T=1.10 WHITE	8-94422-103-0	01	1	0805-1003			●
110	04.422 RING; SNAP,COUNTER BRG C24SE ENG(LG1) T=1.20 YELLOW	8-94422-104-0	01	1	0805-1003			●
110	04.422 RING; SNAP,COUNTER BRG C24SE ENG(LG1) T=1.30 BLUE	8-94422-105-0	01	1	0805-1003			●
110	04.422 RING; SNAP,COUNTER BRG C24SE ENG(LG1) T=1.40 PINK	8-94422-106-0	01	1	0805-1003			●
110	04.422 RING; SNAP,COUNTER BRG C24SE ENG(LG1) T=1.50 GREEN	8-94422-107-0	01	1	0805-1003			●
110	04.422 RING; SNAP,COUNTER BRG C24SE ENG(LG1) T=1.60 BROWN	8-94422-108-0	01	1	0805-1003			●
132	04.433 SHAFT; REV HF V6 ENG(LCA)	8-97165-006-0	01	1	0805-	●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	0805-		●
132	04.433 SHAFT; REV C24SE ENG(LG1)	8-97019-155-1	01	1	0805-1003			●
135	04.430 GEAR; REV IDLER HF V6 ENG(LCA)	8-89048-411-0	01	1	0805-	●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-97362-513-1	01	1	0805-1302		●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-98233-615-0	01	1	1303-		●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98082-803-0	01	1	0805-0809			●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98080-125-0	01	1	0810-1003			●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98146-726-0	01	1	1004-1004			●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR C24SE ENG(LG1) 04.422 NSK	8-94173-863-0	01	1	0805-1003			●
189	04.435 RING; SNAP,REV,GEAR C24SE ENG(LG1) T=1.20 WHITE	8-94422-100-0	01	1	0805-1003			●
189	04.435 RING; SNAP,REV,GEAR C24SE ENG(LG1) T=1.30 YELLOW	8-94422-101-0	01	1	0805-1003			●
189	04.435 RING; SNAP,REV,GEAR C24SE ENG(LG1) T=1.40 BLUE	8-94422-102-0	01	1	0805-1003			●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR C24SE ENG(LG1) NSK	8-94148-935-0	01	1	0805-1003			●
219	04.422 BEARING; BALL,CLUSTER,RR C24SE ENG(LG1) NSK	8-94436-929-0	01	1	0805-1003			●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER C24SE ENG(LG1) ID=30.0	8-94223-069-1	01	1	0805-1003			●
238	04.384 INSERT HF V6 ENG(LCA) (D)	8-89059-399-0	02	1	0805-	●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (B)	8-94249-576-2	03	1	0805-		●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (C)	8-98004-522-0	06	1	0805-		●
238	04.384 INSERT C24SE ENG(LG1) (A)	8-94448-202-2	03	1	0805-1003			●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR C24SE ENG(LG1) NSK	8-97029-600-4	01	1	0805-1003			●
292	04.422 RING; SNAP,BRG OUTER HF V6 ENG(LCA)	8-97165-071-0	01	1	0805-	●
292	04.422 RING; SNAP,BRG OUTER C24SE ENG(LG1) NSK	8-94422-081-0	01	1	0805-1003			●
306	04.416 RING; SNAP,MAINSHAFT C24SE ENG(LG1) (A) T=1.90 BLUE	8-97129-615-0	01	1	0805-1003			●
306	04.416 RING; SNAP,MAINSHAFT C24SE ENG(LG1) (A) T=1.85 YELLOW	8-97129-616-0	01	1	0805-1003			●
306	04.416 RING; SNAP,MAINSHAFT C24SE ENG(LG1) (A) T=1.80 WHITE	8-97129-617-0	01	1	0805-1003			●
306	04.416 RING; SNAP,MAINSHAFT C24SE ENG(LG1) (B) ID=27.9	9-09180-030-0	02	1	0805-1003			●
313	04.419 BEARING; NEEDLE,LOW GEAR HF V6 ENG(LCA)	8-97165-015-0	01	1	0805-	●
313	04.419 BEARING; NEEDLE,LOW GEAR C24SE ENG(LG1) NSK	1-09811-028-1	01	1	0805-1003			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCX ENG(LS0) NSK	8-97362-719-0	01	1	0805-		●
314	04.419 BEARING; NEEDLE,REV GEAR C24SE ENG(LG1) NSK	8-94422-064-0	01	1	0805-1003			●
314	04.419 BEARING; NEEDLE,REV GEAR C24SE ENG(LG1) JTEKT	8-94422-065-1	01	1	0805-1003			●
386	04.435 PIN; REV SHAFT 4JJ1-TCX ENG(LS0) 00.662 OD=4 L=8	9-08160-408-0	01	1	0805-		●
386	04.435 PIN; REV SHAFT C24SE ENG(LG1) OD=6 L=40	9-08150-640-0	01	1	0805-1003			●
390	04.383 RING; SNAP,CLU HUB C24SE ENG(LG1) T=1.80 WHITE	8-94422-088-2	01	1	0805-1003			●
390	04.383 RING; SNAP,CLU HUB C24SE ENG(LG1) T=1.85 YELLOW	8-94422-089-1	01	1	0805-1003			●
390	04.383 RING; SNAP,CLU HUB C24SE ENG(LG1) T=1.90 BLUE	8-94422-090-2	01	1	0805-1003			●
391	04.383 RING; INSIDE,SYN C24SE ENG(LG1) OD=95.8	8-94363-056-0	02	1	0805-1003			●
392	04.383 RING; OUTSIDE,SYN C24SE ENG(LG1) OD=90.0	8-94363-055-1	02	1	0805-1003			●
396	04.352 BEARING; NEEDLE,MAINSHAFT HF V6 ENG(LCA)	8-97165-012-0	01	1	0805-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT C24SE ENG(LG1) NSK	8-94422-068-1	01	1	0805-1003			●
397	04.384 SPRING; INSERT,4TH & 3RD C24SE ENG(LG1)	8-94422-075-0	02	1	0805-1003			●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98079-114-0	01	1	0805-1204		●
398	04.421 GEAR; COUNTER 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=26	8-98079-114-0	01	1	1205-1205		●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98079-114-0	01	1	1206-		●
398	04.421 GEAR; COUNTER C24SE ENG(LG1) Z=46-38-25-19	8-97104-161-1	01	1	0805-1003			●
404	04.307 PLATE; THRUST C24SE ENG(LG1)	8-94421-892-0	02	1	0805-1003			●
405	04.384 INSERT; SYN,LOW & 2ND HF V6 ENG(LCA)	8-97165-000-0	03	1	0805-	●
405	04.384 INSERT; SYN,LOW & 2ND C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	0805-1003		●	●
405	04.384 INSERT; SYN,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	1004-		●
421	04.383 RING; BLOCK,REV & 5TH C24SE ENG(LG1) Z=36	8-97071-688-0	02	1	0805-1003			●

72 60 61 63 421 91 314 59 13 87 86 89 404 399 90 421 62 62 65 306 14 404 38 80 149 51 405 306 390 51 391 70 313 211 49 50 391 392 5 4 3 40 40 392 1 34 396 35 238 35 36 33 93 292 246 397 306 82 397 219 97 98 398 110 189 95 386 132 226 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS C24SE ENG(LG1) Z=25	8-97182-214-1	01	1	0805-1003			●
3	04.403 BEARING; TOP GEAR SHAFT C24SE ENG(LG1) NSK	8-94380-015-1	01	1	0805-1003			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT C24SE ENG(LG1) NSK	8-94422-083-0	01	1	0805-1003			●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT C24SE ENG(LG1) 04.525 ID=37.4	8-97254-316-0	01	1	0805-1003			●
13	04.415 GEAR; 5TH,MAINSHAFT HF V6 ENG(LCA)	8-89048-410-0	01	1	0805-	●
13	04.415 GEAR; 5TH,MAINSHAFT C24SE ENG(LG1) Z=22	8-97104-023-2	01	1	0805-1003			●
14	04.419 BEARING; NEEDLE,5TH HF V6 ENG(LCA)	8-97165-013-0	01	1	0805-	●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	0805-		●
14	04.419 BEARING; NEEDLE,5TH C24SE ENG(LG1) NSK	8-97029-341-0	01	1	0805-1003			●
33	04.352 BEARING; NEEDLE,3RD GEAR HF V6 ENG(LCA)	8-97165-014-0	01	1	0805-	●
33	04.352 BEARING; NEEDLE,3RD GEAR C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	0805-1003		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	1004-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD 4JJ1-TCX ENG(LS0)	8-97362-474-3	01	1	0805-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD C24SE ENG(LG1)	8-97104-027-0	01	1	0805-1003			●
35	04.383 RING; BLOCK,4TH & 3RD C24SE ENG(LG1) Z=45	8-94151-510-3	02	1	0805-1003			●
36	04.415 GEAR; 3RD,MAINSHAFT HF V6 ENG(LCA)	8-98025-405-0	01	1	0805-	●
36	04.415 GEAR; 3RD,MAINSHAFT C24SE ENG(LG1) Z=31	8-97104-021-2	01	1	0805-1003			●
38	04.384 SYNCHRONIZER; LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-503-1	01	1	0805-		●
38	04.384 SYNCHRONIZER; LOW & 2ND C24SE ENG(LG1)	8-94363-059-1	01	1	0805-1003			●
40	04.384 SPRING; INSERT,LOW & 2ND C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94448-045-0	02	1	0805-1003		●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94448-045-0	02	1	1004-		●
49	04.352 BEARING; NEEDLE,2ND GEAR HF V6 ENG(LCA)	8-97165-016-0	01	1	0805-	●
49	04.352 BEARING; NEEDLE,2ND GEAR C24SE ENG(LG1) JTEKT	9-00096-625-0	01	1	0805-1003			●
50	04.395 GEAR; 2ND,MAINSHAFT HF V6 ENG(LCA)	8-89048-406-0	01	1	0805-	●
50	04.395 GEAR; 2ND,MAINSHAFT C24SE ENG(LG1) Z=34	8-97300-953-1	01	1	0805-1003			●
51	04.383 RING; BLOCK,LOW & 2ND C24SE ENG(LG1),4JJ1-TCX ENG(LS0) Z=48	8-94363-054-1	02	1	0805-1003		●	●
51	04.383 RING; BLOCK,LOW & 2ND 4JJ1-TCX ENG(LS0) Z=48	8-94363-054-1	02	1	1004-1104		●
51	04.383 RING; BLOCK,LOW & 2ND 4JJ1-TCX ENG(LS0) Z=36	8-98115-804-0	02	1	1105-		●
59	04.417 GEAR; REV MAINSHAFT HF V6 ENG(LCA)	8-89048-409-0	01	1	0805-	●
59	04.417 GEAR; REV MAINSHAFT C24SE ENG(LG1) Z=41	8-97104-025-2	01	1	0805-1003			●
60	04.419 COLLAR; REV MAIN C24SE ENG(LG1)	8-97031-079-0	01	1	0805-1003			●
61	04.380 SYNCHRONIZER; REV & 5TH C24SE ENG(LG1)	8-97030-106-1	01	1	0805-1003			●
62	04.384 SPRING; INSERT,REV & 5TH C24SE ENG(LG1)	5-33264-012-0	02	1	0805-1003			●
63	04.384 INSERT; SYN,REV & 5TH C24SE ENG(LG1)	5-33263-001-0	03	1	0805-1003			●
65	04.356 NUT; MAINSHAFT C24SE ENG(LG1) M34	8-94422-071-1	01	1	0805-1003			●
70	04.417 GEAR; 1ST,MAINSHAFT HF V6 ENG(LCA)	8-89048-405-0	01	1	0805-	●
70	04.417 GEAR; 1ST,MAINSHAFT C24SE ENG(LG1) Z=45	8-97300-952-1	01	1	0805-1003			●
72	04.352 BEARING; BALL,MAINSHAFT C24SE ENG(LG1) NSK	8-94380-017-1	01	1	0805-1003			●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) HF V6 ENG(LCA)	8-89048-422-0	01	1	0805-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=7	8-98004-532-0	01	1	0805-		●
80	04.343 GEAR; SPD DRIVE C24SE ENG(LG1) Z=5	8-94472-606-1	01	1	0805-1003			●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) HF V6 ENG(LCA)	8-89048-331-0	01	1	0805-	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) HF V6 ENG(LCA)	8-89048-332-0	01	1	0805-	●
82	04.403 SHAFT; MAIN,TRANS C24SE ENG(LG1) Z=28-34-26-27	8-97300-981-0	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH HF V6 ENG(LCA)	8-89048-333-0	01	1	0805-	●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=7.90 WHITE	8-94422-110-2	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=8.00 YELLOW	8-94422-111-2	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=8.10 GREEN	8-94422-112-2	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=8.20 BLUE	8-94422-113-2	01	1	0805-1003			●
87	04.416 BALL; THRUST WASHER C24SE ENG(LG1)	8-94201-356-0	01	1	0805-1003			●
89	04.416 RING; RET,THRUST RING C24SE ENG(LG1) ID=31.8	8-94422-395-0	01	1	0805-1003			●
90	04.416 RING; SNAP,THRUST RING C24SE ENG(LG1) 04.422 ID=29.6	9-09180-032-0	01	1	0805-1003			●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT C24SE ENG(LG1) ID=76.2	8-94322-411-0	01	1	0805-1003			●
93	04.422 RING; SNAP,COUNTER FRT BRG HF V6 ENG(LCA)	8-89048-575-0	01	1	0805-	●
93	04.422 RING; SNAP,COUNTER FRT BRG C24SE ENG(LG1) 08.934 ID=23.2	9-09180-025-0	01	1	0805-1003			●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-97362-499-0	01	1	0805-1204		●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-98210-237-0	01	1	1205-		●
95	04.417 GEAR; REV,COUNTER C24SE ENG(LG1) Z=19	8-94377-433-0	01	1	0805-1003			●
97	04.415 GEAR; 5TH,COUNTER HF V6 ENG(LCA)	8-89059-406-0	01	1	0805-	●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	0805-		●
97	04.415 GEAR; 5TH,COUNTER C24SE ENG(LG1) Z=50	8-94377-434-0	01	1	0805-1003			●
98	04.422 BEARING; BALL,COUNTER END C24SE ENG(LG1) NSK	8-97018-535-1	01	1	0805-1003			●
110	04.422 RING; SNAP,COUNTER BRG C24SE ENG(LG1) T=1.10 WHITE	8-94422-103-0	01	1	0805-1003			●
110	04.422 RING; SNAP,COUNTER BRG C24SE ENG(LG1) T=1.20 YELLOW	8-94422-104-0	01	1	0805-1003			●
110	04.422 RING; SNAP,COUNTER BRG C24SE ENG(LG1) T=1.30 BLUE	8-94422-105-0	01	1	0805-1003			●
110	04.422 RING; SNAP,COUNTER BRG C24SE ENG(LG1) T=1.40 PINK	8-94422-106-0	01	1	0805-1003			●
110	04.422 RING; SNAP,COUNTER BRG C24SE ENG(LG1) T=1.50 GREEN	8-94422-107-0	01	1	0805-1003			●
110	04.422 RING; SNAP,COUNTER BRG C24SE ENG(LG1) T=1.60 BROWN	8-94422-108-0	01	1	0805-1003			●
132	04.433 SHAFT; REV HF V6 ENG(LCA)	8-97165-006-0	01	1	0805-	●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	0805-		●
132	04.433 SHAFT; REV C24SE ENG(LG1)	8-97019-155-1	01	1	0805-1003			●
135	04.430 GEAR; REV IDLER HF V6 ENG(LCA)	8-89048-411-0	01	1	0805-	●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-97362-513-1	01	1	0805-1302		●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-98233-615-0	01	1	1303-		●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98082-803-0	01	1	0805-0809			●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98080-125-0	01	1	0810-1003			●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98146-726-0	01	1	1004-1004			●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR C24SE ENG(LG1) 04.422 NSK	8-94173-863-0	01	1	0805-1003			●
189	04.435 RING; SNAP,REV,GEAR C24SE ENG(LG1) T=1.20 WHITE	8-94422-100-0	01	1	0805-1003			●
189	04.435 RING; SNAP,REV,GEAR C24SE ENG(LG1) T=1.30 YELLOW	8-94422-101-0	01	1	0805-1003			●
189	04.435 RING; SNAP,REV,GEAR C24SE ENG(LG1) T=1.40 BLUE	8-94422-102-0	01	1	0805-1003			●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR C24SE ENG(LG1) NSK	8-94148-935-0	01	1	0805-1003			●
219	04.422 BEARING; BALL,CLUSTER,RR C24SE ENG(LG1) NSK	8-94436-929-0	01	1	0805-1003			●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER C24SE ENG(LG1) ID=30.0	8-94223-069-1	01	1	0805-1003			●
238	04.384 INSERT HF V6 ENG(LCA) (D)	8-89059-399-0	02	1	0805-	●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (B)	8-94249-576-2	03	1	0805-		●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (C)	8-98004-522-0	06	1	0805-		●
238	04.384 INSERT C24SE ENG(LG1) (A)	8-94448-202-2	03	1	0805-1003			●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR C24SE ENG(LG1) NSK	8-97029-600-4	01	1	0805-1003			●
292	04.422 RING; SNAP,BRG OUTER HF V6 ENG(LCA)	8-97165-071-0	01	1	0805-	●
292	04.422 RING; SNAP,BRG OUTER C24SE ENG(LG1) NSK	8-94422-081-0	01	1	0805-1003			●
306	04.416 RING; SNAP,MAINSHAFT C24SE ENG(LG1) (A) T=1.90 BLUE	8-97129-615-0	01	1	0805-1003			●
306	04.416 RING; SNAP,MAINSHAFT C24SE ENG(LG1) (A) T=1.85 YELLOW	8-97129-616-0	01	1	0805-1003			●
306	04.416 RING; SNAP,MAINSHAFT C24SE ENG(LG1) (A) T=1.80 WHITE	8-97129-617-0	01	1	0805-1003			●
306	04.416 RING; SNAP,MAINSHAFT C24SE ENG(LG1) (B) ID=27.9	9-09180-030-0	02	1	0805-1003			●
313	04.419 BEARING; NEEDLE,LOW GEAR HF V6 ENG(LCA)	8-97165-015-0	01	1	0805-	●
313	04.419 BEARING; NEEDLE,LOW GEAR C24SE ENG(LG1) NSK	1-09811-028-1	01	1	0805-1003			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCX ENG(LS0) NSK	8-97362-719-0	01	1	0805-		●
314	04.419 BEARING; NEEDLE,REV GEAR C24SE ENG(LG1) NSK	8-94422-064-0	01	1	0805-1003			●
314	04.419 BEARING; NEEDLE,REV GEAR C24SE ENG(LG1) JTEKT	8-94422-065-1	01	1	0805-1003			●
386	04.435 PIN; REV SHAFT 4JJ1-TCX ENG(LS0) 00.662 OD=4 L=8	9-08160-408-0	01	1	0805-		●
386	04.435 PIN; REV SHAFT C24SE ENG(LG1) OD=6 L=40	9-08150-640-0	01	1	0805-1003			●
390	04.383 RING; SNAP,CLU HUB C24SE ENG(LG1) T=1.80 WHITE	8-94422-088-2	01	1	0805-1003			●
390	04.383 RING; SNAP,CLU HUB C24SE ENG(LG1) T=1.85 YELLOW	8-94422-089-1	01	1	0805-1003			●
390	04.383 RING; SNAP,CLU HUB C24SE ENG(LG1) T=1.90 BLUE	8-94422-090-2	01	1	0805-1003			●
391	04.383 RING; INSIDE,SYN C24SE ENG(LG1) OD=95.8	8-94363-056-0	02	1	0805-1003			●
392	04.383 RING; OUTSIDE,SYN C24SE ENG(LG1) OD=90.0	8-94363-055-1	02	1	0805-1003			●
396	04.352 BEARING; NEEDLE,MAINSHAFT HF V6 ENG(LCA)	8-97165-012-0	01	1	0805-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT C24SE ENG(LG1) NSK	8-94422-068-1	01	1	0805-1003			●
397	04.384 SPRING; INSERT,4TH & 3RD C24SE ENG(LG1)	8-94422-075-0	02	1	0805-1003			●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98079-114-0	01	1	0805-1204		●
398	04.421 GEAR; COUNTER 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=26	8-98079-114-0	01	1	1205-1205		●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98079-114-0	01	1	1206-		●
398	04.421 GEAR; COUNTER C24SE ENG(LG1) Z=46-38-25-19	8-97104-161-1	01	1	0805-1003			●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***) C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94310-229-0	01	1	0805-1003		●	●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-94310-229-0	01	1	1004-		●
404	04.307 PLATE; THRUST C24SE ENG(LG1)	8-94421-892-0	02	1	0805-1003			●
405	04.384 INSERT; SYN,LOW & 2ND HF V6 ENG(LCA)	8-97165-000-0	03	1	0805-	●
405	04.384 INSERT; SYN,LOW & 2ND C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	0805-1003		●	●
405	04.384 INSERT; SYN,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	1004-		●
421	04.383 RING; BLOCK,REV & 5TH C24SE ENG(LG1) Z=36	8-97071-688-0	02	1	0805-1003			●

83 82 33 36 42 387 420 13 215 394 292 408 396 481 252 70 471 473 43 462 172 59 405 408 71 313 241 462 50 172 49 39 83 241 531 132 135 108 84 357 353 408 97 93 388 408 14 109 238 463 86 241 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	04.415 GEAR; 5TH,MAINSHAFT HF V6 ENG(LCA)	8-89048-410-0	01	1	0805-	●
13	04.415 GEAR; 5TH,MAINSHAFT C24SE ENG(LG1) Z=22	8-97104-023-2	01	1	0805-1003			●
14	04.419 BEARING; NEEDLE,5TH HF V6 ENG(LCA)	8-97165-013-0	01	1	0805-	●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	0805-		●
14	04.419 BEARING; NEEDLE,5TH C24SE ENG(LG1) NSK	8-97029-341-0	01	1	0805-1003			●
33	04.352 BEARING; NEEDLE,3RD GEAR HF V6 ENG(LCA)	8-97165-014-0	01	1	0805-	●
33	04.352 BEARING; NEEDLE,3RD GEAR C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	0805-1003		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	1004-		●
36	04.415 GEAR; 3RD,MAINSHAFT HF V6 ENG(LCA)	8-98025-405-0	01	1	0805-	●
36	04.415 GEAR; 3RD,MAINSHAFT C24SE ENG(LG1) Z=31	8-97104-021-2	01	1	0805-1003			●
39	04.384 HUB; CLU,LOW & 2ND HF V6 ENG(LCA)	8-97164-971-0	01	1	0805-	●
42	04.383 SLEEVE HF V6 ENG(LCA)	8-89048-337-0	01	1	0805-	●
43	04.384 HUB; CLU,3RD & 4TH,MAIN HF V6 ENG(LCA)	8-89048-336-0	01	1	0805-	●
49	04.352 BEARING; NEEDLE,2ND GEAR HF V6 ENG(LCA)	8-97165-016-0	01	1	0805-	●
49	04.352 BEARING; NEEDLE,2ND GEAR C24SE ENG(LG1) JTEKT	9-00096-625-0	01	1	0805-1003			●
50	04.395 GEAR; 2ND,MAINSHAFT HF V6 ENG(LCA)	8-89048-406-0	01	1	0805-	●
50	04.395 GEAR; 2ND,MAINSHAFT C24SE ENG(LG1) Z=34	8-97300-953-1	01	1	0805-1003			●
59	04.417 GEAR; REV MAINSHAFT HF V6 ENG(LCA)	8-89048-409-0	01	1	0805-	●
59	04.417 GEAR; REV MAINSHAFT C24SE ENG(LG1) Z=41	8-97104-025-2	01	1	0805-1003			●
70	04.417 GEAR; 1ST,MAINSHAFT HF V6 ENG(LCA)	8-89048-405-0	01	1	0805-	●
70	04.417 GEAR; 1ST,MAINSHAFT C24SE ENG(LG1) Z=45	8-97300-952-1	01	1	0805-1003			●
71	04.406 WASHER; THRUST,LOW HF V6 ENG(LCA)	8-97164-997-0	01	1	0805-	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) HF V6 ENG(LCA)	8-89048-331-0	01	1	0805-	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) HF V6 ENG(LCA)	8-89048-332-0	01	1	0805-	●
82	04.403 SHAFT; MAIN,TRANS C24SE ENG(LG1) Z=28-34-26-27	8-97300-981-0	01	1	0805-1003			●
83	04.399 PIN; THRUST WASHER HF V6 ENG(LCA)	8-97164-974-0	02	1	0805-	●
84	04.422 BEARING; COUNTER SHAFT,FRT HF V6 ENG(LCA)	8-97165-017-0	01	1	0805-	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JJ1-TCX ENG(LS0)	8-97362-724-0	01	1	0805-		●
86	04.416 WASHER; THRUST,5TH HF V6 ENG(LCA)	8-89048-333-0	01	1	0805-	●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=7.90 WHITE	8-94422-110-2	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=8.00 YELLOW	8-94422-111-2	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=8.10 GREEN	8-94422-112-2	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=8.20 BLUE	8-94422-113-2	01	1	0805-1003			●
93	04.422 RING; SNAP,COUNTER FRT BRG HF V6 ENG(LCA)	8-89048-575-0	01	1	0805-	●
93	04.422 RING; SNAP,COUNTER FRT BRG C24SE ENG(LG1) 08.934 ID=23.2	9-09180-025-0	01	1	0805-1003			●
97	04.415 GEAR; 5TH,COUNTER HF V6 ENG(LCA)	8-89059-406-0	01	1	0805-	●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	0805-		●
97	04.415 GEAR; 5TH,COUNTER C24SE ENG(LG1) Z=50	8-94377-434-0	01	1	0805-1003			●
108	04.428 SHAFT; COUNTER HF V6 ENG(LCA)	8-98025-407-0	01	1	0805-	●
108	04.428 SHAFT; COUNTER 4JJ1-TCX ENG(LS0) Z=26-34-26-26	8-98023-108-1	01	1	0805-		●
109	04.422 BEARING; COUNTER SHAFT,RR HF V6 ENG(LCA)	8-97165-018-0	01	1	0805-	●
132	04.433 SHAFT; REV HF V6 ENG(LCA)	8-97165-006-0	01	1	0805-	●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	0805-		●
132	04.433 SHAFT; REV C24SE ENG(LG1)	8-97019-155-1	01	1	0805-1003			●
135	04.430 GEAR; REV IDLER HF V6 ENG(LCA)	8-89048-411-0	01	1	0805-	●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-97362-513-1	01	1	0805-1302		●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-98233-615-0	01	1	1303-		●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98082-803-0	01	1	0805-0809			●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98080-125-0	01	1	0810-1003			●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98146-726-0	01	1	1004-1004			●
172	04.412 RING; SNAP,CLU HUB HF V6 ENG(LCA) (A)	8-89048-118-0	01	1	0805-	●
172	04.412 RING; SNAP,CLU HUB HF V6 ENG(LCA) (B)	8-89048-119-0	01	1	0805-	●
215	04.416 RING; SNAP,BALL BRG HF V6 ENG(LCA)	8-97165-072-0	01	1	0805-	●
238	04.384 INSERT HF V6 ENG(LCA) (D)	8-89059-399-0	02	1	0805-	●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (B)	8-94249-576-2	03	1	0805-		●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (C)	8-98004-522-0	06	1	0805-		●
238	04.384 INSERT C24SE ENG(LG1) (A)	8-94448-202-2	03	1	0805-1003			●
241	04.416 RING; SNAP HF V6 ENG(LCA) (A)	8-89048-120-0	01	1	0805-	●
241	04.416 RING; SNAP HF V6 ENG(LCA) (B)	8-89048-574-0	01	1	0805-	●
241	04.416 RING; SNAP HF V6 ENG(LCA) (C)	8-97165-073-0	01	1	0805-	●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) 04.422 (D) ID=34.4 T=1.9	8-97254-735-0	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=1.9	8-97362-871-0	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=2.1	8-97362-872-0	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=2.3	8-97362-873-0	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (F) ID=37 T=1.95	8-98004-523-1	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (F) ID=37 T=2.1	8-98004-524-1	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (G) ID=27.9	9-09180-030-0	01	1	0805-		●
252	04.412 SPACER HF V6 ENG(LCA)	8-97164-973-0	01	1	0805-	●
252	04.412 SPACER 4JJ1-TCX ENG(LS0)	8-98024-456-0	01	1	0805-		●
292	04.422 RING; SNAP,BRG OUTER HF V6 ENG(LCA)	8-97165-071-0	01	1	0805-	●
292	04.422 RING; SNAP,BRG OUTER C24SE ENG(LG1) NSK	8-94422-081-0	01	1	0805-1003			●
313	04.419 BEARING; NEEDLE,LOW GEAR HF V6 ENG(LCA)	8-97165-015-0	01	1	0805-	●
313	04.419 BEARING; NEEDLE,LOW GEAR C24SE ENG(LG1) NSK	1-09811-028-1	01	1	0805-1003			●
353	04.380 SYNCHRONIZER; 5TH HF V6 ENG(LCA)	8-89059-403-0	01	1	0805-	●
353	04.380 SYNCHRONIZER; 5TH 4JJ1-TCX ENG(LS0)	8-98004-511-1	01	1	0805-		●
357	04.383 RING HF V6 ENG(LCA) (C)	8-89059-402-0	01	1	0805-	●
357	04.383 RING 4JJ1-TCX ENG(LS0) (A) OD=90.0	8-94363-055-1	02	1	0805-1104		●
357	04.383 RING 4JJ1-TCX ENG(LS0) (A) OD=90.0	8-98115-793-0	02	1	1105-		●
357	04.383 RING 4JJ1-TCX ENG(LS0) (B) OD=95.8	8-94363-056-0	02	1	0805-		●
387	04.384 INSERT; SYN,4TH & 3RD HF V6 ENG(LCA)	8-89048-338-0	03	1	0805-	●
388	04.419 SLEEVE; SYN,REV & 5TH HF V6 ENG(LCA)	8-89059-404-0	01	1	0805-	●
394	04.419 BEARING; BALL,MAINSHAFT RR HF V6 ENG(LCA)	8-97164-975-0	01	1	0805-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT HF V6 ENG(LCA)	8-97165-012-0	01	1	0805-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT C24SE ENG(LG1) NSK	8-94422-068-1	01	1	0805-1003			●
405	04.384 INSERT; SYN,LOW & 2ND HF V6 ENG(LCA)	8-97165-000-0	03	1	0805-	●
405	04.384 INSERT; SYN,LOW & 2ND C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	0805-1003		●	●
405	04.384 INSERT; SYN,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	1004-		●
408	04.384 SPRING HF V6 ENG(LCA) (A)	8-89059-400-0	01	1	0805-	●
408	04.384 SPRING HF V6 ENG(LCA) (B)	8-89059-401-0	01	1	0805-	●
408	04.384 SPRING HF V6 ENG(LCA) (C)	8-97165-019-0	06	1	0805-	●
420	04.416 RING; SNAP,OUTPUT SHAFT HF V6 ENG(LCA)	8-89048-117-0	01	1	0805-	●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER HF V6 ENG(LCA) (B)	8-89048-315-0	01	1	0805-	●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER HF V6 ENG(LCA) (C)	8-89059-573-0	01	1	0805-	●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER HF V6 ENG(LCA) 04.380 (A)	8-97164-968-0	01	1	0805-	●
463	04.422 PIPE; COUNTER SHAFT HF V6 ENG(LCA)	8-97164-985-0	01	1	0805-	●
471	04.530 SHAFT; INPUT HF V6 ENG(LCA)	8-98025-406-0	01	1	0805-	●
471	04.530 SHAFT; INPUT 4JJ1-TCX ENG(LS0)	8-98049-345-1	01	1	0805-		●
473	04.352 BEARING; INPUT SHAFT HF V6 ENG(LCA) 04.403	8-97164-976-0	01	1	0805-	●
473	04.352 BEARING; INPUT SHAFT 4JJ1-TCX ENG(LS0)	8-97362-721-1	01	1	0805-		●
481	04.383 RING; BLOCK HF V6 ENG(LCA)	8-89048-340-0	01	1	0805-	●
531	04.383 RING; BLOCK,REV HF V6 ENG(LCA)	8-89059-398-0	01	1	0805-	●
531	04.383 RING; BLOCK,REV 4JJ1-TCX ENG(LS0) OD=74	8-98037-846-0	01	1	0805-		●

83 82 33 292 420 13 215 394 36 241 462 387 408 396 481 252 70 42 43 471 473 462 241 71 277 313 172 59 405 408 401 80 462 50 172 39 401 49 83 241 108 531 132 135 84 357 408 353 97 93 388 408 14 109 238 463 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	04.415 GEAR; 5TH,MAINSHAFT HF V6 ENG(LCA)	8-89048-410-0	01	1	0805-	●
13	04.415 GEAR; 5TH,MAINSHAFT C24SE ENG(LG1) Z=22	8-97104-023-2	01	1	0805-1003			●
14	04.419 BEARING; NEEDLE,5TH HF V6 ENG(LCA)	8-97165-013-0	01	1	0805-	●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	0805-		●
14	04.419 BEARING; NEEDLE,5TH C24SE ENG(LG1) NSK	8-97029-341-0	01	1	0805-1003			●
33	04.352 BEARING; NEEDLE,3RD GEAR HF V6 ENG(LCA)	8-97165-014-0	01	1	0805-	●
33	04.352 BEARING; NEEDLE,3RD GEAR C24SE ENG(LG1),4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	0805-1003		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	1004-		●
36	04.415 GEAR; 3RD,MAINSHAFT HF V6 ENG(LCA)	8-98025-405-0	01	1	0805-	●
36	04.415 GEAR; 3RD,MAINSHAFT C24SE ENG(LG1) Z=31	8-97104-021-2	01	1	0805-1003			●
39	04.384 HUB; CLU,LOW & 2ND HF V6 ENG(LCA)	8-97164-971-0	01	1	0805-	●
42	04.383 SLEEVE HF V6 ENG(LCA)	8-89048-337-0	01	1	0805-	●
43	04.384 HUB; CLU,3RD & 4TH,MAIN HF V6 ENG(LCA)	8-89048-336-0	01	1	0805-	●
49	04.352 BEARING; NEEDLE,2ND GEAR HF V6 ENG(LCA)	8-97165-016-0	01	1	0805-	●
49	04.352 BEARING; NEEDLE,2ND GEAR C24SE ENG(LG1) JTEKT	9-00096-625-0	01	1	0805-1003			●
50	04.395 GEAR; 2ND,MAINSHAFT HF V6 ENG(LCA)	8-89048-406-0	01	1	0805-	●
50	04.395 GEAR; 2ND,MAINSHAFT C24SE ENG(LG1) Z=34	8-97300-953-1	01	1	0805-1003			●
59	04.417 GEAR; REV MAINSHAFT HF V6 ENG(LCA)	8-89048-409-0	01	1	0805-	●
59	04.417 GEAR; REV MAINSHAFT C24SE ENG(LG1) Z=41	8-97104-025-2	01	1	0805-1003			●
70	04.417 GEAR; 1ST,MAINSHAFT HF V6 ENG(LCA)	8-89048-405-0	01	1	0805-	●
70	04.417 GEAR; 1ST,MAINSHAFT C24SE ENG(LG1) Z=45	8-97300-952-1	01	1	0805-1003			●
71	04.406 WASHER; THRUST,LOW HF V6 ENG(LCA)	8-97164-997-0	01	1	0805-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) HF V6 ENG(LCA)	8-89048-422-0	01	1	0805-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=7	8-98004-532-0	01	1	0805-		●
80	04.343 GEAR; SPD DRIVE C24SE ENG(LG1) Z=5	8-94472-606-1	01	1	0805-1003			●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) HF V6 ENG(LCA)	8-89048-331-0	01	1	0805-	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) HF V6 ENG(LCA)	8-89048-332-0	01	1	0805-	●
82	04.403 SHAFT; MAIN,TRANS C24SE ENG(LG1) Z=28-34-26-27	8-97300-981-0	01	1	0805-1003			●
83	04.399 PIN; THRUST WASHER HF V6 ENG(LCA)	8-97164-974-0	02	1	0805-	●
84	04.422 BEARING; COUNTER SHAFT,FRT HF V6 ENG(LCA)	8-97165-017-0	01	1	0805-	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JJ1-TCX ENG(LS0)	8-97362-724-0	01	1	0805-		●
86	04.416 WASHER; THRUST,5TH HF V6 ENG(LCA)	8-89048-333-0	01	1	0805-	●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=7.90 WHITE	8-94422-110-2	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=8.00 YELLOW	8-94422-111-2	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=8.10 GREEN	8-94422-112-2	01	1	0805-1003			●
86	04.416 WASHER; THRUST,5TH C24SE ENG(LG1) T=8.20 BLUE	8-94422-113-2	01	1	0805-1003			●
93	04.422 RING; SNAP,COUNTER FRT BRG HF V6 ENG(LCA)	8-89048-575-0	01	1	0805-	●
93	04.422 RING; SNAP,COUNTER FRT BRG C24SE ENG(LG1) 08.934 ID=23.2	9-09180-025-0	01	1	0805-1003			●
97	04.415 GEAR; 5TH,COUNTER HF V6 ENG(LCA)	8-89059-406-0	01	1	0805-	●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	0805-		●
97	04.415 GEAR; 5TH,COUNTER C24SE ENG(LG1) Z=50	8-94377-434-0	01	1	0805-1003			●
108	04.428 SHAFT; COUNTER HF V6 ENG(LCA)	8-98025-407-0	01	1	0805-	●
108	04.428 SHAFT; COUNTER 4JJ1-TCX ENG(LS0) Z=26-34-26-26	8-98023-108-1	01	1	0805-		●
109	04.422 BEARING; COUNTER SHAFT,RR HF V6 ENG(LCA)	8-97165-018-0	01	1	0805-	●
132	04.433 SHAFT; REV HF V6 ENG(LCA)	8-97165-006-0	01	1	0805-	●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	0805-		●
132	04.433 SHAFT; REV C24SE ENG(LG1)	8-97019-155-1	01	1	0805-1003			●
135	04.430 GEAR; REV IDLER HF V6 ENG(LCA)	8-89048-411-0	01	1	0805-	●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-97362-513-1	01	1	0805-1302		●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-98233-615-0	01	1	1303-		●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98082-803-0	01	1	0805-0809			●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98080-125-0	01	1	0810-1003			●
135	04.430 GEAR; REV IDLER C24SE ENG(LG1) Z=33	8-98146-726-0	01	1	1004-1004			●
172	04.412 RING; SNAP,CLU HUB HF V6 ENG(LCA) (A)	8-89048-118-0	01	1	0805-	●
172	04.412 RING; SNAP,CLU HUB HF V6 ENG(LCA) (B)	8-89048-119-0	01	1	0805-	●
215	04.416 RING; SNAP,BALL BRG HF V6 ENG(LCA)	8-97165-072-0	01	1	0805-	●
238	04.384 INSERT HF V6 ENG(LCA) (D)	8-89059-399-0	02	1	0805-	●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (B)	8-94249-576-2	03	1	0805-		●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (C)	8-98004-522-0	06	1	0805-		●
238	04.384 INSERT C24SE ENG(LG1) (A)	8-94448-202-2	03	1	0805-1003			●
241	04.416 RING; SNAP HF V6 ENG(LCA) (A)	8-89048-120-0	01	1	0805-	●
241	04.416 RING; SNAP HF V6 ENG(LCA) (B)	8-89048-574-0	01	1	0805-	●
241	04.416 RING; SNAP HF V6 ENG(LCA) (C)	8-97165-073-0	01	1	0805-	●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) 04.422 (D) ID=34.4 T=1.9	8-97254-735-0	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=1.9	8-97362-871-0	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=2.1	8-97362-872-0	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=2.3	8-97362-873-0	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (F) ID=37 T=1.95	8-98004-523-1	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (F) ID=37 T=2.1	8-98004-524-1	01	1	0805-		●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (G) ID=27.9	9-09180-030-0	01	1	0805-		●
252	04.412 SPACER HF V6 ENG(LCA)	8-97164-973-0	01	1	0805-	●
252	04.412 SPACER 4JJ1-TCX ENG(LS0)	8-98024-456-0	01	1	0805-		●
277	04.345 BALL; SPD DRIVE GEAR 4X2(TFB***) HF V6 ENG(LCA)	8-89048-423-0	01	1	0805-	●
292	04.422 RING; SNAP,BRG OUTER HF V6 ENG(LCA)	8-97165-071-0	01	1	0805-	●
292	04.422 RING; SNAP,BRG OUTER C24SE ENG(LG1) NSK	8-94422-081-0	01	1	0805-1003			●
313	04.419 BEARING; NEEDLE,LOW GEAR HF V6 ENG(LCA)	8-97165-015-0	01	1	0805-	●
313	04.419 BEARING; NEEDLE,LOW GEAR C24SE ENG(LG1) NSK	1-09811-028-1	01	1	0805-1003			●
353	04.380 SYNCHRONIZER; 5TH HF V6 ENG(LCA)	8-89059-403-0	01	1	0805-	●
353	04.380 SYNCHRONIZER; 5TH 4JJ1-TCX ENG(LS0)	8-98004-511-1	01	1	0805-		●
357	04.383 RING HF V6 ENG(LCA) (C)	8-89059-402-0	01	1	0805-	●
357	04.383 RING 4JJ1-TCX ENG(LS0) (A) OD=90.0	8-94363-055-1	02	1	0805-1104		●
357	04.383 RING 4JJ1-TCX ENG(LS0) (A) OD=90.0	8-98115-793-0	02	1	1105-		●
357	04.383 RING 4JJ1-TCX ENG(LS0) (B) OD=95.8	8-94363-056-0	02	1	0805-		●
387	04.384 INSERT; SYN,4TH & 3RD HF V6 ENG(LCA)	8-89048-338-0	03	1	0805-	●
388	04.419 SLEEVE; SYN,REV & 5TH HF V6 ENG(LCA)	8-89059-404-0	01	1	0805-	●
394	04.419 BEARING; BALL,MAINSHAFT RR HF V6 ENG(LCA)	8-97164-975-0	01	1	0805-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT HF V6 ENG(LCA)	8-97165-012-0	01	1	0805-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT C24SE ENG(LG1) NSK	8-94422-068-1	01	1	0805-1003			●
401	04.345 RING; SNAP,SPD DRIVE GEAR 4X2(TFB***) HF V6 ENG(LCA)	8-89048-424-0	02	1	0805-	●
405	04.384 INSERT; SYN,LOW & 2ND HF V6 ENG(LCA)	8-97165-000-0	03	1	0805-	●
405	04.384 INSERT; SYN,LOW & 2ND C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	0805-1003		●	●
405	04.384 INSERT; SYN,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	1004-		●
408	04.384 SPRING HF V6 ENG(LCA) (A)	8-89059-400-0	01	1	0805-	●
408	04.384 SPRING HF V6 ENG(LCA) (B)	8-89059-401-0	01	1	0805-	●
408	04.384 SPRING HF V6 ENG(LCA) (C)	8-97165-019-0	06	1	0805-	●
420	04.416 RING; SNAP,OUTPUT SHAFT HF V6 ENG(LCA)	8-89048-117-0	01	1	0805-	●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER HF V6 ENG(LCA) (B)	8-89048-315-0	01	1	0805-	●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER HF V6 ENG(LCA) (C)	8-89059-573-0	01	1	0805-	●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER HF V6 ENG(LCA) 04.380 (A)	8-97164-968-0	01	1	0805-	●
463	04.422 PIPE; COUNTER SHAFT HF V6 ENG(LCA)	8-97164-985-0	01	1	0805-	●
471	04.530 SHAFT; INPUT HF V6 ENG(LCA)	8-98025-406-0	01	1	0805-	●
471	04.530 SHAFT; INPUT 4JJ1-TCX ENG(LS0)	8-98049-345-1	01	1	0805-		●
473	04.352 BEARING; INPUT SHAFT HF V6 ENG(LCA) 04.403	8-97164-976-0	01	1	0805-	●
473	04.352 BEARING; INPUT SHAFT 4JJ1-TCX ENG(LS0)	8-97362-721-1	01	1	0805-		●
481	04.383 RING; BLOCK HF V6 ENG(LCA)	8-89048-340-0	01	1	0805-	●
531	04.383 RING; BLOCK,REV HF V6 ENG(LCA)	8-89059-398-0	01	1	0805-	●
531	04.383 RING; BLOCK,REV 4JJ1-TCX ENG(LS0) OD=74	8-98037-846-0	01	1	0805-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
