◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25B - SPEEDOMETER DRIVEN GEAR ▶
2-25B — SPEEDOMETER DRIVEN GEAR (#74712) — 48 parça

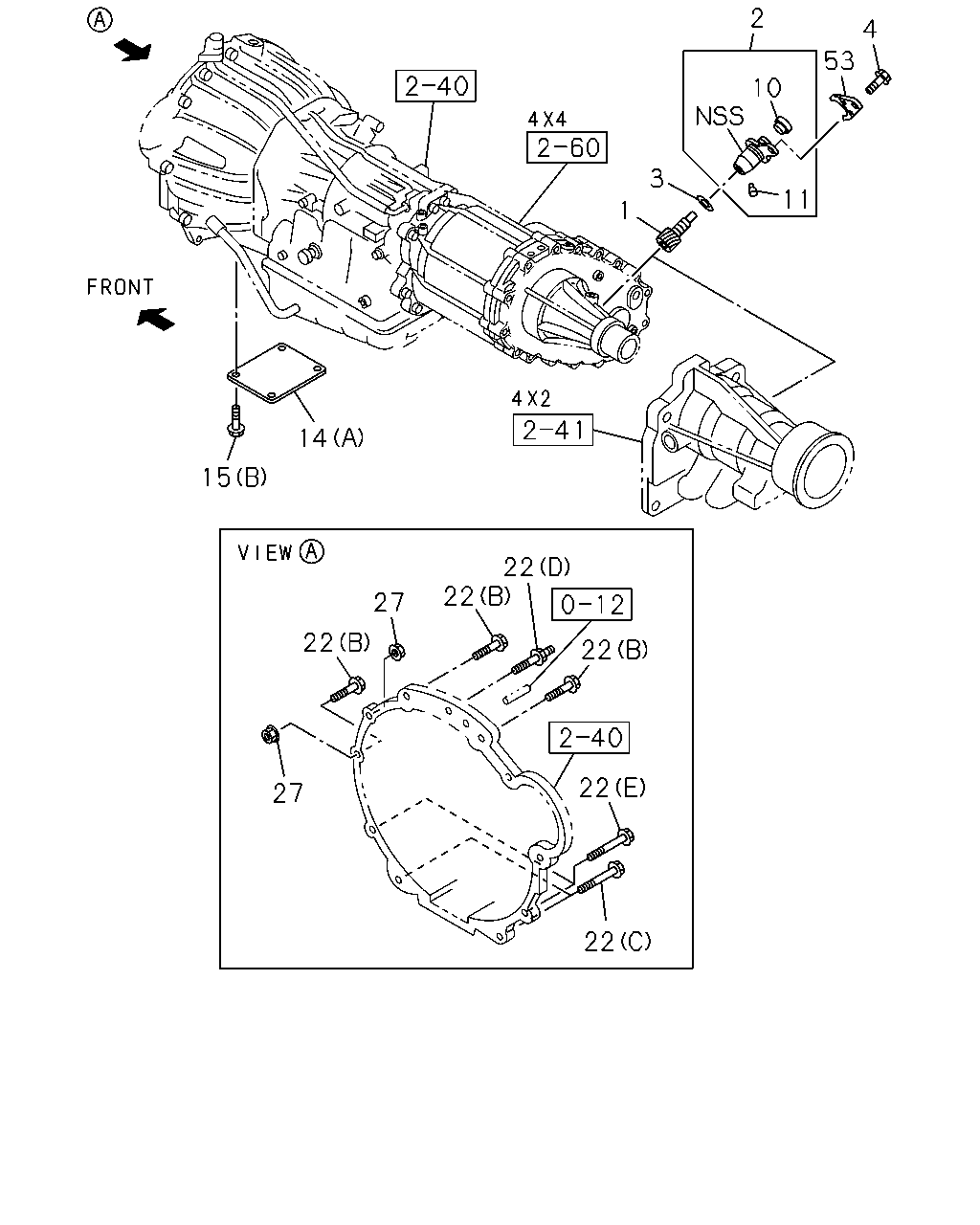

çizim 109766
2 4 53 10 3 11 1 14 15 22 22 27 22 22 22 27 22
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) Z=17 		8-98056-402-0 01 1 0805- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) Z=17 		8-98056-402-0 01 1 0805- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) Z=17 		8-97238-583-0 01 1 0805- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=17 		8-97238-583-0 01 1 0805- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4(TFS***) 		8-97305-454-1 01 1 0805- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) 		8-97181-543-0 01 1 0805- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) 		8-97181-543-0 01 1 0805- ●
3 04.338 GASKET; BUSHING
4X4(TFS***) ID=21.7 OD=28.7 		9-09921-100-0 01 1 0805-1003 ●
3 04.338 GASKET; BUSHING
4X4 CREW CAB LONG(TFS*WF) ID=21.7 OD=28.7 		9-09921-100-0 01 1 1004- ●
3 04.338 GASKET; BUSHING
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) ID=19 		8-97181-545-0 01 1 0805- ●
3 04.338 GASKET; BUSHING
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) ID=19 		8-97181-545-0 01 1 0805- ●
4 04.338 BOLT; RET,DRIVEN GEAR
4X4(TFS***) M8X20 FLANGE 		0-28050-820-0 01 1 0805-1003 ●
4 04.338 BOLT; RET,DRIVEN GEAR
4X4 CREW CAB LONG(TFS*WF) M8X20 FLANGE 		0-28050-820-0 01 1 1004- ●
4 04.338 BOLT; RET,DRIVEN GEAR
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) M8X14 W/WASHER 		8-94480-043-0 01 1 0805- ●
4 04.338 BOLT; RET,DRIVEN GEAR
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) M8X14 W/WASHER 		8-94480-043-0 01 1 0805- ●
10 04.338 SEAL; OIL,DRIVE GEAR
4X4(TFS***) NOK 		8-97131-328-1 01 1 0805-1003 ●
10 04.338 SEAL; OIL,DRIVE GEAR
4X4 CREW CAB LONG(TFS*WF) NOK 		8-97131-328-1 01 1 1004- ●
10 04.338 SEAL; OIL,DRIVE GEAR
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) NOK 		8-94480-040-0 01 1 0805- ●
10 04.338 SEAL; OIL,DRIVE GEAR
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) NOK 		8-94480-040-0 01 1 0805- ●
10 04.338 SEAL; OIL,DRIVE GEAR
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) JTEKT 		8-97181-544-0 01 1 0805- ●
10 04.338 SEAL; OIL,DRIVE GEAR
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) JTEKT 		8-97181-544-0 01 1 0805- ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV
4X4(TFS***) 		8-94446-571-1 01 1 0805-1003 ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV
4X4 CREW CAB LONG(TFS*WF) 		8-94446-571-1 01 1 1004- ●
14 00.679 COVER; UNDER,TRANS
HF V6 ENG(LCA) (B) 		8-98001-230-0 01 1 0805- ●
14 00.679 COVER; UNDER,TRANS
HF V6 ENG(LCA) (C) 		8-98001-231-0 01 1 0805- ● ●
14 00.679 COVER; UNDER,TRANS
4JJ1-TCX ENG(LS0) (A) 		8-98049-857-0 01 1 0805- ●
15 00.685 BOLT; UNDER COVER TO TRANS
HF V6 ENG(LCA) (A) 		8-92138-321-0 03 1 0805- ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JJ1-TCX ENG(LS0) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 04 1 0805- ●
22 00.685 BOLT; TRANS CASE TO ENG
HF V6 ENG(LCA) (A) 		8-92138-719-0 09 1 0805- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG(LS0) (B) M10X40 FLANGE 		0-28051-040-0 03 1 0805- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG(LS0) (C) M12X45 FLANGE 		0-28051-245-0 02 1 0805- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG(LS0) (D) M10X20,M10X40 L=70 		8-98005-380-0 01 1 0805- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG(LS0) (E) M12X176 FLANGE 		8-98005-381-0 02 1 0805- ●
27 00.685 NUT; CLU HSG TO TRANS
4JJ1-TCX ENG(LS0) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0805- ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
4X4(TFS***) 		8-98035-572-0 01 1 0805-1003 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
4X4 CREW CAB LONG(TFS*WF) 		8-98035-572-0 01 1 1004- ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) HIGH RIDE SUSPENSION(7YC) 04.265 		8-94479-720-0 01 1 0805- ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) 04.265 		8-94479-720-0 01 1 0805- ●

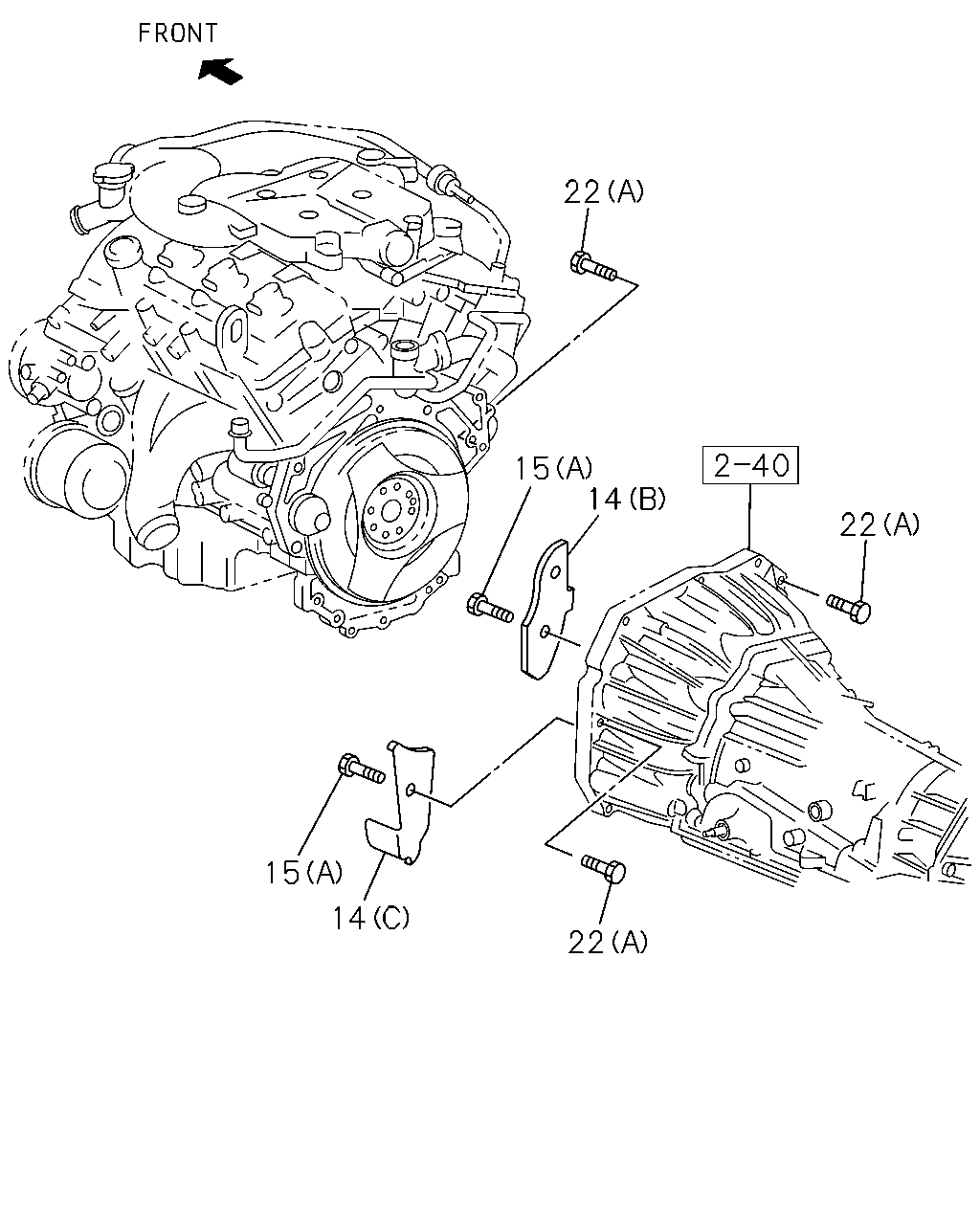

çizim 185733
22 15 14 22 15 14 22
BalonParca AdiParca NoAdetTipApplied Date A B C
14 00.679 COVER; UNDER,TRANS
HF V6 ENG(LCA) (B) 		8-98001-230-0 01 1 0805- ●
14 00.679 COVER; UNDER,TRANS
HF V6 ENG(LCA) (C) 		8-98001-231-0 01 1 0805- ● ●
14 00.679 COVER; UNDER,TRANS
4JJ1-TCX ENG(LS0) (A) 		8-98049-857-0 01 1 0805- ●
15 00.685 BOLT; UNDER COVER TO TRANS
HF V6 ENG(LCA) (A) 		8-92138-321-0 03 1 0805- ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JJ1-TCX ENG(LS0) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 04 1 0805- ●
22 00.685 BOLT; TRANS CASE TO ENG
HF V6 ENG(LCA) (A) 		8-92138-719-0 09 1 0805- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG(LS0) (B) M10X40 FLANGE 		0-28051-040-0 03 1 0805- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG(LS0) (C) M12X45 FLANGE 		0-28051-245-0 02 1 0805- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG(LS0) (D) M10X20,M10X40 L=70 		8-98005-380-0 01 1 0805- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG(LS0) (E) M12X176 FLANGE 		8-98005-381-0 02 1 0805- ●
