2-25A — SPEEDOMETER DRIVEN GEAR (#74711) — 87 parça

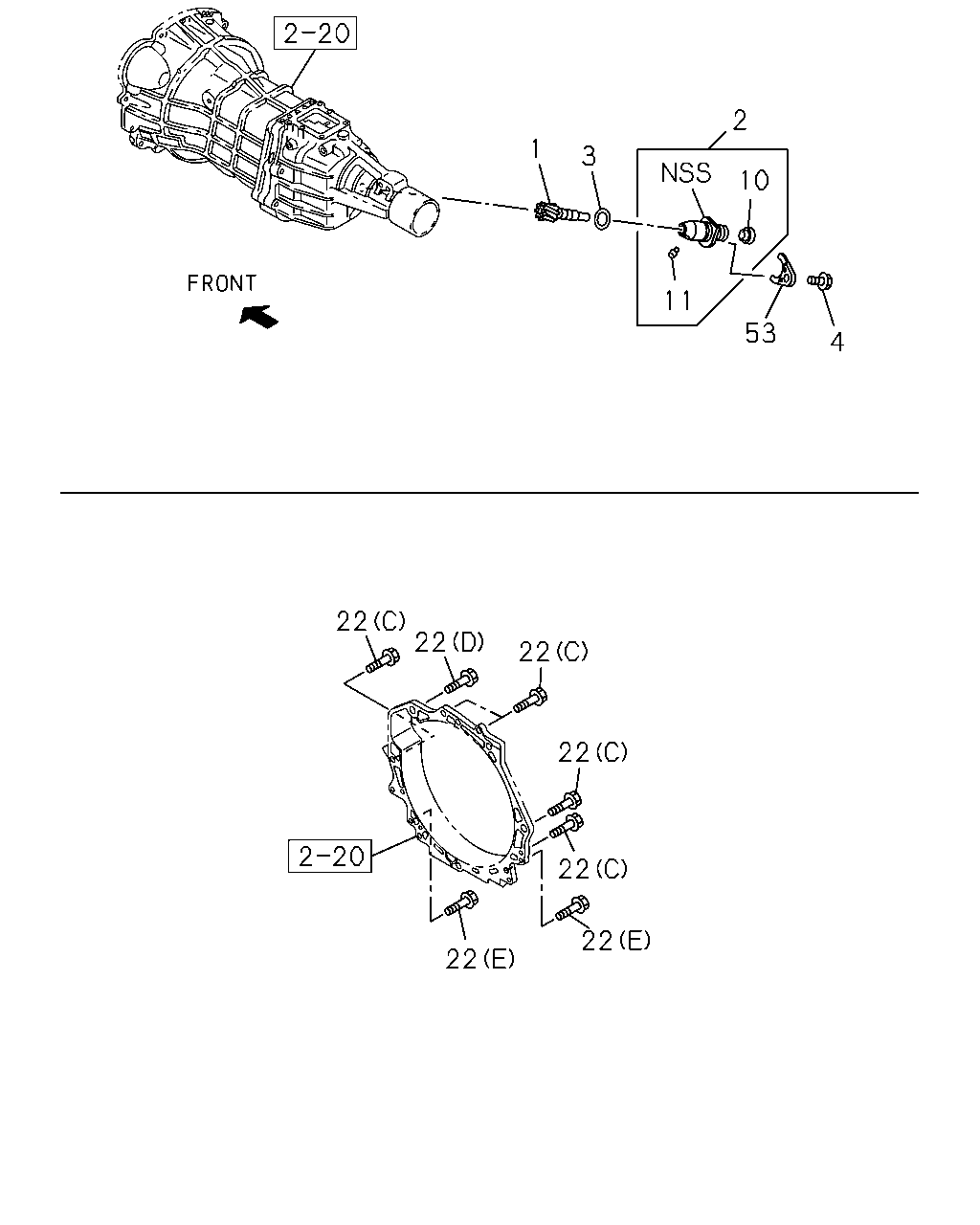

2 1 3 10 11 53 4 22 22 22 22 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/12(GM0) FRT&RR 225/75R15C(BZC) Z=18	8-98004-535-0	01	1	0805-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16(BZD) Z=18	8-98004-535-0	01	1	0805-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/12(GU6) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-98004-535-0	01	1	0805-	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/12(GM0) FRT&RR 225/75R15C(BZC) Z=18	8-98008-940-0	01	1	0805-	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16(BZD) Z=18	8-98008-940-0	01	1	0805-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD) Z=17	8-97012-085-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) Z=17	8-97012-085-2	01	1	0810-1003		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97169-434-1	01	1	0805-1003		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD) Z=16	8-97169-434-1	01	1	0805-1003		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=17	8-94473-307-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	0810-1003		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) Z=18	8-97012-086-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD) Z=18	8-97012-086-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD) Z=18	8-97012-086-2	01	1	0810-1003		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-306-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) Z=18	8-94473-306-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=18	8-94473-306-2	01	1	0810-1003		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0805-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0805-1003	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	1004-	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0805-1003	●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1004-	●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0805-1003	●	●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1004-	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0805-1003	●	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1004-	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0805-1003	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1004-	●
22	00.685 BOLT; TRANS CASE TO ENG HF V6 ENG(LCA) (A)	8-92138-719-0	11	1	0805-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) 00.724 (B) M12X50 FLANGE	0-28051-250-0	08	1	0805-	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (C) M12X45 FLANGE	0-28151-245-0	05	1	0805-1003		●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (D) M12X60 FLANGE	0-28151-260-0	01	1	0805-1003		●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (E) M8X40 FLANGE	0-28650-840-0	02	1	0805-1003		●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	0805-1003	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	1004-	●

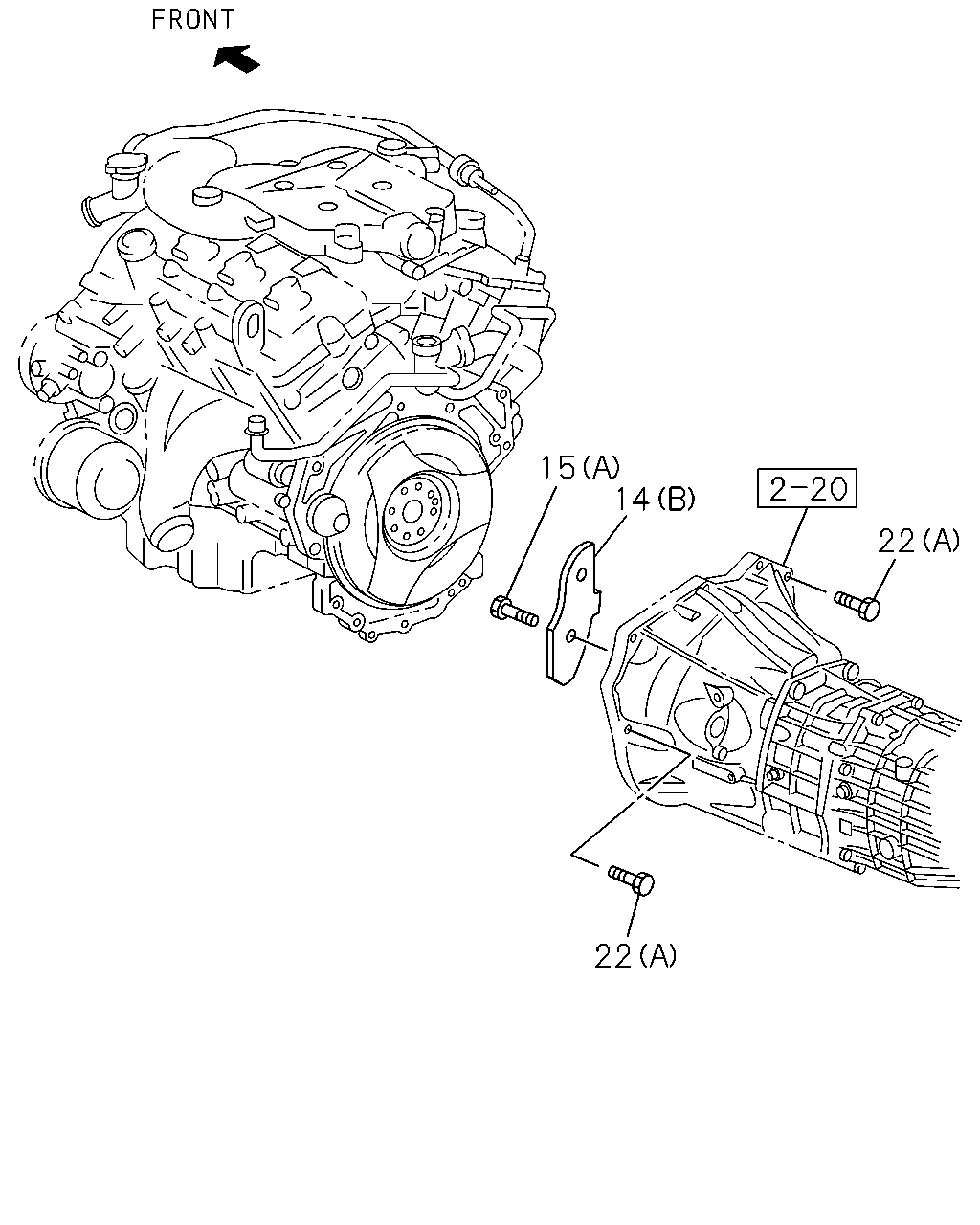

15 14 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (B)	8-98001-230-0	01	1	0805-			●
15	00.685 BOLT; UNDER COVER TO TRANS HF V6 ENG(LCA) (A)	8-92138-321-0	02	1	0805-			●
15	00.685 BOLT; UNDER COVER TO TRANS 4JJ1-TCX ENG(LS0) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	0805-	●
22	00.685 BOLT; TRANS CASE TO ENG HF V6 ENG(LCA) (A)	8-92138-719-0	11	1	0805-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) 00.724 (B) M12X50 FLANGE	0-28051-250-0	08	1	0805-	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (C) M12X45 FLANGE	0-28151-245-0	05	1	0805-1003		●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (D) M12X60 FLANGE	0-28151-260-0	01	1	0805-1003		●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (E) M8X40 FLANGE	0-28650-840-0	02	1	0805-1003		●

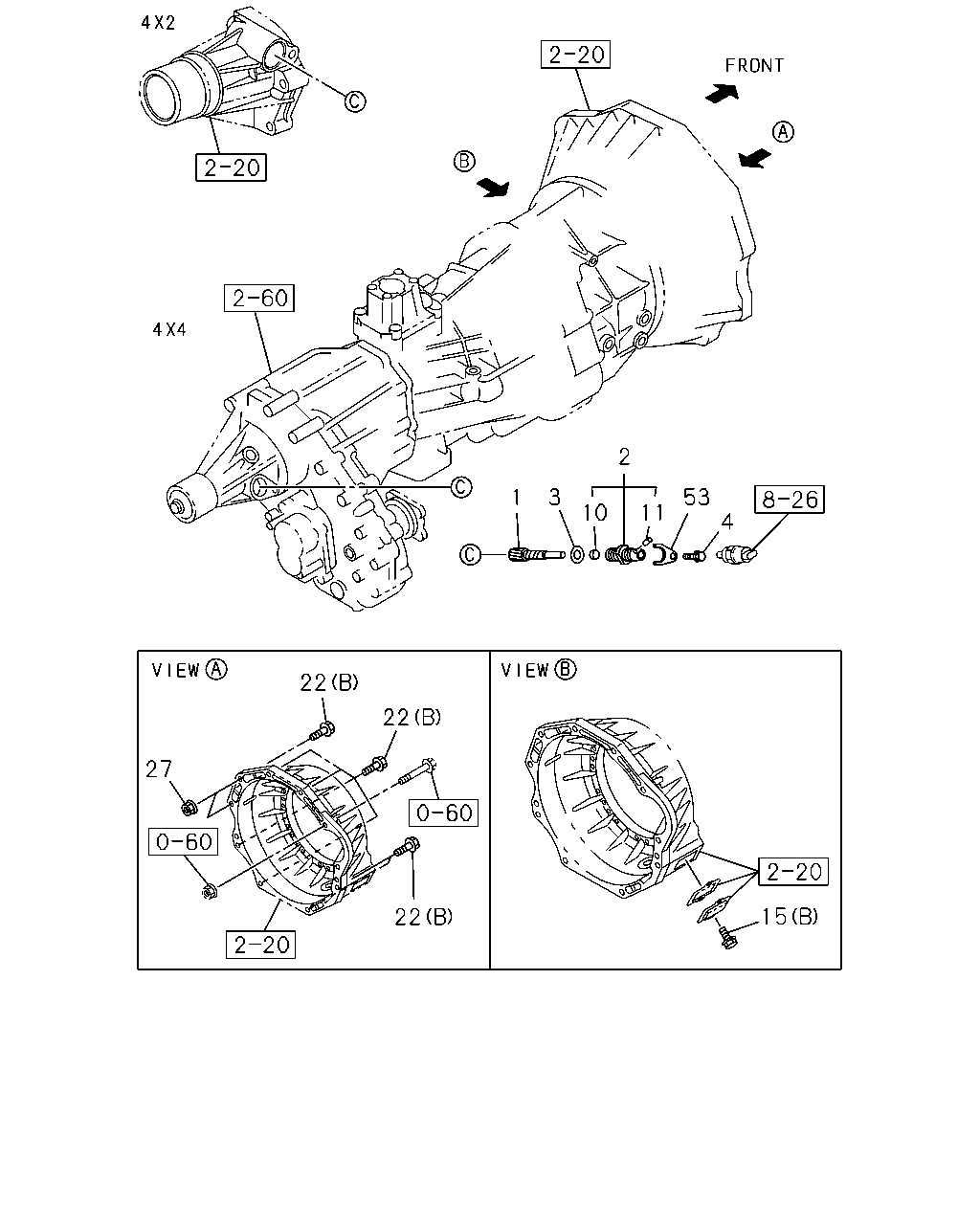

2 3 53 1 10 11 4 22 22 27 15 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/12(GM0) FRT&RR 225/75R15C(BZC) Z=18	8-98004-535-0	01	1	0805-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16(BZD) Z=18	8-98004-535-0	01	1	0805-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/12(GU6) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-98004-535-0	01	1	0805-	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/12(GM0) FRT&RR 225/75R15C(BZC) Z=18	8-98008-940-0	01	1	0805-	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16(BZD) Z=18	8-98008-940-0	01	1	0805-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD) Z=17	8-97012-085-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD) Z=17	8-97012-085-2	01	1	0810-1003		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97169-434-1	01	1	0805-1003		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD) Z=16	8-97169-434-1	01	1	0805-1003		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=17	8-94473-307-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	0810-1003		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) Z=18	8-97012-086-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD) Z=18	8-97012-086-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD) Z=18	8-97012-086-2	01	1	0810-1003		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-306-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) Z=18	8-94473-306-2	01	1	0805-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=18	8-94473-306-2	01	1	0810-1003		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0805-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0805-1003	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	1004-	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0805-1003	●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1004-	●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0805-1003	●	●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1004-	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0805-1003	●	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1004-	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0805-1003	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1004-	●
15	00.685 BOLT; UNDER COVER TO TRANS HF V6 ENG(LCA) (A)	8-92138-321-0	02	1	0805-			●
15	00.685 BOLT; UNDER COVER TO TRANS 4JJ1-TCX ENG(LS0) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	0805-	●
22	00.685 BOLT; TRANS CASE TO ENG HF V6 ENG(LCA) (A)	8-92138-719-0	11	1	0805-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) 00.724 (B) M12X50 FLANGE	0-28051-250-0	08	1	0805-	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (C) M12X45 FLANGE	0-28151-245-0	05	1	0805-1003		●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (D) M12X60 FLANGE	0-28151-260-0	01	1	0805-1003		●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (E) M8X40 FLANGE	0-28650-840-0	02	1	0805-1003		●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCX ENG(LS0) 02.042 M12 FLANGE	0-91180-112-0	02	1	0805-	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	0805-1003	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	1004-	●

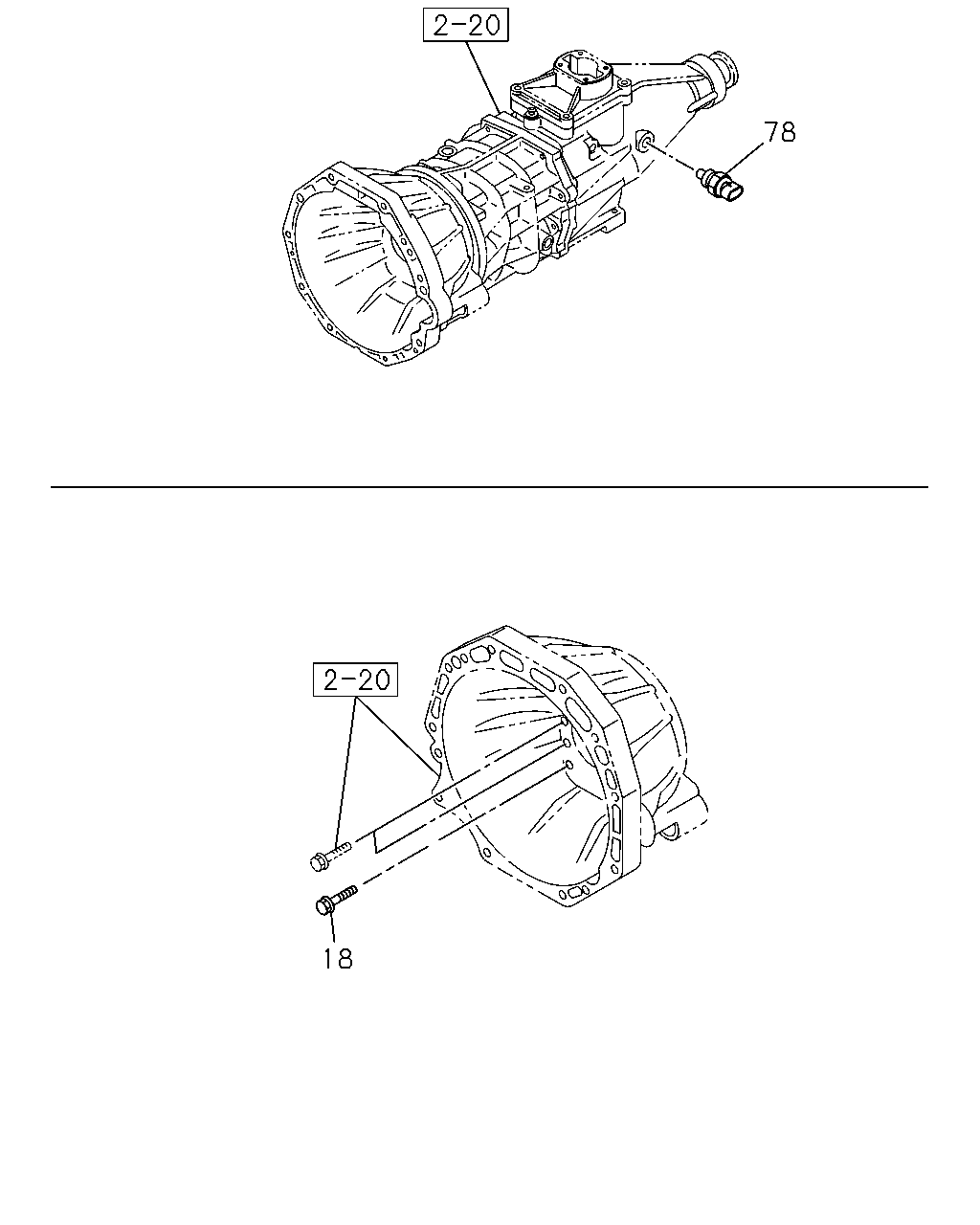

78 18

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	18	00.685 BOLT; CLU HSG TO TRANS HF V6 ENG(LCA)	8-97164-902-0	07	1	0805-			●
	78	04.329 SENSOR; SPD 4X2(TFB***) HF V6 ENG(LCA)	8-89048-421-0	01	1	0805-			●
