◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20B - MANUAL TRANSMISSION ASM AND CASE ▶
2-20B — MANUAL TRANSMISSION ASM AND CASE (#74710) — 27 parça

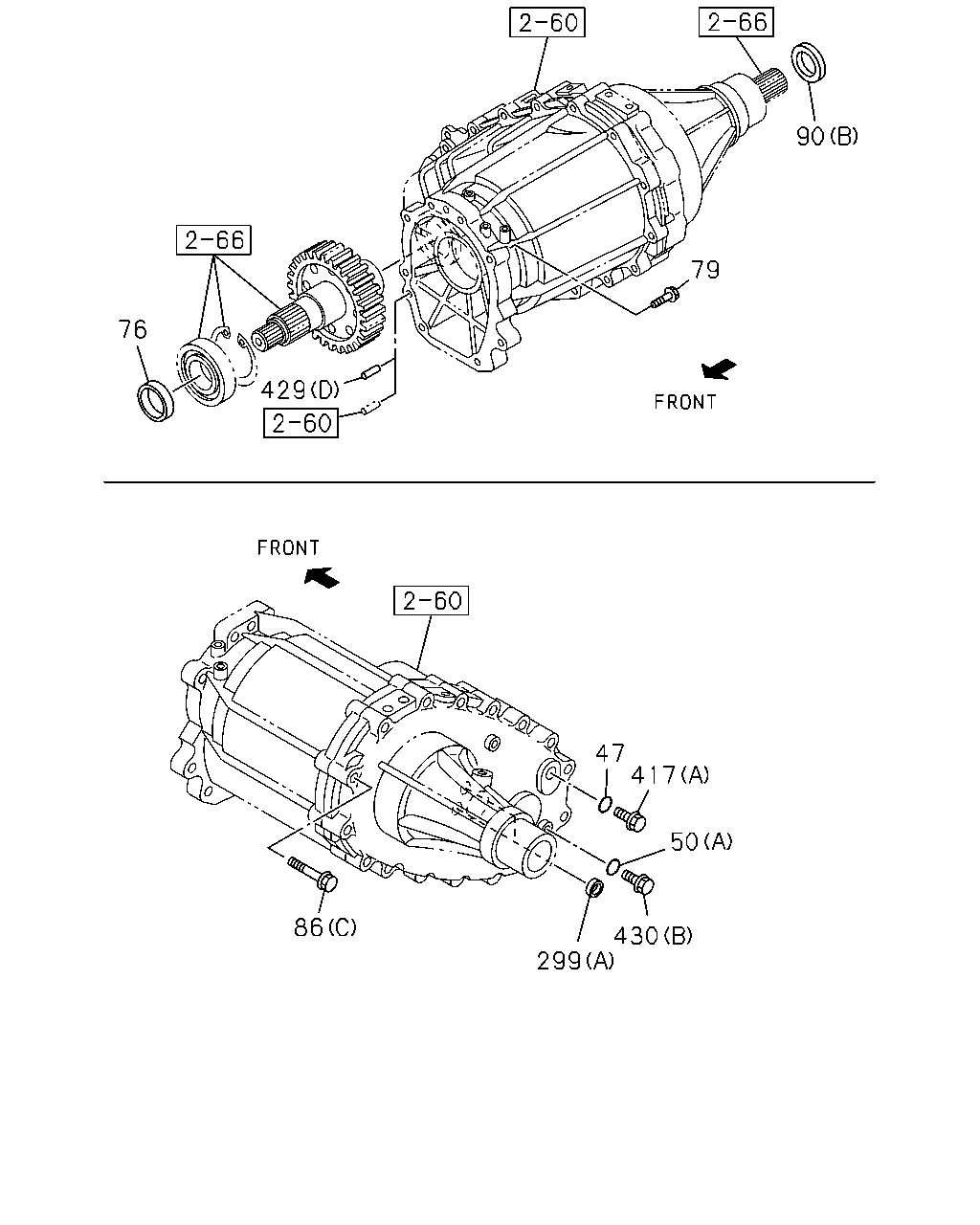

çizim 106833
76 429 79 90 86 299 50 430 417 47
BalonParca AdiParca NoAdetTipApplied Date A B
47 04.510 GASKET; FILLER PLUG,TRANSFER CAS
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 04.105 ID=17 		8-97115-712-0 01 1 0805- ● ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (A) ID=17 		8-97115-712-0 01 1 0805-1003 ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A) ID=17 		8-97115-712-0 01 1 0805-1003 ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A) ID=17 		8-97115-712-0 01 1 1004-1007 ● ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A) ID=17 		8-97115-712-0 01 1 1008- ● ●
76 04.510 SEAL; OIL,TRANSFER CASE
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) NOK 		8-97238-999-0 01 1 0805- ● ●
79 04.510 BOLT; TRANSFER CASE
4X4(TFS***) HF V6 ENG(LCA) 		8-11500-831-0 05 1 0805- ●
79 04.510 BOLT; TRANSFER CASE
4X4 CREW CAB LONG(TFS*WF) M10X35 FLANGE 		0-28051-035-0 07 1 0805- ●
86 04.317 BOLT; RR COVER
4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE 		0-28050-845-0 16 1 0805- ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (B) NOK 		8-97046-705-3 01 1 0805-1003 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) NOK 		8-97046-705-3 01 1 0805-1003 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (B) NOK 		8-97046-705-3 01 1 1004-1007 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) NOK 		8-97046-705-3 01 1 1004-1007 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) NOK 		8-97046-705-3 01 1 1008-1208 ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) NOK 		8-97046-705-3 01 1 1209- ● ●
299 04.317 PLUG; SHIFTER ROD
4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 04.105 (A) OD=14 		8-97358-601-0 02 1 0805- ● ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) HF V6 ENG(LCA) (A) 		8-97365-373-0 01 1 0805-1003 ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) 4JJ1-TCX ENG(LS0) (A) 		8-97365-373-0 01 1 0805-1003 ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) HF V6 ENG(LCA) (A) 		8-97365-373-0 01 1 1004-1007 ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) 4JJ1-TCX ENG(LS0) (A) 		8-97365-373-0 01 1 1004-1007 ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A) 		8-97365-373-0 01 1 1008- ● ●
429 04.105 PIN; STRAIGHT
4X4(TFS***) 04.510 (D) OD=10 L=20 		8-97135-423-0 02 1 0805- ●
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) HF V6 ENG(LCA) (B) 		8-97365-374-0 01 1 0805-1003 ●
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) 		8-97365-374-0 01 1 0805-1003 ●
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) HF V6 ENG(LCA) (B) 		8-97365-374-0 01 1 1004-1007 ●
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) 		8-97365-374-0 01 1 1004-1007 ●
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) 		8-97365-374-0 01 1 1008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
