Sayfa 2-20A - Isuzu EPC

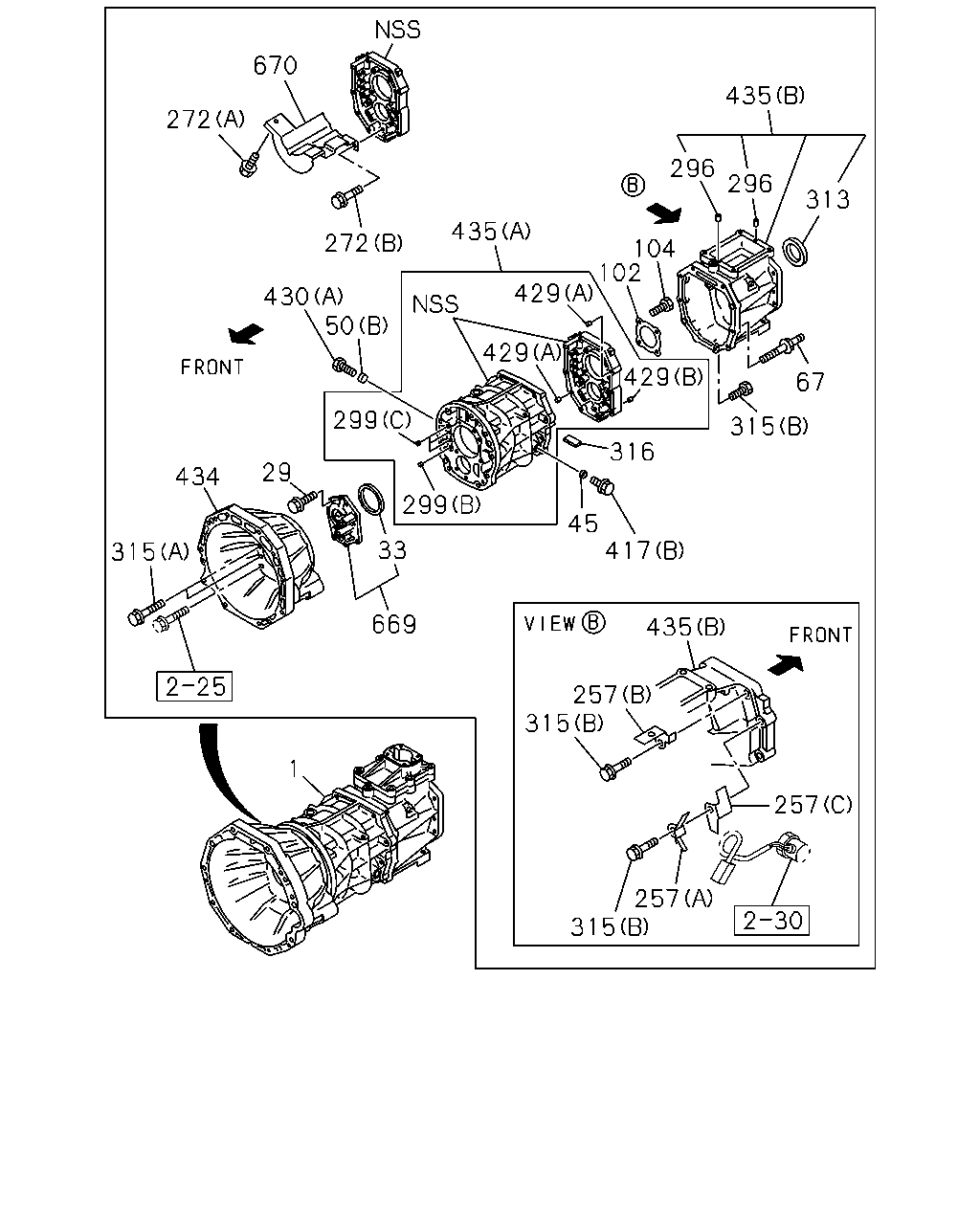

2-20A — MANUAL TRANSMISSION ASM AND CASE (#74709) — 527 parça

670 435 272 296 296 313 104 102 435 272 429 430 50 429 67 429 315 299 299 316 29 434 45 417 33 315 669 435 257 315 1 257 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98090-195-0	01	1	0805-1007	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) HF V6 ENG(LCA)	8-98023-573-0	01	1	0805-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) HF V6 ENG(LCA)	8-98023-574-0	01	1	0805-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98089-767-0	01	1	0805-	●
1	04.003 TRANSMISSION ASM; MANUAL C24SE ENG(LG1)	8-98087-265-0	01	1	0805-0809			●
1	04.003 TRANSMISSION ASM; MANUAL C24SE ENG(LG1)	8-98132-778-0	01	1	0810-1003			●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1008-	●
29	04.356 BOLT; FRT COVER HF V6 ENG(LCA)	8-97164-896-0	08	1	0805-		●
29	04.356 BOLT; FRT COVER C24SE ENG(LG1) M8X22 FLANGE	8-97365-376-0	06	1	0805-1003			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). HF V6 ENG(LCA)	8-89048-232-0	01	1	0805-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0805-1003	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	1004-1208	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1209-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1) TKK	8-97046-698-0	01	1	0805-1003			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). HF V6 ENG(LCA)	8-97164-900-0	01	1	0805-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1) ID=17	8-97115-712-0	01	1	0805-1003			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). HF V6 ENG(LCA) (B)	8-97164-900-0	01	1	0805-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (A) ID=17	8-97115-712-0	01	1	0805-1003		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	0805-1003	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) C24SE ENG(LG1) (A) ID=17	8-97115-712-0	01	1	0805-1003			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	1004-1007	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	1008-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	1008-	●
67	04.105 STUD; CASE TRANS HF V6 ENG(LCA)	8-89048-311-0	03	1	0805-		●
67	04.105 STUD; CASE TRANS 4JJ1-TCX ENG(LS0)	8-98004-519-0	02	1	0805-	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT HF V6 ENG(LCA)	8-97164-895-0	01	1	0805-		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT C24SE ENG(LG1)	8-97138-673-0	01	1	0805-1003			●
104	04.412 BOLT; BRG RET HF V6 ENG(LCA) 04.105	8-97164-897-0	04	1	0805-		●
257	02.559 CLIP; HARNESS HF V6 ENG(LCA) (A)	8-89048-418-0	01	1	0805-		●
257	02.559 CLIP; HARNESS HF V6 ENG(LCA) (B)	8-98025-409-0	01	1	0805-		●
257	02.559 CLIP; HARNESS 4X4(TFS***) HF V6 ENG(LCA) (C)	8-98025-408-0	01	1	0805-		●
272	00.683 BOLT HF V6 ENG(LCA) (A)	8-89048-291-0	02	1	0805-		●
272	00.683 BOLT HF V6 ENG(LCA) (B)	8-89048-559-0	02	1	0805-		●
296	04.510 PIN; QUAD BOX TO CASE HF V6 ENG(LCA)	8-89048-305-0	02	1	0805-		●
299	04.317 PLUG; SHIFTER ROD HF V6 ENG(LCA) (B)	8-89048-238-0	01	1	0805-		●
299	04.317 PLUG; SHIFTER ROD HF V6 ENG(LCA) (C)	8-89048-239-0	03	1	0805-		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 04.105 (A) OD=14	8-97358-601-0	02	1	0805-	●	●
313	04.318 SEAL; OIL 4X2(TFB***) HF V6 ENG(LCA)	8-89048-306-0	01	1	0805-		●
313	04.318 SEAL; OIL 4X4(TFS***) HF V6 ENG(LCA)	8-89048-307-0	01	1	0805-		●
315	04.104 BOLT; CASE HF V6 ENG(LCA) 00.685 (A)	8-97164-898-0	02	1	0805-		●
315	04.104 BOLT; CASE HF V6 ENG(LCA) (B)	8-97164-988-0	07	1	0805-		●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 04.686 (C) M8X60 FLANGE	0-28050-860-0	12	1	0805-	●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 00.685 (C) M8X40 FLANGE	0-28650-840-0	12	1	0805-	●
316	04.105 MAGNET; TRANS CASE HF V6 ENG(LCA)	8-89048-242-0	01	1	0805-		●
316	04.105 MAGNET; TRANS CASE C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	0805-1003	●		●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	1004-	●
417	04.105 PLUG; OIL FILLER,TRANS HF V6 ENG(LCA) (B)	8-89048-248-0	01	1	0805-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA) (A)	8-97365-373-0	01	1	0805-1003		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	0805-1003	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	0805-1003	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) C24SE ENG(LG1) (A)	8-97365-373-0	01	1	0805-1003			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA) (A)	8-97365-373-0	01	1	1004-1007		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1004-1007	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1004-1007	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1008-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1008-	●
429	04.105 PIN; STRAIGHT HF V6 ENG(LCA) (A)	8-89048-236-0	02	1	0805-		●
429	04.105 PIN; STRAIGHT HF V6 ENG(LCA) (B)	8-89048-237-0	04	1	0805-		●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 4JJ1-TCX ENG(LS0) 04.510 (D) OD=10 L=20	8-97135-423-0	02	1	0805-	●
429	04.105 PIN; STRAIGHT C24SE ENG(LG1) (C) OD=10 L=40	5-09740-018-1	02	1	0805-1003			●
430	04.105 PLUG; OIL DRAIN HF V6 ENG(LCA) (A)	8-89048-248-0	01	1	0805-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA) (B)	8-97365-374-0	01	1	0805-1003		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	0805-1003	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	0805-1003	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***) C24SE ENG(LG1) (B)	8-97365-374-0	01	1	0805-1003			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA) (B)	8-97365-374-0	01	1	1004-1007		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1004-1007	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1004-1007	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1008-	●	●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1008-	●
434	00.683 HOUSING; CLU HF V6 ENG(LCA)	8-98024-767-0	01	1	0805-		●
434	00.683 HOUSING; CLU 4JJ1-TCX ENG(LS0)	8-97362-384-0	01	1	0805-	●
435	04.103 CASE; TRANS HF V6 ENG(LCA) (A)	8-89048-233-0	01	1	0805-		●
435	04.103 CASE; TRANS 4X2(TFB***) HF V6 ENG(LCA) (B)	8-89048-300-0	01	1	0805-		●
435	04.103 CASE; TRANS 4X4(TFS***) HF V6 ENG(LCA) (B)	8-98025-392-0	01	1	0805-		●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (D)	8-98035-882-2	01	1	0805-	●
435	04.103 CASE; TRANS C24SE ENG(LG1) (C)	8-98047-238-0	01	1	0805-1003			●
669	04.412 RETAINER; CASE HF V6 ENG(LCA)	8-98025-327-0	01	1	0805-		●
670	04.457 BAFFLE HF V6 ENG(LCA)	8-89048-276-0	01	1	0805-		●

43 40 41 42 29 28 113 16 39 16 417 45 13 14 33 102 421 24 90 414 429 455 316 50 86 86 435 430 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98090-195-0	01	1	0805-1007	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) HF V6 ENG(LCA)	8-98023-573-0	01	1	0805-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) HF V6 ENG(LCA)	8-98023-574-0	01	1	0805-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98089-767-0	01	1	0805-	●
1	04.003 TRANSMISSION ASM; MANUAL C24SE ENG(LG1)	8-98087-265-0	01	1	0805-0809			●
1	04.003 TRANSMISSION ASM; MANUAL C24SE ENG(LG1)	8-98132-778-0	01	1	0810-1003			●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0)	8-98004-443-1	01	1	0805-	●
13	04.302 SUPPORT; SHIFT FORK C24SE ENG(LG1) L=47.5	8-97072-827-0	01	1	0805-1003			●
14	04.302 WASHER; LK,SUPPORT C24SE ENG(LG1) 03.634 ID=12.2	0-91510-512-0	01	1	0805-1003			●
16	04.105 PLUG; SHIFT ROD C24SE ENG(LG1) OD=14	8-97358-601-0	02	1	0805-1003			●
24	00.797 COVER; CHECK HOLE,DUST C24SE ENG(LG1) 06.868	8-94156-700-0	01	1	0805-1003			●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCX ENG(LS0)	8-97362-409-0	01	1	0805-	●
28	04.356 COVER; FRT,TRANS CASE C24SE ENG(LG1)	8-97108-066-1	01	1	0805-1003			●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1008-	●
29	04.356 BOLT; FRT COVER HF V6 ENG(LCA)	8-97164-896-0	08	1	0805-		●
29	04.356 BOLT; FRT COVER C24SE ENG(LG1) M8X22 FLANGE	8-97365-376-0	06	1	0805-1003			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). HF V6 ENG(LCA)	8-89048-232-0	01	1	0805-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0805-1003	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	1004-1208	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1209-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1) TKK	8-97046-698-0	01	1	0805-1003			●
39	04.311 PLATE; DETENT SPR C24SE ENG(LG1)	8-98035-571-0	01	1	0805-1003			●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1)	8-97083-600-1	01	1	0805-1003			●
41	04.311 SPRING; DETENT BALL C24SE ENG(LG1) L=26.8	8-94320-193-0	03	1	0805-1003			●
42	04.311 BALL; DETENT,GEAR SHIFT C24SE ENG(LG1)	8-94435-335-0	03	1	0805-1003			●
43	04.311 BOLT; PLATE TO PLATE C24SE ENG(LG1) 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0805-1003			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). HF V6 ENG(LCA)	8-97164-900-0	01	1	0805-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1) ID=17	8-97115-712-0	01	1	0805-1003			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). HF V6 ENG(LCA) (B)	8-97164-900-0	01	1	0805-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (A) ID=17	8-97115-712-0	01	1	0805-1003		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	0805-1003	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) C24SE ENG(LG1) (A) ID=17	8-97115-712-0	01	1	0805-1003			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	1004-1007	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	1008-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	1008-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0805-	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0805-	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0805-	●
86	04.317 BOLT; RR COVER C24SE ENG(LG1) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0805-1003			●
86	04.317 BOLT; RR COVER C24SE ENG(LG1) (A) M10X55 FLANGE	8-98035-672-0	03	1	0805-1003			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B) NOK	8-97947-840-0	01	1	1209-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (B) NOK	8-97046-705-3	01	1	0805-1003		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0805-1003	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) C24SE ENG(LG1) (B) NOK	8-97046-705-3	01	1	0805-1003			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (B) NOK	8-97046-705-3	01	1	1004-1007		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1004-1007	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-1208	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1209-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A) JTEKT	8-98004-531-0	01	1	0805-	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT HF V6 ENG(LCA)	8-97164-895-0	01	1	0805-		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT C24SE ENG(LG1)	8-97138-673-0	01	1	0805-1003			●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1)	8-97083-589-0	01	1	0805-1003			●
316	04.105 MAGNET; TRANS CASE HF V6 ENG(LCA)	8-89048-242-0	01	1	0805-		●
316	04.105 MAGNET; TRANS CASE C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	0805-1003	●		●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	1004-	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	0805-1003	●		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	1004-	●
417	04.105 PLUG; OIL FILLER,TRANS HF V6 ENG(LCA) (B)	8-89048-248-0	01	1	0805-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA) (A)	8-97365-373-0	01	1	0805-1003		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	0805-1003	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	0805-1003	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) C24SE ENG(LG1) (A)	8-97365-373-0	01	1	0805-1003			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA) (A)	8-97365-373-0	01	1	1004-1007		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1004-1007	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1004-1007	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1008-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1008-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (D)	8-97382-905-2	01	1	0805-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B)	8-98035-906-0	01	1	0805-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (E)	8-97362-423-1	01	1	0805-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-98048-277-0	01	1	0805-	●
421	04.317 COVER; RR,TRANS C24SE ENG(LG1) (C)	8-98014-386-0	01	1	0805-1003			●
429	04.105 PIN; STRAIGHT HF V6 ENG(LCA) (A)	8-89048-236-0	02	1	0805-		●
429	04.105 PIN; STRAIGHT HF V6 ENG(LCA) (B)	8-89048-237-0	04	1	0805-		●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 4JJ1-TCX ENG(LS0) 04.510 (D) OD=10 L=20	8-97135-423-0	02	1	0805-	●
429	04.105 PIN; STRAIGHT C24SE ENG(LG1) (C) OD=10 L=40	5-09740-018-1	02	1	0805-1003			●
430	04.105 PLUG; OIL DRAIN HF V6 ENG(LCA) (A)	8-89048-248-0	01	1	0805-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA) (B)	8-97365-374-0	01	1	0805-1003		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	0805-1003	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	0805-1003	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***) C24SE ENG(LG1) (B)	8-97365-374-0	01	1	0805-1003			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA) (B)	8-97365-374-0	01	1	1004-1007		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1004-1007	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1004-1007	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1008-	●	●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1008-	●
435	04.103 CASE; TRANS HF V6 ENG(LCA) (A)	8-89048-233-0	01	1	0805-		●
435	04.103 CASE; TRANS 4X2(TFB***) HF V6 ENG(LCA) (B)	8-89048-300-0	01	1	0805-		●
435	04.103 CASE; TRANS 4X4(TFS***) HF V6 ENG(LCA) (B)	8-98025-392-0	01	1	0805-		●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (D)	8-98035-882-2	01	1	0805-	●
435	04.103 CASE; TRANS C24SE ENG(LG1) (C)	8-98047-238-0	01	1	0805-1003			●
455	04.008 SCREW; BRG RET C24SE ENG(LG1) M8X22	8-98035-654-0	04	1	0805-1003			●

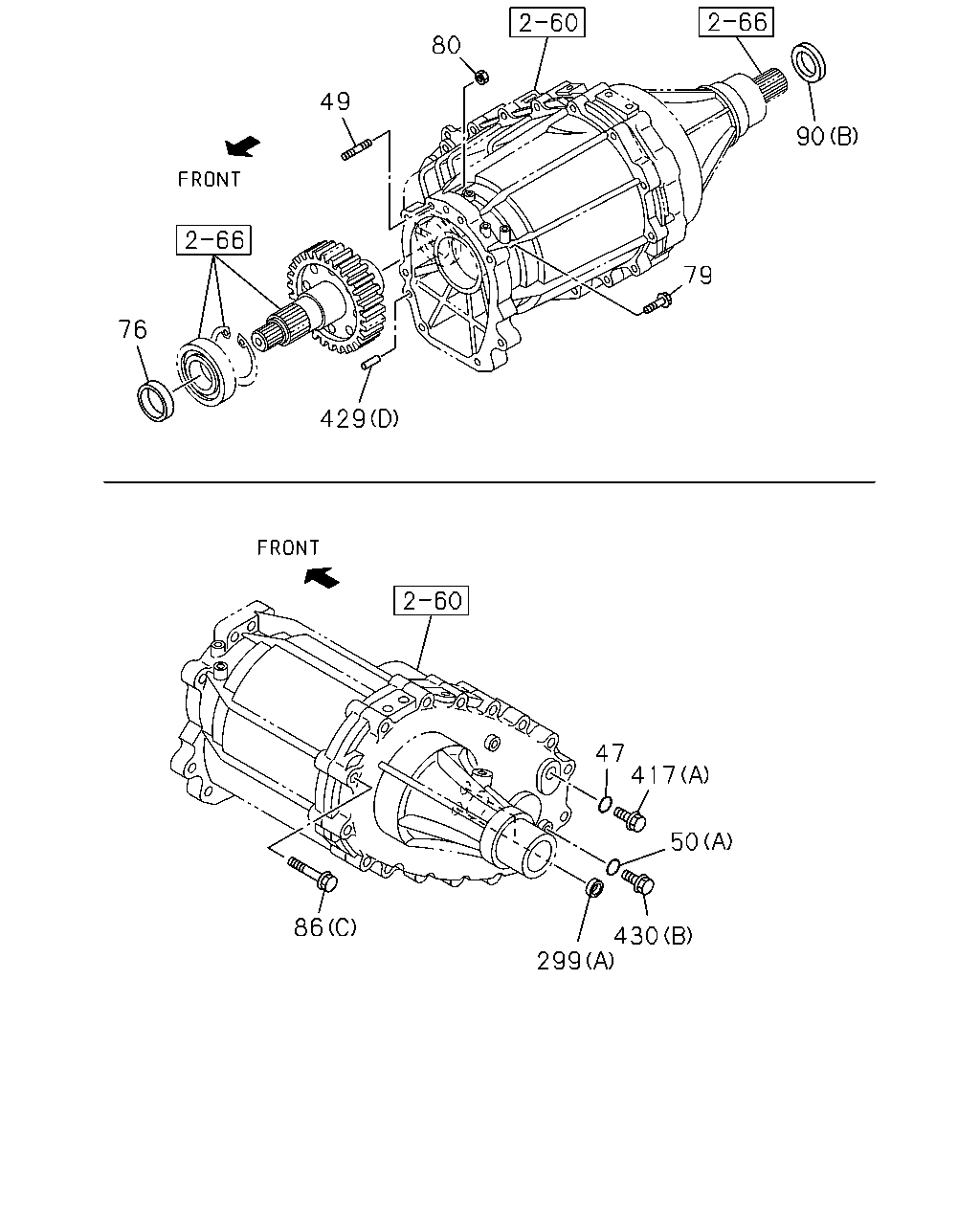

49 76 80 429 79 90 86 299 50 417 47 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 04.105 ID=17	8-97115-712-0	01	1	0805-	●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) M10X30 L=45	8-98035-675-0	01	1	0805-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). HF V6 ENG(LCA) (B)	8-97164-900-0	01	1	0805-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (A) ID=17	8-97115-712-0	01	1	0805-1003		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	0805-1003	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) C24SE ENG(LG1) (A) ID=17	8-97115-712-0	01	1	0805-1003			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	1004-1007	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	1008-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	1008-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) NOK	8-97238-999-0	01	1	0805-	●	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) HF V6 ENG(LCA)	8-11500-831-0	05	1	0805-		●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) M10X35 FLANGE	0-28051-035-0	06	1	0805-	●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) 03.162 M10 FLANGE	0-91180-110-0	01	1	0805-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0805-	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0805-	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0805-	●
86	04.317 BOLT; RR COVER C24SE ENG(LG1) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0805-1003			●
86	04.317 BOLT; RR COVER C24SE ENG(LG1) (A) M10X55 FLANGE	8-98035-672-0	03	1	0805-1003			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B) NOK	8-97947-840-0	01	1	1209-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (B) NOK	8-97046-705-3	01	1	0805-1003		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0805-1003	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) C24SE ENG(LG1) (B) NOK	8-97046-705-3	01	1	0805-1003			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (B) NOK	8-97046-705-3	01	1	1004-1007		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1004-1007	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-1208	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1209-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A) JTEKT	8-98004-531-0	01	1	0805-	●
299	04.317 PLUG; SHIFTER ROD HF V6 ENG(LCA) (B)	8-89048-238-0	01	1	0805-		●
299	04.317 PLUG; SHIFTER ROD HF V6 ENG(LCA) (C)	8-89048-239-0	03	1	0805-		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 04.105 (A) OD=14	8-97358-601-0	02	1	0805-	●	●
417	04.105 PLUG; OIL FILLER,TRANS HF V6 ENG(LCA) (B)	8-89048-248-0	01	1	0805-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA) (A)	8-97365-373-0	01	1	0805-1003		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	0805-1003	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	0805-1003	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) C24SE ENG(LG1) (A)	8-97365-373-0	01	1	0805-1003			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA) (A)	8-97365-373-0	01	1	1004-1007		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1004-1007	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1004-1007	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1008-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1008-	●
429	04.105 PIN; STRAIGHT HF V6 ENG(LCA) (A)	8-89048-236-0	02	1	0805-		●
429	04.105 PIN; STRAIGHT HF V6 ENG(LCA) (B)	8-89048-237-0	04	1	0805-		●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 4JJ1-TCX ENG(LS0) 04.510 (D) OD=10 L=20	8-97135-423-0	02	1	0805-	●
429	04.105 PIN; STRAIGHT C24SE ENG(LG1) (C) OD=10 L=40	5-09740-018-1	02	1	0805-1003			●
430	04.105 PLUG; OIL DRAIN HF V6 ENG(LCA) (A)	8-89048-248-0	01	1	0805-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA) (B)	8-97365-374-0	01	1	0805-1003		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	0805-1003	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	0805-1003	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***) C24SE ENG(LG1) (B)	8-97365-374-0	01	1	0805-1003			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA) (B)	8-97365-374-0	01	1	1004-1007		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1004-1007	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1004-1007	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1008-	●	●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1008-	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	17	04.105 STUD; STARTER SETTING C24SE ENG(LG1) 01.453 M6X12 L=21	0-41010-612-0	02	1	0805-1003			●

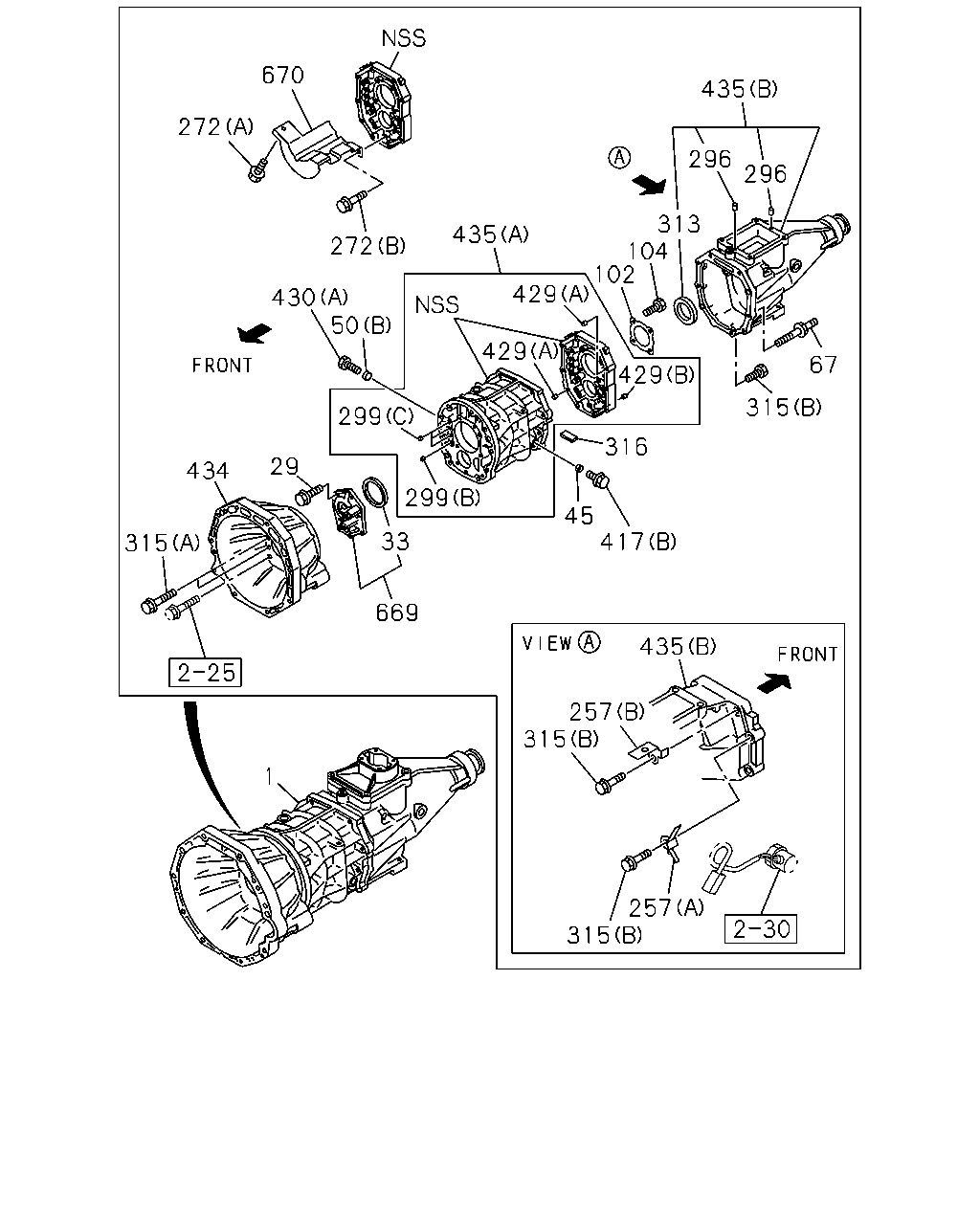

670 435 272 296 296 313 435 272 104 102 429 430 50 429 429 67 299 299 315 316 29 434 45 417 33 315 669 435 257 315 1 257 257 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98090-195-0	01	1	0805-1007	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) HF V6 ENG(LCA)	8-98023-573-0	01	1	0805-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) HF V6 ENG(LCA)	8-98023-574-0	01	1	0805-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98089-767-0	01	1	0805-	●
1	04.003 TRANSMISSION ASM; MANUAL C24SE ENG(LG1)	8-98087-265-0	01	1	0805-0809			●
1	04.003 TRANSMISSION ASM; MANUAL C24SE ENG(LG1)	8-98132-778-0	01	1	0810-1003			●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1008-	●
29	04.356 BOLT; FRT COVER HF V6 ENG(LCA)	8-97164-896-0	08	1	0805-		●
29	04.356 BOLT; FRT COVER C24SE ENG(LG1) M8X22 FLANGE	8-97365-376-0	06	1	0805-1003			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). HF V6 ENG(LCA)	8-89048-232-0	01	1	0805-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0805-1003	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	1004-1208	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1209-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1) TKK	8-97046-698-0	01	1	0805-1003			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). HF V6 ENG(LCA)	8-97164-900-0	01	1	0805-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1) ID=17	8-97115-712-0	01	1	0805-1003			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). HF V6 ENG(LCA) (B)	8-97164-900-0	01	1	0805-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (A) ID=17	8-97115-712-0	01	1	0805-1003		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	0805-1003	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) C24SE ENG(LG1) (A) ID=17	8-97115-712-0	01	1	0805-1003			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	1004-1007	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	1008-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (A) ID=17	8-97115-712-0	01	1	1008-	●
67	04.105 STUD; CASE TRANS HF V6 ENG(LCA)	8-89048-311-0	03	1	0805-		●
67	04.105 STUD; CASE TRANS 4JJ1-TCX ENG(LS0)	8-98004-519-0	02	1	0805-	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT HF V6 ENG(LCA)	8-97164-895-0	01	1	0805-		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT C24SE ENG(LG1)	8-97138-673-0	01	1	0805-1003			●
104	04.412 BOLT; BRG RET HF V6 ENG(LCA) 04.105	8-97164-897-0	04	1	0805-		●
257	02.559 CLIP; HARNESS HF V6 ENG(LCA) (A)	8-89048-418-0	01	1	0805-		●
257	02.559 CLIP; HARNESS HF V6 ENG(LCA) (B)	8-98025-409-0	01	1	0805-		●
257	02.559 CLIP; HARNESS 4X4(TFS***) HF V6 ENG(LCA) (C)	8-98025-408-0	01	1	0805-		●
272	00.683 BOLT HF V6 ENG(LCA) (A)	8-89048-291-0	02	1	0805-		●
272	00.683 BOLT HF V6 ENG(LCA) (B)	8-89048-559-0	02	1	0805-		●
296	04.510 PIN; QUAD BOX TO CASE HF V6 ENG(LCA)	8-89048-305-0	02	1	0805-		●
299	04.317 PLUG; SHIFTER ROD HF V6 ENG(LCA) (B)	8-89048-238-0	01	1	0805-		●
299	04.317 PLUG; SHIFTER ROD HF V6 ENG(LCA) (C)	8-89048-239-0	03	1	0805-		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 04.105 (A) OD=14	8-97358-601-0	02	1	0805-	●	●
313	04.318 SEAL; OIL 4X2(TFB***) HF V6 ENG(LCA)	8-89048-306-0	01	1	0805-		●
313	04.318 SEAL; OIL 4X4(TFS***) HF V6 ENG(LCA)	8-89048-307-0	01	1	0805-		●
315	04.104 BOLT; CASE HF V6 ENG(LCA) 00.685 (A)	8-97164-898-0	02	1	0805-		●
315	04.104 BOLT; CASE HF V6 ENG(LCA) (B)	8-97164-988-0	07	1	0805-		●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 04.686 (C) M8X60 FLANGE	0-28050-860-0	12	1	0805-	●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 00.685 (C) M8X40 FLANGE	0-28650-840-0	12	1	0805-	●
316	04.105 MAGNET; TRANS CASE HF V6 ENG(LCA)	8-89048-242-0	01	1	0805-		●
316	04.105 MAGNET; TRANS CASE C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	0805-1003	●		●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	1004-	●
417	04.105 PLUG; OIL FILLER,TRANS HF V6 ENG(LCA) (B)	8-89048-248-0	01	1	0805-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA) (A)	8-97365-373-0	01	1	0805-1003		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	0805-1003	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	0805-1003	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) C24SE ENG(LG1) (A)	8-97365-373-0	01	1	0805-1003			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA) (A)	8-97365-373-0	01	1	1004-1007		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1004-1007	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1004-1007	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1008-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1008-	●
429	04.105 PIN; STRAIGHT HF V6 ENG(LCA) (A)	8-89048-236-0	02	1	0805-		●
429	04.105 PIN; STRAIGHT HF V6 ENG(LCA) (B)	8-89048-237-0	04	1	0805-		●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 4JJ1-TCX ENG(LS0) 04.510 (D) OD=10 L=20	8-97135-423-0	02	1	0805-	●
429	04.105 PIN; STRAIGHT C24SE ENG(LG1) (C) OD=10 L=40	5-09740-018-1	02	1	0805-1003			●
430	04.105 PLUG; OIL DRAIN HF V6 ENG(LCA) (A)	8-89048-248-0	01	1	0805-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA) (B)	8-97365-374-0	01	1	0805-1003		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	0805-1003	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	0805-1003	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***) C24SE ENG(LG1) (B)	8-97365-374-0	01	1	0805-1003			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA) (B)	8-97365-374-0	01	1	1004-1007		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1004-1007	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1004-1007	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1008-	●	●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1008-	●
434	00.683 HOUSING; CLU HF V6 ENG(LCA)	8-98024-767-0	01	1	0805-		●
434	00.683 HOUSING; CLU 4JJ1-TCX ENG(LS0)	8-97362-384-0	01	1	0805-	●
435	04.103 CASE; TRANS HF V6 ENG(LCA) (A)	8-89048-233-0	01	1	0805-		●
435	04.103 CASE; TRANS 4X2(TFB***) HF V6 ENG(LCA) (B)	8-89048-300-0	01	1	0805-		●
435	04.103 CASE; TRANS 4X4(TFS***) HF V6 ENG(LCA) (B)	8-98025-392-0	01	1	0805-		●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (D)	8-98035-882-2	01	1	0805-	●
435	04.103 CASE; TRANS C24SE ENG(LG1) (C)	8-98047-238-0	01	1	0805-1003			●
669	04.412 RETAINER; CASE HF V6 ENG(LCA)	8-98025-327-0	01	1	0805-		●
670	04.457 BAFFLE HF V6 ENG(LCA)	8-89048-276-0	01	1	0805-		●

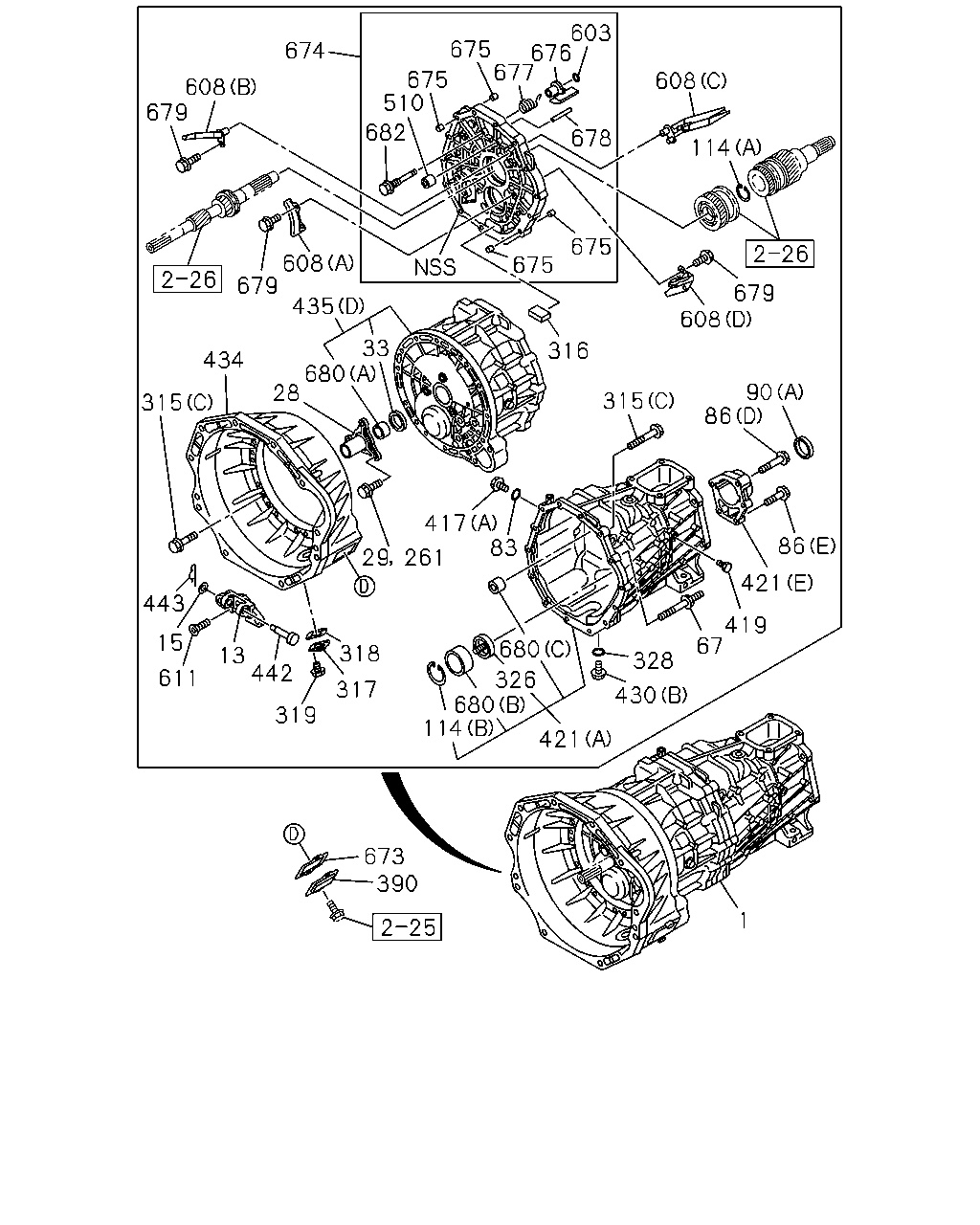

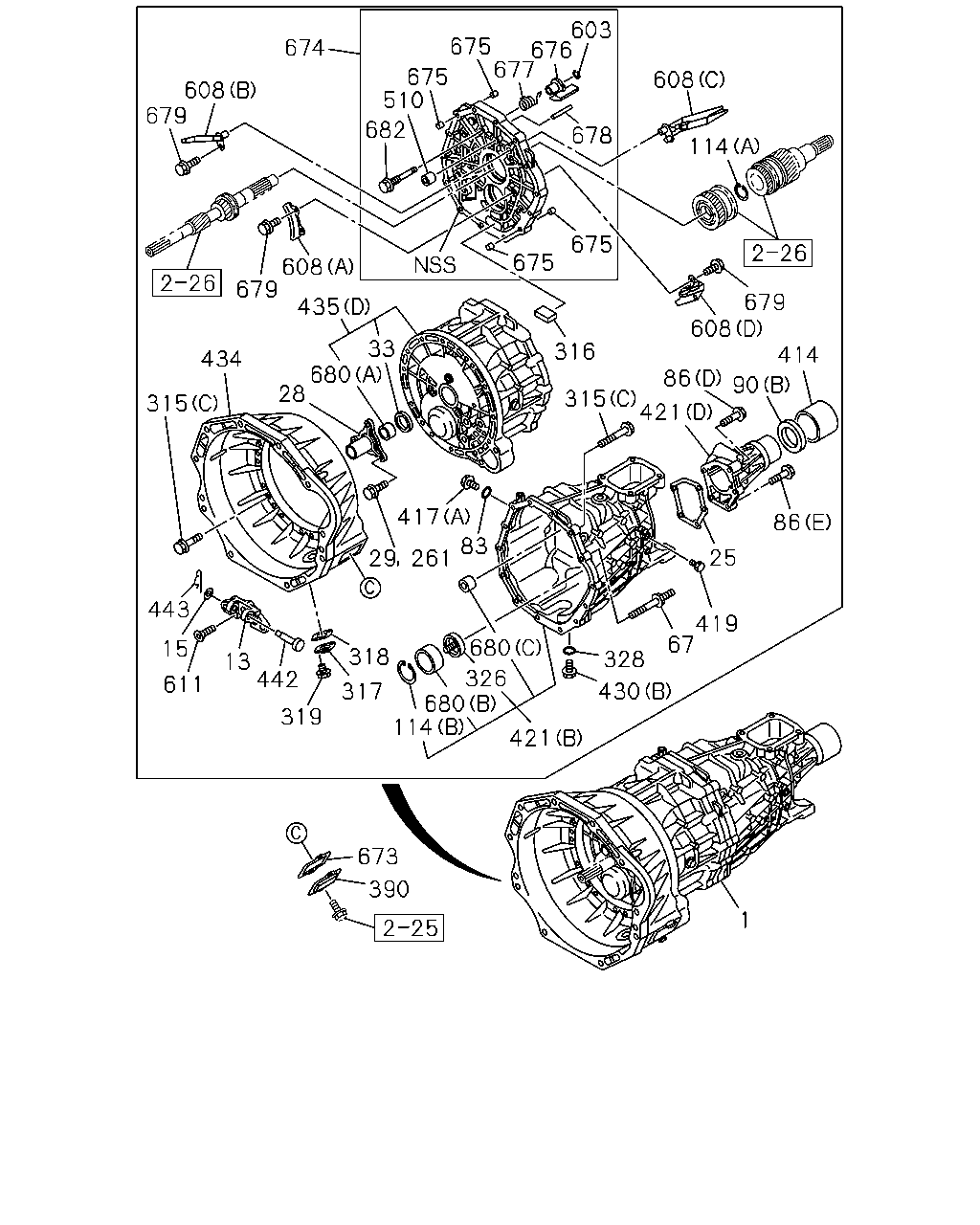

603 675 676 677 674 675 510 608 608 679 682 678 114 675 608 679 675 679 608 435 33 680 28 316 434 90 86 315 315 417 83 86 29 261 421 443 419 67 15 680 318 13 442 328 611 326 680 114 317 430 319 421 673 390 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98090-195-0	01	1	0805-1007	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) HF V6 ENG(LCA)	8-98023-573-0	01	1	0805-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) HF V6 ENG(LCA)	8-98023-574-0	01	1	0805-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98089-767-0	01	1	0805-	●
1	04.003 TRANSMISSION ASM; MANUAL C24SE ENG(LG1)	8-98087-265-0	01	1	0805-0809			●
1	04.003 TRANSMISSION ASM; MANUAL C24SE ENG(LG1)	8-98132-778-0	01	1	0810-1003			●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0)	8-98004-443-1	01	1	0805-	●
13	04.302 SUPPORT; SHIFT FORK C24SE ENG(LG1) L=47.5	8-97072-827-0	01	1	0805-1003			●
15	04.302 WASHER; PL 4JJ1-TCX ENG(LS0) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0805-	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCX ENG(LS0)	8-97362-409-0	01	1	0805-	●
28	04.356 COVER; FRT,TRANS CASE C24SE ENG(LG1)	8-97108-066-1	01	1	0805-1003			●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1008-	●
29	04.356 BOLT; FRT COVER HF V6 ENG(LCA)	8-97164-896-0	08	1	0805-		●
29	04.356 BOLT; FRT COVER C24SE ENG(LG1) M8X22 FLANGE	8-97365-376-0	06	1	0805-1003			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). HF V6 ENG(LCA)	8-89048-232-0	01	1	0805-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0805-1003	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	1004-1208	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1209-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1) TKK	8-97046-698-0	01	1	0805-1003			●
67	04.105 STUD; CASE TRANS HF V6 ENG(LCA)	8-89048-311-0	03	1	0805-		●
67	04.105 STUD; CASE TRANS 4JJ1-TCX ENG(LS0)	8-98004-519-0	02	1	0805-	●
83	04.105 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0805-1007	●
86	04.317 BOLT; RR COVER 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0805-	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0805-	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0805-	●
86	04.317 BOLT; RR COVER C24SE ENG(LG1) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0805-1003			●
86	04.317 BOLT; RR COVER C24SE ENG(LG1) (A) M10X55 FLANGE	8-98035-672-0	03	1	0805-1003			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B) NOK	8-97947-840-0	01	1	1209-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (B) NOK	8-97046-705-3	01	1	0805-1003		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0805-1003	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) C24SE ENG(LG1) (B) NOK	8-97046-705-3	01	1	0805-1003			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (B) NOK	8-97046-705-3	01	1	1004-1007		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1004-1007	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-1208	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1209-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A) JTEKT	8-98004-531-0	01	1	0805-	●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (A) OD=77	8-98024-221-0	01	1	0805-	●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (B) OD=60.2	9-09180-156-0	01	1	0805-	●
261	04.109 BOLT; COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0805-1007	●
315	04.104 BOLT; CASE HF V6 ENG(LCA) 00.685 (A)	8-97164-898-0	02	1	0805-		●
315	04.104 BOLT; CASE HF V6 ENG(LCA) (B)	8-97164-988-0	07	1	0805-		●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 04.686 (C) M8X60 FLANGE	0-28050-860-0	12	1	0805-	●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 00.685 (C) M8X40 FLANGE	0-28650-840-0	12	1	0805-	●
316	04.105 MAGNET; TRANS CASE HF V6 ENG(LCA)	8-89048-242-0	01	1	0805-		●
316	04.105 MAGNET; TRANS CASE C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	0805-1003	●		●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	1004-	●
317	04.109 COVER; CASE 4JJ1-TCX ENG(LS0)	8-97034-422-1	01	1	0805-	●
318	04.109 GASKET; COVER 4JJ1-TCX ENG(LS0)	8-97035-567-0	01	1	0805-	●
319	04.109 BOLT; COVER 4JJ1-TCX ENG(LS0) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0805-	●
326	04.020 NOZZLE; OIL,OUTLET 4JJ1-TCX ENG(LS0)	8-98023-517-0	01	1	0805-	●
328	04.105 GASKET; PLUG 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0805-1007	●
390	00.797 COVER; DUST,CLU SHIFT 4JJ1-TCX ENG(LS0)	8-98007-103-0	01	1	0805-	●
417	04.105 PLUG; OIL FILLER,TRANS HF V6 ENG(LCA) (B)	8-89048-248-0	01	1	0805-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA) (A)	8-97365-373-0	01	1	0805-1003		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	0805-1003	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	0805-1003	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) C24SE ENG(LG1) (A)	8-97365-373-0	01	1	0805-1003			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA) (A)	8-97365-373-0	01	1	1004-1007		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1004-1007	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1004-1007	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1008-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1008-	●
419	04.317 PLUG; RR COVER 4JJ1-TCX ENG(LS0) M12X9	8-98047-054-0	01	1	0805-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (D)	8-97382-905-2	01	1	0805-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B)	8-98035-906-0	01	1	0805-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (E)	8-97362-423-1	01	1	0805-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-98048-277-0	01	1	0805-	●
421	04.317 COVER; RR,TRANS C24SE ENG(LG1) (C)	8-98014-386-0	01	1	0805-1003			●
430	04.105 PLUG; OIL DRAIN HF V6 ENG(LCA) (A)	8-89048-248-0	01	1	0805-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA) (B)	8-97365-374-0	01	1	0805-1003		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	0805-1003	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	0805-1003	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***) C24SE ENG(LG1) (B)	8-97365-374-0	01	1	0805-1003			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA) (B)	8-97365-374-0	01	1	1004-1007		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1004-1007	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1004-1007	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1008-	●	●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1008-	●
434	00.683 HOUSING; CLU HF V6 ENG(LCA)	8-98024-767-0	01	1	0805-		●
434	00.683 HOUSING; CLU 4JJ1-TCX ENG(LS0)	8-97362-384-0	01	1	0805-	●
435	04.103 CASE; TRANS HF V6 ENG(LCA) (A)	8-89048-233-0	01	1	0805-		●
435	04.103 CASE; TRANS 4X2(TFB***) HF V6 ENG(LCA) (B)	8-89048-300-0	01	1	0805-		●
435	04.103 CASE; TRANS 4X4(TFS***) HF V6 ENG(LCA) (B)	8-98025-392-0	01	1	0805-		●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (D)	8-98035-882-2	01	1	0805-	●
435	04.103 CASE; TRANS C24SE ENG(LG1) (C)	8-98047-238-0	01	1	0805-1003			●
442	04.302 PIN; SHIFT FORK 4JJ1-TCX ENG(LS0)	8-98024-123-0	01	1	0805-	●
443	04.302 PIN; SNAP,SHIFT FORK 4JJ1-TCX ENG(LS0) 04.662 L=27.7	1-09747-005-0	01	1	0805-	●
510	00.683 BEARING 4JJ1-TCX ENG(LS0)	8-97362-853-0	01	1	0805-	●
603	04.317 RING; SNAP 4JJ1-TCX ENG(LS0)	8-98039-270-0	01	1	0805-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (A)	8-97362-391-0	01	1	0805-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (B)	8-97362-564-1	01	1	0805-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (C)	8-97362-565-1	01	1	0805-0902	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (C)	8-98142-574-0	01	1	0903-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (D)	8-98004-505-0	01	1	0805-	●
611	04.104 SCREW 4JJ1-TCX ENG(LS0) M10X27 TORQUES	8-97365-354-0	03	1	0805-	●
673	04.318 SEAL; COVER 4JJ1-TCX ENG(LS0)	8-98007-102-0	01	1	0805-	●
674	00.886 PLATE; INTERMEDIATE 4JJ1-TCX ENG(LS0)	8-98042-863-0	01	1	0805-	●
675	00.206 DOWEL 4JJ1-TCX ENG(LS0) OD=11 L=8	9-11229-058-1	04	1	0805-	●
676	04.439 INHIBITOR 4JJ1-TCX ENG(LS0)	8-98037-604-1	01	1	0805-	●
677	00.683 SPRING; INHIBITOR 4JJ1-TCX ENG(LS0)	8-97362-852-0	01	1	0805-	●
678	04.317 PIN 4JJ1-TCX ENG(LS0)	9-08160-436-0	01	1	0805-	●
679	04.104 BOLT; GUTTER 4JJ1-TCX ENG(LS0) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0805-	●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (A)	8-97362-720-1	01	1	0805-	●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (C)	8-97362-853-0	01	1	0805-	●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (B)	8-98024-431-0	01	1	0805-	●
682	00.683 BOLT; INHIBITOR 4JJ1-TCX ENG(LS0) M10X50	8-98042-618-0	01	1	0805-	●

603 675 676 677 674 675 510 608 608 679 682 678 114 675 675 608 679 679 608 435 33 680 28 316 414 434 86 90 315 421 315 417 86 83 25 29 261 443 419 67 15 680 318 328 13 442 326 680 114 611 430 317 319 421 673 390 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98090-195-0	01	1	0805-1007	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) HF V6 ENG(LCA)	8-98023-573-0	01	1	0805-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) HF V6 ENG(LCA)	8-98023-574-0	01	1	0805-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98089-767-0	01	1	0805-	●
1	04.003 TRANSMISSION ASM; MANUAL C24SE ENG(LG1)	8-98087-265-0	01	1	0805-0809			●
1	04.003 TRANSMISSION ASM; MANUAL C24SE ENG(LG1)	8-98132-778-0	01	1	0810-1003			●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0)	8-98004-443-1	01	1	0805-	●
13	04.302 SUPPORT; SHIFT FORK C24SE ENG(LG1) L=47.5	8-97072-827-0	01	1	0805-1003			●
15	04.302 WASHER; PL 4JJ1-TCX ENG(LS0) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0805-	●
25	00.686 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98004-774-0	01	1	0805-	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCX ENG(LS0)	8-97362-409-0	01	1	0805-	●
28	04.356 COVER; FRT,TRANS CASE C24SE ENG(LG1)	8-97108-066-1	01	1	0805-1003			●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1008-	●
29	04.356 BOLT; FRT COVER HF V6 ENG(LCA)	8-97164-896-0	08	1	0805-		●
29	04.356 BOLT; FRT COVER C24SE ENG(LG1) M8X22 FLANGE	8-97365-376-0	06	1	0805-1003			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). HF V6 ENG(LCA)	8-89048-232-0	01	1	0805-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0805-1003	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	1004-1208	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1209-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). C24SE ENG(LG1) TKK	8-97046-698-0	01	1	0805-1003			●
67	04.105 STUD; CASE TRANS HF V6 ENG(LCA)	8-89048-311-0	03	1	0805-		●
67	04.105 STUD; CASE TRANS 4JJ1-TCX ENG(LS0)	8-98004-519-0	02	1	0805-	●
83	04.105 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0805-1007	●
86	04.317 BOLT; RR COVER 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0805-	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0805-	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0805-	●
86	04.317 BOLT; RR COVER C24SE ENG(LG1) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0805-1003			●
86	04.317 BOLT; RR COVER C24SE ENG(LG1) (A) M10X55 FLANGE	8-98035-672-0	03	1	0805-1003			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B) NOK	8-97947-840-0	01	1	1209-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (B) NOK	8-97046-705-3	01	1	0805-1003		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0805-1003	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) C24SE ENG(LG1) (B) NOK	8-97046-705-3	01	1	0805-1003			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA) (B) NOK	8-97046-705-3	01	1	1004-1007		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1004-1007	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-1208	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1209-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A) JTEKT	8-98004-531-0	01	1	0805-	●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (A) OD=77	8-98024-221-0	01	1	0805-	●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (B) OD=60.2	9-09180-156-0	01	1	0805-	●
261	04.109 BOLT; COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0805-1007	●
315	04.104 BOLT; CASE HF V6 ENG(LCA) 00.685 (A)	8-97164-898-0	02	1	0805-		●
315	04.104 BOLT; CASE HF V6 ENG(LCA) (B)	8-97164-988-0	07	1	0805-		●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 04.686 (C) M8X60 FLANGE	0-28050-860-0	12	1	0805-	●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 00.685 (C) M8X40 FLANGE	0-28650-840-0	12	1	0805-	●
316	04.105 MAGNET; TRANS CASE HF V6 ENG(LCA)	8-89048-242-0	01	1	0805-		●
316	04.105 MAGNET; TRANS CASE C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	0805-1003	●		●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	1004-	●
317	04.109 COVER; CASE 4JJ1-TCX ENG(LS0)	8-97034-422-1	01	1	0805-	●
318	04.109 GASKET; COVER 4JJ1-TCX ENG(LS0)	8-97035-567-0	01	1	0805-	●
319	04.109 BOLT; COVER 4JJ1-TCX ENG(LS0) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0805-	●
326	04.020 NOZZLE; OIL,OUTLET 4JJ1-TCX ENG(LS0)	8-98023-517-0	01	1	0805-	●
328	04.105 GASKET; PLUG 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0805-1007	●
390	00.797 COVER; DUST,CLU SHIFT 4JJ1-TCX ENG(LS0)	8-98007-103-0	01	1	0805-	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	0805-1003	●		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	1004-	●

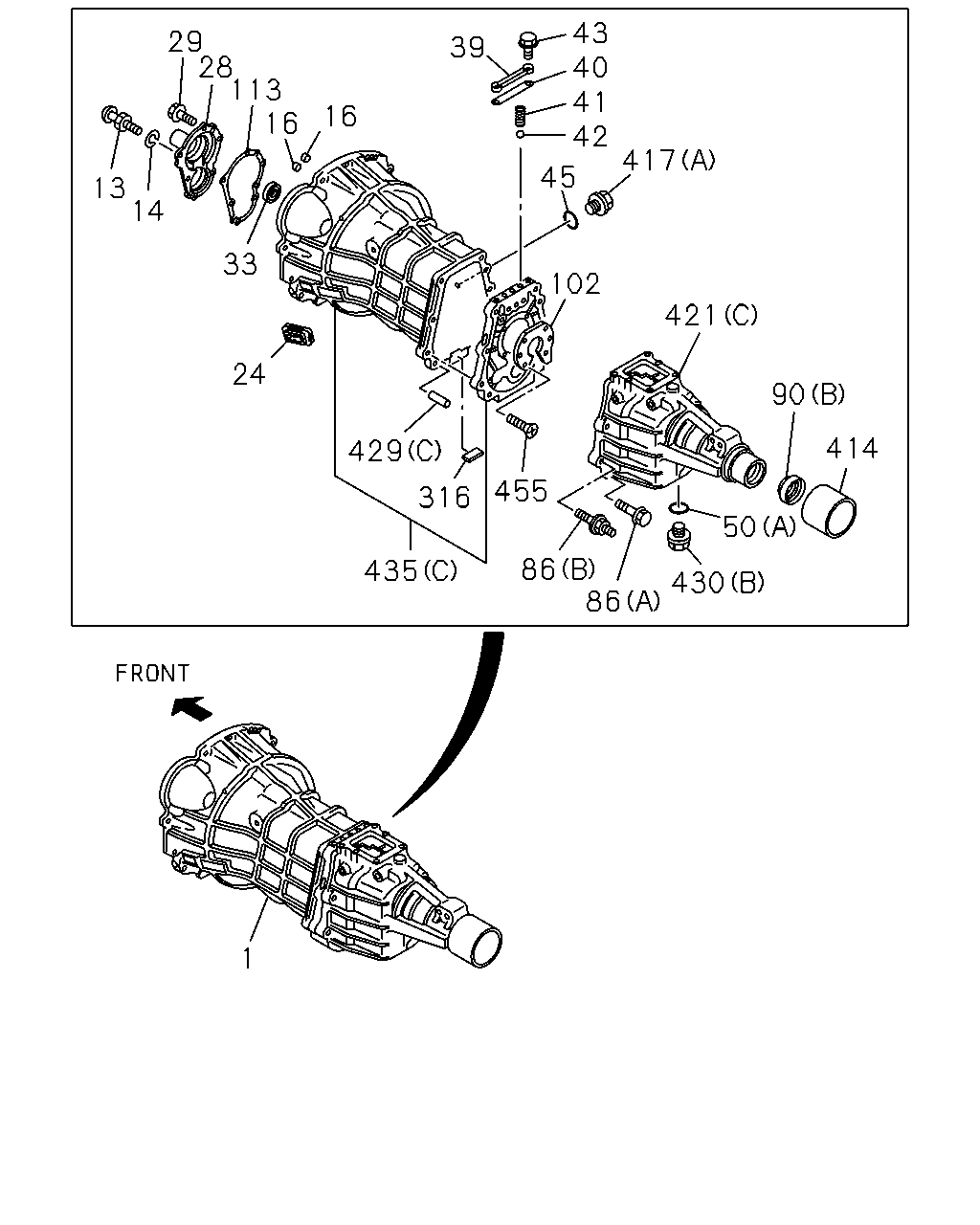

417	04.105 PLUG; OIL FILLER,TRANS HF V6 ENG(LCA) (B)	8-89048-248-0	01	1	0805-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA) (A)	8-97365-373-0	01	1	0805-1003		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	0805-1003	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	0805-1003	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) C24SE ENG(LG1) (A)	8-97365-373-0	01	1	0805-1003			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA) (A)	8-97365-373-0	01	1	1004-1007		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1004-1007	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1004-1007	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1008-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1008-	●
419	04.317 PLUG; RR COVER 4JJ1-TCX ENG(LS0) M12X9	8-98047-054-0	01	1	0805-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (D)	8-97382-905-2	01	1	0805-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B)	8-98035-906-0	01	1	0805-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (E)	8-97362-423-1	01	1	0805-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (A)	8-98048-277-0	01	1	0805-	●
421	04.317 COVER; RR,TRANS C24SE ENG(LG1) (C)	8-98014-386-0	01	1	0805-1003			●
430	04.105 PLUG; OIL DRAIN HF V6 ENG(LCA) (A)	8-89048-248-0	01	1	0805-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA) (B)	8-97365-374-0	01	1	0805-1003		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	0805-1003	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	0805-1003	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***) C24SE ENG(LG1) (B)	8-97365-374-0	01	1	0805-1003			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA) (B)	8-97365-374-0	01	1	1004-1007		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1004-1007	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1004-1007	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1008-	●	●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (B)	8-97365-374-0	01	1	1008-	●
434	00.683 HOUSING; CLU HF V6 ENG(LCA)	8-98024-767-0	01	1	0805-		●
434	00.683 HOUSING; CLU 4JJ1-TCX ENG(LS0)	8-97362-384-0	01	1	0805-	●
435	04.103 CASE; TRANS HF V6 ENG(LCA) (A)	8-89048-233-0	01	1	0805-		●
435	04.103 CASE; TRANS 4X2(TFB***) HF V6 ENG(LCA) (B)	8-89048-300-0	01	1	0805-		●
435	04.103 CASE; TRANS 4X4(TFS***) HF V6 ENG(LCA) (B)	8-98025-392-0	01	1	0805-		●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (D)	8-98035-882-2	01	1	0805-	●
435	04.103 CASE; TRANS C24SE ENG(LG1) (C)	8-98047-238-0	01	1	0805-1003			●
442	04.302 PIN; SHIFT FORK 4JJ1-TCX ENG(LS0)	8-98024-123-0	01	1	0805-	●
443	04.302 PIN; SNAP,SHIFT FORK 4JJ1-TCX ENG(LS0) 04.662 L=27.7	1-09747-005-0	01	1	0805-	●
510	00.683 BEARING 4JJ1-TCX ENG(LS0)	8-97362-853-0	01	1	0805-	●
603	04.317 RING; SNAP 4JJ1-TCX ENG(LS0)	8-98039-270-0	01	1	0805-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (A)	8-97362-391-0	01	1	0805-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (B)	8-97362-564-1	01	1	0805-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (C)	8-97362-565-1	01	1	0805-0902	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (C)	8-98142-574-0	01	1	0903-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (D)	8-98004-505-0	01	1	0805-	●
611	04.104 SCREW 4JJ1-TCX ENG(LS0) M10X27 TORQUES	8-97365-354-0	03	1	0805-	●
673	04.318 SEAL; COVER 4JJ1-TCX ENG(LS0)	8-98007-102-0	01	1	0805-	●
674	00.886 PLATE; INTERMEDIATE 4JJ1-TCX ENG(LS0)	8-98042-863-0	01	1	0805-	●
675	00.206 DOWEL 4JJ1-TCX ENG(LS0) OD=11 L=8	9-11229-058-1	04	1	0805-	●
676	04.439 INHIBITOR 4JJ1-TCX ENG(LS0)	8-98037-604-1	01	1	0805-	●
677	00.683 SPRING; INHIBITOR 4JJ1-TCX ENG(LS0)	8-97362-852-0	01	1	0805-	●
678	04.317 PIN 4JJ1-TCX ENG(LS0)	9-08160-436-0	01	1	0805-	●
679	04.104 BOLT; GUTTER 4JJ1-TCX ENG(LS0) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0805-	●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (A)	8-97362-720-1	01	1	0805-	●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (C)	8-97362-853-0	01	1	0805-	●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (B)	8-98024-431-0	01	1	0805-	●
682	00.683 BOLT; INHIBITOR 4JJ1-TCX ENG(LS0) M10X50	8-98042-618-0	01	1	0805-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
