Sayfa 2-08A - Isuzu EPC

2-08A — CLUTCH MASTER CYLINDER (#74707) — 75 parça

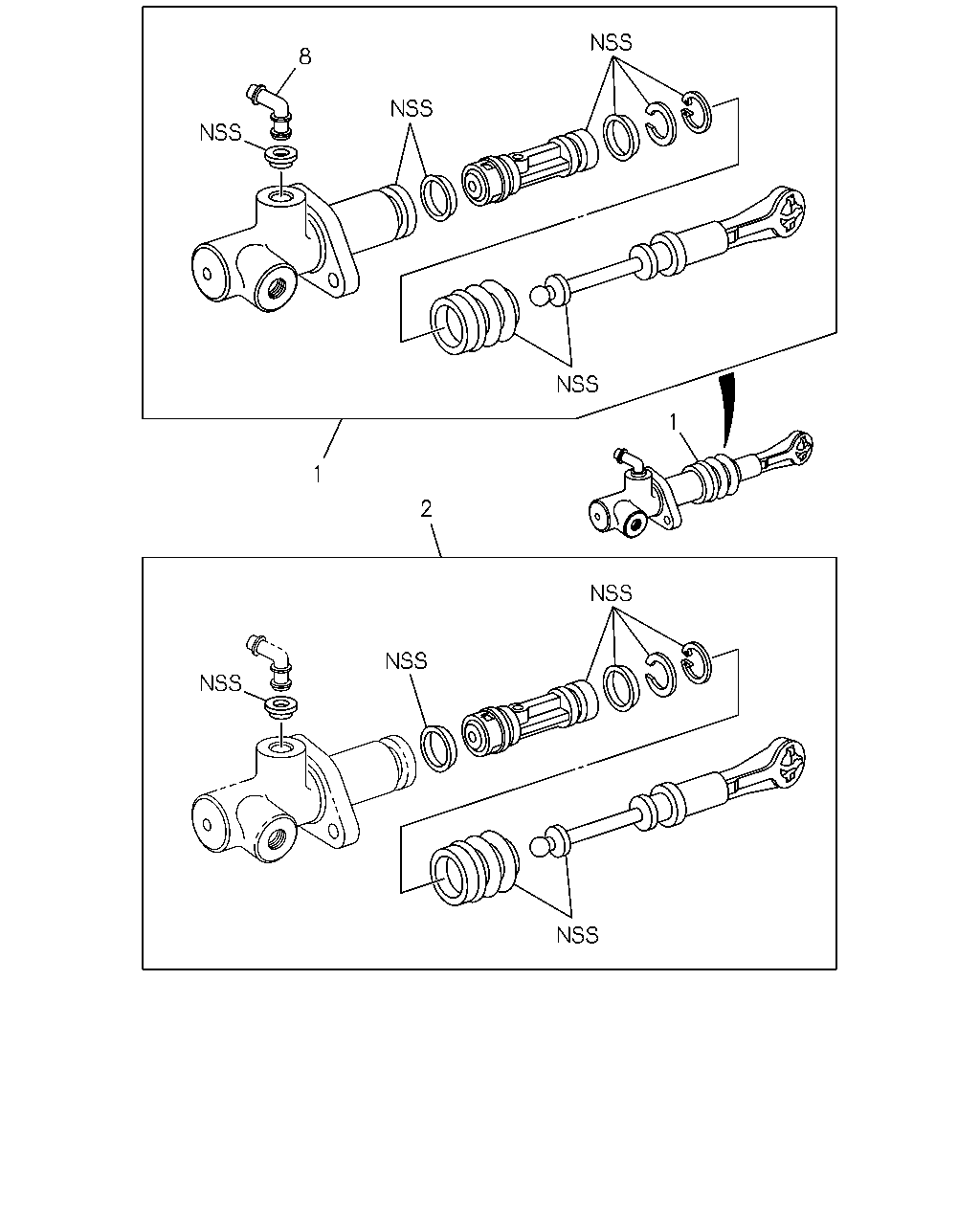

8 1 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-92158-009-0	01	1	0805-	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0805-		●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	0805-1003			●
2	00.775 REPAIR KIT; CLU M/CYL	8-92147-903-0	01	1	0805-	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL	8-92140-383-0	01	1	0805-	●

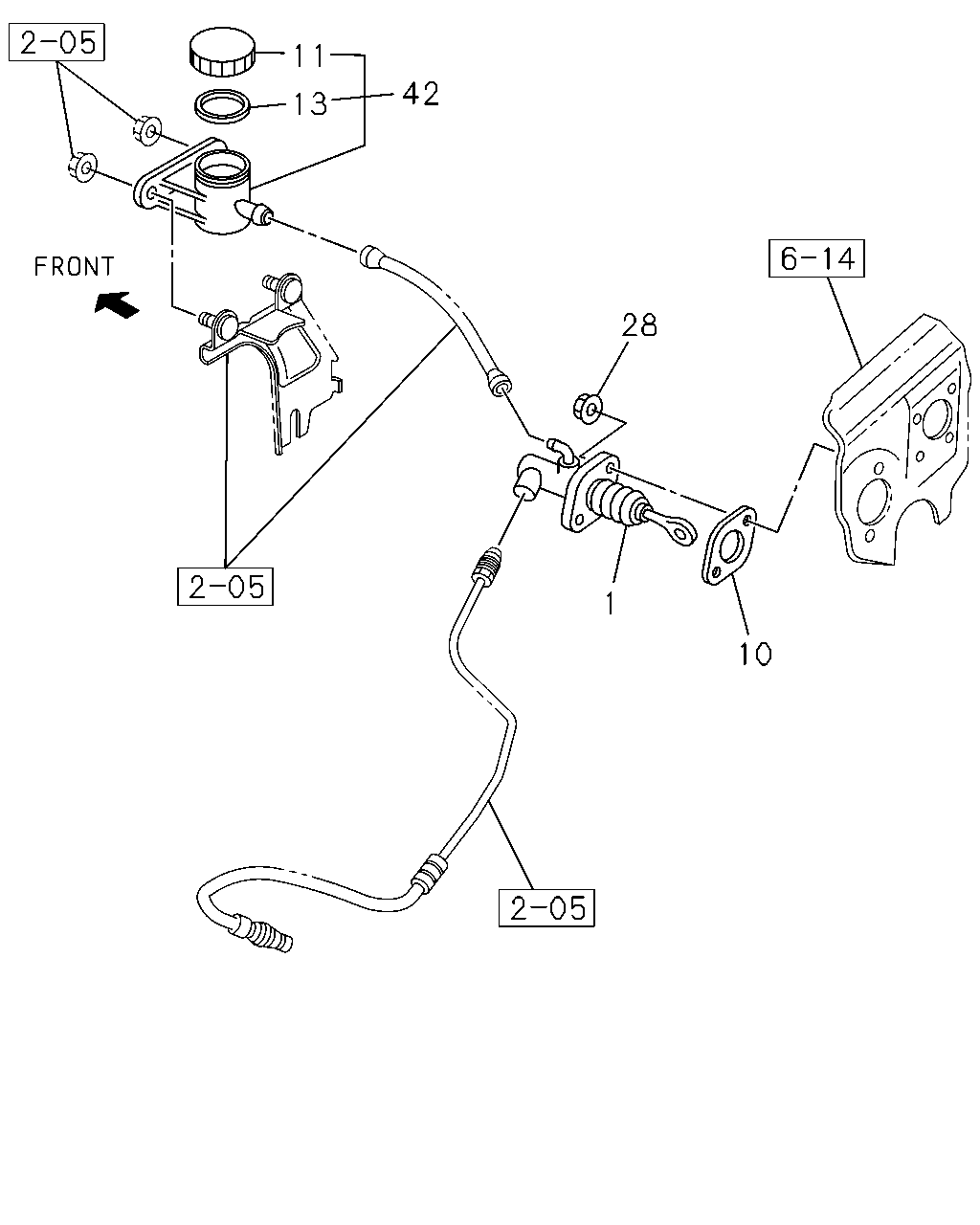

11 42 13 28 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-92158-009-0	01	1	0805-	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0805-		●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	0805-1003			●
10	00.777 GASKET; CLU M/CYL	8-92052-628-0	01	1	0805-	●
10	00.777 GASKET; CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97184-654-0	01	1	0805-1003		●	●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97184-654-0	01	1	1004-		●
11	00.777 CAP; OUTER,CLU M/CYL	8-92144-027-0	01	1	0805-	●
11	00.777 CAP; OUTER,CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97942-836-0	01	1	0805-1003		●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97942-836-0	01	1	1004-		●
13	00.777 GASKET; OIL TANK	8-92140-382-0	01	1	0805-	●
13	00.777 GASKET; OIL TANK C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94412-205-0	01	1	0805-1003		●	●
13	00.777 GASKET; OIL TANK 4JJ1-TCX ENG(LS0)	8-94412-205-0	01	1	1004-		●
28	00.777 NUT; LK,CLU M/CYL 03.604	8-11082-413-0	02	1	0805-	●
42	00.777 TANK; OIL,CLU	8-92065-790-0	01	1	0805-	●
42	00.777 TANK; OIL,CLU 4JJ1-TCX ENG(LS0)	8-97945-451-0	01	1	0805-		●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0805-1003			●

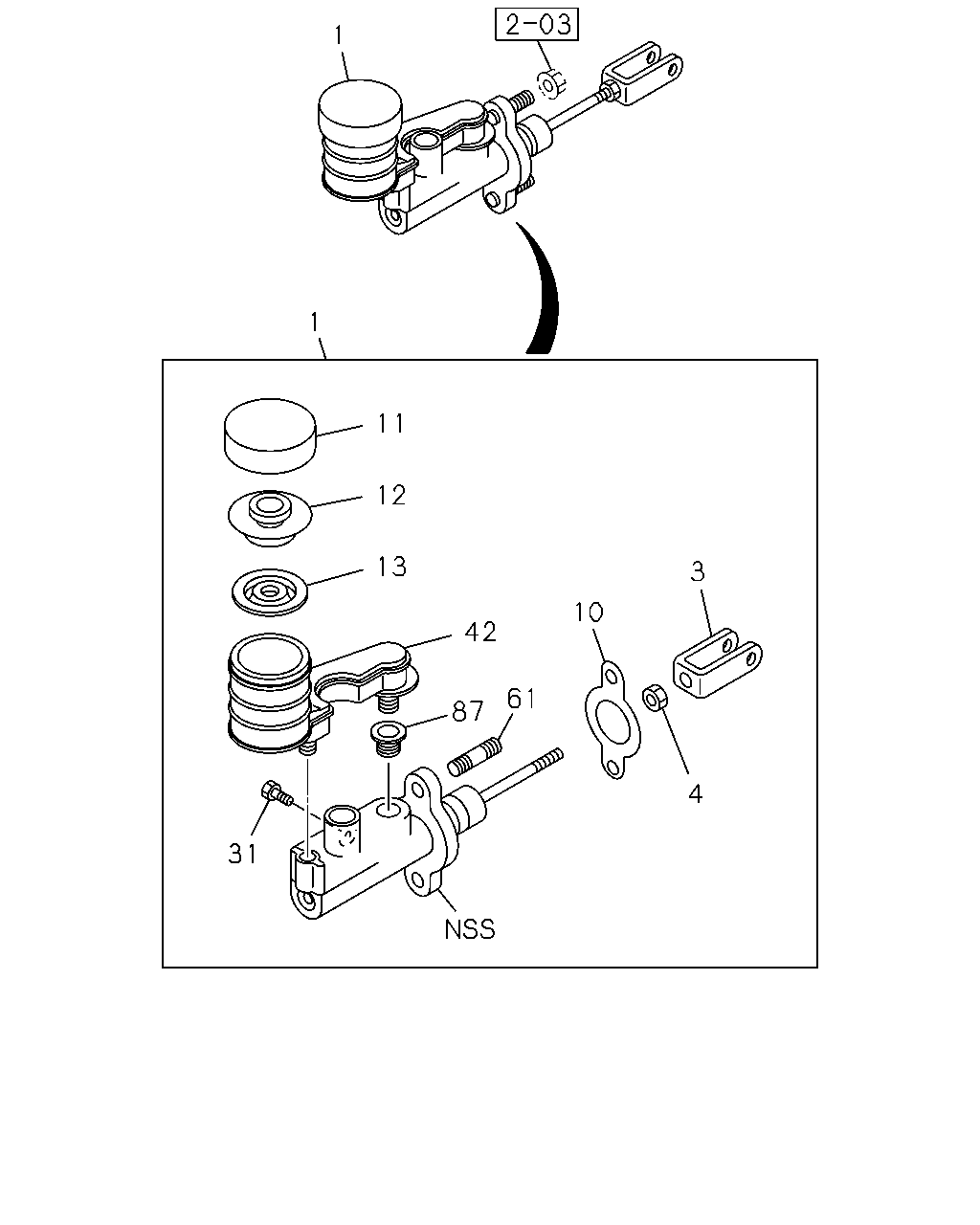

1 1 11 12 13 3 10 42 61 87 4 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-92158-009-0	01	1	0805-	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0805-		●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	0805-1003			●
3	00.777 JOINT; JAW,CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97945-449-0	01	1	0805-1003		●	●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97945-449-0	01	1	1004-		●
4	00.777 NUT; JAW JOINT C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M8	0-91111-508-0	01	1	0805-1003		●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCX ENG(LS0) M8	0-91111-508-0	01	1	1004-		●
10	00.777 GASKET; CLU M/CYL	8-92052-628-0	01	1	0805-	●
10	00.777 GASKET; CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97184-654-0	01	1	0805-1003		●	●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97184-654-0	01	1	1004-		●
11	00.777 CAP; OUTER,CLU M/CYL	8-92144-027-0	01	1	0805-	●
11	00.777 CAP; OUTER,CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97942-836-0	01	1	0805-1003		●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97942-836-0	01	1	1004-		●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94412-206-0	01	1	0805-1003		●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-94412-206-0	01	1	1004-		●
13	00.777 GASKET; OIL TANK	8-92140-382-0	01	1	0805-	●
13	00.777 GASKET; OIL TANK C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94412-205-0	01	1	0805-1003		●	●
13	00.777 GASKET; OIL TANK 4JJ1-TCX ENG(LS0)	8-94412-205-0	01	1	1004-		●
31	00.777 BOLT; JOINT,CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97945-452-0	01	1	0805-1003		●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97945-452-0	01	1	1004-		●
42	00.777 TANK; OIL,CLU	8-92065-790-0	01	1	0805-	●
42	00.777 TANK; OIL,CLU 4JJ1-TCX ENG(LS0)	8-97945-451-0	01	1	0805-		●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0805-1003			●
61	00.777 BOLT; STUD C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97945-450-0	02	1	0805-1003		●	●
61	00.777 BOLT; STUD 4JJ1-TCX ENG(LS0)	8-97945-450-0	02	1	1004-		●
87	00.777 GROMMET; CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97942-834-0	01	1	0805-1003		●	●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97942-834-0	01	1	1004-		●

1 1 11 12 13 42 3 10 61 87 4 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-92158-009-0	01	1	0805-	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0805-		●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	0805-1003			●
3	00.777 JOINT; JAW,CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97945-449-0	01	1	0805-1003		●	●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97945-449-0	01	1	1004-		●
4	00.777 NUT; JAW JOINT C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M8	0-91111-508-0	01	1	0805-1003		●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCX ENG(LS0) M8	0-91111-508-0	01	1	1004-		●
10	00.777 GASKET; CLU M/CYL	8-92052-628-0	01	1	0805-	●
10	00.777 GASKET; CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97184-654-0	01	1	0805-1003		●	●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97184-654-0	01	1	1004-		●
11	00.777 CAP; OUTER,CLU M/CYL	8-92144-027-0	01	1	0805-	●
11	00.777 CAP; OUTER,CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97942-836-0	01	1	0805-1003		●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97942-836-0	01	1	1004-		●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94412-206-0	01	1	0805-1003		●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-94412-206-0	01	1	1004-		●
13	00.777 GASKET; OIL TANK	8-92140-382-0	01	1	0805-	●
13	00.777 GASKET; OIL TANK C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-94412-205-0	01	1	0805-1003		●	●
13	00.777 GASKET; OIL TANK 4JJ1-TCX ENG(LS0)	8-94412-205-0	01	1	1004-		●
31	00.777 BOLT; JOINT,CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97945-452-0	01	1	0805-1003		●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97945-452-0	01	1	1004-		●
42	00.777 TANK; OIL,CLU	8-92065-790-0	01	1	0805-	●
42	00.777 TANK; OIL,CLU 4JJ1-TCX ENG(LS0)	8-97945-451-0	01	1	0805-		●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0805-1003			●
61	00.777 BOLT; STUD C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97945-450-0	02	1	0805-1003		●	●
61	00.777 BOLT; STUD 4JJ1-TCX ENG(LS0)	8-97945-450-0	02	1	1004-		●
87	00.777 GROMMET; CLU M/CYL C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97942-834-0	01	1	0805-1003		●	●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97942-834-0	01	1	1004-		●
