2-05A — CLUTCH PIPING (#74705) — 62 parça

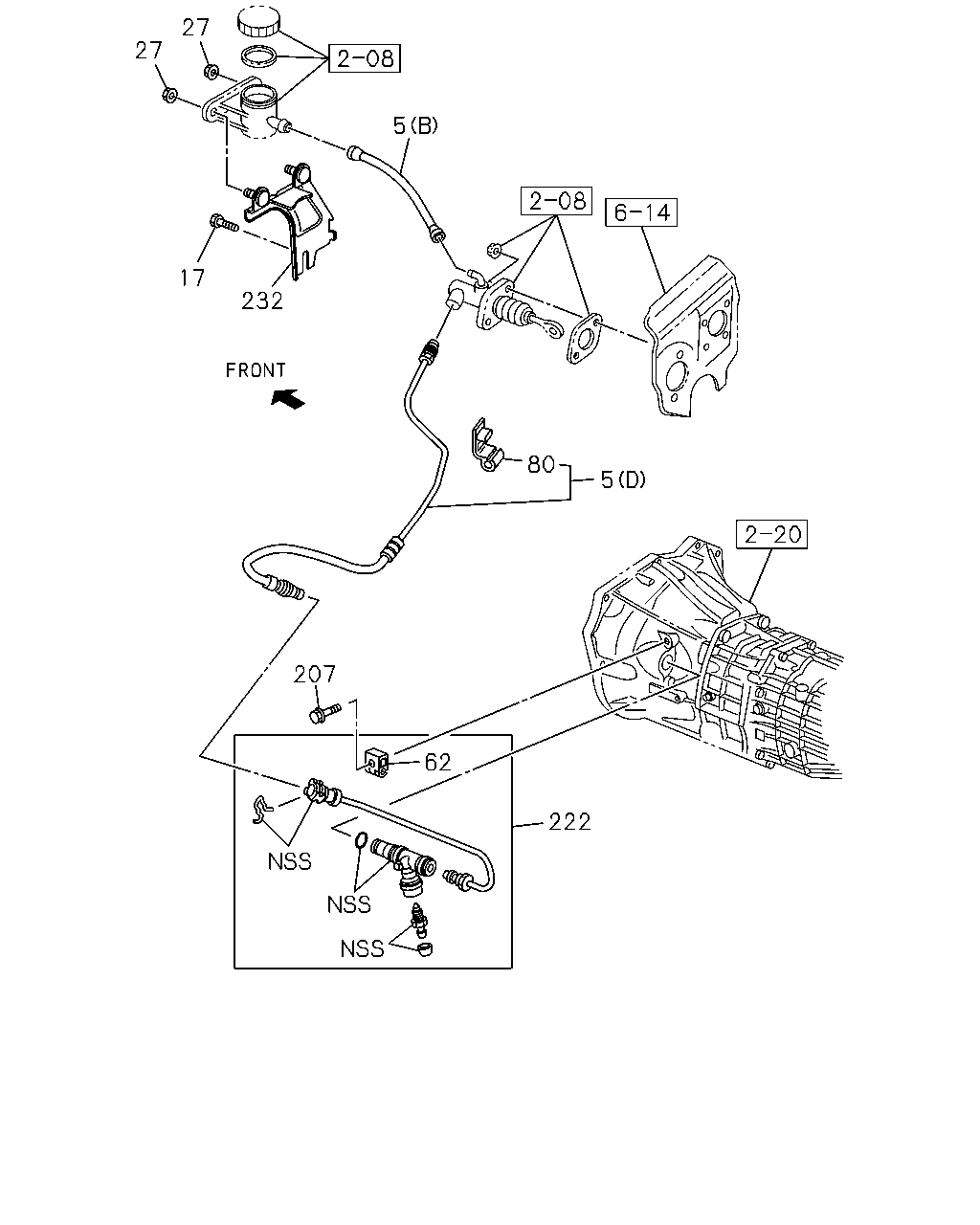

çizim 102389
27 27 5 17 232 80 5 207 62 222
BalonParca AdiParca NoAdetTipApplied Date A B C
5 00.785 HOSE; FLEX,CLU PIPE
(D) 		8-92067-105-0 01 1 0805- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-92145-810-0 01 1 0805- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97944-870-0 01 1 0805- ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) (C) 		8-97942-605-0 01 1 0805-1003 ●
17 00.785 BOLT; BRKT
02.483 		8-11042-402-0 01 1 0805- ●
27 00.785 NUT; BRKT 8-11063-471-0 02 1 0805- ●
62 00.785 CLIP; CLU PIPE 8-92138-803-0 01 1 0805- ●
80 00.785 CLIP; HOSE 8-92067-116-0 01 1 0805- ●
207 00.785 BOLT; CLIP 8-92138-366-0 01 1 0805- ●
222 00.785 PIPE; CLUTCH 8-92066-734-0 01 1 0805- ●
232 00.785 BRACKET 8-92122-335-0 01 1 0805- ●

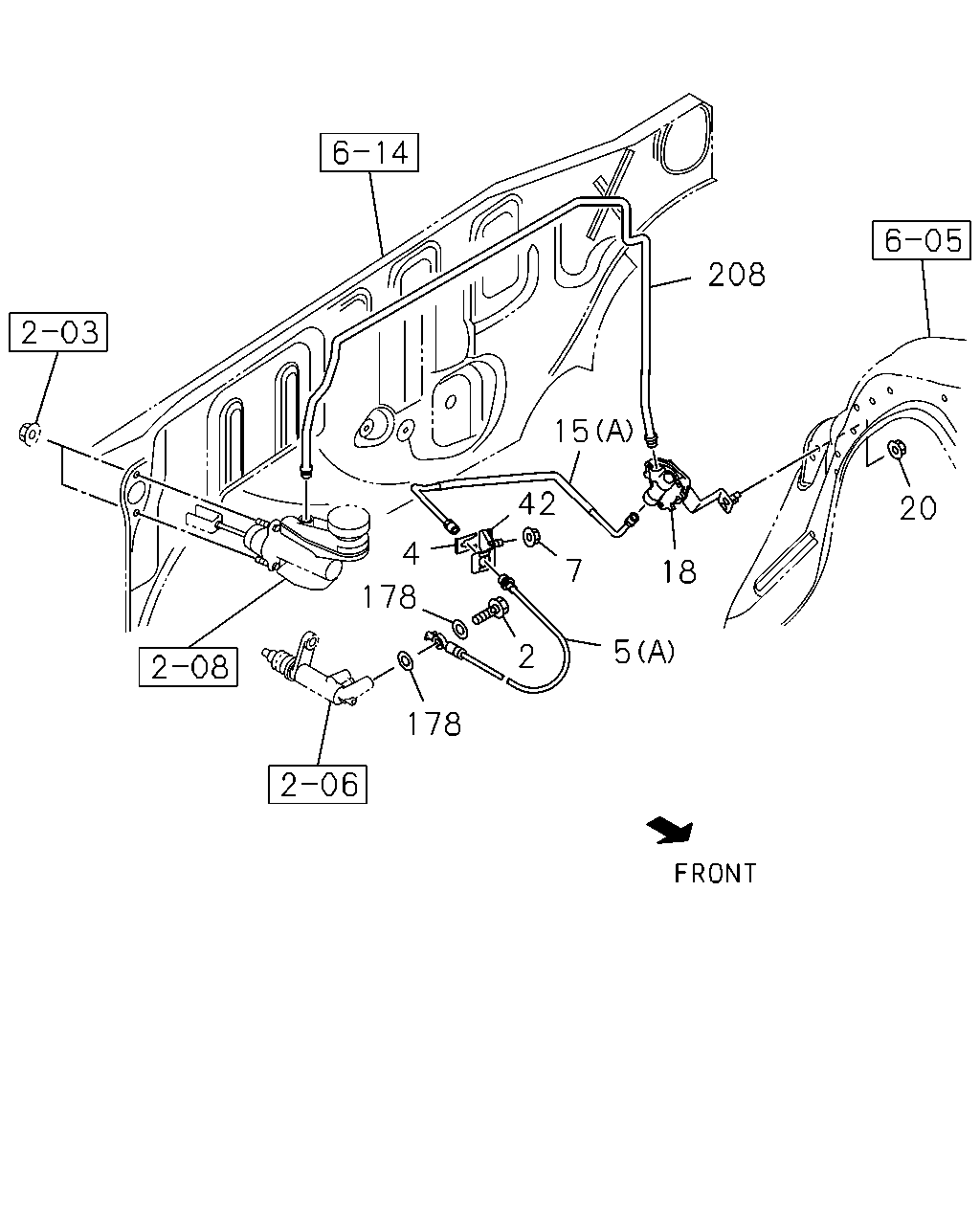

çizim 102393
208 15 42 20 4 7 18 178 5 2 178
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0805-1003 ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 1004- ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 0805-1003 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 1004- ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0805-1003 ●
5 00.785 HOSE; FLEX,CLU PIPE
(D) 		8-92067-105-0 01 1 0805- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-92145-810-0 01 1 0805- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97944-870-0 01 1 0805- ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) (C) 		8-97942-605-0 01 1 0805-1003 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-1003 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1004- ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-92197-784-0 01 1 0805- ●
15 00.785 PIPE; CLU,FLEX HOSE
HF V6 ENG(LCA) (C) 		8-92066-734-0 01 1 0805- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCX ENG(LS0) (A) 		8-97944-806-0 01 1 0805- ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCX ENG(LS0) 		8-97945-174-0 01 1 0805-1003 ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCX ENG(LS0) 		8-97945-174-0 01 1 1004- ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 0805-1003 ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0805-1003 ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1004- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97944-508-0 01 1 0805- ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0805-1003 ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 1004- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 0805-1003 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 1004- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-794-0 01 1 0805-1003 ●

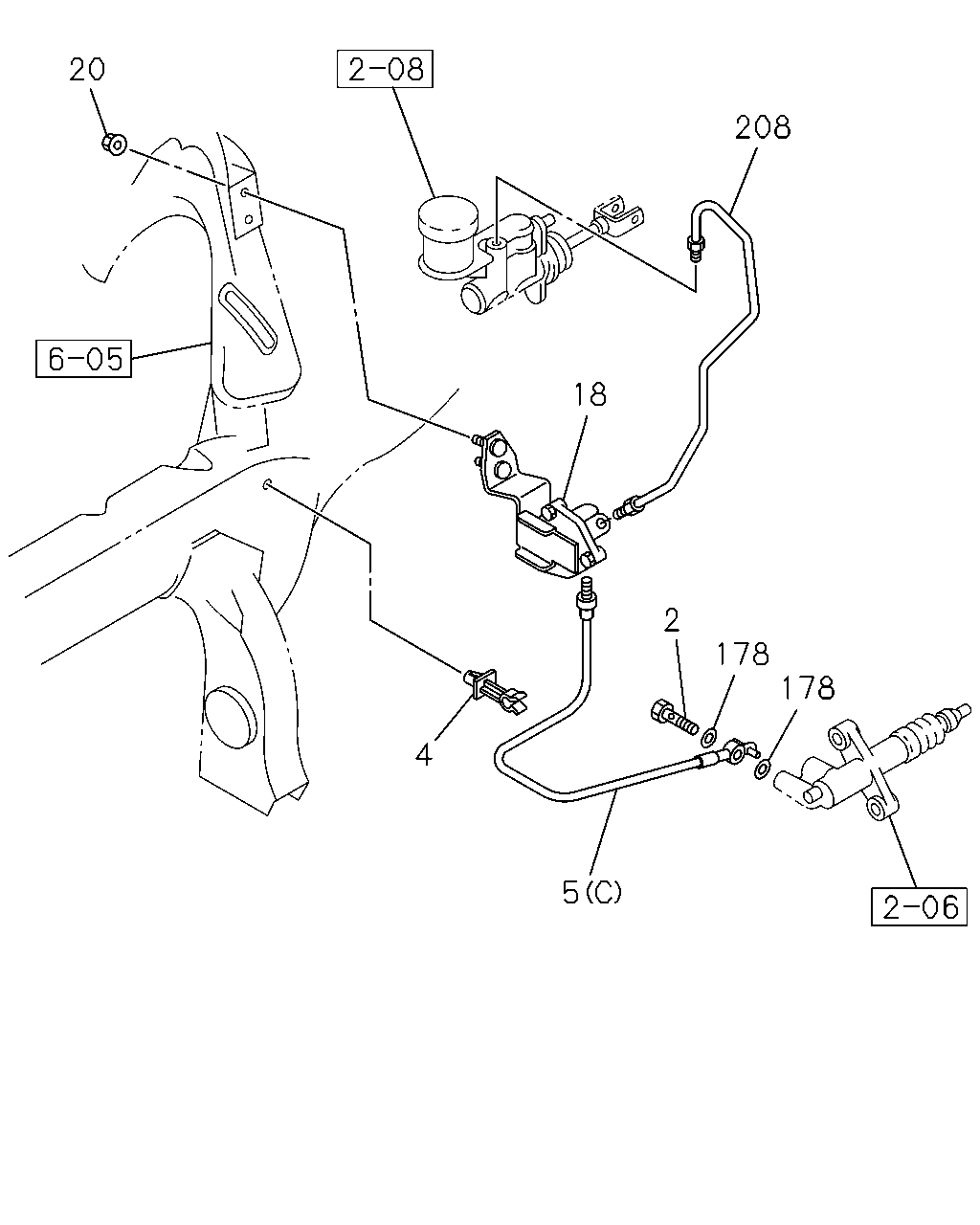

çizim 102426
20 208 18 2 178 178 4 5
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0805-1003 ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 1004- ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 0805-1003 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 1004- ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0805-1003 ●
5 00.785 HOSE; FLEX,CLU PIPE
(D) 		8-92067-105-0 01 1 0805- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-92145-810-0 01 1 0805- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97944-870-0 01 1 0805- ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) (C) 		8-97942-605-0 01 1 0805-1003 ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCX ENG(LS0) 		8-97945-174-0 01 1 0805-1003 ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCX ENG(LS0) 		8-97945-174-0 01 1 1004- ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 0805-1003 ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0805-1003 ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1004- ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0805-1003 ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 1004- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 0805-1003 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 1004- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-794-0 01 1 0805-1003 ●

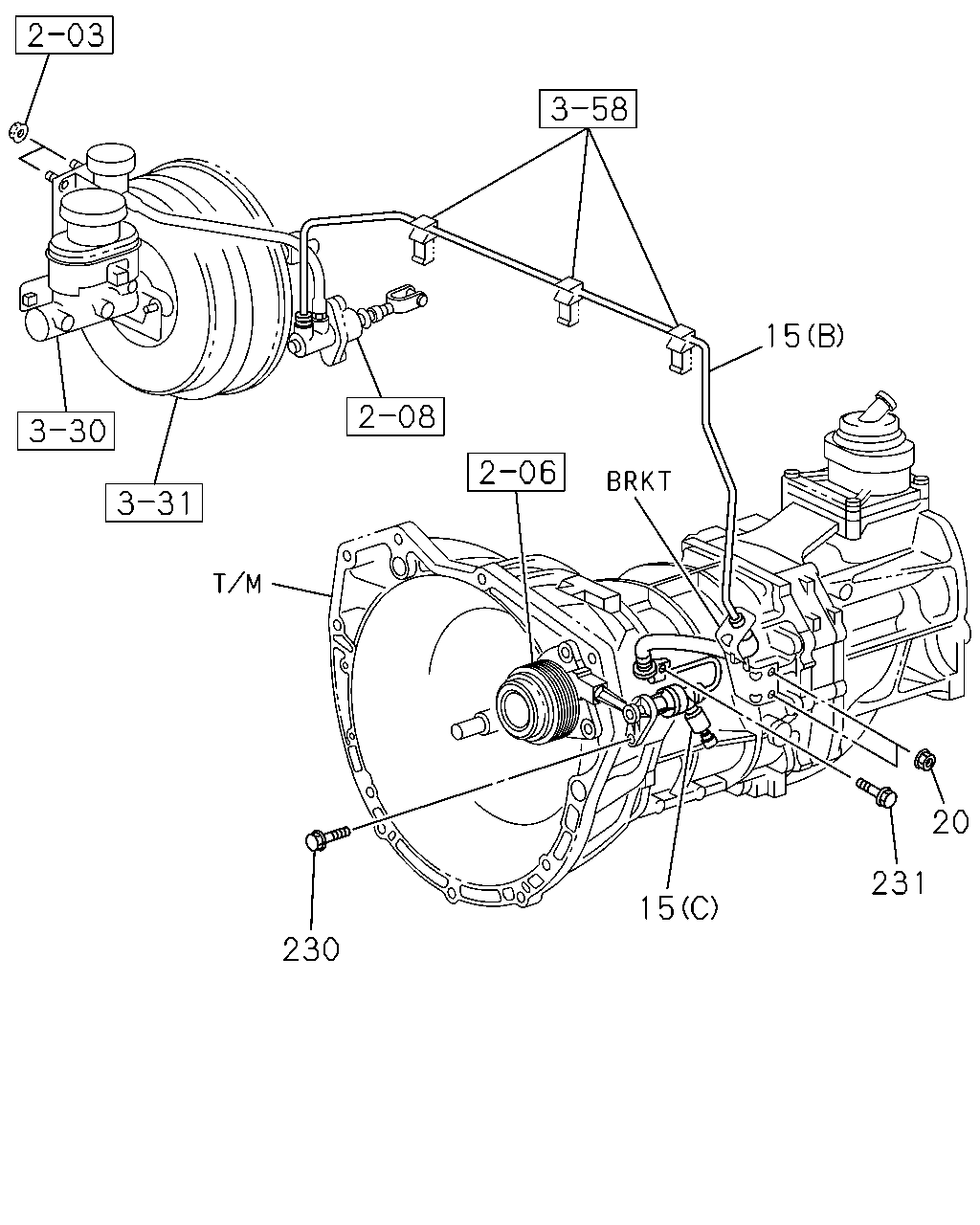

çizim 185847
15 20 231 15 230
BalonParca AdiParca NoAdetTipApplied Date A B C
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-92197-784-0 01 1 0805- ●
15 00.785 PIPE; CLU,FLEX HOSE
HF V6 ENG(LCA) (C) 		8-92066-734-0 01 1 0805- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCX ENG(LS0) (A) 		8-97944-806-0 01 1 0805- ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0805-1003 ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1004- ● ●
230 00.785 BOLT; ACTUATOR 8-92138-366-0 01 1 0805- ●
231 00.785 SCREW; ACTUATOR 8-92138-366-0 01 1 0805- ●
