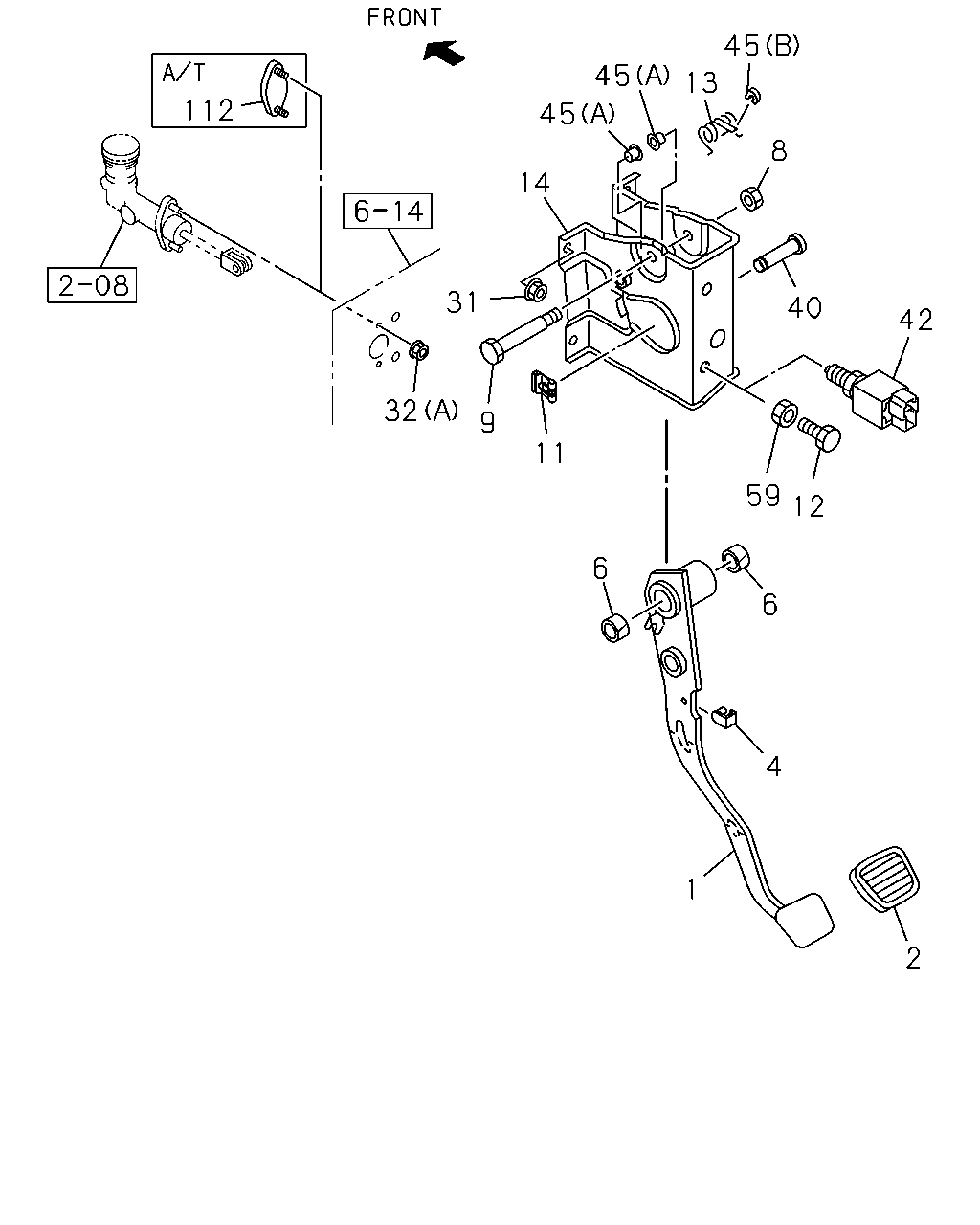

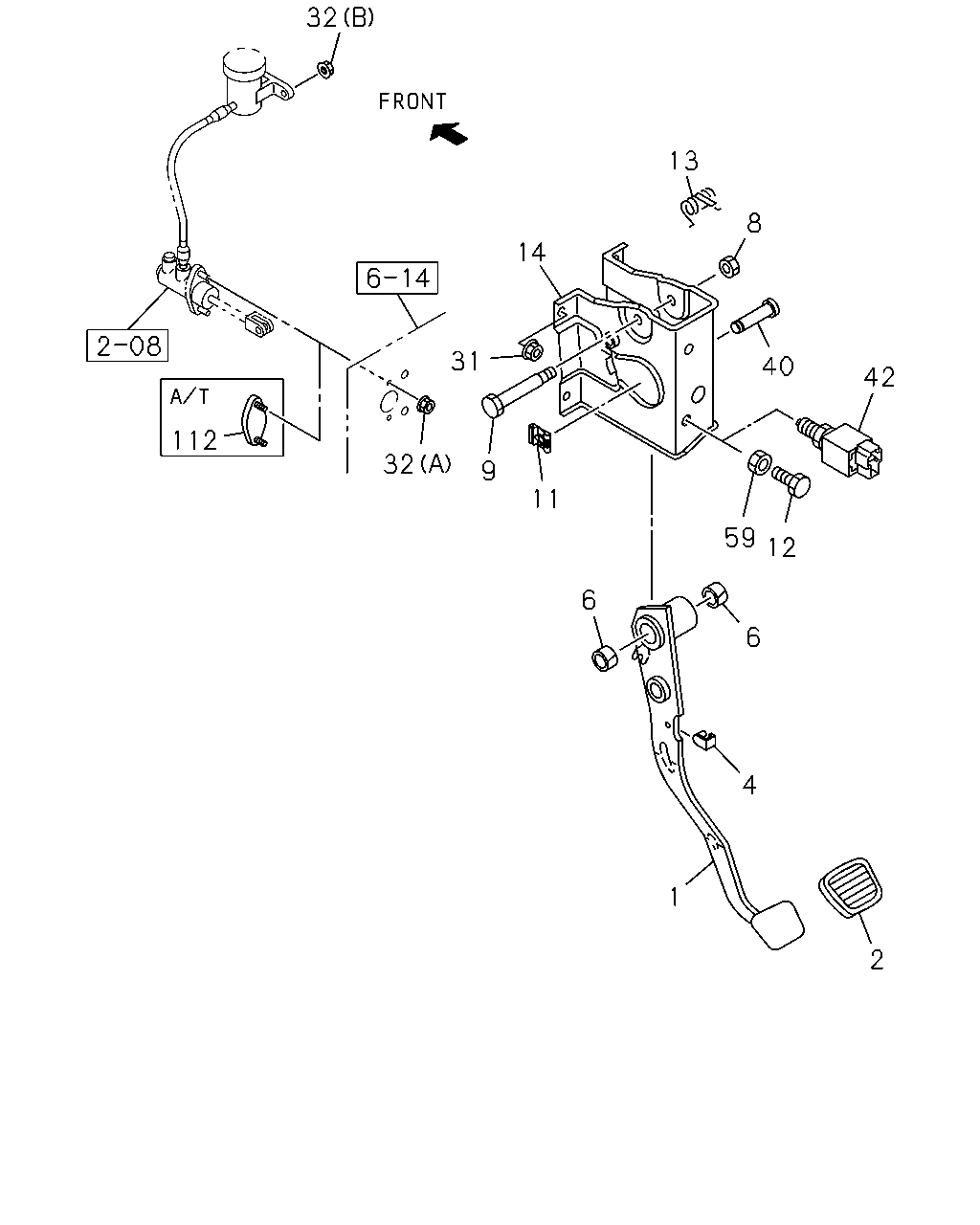

2-03 — CLUTCH PEDAL AND CONTROL (#74704) — 96 parça

45 45 13 112 45 8 14 31 40 42 32 9 11 59 12 6 6 4 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.830 PEDAL; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-98054-957-0	01	1	1008-	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-98054-957-0	01	1	0805-1007	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97942-742-0	01	1	0805-	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ)	8-97942-311-0	01	1	0805-1003				●	●
2	04.630 COVER; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ)	8-97318-799-0	01	1	0805-1007	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97318-799-0	01	1	1008-	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97318-799-0	01	1	1008-	●	●	●	●	●		●	●
2	04.630 COVER; CLU PEDAL 4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97318-799-0	01	1	1008-						●
4	00.829 STOPPER; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) 00.785	8-94463-258-0	01	1	0805-1007	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 00.785	8-94463-258-0	01	1	1008-	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 00.785	8-94463-258-0	01	1	1008-	●	●	●	●	●		●	●
4	00.829 STOPPER; CLU PEDAL 4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 00.785	8-94463-258-0	01	1	1008-						●
6	00.831 BUSHING; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) 04.634	8-97301-688-0	02	1	0805-1007	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	0805-1003	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1004-1007	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1008-	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1008-	●	●	●	●	●		●	●
8	00.833 NUT; PIN TO PEDAL 4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1008-						●
8	00.833 NUT; PIN TO PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0805-1007	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ)	8-97942-315-0	01	1	0805-1007	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97942-315-0	01	1	1008-	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-315-0	01	1	1008-	●	●	●	●	●		●	●
9	00.833 PIN; CLU PEDAL 4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-315-0	01	1	1008-						●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ)	8-98007-161-0	01	1	0805-1003	●	●	●	●	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ)	8-98007-161-0	01	1	1004-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) EXC. AUTO CRUISE CONT<K30> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0805-1003	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1004-	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-98054-943-0	01	1	1008-	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ)	8-97942-312-0	01	1	0805-1003	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97942-312-0	01	1	1004-	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-98054-943-0	01	1	0805-1007	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ)	8-97942-310-0	01	1	0805-1007	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97942-310-0	01	1	1008-	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-310-0	01	1	1008-	●	●	●	●	●		●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-310-0	01	1	1008-						●
31	01.153 NUT; MTG BRKT TO BODY M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) 01.062 M8 FLANGE	0-91180-108-0	04	1	0805-1003	●	●	●	●	●	●	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) 01.062 M8 FLANGE	0-91180-108-0	04	1	1004-	●	●	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0805-	●	●	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL M/T AISIN 5 SPEED(MA5) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0805-	●	●	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) OD=7.9 L=27.5	8-97312-338-0	01	1	0805-1003	●	●	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) OD=7.9 L=27.5	8-97312-338-0	01	1	1004-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 03.636	8-97358-315-0	01	1	0805-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 03.636	8-97358-315-0	01	1	0805-					●	●		●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97942-313-0	02	1	0805-1003	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (A)	8-97942-313-0	02	1	1004-	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) (B)	8-97942-314-0	01	1	0805-1003	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (B)	8-97942-314-0	01	1	1004-	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) EXC. AUTO CRUISE CONT<K30> M10	0-91110-510-0	01	1	0805-1003	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> M10	0-91110-510-0	01	1	1004-	●	●	●	●	●	●	●	●
112	00.785 PLUG; METAL,M/CYL A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T AISIN(RMD)	8-97259-210-0	01	1	0805-	●	●		●	●			●

32 13 8 14 31 40 42 112 32 9 11 59 12 6 6 4 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.830 PEDAL; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-98054-957-0	01	1	1008-	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-98054-957-0	01	1	0805-1007	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97942-742-0	01	1	0805-	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ)	8-97942-311-0	01	1	0805-1003				●	●
2	04.630 COVER; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ)	8-97318-799-0	01	1	0805-1007	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97318-799-0	01	1	1008-	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97318-799-0	01	1	1008-	●	●	●	●	●		●	●
2	04.630 COVER; CLU PEDAL 4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97318-799-0	01	1	1008-						●
4	00.829 STOPPER; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) 00.785	8-94463-258-0	01	1	0805-1007	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 00.785	8-94463-258-0	01	1	1008-	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 00.785	8-94463-258-0	01	1	1008-	●	●	●	●	●		●	●
4	00.829 STOPPER; CLU PEDAL 4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 00.785	8-94463-258-0	01	1	1008-						●
6	00.831 BUSHING; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) 04.634	8-97301-688-0	02	1	0805-1007	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	0805-1003	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1004-1007	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1008-	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1008-	●	●	●	●	●		●	●
8	00.833 NUT; PIN TO PEDAL 4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1008-						●
8	00.833 NUT; PIN TO PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0805-1007	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ)	8-97942-315-0	01	1	0805-1007	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97942-315-0	01	1	1008-	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-315-0	01	1	1008-	●	●	●	●	●		●	●
9	00.833 PIN; CLU PEDAL 4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-315-0	01	1	1008-						●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ)	8-98007-161-0	01	1	0805-1003	●	●	●	●	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ)	8-98007-161-0	01	1	1004-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) EXC. AUTO CRUISE CONT<K30> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0805-1003	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1004-	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-98054-943-0	01	1	1008-	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ)	8-97942-312-0	01	1	0805-1003	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97942-312-0	01	1	1004-	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-98054-943-0	01	1	0805-1007	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ)	8-97942-310-0	01	1	0805-1007	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97942-310-0	01	1	1008-	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-310-0	01	1	1008-	●	●	●	●	●		●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-310-0	01	1	1008-						●
31	01.153 NUT; MTG BRKT TO BODY M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) 01.062 M8 FLANGE	0-91180-108-0	04	1	0805-1003	●	●	●	●	●	●	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) 01.062 M8 FLANGE	0-91180-108-0	04	1	1004-	●	●	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0805-	●	●	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL M/T AISIN 5 SPEED(MA5) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0805-	●	●	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) OD=7.9 L=27.5	8-97312-338-0	01	1	0805-1003	●	●	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) OD=7.9 L=27.5	8-97312-338-0	01	1	1004-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 03.636	8-97358-315-0	01	1	0805-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 03.636	8-97358-315-0	01	1	0805-					●	●		●
59	00.833 NUT; CLU PEDAL ADJ M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5S(RSQ) EXC. AUTO CRUISE CONT<K30> M10	0-91110-510-0	01	1	0805-1003	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> M10	0-91110-510-0	01	1	1004-	●	●	●	●	●	●	●	●
112	00.785 PLUG; METAL,M/CYL A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T AISIN(RMD)	8-97259-210-0	01	1	0805-	●	●		●	●			●
