Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#74702) — 286 parça

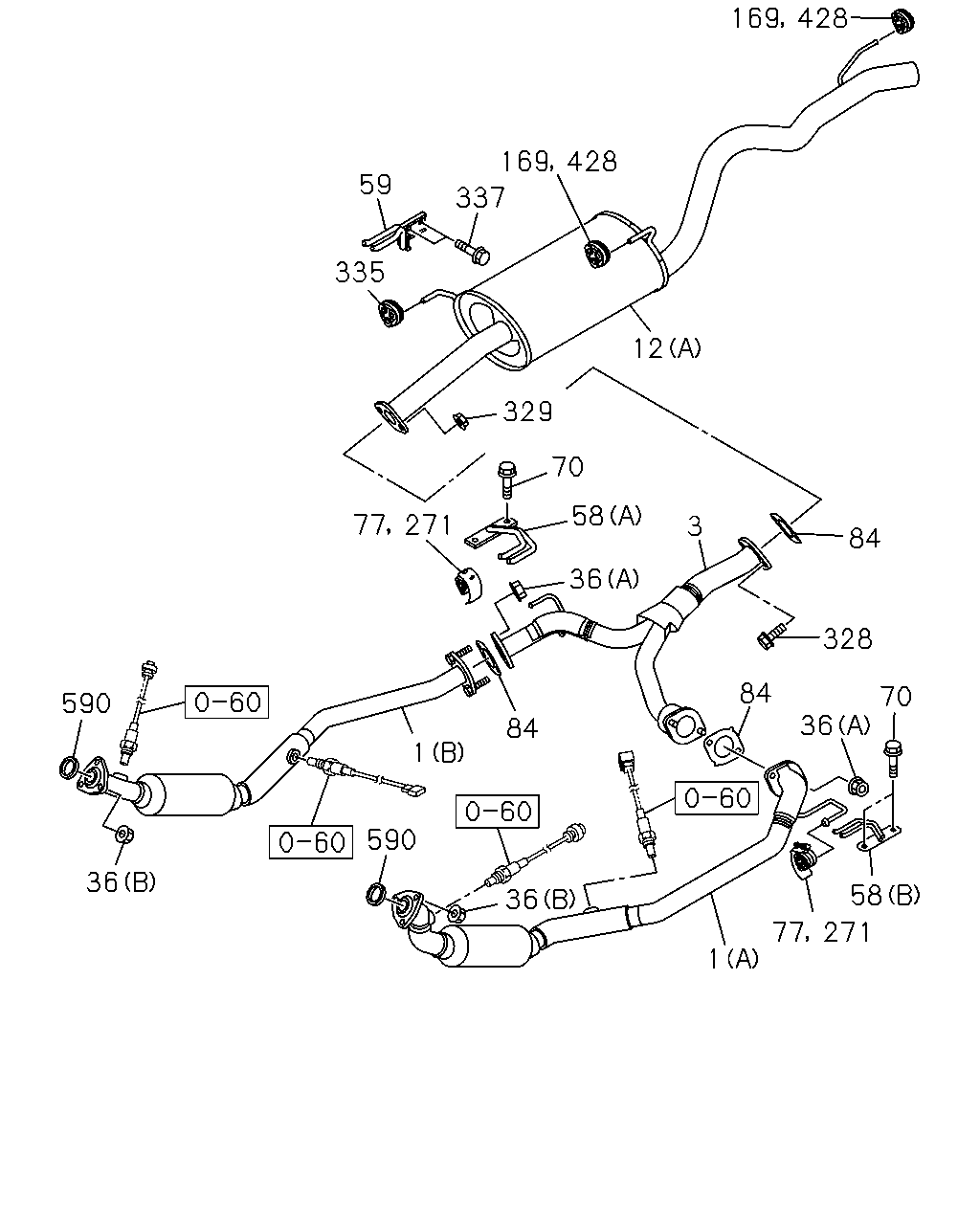

169 428 169 428 59 337 335 12 329 70 58 77 271 3 84 36 328 84 70 590 36 84 1 590 36 58 36 77 271 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH (A)	8-98019-291-0	01	1	0805-	●
1	03.609 PIPE; EXH (B)	8-98019-292-0	01	1	0805-	●
1	03.609 PIPE; EXH EMISSION SYSTEM R15-04<K75> (D)	8-97235-500-0	01	1	0805-0910		●
1	03.609 PIPE; EXH EURO3 SPECIFICATION<NT3> (C)	8-98032-079-0	01	1	0805-1003		●
1	03.609 PIPE; EXH 4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (E)	8-97380-258-1	01	1	0805-1003			●
1	03.609 PIPE; EXH 4X4(TFS***) EURO3 SPECIFICATION<NT3> (E)	8-97380-258-1	01	1	0805-1003			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (F)	8-97380-260-1	01	1	0805-0910			●
1	03.609 PIPE; EXH 4X4(TFS***) EURO4 SPECIFICATION<NT4> (F)	8-97380-260-1	01	1	0805-0910			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (F)	8-98155-099-0	01	1	0911-1003			●
1	03.609 PIPE; EXH 4X4(TFS***) EURO4 SPECIFICATION<NT4> (F)	8-98155-099-0	01	1	0911-1003			●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (F)	8-98155-099-0	01	1	1004-			●
1	03.609 PIPE; EXH 4X4(TFS***) (F)	8-98155-099-0	01	1	1004-			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-97380-259-1	01	1	0805-0910			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98154-908-0	01	1	0911-1003			●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98154-908-0	01	1	1004-			●
3	03.609 PIPE; EXH,CENTER LONG(TF***F)	8-97352-922-0	01	1	0805-	●
3	03.609 PIPE; EXH,CENTER EXTRA LONG(TF***K)	8-97352-923-0	01	1	0805-	●
3	03.609 PIPE; EXH,CENTER REGULAR CAB(TF*S) EURO3 SPECIFICATION<NT3>	8-97352-925-0	01	1	0805-1003		●
3	03.609 PIPE; EXH,CENTER CREW CAB(TF*W) EMISSION SYSTEM R15-04<K75>	8-97352-926-0	01	1	0805-0910		●
3	03.609 PIPE; EXH,CENTER CREW CAB(TF*W) EURO3 SPECIFICATION<NT3>	8-97352-924-0	01	1	0805-1003		●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC)	8-98029-203-0	01	1	0805-1003			●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98029-203-0	01	1	0805-1003			●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-98029-203-0	01	1	1004-			●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***)	8-98029-203-0	01	1	1004-			●
12	03.701 SILENCER ASM; EXH (A)	8-97328-991-0	01	1	0805-	●
12	03.701 SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> (B)	8-97235-528-0	01	1	0805-1003		●
12	03.701 SILENCER ASM; EXH CREW CAB(TF*W) EMISSION SYSTEM R15-04<K75> (B)	8-97235-529-0	01	1	0805-0910		●
12	03.701 SILENCER ASM; EXH LONG(TF***F) (C)	8-97380-266-1	01	1	0805-			●
12	03.701 SILENCER ASM; EXH EXTRA LONG(TF***K) (C)	8-97381-441-1	01	1	0805-			●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0805-	●
36	03.613 NUT; EXH PIPE (B)	8-11094-432-0	06	1	0805-1007	●
36	03.613 NUT; EXH PIPE (B)	8-11588-835-0	06	1	1008-	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-1003		●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-1003			●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-1003			●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1004-			●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1004-			●
36	03.613 NUT; EXH PIPE (C) M8 FLANGE	8-97061-401-1	04	1	0805-1003		●
36	03.613 NUT; EXH PIPE (D) M10 FLANGE	8-97096-192-1	02	1	0805-			●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	0805-1003	●	●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	1004-	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0805-	●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	0805-	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	04	1	0805-	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0805-1003		●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	1004-			●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	02	1	0805-1007	●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	01	1	0805-1003		●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0805-1007			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	02	1	0805-	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0805-1003	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0805-1003		●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0805-1003			●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0805-1003			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1004-	●	●	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	1004-			●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	1004-			●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	01	1	1008-	●	●	●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	02	1	0805-1007	●	●	●
271	03.704 RUBBER; HANGER,RR PIPE 03.613	8-97330-412-0	02	1	1008-	●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1008-			●
328	03.613 BOLT; EXH PIPE TO PIPE M10X40 FLANGE	0-28651-040-0	02	1	0805-	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-	●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97289-169-0	01	1	0805-	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0805-	●	●	●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE 03.706	8-97289-169-0	01	1	1008-	●	●	●
590	03.704 SEAL; EXH PIPE	8-98000-456-0	02	1	0805-	●

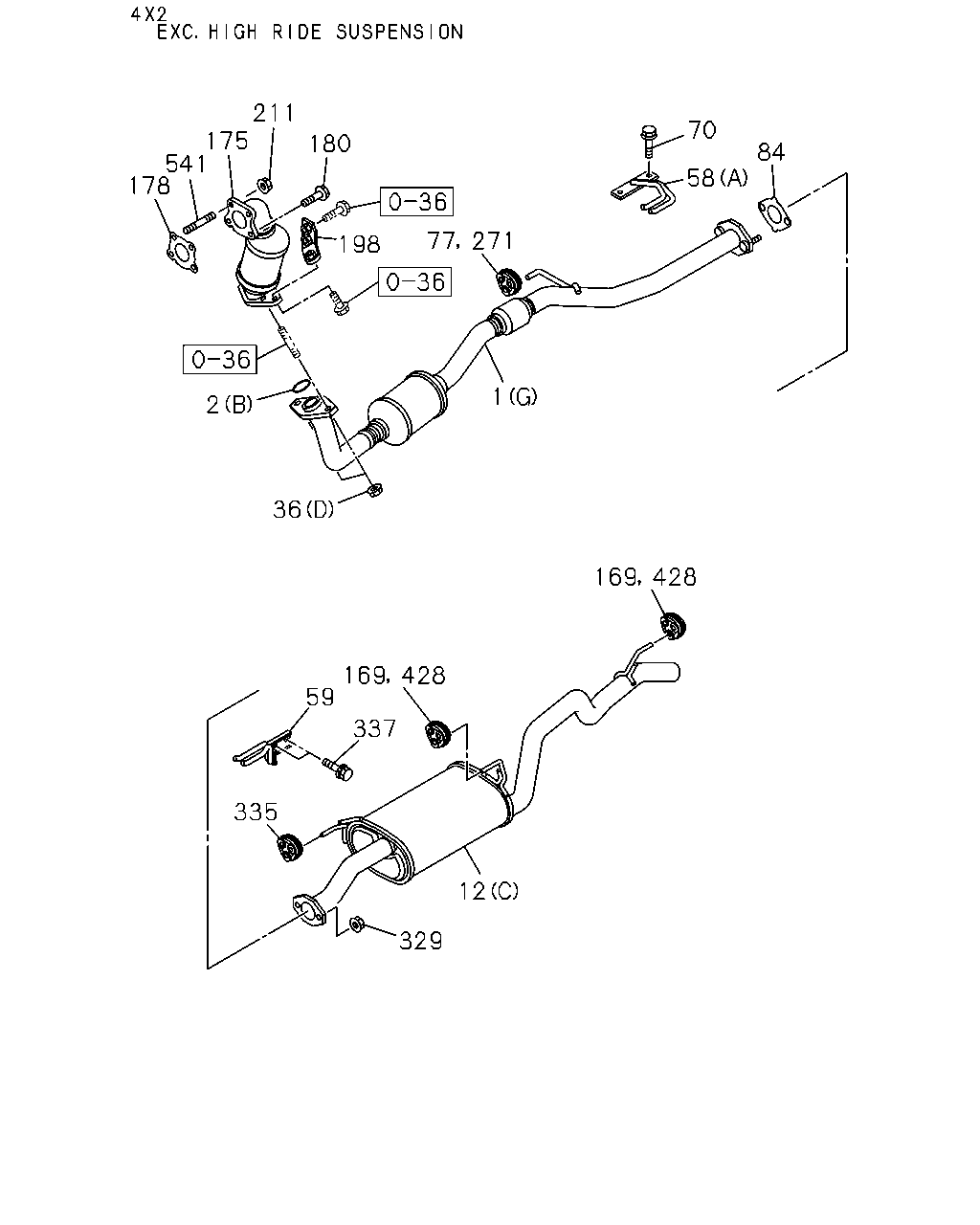

211 175 541 178 70 180 84 58 77 271 198 1 2 36 428 169 169 428 59 337 335 12 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH (A)	8-98019-291-0	01	1	0805-	●
1	03.609 PIPE; EXH (B)	8-98019-292-0	01	1	0805-	●
1	03.609 PIPE; EXH EMISSION SYSTEM R15-04<K75> (D)	8-97235-500-0	01	1	0805-0910		●
1	03.609 PIPE; EXH EURO3 SPECIFICATION<NT3> (C)	8-98032-079-0	01	1	0805-1003		●
1	03.609 PIPE; EXH 4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (E)	8-97380-258-1	01	1	0805-1003			●
1	03.609 PIPE; EXH 4X4(TFS***) EURO3 SPECIFICATION<NT3> (E)	8-97380-258-1	01	1	0805-1003			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (F)	8-97380-260-1	01	1	0805-0910			●
1	03.609 PIPE; EXH 4X4(TFS***) EURO4 SPECIFICATION<NT4> (F)	8-97380-260-1	01	1	0805-0910			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (F)	8-98155-099-0	01	1	0911-1003			●
1	03.609 PIPE; EXH 4X4(TFS***) EURO4 SPECIFICATION<NT4> (F)	8-98155-099-0	01	1	0911-1003			●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (F)	8-98155-099-0	01	1	1004-			●
1	03.609 PIPE; EXH 4X4(TFS***) (F)	8-98155-099-0	01	1	1004-			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-97380-259-1	01	1	0805-0910			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98154-908-0	01	1	0911-1003			●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98154-908-0	01	1	1004-			●
2	03.611 GASKET; PIPE TO MANIF (A)	8-97166-290-1	01	1	0805-1003		●
2	03.611 GASKET; PIPE TO MANIF (B)	8-98017-270-0	01	1	0805-			●
12	03.701 SILENCER ASM; EXH (A)	8-97328-991-0	01	1	0805-	●
12	03.701 SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> (B)	8-97235-528-0	01	1	0805-1003		●
12	03.701 SILENCER ASM; EXH CREW CAB(TF*W) EMISSION SYSTEM R15-04<K75> (B)	8-97235-529-0	01	1	0805-0910		●
12	03.701 SILENCER ASM; EXH LONG(TF***F) (C)	8-97380-266-1	01	1	0805-			●
12	03.701 SILENCER ASM; EXH EXTRA LONG(TF***K) (C)	8-97381-441-1	01	1	0805-			●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0805-	●
36	03.613 NUT; EXH PIPE (B)	8-11094-432-0	06	1	0805-1007	●
36	03.613 NUT; EXH PIPE (B)	8-11588-835-0	06	1	1008-	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-1003		●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-1003			●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-1003			●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1004-			●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1004-			●
36	03.613 NUT; EXH PIPE (C) M8 FLANGE	8-97061-401-1	04	1	0805-1003		●
36	03.613 NUT; EXH PIPE (D) M10 FLANGE	8-97096-192-1	02	1	0805-			●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	0805-1003	●	●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	1004-	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0805-	●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	0805-	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	04	1	0805-	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0805-1003		●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	1004-			●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	02	1	0805-1007	●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	01	1	0805-1003		●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0805-1007			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	02	1	0805-	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0805-1003	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0805-1003		●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0805-1003			●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0805-1003			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1004-	●	●	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	1004-			●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	1004-			●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	01	1	1008-	●	●	●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	02	1	0805-1007	●	●	●
175	03.685 CONVERTER; CATALYST	8-98038-425-0	01	1	0805-0909			●
175	03.685 CONVERTER; CATALYST	8-98153-895-0	01	1	0910-1007			●
175	03.685 CONVERTER; CATALYST	8-98156-386-0	01	1	1008-			●
178	03.611 GASKET; CONV TO MANIF	8-98011-532-0	01	1	0805-1007			●
178	03.611 GASKET; CONV TO MANIF	8-98132-538-0	01	1	1008-			●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1008-			●
198	03.685 BRACKET; CONV MTG	8-98020-516-1	01	1	0805-			●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	04	1	0805-1007			●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1008-			●
271	03.704 RUBBER; HANGER,RR PIPE 03.613	8-97330-412-0	02	1	1008-	●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1008-			●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-	●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97289-169-0	01	1	0805-	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0805-	●	●	●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE 03.706	8-97289-169-0	01	1	1008-	●	●	●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	04	1	0805-1007			●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1008-			●

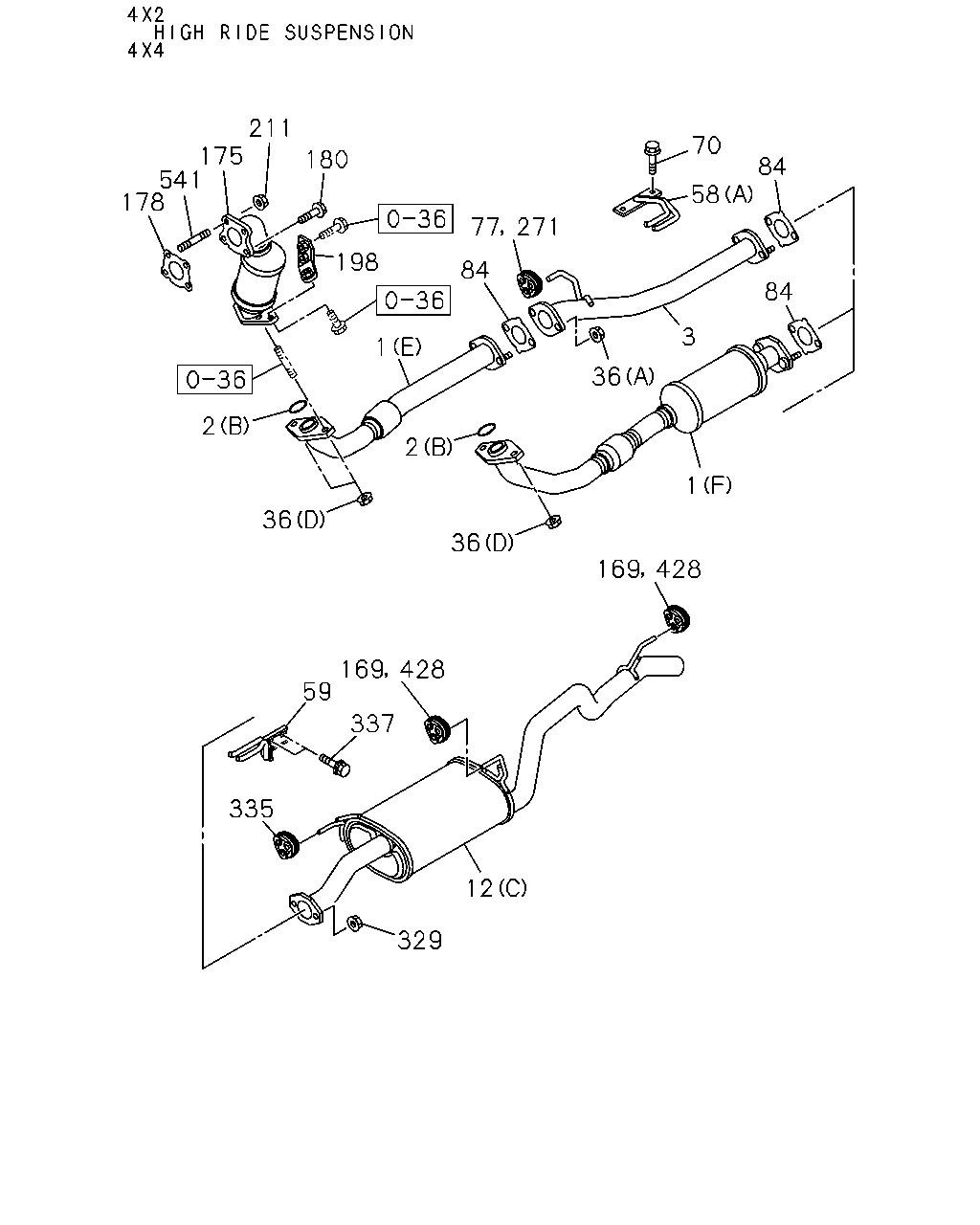

211 175 541 178 70 180 84 58 77 271 198 84 84 3 1 36 2 2 1 36 36 169 428 169 428 59 337 335 12 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH (A)	8-98019-291-0	01	1	0805-	●
1	03.609 PIPE; EXH (B)	8-98019-292-0	01	1	0805-	●
1	03.609 PIPE; EXH EMISSION SYSTEM R15-04<K75> (D)	8-97235-500-0	01	1	0805-0910		●
1	03.609 PIPE; EXH EURO3 SPECIFICATION<NT3> (C)	8-98032-079-0	01	1	0805-1003		●
1	03.609 PIPE; EXH 4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (E)	8-97380-258-1	01	1	0805-1003			●
1	03.609 PIPE; EXH 4X4(TFS***) EURO3 SPECIFICATION<NT3> (E)	8-97380-258-1	01	1	0805-1003			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (F)	8-97380-260-1	01	1	0805-0910			●
1	03.609 PIPE; EXH 4X4(TFS***) EURO4 SPECIFICATION<NT4> (F)	8-97380-260-1	01	1	0805-0910			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (F)	8-98155-099-0	01	1	0911-1003			●
1	03.609 PIPE; EXH 4X4(TFS***) EURO4 SPECIFICATION<NT4> (F)	8-98155-099-0	01	1	0911-1003			●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (F)	8-98155-099-0	01	1	1004-			●
1	03.609 PIPE; EXH 4X4(TFS***) (F)	8-98155-099-0	01	1	1004-			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-97380-259-1	01	1	0805-0910			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98154-908-0	01	1	0911-1003			●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98154-908-0	01	1	1004-			●
2	03.611 GASKET; PIPE TO MANIF (A)	8-97166-290-1	01	1	0805-1003		●
2	03.611 GASKET; PIPE TO MANIF (B)	8-98017-270-0	01	1	0805-			●
3	03.609 PIPE; EXH,CENTER LONG(TF***F)	8-97352-922-0	01	1	0805-	●
3	03.609 PIPE; EXH,CENTER EXTRA LONG(TF***K)	8-97352-923-0	01	1	0805-	●
3	03.609 PIPE; EXH,CENTER REGULAR CAB(TF*S) EURO3 SPECIFICATION<NT3>	8-97352-925-0	01	1	0805-1003		●
3	03.609 PIPE; EXH,CENTER CREW CAB(TF*W) EMISSION SYSTEM R15-04<K75>	8-97352-926-0	01	1	0805-0910		●
3	03.609 PIPE; EXH,CENTER CREW CAB(TF*W) EURO3 SPECIFICATION<NT3>	8-97352-924-0	01	1	0805-1003		●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC)	8-98029-203-0	01	1	0805-1003			●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98029-203-0	01	1	0805-1003			●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-98029-203-0	01	1	1004-			●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***)	8-98029-203-0	01	1	1004-			●
12	03.701 SILENCER ASM; EXH (A)	8-97328-991-0	01	1	0805-	●
12	03.701 SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> (B)	8-97235-528-0	01	1	0805-1003		●
12	03.701 SILENCER ASM; EXH CREW CAB(TF*W) EMISSION SYSTEM R15-04<K75> (B)	8-97235-529-0	01	1	0805-0910		●
12	03.701 SILENCER ASM; EXH LONG(TF***F) (C)	8-97380-266-1	01	1	0805-			●
12	03.701 SILENCER ASM; EXH EXTRA LONG(TF***K) (C)	8-97381-441-1	01	1	0805-			●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0805-	●
36	03.613 NUT; EXH PIPE (B)	8-11094-432-0	06	1	0805-1007	●
36	03.613 NUT; EXH PIPE (B)	8-11588-835-0	06	1	1008-	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-1003		●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-1003			●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-1003			●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1004-			●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1004-			●
36	03.613 NUT; EXH PIPE (C) M8 FLANGE	8-97061-401-1	04	1	0805-1003		●
36	03.613 NUT; EXH PIPE (D) M10 FLANGE	8-97096-192-1	02	1	0805-			●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	0805-1003	●	●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	1004-	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0805-	●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	0805-	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	04	1	0805-	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0805-1003		●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	1004-			●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	02	1	0805-1007	●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	01	1	0805-1003		●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0805-1007			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	02	1	0805-	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0805-1003	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0805-1003		●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0805-1003			●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0805-1003			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1004-	●	●	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	1004-			●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	1004-			●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	01	1	1008-	●	●	●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	02	1	0805-1007	●	●	●
175	03.685 CONVERTER; CATALYST	8-98038-425-0	01	1	0805-0909			●
175	03.685 CONVERTER; CATALYST	8-98153-895-0	01	1	0910-1007			●
175	03.685 CONVERTER; CATALYST	8-98156-386-0	01	1	1008-			●
178	03.611 GASKET; CONV TO MANIF	8-98011-532-0	01	1	0805-1007			●
178	03.611 GASKET; CONV TO MANIF	8-98132-538-0	01	1	1008-			●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1008-			●
198	03.685 BRACKET; CONV MTG	8-98020-516-1	01	1	0805-			●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	04	1	0805-1007			●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1008-			●
271	03.704 RUBBER; HANGER,RR PIPE 03.613	8-97330-412-0	02	1	1008-	●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1008-			●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-	●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97289-169-0	01	1	0805-	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0805-	●	●	●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE 03.706	8-97289-169-0	01	1	1008-	●	●	●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	04	1	0805-1007			●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1008-			●

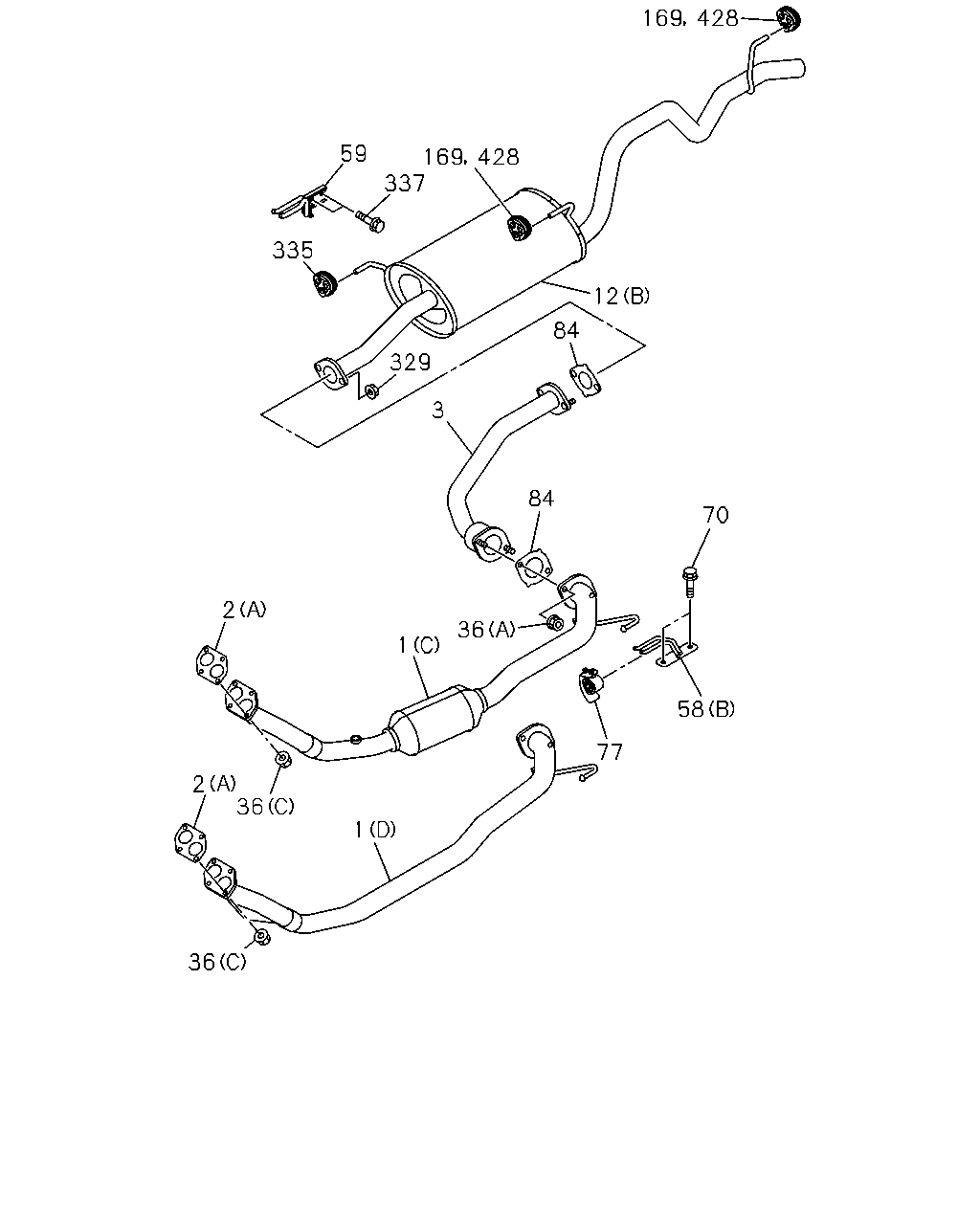

169 428 59 169 337 428 335 12 84 329 3 84 70 2 36 1 58 77 2 36 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH (A)	8-98019-291-0	01	1	0805-	●
1	03.609 PIPE; EXH (B)	8-98019-292-0	01	1	0805-	●
1	03.609 PIPE; EXH EMISSION SYSTEM R15-04<K75> (D)	8-97235-500-0	01	1	0805-0910		●
1	03.609 PIPE; EXH EURO3 SPECIFICATION<NT3> (C)	8-98032-079-0	01	1	0805-1003		●
1	03.609 PIPE; EXH 4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (E)	8-97380-258-1	01	1	0805-1003			●
1	03.609 PIPE; EXH 4X4(TFS***) EURO3 SPECIFICATION<NT3> (E)	8-97380-258-1	01	1	0805-1003			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (F)	8-97380-260-1	01	1	0805-0910			●
1	03.609 PIPE; EXH 4X4(TFS***) EURO4 SPECIFICATION<NT4> (F)	8-97380-260-1	01	1	0805-0910			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (F)	8-98155-099-0	01	1	0911-1003			●
1	03.609 PIPE; EXH 4X4(TFS***) EURO4 SPECIFICATION<NT4> (F)	8-98155-099-0	01	1	0911-1003			●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (F)	8-98155-099-0	01	1	1004-			●
1	03.609 PIPE; EXH 4X4(TFS***) (F)	8-98155-099-0	01	1	1004-			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-97380-259-1	01	1	0805-0910			●
1	03.609 PIPE; EXH 4X2(TFB***) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98154-908-0	01	1	0911-1003			●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98154-908-0	01	1	1004-			●
2	03.611 GASKET; PIPE TO MANIF (A)	8-97166-290-1	01	1	0805-1003		●
2	03.611 GASKET; PIPE TO MANIF (B)	8-98017-270-0	01	1	0805-			●
3	03.609 PIPE; EXH,CENTER LONG(TF***F)	8-97352-922-0	01	1	0805-	●
3	03.609 PIPE; EXH,CENTER EXTRA LONG(TF***K)	8-97352-923-0	01	1	0805-	●
3	03.609 PIPE; EXH,CENTER REGULAR CAB(TF*S) EURO3 SPECIFICATION<NT3>	8-97352-925-0	01	1	0805-1003		●
3	03.609 PIPE; EXH,CENTER CREW CAB(TF*W) EMISSION SYSTEM R15-04<K75>	8-97352-926-0	01	1	0805-0910		●
3	03.609 PIPE; EXH,CENTER CREW CAB(TF*W) EURO3 SPECIFICATION<NT3>	8-97352-924-0	01	1	0805-1003		●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC)	8-98029-203-0	01	1	0805-1003			●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98029-203-0	01	1	0805-1003			●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-98029-203-0	01	1	1004-			●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***)	8-98029-203-0	01	1	1004-			●
12	03.701 SILENCER ASM; EXH (A)	8-97328-991-0	01	1	0805-	●
12	03.701 SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> (B)	8-97235-528-0	01	1	0805-1003		●
12	03.701 SILENCER ASM; EXH CREW CAB(TF*W) EMISSION SYSTEM R15-04<K75> (B)	8-97235-529-0	01	1	0805-0910		●
12	03.701 SILENCER ASM; EXH LONG(TF***F) (C)	8-97380-266-1	01	1	0805-			●
12	03.701 SILENCER ASM; EXH EXTRA LONG(TF***K) (C)	8-97381-441-1	01	1	0805-			●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0805-	●
36	03.613 NUT; EXH PIPE (B)	8-11094-432-0	06	1	0805-1007	●
36	03.613 NUT; EXH PIPE (B)	8-11588-835-0	06	1	1008-	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-1003		●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-1003			●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0805-1003			●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1004-			●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1004-			●
36	03.613 NUT; EXH PIPE (C) M8 FLANGE	8-97061-401-1	04	1	0805-1003		●
36	03.613 NUT; EXH PIPE (D) M10 FLANGE	8-97096-192-1	02	1	0805-			●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	0805-1003	●	●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	1004-	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0805-	●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	0805-	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	04	1	0805-	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0805-1003		●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	1004-			●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	02	1	0805-1007	●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	01	1	0805-1003		●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0805-1007			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	02	1	0805-	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0805-1003	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0805-1003		●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0805-1003			●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0805-1003			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1004-	●	●	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	1004-			●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	1004-			●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	01	1	1008-	●	●	●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	02	1	0805-1007	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-	●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97289-169-0	01	1	0805-	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0805-	●	●	●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE 03.706	8-97289-169-0	01	1	1008-	●	●	●

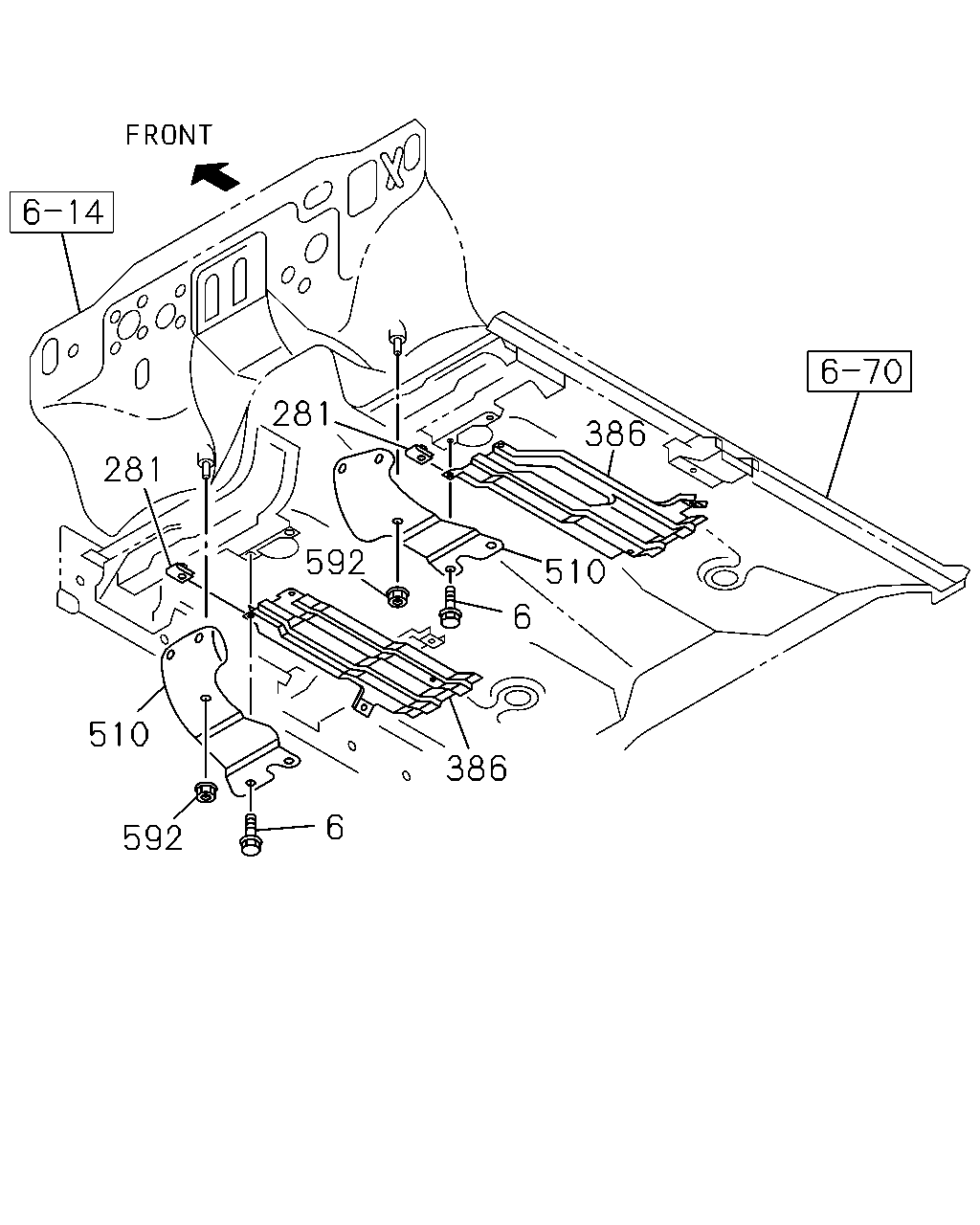

281 386 281 592 510 6 510 386 6 592

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
6	03.685 BOLT; HEAT PROTECTOR 02.343 M6X16 FLANGE	0-28650-616-0	08	1	0805-	●
281	03.685 NUT; HEAT PROTECTOR	8-98056-302-0	04	1	0805-	●
386	03.602 PANEL; HEAT PROTECTOR	8-97333-705-1	01	1	0805-	●
386	03.602 PANEL; HEAT PROTECTOR	8-97333-704-1	01	1	0805-	●
510	03.616 SHIELD; HEAT	8-98012-210-0	01	1	0805-	●
510	03.616 SHIELD; HEAT	8-98012-209-0	01	1	0805-	●
592	03.613 NUT; HEAT SHIELD 03.609 M6 FLANGE	8-11063-473-0	06	1	0805-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
