◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#74701) — 412 parça

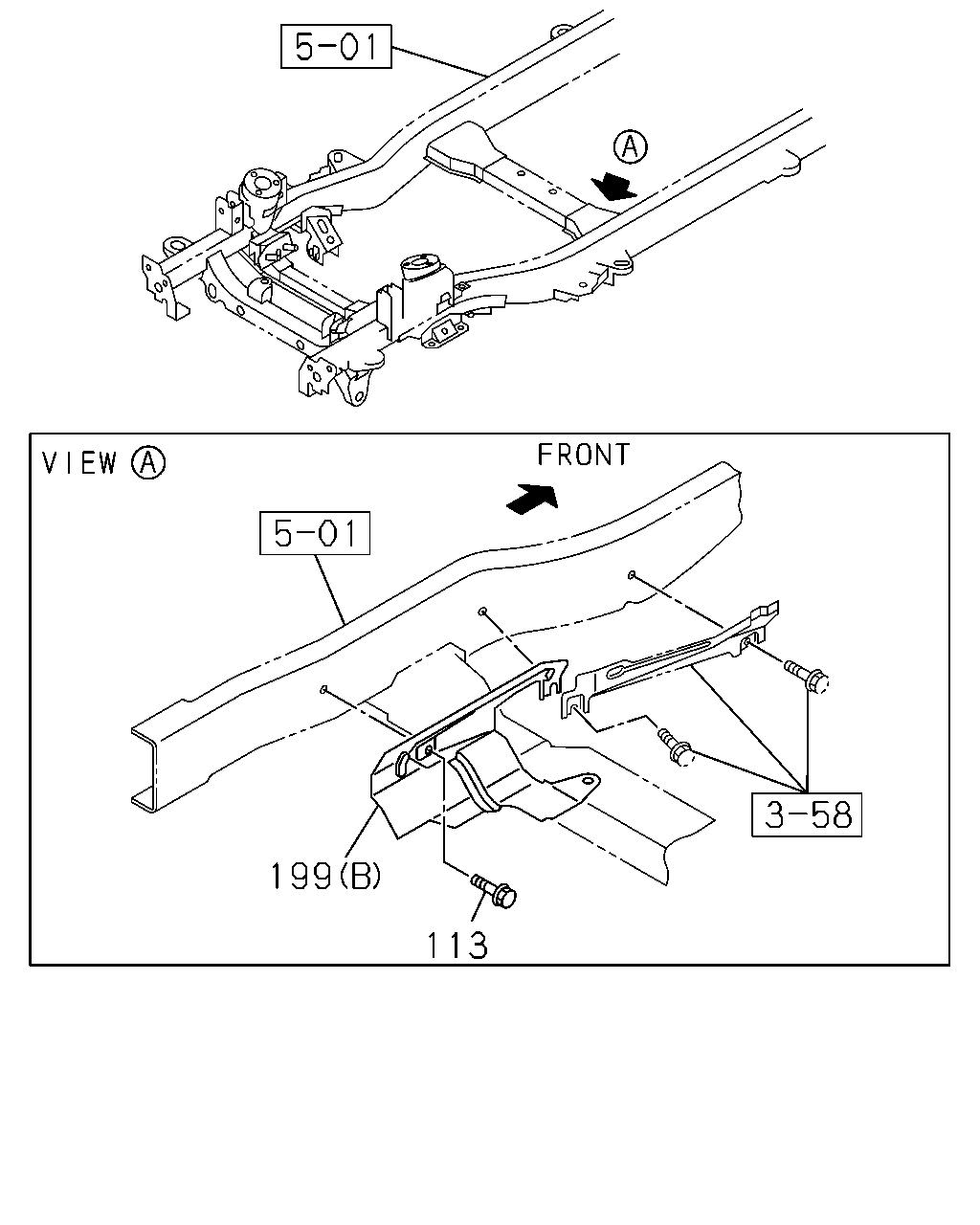

çizim 92818
199 113
BalonParca AdiParca NoAdetTipApplied Date A B C
113 03.162 BOLT; PROTECTOR
07.874 M6X22 W/PL WASHER 		8-97012-072-0 02 1 0805-0906 ● ●
113 03.162 BOLT; PROTECTOR
M6X22 W/PL WASHER 		8-98136-167-0 02 1 0907-1003 ● ●
113 03.162 BOLT; PROTECTOR
M6X22 W/PL WASHER 		8-98136-167-0 02 1 1004- ●
199 03.162 PROTECTOR; FUEL PIPE
(B) 		8-97215-320-3 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B) 		8-97215-320-3 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
4X4(TFS***) (B) 		8-97215-320-3 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
(B) 		8-97215-320-3 01 1 1004- ●
199 03.162 PROTECTOR; FUEL PIPE
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97249-758-0 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97250-143-0 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (A) 		8-97944-851-0 01 1 0805- ●

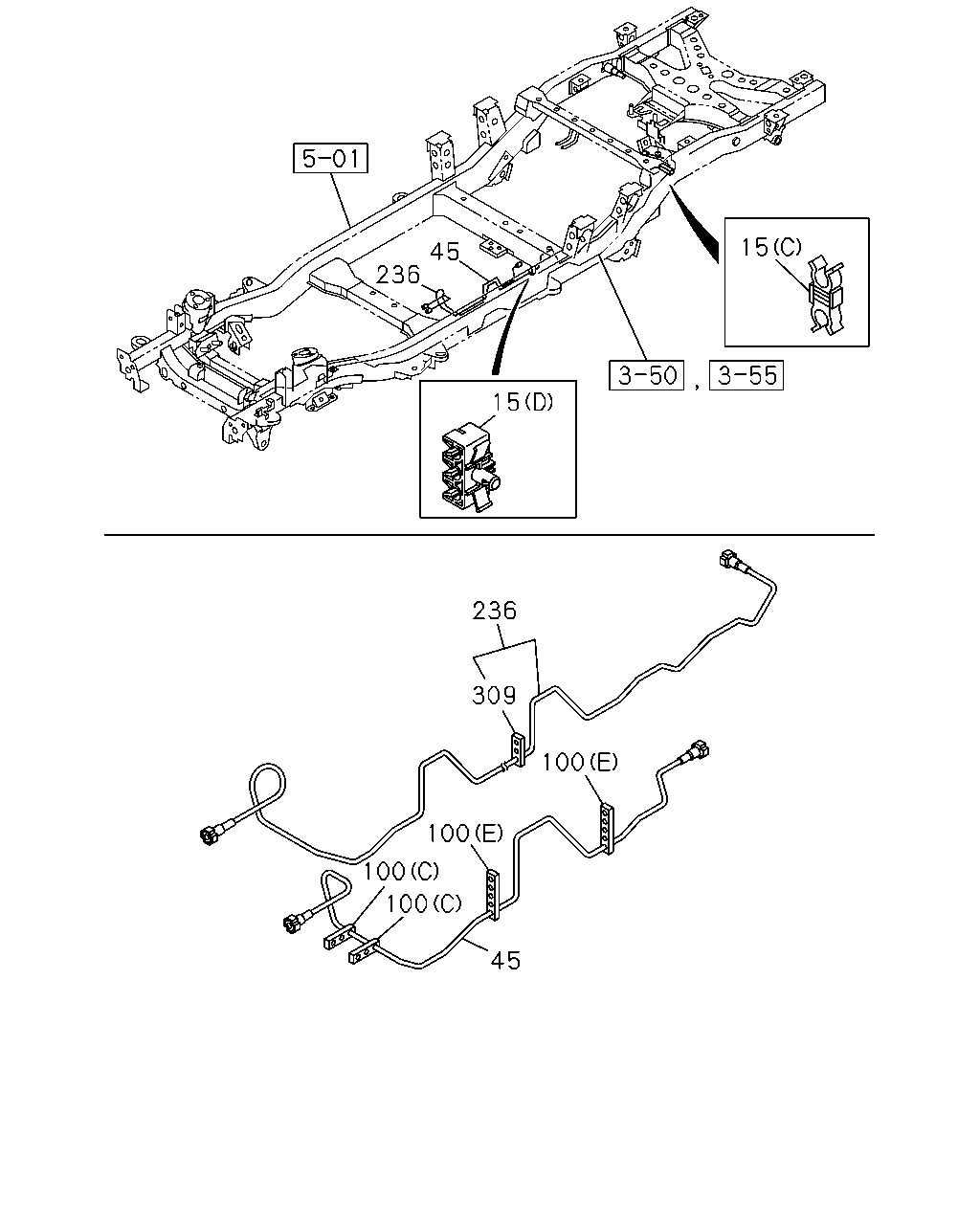

çizim 93514
15 45 236 15 236 309 100 100 100 100 45
BalonParca AdiParca NoAdetTipApplied Date A B C
15 03.162 CLIP; FUEL PIPE
(F) 		8-98179-603-0 01 1 1012- ●
15 03.162 CLIP; FUEL PIPE
03.680 (C) ID=7.5 & 7.5 		8-97019-084-0 01 1 0805- ●
15 03.162 CLIP; FUEL PIPE
EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 0805-1003 ● ●
15 03.162 CLIP; FUEL PIPE
EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 1004- ●
15 03.162 CLIP; FUEL PIPE
(B) 		8-97251-125-0 01 1 0805- ●
15 03.162 CLIP; FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (E) 		8-97944-137-0 02 1 0805- ●
15 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (A) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
LONG(TF***F) 		8-98000-447-0 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
EXTRA LONG(TF***K) 		8-98000-452-0 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 REGULAR CAB EXTRA LONG(TFB*SK) M/T MUA 5 SPEED 5S(RSQ) 		8-97946-984-0 01 1 0805-1003 ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) 		8-97946-991-0 01 1 0805-1003 ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-983-0 01 1 0805-1003 ●
45 03.163 PIPE; FUEL,DELIVERY
LONG(TF***F) 		8-97944-626-1 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
EXTRA LONG(TF***K) 		8-97944-719-1 01 1 0805- ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 1004- ●
100 03.162 CLIP; FUEL PIPE
(E) 		8-97251-128-0 02 1 0805-1003 ● ● ●
100 03.162 CLIP; FUEL PIPE
(E) 		8-97251-128-0 02 1 1004- ● ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (A) 		8-97219-442-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (B) 		8-97251-123-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (D) 		8-97251-125-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
100 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
236 03.163 PIPE; FUEL,CANISTER
LONG(TF***F) 		8-98000-448-0 01 1 0805- ●
236 03.163 PIPE; FUEL,CANISTER
EXTRA LONG(TF***K) 		8-98000-449-0 01 1 0805- ●
236 03.163 PIPE; FUEL,CANISTER
4X2 REGULAR CAB EXTRA LONG(TFB*SK) 		8-97250-530-2 01 1 0805-1003 ●
236 03.163 PIPE; FUEL,CANISTER
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 		8-97250-531-3 01 1 0805-1003 ●
236 03.163 PIPE; FUEL,CANISTER
4X2 CREW CAB(TFB*W*) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97250-529-2 01 1 0805-1003 ●
309 03.162 CLIP; PIPE
ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ●
309 03.162 CLIP; PIPE
ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ●

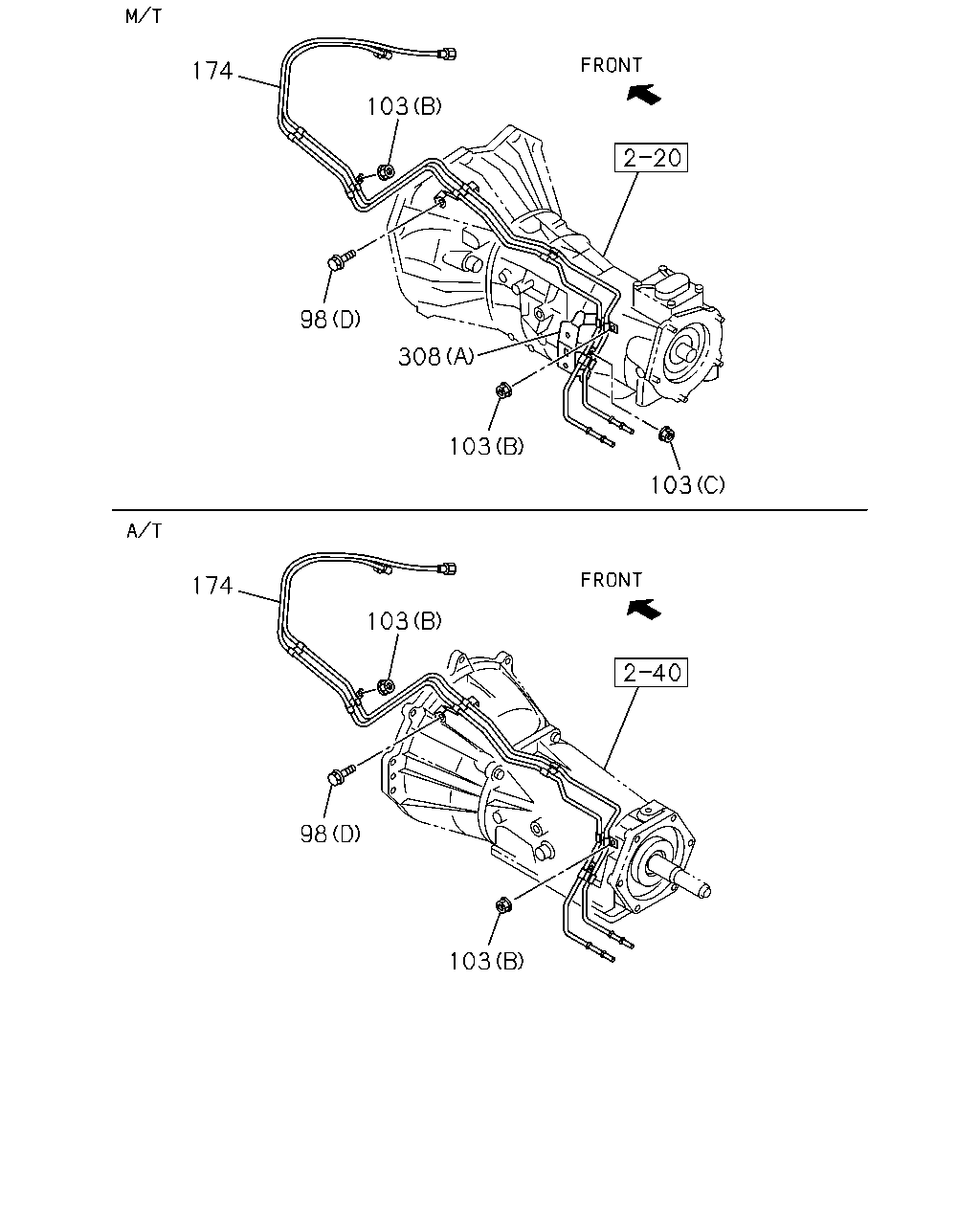

çizim 93661
174 103 98 308 103 103 174 103 98 103
BalonParca AdiParca NoAdetTipApplied Date A B C
98 03.162 BOLT; BRKT,FUEL PIPE
(D) 		8-92138-771-0 01 1 0805- ●
98 03.162 BOLT; BRKT,FUEL PIPE
EXC. HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE 		0-28650-620-0 03 1 0805-1003 ●
98 03.162 BOLT; BRKT,FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE 		0-28650-620-0 03 1 0805-1003 ●
98 03.162 BOLT; BRKT,FUEL PIPE
A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE 		0-28650-620-0 03 1 1004- ●
98 03.162 BOLT; BRKT,FUEL PIPE
A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0805- ●
98 03.162 BOLT; BRKT,FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805- ●
103 03.130 NUT; BRKT
01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 0805- ●
103 03.130 NUT; BRKT
M/T AISIN 5 SPEED(MA5) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0805- ●
103 03.130 NUT; BRKT
M/T MUA 5 SPEED 5S(RSQ) 03.162 (A) M10 FLANGE 		0-91180-110-0 03 1 0805-1003 ●
103 03.130 NUT; BRKT
M/T MUX 5 SPEED 5S(MZJ) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0805- ●
174 03.163 PIPE; FUEL,FEED,FRT 8-98038-296-1 01 1 0805- ●
308 03.162 BRACKET; FUEL PIPE
(A) 		8-98000-474-0 01 1 0805- ●
308 03.162 BRACKET; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (C) 		8-97215-293-0 01 1 0805-1003 ●
308 03.162 BRACKET; FUEL PIPE
A/T AISIN(RMD) (B) 		8-97944-741-0 01 1 0805- ●
308 03.162 BRACKET; FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ) (E) 		8-97944-743-0 01 1 0805- ●
308 03.162 BRACKET; FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ) (D) 		8-97944-747-0 01 1 0805- ●

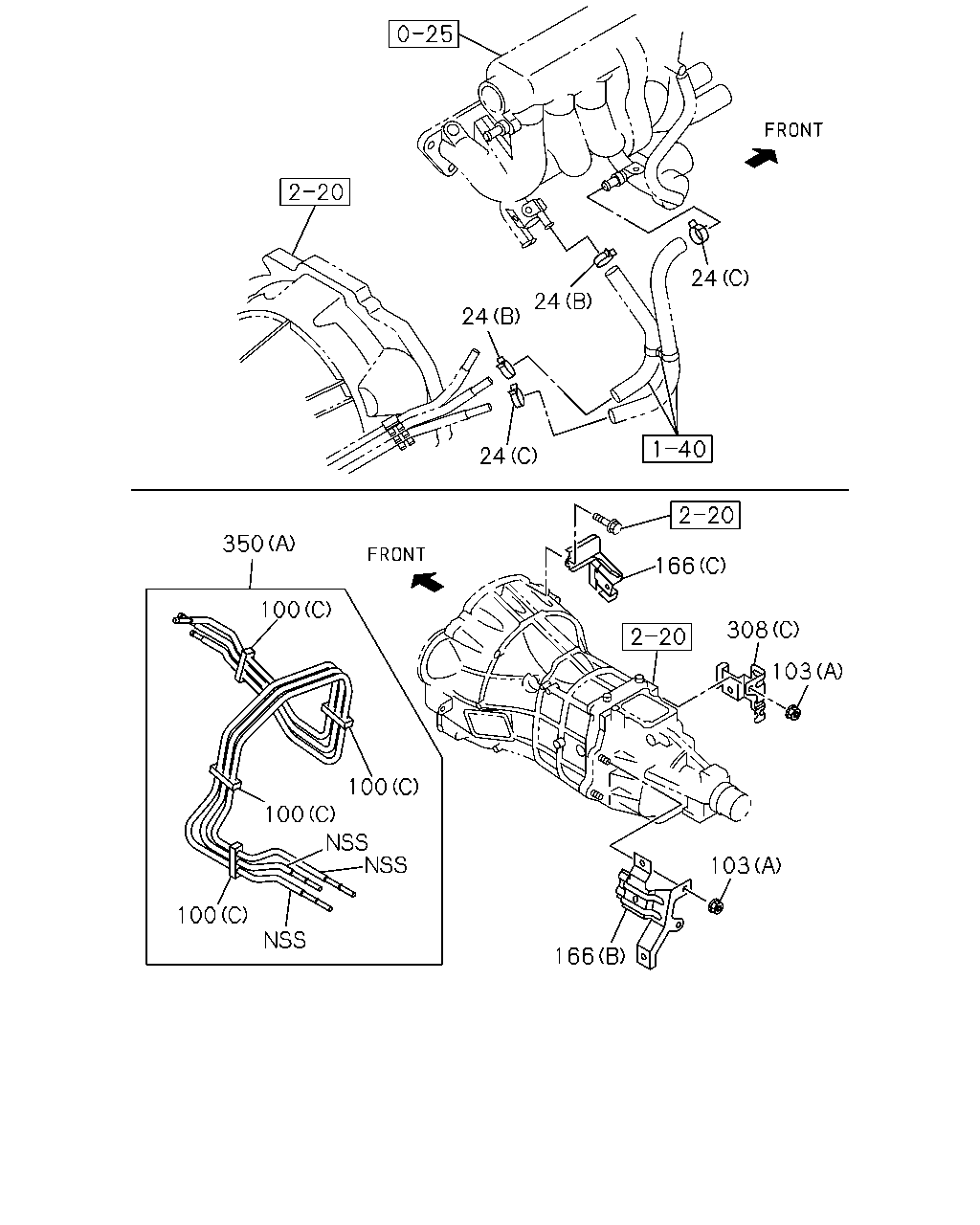

çizim 94657
24 24 24 24 350 166 100 308 103 100 100 103 100 166
BalonParca AdiParca NoAdetTipApplied Date A B C
24 03.162 CLIP; FUEL HOSE
4X4(TFS***) (G) 		8-98174-541-0 02 1 1012- ●
24 03.162 CLIP; FUEL HOSE
(B) ID=12 		8-97148-892-1 02 1 0805-1003 ●
24 03.162 CLIP; FUEL HOSE
(C) ID=11.5 		8-98008-096-0 02 1 0805-1003 ● ●
24 03.162 CLIP; FUEL HOSE
(C) ID=11.5 		8-98008-096-0 02 1 1004- ●
24 03.162 CLIP; FUEL HOSE
(A) ID=17.8 		8-97944-611-0 01 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(C) ID=11.5 		8-98008-096-0 03 1 0805- ●
24 03.162 CLIP; FUEL HOSE
01.762 (D) ID=16 		8-98030-682-0 01 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(E) ID=14.2 		8-98035-873-0 01 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(E) ID=14.2 		8-98035-873-0 03 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(E) ID=14.2 		8-98035-873-0 02 1 0805- ●
24 03.162 CLIP; FUEL HOSE
03.330 (F) ID=11.5 		8-98051-892-0 01 1 0805- ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 1004- ●
100 03.162 CLIP; FUEL PIPE
(E) 		8-97251-128-0 02 1 0805-1003 ● ● ●
100 03.162 CLIP; FUEL PIPE
(E) 		8-97251-128-0 02 1 1004- ● ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (A) 		8-97219-442-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (B) 		8-97251-123-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (D) 		8-97251-125-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
100 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
103 03.130 NUT; BRKT
01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 0805- ●
103 03.130 NUT; BRKT
M/T AISIN 5 SPEED(MA5) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0805- ●
103 03.130 NUT; BRKT
M/T MUA 5 SPEED 5S(RSQ) 03.162 (A) M10 FLANGE 		0-91180-110-0 03 1 0805-1003 ●
103 03.130 NUT; BRKT
M/T MUX 5 SPEED 5S(MZJ) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0805- ●
166 03.162 PROTECTOR; FUEL HOSE
M/T MUA 5 SPEED 5S(RSQ) (C) 		8-97215-406-1 01 1 0805-1003 ●
166 03.162 PROTECTOR; FUEL HOSE
M/T MUA 5 SPEED 5S(RSQ) (B) 		8-98050-706-0 01 1 0805-1003 ●
166 03.162 PROTECTOR; FUEL HOSE
A/T AISIN(RMD) (A) 		8-97944-739-0 01 1 0805- ●
308 03.162 BRACKET; FUEL PIPE
(A) 		8-98000-474-0 01 1 0805- ●
308 03.162 BRACKET; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (C) 		8-97215-293-0 01 1 0805-1003 ●
308 03.162 BRACKET; FUEL PIPE
A/T AISIN(RMD) (B) 		8-97944-741-0 01 1 0805- ●
308 03.162 BRACKET; FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ) (E) 		8-97944-743-0 01 1 0805- ●
308 03.162 BRACKET; FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ) (D) 		8-97944-747-0 01 1 0805- ●
350 03.163 PIPE; FUEL,DEL & RET
4X4(TFS***) (B) 		8-98179-684-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-526-0 01 1 0805-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X4(TFS***) (B) 		8-97946-526-0 01 1 0805-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (B) 		8-98177-463-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5S(RSQ) (A) 		8-97946-961-0 01 1 0805-1003 ●
350 03.163 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (E) 		8-97944-726-1 01 1 0805- ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUX 5 SPEED 5S(MZJ) (D) 		8-97944-729-1 01 1 0805- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98060-307-0 01 1 0805-0805 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-518-0 01 1 0805-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98177-460-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) 		8-98060-310-0 01 1 0805-0805 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) 		8-97946-522-0 01 1 0806-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) 		8-98177-462-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98060-317-0 01 1 0805-0805 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98097-062-0 01 1 0806-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98177-461-0 01 1 1012- ●

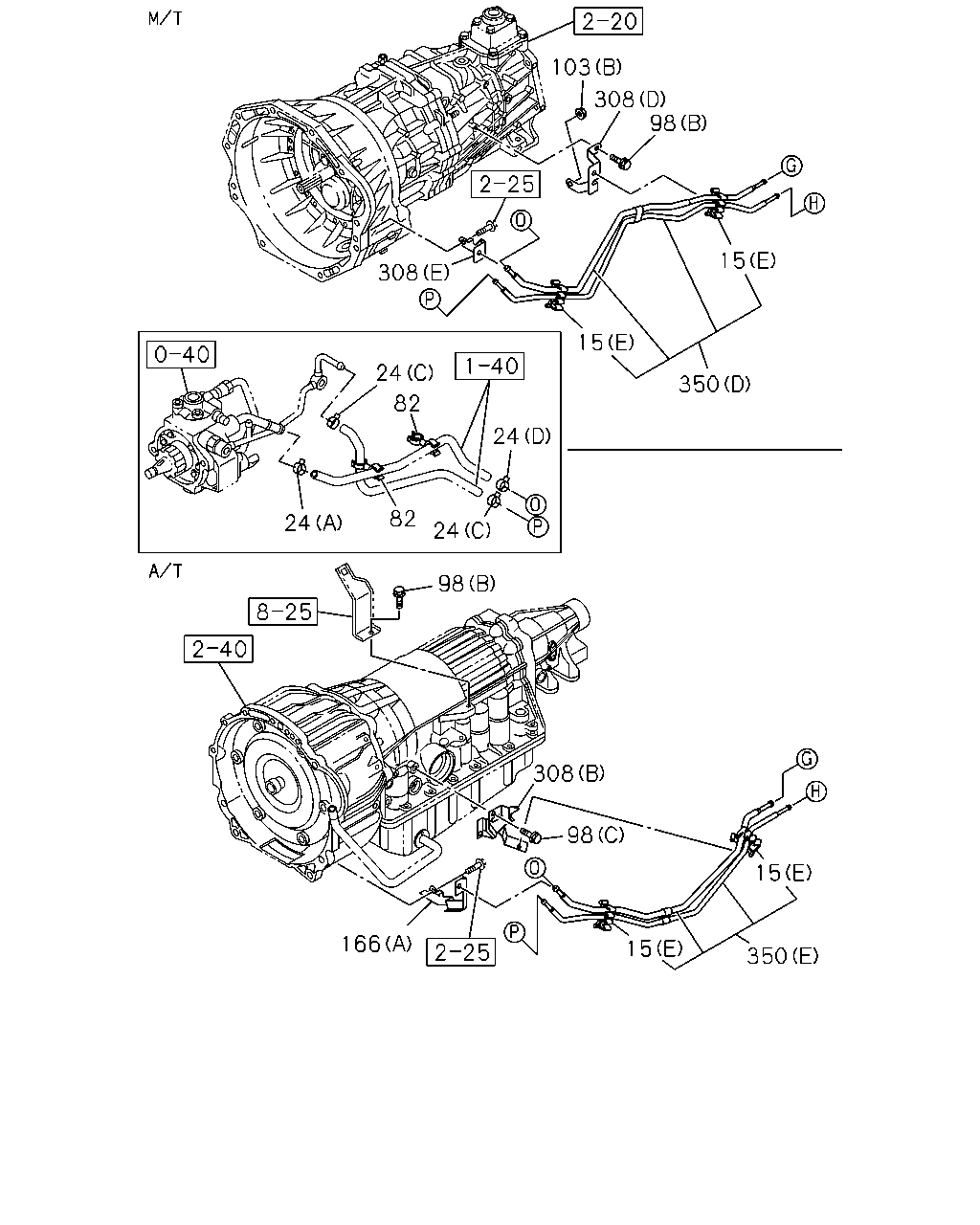

çizim 96149
103 308 98 15 308 15 24 350 82 24 82 24 24 98 308 98 15 166 15 350
BalonParca AdiParca NoAdetTipApplied Date A B C
15 03.162 CLIP; FUEL PIPE
(F) 		8-98179-603-0 01 1 1012- ●
15 03.162 CLIP; FUEL PIPE
03.680 (C) ID=7.5 & 7.5 		8-97019-084-0 01 1 0805- ●
15 03.162 CLIP; FUEL PIPE
EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 0805-1003 ● ●
15 03.162 CLIP; FUEL PIPE
EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 1004- ●
15 03.162 CLIP; FUEL PIPE
(B) 		8-97251-125-0 01 1 0805- ●
15 03.162 CLIP; FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (E) 		8-97944-137-0 02 1 0805- ●
15 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (A) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
24 03.162 CLIP; FUEL HOSE
4X4(TFS***) (G) 		8-98174-541-0 02 1 1012- ●
24 03.162 CLIP; FUEL HOSE
(B) ID=12 		8-97148-892-1 02 1 0805-1003 ●
24 03.162 CLIP; FUEL HOSE
(C) ID=11.5 		8-98008-096-0 02 1 0805-1003 ● ●
24 03.162 CLIP; FUEL HOSE
(C) ID=11.5 		8-98008-096-0 02 1 1004- ●
24 03.162 CLIP; FUEL HOSE
(A) ID=17.8 		8-97944-611-0 01 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(C) ID=11.5 		8-98008-096-0 03 1 0805- ●
24 03.162 CLIP; FUEL HOSE
01.762 (D) ID=16 		8-98030-682-0 01 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(E) ID=14.2 		8-98035-873-0 01 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(E) ID=14.2 		8-98035-873-0 03 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(E) ID=14.2 		8-98035-873-0 02 1 0805- ●
24 03.162 CLIP; FUEL HOSE
03.330 (F) ID=11.5 		8-98051-892-0 01 1 0805- ●
82 03.163 CLIP; FUEL HOSE
04.104 ID=11.8 & ID=18.6 		8-97333-094-0 02 1 0805- ●
98 03.162 BOLT; BRKT,FUEL PIPE
(D) 		8-92138-771-0 01 1 0805- ●
98 03.162 BOLT; BRKT,FUEL PIPE
EXC. HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE 		0-28650-620-0 03 1 0805-1003 ●
98 03.162 BOLT; BRKT,FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE 		0-28650-620-0 03 1 0805-1003 ●
98 03.162 BOLT; BRKT,FUEL PIPE
A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE 		0-28650-620-0 03 1 1004- ●
98 03.162 BOLT; BRKT,FUEL PIPE
A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0805- ●
98 03.162 BOLT; BRKT,FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805- ●
103 03.130 NUT; BRKT
01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 0805- ●
103 03.130 NUT; BRKT
M/T AISIN 5 SPEED(MA5) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0805- ●
103 03.130 NUT; BRKT
M/T MUA 5 SPEED 5S(RSQ) 03.162 (A) M10 FLANGE 		0-91180-110-0 03 1 0805-1003 ●
103 03.130 NUT; BRKT
M/T MUX 5 SPEED 5S(MZJ) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0805- ●
166 03.162 PROTECTOR; FUEL HOSE
M/T MUA 5 SPEED 5S(RSQ) (C) 		8-97215-406-1 01 1 0805-1003 ●
166 03.162 PROTECTOR; FUEL HOSE
M/T MUA 5 SPEED 5S(RSQ) (B) 		8-98050-706-0 01 1 0805-1003 ●
166 03.162 PROTECTOR; FUEL HOSE
A/T AISIN(RMD) (A) 		8-97944-739-0 01 1 0805- ●
308 03.162 BRACKET; FUEL PIPE
(A) 		8-98000-474-0 01 1 0805- ●
308 03.162 BRACKET; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (C) 		8-97215-293-0 01 1 0805-1003 ●
308 03.162 BRACKET; FUEL PIPE
A/T AISIN(RMD) (B) 		8-97944-741-0 01 1 0805- ●
308 03.162 BRACKET; FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ) (E) 		8-97944-743-0 01 1 0805- ●
308 03.162 BRACKET; FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ) (D) 		8-97944-747-0 01 1 0805- ●
350 03.163 PIPE; FUEL,DEL & RET
4X4(TFS***) (B) 		8-98179-684-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-526-0 01 1 0805-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X4(TFS***) (B) 		8-97946-526-0 01 1 0805-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (B) 		8-98177-463-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5S(RSQ) (A) 		8-97946-961-0 01 1 0805-1003 ●
350 03.163 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (E) 		8-97944-726-1 01 1 0805- ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUX 5 SPEED 5S(MZJ) (D) 		8-97944-729-1 01 1 0805- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98060-307-0 01 1 0805-0805 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-518-0 01 1 0805-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98177-460-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) 		8-98060-310-0 01 1 0805-0805 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) 		8-97946-522-0 01 1 0806-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) 		8-98177-462-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98060-317-0 01 1 0805-0805 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98097-062-0 01 1 0806-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98177-461-0 01 1 1012- ●

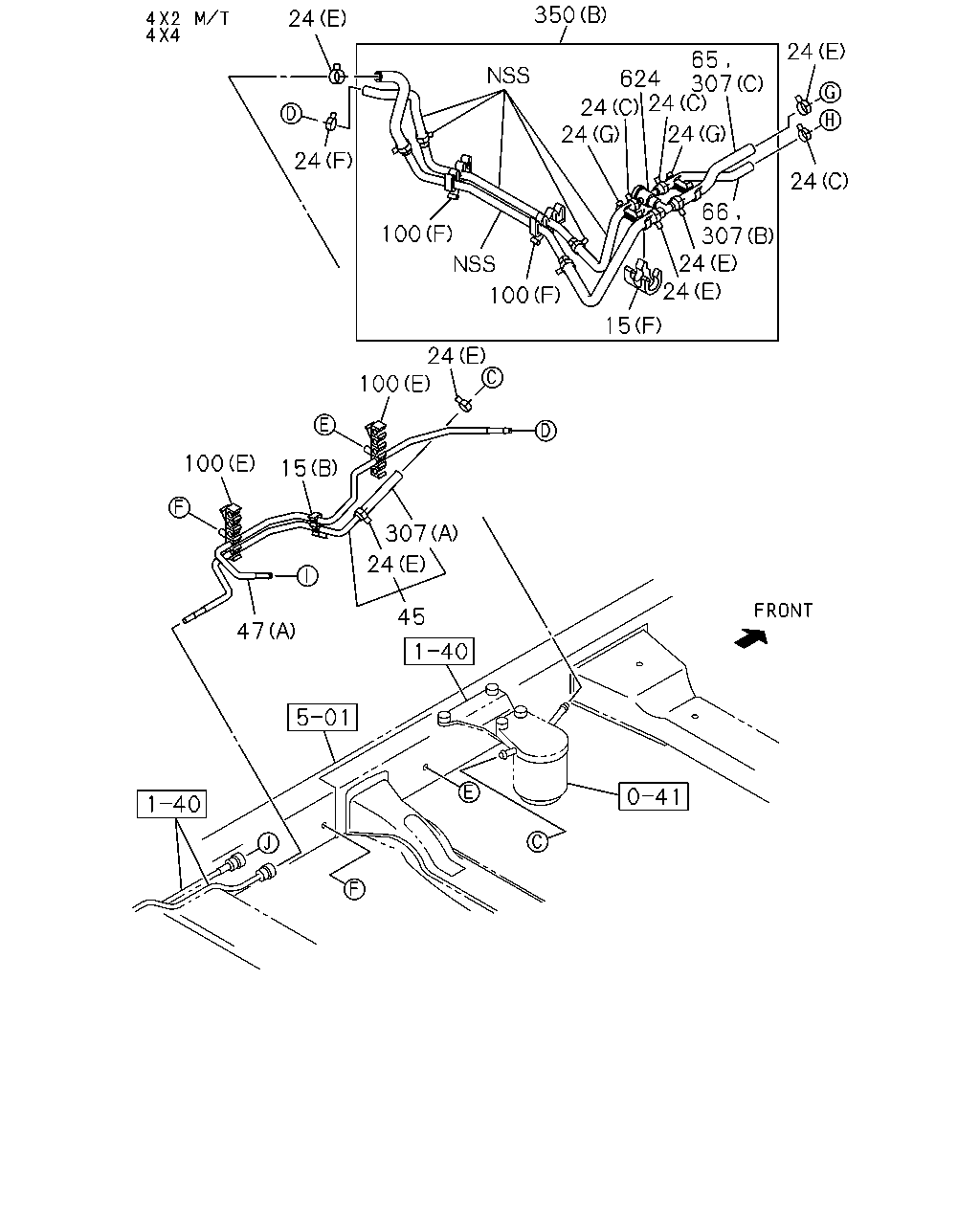

çizim 96181
350 24 24 65 624 307 24 24 24 24 24 24 66 307 24 24 100 100 15 24 100 100 15 307 24 45 47
BalonParca AdiParca NoAdetTipApplied Date A B C
15 03.162 CLIP; FUEL PIPE
(F) 		8-98179-603-0 01 1 1012- ●
15 03.162 CLIP; FUEL PIPE
03.680 (C) ID=7.5 & 7.5 		8-97019-084-0 01 1 0805- ●
15 03.162 CLIP; FUEL PIPE
EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 0805-1003 ● ●
15 03.162 CLIP; FUEL PIPE
EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 1004- ●
15 03.162 CLIP; FUEL PIPE
(B) 		8-97251-125-0 01 1 0805- ●
15 03.162 CLIP; FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (E) 		8-97944-137-0 02 1 0805- ●
15 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (A) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
24 03.162 CLIP; FUEL HOSE
4X4(TFS***) (G) 		8-98174-541-0 02 1 1012- ●
24 03.162 CLIP; FUEL HOSE
(B) ID=12 		8-97148-892-1 02 1 0805-1003 ●
24 03.162 CLIP; FUEL HOSE
(C) ID=11.5 		8-98008-096-0 02 1 0805-1003 ● ●
24 03.162 CLIP; FUEL HOSE
(C) ID=11.5 		8-98008-096-0 02 1 1004- ●
24 03.162 CLIP; FUEL HOSE
(A) ID=17.8 		8-97944-611-0 01 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(C) ID=11.5 		8-98008-096-0 03 1 0805- ●
24 03.162 CLIP; FUEL HOSE
01.762 (D) ID=16 		8-98030-682-0 01 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(E) ID=14.2 		8-98035-873-0 01 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(E) ID=14.2 		8-98035-873-0 03 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(E) ID=14.2 		8-98035-873-0 02 1 0805- ●
24 03.162 CLIP; FUEL HOSE
03.330 (F) ID=11.5 		8-98051-892-0 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
LONG(TF***F) 		8-98000-447-0 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
EXTRA LONG(TF***K) 		8-98000-452-0 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 REGULAR CAB EXTRA LONG(TFB*SK) M/T MUA 5 SPEED 5S(RSQ) 		8-97946-984-0 01 1 0805-1003 ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) 		8-97946-991-0 01 1 0805-1003 ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-983-0 01 1 0805-1003 ●
45 03.163 PIPE; FUEL,DELIVERY
LONG(TF***F) 		8-97944-626-1 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
EXTRA LONG(TF***K) 		8-97944-719-1 01 1 0805- ●
47 03.163 PIPE; FUEL,RETURN
4X2 REGULAR CAB EXTRA LONG(TFB*SK) M/T MUA 5 SPEED 5S(RSQ) (B) 		8-97946-987-0 01 1 0805-1003 ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-994-0 01 1 0805-1003 ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-986-0 01 1 0805-1003 ●
47 03.163 PIPE; FUEL,RETURN
LONG(TF***F) (A) 		8-98051-783-1 01 1 0805- ●
47 03.163 PIPE; FUEL,RETURN
EXTRA LONG(TF***K) (A) 		8-98051-784-1 01 1 0805-0808 ●
47 03.163 PIPE; FUEL,RETURN
EXTRA LONG(TF***K) (A) 		8-98129-683-0 01 1 0809- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) 		8-97944-133-0 01 1 1008- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4X4(TFS***) 		8-97944-133-0 01 1 1008- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-135-0 01 1 1008- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) 		8-97944-134-0 01 1 1008- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4X4(TFS***) 		8-97944-134-0 01 1 1008- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98060-821-0 01 1 1008- ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 1004- ●
100 03.162 CLIP; FUEL PIPE
(E) 		8-97251-128-0 02 1 0805-1003 ● ● ●
100 03.162 CLIP; FUEL PIPE
(E) 		8-97251-128-0 02 1 1004- ● ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (A) 		8-97219-442-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (B) 		8-97251-123-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (D) 		8-97251-125-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
100 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 		0-01658-300-0 01 1 0805- ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-133-0 01 1 0805-1007 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X4(TFS***) (C) 		8-97944-133-0 01 1 0805-1007 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-134-0 01 1 0805-1007 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X4(TFS***) (B) 		8-97944-134-0 01 1 0805-1007 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-135-0 01 1 0805-1007 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98060-821-0 01 1 0805-1007 ●
350 03.163 PIPE; FUEL,DEL & RET
4X4(TFS***) (B) 		8-98179-684-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-526-0 01 1 0805-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X4(TFS***) (B) 		8-97946-526-0 01 1 0805-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (B) 		8-98177-463-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5S(RSQ) (A) 		8-97946-961-0 01 1 0805-1003 ●
350 03.163 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (E) 		8-97944-726-1 01 1 0805- ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUX 5 SPEED 5S(MZJ) (D) 		8-97944-729-1 01 1 0805- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98060-307-0 01 1 0805-0805 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-518-0 01 1 0805-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98177-460-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) 		8-98060-310-0 01 1 0805-0805 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) 		8-97946-522-0 01 1 0806-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) 		8-98177-462-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98060-317-0 01 1 0805-0805 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98097-062-0 01 1 0806-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98177-461-0 01 1 1012- ●
624 03.164 VALVE; 1 WAY,FUEL 8-97375-919-0 01 1 0805- ●

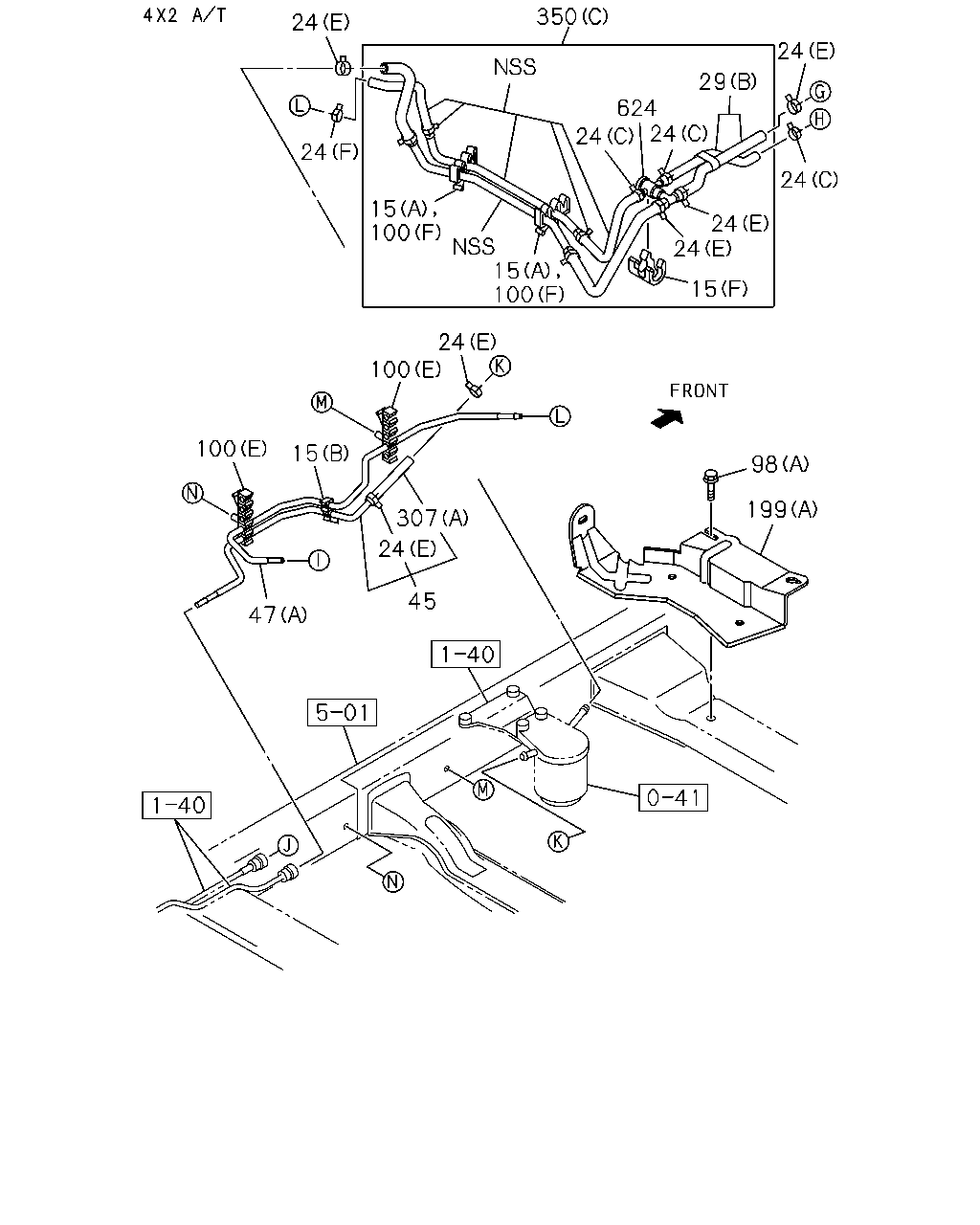

çizim 96182
350 24 24 29 624 24 24 24 24 15 100 24 24 15 100 15 24 100 100 15 98 199 307 24 45 47
BalonParca AdiParca NoAdetTipApplied Date A B C
15 03.162 CLIP; FUEL PIPE
(F) 		8-98179-603-0 01 1 1012- ●
15 03.162 CLIP; FUEL PIPE
03.680 (C) ID=7.5 & 7.5 		8-97019-084-0 01 1 0805- ●
15 03.162 CLIP; FUEL PIPE
EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 0805-1003 ● ●
15 03.162 CLIP; FUEL PIPE
EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 1004- ●
15 03.162 CLIP; FUEL PIPE
(B) 		8-97251-125-0 01 1 0805- ●
15 03.162 CLIP; FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (E) 		8-97944-137-0 02 1 0805- ●
15 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (A) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
24 03.162 CLIP; FUEL HOSE
4X4(TFS***) (G) 		8-98174-541-0 02 1 1012- ●
24 03.162 CLIP; FUEL HOSE
(B) ID=12 		8-97148-892-1 02 1 0805-1003 ●
24 03.162 CLIP; FUEL HOSE
(C) ID=11.5 		8-98008-096-0 02 1 0805-1003 ● ●
24 03.162 CLIP; FUEL HOSE
(C) ID=11.5 		8-98008-096-0 02 1 1004- ●
24 03.162 CLIP; FUEL HOSE
(A) ID=17.8 		8-97944-611-0 01 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(C) ID=11.5 		8-98008-096-0 03 1 0805- ●
24 03.162 CLIP; FUEL HOSE
01.762 (D) ID=16 		8-98030-682-0 01 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(E) ID=14.2 		8-98035-873-0 01 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(E) ID=14.2 		8-98035-873-0 03 1 0805- ●
24 03.162 CLIP; FUEL HOSE
(E) ID=14.2 		8-98035-873-0 02 1 0805- ●
24 03.162 CLIP; FUEL HOSE
03.330 (F) ID=11.5 		8-98051-892-0 01 1 0805- ●
29 03.163 HOSE; FUEL
(A) 		8-97234-517-0 01 1 0805-1003 ● ●
29 03.163 HOSE; FUEL
(A) 		8-97234-517-0 01 1 1004- ●
29 03.163 HOSE; FUEL
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) (B) 		8-98060-820-0 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
LONG(TF***F) 		8-98000-447-0 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
EXTRA LONG(TF***K) 		8-98000-452-0 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 REGULAR CAB EXTRA LONG(TFB*SK) M/T MUA 5 SPEED 5S(RSQ) 		8-97946-984-0 01 1 0805-1003 ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) 		8-97946-991-0 01 1 0805-1003 ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-983-0 01 1 0805-1003 ●
45 03.163 PIPE; FUEL,DELIVERY
LONG(TF***F) 		8-97944-626-1 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
EXTRA LONG(TF***K) 		8-97944-719-1 01 1 0805- ●
47 03.163 PIPE; FUEL,RETURN
4X2 REGULAR CAB EXTRA LONG(TFB*SK) M/T MUA 5 SPEED 5S(RSQ) (B) 		8-97946-987-0 01 1 0805-1003 ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-994-0 01 1 0805-1003 ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-986-0 01 1 0805-1003 ●
47 03.163 PIPE; FUEL,RETURN
LONG(TF***F) (A) 		8-98051-783-1 01 1 0805- ●
47 03.163 PIPE; FUEL,RETURN
EXTRA LONG(TF***K) (A) 		8-98051-784-1 01 1 0805-0808 ●
47 03.163 PIPE; FUEL,RETURN
EXTRA LONG(TF***K) (A) 		8-98129-683-0 01 1 0809- ●
98 03.162 BOLT; BRKT,FUEL PIPE
(D) 		8-92138-771-0 01 1 0805- ●
98 03.162 BOLT; BRKT,FUEL PIPE
EXC. HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE 		0-28650-620-0 03 1 0805-1003 ●
98 03.162 BOLT; BRKT,FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE 		0-28650-620-0 03 1 0805-1003 ●
98 03.162 BOLT; BRKT,FUEL PIPE
A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE 		0-28650-620-0 03 1 1004- ●
98 03.162 BOLT; BRKT,FUEL PIPE
A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0805- ●
98 03.162 BOLT; BRKT,FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805- ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 1004- ●
100 03.162 CLIP; FUEL PIPE
(E) 		8-97251-128-0 02 1 0805-1003 ● ● ●
100 03.162 CLIP; FUEL PIPE
(E) 		8-97251-128-0 02 1 1004- ● ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (A) 		8-97219-442-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (B) 		8-97251-123-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (D) 		8-97251-125-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
100 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
199 03.162 PROTECTOR; FUEL PIPE
(B) 		8-97215-320-3 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B) 		8-97215-320-3 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
4X4(TFS***) (B) 		8-97215-320-3 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
(B) 		8-97215-320-3 01 1 1004- ●
199 03.162 PROTECTOR; FUEL PIPE
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97249-758-0 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97250-143-0 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (A) 		8-97944-851-0 01 1 0805- ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 		0-01658-300-0 01 1 0805- ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-133-0 01 1 0805-1007 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X4(TFS***) (C) 		8-97944-133-0 01 1 0805-1007 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-134-0 01 1 0805-1007 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X4(TFS***) (B) 		8-97944-134-0 01 1 0805-1007 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-135-0 01 1 0805-1007 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98060-821-0 01 1 0805-1007 ●
350 03.163 PIPE; FUEL,DEL & RET
4X4(TFS***) (B) 		8-98179-684-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-526-0 01 1 0805-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X4(TFS***) (B) 		8-97946-526-0 01 1 0805-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (B) 		8-98177-463-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5S(RSQ) (A) 		8-97946-961-0 01 1 0805-1003 ●
350 03.163 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (E) 		8-97944-726-1 01 1 0805- ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUX 5 SPEED 5S(MZJ) (D) 		8-97944-729-1 01 1 0805- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98060-307-0 01 1 0805-0805 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-518-0 01 1 0805-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98177-460-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) 		8-98060-310-0 01 1 0805-0805 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) 		8-97946-522-0 01 1 0806-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) 		8-98177-462-0 01 1 1012- ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98060-317-0 01 1 0805-0805 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98097-062-0 01 1 0806-1011 ●
350 03.163 PIPE; FUEL,DEL & RET
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98177-461-0 01 1 1012- ●
624 03.164 VALVE; 1 WAY,FUEL 8-97375-919-0 01 1 0805- ●

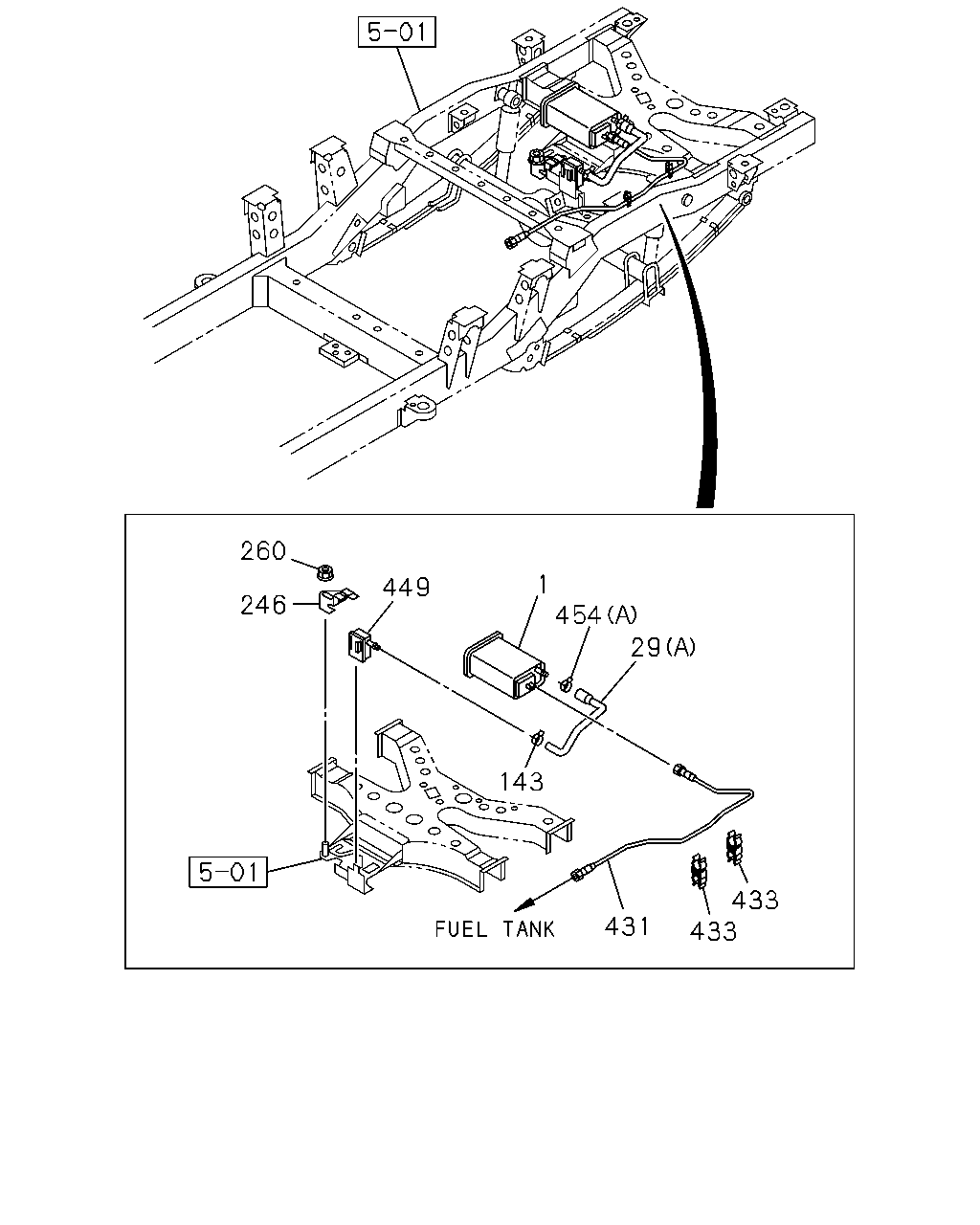

çizim 96184
260 1 454 449 246 29 143 433 433 431
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.130 CANISTER; FUEL 8-17097-118-0 01 1 0805-1003 ● ●
1 03.130 CANISTER; FUEL 8-17097-118-0 01 1 1004- ●
29 03.163 HOSE; FUEL
(A) 		8-97234-517-0 01 1 0805-1003 ● ●
29 03.163 HOSE; FUEL
(A) 		8-97234-517-0 01 1 1004- ●
29 03.163 HOSE; FUEL
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) (B) 		8-98060-820-0 01 1 0805- ●
143 03.162 CLAMP; FUEL FILTER
01.166 ID=14 		8-94238-572-0 01 1 0805-1003 ● ●
143 03.162 CLAMP; FUEL FILTER
01.166 ID=14 		8-94238-572-0 01 1 1004- ●
246 03.130 BRACKET; CANISTER 8-97234-462-1 01 1 0805-1003 ● ●
246 03.130 BRACKET; CANISTER 8-97234-462-1 01 1 1004- ●
260 03.130 NUT; CANISTER BRKT
01.540 M8 FLANGE 		0-91180-208-0 01 1 0805-1003 ● ●
260 03.130 NUT; CANISTER BRKT
01.540 M8 FLANGE 		0-91180-208-0 01 1 1004- ●
431 03.163 PIPE; PURGE,ENG ROOM
03.145 		8-97215-197-0 01 1 0805-1003 ● ●
431 03.163 PIPE; PURGE,ENG ROOM
03.145 		8-97215-197-0 01 1 1004- ●
433 03.162 CLIP; PURGE PIPE
03.680 ID=7.5 & 7.5 		8-97019-084-0 02 1 0805-1003 ● ●
433 03.162 CLIP; PURGE PIPE
03.680 ID=7.5 & 7.5 		8-97019-084-0 02 1 1004- ●
449 03.890 FILTER; AIR
03.162 		8-17096-210-0 01 1 0805-1003 ● ●
449 03.890 FILTER; AIR
03.162 		8-17096-210-0 01 1 1004- ●
454 03.890 CLAMP; HOSE,CANISTER
04.930 (A) ID=16 		8-94238-568-0 01 1 0805-1003 ● ●
454 03.890 CLAMP; HOSE,CANISTER
04.930 (A) ID=16 		8-94238-568-0 01 1 1004- ●
454 03.890 CLAMP; HOSE,CANISTER
03.163 (B) ID=11 		8-94238-570-0 01 1 0805-1003 ●

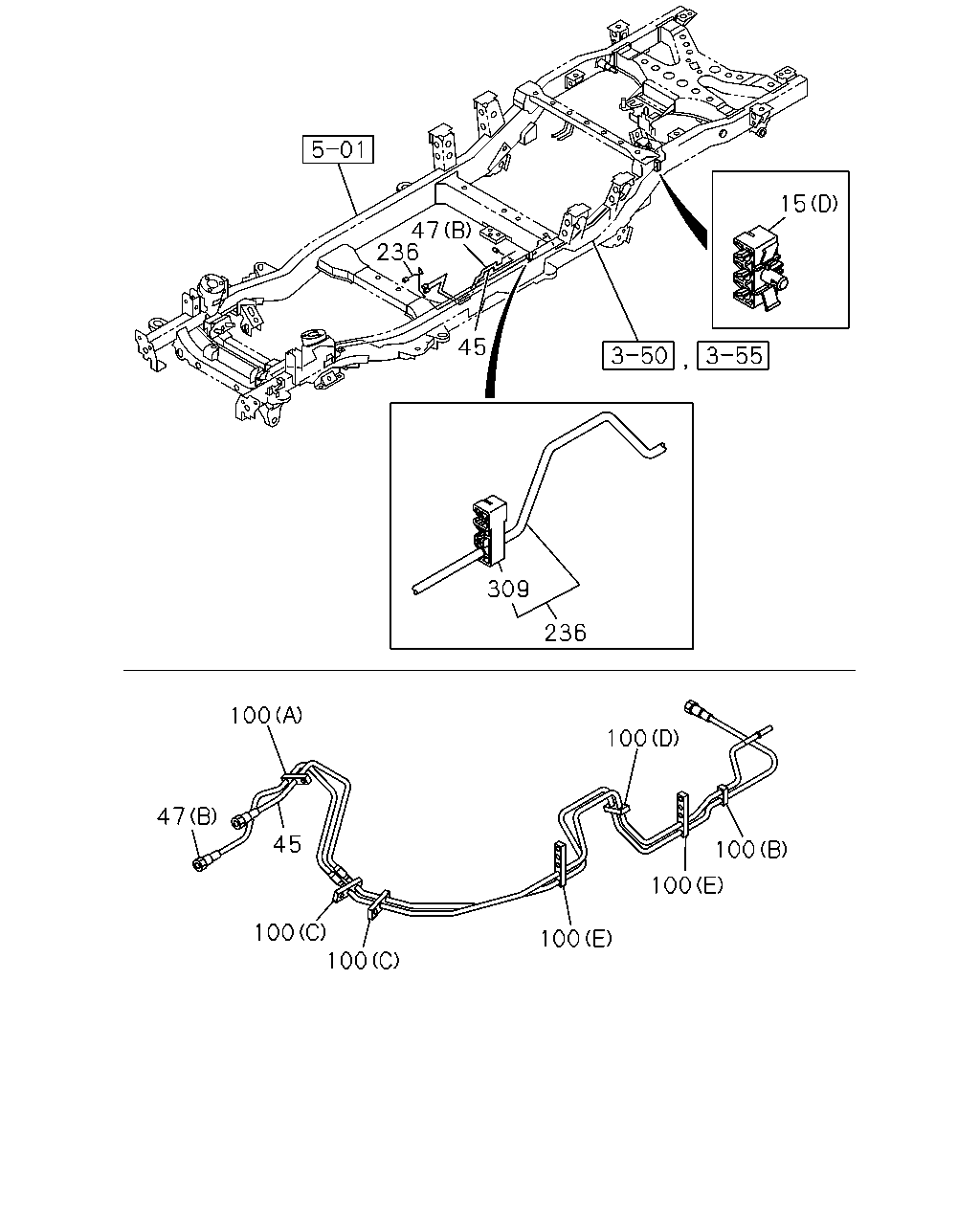

çizim 96250
15 47 236 45 309 236 100 100 47 45 100 100 100 100 100
BalonParca AdiParca NoAdetTipApplied Date A B C
15 03.162 CLIP; FUEL PIPE
(F) 		8-98179-603-0 01 1 1012- ●
15 03.162 CLIP; FUEL PIPE
03.680 (C) ID=7.5 & 7.5 		8-97019-084-0 01 1 0805- ●
15 03.162 CLIP; FUEL PIPE
EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 0805-1003 ● ●
15 03.162 CLIP; FUEL PIPE
EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 1004- ●
15 03.162 CLIP; FUEL PIPE
(B) 		8-97251-125-0 01 1 0805- ●
15 03.162 CLIP; FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (E) 		8-97944-137-0 02 1 0805- ●
15 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) EXC. HIGH RIDE SUSPENSION(7YC) (A) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
LONG(TF***F) 		8-98000-447-0 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
EXTRA LONG(TF***K) 		8-98000-452-0 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 REGULAR CAB EXTRA LONG(TFB*SK) M/T MUA 5 SPEED 5S(RSQ) 		8-97946-984-0 01 1 0805-1003 ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) 		8-97946-991-0 01 1 0805-1003 ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-983-0 01 1 0805-1003 ●
45 03.163 PIPE; FUEL,DELIVERY
LONG(TF***F) 		8-97944-626-1 01 1 0805- ●
45 03.163 PIPE; FUEL,DELIVERY
EXTRA LONG(TF***K) 		8-97944-719-1 01 1 0805- ●
47 03.163 PIPE; FUEL,RETURN
4X2 REGULAR CAB EXTRA LONG(TFB*SK) M/T MUA 5 SPEED 5S(RSQ) (B) 		8-97946-987-0 01 1 0805-1003 ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-994-0 01 1 0805-1003 ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-986-0 01 1 0805-1003 ●
47 03.163 PIPE; FUEL,RETURN
LONG(TF***F) (A) 		8-98051-783-1 01 1 0805- ●
47 03.163 PIPE; FUEL,RETURN
EXTRA LONG(TF***K) (A) 		8-98051-784-1 01 1 0805-0808 ●
47 03.163 PIPE; FUEL,RETURN
EXTRA LONG(TF***K) (A) 		8-98129-683-0 01 1 0809- ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 02 1 1004- ●
100 03.162 CLIP; FUEL PIPE
(E) 		8-97251-128-0 02 1 0805-1003 ● ● ●
100 03.162 CLIP; FUEL PIPE
(E) 		8-97251-128-0 02 1 1004- ● ●
100 03.162 CLIP; FUEL PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (A) 		8-97219-442-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (B) 		8-97251-123-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5S(RSQ) (D) 		8-97251-125-0 01 1 0805-1003 ●
100 03.162 CLIP; FUEL PIPE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
100 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (F) ID=10.3X3 		8-98051-899-0 02 1 0805- ●
236 03.163 PIPE; FUEL,CANISTER
LONG(TF***F) 		8-98000-448-0 01 1 0805- ●
236 03.163 PIPE; FUEL,CANISTER
EXTRA LONG(TF***K) 		8-98000-449-0 01 1 0805- ●
236 03.163 PIPE; FUEL,CANISTER
4X2 REGULAR CAB EXTRA LONG(TFB*SK) 		8-97250-530-2 01 1 0805-1003 ●
236 03.163 PIPE; FUEL,CANISTER
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 		8-97250-531-3 01 1 0805-1003 ●
236 03.163 PIPE; FUEL,CANISTER
4X2 CREW CAB(TFB*W*) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97250-529-2 01 1 0805-1003 ●
309 03.162 CLIP; PIPE
ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0805-1003 ● ●
309 03.162 CLIP; PIPE
ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1004- ●

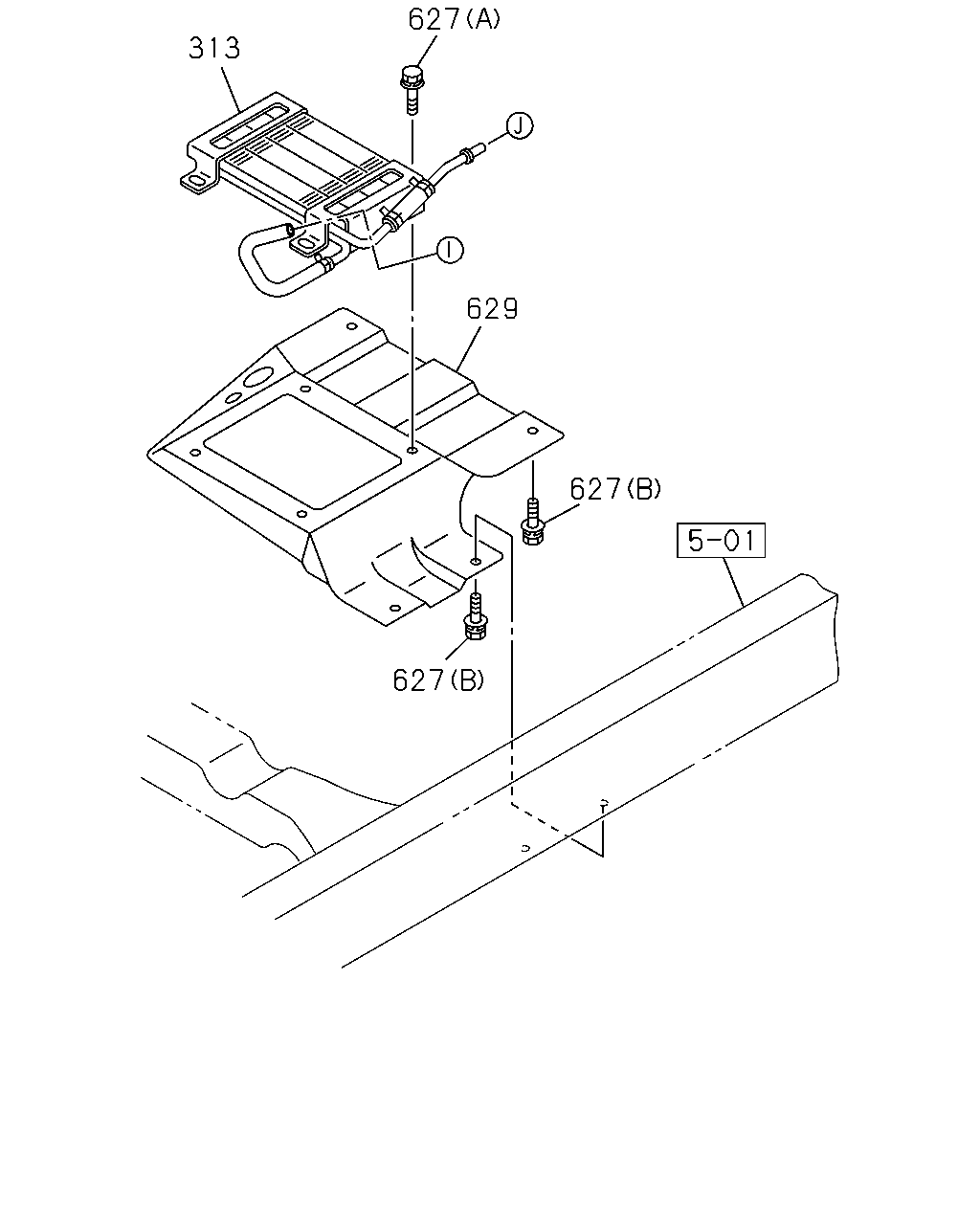

çizim 185840
627 313 629 627 627
BalonParca AdiParca NoAdetTipApplied Date A B C
313 03.163 COOLER ASM; FUEL
LONG(TF***F) 		8-97946-973-0 01 1 0805- ●
313 03.163 COOLER ASM; FUEL
EXTRA LONG(TF***K) 		8-97945-789-0 01 1 0805-0805 ●
313 03.163 COOLER ASM; FUEL
EXTRA LONG(TF***K) 		8-97946-988-0 01 1 0805-0808 ●
313 03.163 COOLER ASM; FUEL
EXTRA LONG(TF***K) 		8-98129-695-0 01 1 0809- ●
627 03.162 BOLT; FUEL CLR
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0805- ●
627 03.162 BOLT; FUEL CLR
01.267 (B) M10X28 W/LK&PL WASHER 		8-97945-706-0 04 1 0805- ●
629 03.162 BRACKET; FUEL CLR
4X2(TFB***) 		8-97945-577-0 01 1 0805- ●
629 03.162 BRACKET; FUEL CLR
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 		8-97945-577-0 01 1 0805- ●
629 03.162 BRACKET; FUEL CLR
4X4(TFS***) A/T AISIN(RMD) 		8-97945-578-0 01 1 0805- ●

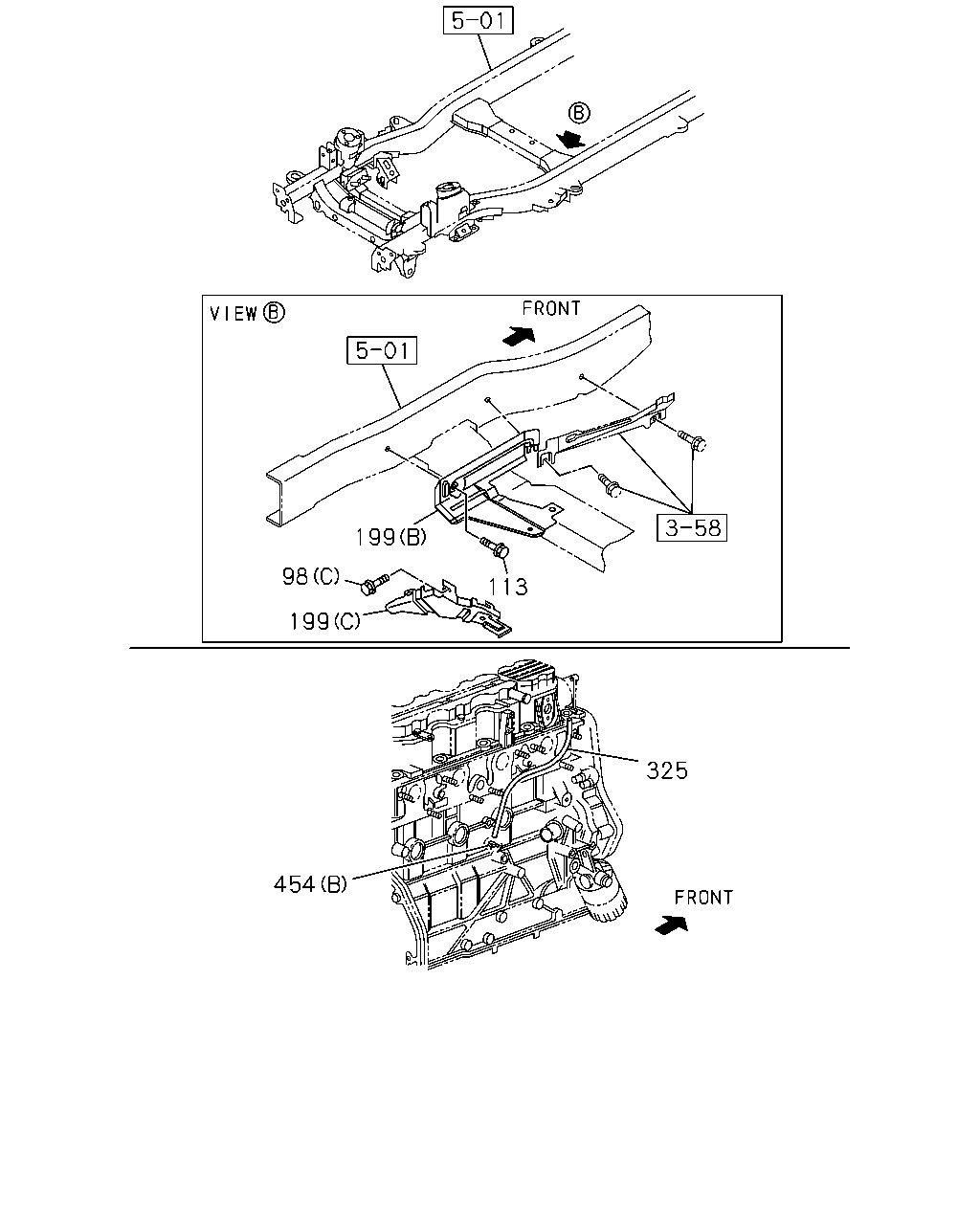

çizim 185842
199 98 113 199 325 454
BalonParca AdiParca NoAdetTipApplied Date A B C
98 03.162 BOLT; BRKT,FUEL PIPE
(D) 		8-92138-771-0 01 1 0805- ●
98 03.162 BOLT; BRKT,FUEL PIPE
EXC. HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE 		0-28650-620-0 03 1 0805-1003 ●
98 03.162 BOLT; BRKT,FUEL PIPE
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE 		0-28650-620-0 03 1 0805-1003 ●
98 03.162 BOLT; BRKT,FUEL PIPE
A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE 		0-28650-620-0 03 1 1004- ●
98 03.162 BOLT; BRKT,FUEL PIPE
A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0805- ●
98 03.162 BOLT; BRKT,FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805- ●
113 03.162 BOLT; PROTECTOR
07.874 M6X22 W/PL WASHER 		8-97012-072-0 02 1 0805-0906 ● ●
113 03.162 BOLT; PROTECTOR
M6X22 W/PL WASHER 		8-98136-167-0 02 1 0907-1003 ● ●
113 03.162 BOLT; PROTECTOR
M6X22 W/PL WASHER 		8-98136-167-0 02 1 1004- ●
199 03.162 PROTECTOR; FUEL PIPE
(B) 		8-97215-320-3 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B) 		8-97215-320-3 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
4X4(TFS***) (B) 		8-97215-320-3 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
(B) 		8-97215-320-3 01 1 1004- ●
199 03.162 PROTECTOR; FUEL PIPE
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97249-758-0 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97250-143-0 01 1 0805-1003 ●
199 03.162 PROTECTOR; FUEL PIPE
A/T AISIN(RMD) HIGH RIDE SUSPENSION(7YC) (A) 		8-97944-851-0 01 1 0805- ●
325 03.163 HOSE; EVAPO 8-97254-309-2 01 1 0805-1003 ●
454 03.890 CLAMP; HOSE,CANISTER
04.930 (A) ID=16 		8-94238-568-0 01 1 0805-1003 ● ●
454 03.890 CLAMP; HOSE,CANISTER
04.930 (A) ID=16 		8-94238-568-0 01 1 1004- ●
454 03.890 CLAMP; HOSE,CANISTER
03.163 (B) ID=11 		8-94238-570-0 01 1 0805-1003 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
