Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#74700) — 313 parça

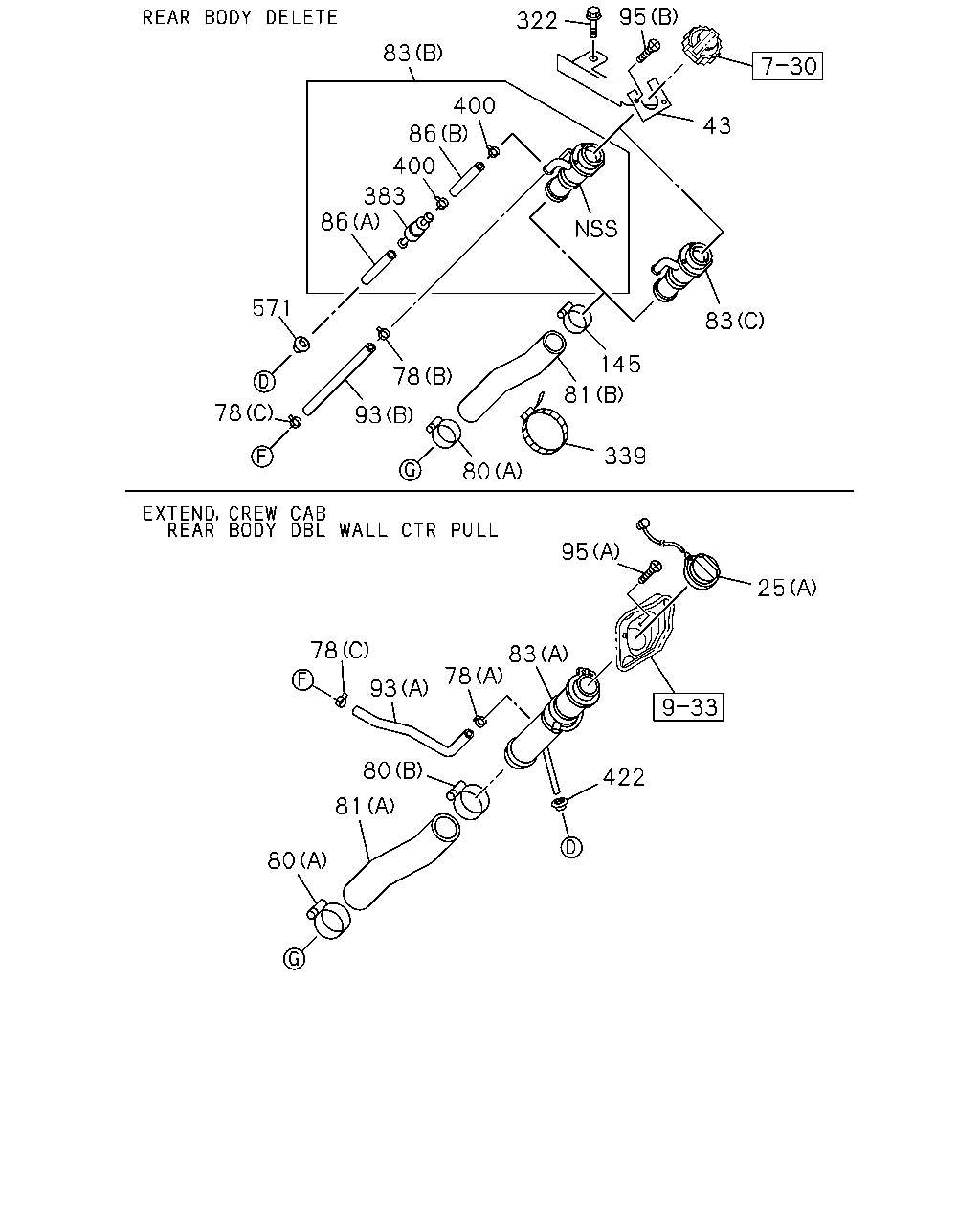

95 322 83 400 86 43 400 383 86 571 83 145 78 81 78 93 339 80 95 25 78 83 78 93 80 422 81 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97369-560-0	01	1	0805-1003	●	●	●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97369-560-0	01	1	1004-	●		●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97308-614-1	01	1	0805-	●		●
43	03.015 BRACKET; FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH)	8-97943-444-0	01	1	0805-	●	●	●
43	03.015 BRACKET; FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) REAR BODY DELETE(8HH)	8-97941-908-1	01	1	0805-	●	●	●
43	03.015 BRACKET; FUEL TANK EXTRA LONG(TF***K)	8-97941-908-1	01	1	0805-	●	●	●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	0805-	●	●	●
78	03.003 CLIP; BREATHER HOSE REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0805-	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	0805-1003	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	1004-	●		●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-945-0	01	1	0805-	●		●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) 08.846 (A) ID=20.8	8-97944-127-0	01	1	0805-	●		●
80	03.008 CLIP; FILLER HOSE (B)	8-98097-947-0	01	1	0805-1003	●	●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	1004-	●		●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0805-1003	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	1004-	●		●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-97944-450-0	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) REAR BODY DELETE(8HH) (B)	8-97944-449-0	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER EXTRA LONG(TF***K) (B)	8-97944-449-0	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0805-	●		●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0805-	●		●
83	03.003 NECK; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DELETE(8HH) (B)	8-98024-000-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-98024-002-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (F)	8-98115-980-0	01	1	0810-0810			●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (F)	8-98122-906-0	01	1	0810-0810	●	●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (F)	8-98115-981-0	01	1	0810-0810			●
83	03.003 NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-320-0	01	1	0805-	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97945-350-0	01	1	0805-	●
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-98023-999-0	01	1	0805-1003	●	●
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-98023-999-0	01	1	1004-	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-203-0	01	1	0805-1003	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-203-0	01	1	1004-	●
83	03.003 NECK; FUEL FILLER EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-403-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (E)	8-97945-349-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	0805-			●
86	03.163 HOSE; EVAP REAR BODY DELETE(8HH) (B) L=80 SERVICED BY L=3000	8-94128-826-0	01	1	0805-			●
86	03.163 HOSE; EVAP CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (A) L=360 SERVICED BY L=3000	8-94128-826-0	01	1	0805-			●
86	03.163 HOSE; EVAP 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) REAR BODY DELETE(8HH) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0805-0910			●
86	03.163 HOSE; EVAP EXTRA LONG(TF***K) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0805-0910			●
86	03.163 HOSE; EVAP 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DELETE(8HH) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0911-			●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0805-1003	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	1004-	●		●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-97943-446-0	01	1	0805-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) REAR BODY DELETE(8HH) (B)	8-97305-696-1	01	1	0805-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTRA LONG(TF***K) (B)	8-97305-696-1	01	1	0805-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0805-	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97943-782-0	01	1	0805-	●		●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	0805-	●	●	●
95	03.028 SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98022-272-0	01	1	0805-	●	●	●
95	03.028 SCREW; FILLER NECK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER	8-98039-091-0	01	1	0805-	●	●	●
145	03.162 CLIP; HOSE,FILLER NECK REAR BODY DELETE(8HH) 03.609 ID=57	9-09915-036-1	01	1	0805-	●	●	●
322	03.895 BOLT; BRKT FIX REAR BODY DELETE(8HH) M12X25 FLANGE	0-28651-225-0	01	1	0805-	●	●	●
339	03.162 CLIP; BAND,FUEL HOSE REAR BODY DELETE(8HH) 03.008 L=330	5-09709-118-0	02	1	0805-	●	●	●
383	03.162 VALVE; 2 WAY REAR BODY DELETE(8HH)	8-97178-373-0	01	1	0805-			●
400	03.162 CLIP; HOSE,EVAP REAR BODY DELETE(8HH) ID=8.5	8-94166-071-0	02	1	0805-			●
422	03.023 PLUG; FUEL TANK REAR BODY DBL WALL CTR PULL(E63) 07.068	8-97313-474-0	01	1	0805-			●
571	03.001 GROMMET REAR BODY DELETE(8HH) 07.068	8-97313-474-0	01	1	0805-			●

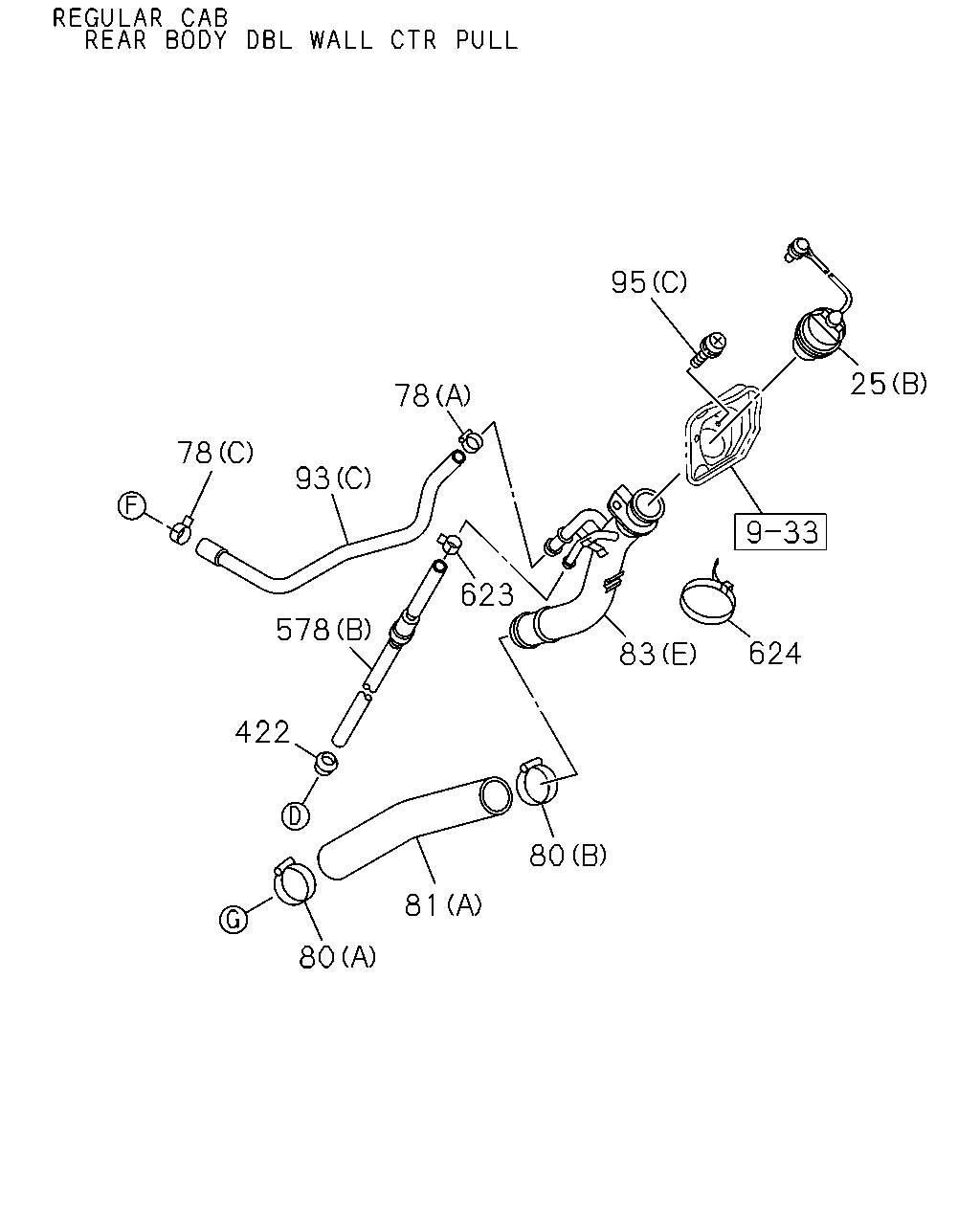

95 25 78 78 93 623 578 624 83 422 80 81 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97369-560-0	01	1	0805-1003	●	●	●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97369-560-0	01	1	1004-	●		●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97308-614-1	01	1	0805-	●		●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	0805-	●	●	●
78	03.003 CLIP; BREATHER HOSE REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0805-	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	0805-1003	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	1004-	●		●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-945-0	01	1	0805-	●		●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) 08.846 (A) ID=20.8	8-97944-127-0	01	1	0805-	●		●
80	03.008 CLIP; FILLER HOSE (B)	8-98097-947-0	01	1	0805-1003	●	●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	1004-	●		●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0805-1003	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	1004-	●		●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-97944-450-0	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) REAR BODY DELETE(8HH) (B)	8-97944-449-0	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER EXTRA LONG(TF***K) (B)	8-97944-449-0	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0805-	●		●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0805-	●		●
83	03.003 NECK; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DELETE(8HH) (B)	8-98024-000-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-98024-002-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (F)	8-98115-980-0	01	1	0810-0810			●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (F)	8-98122-906-0	01	1	0810-0810	●	●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (F)	8-98115-981-0	01	1	0810-0810			●
83	03.003 NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-320-0	01	1	0805-	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97945-350-0	01	1	0805-	●
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-98023-999-0	01	1	0805-1003	●	●
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-98023-999-0	01	1	1004-	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-203-0	01	1	0805-1003	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-203-0	01	1	1004-	●
83	03.003 NECK; FUEL FILLER EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-403-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (E)	8-97945-349-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	0805-			●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0805-1003	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	1004-	●		●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-97943-446-0	01	1	0805-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) REAR BODY DELETE(8HH) (B)	8-97305-696-1	01	1	0805-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTRA LONG(TF***K) (B)	8-97305-696-1	01	1	0805-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0805-	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97943-782-0	01	1	0805-	●		●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	0805-	●	●	●
95	03.028 SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98022-272-0	01	1	0805-	●	●	●
95	03.028 SCREW; FILLER NECK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER	8-98039-091-0	01	1	0805-	●	●	●
422	03.023 PLUG; FUEL TANK REAR BODY DBL WALL CTR PULL(E63) 07.068	8-97313-474-0	01	1	0805-			●
578	03.001 TUBE; FUEL,EVAPO (A)	8-97943-142-0	01	1	0805-1003	●	●
578	03.001 TUBE; FUEL,EVAPO (A)	8-97943-142-0	01	1	1004-	●
578	03.001 TUBE; FUEL,EVAPO REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97946-642-0	01	1	0805-			●
623	03.003 CLAMP; EVAPO TUBE REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63)	8-97945-723-0	01	1	0805-			●
624	03.162 CLIP; BAND REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97942-789-0	01	1	0805-	●		●

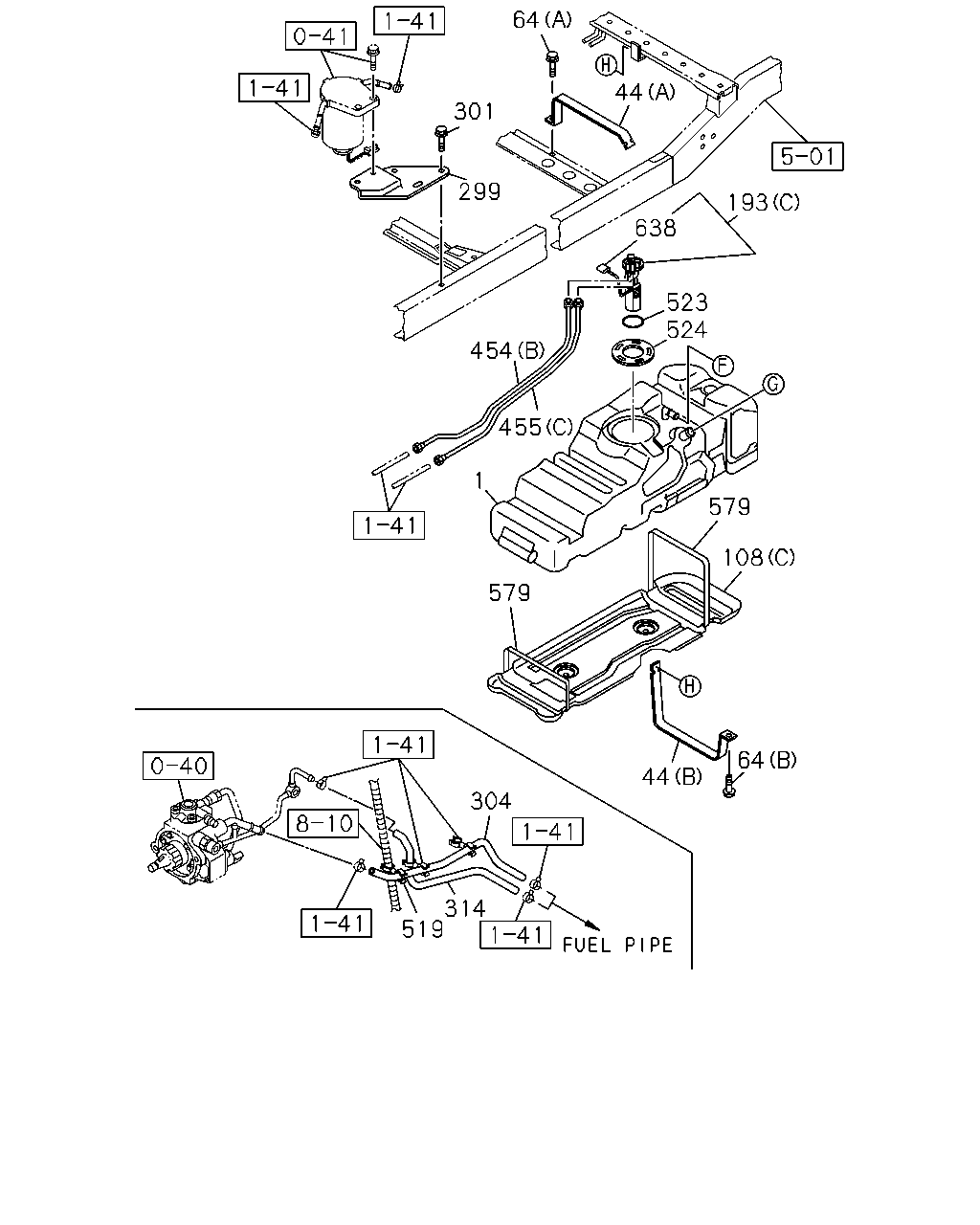

64 44 301 299 193 638 523 524 454 455 1 579 108 579 64 44 304 314 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL	8-97943-900-0	01	1	0805-1003	●	●
1	03.001 TANK; FUEL	8-97943-900-0	01	1	1004-	●
1	03.001 TANK; FUEL	8-97945-481-0	01	1	0805-			●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0805-	●	●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	0805-			●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (B)	8-97944-282-0	01	1	0805-			●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	0805-	●	●	●
44	03.023 BAND; FUEL TANK 4X4(TFS***) A/T AISIN(RMD) (B)	8-97944-283-0	01	1	0805-			●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0805-	●	●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0805-	●	●	●
108	03.015 PROTECTOR; FUEL TANK (B)	8-97329-243-2	01	1	0805-1003	●	●
108	03.015 PROTECTOR; FUEL TANK (B)	8-97329-243-2	01	1	1004-	●
108	03.015 PROTECTOR; FUEL TANK (A)	8-97943-299-0	01	1	0805-1003	●	●
108	03.015 PROTECTOR; FUEL TANK (A)	8-97943-299-0	01	1	1004-	●
108	03.015 PROTECTOR; FUEL TANK 4X4(TFS***) (C)	8-97943-300-0	01	1	0805-	●		●
193	03.107 PUMP; FUEL (A)	8-97946-004-0	01	1	0805-	●
193	03.107 PUMP; FUEL (B)	8-97945-604-0	01	1	0805-1003		●
193	03.107 PUMP; FUEL (C)	8-97945-713-0	01	1	0805-			●
299	03.162 BRACKET; FUEL FILTER	8-97945-336-0	01	1	0805-			●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0805-			●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97944-783-0	01	1	0805-			●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97944-784-2	01	1	0805-			●
454	03.163 PIPE; FUEL,DELIVERY (A)	8-97329-239-0	01	1	0805-1003	●	●
454	03.163 PIPE; FUEL,DELIVERY (A)	8-97329-239-0	01	1	1004-	●
454	03.163 PIPE; FUEL,DELIVERY (B)	8-97943-511-0	01	1	0805-			●
455	03.163 PIPE; FUEL,RETURN (A)	8-98004-785-0	01	1	0805-0905	●
455	03.163 PIPE; FUEL,RETURN (B)	8-97943-512-0	01	1	0805-1003		●
455	03.163 PIPE; FUEL,RETURN (C)	8-97945-528-0	01	1	0805-			●
519	03.107 RETAINER; FUEL PUMP 03.890 ID=20 & 16.5	8-94486-835-0	01	1	0805-			●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	0805-1003	●	●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	1004-	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0805-			●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0805-1003	●	●	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	1004-	●		●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4(TFS***)	8-97329-245-0	02	1	0805-	●		●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	0805-1003	●	●	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1004-	●		●

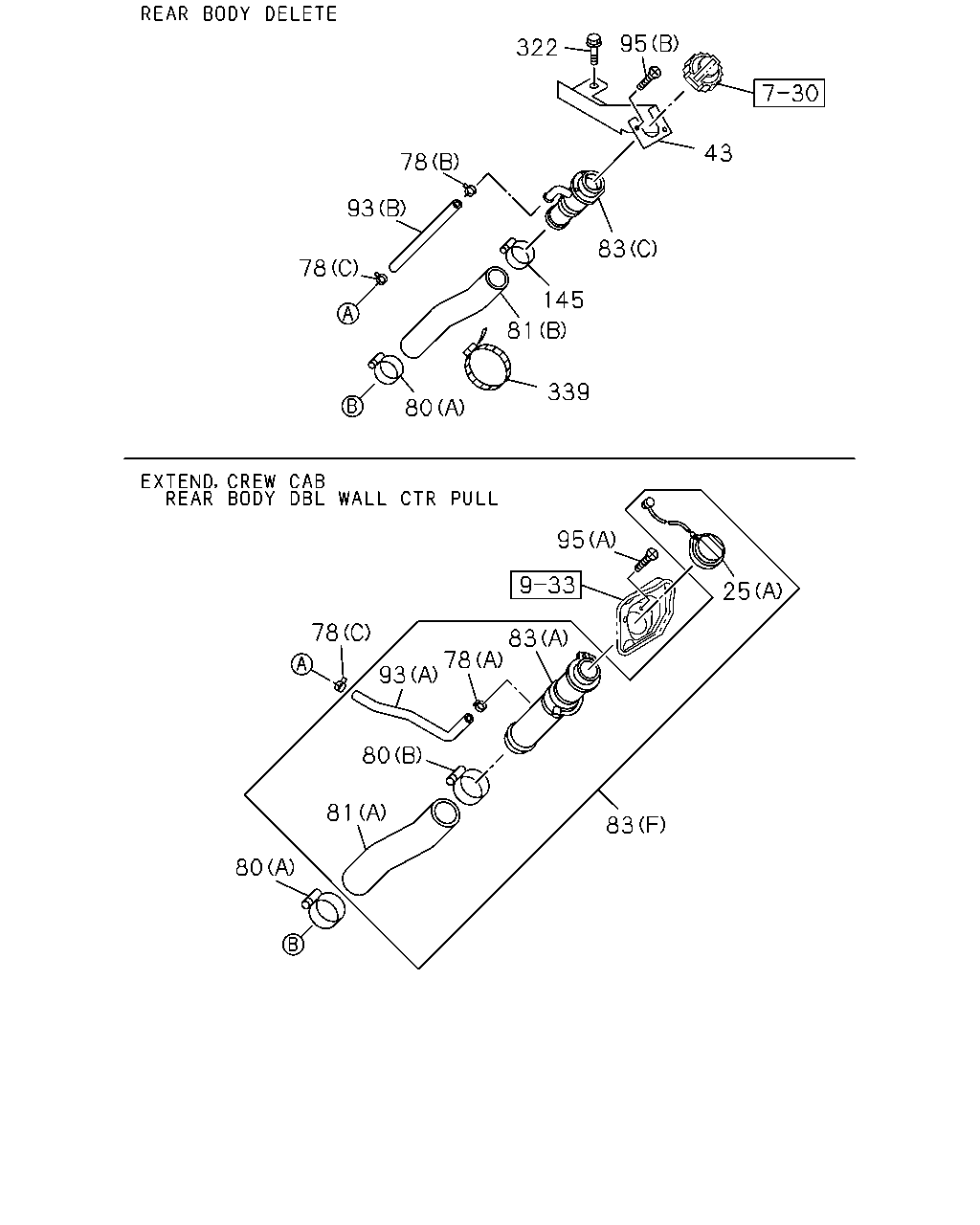

95 322 43 78 93 83 78 145 81 339 80 95 25 78 83 78 93 80 81 83 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97369-560-0	01	1	0805-1003	●	●	●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97369-560-0	01	1	1004-	●		●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97308-614-1	01	1	0805-	●		●
43	03.015 BRACKET; FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH)	8-97943-444-0	01	1	0805-	●	●	●
43	03.015 BRACKET; FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) REAR BODY DELETE(8HH)	8-97941-908-1	01	1	0805-	●	●	●
43	03.015 BRACKET; FUEL TANK EXTRA LONG(TF***K)	8-97941-908-1	01	1	0805-	●	●	●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	0805-	●	●	●
78	03.003 CLIP; BREATHER HOSE REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0805-	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	0805-1003	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	1004-	●		●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-945-0	01	1	0805-	●		●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) 08.846 (A) ID=20.8	8-97944-127-0	01	1	0805-	●		●
80	03.008 CLIP; FILLER HOSE (B)	8-98097-947-0	01	1	0805-1003	●	●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	1004-	●		●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0805-1003	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	1004-	●		●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-97944-450-0	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) REAR BODY DELETE(8HH) (B)	8-97944-449-0	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER EXTRA LONG(TF***K) (B)	8-97944-449-0	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0805-	●		●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0805-	●		●
83	03.003 NECK; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DELETE(8HH) (B)	8-98024-000-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-98024-002-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (F)	8-98115-980-0	01	1	0810-0810			●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (F)	8-98122-906-0	01	1	0810-0810	●	●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (F)	8-98115-981-0	01	1	0810-0810			●
83	03.003 NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-320-0	01	1	0805-	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97945-350-0	01	1	0805-	●
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-98023-999-0	01	1	0805-1003	●	●
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-98023-999-0	01	1	1004-	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-203-0	01	1	0805-1003	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-203-0	01	1	1004-	●
83	03.003 NECK; FUEL FILLER EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-403-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (E)	8-97945-349-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	0805-			●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0805-1003	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	1004-	●		●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-97943-446-0	01	1	0805-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) REAR BODY DELETE(8HH) (B)	8-97305-696-1	01	1	0805-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTRA LONG(TF***K) (B)	8-97305-696-1	01	1	0805-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0805-	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97943-782-0	01	1	0805-	●		●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	0805-	●	●	●
95	03.028 SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98022-272-0	01	1	0805-	●	●	●
95	03.028 SCREW; FILLER NECK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER	8-98039-091-0	01	1	0805-	●	●	●
145	03.162 CLIP; HOSE,FILLER NECK REAR BODY DELETE(8HH) 03.609 ID=57	9-09915-036-1	01	1	0805-	●	●	●
322	03.895 BOLT; BRKT FIX REAR BODY DELETE(8HH) M12X25 FLANGE	0-28651-225-0	01	1	0805-	●	●	●
339	03.162 CLIP; BAND,FUEL HOSE REAR BODY DELETE(8HH) 03.008 L=330	5-09709-118-0	02	1	0805-	●	●	●

95 25 78 78 93 624 83 80 81 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97369-560-0	01	1	0805-1003	●	●	●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97369-560-0	01	1	1004-	●		●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97308-614-1	01	1	0805-	●		●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	0805-	●	●	●
78	03.003 CLIP; BREATHER HOSE REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0805-	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	0805-1003	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	1004-	●		●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-945-0	01	1	0805-	●		●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) 08.846 (A) ID=20.8	8-97944-127-0	01	1	0805-	●		●
80	03.008 CLIP; FILLER HOSE (B)	8-98097-947-0	01	1	0805-1003	●	●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	1004-	●		●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0805-1003	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	1004-	●		●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-97944-450-0	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) REAR BODY DELETE(8HH) (B)	8-97944-449-0	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER EXTRA LONG(TF***K) (B)	8-97944-449-0	01	1	0805-	●	●	●
81	03.003 HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0805-	●		●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0805-	●		●
83	03.003 NECK; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DELETE(8HH) (B)	8-98024-000-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-98024-002-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (F)	8-98115-980-0	01	1	0810-0810			●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (F)	8-98122-906-0	01	1	0810-0810	●	●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (F)	8-98115-981-0	01	1	0810-0810			●
83	03.003 NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-320-0	01	1	0805-	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97945-350-0	01	1	0805-	●
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-98023-999-0	01	1	0805-1003	●	●
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-98023-999-0	01	1	1004-	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-203-0	01	1	0805-1003	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-203-0	01	1	1004-	●
83	03.003 NECK; FUEL FILLER EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-403-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (E)	8-97945-349-0	01	1	0805-			●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	0805-			●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0805-1003	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	1004-	●		●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-97943-446-0	01	1	0805-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) REAR BODY DELETE(8HH) (B)	8-97305-696-1	01	1	0805-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTRA LONG(TF***K) (B)	8-97305-696-1	01	1	0805-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0805-	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97943-782-0	01	1	0805-	●		●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	0805-	●	●	●
95	03.028 SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98022-272-0	01	1	0805-	●	●	●
95	03.028 SCREW; FILLER NECK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER	8-98039-091-0	01	1	0805-	●	●	●
624	03.162 CLIP; BAND REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97942-789-0	01	1	0805-	●		●

64 44 578 193 523 524 454 455 108 618 108 579 1 579 108 64 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL	8-97943-900-0	01	1	0805-1003	●	●
1	03.001 TANK; FUEL	8-97943-900-0	01	1	1004-	●
1	03.001 TANK; FUEL	8-97945-481-0	01	1	0805-			●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0805-	●	●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	0805-			●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (B)	8-97944-282-0	01	1	0805-			●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	0805-	●	●	●
44	03.023 BAND; FUEL TANK 4X4(TFS***) A/T AISIN(RMD) (B)	8-97944-283-0	01	1	0805-			●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0805-	●	●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0805-	●	●	●
108	03.015 PROTECTOR; FUEL TANK (B)	8-97329-243-2	01	1	0805-1003	●	●
108	03.015 PROTECTOR; FUEL TANK (B)	8-97329-243-2	01	1	1004-	●
108	03.015 PROTECTOR; FUEL TANK (A)	8-97943-299-0	01	1	0805-1003	●	●
108	03.015 PROTECTOR; FUEL TANK (A)	8-97943-299-0	01	1	1004-	●
108	03.015 PROTECTOR; FUEL TANK 4X4(TFS***) (C)	8-97943-300-0	01	1	0805-	●		●
193	03.107 PUMP; FUEL (A)	8-97946-004-0	01	1	0805-	●
193	03.107 PUMP; FUEL (B)	8-97945-604-0	01	1	0805-1003		●
193	03.107 PUMP; FUEL (C)	8-97945-713-0	01	1	0805-			●
454	03.163 PIPE; FUEL,DELIVERY (A)	8-97329-239-0	01	1	0805-1003	●	●
454	03.163 PIPE; FUEL,DELIVERY (A)	8-97329-239-0	01	1	1004-	●
454	03.163 PIPE; FUEL,DELIVERY (B)	8-97943-511-0	01	1	0805-			●
455	03.163 PIPE; FUEL,RETURN (A)	8-98004-785-0	01	1	0805-0905	●
455	03.163 PIPE; FUEL,RETURN (B)	8-97943-512-0	01	1	0805-1003		●
455	03.163 PIPE; FUEL,RETURN (C)	8-97945-528-0	01	1	0805-			●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	0805-1003	●	●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	1004-	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0805-			●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0805-1003	●	●	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	1004-	●		●
578	03.001 TUBE; FUEL,EVAPO (A)	8-97943-142-0	01	1	0805-1003	●	●
578	03.001 TUBE; FUEL,EVAPO (A)	8-97943-142-0	01	1	1004-	●
578	03.001 TUBE; FUEL,EVAPO REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97946-642-0	01	1	0805-			●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4(TFS***)	8-97329-245-0	02	1	0805-	●		●
618	03.107 RETAINER; FUEL TANK	8-97329-244-1	04	1	0805-1003	●	●
618	03.107 RETAINER; FUEL TANK	8-97329-244-1	04	1	1004-	●

64 44 578 193 638 523 524 455 454 618 108 1 64 44 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL	8-97943-900-0	01	1	0805-1003	●	●
1	03.001 TANK; FUEL	8-97943-900-0	01	1	1004-	●
1	03.001 TANK; FUEL	8-97945-481-0	01	1	0805-			●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0805-	●	●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	0805-			●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (B)	8-97944-282-0	01	1	0805-			●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	0805-	●	●	●
44	03.023 BAND; FUEL TANK 4X4(TFS***) A/T AISIN(RMD) (B)	8-97944-283-0	01	1	0805-			●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0805-	●	●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0805-	●	●	●
108	03.015 PROTECTOR; FUEL TANK (B)	8-97329-243-2	01	1	0805-1003	●	●
108	03.015 PROTECTOR; FUEL TANK (B)	8-97329-243-2	01	1	1004-	●
108	03.015 PROTECTOR; FUEL TANK (A)	8-97943-299-0	01	1	0805-1003	●	●
108	03.015 PROTECTOR; FUEL TANK (A)	8-97943-299-0	01	1	1004-	●
108	03.015 PROTECTOR; FUEL TANK 4X4(TFS***) (C)	8-97943-300-0	01	1	0805-	●		●
193	03.107 PUMP; FUEL (A)	8-97946-004-0	01	1	0805-	●
193	03.107 PUMP; FUEL (B)	8-97945-604-0	01	1	0805-1003		●
193	03.107 PUMP; FUEL (C)	8-97945-713-0	01	1	0805-			●
454	03.163 PIPE; FUEL,DELIVERY (A)	8-97329-239-0	01	1	0805-1003	●	●
454	03.163 PIPE; FUEL,DELIVERY (A)	8-97329-239-0	01	1	1004-	●
454	03.163 PIPE; FUEL,DELIVERY (B)	8-97943-511-0	01	1	0805-			●
455	03.163 PIPE; FUEL,RETURN (A)	8-98004-785-0	01	1	0805-0905	●
455	03.163 PIPE; FUEL,RETURN (B)	8-97943-512-0	01	1	0805-1003		●
455	03.163 PIPE; FUEL,RETURN (C)	8-97945-528-0	01	1	0805-			●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	0805-1003	●	●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	1004-	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0805-			●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0805-1003	●	●	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	1004-	●		●
578	03.001 TUBE; FUEL,EVAPO (A)	8-97943-142-0	01	1	0805-1003	●	●
578	03.001 TUBE; FUEL,EVAPO (A)	8-97943-142-0	01	1	1004-	●
578	03.001 TUBE; FUEL,EVAPO REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97946-642-0	01	1	0805-			●
618	03.107 RETAINER; FUEL TANK	8-97329-244-1	04	1	0805-1003	●	●
618	03.107 RETAINER; FUEL TANK	8-97329-244-1	04	1	1004-	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	0805-1003	●	●	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1004-	●		●

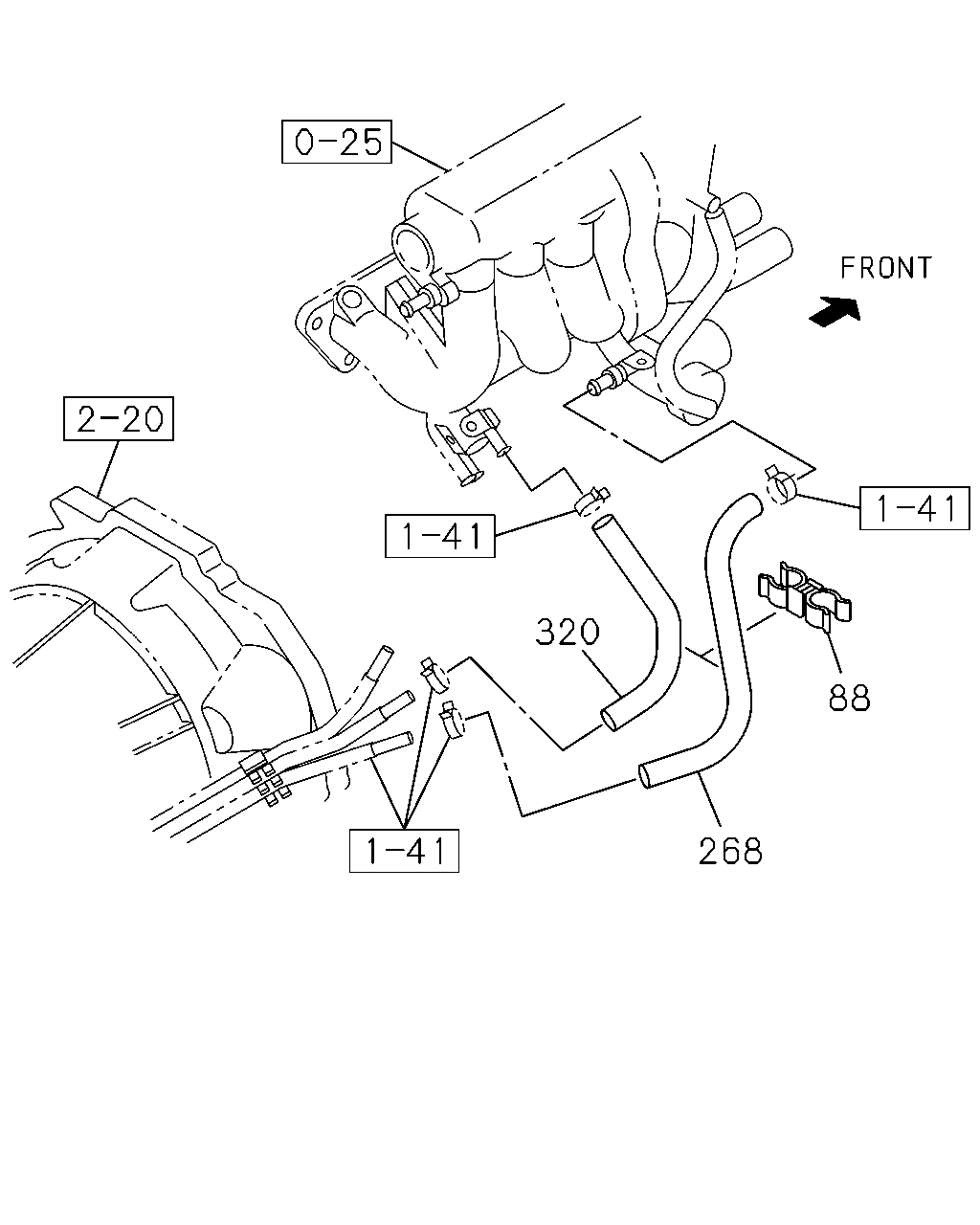

320 88 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
88	03.162 CLIP; FUEL HOSE ID=13.2 & 11.5	8-97230-081-0	01	1	0805-1003	●
268	03.163 HOSE; FUEL,DELIVERY	8-97351-788-0	01	1	0805-1003	●
320	03.163 HOSE ASM; FUEL,RETURN	8-97351-789-0	01	1	0805-1003	●

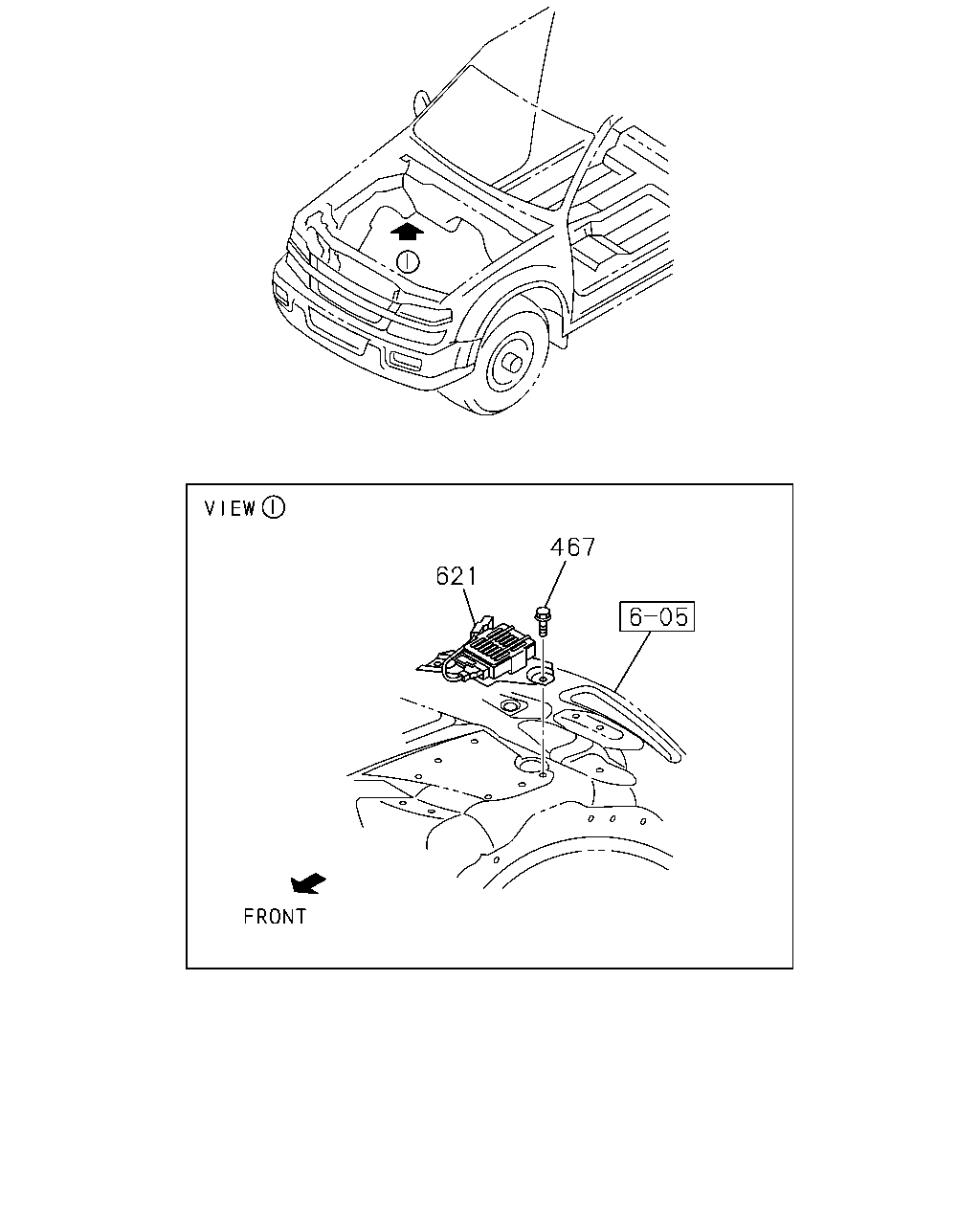

467 621

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	467	03.163 BOLT 09.171 M6X16 FLANGE	0-28450-616-0	02	1	0805-			●
	621	03.118 RESISTOR ASM; FUEL PUMP	8-98043-626-0	01	1	0805-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
