◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-87 - TRUNK ROOM PACKAGE AND REAR PARCEL ▶
6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#7470) — 22 parça
çizim 44673
8 8
BalonParca AdiParca NoAdetTipApplied Date
8 GROMMET; BOARD FIX
OD=28 		8-94279-720-0 02 1 9812-9903
8 GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=28 		8-94279-720-0 02 1 9904-
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> OD=28 		8-94279-720-0 01 1 9812-

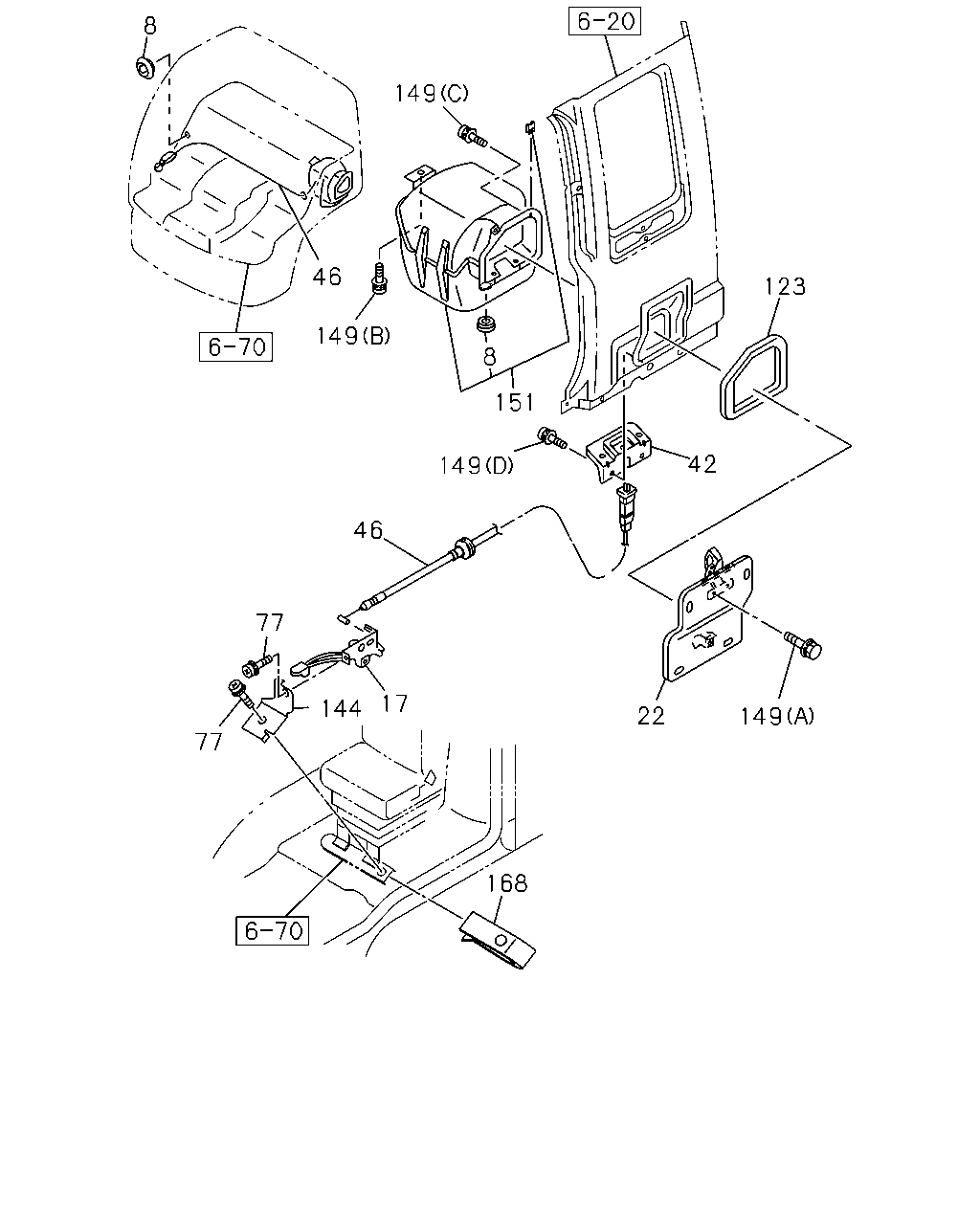

çizim 44679
8 149 46 123 149 8 151 42 149 46 77 17 144 22 149 77 168
BalonParca AdiParca NoAdetTipApplied Date
8 GROMMET; BOARD FIX
OD=28 		8-94279-720-0 02 1 9812-9903
8 GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=28 		8-94279-720-0 02 1 9904-
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> OD=28 		8-94279-720-0 01 1 9812-
17 KNOB; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73328-012-0 01 1 9812-9812
17 KNOB; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73328-018-0 01 1 9901-
22 LID; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71707-063-0 01 1 9812-
42 BRACKET ASM; HOOK
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-068-1 01 1 9812-
46 LOCK; RR COMPT LID
BAGGAGE BOX CAB RR SIDE<TBM> L=883.5 		1-79517-003-0 01 1 9812-9906
46 LOCK; RR COMPT LID
BAGGAGE BOX CAB RR SIDE<TBM> L=886.5 		1-79517-007-0 01 1 9907-
77 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9812-9908
77 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER 		8-94279-403-0 02 1 9909-
123 SEAL; REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-061-0 01 1 9812-
144 BRACKET
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73907-583-3 01 1 9812-
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9812-
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9812-
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9812-
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9812-
151 BOX ASM
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-951-2 01 1 9812-
168 NUT; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> 		1-09984-156-0 01 1 9812-
