Isuzu WW
▶
PICKUP
▶
TFR
▶
51171 - TFR/TFS CHEV HOLDEN
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

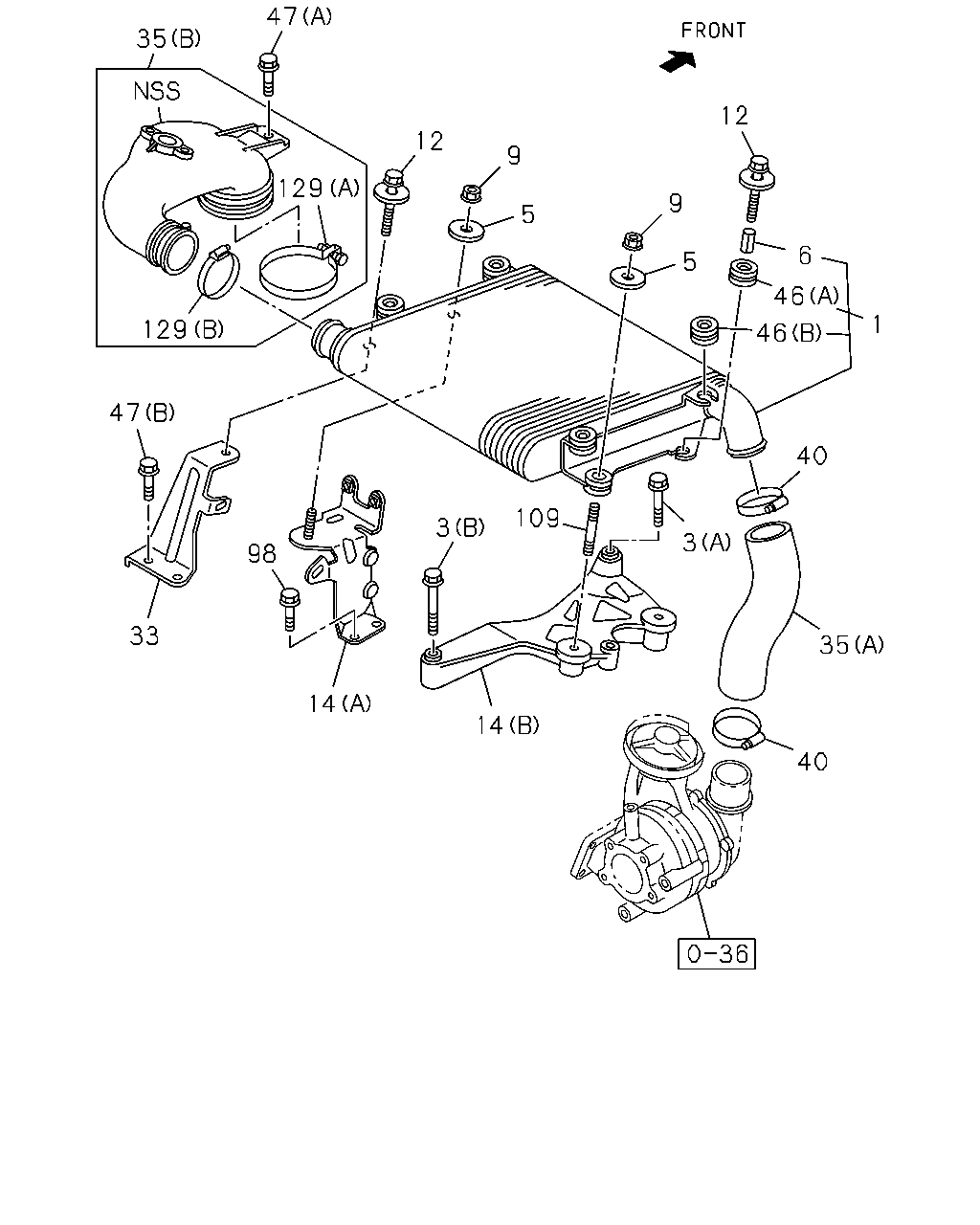

1-35 — CHARGE AIR COOLER
(#74699) — 23 parça
47
35
12
12
9
129
9
5
6
5
46
1
129
46
47
40
109
3
3
98
33
35
14
14
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.374 COOLER; CHARGE AIR
8-98114-815-0
01
1
0805-
3
01.540 BOLT; CHARGE AIR COOLER
00.386 (A) M8X50 FLANGE
0-28050-850-0
01
1
0805-
3
01.540 BOLT; CHARGE AIR COOLER
04.686 (B) M8X60 FLANGE
0-28050-860-0
01
1
0805-
5
01.540 WASHER; PL,CHARGE AIR COOLER
03.405 ID=8.5 OD=36
8-94221-082-0
02
1
0805-
6
01.540 COLLAR; MTG,CHARGE AIR COOLER
8-97107-898-0
04
1
0805-
9
01.540 NUT; CHARGE AIR COOLER
01.062 M8 FLANGE
0-91180-108-0
02
1
0805-
12
01.540 BOLT; CHARGE AIR COOLER
8-98044-006-0
02
1
0805-
14
01.540 BRACKET; CHARGE AIR COOLER
(A)
8-98012-016-3
01
1
0805-
14
01.540 BRACKET; CHARGE AIR COOLER
(B)
8-98039-405-0
01
1
0805-
33
01.540 BRACKET; CHARGE AIR COOLER,FRT
8-97389-214-2
01
1
0805-
35
01.540 HOSE; CONNECTING
(A)
8-98003-588-2
01
1
0805-0807
35
01.540 HOSE; CONNECTING
(A)
8-98099-947-0
01
1
0808-1007
35
01.540 HOSE; CONNECTING
(A)
8-98160-197-0
01
1
1008-
35
01.540 HOSE; CONNECTING
(B)
8-98076-084-0
01
1
0805-
40
03.162 CLIP; RUBBER HOSE
03.407 ID=60-65
8-98096-418-0
02
1
0805-
46
01.540 RUBBER; MTG,CHARGE AIR COOLER
(B)
8-97181-886-0
04
1
0805-
46
01.540 RUBBER; MTG,CHARGE AIR COOLER
(A)
8-97232-774-0
04
1
0805-
47
01.540 BOLT; CHARGE AIR COOLER BRKT
02.343 (B) M8X16 FLANGE
0-28050-816-0
02
1
0805-
47
01.540 BOLT; CHARGE AIR COOLER BRKT
02.343 (A) M6X16 FLANGE
0-28650-616-0
01
1
0805-
98
01.540 BOLT; BRKT TO CHARGE AIR COOLER
02.343 M8X16 FLANGE
0-28050-816-0
02
1
0805-
109
01.540 STUD; BRKT
M8X40 L=52
0-41010-840-0
01
1
0805-
129
01.159 CLAMP; HOSE
(A)
8-98080-783-0
01
1
0805-
129
01.159 CLAMP; HOSE
(B)
8-98080-785-0
01
1
0805-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
