1-11 — RADIATOR HOSE AND SUB TANK (#74696) — 54 parça

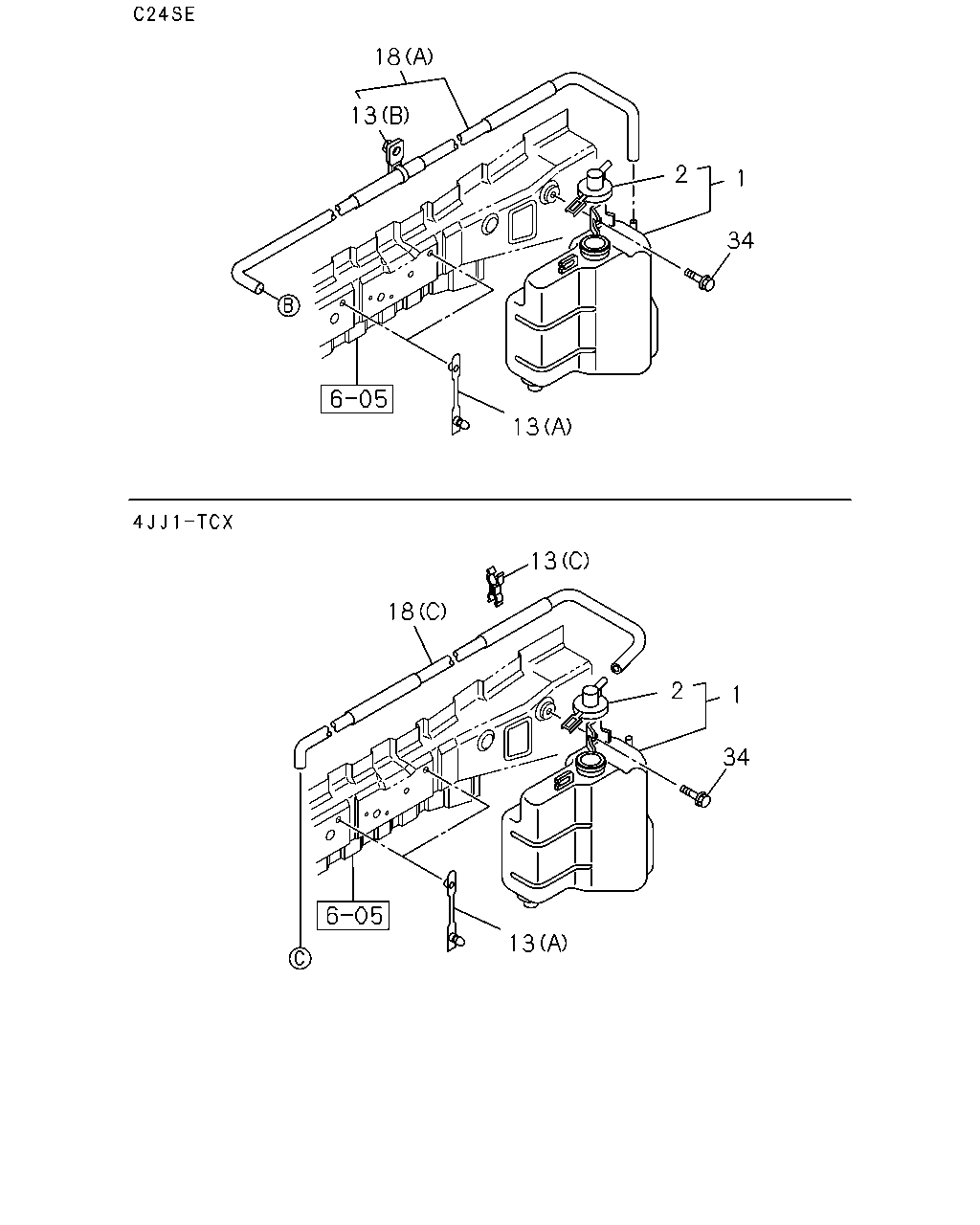

18 2 1 34 13 56 55 56 56 128 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 TANK; SURGE,RAD	8-97941-501-3	01	1	0805-	●	●	●
2	01.203 CAP; SURGE TANK	8-97333-354-0	01	1	0805-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=88	8-94239-338-0	02	1	0805-1003	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=88	8-94239-338-0	02	1	1004-	●		●
13	01.240 CLIP; HOSE,SURGE TANK (B)	8-94373-241-0	01	1	0805-1003		●
13	01.240 CLIP; HOSE,SURGE TANK 03.145 (C) ID=25 & 11	8-97068-799-0	01	1	0805-			●
18	01.240 HOSE; RAD TO SURGE TANK (B)	8-98001-222-0	01	1	0805-	●
18	01.240 HOSE; RAD TO SURGE TANK (A)	8-97362-955-0	01	1	0805-1003		●
18	01.240 HOSE; RAD TO SURGE TANK (C)	8-97373-405-0	01	1	0805-			●
34	01.203 BOLT; RESERVE TANK 09.744 M6X20 W/WASHER	8-98056-282-0	01	1	0805-	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET (A)	8-98019-864-0	01	1	0805-	●
55	01.173 HOSE; WATER,RAD OUTLET (B)	8-97248-431-3	01	1	0805-1003		●
55	01.173 HOSE; WATER,RAD OUTLET (C)	8-97363-605-1	01	1	0805-			●
56	01.166 CLIP; WATER HOSE,RAD 01.745 (D) ID=32-48	1-09707-133-0	01	1	0805-	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=36.5	8-97135-907-1	02	1	0805-1007	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=36.5	8-97135-907-1	01	1	1008-	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=36.5	8-97135-907-1	01	1	0805-1003	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=36.5	8-97135-907-1	01	1	1004-1007	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=36.5	8-97135-907-1	02	1	1008-	●
56	01.166 CLIP; WATER HOSE,RAD (C) ID=36	8-97262-976-0	01	1	0805-1003		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=40.5	8-97313-472-0	02	1	0805-1003		●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=40.5	8-97313-472-0	02	1	0805-1003			●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=40.5	8-97313-472-0	02	1	1004-			●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=40.5	8-97313-472-0	02	1	1004-			●
128	01.159 HOSE; WATER,RAD INL (A)	8-98019-863-0	01	1	0805-	●
128	01.159 HOSE; WATER,RAD INL (B)	8-97248-428-2	01	1	0805-1003		●
128	01.159 HOSE; WATER,RAD INL (C)	8-97363-604-1	01	1	0805-			●

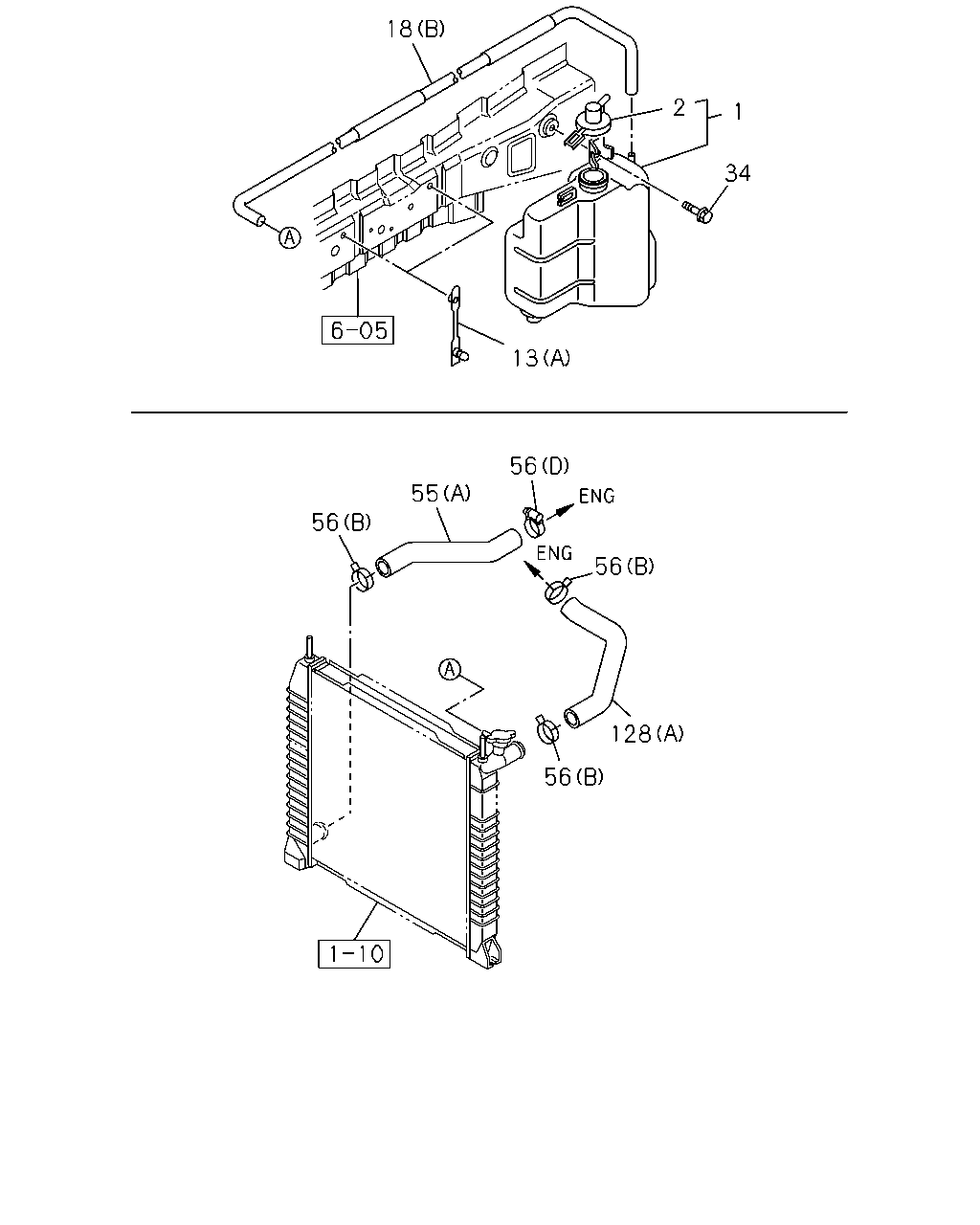

56 128 56 56 55 56 56 56 128 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
55	01.173 HOSE; WATER,RAD OUTLET (A)	8-98019-864-0	01	1	0805-	●
55	01.173 HOSE; WATER,RAD OUTLET (B)	8-97248-431-3	01	1	0805-1003		●
55	01.173 HOSE; WATER,RAD OUTLET (C)	8-97363-605-1	01	1	0805-			●
56	01.166 CLIP; WATER HOSE,RAD 01.745 (D) ID=32-48	1-09707-133-0	01	1	0805-	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=36.5	8-97135-907-1	02	1	0805-1007	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=36.5	8-97135-907-1	01	1	1008-	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=36.5	8-97135-907-1	01	1	0805-1003	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=36.5	8-97135-907-1	01	1	1004-1007	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=36.5	8-97135-907-1	02	1	1008-	●
56	01.166 CLIP; WATER HOSE,RAD (C) ID=36	8-97262-976-0	01	1	0805-1003		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=40.5	8-97313-472-0	02	1	0805-1003		●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=40.5	8-97313-472-0	02	1	0805-1003			●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=40.5	8-97313-472-0	02	1	1004-			●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=40.5	8-97313-472-0	02	1	1004-			●
128	01.159 HOSE; WATER,RAD INL (A)	8-98019-863-0	01	1	0805-	●
128	01.159 HOSE; WATER,RAD INL (B)	8-97248-428-2	01	1	0805-1003		●
128	01.159 HOSE; WATER,RAD INL (C)	8-97363-604-1	01	1	0805-			●

18 13 2 1 34 13 13 18 2 1 34 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 TANK; SURGE,RAD	8-97941-501-3	01	1	0805-	●	●	●
2	01.203 CAP; SURGE TANK	8-97333-354-0	01	1	0805-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=88	8-94239-338-0	02	1	0805-1003	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=88	8-94239-338-0	02	1	1004-	●		●
13	01.240 CLIP; HOSE,SURGE TANK (B)	8-94373-241-0	01	1	0805-1003		●
13	01.240 CLIP; HOSE,SURGE TANK 03.145 (C) ID=25 & 11	8-97068-799-0	01	1	0805-			●
18	01.240 HOSE; RAD TO SURGE TANK (B)	8-98001-222-0	01	1	0805-	●
18	01.240 HOSE; RAD TO SURGE TANK (A)	8-97362-955-0	01	1	0805-1003		●
18	01.240 HOSE; RAD TO SURGE TANK (C)	8-97373-405-0	01	1	0805-			●
34	01.203 BOLT; RESERVE TANK 09.744 M6X20 W/WASHER	8-98056-282-0	01	1	0805-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
