1-10 — RADIATOR (#74695) — 56 parça

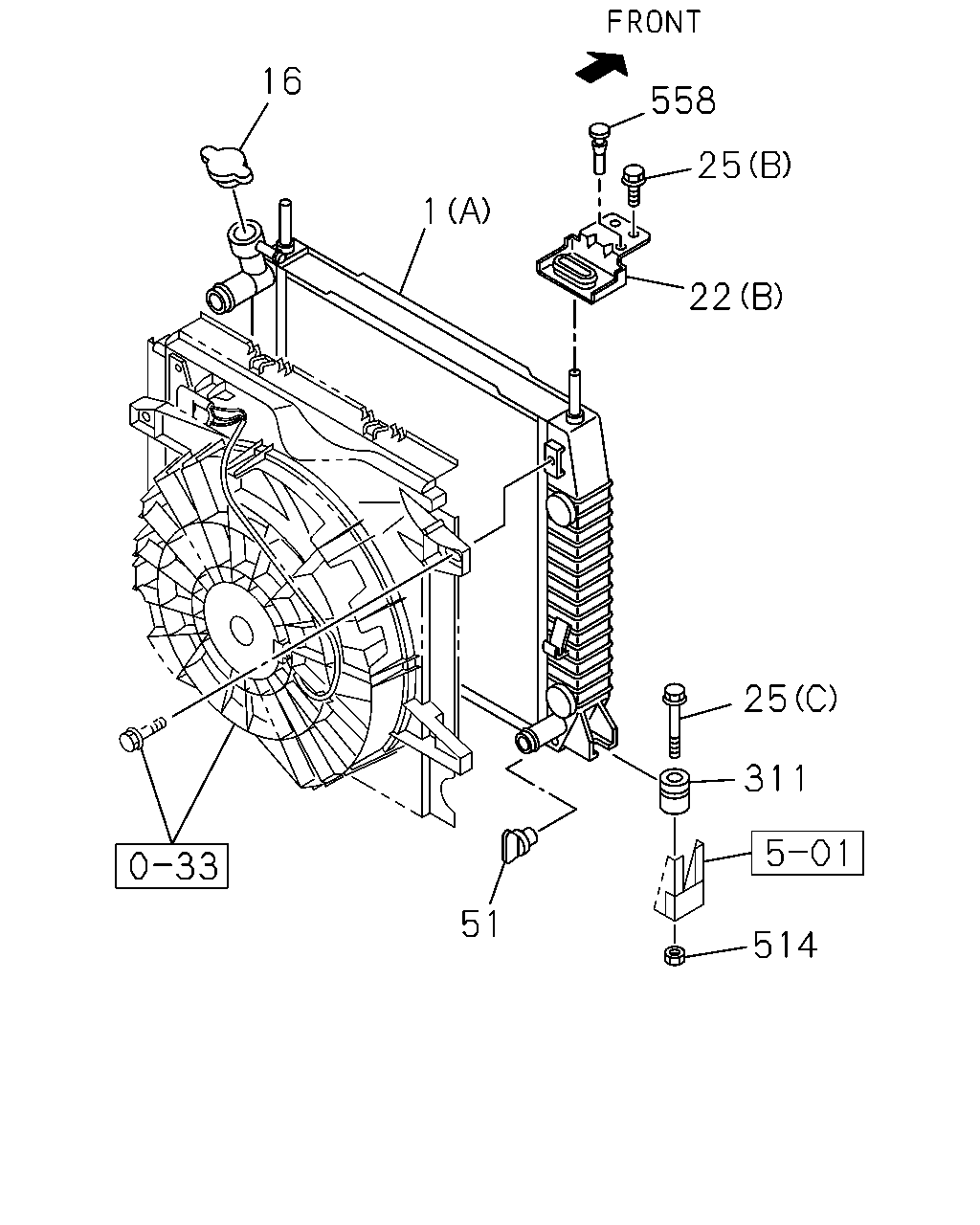

çizim 85404
16 558 25 1 22 25 311 51 514
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.219 RADIATOR ASM
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) (A) 		8-98027-435-0 01 1 0805- ●
1 01.219 RADIATOR ASM
M/T AISIN 5 SPEED(MA5) (A) 		8-98027-433-0 01 1 0805- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5S(RSQ) (B) 		8-98091-071-0 01 1 0805-1002 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5S(RSQ) (B) 		8-98164-754-0 01 1 1003-1003 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) (B) 		8-98091-069-0 01 1 0805-1002 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) (B) 		8-98164-749-0 01 1 1003- ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98091-070-0 01 1 0805-1002 ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98164-750-0 01 1 1003- ●
16 01.203 CAP; RAD 8-98027-426-0 01 1 0805- ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 0805-1003 ● ●
16 01.203 CAP; RAD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 		8-97942-268-1 01 1 1004- ●
22 01.270 BRACKET; RAD MTG
(B) 		8-98031-374-0 02 1 0805- ●
22 01.270 BRACKET; RAD MTG
(A) 		8-97941-547-0 01 1 0805-1003 ● ●
22 01.270 BRACKET; RAD MTG
(A) 		8-97941-547-0 01 1 1004- ●
25 01.271 BOLT; BRKT
14.090 (A) M6X11 		8-97808-812-0 04 1 0805- ●
25 01.271 BOLT; BRKT
(C) 		8-98027-481-0 02 1 0805- ●
25 01.271 BOLT; BRKT
02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0805-1003 ● ●
25 01.271 BOLT; BRKT
02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1004- ●
51 08.951 PLUG; DRAIN 8-98027-430-0 01 1 0805- ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0805-1003 ● ●
51 08.951 PLUG; DRAIN
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) W/GASKET 		8-97171-437-0 01 1 1004- ●
311 01.270 RUBBER; MTG,RAD 8-98027-427-0 02 1 0805- ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 0805-1003 ● ●
311 01.270 RUBBER; MTG,RAD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 		8-97942-297-0 02 1 1004- ●
514 01.276 NUT; RAD
04.634 M8 FLANGE 		8-97581-233-0 02 1 0805- ●
558 01.270 RUBBER; BRKT
00.829 		5-31419-003-0 01 1 0805- ●
çizim 86188
536 2 25 22 1 257 16 311 51 311
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.219 RADIATOR ASM
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) (A) 		8-98027-435-0 01 1 0805- ●
1 01.219 RADIATOR ASM
M/T AISIN 5 SPEED(MA5) (A) 		8-98027-433-0 01 1 0805- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5S(RSQ) (B) 		8-98091-071-0 01 1 0805-1002 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5S(RSQ) (B) 		8-98164-754-0 01 1 1003-1003 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) (B) 		8-98091-069-0 01 1 0805-1002 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) (B) 		8-98164-749-0 01 1 1003- ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98091-070-0 01 1 0805-1002 ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98164-750-0 01 1 1003- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5S(RSQ) 		8-97357-909-0 01 1 0805-1003 ●
2 01.277 GUIDE; FAN
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 		8-97371-447-2 01 1 0805- ●
16 01.203 CAP; RAD 8-98027-426-0 01 1 0805- ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 0805-1003 ● ●
16 01.203 CAP; RAD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 		8-97942-268-1 01 1 1004- ●
22 01.270 BRACKET; RAD MTG
(B) 		8-98031-374-0 02 1 0805- ●
22 01.270 BRACKET; RAD MTG
(A) 		8-97941-547-0 01 1 0805-1003 ● ●
22 01.270 BRACKET; RAD MTG
(A) 		8-97941-547-0 01 1 1004- ●
25 01.271 BOLT; BRKT
14.090 (A) M6X11 		8-97808-812-0 04 1 0805- ●
25 01.271 BOLT; BRKT
(C) 		8-98027-481-0 02 1 0805- ●
25 01.271 BOLT; BRKT
02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0805-1003 ● ●
25 01.271 BOLT; BRKT
02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1004- ●
51 08.951 PLUG; DRAIN 8-98027-430-0 01 1 0805- ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0805-1003 ● ●
51 08.951 PLUG; DRAIN
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) W/GASKET 		8-97171-437-0 01 1 1004- ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 01 1 0805-1003 ● ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 01 1 1004- ●
311 01.270 RUBBER; MTG,RAD 8-98027-427-0 02 1 0805- ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 0805-1003 ● ●
311 01.270 RUBBER; MTG,RAD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 		8-97942-297-0 02 1 1004- ●
536 01.020 SHROUD; FAN 8-97941-531-0 01 1 0805-1003 ●
536 01.020 SHROUD; FAN 8-97372-866-1 01 1 0805- ●
