0-66 — GENERATOR (#74693) — 91 parça

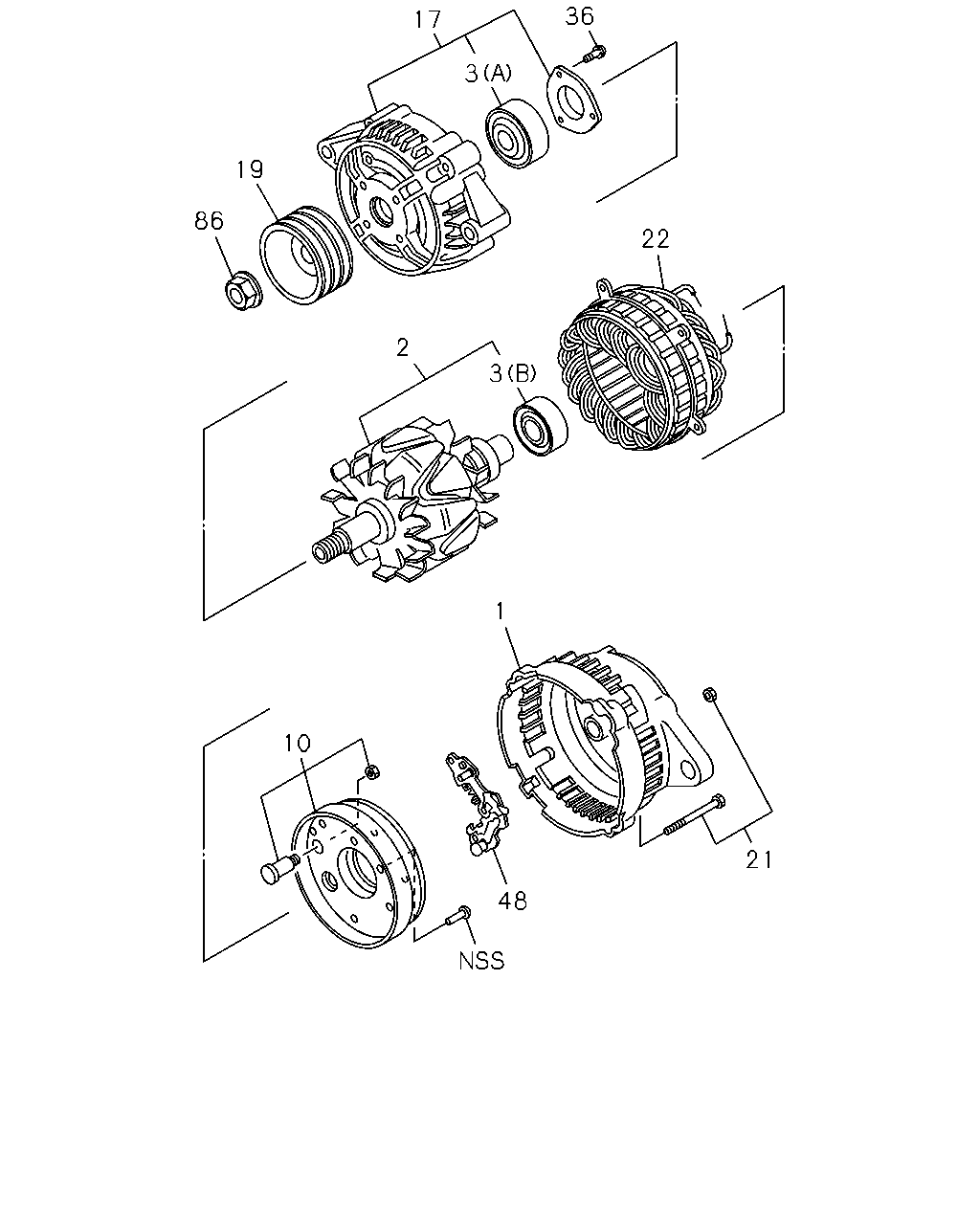

36 17 3 19 86 22 2 3 1 10 21 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97360-782-1, 97360782	8-98014-276-0	01	1	-1209
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-98006-084-0, 98006084	8-98036-867-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97360-782-1, 97360782	8-98232-049-0	01	1	1210-
2	02.279 ROTOR; GEN ASM PART: A = 8-97360-782-1, 97360782, B = 8-98006-084-0, 98006084	8-97231-512-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-97378-924-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-97360-782-1, 97360782	8-97103-807-0	01	1	1210-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-98006-084-0, 98006084	8-97103-807-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97360-782-1, 97360782	8-97182-740-0	01	1	-1209
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585	8-98159-188-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97360-782-1, 97360782, B = 8-98006-084-0, 98006084	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-98229-071-1, 98229071	8-98228-965-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97360-782-1, 97360782	8-98014-281-0	01	1	-1209
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97360-782-1, 97360782	8-98232-053-0	01	1	1210-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-98006-084-0, 98006084	8-97231-514-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97360-782-1, 97360782	8-97362-149-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585	8-98159-085-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-98229-071-1, 98229071	8-98229-789-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97360-782-1, 97360782	8-97362-151-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-98006-084-0, 98006084	8-97379-176-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-98000-022-0	01	1	-
21	02.316 BOLT; THROUGH,GEN 02.307 ASM PART: A = 8-97360-782-1, 97360782	8-97130-577-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-98006-084-0, 98006084	8-97182-960-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-97319-752-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97360-782-1, 97360782, B = 8-98006-084-0, 98006084	8-97205-067-0	01	1	-
36	02.277 SCREW; FRT COVER 02.307 ASM PART: A = 8-97360-782-1, 97360782	8-94233-653-0	01	1	-
36	02.277 SCREW; FRT COVER ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-97142-562-0	04	1	-
48	02.319 DIODE; GEN ASM PART: A = 8-97360-782-1, 97360782	8-97362-154-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: A = 8-97360-782-1, 97360782	8-97074-927-0	01	1	-

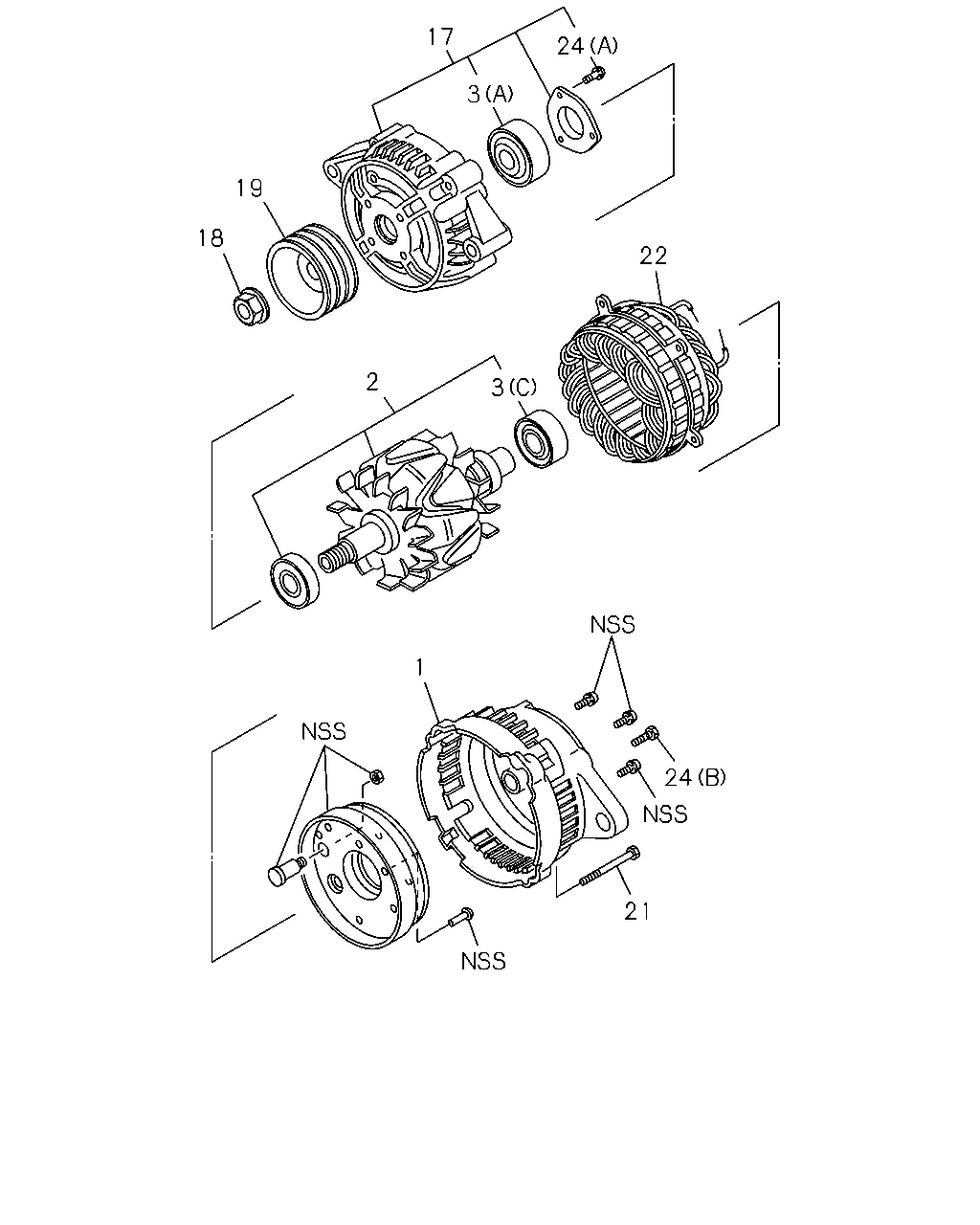

17 24 3 19 18 22 2 3 1 24 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97360-782-1, 97360782	8-98014-276-0	01	1	-1209
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-98006-084-0, 98006084	8-98036-867-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97360-782-1, 97360782	8-98232-049-0	01	1	1210-
2	02.279 ROTOR; GEN ASM PART: A = 8-97360-782-1, 97360782, B = 8-98006-084-0, 98006084	8-97231-512-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-97378-924-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-97360-782-1, 97360782	8-97103-807-0	01	1	1210-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-98006-084-0, 98006084	8-97103-807-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97360-782-1, 97360782	8-97182-740-0	01	1	-1209
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585	8-98159-188-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97360-782-1, 97360782, B = 8-98006-084-0, 98006084	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-98229-071-1, 98229071	8-98228-965-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-98006-084-0, 98006084	8-97231-514-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97360-782-1, 97360782	8-97362-149-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585	8-98159-085-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-98229-071-1, 98229071	8-98229-789-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-98006-084-0, 98006084	8-97074-927-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97360-782-1, 97360782	8-97362-151-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-98006-084-0, 98006084	8-97379-176-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-98000-022-0	01	1	-
21	02.316 BOLT; THROUGH,GEN 02.307 ASM PART: A = 8-97360-782-1, 97360782	8-97130-577-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-98006-084-0, 98006084	8-97182-960-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-97319-752-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97360-782-1, 97360782, B = 8-98006-084-0, 98006084	8-97205-067-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: B = 8-98006-084-0, 98006084	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-97032-313-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: B = 8-98006-084-0, 98006084	8-97120-257-0	01	1	-

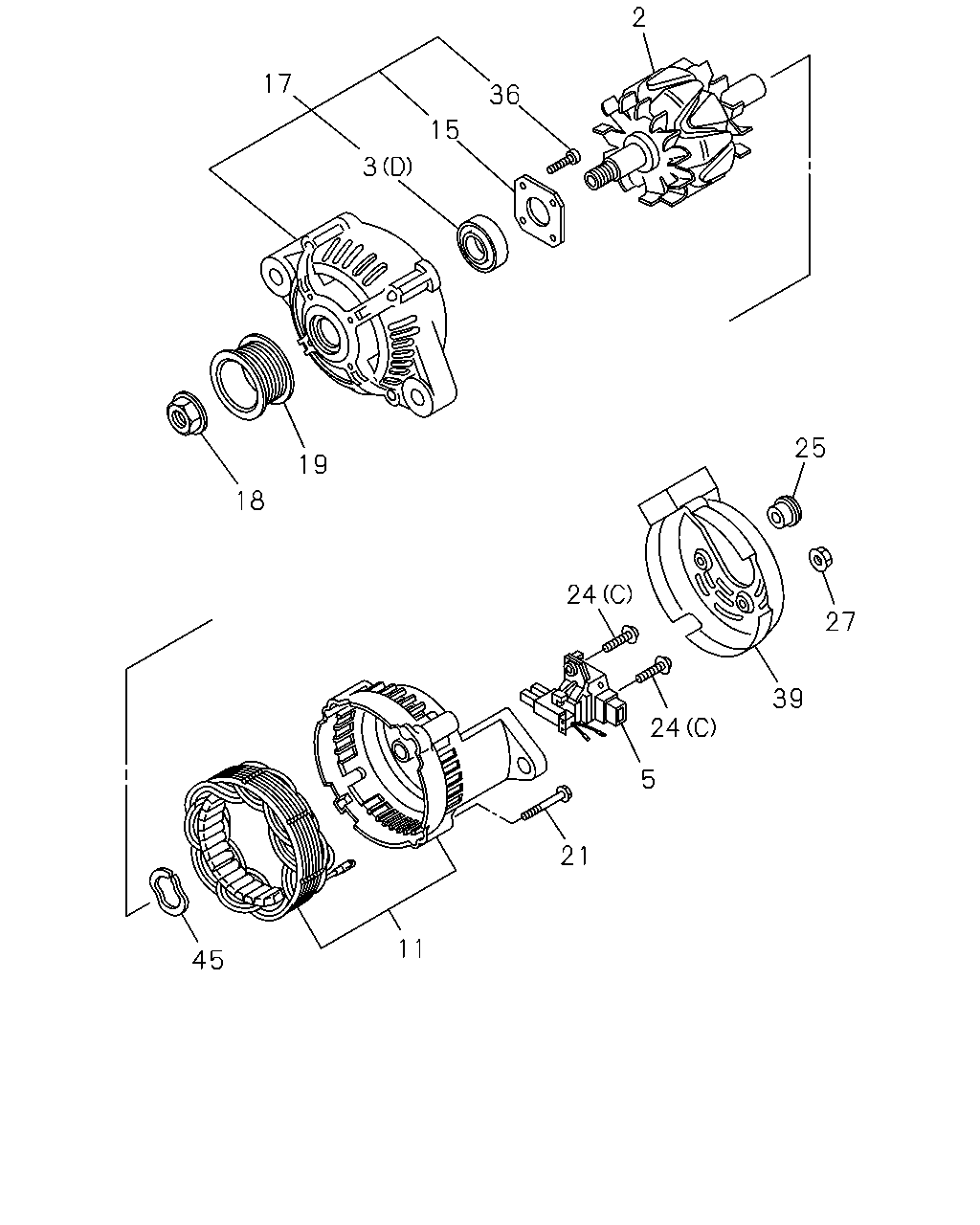

39 27 25 24 24 2 36 15 3 17 19 18 11 45 21 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.279 ROTOR; GEN ASM PART: A = 8-97360-782-1, 97360782, B = 8-98006-084-0, 98006084	8-97231-512-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-97378-924-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-97360-782-1, 97360782	8-97103-807-0	01	1	1210-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-98006-084-0, 98006084	8-97103-807-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97360-782-1, 97360782	8-97182-740-0	01	1	-1209
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585	8-98159-188-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97360-782-1, 97360782, B = 8-98006-084-0, 98006084	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-98229-071-1, 98229071	8-98228-965-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-97378-926-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585	8-98159-086-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: E = 8-98229-071-1, 98229071	8-98159-086-0	01	1	-1302
11	02.305 COVER; RR,GEN ASM PART: E = 8-98229-071-1, 98229071	8-98242-367-0	01	1	1303-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-94406-982-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-98006-084-0, 98006084	8-97231-514-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97360-782-1, 97360782	8-97362-149-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585	8-98159-085-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-98229-071-1, 98229071	8-98229-789-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-98006-084-0, 98006084	8-97074-927-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97360-782-1, 97360782	8-97362-151-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-98006-084-0, 98006084	8-97379-176-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-98000-022-0	01	1	-
21	02.316 BOLT; THROUGH,GEN 02.307 ASM PART: A = 8-97360-782-1, 97360782	8-97130-577-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-98006-084-0, 98006084	8-97182-960-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-97319-752-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: B = 8-98006-084-0, 98006084	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-97032-313-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: B = 8-98006-084-0, 98006084	8-97120-257-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL ASM PART: C = 8-98153-004-0, 98153004	8-97378-930-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL ASM PART: D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-98196-584-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-97319-772-0	03	1	-
36	02.277 SCREW; FRT COVER 02.307 ASM PART: A = 8-97360-782-1, 97360782	8-94233-653-0	01	1	-
36	02.277 SCREW; FRT COVER ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-97142-562-0	04	1	-
39	02.297 COVER; END,RR COVER,GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585, E = 8-98229-071-1, 98229071	8-97378-928-0	01	1	-
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: C = 8-98153-004-0, 98153004, D = 8-98196-585-0, 98196585	8-97142-570-0	01	1	-
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: E = 8-98229-071-1, 98229071	8-97142-570-0	01	1	-1302
