◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#74691) — 69 parça

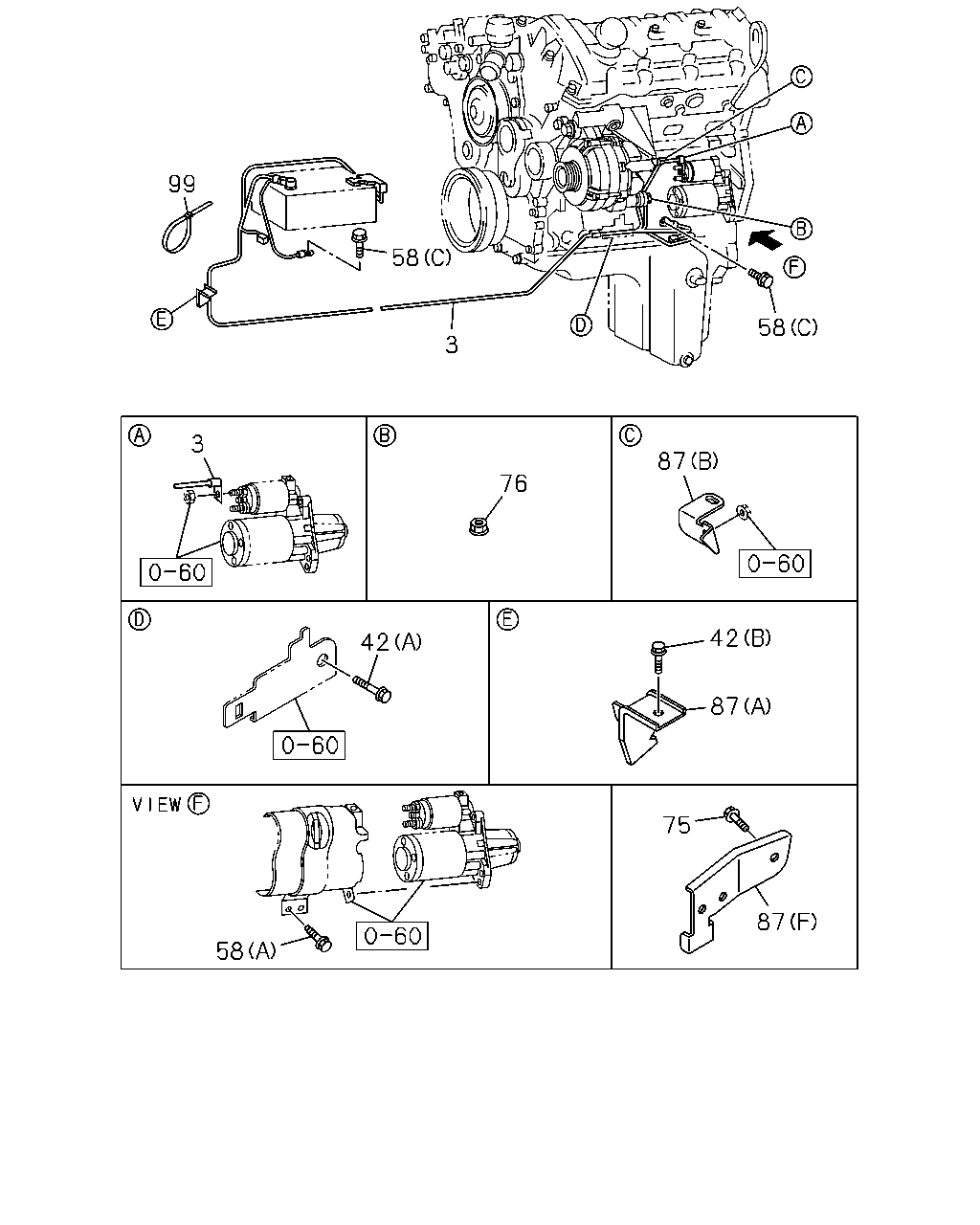

çizim 73267
99 58 58 3 3 87 76 42 42 87 75 87 58
BalonParca AdiParca NoAdetTipApplied Date A B C
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4> 		8-98114-203-0 01 1 0805-0909 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4> 		8-98149-354-0 01 1 0910- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> 		8-98114-209-0 01 1 0805-0909 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> 		8-98149-355-0 01 1 0910- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-98005-199-0 01 1 0805-1003 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-98007-622-1 01 1 0805- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0805- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0805-1003 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0805-1003 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0805- ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X12 FLANGE 		0-28151-012-0 01 1 0805- ●
58 02.343 BOLT; CABLE,BATTERY
(C) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0805- ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(D) M10X20 FLANGE 		0-28751-020-0 01 1 0805-1003 ●
58 02.343 BOLT; CABLE,BATTERY
(B) M10X20 FLANGE 		0-28651-020-0 01 1 0805- ●
75 02.333 BOLT; BRKT
4X4(TFS***) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0805- ●
76 02.343 NUT; BATTERY CABLE
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0805- ●
76 02.343 NUT; BATTERY CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-1003 ●
87 02.343 BRACKET; HARNESS
(A) 		8-98004-143-0 01 1 0805- ●
87 02.343 BRACKET; HARNESS
(B) 		8-98004-145-0 01 1 0805- ●
87 02.343 BRACKET; HARNESS
4X4(TFS***) (F) 		8-98014-449-0 01 1 0805- ●
87 02.343 BRACKET; HARNESS
(C) 		8-97236-166-0 01 1 0805-1003 ●
87 02.343 BRACKET; HARNESS
(D) 		8-97241-141-0 01 1 0805-1003 ●
87 02.343 BRACKET; HARNESS
(E) 		8-97307-629-0 01 1 0805-1003 ●
99 02.343 CLIP; BATTERY CABLE
4X4(TFS***) 02.363 L=140 		8-97920-656-0 01 1 0806-0811 ●

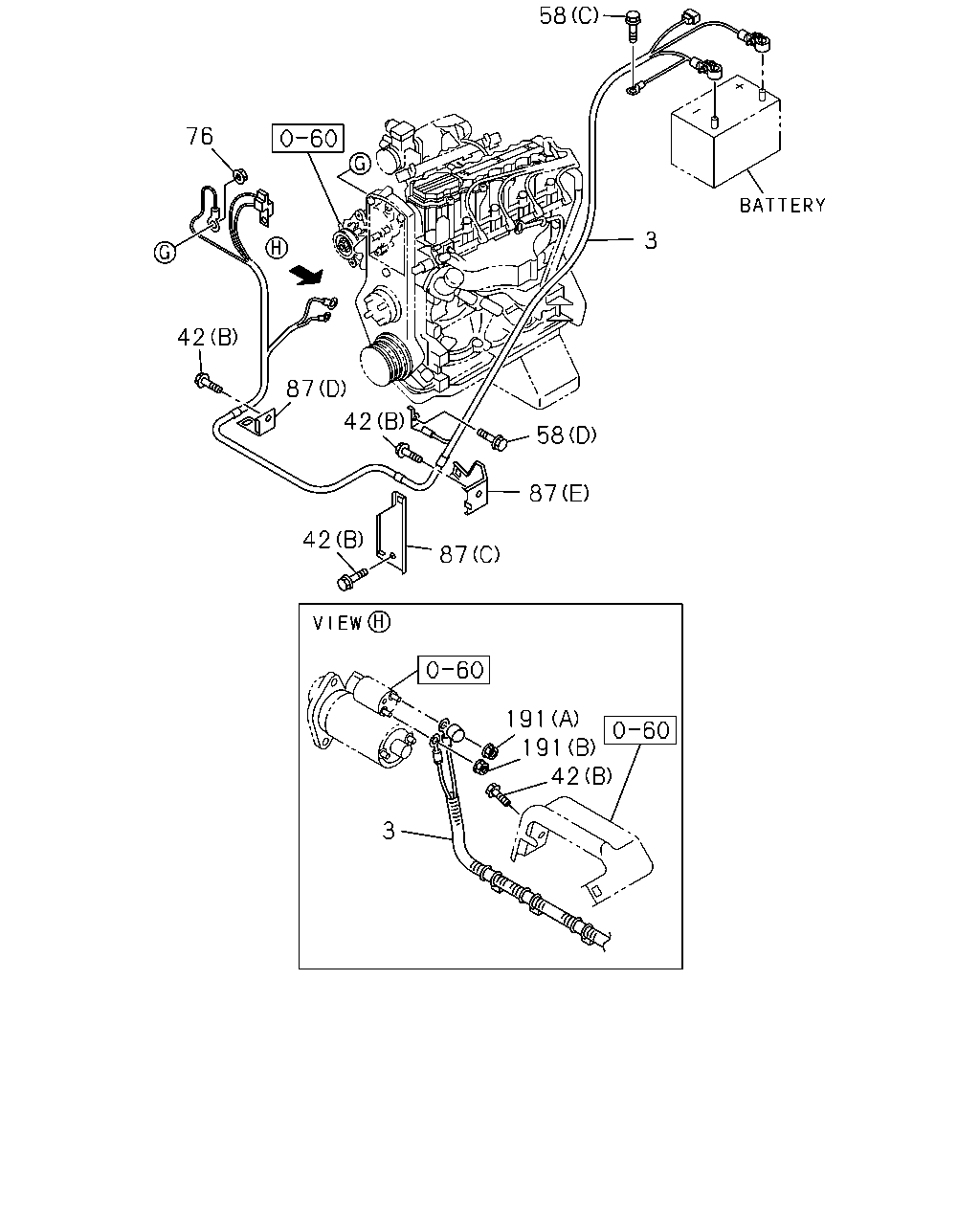

çizim 73722
58 76 3 42 87 42 58 87 42 87 191 191 42 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4> 		8-98114-203-0 01 1 0805-0909 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4> 		8-98149-354-0 01 1 0910- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> 		8-98114-209-0 01 1 0805-0909 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> 		8-98149-355-0 01 1 0910- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-98005-199-0 01 1 0805-1003 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-98007-622-1 01 1 0805- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0805- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0805-1003 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0805-1003 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0805- ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X12 FLANGE 		0-28151-012-0 01 1 0805- ●
58 02.343 BOLT; CABLE,BATTERY
(C) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0805- ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(D) M10X20 FLANGE 		0-28751-020-0 01 1 0805-1003 ●
58 02.343 BOLT; CABLE,BATTERY
(B) M10X20 FLANGE 		0-28651-020-0 01 1 0805- ●
76 02.343 NUT; BATTERY CABLE
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0805- ●
76 02.343 NUT; BATTERY CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-1003 ●
87 02.343 BRACKET; HARNESS
(A) 		8-98004-143-0 01 1 0805- ●
87 02.343 BRACKET; HARNESS
(B) 		8-98004-145-0 01 1 0805- ●
87 02.343 BRACKET; HARNESS
4X4(TFS***) (F) 		8-98014-449-0 01 1 0805- ●
87 02.343 BRACKET; HARNESS
(C) 		8-97236-166-0 01 1 0805-1003 ●
87 02.343 BRACKET; HARNESS
(D) 		8-97241-141-0 01 1 0805-1003 ●
87 02.343 BRACKET; HARNESS
(E) 		8-97307-629-0 01 1 0805-1003 ●
191 08.155 NUT; STARTER
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ●
191 08.155 NUT; STARTER
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0805-1003 ● ●
191 08.155 NUT; STARTER
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1004- ●

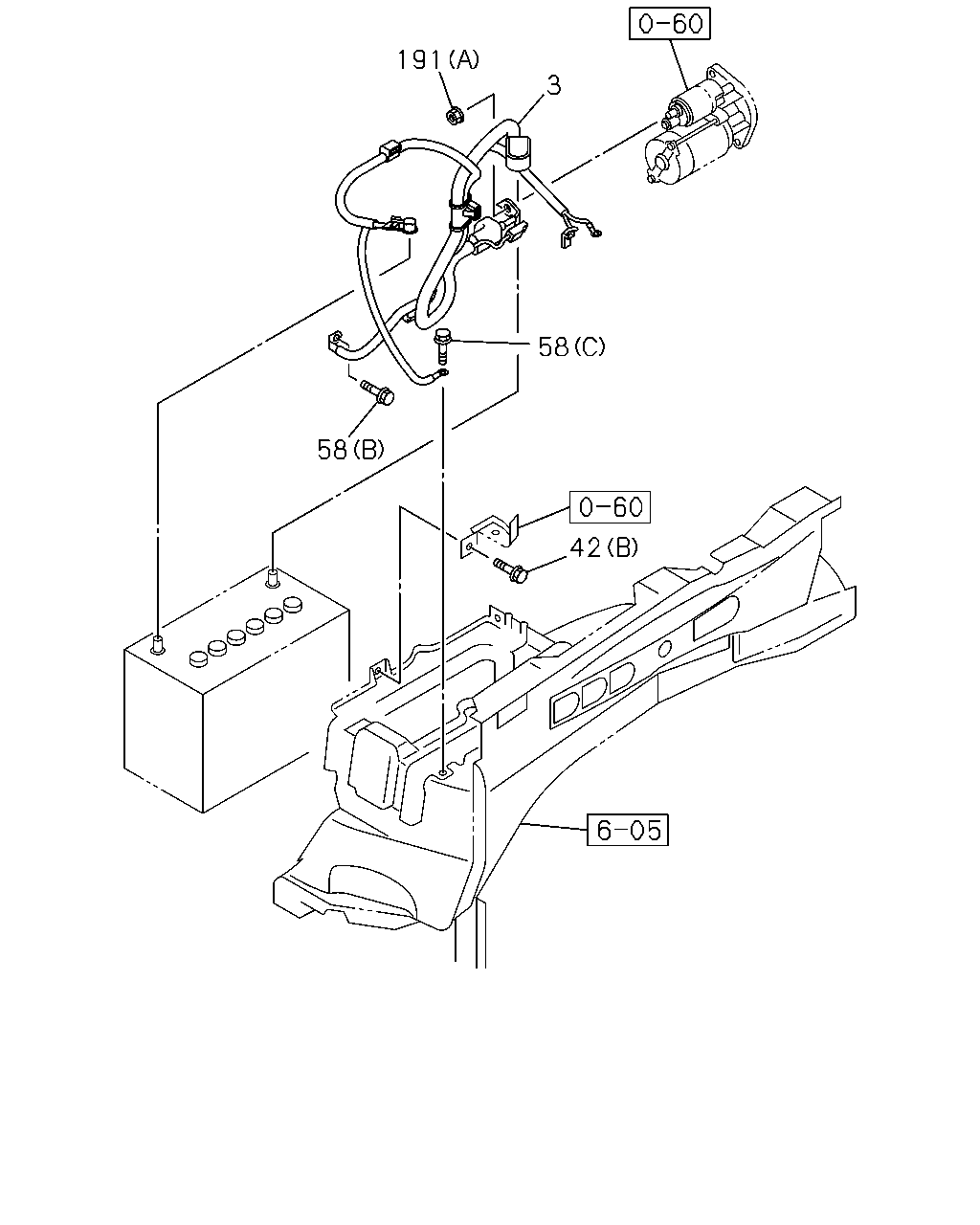

çizim 185832
191 3 58 58 42
BalonParca AdiParca NoAdetTipApplied Date A B C
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4> 		8-98114-203-0 01 1 0805-0909 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY<NR4> 		8-98149-354-0 01 1 0910- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> 		8-98114-209-0 01 1 0805-0909 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY<NR4> 		8-98149-355-0 01 1 0910- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-98005-199-0 01 1 0805-1003 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-98007-622-1 01 1 0805- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0805- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0805-1003 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0805-1003 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0805- ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X12 FLANGE 		0-28151-012-0 01 1 0805- ●
58 02.343 BOLT; CABLE,BATTERY
(C) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0805- ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(D) M10X20 FLANGE 		0-28751-020-0 01 1 0805-1003 ●
58 02.343 BOLT; CABLE,BATTERY
(B) M10X20 FLANGE 		0-28651-020-0 01 1 0805- ●
191 08.155 NUT; STARTER
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ●
191 08.155 NUT; STARTER
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0805-1003 ● ●
191 08.155 NUT; STARTER
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1004- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
