◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#74690) — 324 parça

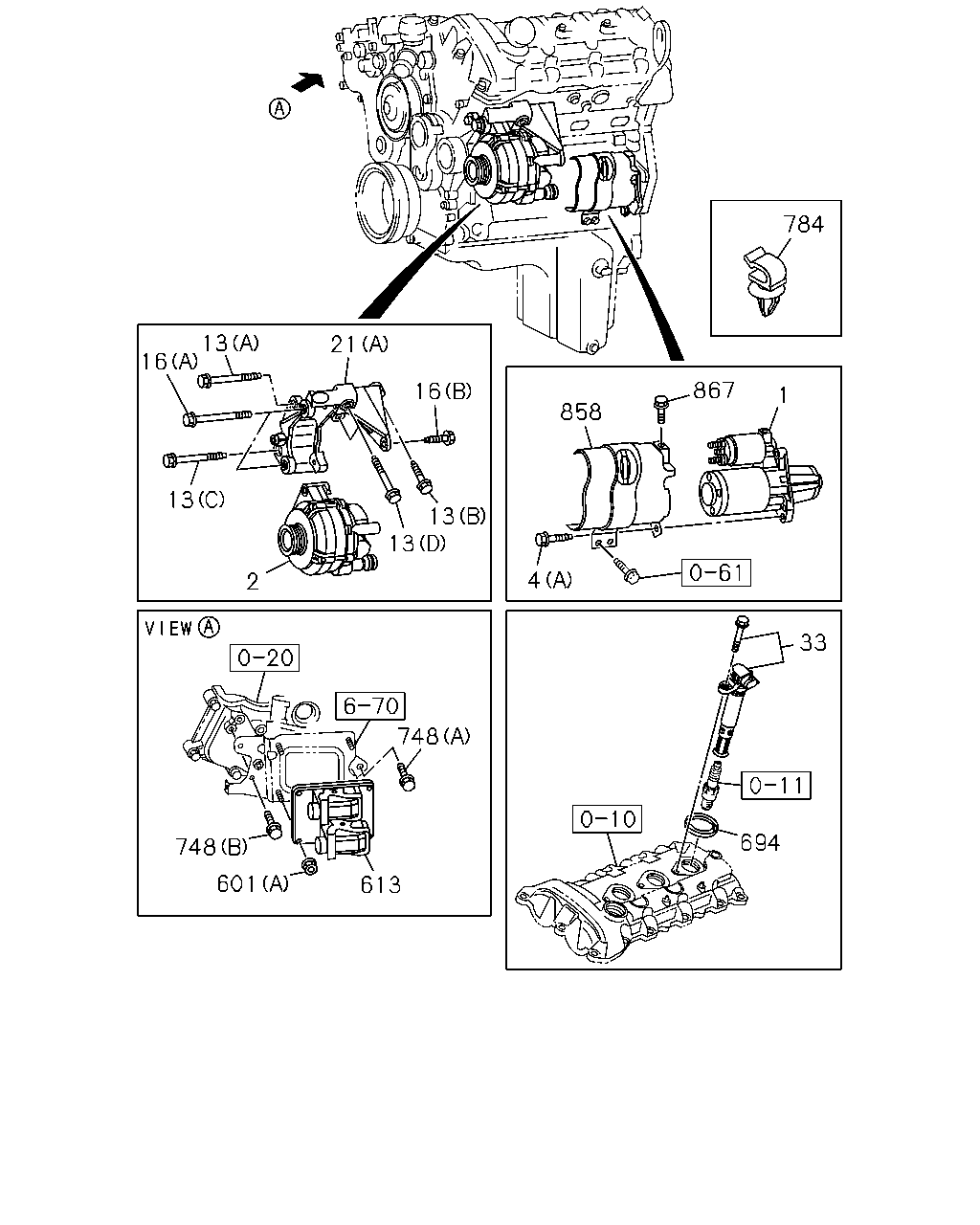

çizim 72531
784 13 21 16 867 16 1 858 13 13 13 4 2 33 748 694 748 601 613
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
12V 1.4KW 		8-92180-353-0 01 1 0805- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0805-1003 ●
1 02.041 STARTER ASM
12V 2.3KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-98028-199-0 01 1 0805- ●
2 02.275 GENERATOR ASM
M/T AISIN 5 SPEED(MA5) 		8-92249-976-0 01 1 1011- ●
2 02.275 GENERATOR ASM
12V 120A 		8-92211-486-0 01 1 0805- ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97360-782-1 01 1 0805-1003 ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-98006-084-0 01 1 0805-1012 ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-98153-004-0 01 1 1101-1106 ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-98196-585-0 01 1 1107-1211 ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-98229-071-1 01 1 1212- ●
4 02.042 BOLT; STARTER
(A) 		8-11588-900-0 02 1 0805- ●
4 02.042 BOLT; STARTER
(C) M10X25 FLANGE 		0-28151-025-0 01 1 0805-1003 ●
4 02.042 BOLT; STARTER
(D) 		8-11073-352-0 01 1 0805-1003 ●
4 02.042 BOLT; STARTER
(B) M12X60 		8-97161-846-1 02 1 0805- ●
13 02.100 BOLT; BRKT
(A) 		8-11515-783-0 01 1 0805- ●
13 02.100 BOLT; BRKT
(B) 		8-11588-901-0 01 1 0805- ●
13 02.100 BOLT; BRKT
(C) 		8-11588-903-0 01 1 0805- ●
13 02.100 BOLT; BRKT
(D) 		8-11589-340-0 02 1 0805- ●
16 02.277 BOLT; GEN
(A) 		8-11093-131-0 02 1 0805- ●
16 02.277 BOLT; GEN
(B) 		8-11588-739-0 01 1 0805- ●
16 02.277 BOLT; GEN
(D) 		8-11098-091-0 01 1 0805-1003 ●
16 02.277 BOLT; GEN
(E) 		8-92138-526-0 01 1 0805-1003 ●
16 02.277 BOLT; GEN
(C) M10X125 FLANGE 		8-97226-470-1 01 1 0805- ●
21 02.277 BRACKET; GEN
(A) 		8-98055-855-0 01 1 0805- ●
21 02.277 BRACKET; GEN
(B) 		8-97356-020-1 01 1 0805- ●
33 02.170 COIL ASM; IGN 8-12583-514-0 06 1 0805- ●
33 02.170 COIL ASM; IGN 8-01104-039-0 01 1 0805-1003 ●
601 03.670 NUT; UNIT
01.062 (A) M6 FLANGE 		0-91180-106-0 04 1 0805- ●
601 03.670 NUT; UNIT
03.901 (C) 		8-11013-127-0 02 1 0805-1003 ●
601 03.670 NUT; UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 03 1 0805- ●
613 03.670 CONTROL UNIT; ENG 8-92193-809-0 01 1 0805- ●
613 03.670 CONTROL UNIT; ENG
EURO3 SPECIFICATION<NT3> 		8-92187-517-0 01 1 0805-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> 		8-98079-723-0 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> 		8-98099-173-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> 		8-98017-345-8 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> 		8-98079-526-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98079-526-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98160-154-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98079-710-0 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98099-165-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30> 		8-98017-346-8 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30> 		8-98079-527-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98079-527-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98160-155-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> 		8-98079-722-0 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> 		8-98099-172-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> 		8-98017-343-8 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> 		8-98079-524-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98079-524-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98160-152-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98079-709-0 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98099-164-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30> 		8-98017-344-8 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30> 		8-98079-525-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98079-525-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98160-153-0 01 1 1008- ●
694 02.183 SEAL; COVER 8-12607-600-0 06 1 0805- ●
748 02.500 BOLT; CONT UNIT
(A) 		8-11519-979-0 01 1 0805- ●
748 02.500 BOLT; CONT UNIT
(B) 		8-11589-302-0 02 1 0805- ●
748 02.500 BOLT; CONT UNIT
04.866 (E) M6X40 FLANGE 		0-28050-640-0 04 1 0805-1003 ●
748 02.500 BOLT; CONT UNIT
02.343 (F) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0805-1003 ●
748 02.500 BOLT; CONT UNIT
(G) 		8-98064-521-0 02 1 0805-1003 ●
748 02.500 BOLT; CONT UNIT
03.162 (C) M6X20 FLANGE 		0-28650-620-0 03 1 0805- ●
748 02.500 BOLT; CONT UNIT
01.428 (D) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0805- ●
784 02.363 RETAINER 8-98019-048-0 02 1 0805- ●
858 02.042 SHIELD; HEAT,STARTER 8-92180-354-0 01 1 0805- ●
867 02.559 BOLT
02.343 M10X12 FLANGE 		0-28151-012-0 01 1 0805- ●
867 02.559 BOLT
03.483 M5X14 W/LK WASHER 		1-09980-023-0 01 1 0805- ●

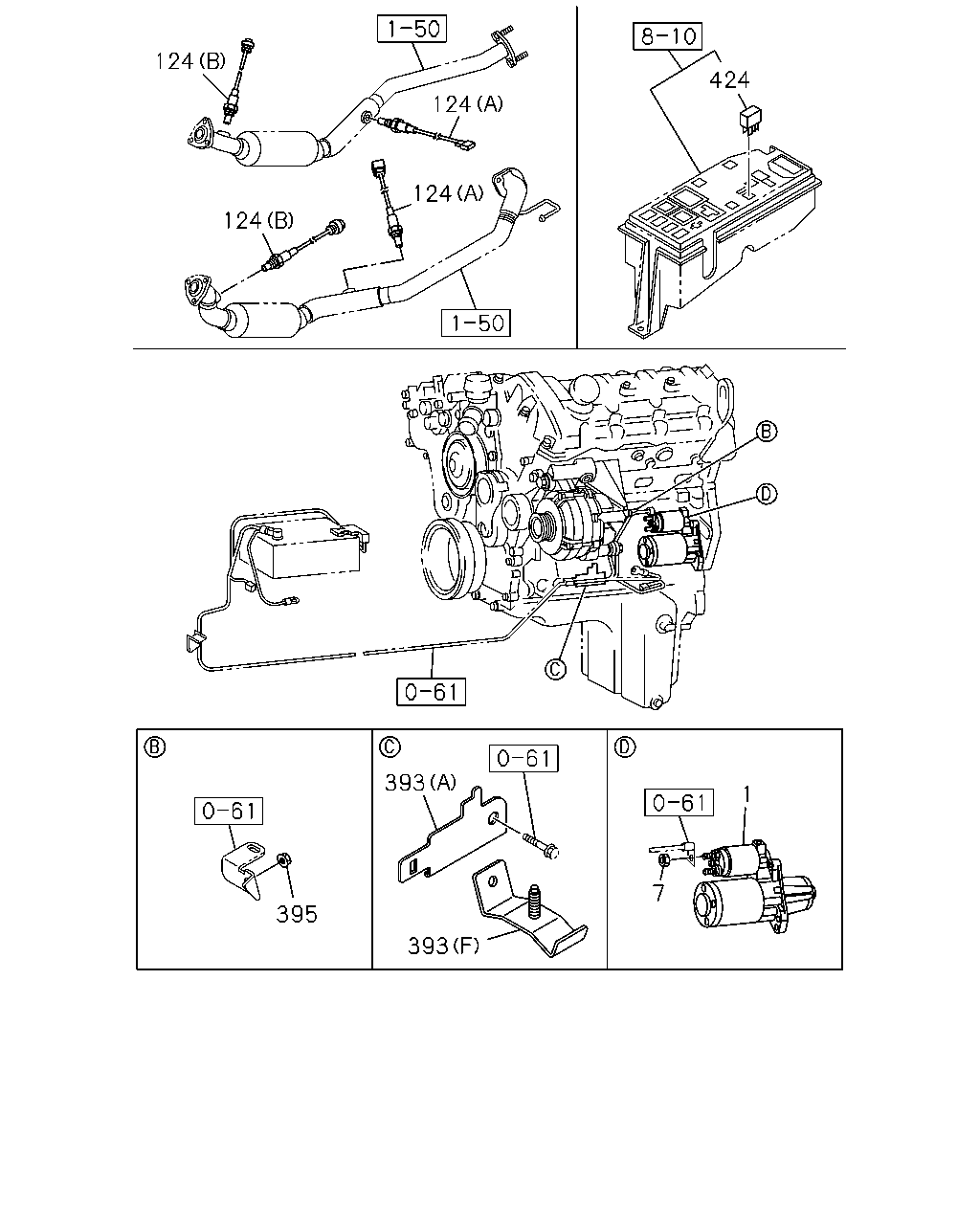

çizim 72639
124 424 124 124 124 393 1 7 395 393
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
12V 1.4KW 		8-92180-353-0 01 1 0805- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0805-1003 ●
1 02.041 STARTER ASM
12V 2.3KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-98028-199-0 01 1 0805- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0805- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0805- ●
124 01.150 SENSOR; OXYGEN
(A) 		8-12575-904-0 02 1 0805- ●
124 01.150 SENSOR; OXYGEN
(B) 		8-92210-450-0 02 1 0805- ●
124 01.150 SENSOR; OXYGEN
(C) 		8-25327-985-0 02 1 0805-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98124-457-0 01 1 0812- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98004-144-0 01 1 0805- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97236-167-0 01 1 0805-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-829-0 01 1 0805-0811 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-829-0 01 1 0812-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-833-0 01 1 0805- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98050-884-0 01 1 0805- ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0805- ●
395 02.343 NUT; BRKT FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ● ● ●
395 02.343 NUT; BRKT FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 1004- ● ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0805-1003 ●
424 02.510 RELAY; SAFETY,STARTER
4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0805-1003 ●
424 02.510 RELAY; SAFETY,STARTER
4X4 CREW CAB LONG(TFS*WF) EURO4 SPECIFICATION<NT4> 02.485 12V YAZAKI 		8-97309-292-0 01 1 0805-1003 ●
424 02.510 RELAY; SAFETY,STARTER
4X4 CREW CAB LONG(TFS*WF) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TURN SI GNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> 02.485 12V YAZAKI 		8-97309-292-0 02 1 0805-1003 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1004- ●

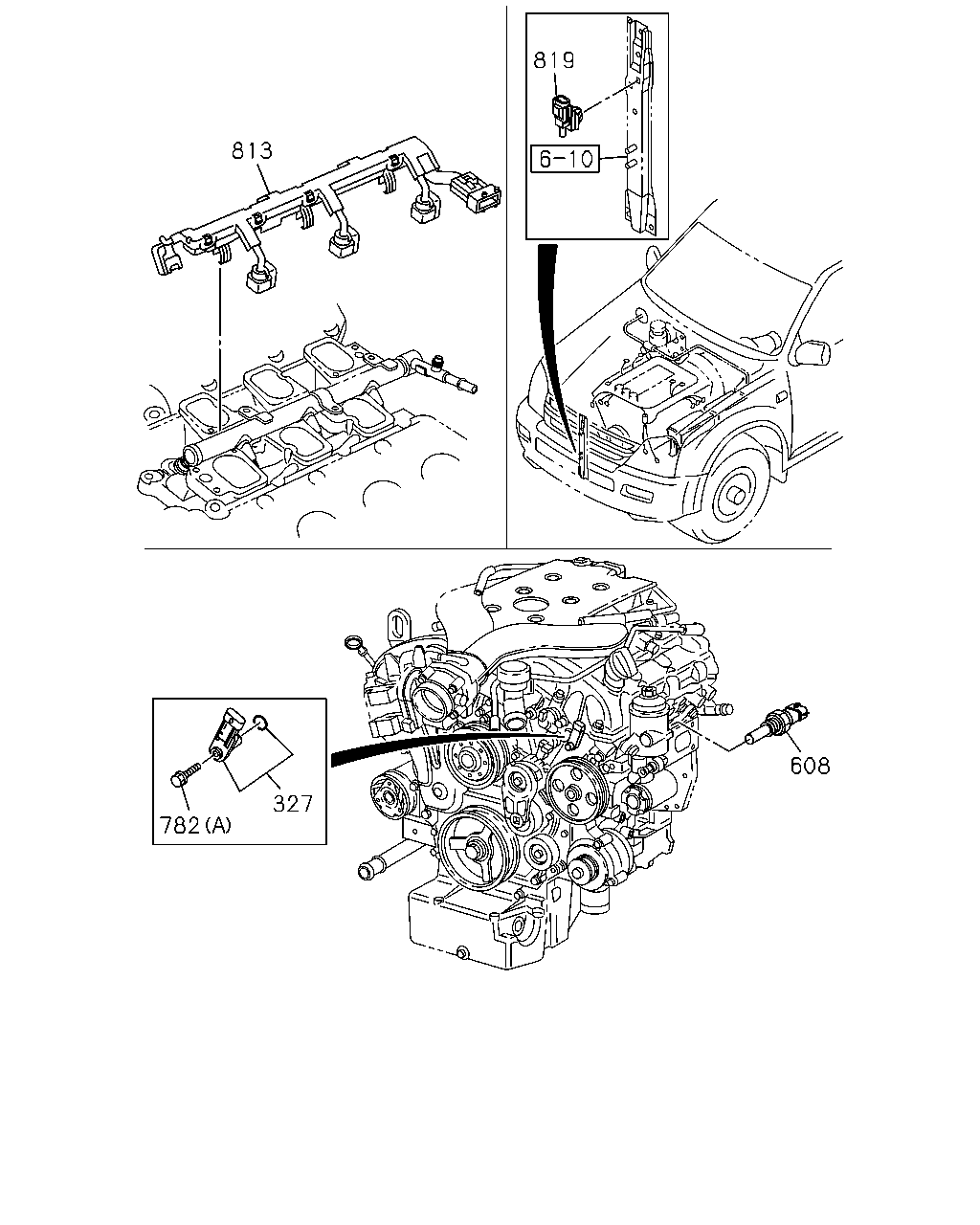

çizim 72707
819 813 608 327 782
BalonParca AdiParca NoAdetTipApplied Date A B C
327 02.361 SENSOR; CAMSHAFT POSITION 8-12608-424-0 01 1 0805- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0805- ●
608 01.150 SENSOR; AIR TEMP 8-12566-778-0 01 1 0805- ●
782 02.510 BOLT; SENSOR
(A) 		8-11519-967-0 02 1 0805- ●
782 02.510 BOLT; SENSOR
(D) 		8-11093-881-0 01 1 0805-1003 ●
782 02.510 BOLT; SENSOR
09.242 (C) M6X16 FLANGE 		0-28050-616-0 01 1 0805- ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0805- ●
813 02.480 HARNESS; INJECTOR 8-92066-998-0 01 1 0805- ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
OUTSIDE TEMPERATURE GAGE<UJH> 		8-98008-687-0 01 1 0805- ● ●

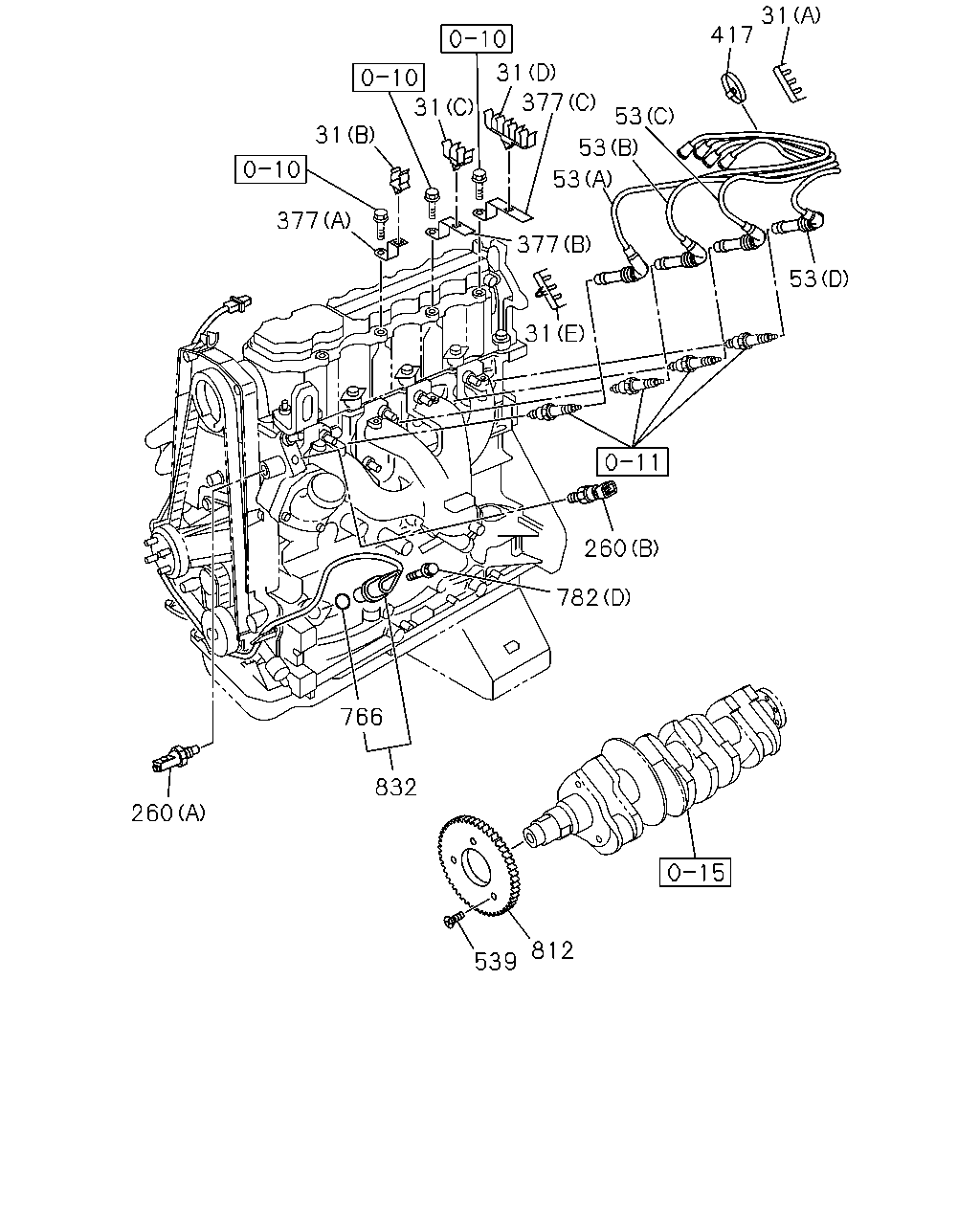

çizim 73129
31 417 31 377 31 53 31 53 53 377 377 53 31 260 782 766 832 260 812 539
BalonParca AdiParca NoAdetTipApplied Date A B C
31 02.251 CLIP; HIGH TENSION CABLE
(A) 		8-02965-736-0 01 1 0805-1003 ●
31 02.251 CLIP; HIGH TENSION CABLE
(B) 		8-90320-343-0 01 1 0805-1003 ●
31 02.251 CLIP; HIGH TENSION CABLE
(C) 		8-90320-344-0 01 1 0805-1003 ●
31 02.251 CLIP; HIGH TENSION CABLE
(D) 		8-90320-345-0 01 1 0805-1003 ●
31 02.251 CLIP; HIGH TENSION CABLE
(E) 		8-90341-384-0 01 1 0805-1003 ●
53 02.240 CABLE; IGN PLUG
(A) 		8-92066-027-0 01 1 0805-1003 ●
53 02.240 CABLE; IGN PLUG
(B) 		8-92066-028-0 01 1 0805-1003 ●
53 02.240 CABLE; IGN PLUG
(C) 		8-92066-029-0 01 1 0805-1003 ●
53 02.240 CABLE; IGN PLUG
(D) 		8-92066-030-0 01 1 0805-1003 ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-12146-312-0 01 1 0805-1003 ●
260 01.150 SENSOR; WATER TEMP
(A) 		8-92063-893-0 01 1 0805-1003 ●
377 02.183 BRACKET; HIGH TENSION CABLE
(A) 		8-90460-630-0 01 1 0805-1003 ●
377 02.183 BRACKET; HIGH TENSION CABLE
(B) 		8-90460-631-0 01 1 0805-1003 ●
377 02.183 BRACKET; HIGH TENSION CABLE
(C) 		8-90493-625-0 01 1 0805-1003 ●
417 02.420 CLIP 8-92138-212-0 01 1 0805-1003 ●
539 02.510 SCREW; SENSOR 8-90280-051-0 03 1 0805-1003 ●
766 02.363 GASKET; SENSOR 8-10473-965-0 01 1 0805-1003 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0805- ●
782 02.510 BOLT; SENSOR
(A) 		8-11519-967-0 02 1 0805- ●
782 02.510 BOLT; SENSOR
(D) 		8-11093-881-0 01 1 0805-1003 ●
782 02.510 BOLT; SENSOR
09.242 (C) M6X16 FLANGE 		0-28050-616-0 01 1 0805- ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0805- ●
812 02.510 ROTOR; SENSOR 8-90265-094-0 01 1 0805-1003 ●
832 02.510 SENSOR; CRANK ANGLE & ENG SPD 8-10456-597-0 01 1 0805-1003 ●
çizim 73180
748 601 606 613 748 606 748
BalonParca AdiParca NoAdetTipApplied Date A B C
601 03.670 NUT; UNIT
01.062 (A) M6 FLANGE 		0-91180-106-0 04 1 0805- ●
601 03.670 NUT; UNIT
03.901 (C) 		8-11013-127-0 02 1 0805-1003 ●
601 03.670 NUT; UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 03 1 0805- ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-92066-169-0 01 1 0805-1003 ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-97364-729-2 01 1 0805- ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-97364-731-2 01 1 0805- ●
613 03.670 CONTROL UNIT; ENG 8-92193-809-0 01 1 0805- ●
613 03.670 CONTROL UNIT; ENG
EURO3 SPECIFICATION<NT3> 		8-92187-517-0 01 1 0805-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> 		8-98079-723-0 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> 		8-98099-173-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> 		8-98017-345-8 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> 		8-98079-526-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98079-526-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98160-154-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98079-710-0 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98099-165-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30> 		8-98017-346-8 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30> 		8-98079-527-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98079-527-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98160-155-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> 		8-98079-722-0 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> 		8-98099-172-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> 		8-98017-343-8 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> 		8-98079-524-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98079-524-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98160-152-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98079-709-0 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98099-164-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30> 		8-98017-344-8 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30> 		8-98079-525-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98079-525-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98160-153-0 01 1 1008- ●
748 02.500 BOLT; CONT UNIT
(A) 		8-11519-979-0 01 1 0805- ●
748 02.500 BOLT; CONT UNIT
(B) 		8-11589-302-0 02 1 0805- ●
748 02.500 BOLT; CONT UNIT
04.866 (E) M6X40 FLANGE 		0-28050-640-0 04 1 0805-1003 ●
748 02.500 BOLT; CONT UNIT
02.343 (F) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0805-1003 ●
748 02.500 BOLT; CONT UNIT
(G) 		8-98064-521-0 02 1 0805-1003 ●
748 02.500 BOLT; CONT UNIT
03.162 (C) M6X20 FLANGE 		0-28650-620-0 03 1 0805- ●
748 02.500 BOLT; CONT UNIT
01.428 (D) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0805- ●
çizim 73218
46 10 10 424 424 10
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 0810- ●
10 02.100 RELAY; STARTER
09.778 12V YAZAKI 		8-97309-293-0 01 1 0805-1003 ●
10 02.100 RELAY; STARTER
EURO3 SPECIFICATION<NT3> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0805-1003 ●
10 02.100 RELAY; STARTER
09.778 12V YAZAKI 		8-97309-293-0 01 1 1004- ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0805-1003 ●
10 02.100 RELAY; STARTER
EURO3 SPECIFICATION<NT3> 02.575 12V OMRON 		8-98005-407-0 01 1 0805-1003 ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 1004- ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0805-0809 ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-98146-837-0 01 1 0810- ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0805-0809 ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0805-1003 ●
424 02.510 RELAY; SAFETY,STARTER
4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0805-1003 ●
424 02.510 RELAY; SAFETY,STARTER
4X4 CREW CAB LONG(TFS*WF) EURO4 SPECIFICATION<NT4> 02.485 12V YAZAKI 		8-97309-292-0 01 1 0805-1003 ●
424 02.510 RELAY; SAFETY,STARTER
4X4 CREW CAB LONG(TFS*WF) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TURN SI GNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> 02.485 12V YAZAKI 		8-97309-292-0 02 1 0805-1003 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1004- ●

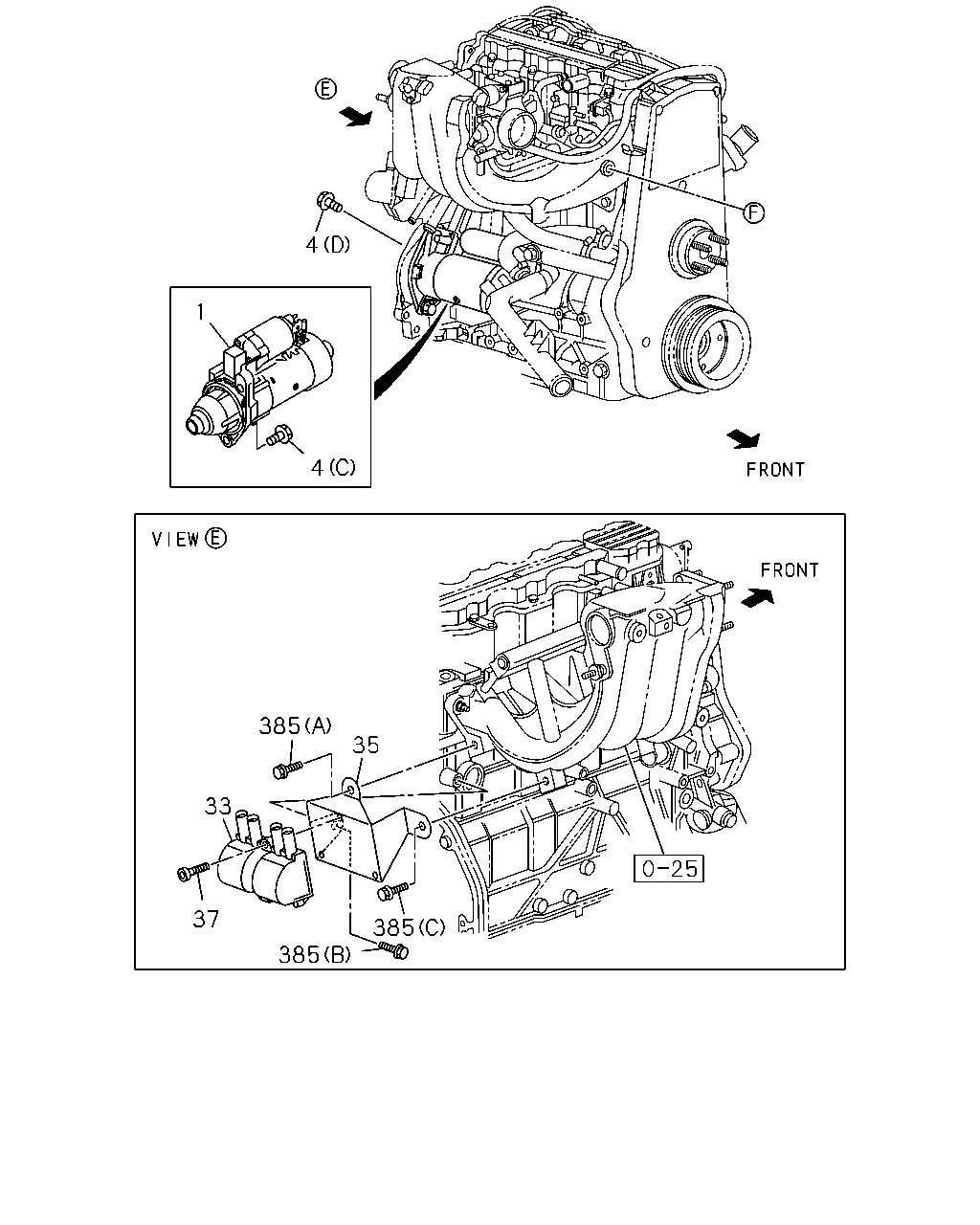

çizim 73418
4 1 4 385 35 33 37 385 385
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
12V 1.4KW 		8-92180-353-0 01 1 0805- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0805-1003 ●
1 02.041 STARTER ASM
12V 2.3KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-98028-199-0 01 1 0805- ●
4 02.042 BOLT; STARTER
(A) 		8-11588-900-0 02 1 0805- ●
4 02.042 BOLT; STARTER
(C) M10X25 FLANGE 		0-28151-025-0 01 1 0805-1003 ●
4 02.042 BOLT; STARTER
(D) 		8-11073-352-0 01 1 0805-1003 ●
4 02.042 BOLT; STARTER
(B) M12X60 		8-97161-846-1 02 1 0805- ●
33 02.170 COIL ASM; IGN 8-12583-514-0 06 1 0805- ●
33 02.170 COIL ASM; IGN 8-01104-039-0 01 1 0805-1003 ●
35 02.183 BRACKET; IGN COIL 8-92064-829-0 01 1 0805-1003 ●
37 02.559 BOLT; IGN COIL
02.500 		8-92065-435-0 03 1 0805-1003 ●
385 02.183 BOLT; BRKT,IGN COIL
03.670 (A) 		8-11041-103-0 01 1 0805-1003 ●
385 02.183 BOLT; BRKT,IGN COIL
(B) 		8-11094-881-0 01 1 0805-1003 ●
385 02.183 BOLT; BRKT,IGN COIL
(C) 		8-92138-664-0 01 1 0805-1003 ●

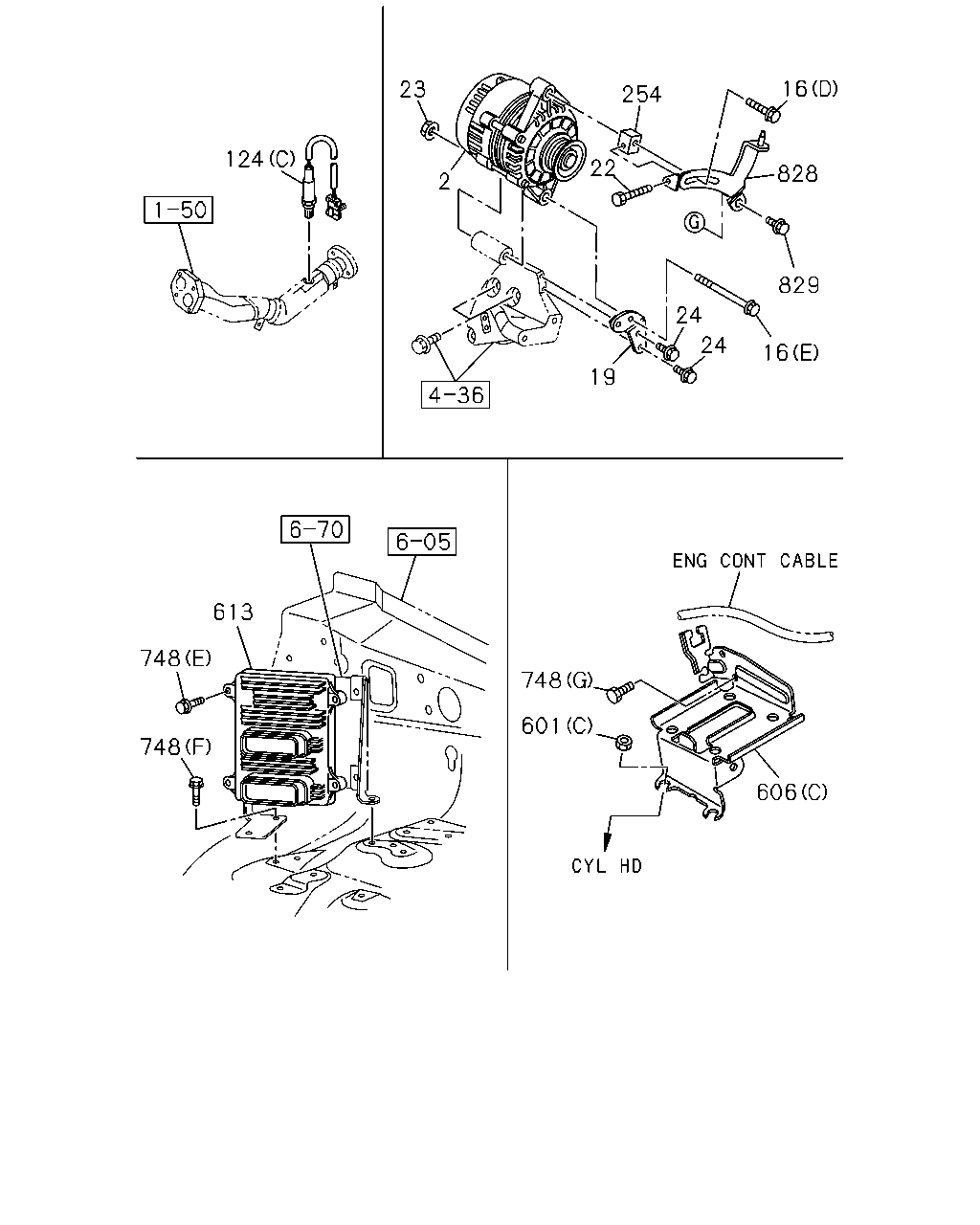

çizim 73425
16 23 254 22 124 828 2 829 24 24 16 19 613 748 748 601 748 606
BalonParca AdiParca NoAdetTipApplied Date A B C
2 02.275 GENERATOR ASM
M/T AISIN 5 SPEED(MA5) 		8-92249-976-0 01 1 1011- ●
2 02.275 GENERATOR ASM
12V 120A 		8-92211-486-0 01 1 0805- ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97360-782-1 01 1 0805-1003 ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-98006-084-0 01 1 0805-1012 ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-98153-004-0 01 1 1101-1106 ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-98196-585-0 01 1 1107-1211 ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-98229-071-1 01 1 1212- ●
16 02.277 BOLT; GEN
(A) 		8-11093-131-0 02 1 0805- ●
16 02.277 BOLT; GEN
(B) 		8-11588-739-0 01 1 0805- ●
16 02.277 BOLT; GEN
(D) 		8-11098-091-0 01 1 0805-1003 ●
16 02.277 BOLT; GEN
(E) 		8-92138-526-0 01 1 0805-1003 ●
16 02.277 BOLT; GEN
(C) M10X125 FLANGE 		8-97226-470-1 01 1 0805- ●
19 02.277 BRACKET; GEN 8-92063-352-0 01 1 0805-1003 ●
22 09.008 BOLT; GEN 8-92066-080-0 01 1 0805- ●
23 02.277 NUT; GEN
06.672 M10 FLANGE 		0-91280-210-0 01 1 0805-1003 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0805- ●
24 02.277 BOLT; GEN BRKT 8-11090-683-0 02 1 0805-1003 ●
124 01.150 SENSOR; OXYGEN
(A) 		8-12575-904-0 02 1 0805- ●
124 01.150 SENSOR; OXYGEN
(B) 		8-92210-450-0 02 1 0805- ●
124 01.150 SENSOR; OXYGEN
(C) 		8-25327-985-0 02 1 0805-1003 ●
254 02.277 NUT; GEN BRKT
02.275 		8-92066-081-1 01 1 0805-1003 ●
601 03.670 NUT; UNIT
01.062 (A) M6 FLANGE 		0-91180-106-0 04 1 0805- ●
601 03.670 NUT; UNIT
03.901 (C) 		8-11013-127-0 02 1 0805-1003 ●
601 03.670 NUT; UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 03 1 0805- ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-92066-169-0 01 1 0805-1003 ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-97364-729-2 01 1 0805- ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-97364-731-2 01 1 0805- ●
613 03.670 CONTROL UNIT; ENG 8-92193-809-0 01 1 0805- ●
613 03.670 CONTROL UNIT; ENG
EURO3 SPECIFICATION<NT3> 		8-92187-517-0 01 1 0805-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> 		8-98079-723-0 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> 		8-98099-173-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> 		8-98017-345-8 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> 		8-98079-526-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98079-526-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98160-154-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98079-710-0 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98099-165-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30> 		8-98017-346-8 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30> 		8-98079-527-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98079-527-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98160-155-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> 		8-98079-722-0 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> 		8-98099-172-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> 		8-98017-343-8 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> 		8-98079-524-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98079-524-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98160-152-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98079-709-0 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98099-164-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30> 		8-98017-344-8 01 1 0805-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30> 		8-98079-525-0 01 1 0807-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98079-525-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98160-153-0 01 1 1008- ●
748 02.500 BOLT; CONT UNIT
(A) 		8-11519-979-0 01 1 0805- ●
748 02.500 BOLT; CONT UNIT
(B) 		8-11589-302-0 02 1 0805- ●
748 02.500 BOLT; CONT UNIT
04.866 (E) M6X40 FLANGE 		0-28050-640-0 04 1 0805-1003 ●
748 02.500 BOLT; CONT UNIT
02.343 (F) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0805-1003 ●
748 02.500 BOLT; CONT UNIT
(G) 		8-98064-521-0 02 1 0805-1003 ●
748 02.500 BOLT; CONT UNIT
03.162 (C) M6X20 FLANGE 		0-28650-620-0 03 1 0805- ●
748 02.500 BOLT; CONT UNIT
01.428 (D) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0805- ●
828 02.277 SHACKLE; GEN 8-92066-079-0 01 1 0805-1003 ●
829 02.510 BOLT; SHACKLE
01.516 M8X20 FLANGE 		8-11097-731-0 01 1 0805-1003 ●

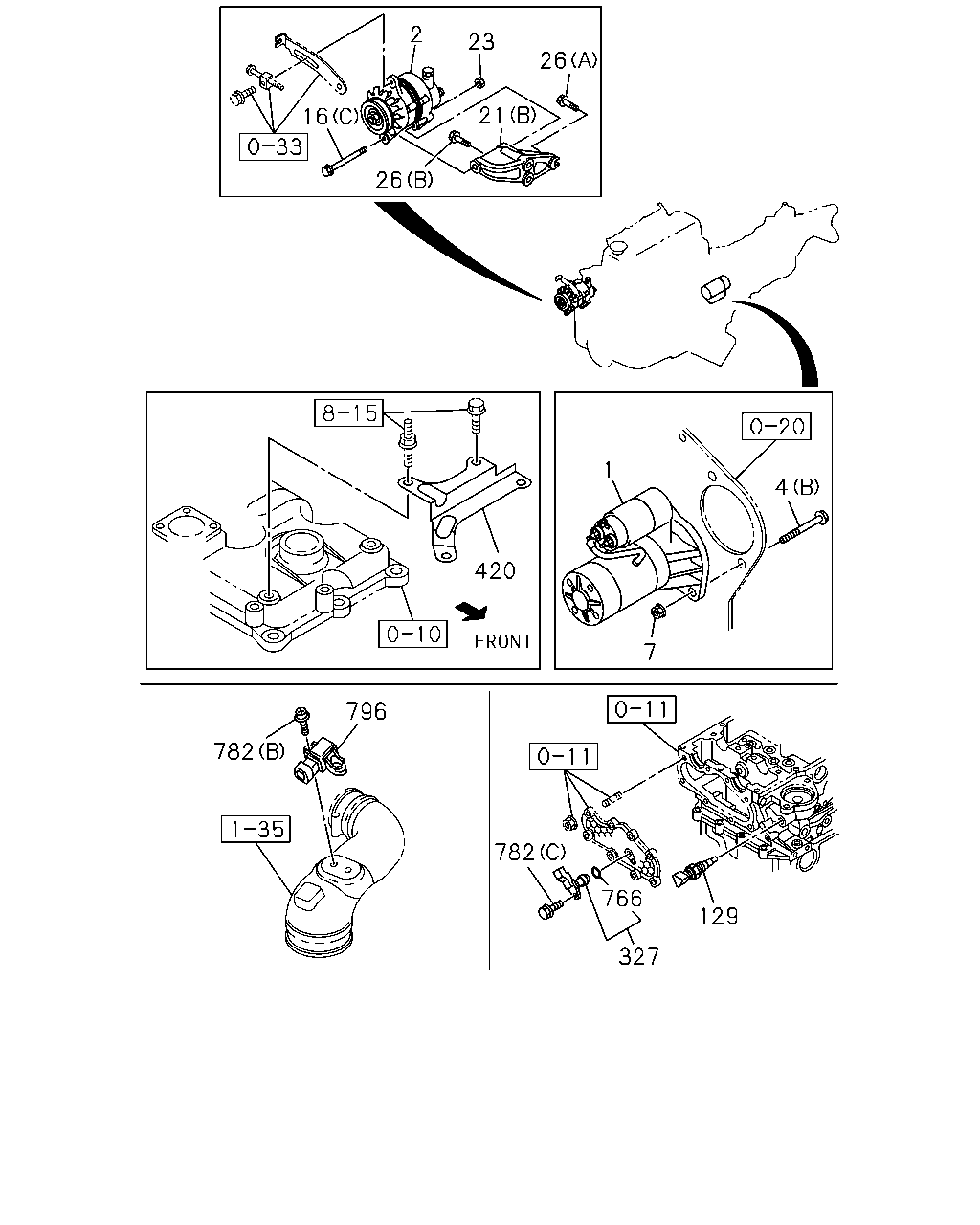

çizim 73508
2 23 26 21 16 26 1 4 420 7 796 782 782 766 129 327
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
12V 1.4KW 		8-92180-353-0 01 1 0805- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0805-1003 ●
1 02.041 STARTER ASM
12V 2.3KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-98028-199-0 01 1 0805- ●
2 02.275 GENERATOR ASM
M/T AISIN 5 SPEED(MA5) 		8-92249-976-0 01 1 1011- ●
2 02.275 GENERATOR ASM
12V 120A 		8-92211-486-0 01 1 0805- ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-97360-782-1 01 1 0805-1003 ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-98006-084-0 01 1 0805-1012 ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-98153-004-0 01 1 1101-1106 ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-98196-585-0 01 1 1107-1211 ●
2 02.275 GENERATOR ASM
12V 90A SEE FIG-NO 0-66 FOR COMPONENT. 		8-98229-071-1 01 1 1212- ●
4 02.042 BOLT; STARTER
(A) 		8-11588-900-0 02 1 0805- ●
4 02.042 BOLT; STARTER
(C) M10X25 FLANGE 		0-28151-025-0 01 1 0805-1003 ●
4 02.042 BOLT; STARTER
(D) 		8-11073-352-0 01 1 0805-1003 ●
4 02.042 BOLT; STARTER
(B) M12X60 		8-97161-846-1 02 1 0805- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0805- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0805- ●
16 02.277 BOLT; GEN
(A) 		8-11093-131-0 02 1 0805- ●
16 02.277 BOLT; GEN
(B) 		8-11588-739-0 01 1 0805- ●
16 02.277 BOLT; GEN
(D) 		8-11098-091-0 01 1 0805-1003 ●
16 02.277 BOLT; GEN
(E) 		8-92138-526-0 01 1 0805-1003 ●
16 02.277 BOLT; GEN
(C) M10X125 FLANGE 		8-97226-470-1 01 1 0805- ●
21 02.277 BRACKET; GEN
(A) 		8-98055-855-0 01 1 0805- ●
21 02.277 BRACKET; GEN
(B) 		8-97356-020-1 01 1 0805- ●
23 02.277 NUT; GEN
06.672 M10 FLANGE 		0-91280-210-0 01 1 0805-1003 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0805- ●
26 02.277 BOLT; GEN BRKT
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0805- ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0805- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0805- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-12608-424-0 01 1 0805- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0805- ●
420 02.183 BRACKET; HARNESS 8-98011-538-0 01 1 0805- ●
766 02.363 GASKET; SENSOR 8-10473-965-0 01 1 0805-1003 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0805- ●
782 02.510 BOLT; SENSOR
(A) 		8-11519-967-0 02 1 0805- ●
782 02.510 BOLT; SENSOR
(D) 		8-11093-881-0 01 1 0805-1003 ●
782 02.510 BOLT; SENSOR
09.242 (C) M6X16 FLANGE 		0-28050-616-0 01 1 0805- ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0805- ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0805- ●

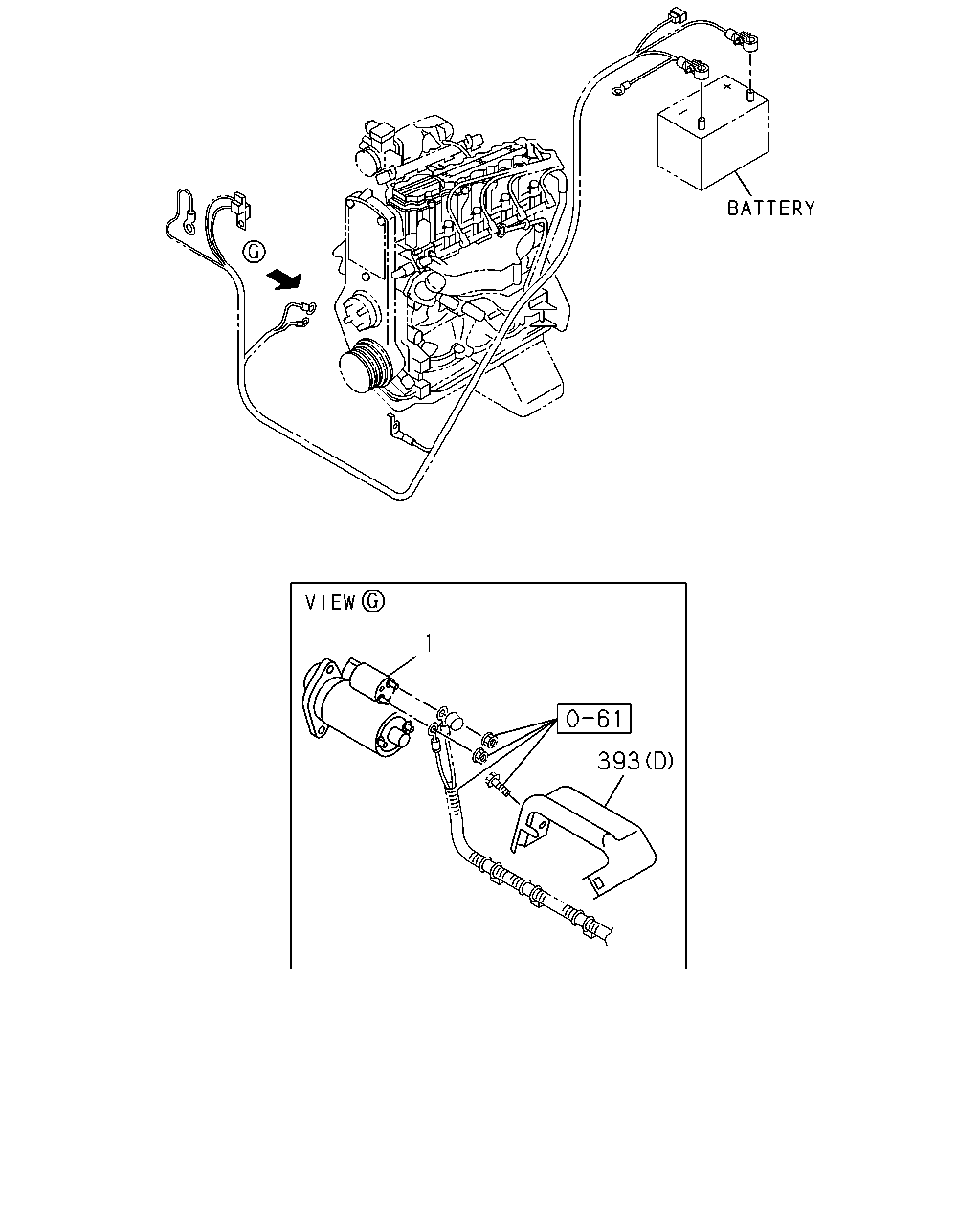

çizim 185830
1 393
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
12V 1.4KW 		8-92180-353-0 01 1 0805- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0805-1003 ●
1 02.041 STARTER ASM
12V 2.3KW SEE FIG-NO 0-65 FOR COMPONENT. 		8-98028-199-0 01 1 0805- ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98124-457-0 01 1 0812- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98004-144-0 01 1 0805- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97236-167-0 01 1 0805-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-829-0 01 1 0805-0811 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-829-0 01 1 0812-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-833-0 01 1 0805- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98050-884-0 01 1 0805- ●

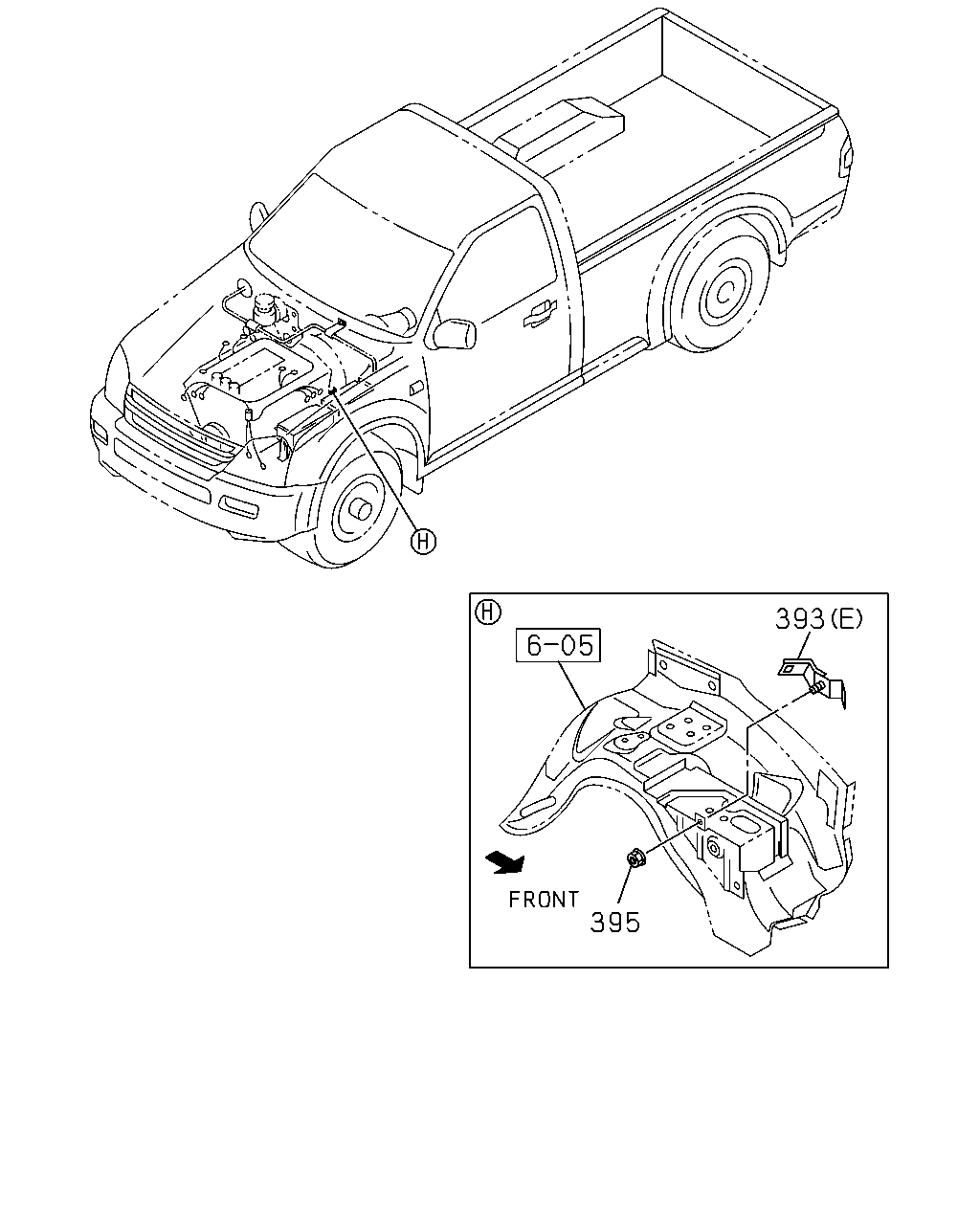

çizim 185831
393 395
BalonParca AdiParca NoAdetTipApplied Date A B C
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98124-457-0 01 1 0812- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98004-144-0 01 1 0805- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97236-167-0 01 1 0805-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-829-0 01 1 0805-0811 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-829-0 01 1 0812-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-833-0 01 1 0805- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98050-884-0 01 1 0805- ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0805- ●
395 02.343 NUT; BRKT FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ● ● ●
395 02.343 NUT; BRKT FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 1004- ● ●

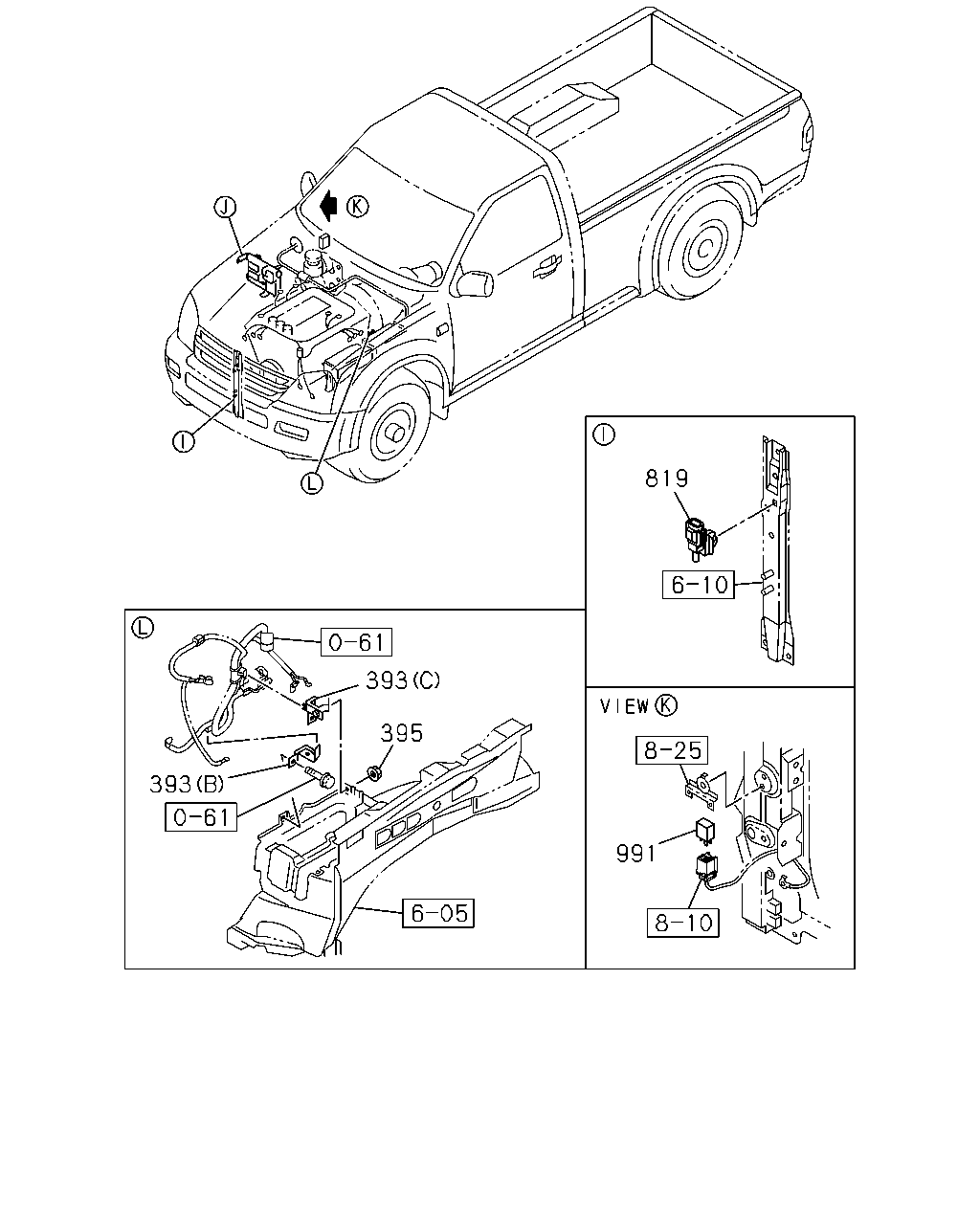

çizim 185833
819 393 395 393 991
BalonParca AdiParca NoAdetTipApplied Date A B C
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98124-457-0 01 1 0812- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98004-144-0 01 1 0805- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97236-167-0 01 1 0805-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-829-0 01 1 0805-0811 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-829-0 01 1 0812-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-833-0 01 1 0805- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98050-884-0 01 1 0805- ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0805- ●
395 02.343 NUT; BRKT FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ● ● ●
395 02.343 NUT; BRKT FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 1004- ● ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
OUTSIDE TEMPERATURE GAGE<UJH> 		8-98008-687-0 01 1 0805- ● ●
991 02.100 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 0805- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
