◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#74685) — 46 parça

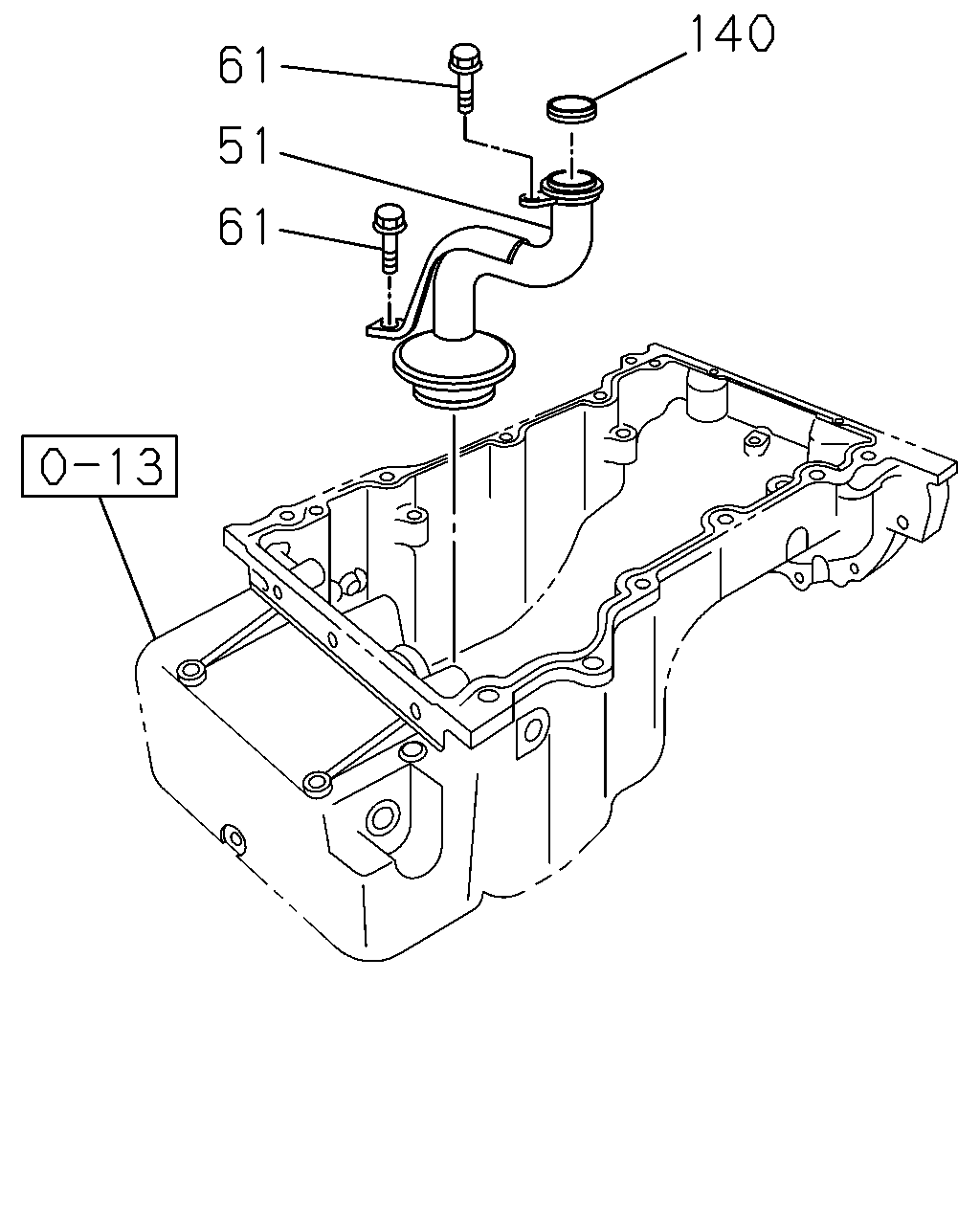

çizim 64104
140 61 51 61
BalonParca AdiParca NoAdetTipApplied Date A B C
51 01.519 STRAINER & PIPE ASM; OIL 8-92067-144-0 01 1 0805- ●
51 01.519 STRAINER & PIPE ASM; OIL 8-92065-493-0 01 1 0805-1003 ●
61 01.531 BOLT; OIL STRAINER
01.430 		8-11588-713-0 08 1 0805- ●
140 01.639 GASKET; OIL STRAINER 8-12566-837-0 01 1 0805- ●
140 01.639 GASKET; OIL STRAINER 8-97356-150-0 01 1 0805- ●

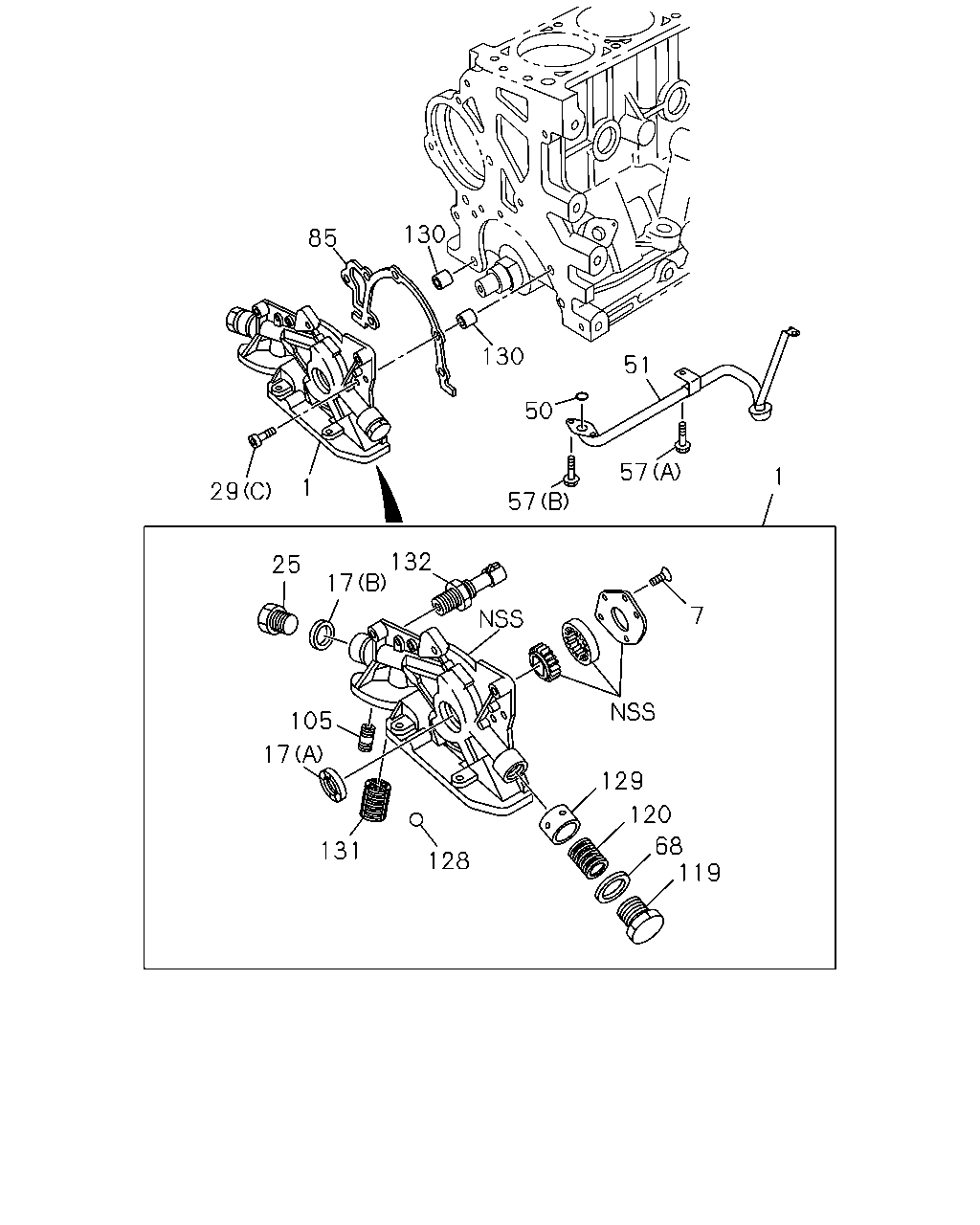

çizim 64229
130 85 130 51 50 57 1 1 29 57 132 17 25 7 105 17 129 120 68 119 131 128
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.652 PUMP ASM; OIL 8-24406-585-0 01 1 0805-1003 ●
1 01.652 PUMP ASM; OIL 8-98011-503-3 01 1 0805-0905 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0906-1303 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ●
7 01.657 BOLT; COVER,OIL PUMP 8-11085-861-0 05 1 0805-1003 ●
17 01.657 SEAL; OIL,OIL PUMP
(B) 		8-11096-531-0 01 1 0805-1003 ●
17 01.657 SEAL; OIL,OIL PUMP
(A) 		8-90183-572-0 01 1 0805-1003 ●
25 01.609 PLUG; OIL PUMP 8-90501-549-0 01 1 0805-1003 ●
29 01.652 BOLT; OIL PUMP
(C) 		8-11084-962-0 06 1 0805-1003 ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 0805- ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 0805- ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM 8-90500-908-0 01 1 0805-1003 ●
51 01.519 STRAINER & PIPE ASM; OIL 8-92067-144-0 01 1 0805- ●
51 01.519 STRAINER & PIPE ASM; OIL 8-92065-493-0 01 1 0805-1003 ●
57 01.531 BOLT; OIL PIPE
01.780 (A) 		8-11096-921-0 02 1 0805-1003 ●
57 01.531 BOLT; OIL PIPE
(B) 		8-92064-465-0 02 1 0805-1003 ●
68 01.609 WASHER; RELIEF VLV 8-11093-042-0 01 1 0805-1003 ●
85 01.655 GASKET; OIL PUMP 8-90573-825-0 01 1 0805-1003 ●
105 01.855 CONNECTOR; OIL FILTER 8-90412-159-0 01 1 0805-1003 ●
119 01.639 PLUG; RELIEF VLV 8-03448-834-0 01 1 0805-1003 ●
120 01.639 SPRING; RELIEF VLV 8-90501-547-0 01 1 0805-1003 ●
128 01.609 BALL; BYPASS VLV,OIL PUMP 8-11055-689-0 01 1 0805-1003 ●
129 01.609 PLUNGER; RELIEF VLV 8-24402-723-0 01 1 0805-1003 ●
130 01.609 SLEEVE; OIL PUMP 8-90351-709-0 02 1 0805-1003 ●
131 01.609 SPRING; BYPASS VLV,OIL PUMP
00.293 		8-90136-113-0 01 1 0805-1003 ●
132 01.800 SWITCH; OIL PRESSURE 8-90336-039-0 01 1 0805-1003 ●
çizim 64364
1 29 29 49 49 139 140
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.652 PUMP ASM; OIL 8-24406-585-0 01 1 0805-1003 ●
1 01.652 PUMP ASM; OIL 8-98011-503-3 01 1 0805-0905 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0906-1303 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ●
29 01.652 BOLT; OIL PUMP
(C) 		8-11084-962-0 06 1 0805-1003 ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 0805- ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 0805- ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0805-1405 ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1406- ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) 		8-97312-134-3 01 1 0805-0809 ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) 		8-98127-247-0 01 1 0810- ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) 		8-97354-753-3 01 1 0805-0809 ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) 		8-98127-248-0 01 1 0810- ●
140 01.639 GASKET; OIL STRAINER 8-12566-837-0 01 1 0805- ●
140 01.639 GASKET; OIL STRAINER 8-97356-150-0 01 1 0805- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
