◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#74684) — 19 parça

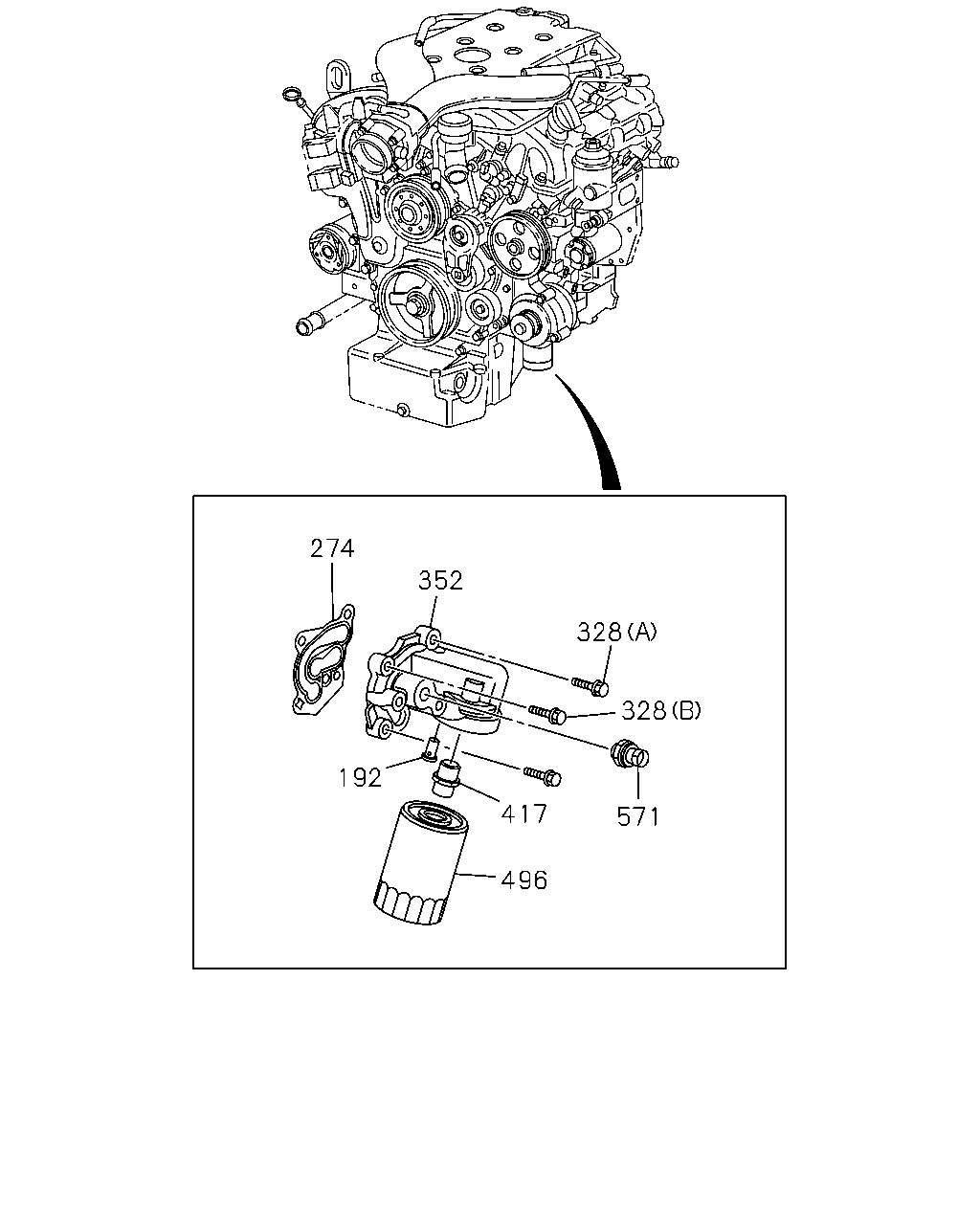

çizim 64406
274 352 328 328 192 417 571 496
BalonParca AdiParca NoAdetTipApplied Date A B C
192 01.540 VALVE; BYPASS 8-25014-612-0 01 1 0805- ●
274 01.844 GASKET; OIL FILTER 8-12591-604-0 01 1 0805- ●
328 01.840 BOLT; OIL FILTER
(A) 		8-11519-174-0 01 1 0805- ●
328 01.840 BOLT; OIL FILTER
(B) 		8-11588-726-0 03 1 0805- ●
352 01.840 ADAPTER; OIL FILTER 8-92067-267-0 01 1 0805- ●
417 01.840 CONNECTOR; OIL FILTER 8-24575-062-0 01 1 0805- ●
496 01.835 FILTER ASM; OIL 8-12587-552-0 01 1 0805- ●
571 01.800 SENSOR; OIL PRESSURE 8-12570-798-0 01 1 0805- ●

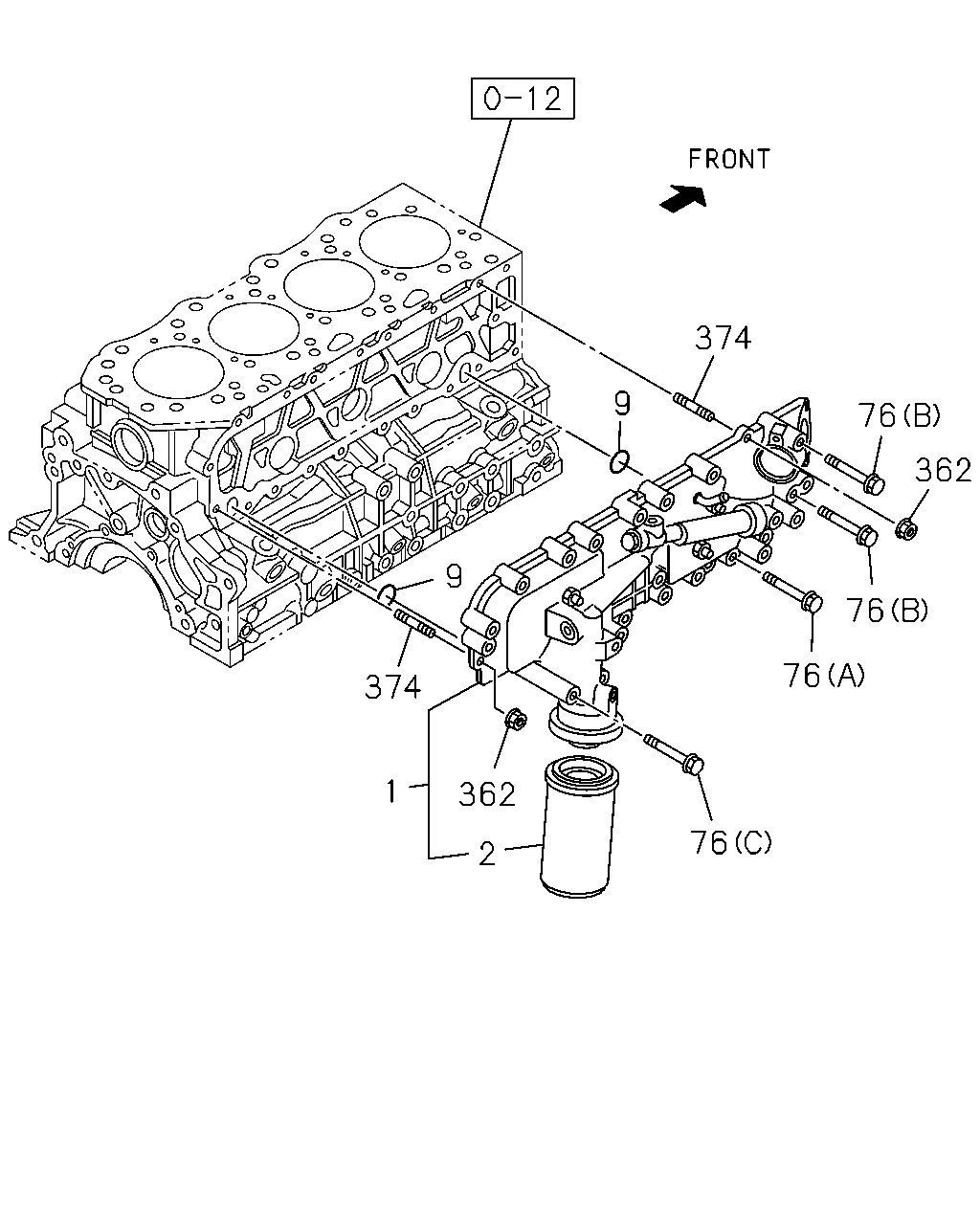

çizim 64532
374 9 76 362 1 9 76 76 374 1 362 76 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.540 FILTER & COOLER ASM; OIL 8-98011-506-4 01 1 0805- ●
2 01.836 ELEMENT; OIL FILTER 8-92142-009-0 01 1 0805-1003 ●
2 01.836 ELEMENT; OIL FILTER 8-97358-720-0 01 1 0805- ●
9 01.840 GASKET; CENTER BOLT
01.550 ID=26.2 		9-09566-226-0 02 1 0805- ●
76 01.840 BOLT; OIL FILTER
09.173 (A) M8X45 FLANGE 		0-28050-845-0 14 1 0805- ●
76 01.840 BOLT; OIL FILTER
00.206 (B) M8X70 FLANGE 		0-28050-870-0 02 1 0805- ●
76 01.840 BOLT; OIL FILTER
03.275 (C) M8X110 FLANGE 		0-28055-811-0 02 1 0805- ●
362 01.837 NUT; OIL FILTER
01.540 M8 FLANGE 		0-91180-208-0 02 1 0805- ●
374 01.840 STUD; OIL FILTER
02.510 M8X20 L=32 		0-41010-820-0 02 1 0805- ●

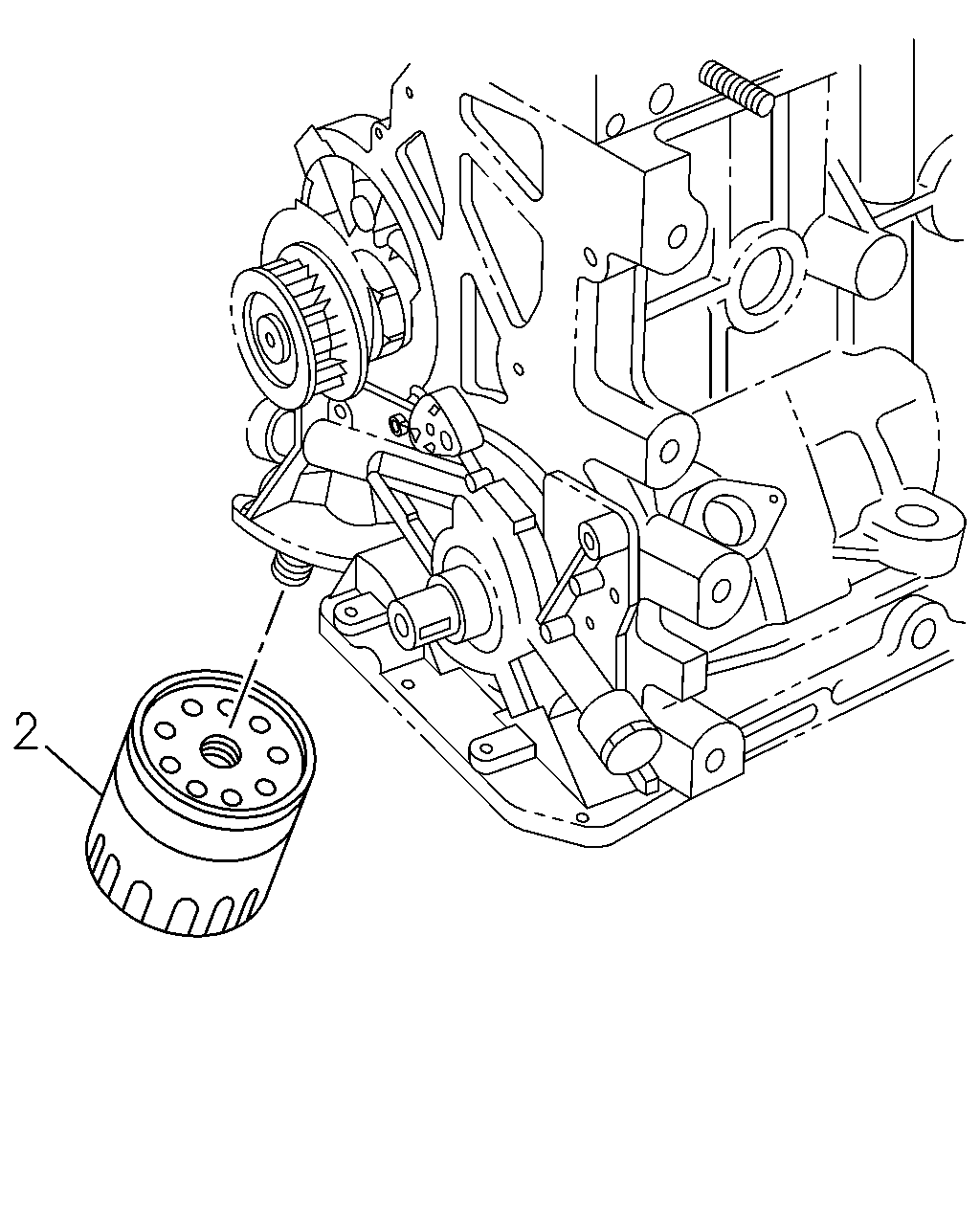

çizim 185827
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 01.836 ELEMENT; OIL FILTER 8-92142-009-0 01 1 0805-1003 ●
2 01.836 ELEMENT; OIL FILTER 8-97358-720-0 01 1 0805- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
