◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#74676) — 45 parça

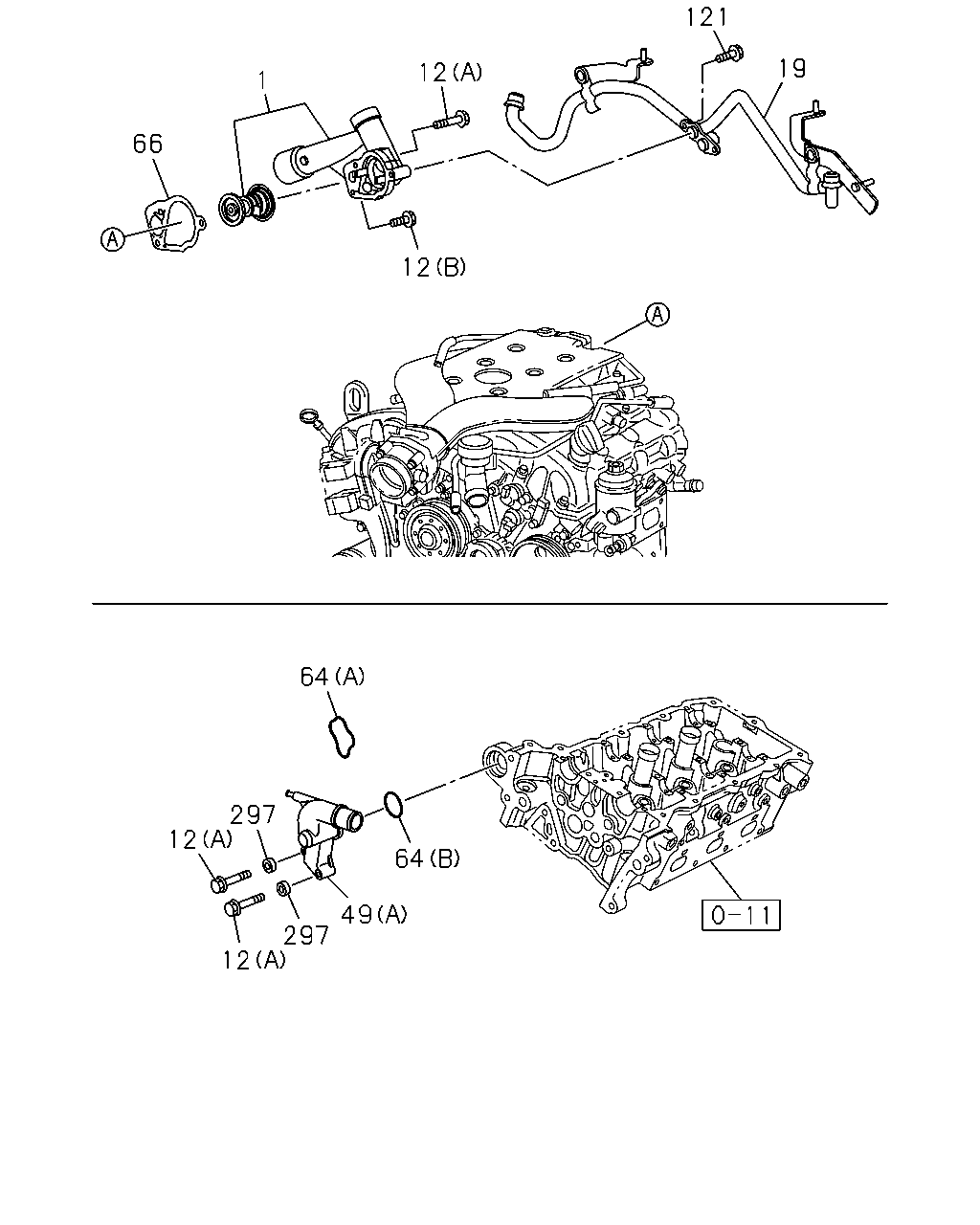

çizim 41859
121 19 12 1 66 12 64 297 2 64 49 297 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.246 THERMOSTAT 8-92068-018-0 01 1 0805- ●
1 01.246 THERMOSTAT
92 CELSIUS 		8-92067-821-0 01 1 0805-1003 ●
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-1 01 1 0805- ●
2 01.251 HOUSING; THERMOSTAT 8-92060-793-0 01 1 0805-1003 ●
12 01.252 BOLT; HSG
(A) 		8-11519-972-0 04 1 0805- ●
12 01.252 BOLT; HSG
(B) 		8-11519-973-0 01 1 0805- ●
12 01.252 BOLT; HSG
(C) 		8-11013-351-0 03 1 0805-1003 ●
19 01.252 PIPE; HSG TO HTR 8-92067-709-0 01 1 0805- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-92067-827-0 01 1 0805- ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97355-456-7 01 1 0805-0809 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-98120-945-0 01 1 0810- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
(A) 		8-12566-429-0 01 1 0805- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
(B) 		8-12584-040-0 01 1 0805- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 0809- ●
66 01.252 GASKET; THERMOSTAT HSG 8-12592-527-0 01 1 0805- ●
66 01.252 GASKET; THERMOSTAT HSG 8-90220-436-0 01 1 0805-1003 ●
121 08.900 BOLT; HTR PIPE
04.197 M6X20 FLANGE 		8-11588-712-0 02 1 0805- ●
297 01.251 RETAINER; HOUSING 8-11518-792-0 02 1 0805- ●

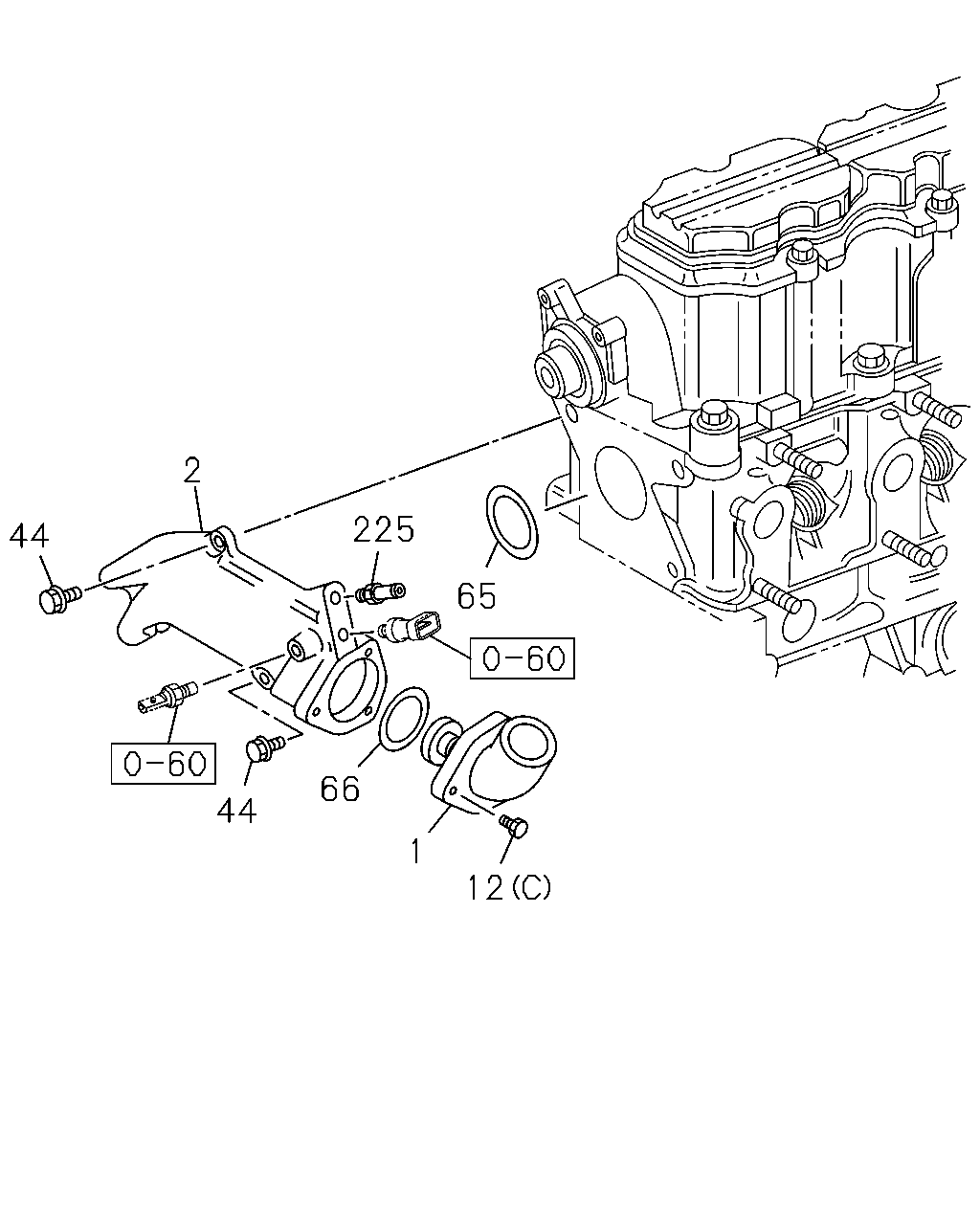

çizim 43391
2 225 44 65 66 44 1 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.246 THERMOSTAT 8-92068-018-0 01 1 0805- ●
1 01.246 THERMOSTAT
92 CELSIUS 		8-92067-821-0 01 1 0805-1003 ●
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-1 01 1 0805- ●
2 01.251 HOUSING; THERMOSTAT 8-92060-793-0 01 1 0805-1003 ●
12 01.252 BOLT; HSG
(A) 		8-11519-972-0 04 1 0805- ●
12 01.252 BOLT; HSG
(B) 		8-11519-973-0 01 1 0805- ●
12 01.252 BOLT; HSG
(C) 		8-11013-351-0 03 1 0805-1003 ●
44 01.252 BOLT; HSG TO HD 8-11042-897-0 02 1 0805-1003 ●
65 01.252 GASKET; HSG TO HD 8-90118-437-0 01 1 0805-1003 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 0809- ●
66 01.252 GASKET; THERMOSTAT HSG 8-12592-527-0 01 1 0805- ●
66 01.252 GASKET; THERMOSTAT HSG 8-90220-436-0 01 1 0805-1003 ●
225 01.153 CONNECTOR; BYPASS HSG 8-90284-423-0 01 1 0805-1003 ●

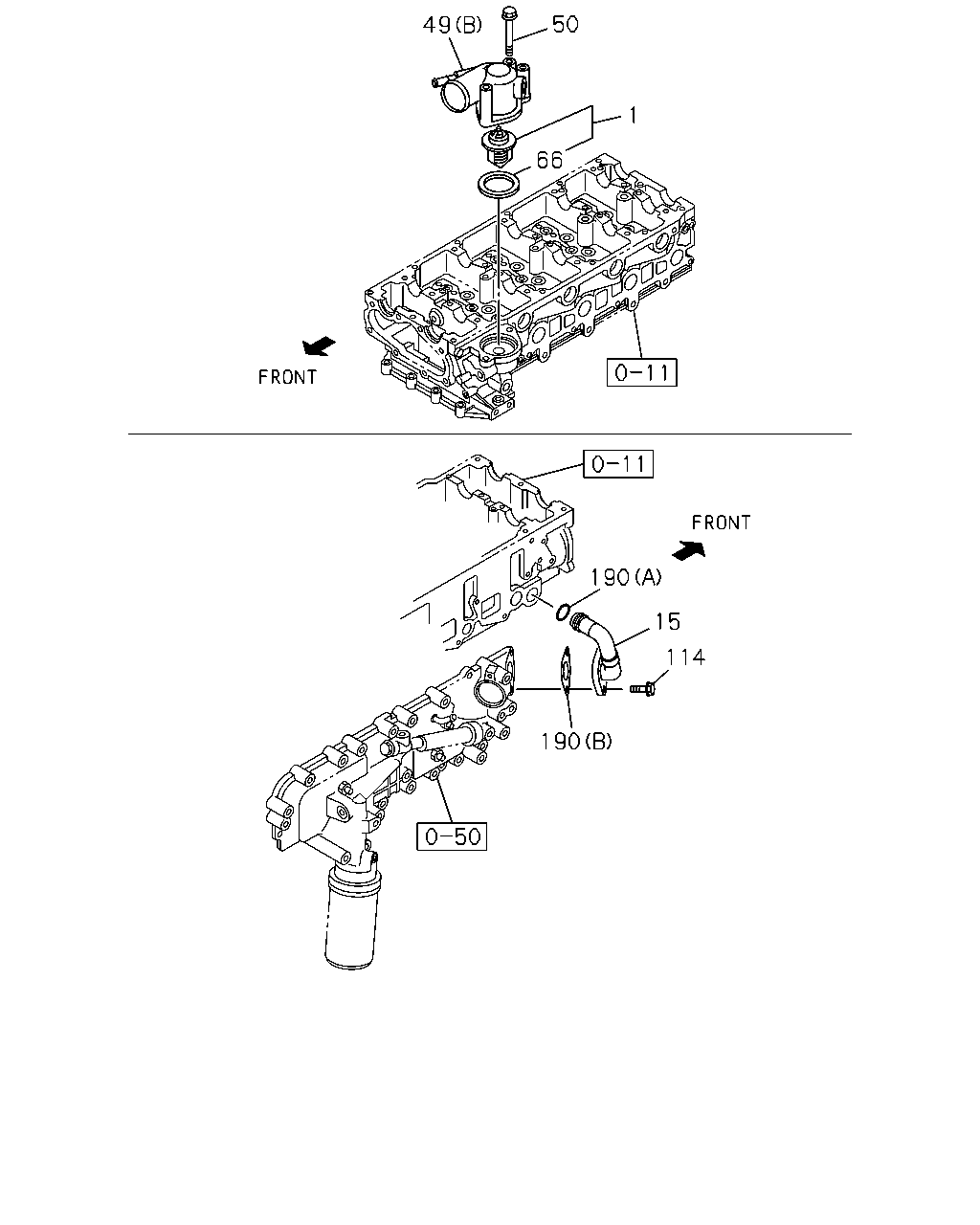

çizim 185819
50 49 1 66 190 15 114 1 190
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.246 THERMOSTAT 8-92068-018-0 01 1 0805- ●
1 01.246 THERMOSTAT
92 CELSIUS 		8-92067-821-0 01 1 0805-1003 ●
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-1 01 1 0805- ●
15 01.251 PIPE; BYPASS 8-97318-732-2 01 1 0805- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-92067-827-0 01 1 0805- ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97355-456-7 01 1 0805-0809 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-98120-945-0 01 1 0810- ●
50 01.252 BOLT; OUTLET PIPE
M8X80 FLANGE 		0-28050-880-0 02 1 0805- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 0809- ●
66 01.252 GASKET; THERMOSTAT HSG 8-12592-527-0 01 1 0805- ●
66 01.252 GASKET; THERMOSTAT HSG 8-90220-436-0 01 1 0805-1003 ●
114 01.097 BOLT; BYPASS PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0805- ●
190 01.159 GASKET; BYPASS PIPE
(A) 		0-95690-226-0 01 1 0805- ●
190 01.159 GASKET; BYPASS PIPE
(B) 		8-97318-494-2 01 1 0805- ●
