0-25 — INLET MANIFOLD (#74672) — 51 parça

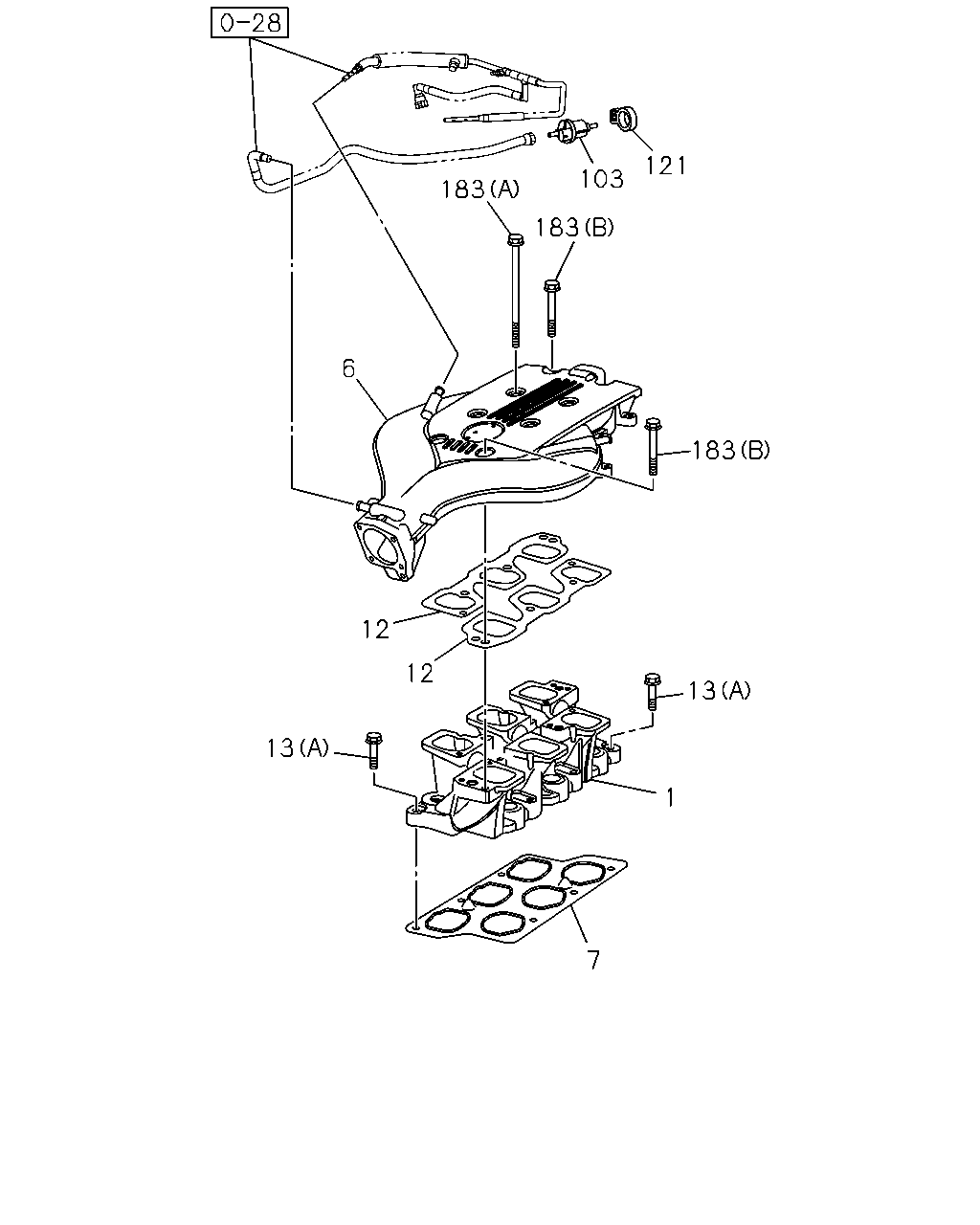

çizim 39826
121 103 183 183 6 183 12 12 13 13 1 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.265 MANIFOLD; INL 8-12579-780-0 01 1 0805- ●
1 03.265 MANIFOLD; INL 8-92066-733-0 01 1 0805-1003 ●
1 03.265 MANIFOLD; INL 8-98011-521-0 01 1 0805- ●
6 03.265 MANIFOLD; INL,UPR 8-92068-425-0 01 1 0805- ●
7 03.270 GASKET; INL MANIF TO HD 8-12603-028-0 01 1 0805- ●
7 03.270 GASKET; INL MANIF TO HD 8-92060-514-0 01 1 0805-1003 ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-1 01 1 0805- ●
12 03.270 GASKET; INL MANIF,UPR TO LWR 8-12565-878-0 02 1 0805- ●
13 03.275 BOLT; INL MANIF
(A) 		8-11519-170-0 02 1 0805- ●
13 03.275 BOLT; INL MANIF
(B) M8X110 FLANGE 		0-28055-811-0 02 1 0805- ●
13 03.275 BOLT; INL MANIF
(C) M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0805- ●
103 03.415 VALVE; INT AIR CONT 8-12587-093-0 01 1 0805- ●
121 03.682 BRACKET 8-92067-015-0 01 1 0805- ●
183 03.265 BOLT; INL MANIF,UPR
(A) 		8-11518-906-0 04 1 0805- ●
183 03.265 BOLT; INL MANIF,UPR
(B) 		8-11519-175-0 02 1 0805- ●

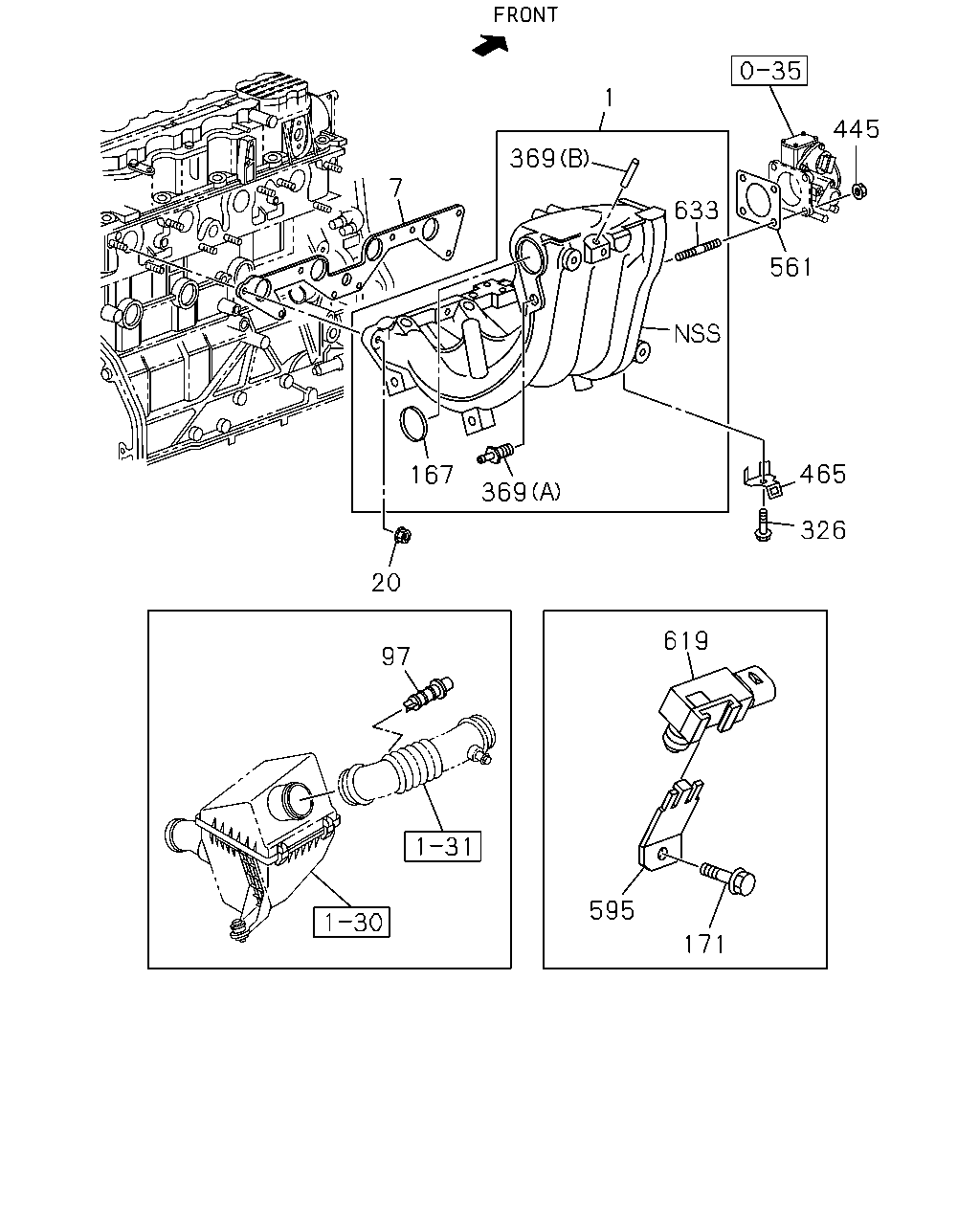

çizim 39839
1 445 369 7 633 561 465 167 369 326 20 619 97 595 171
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.265 MANIFOLD; INL 8-12579-780-0 01 1 0805- ●
1 03.265 MANIFOLD; INL 8-92066-733-0 01 1 0805-1003 ●
1 03.265 MANIFOLD; INL 8-98011-521-0 01 1 0805- ●
7 03.270 GASKET; INL MANIF TO HD 8-12603-028-0 01 1 0805- ●
7 03.270 GASKET; INL MANIF TO HD 8-92060-514-0 01 1 0805-1003 ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-1 01 1 0805- ●
20 03.275 NUT; INL MANIF
03.604 		8-11082-413-0 09 1 0805-1003 ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0805- ●
97 03.682 SENSOR; INTAKE,AIR TEMPERATURE 8-12160-244-0 01 1 0805-1003 ●
167 03.265 PLUG; INL MANIF 8-92066-322-0 01 1 0805-1003 ●
171 02.559 BOLT; BRKT
02.510 		8-11093-971-0 01 1 0805-1003 ●
326 02.559 BOLT; CLIP,HARNESS
02.510 		8-11093-971-0 01 1 0805-1003 ●
369 02.559 CONNECTOR; BOOST SWITCH
(B) 		8-92065-407-0 01 1 0805-1003 ●
369 02.559 CONNECTOR; BOOST SWITCH
(A) 		8-92066-317-0 01 1 0805-1003 ●
445 03.275 NUT; THROTTLE BODY TO MANIF
02.042 M6 		8-11094-425-0 04 1 0805-1003 ●
465 02.559 CLIP; HARNESS,INL MANIF 8-92065-417-0 01 1 0805-1003 ●
561 03.724 GASKET; TB 8-92060-513-0 01 1 0805-1003 ●
595 02.559 BRACKET; MAP SENSOR 8-92065-524-0 01 1 0805-1003 ●
619 01.150 SENSOR; MAP
03.320 		8-16212-460-0 01 1 0805-1003 ●
633 03.275 STUD; THROTTLE BODY 8-11075-291-0 04 1 0805-1003 ●

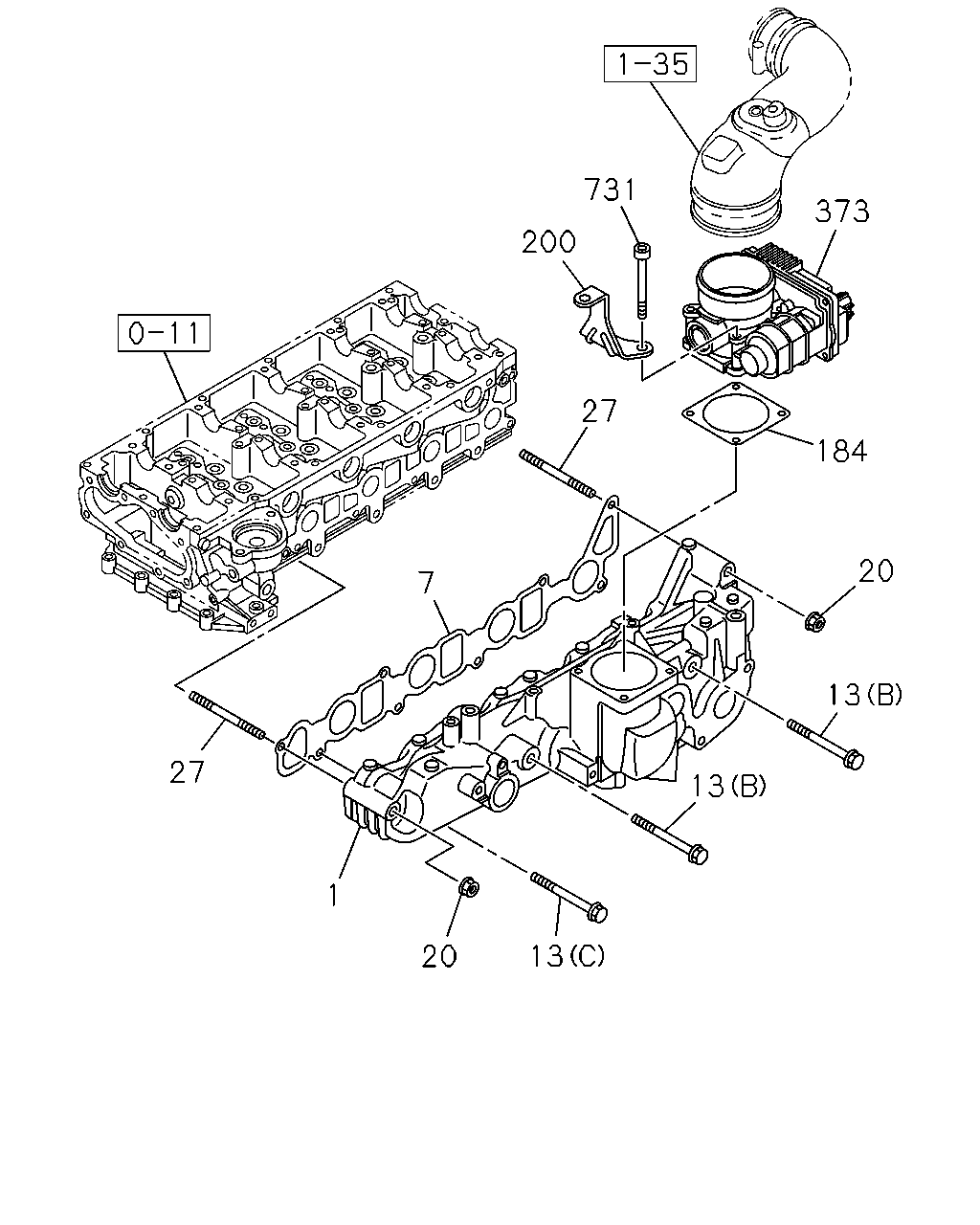

çizim 185817
731 373 200 27 184 20 7 13 27 13 1 13 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.265 MANIFOLD; INL 8-12579-780-0 01 1 0805- ●
1 03.265 MANIFOLD; INL 8-92066-733-0 01 1 0805-1003 ●
1 03.265 MANIFOLD; INL 8-98011-521-0 01 1 0805- ●
7 03.270 GASKET; INL MANIF TO HD 8-12603-028-0 01 1 0805- ●
7 03.270 GASKET; INL MANIF TO HD 8-92060-514-0 01 1 0805-1003 ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-1 01 1 0805- ●
13 03.275 BOLT; INL MANIF
(A) 		8-11519-170-0 02 1 0805- ●
13 03.275 BOLT; INL MANIF
(B) M8X110 FLANGE 		0-28055-811-0 02 1 0805- ●
13 03.275 BOLT; INL MANIF
(C) M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0805- ●
20 03.275 NUT; INL MANIF
03.604 		8-11082-413-0 09 1 0805-1003 ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0805- ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0805- ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 0805- ●
200 03.407 BRACKET; AIR DUCT 8-98031-444-0 01 1 0805- ●
373 03.265 THROTTLE ASM; INT 8-97945-522-4 01 1 0805- ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0805- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
